CT 60L Fashion Portable 6 Channel USB Interface Live Mini Home Party DJ Control Surface Audio Stereo Mixer

Product Overview

Description

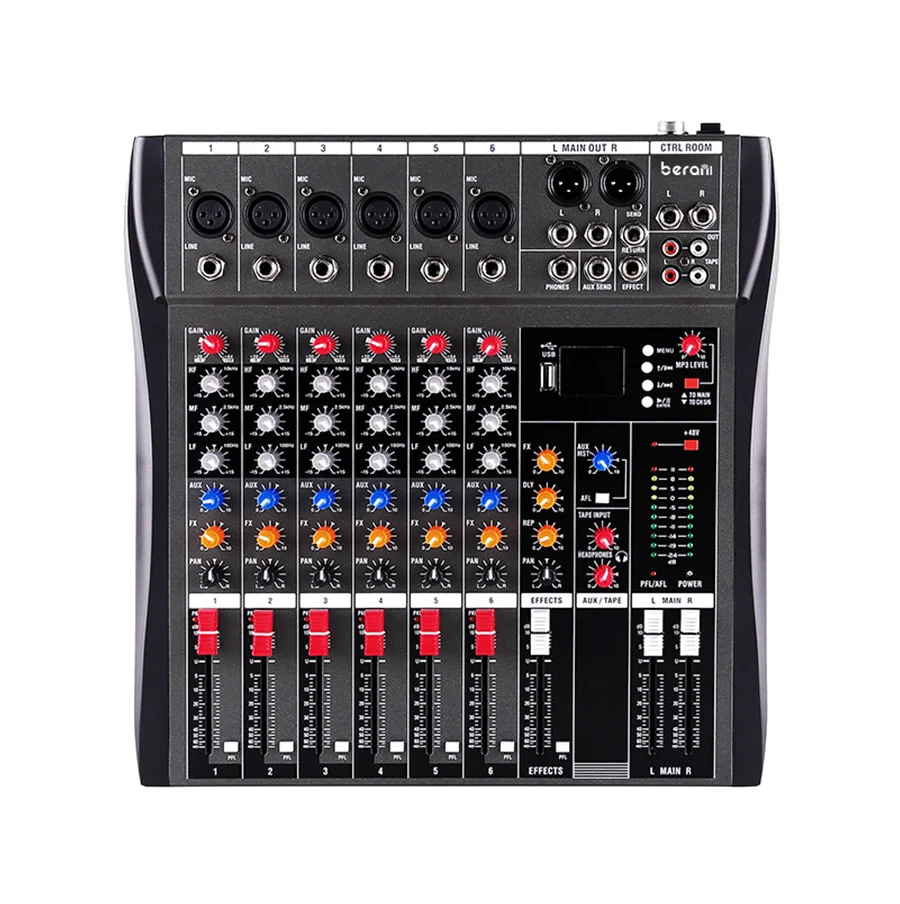

CT-60L Fashion Portable 6 Channel USB Interface Live Mini Home Party DJ Control Surface Audio Stereo Mixer

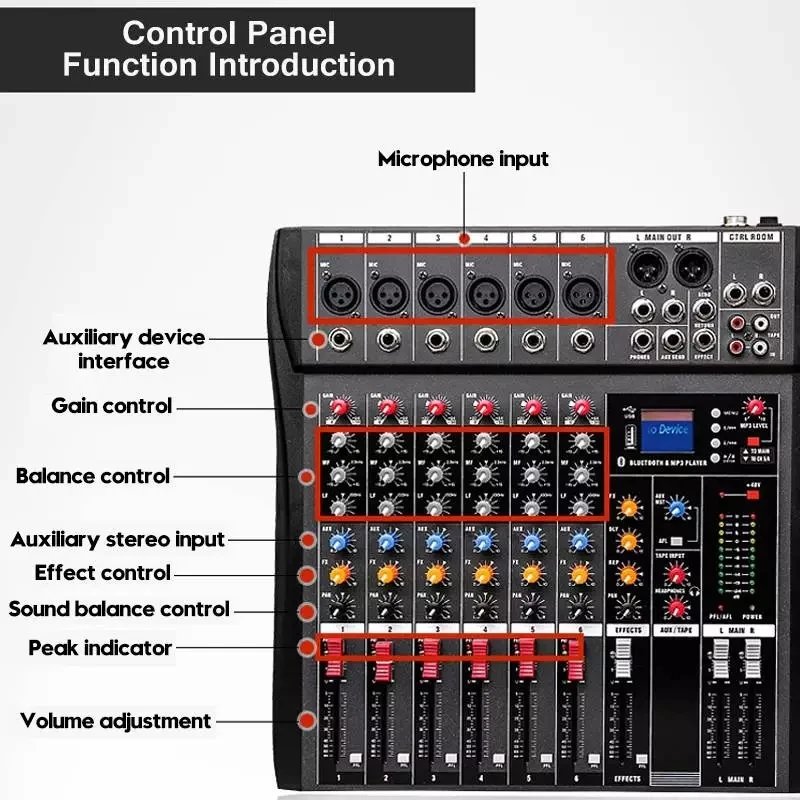

• 6 mic / 6 line inputs (6 mono)


• Each channel has 3 EQ equilibrium (high frequency, medium frequency and low frequency)


• Each channel has independent effect level control and reverberation contour adjustment


• Each circuit has independent phase control


• Each channel is equipped with pre listening PFL (audition) button


• 60mm smooth pusher


• The device can process the signal through the send external effector, return it, and then mix it with the bus signal


• Built in USB audio player and controller


• Independent stereo recording function and independent volume adjustment

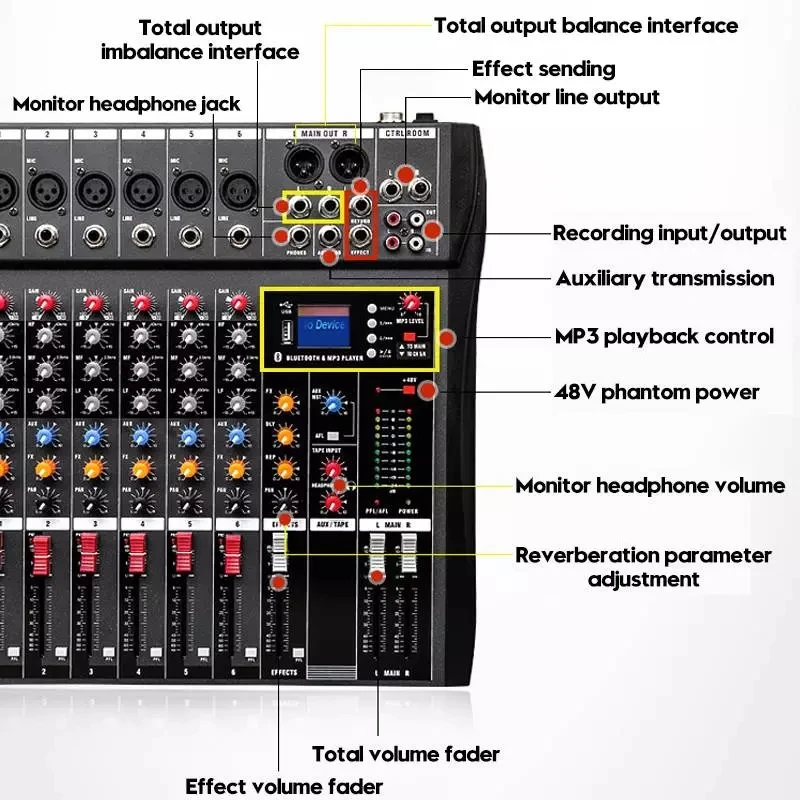

• XLR and 6.3mm stereo output


• Monitor headphone input and volume control function


• The bus has left and right channel volume pusher control respectively


• Total effect return control button





Specifications:

Model:CT-60L
Maximum input level of the microphone:	+24dBu
Maximum output level:	XLR card + 26dBu
Main level meter:	10-segment LED, -24dB to CLIP
Frequency response:	20Hz-30Khz±0.5dB
Maximum power input power:	15W
Total chopping distortion (RHD+N):	Total chopping distortion (RHD+N): <0.01% Low Cut, Limiter, Sensitivity(0dB or 4dB)
Crosstalk (1kHz):	fader off >85dB channel >82dB
Noise (22Hz-22KHz):	Equivalent input noise -122dBu Remaining output noise <-90dBu
Mono/stereo channel EQ:	high frequency +/-15dB, 12KHz low frequency +/-15dB, 80KHz high IF +/-15dB, 2.5KHz
2-track return:	RCA l otus seat, unbalanced, 4K ohm, -2dBu
2-track transmission:	RCA l otus seat, unbalanced, <75 ohm, -2dBu
L/R output:	XLR, balanced, tip hot end, <75 ohm, +4dBu, max +22dBu
FX/AUX output:	TRS, unbalanced, tip hot end, <75 ohm, -2dBu, max +18dBu
Headphones:	TRS, Tip L, Ring R, Recommended 30 to 600 ohm headphones
