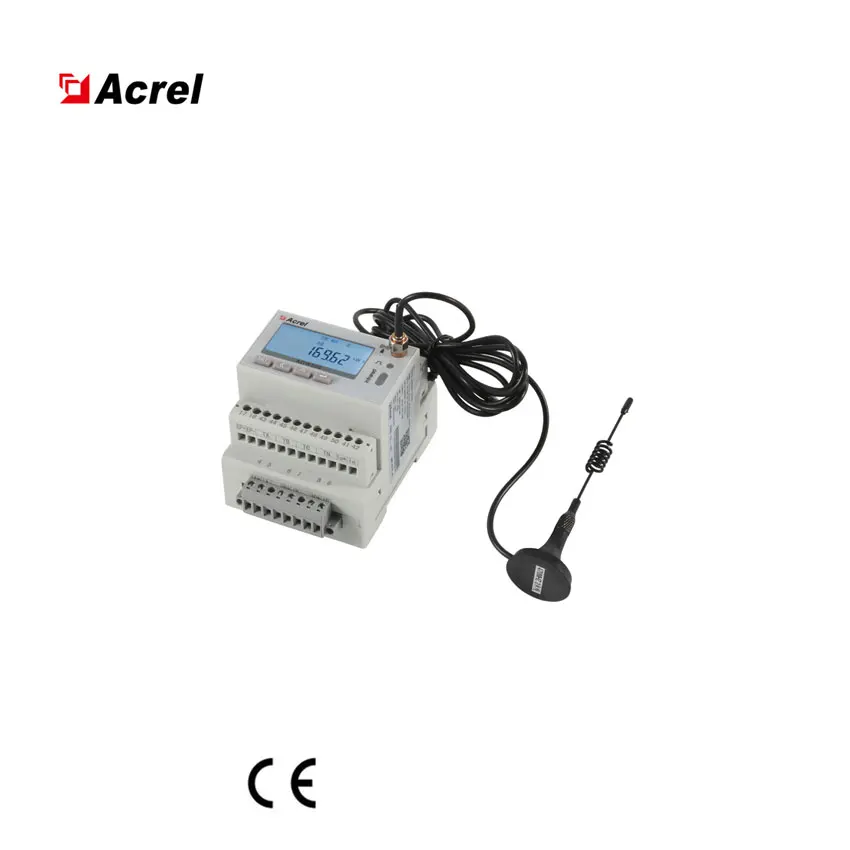

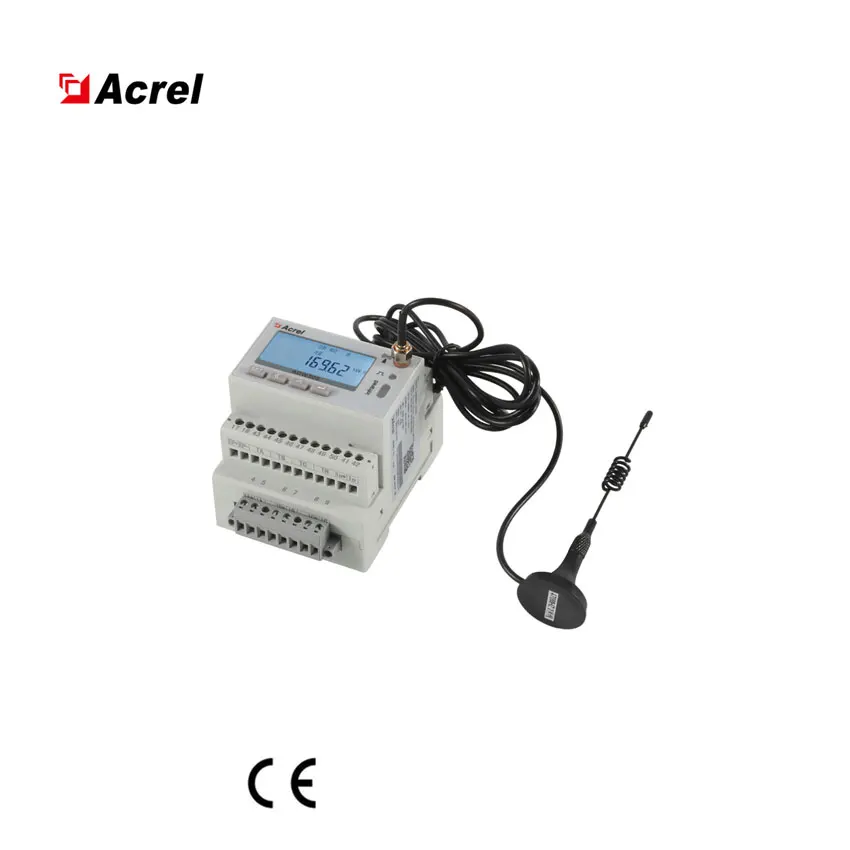

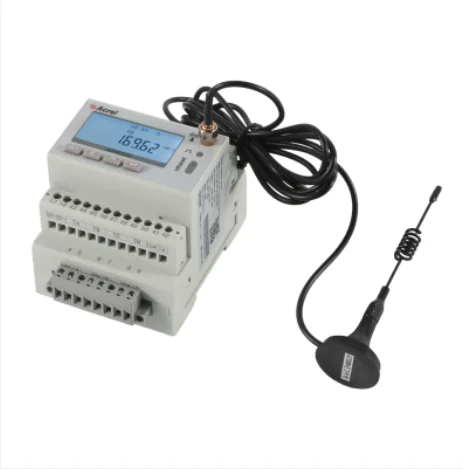

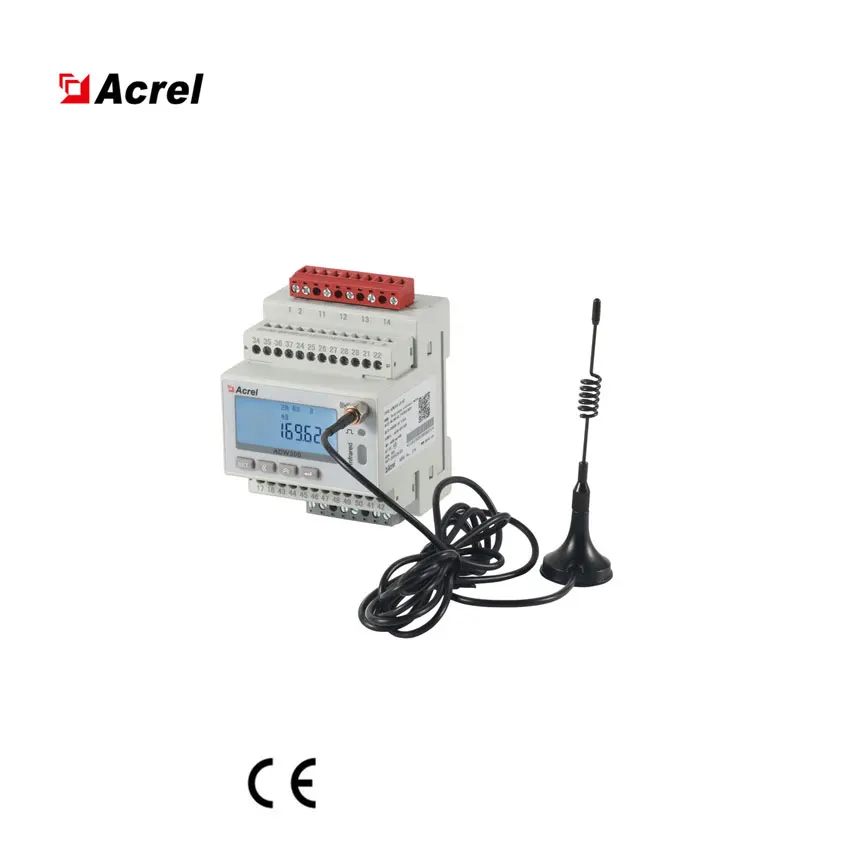

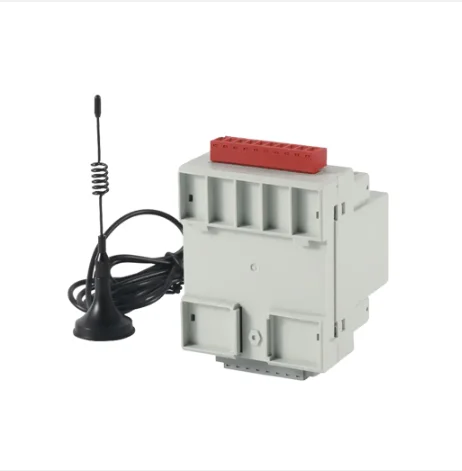

Acrel ADW300/C IOT Wireless Power Meter Three Phase Din Rail Energy Meter RS485 Wifi/4G/LORA Optional
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600948757436):
Product Overview
Description
Products Description

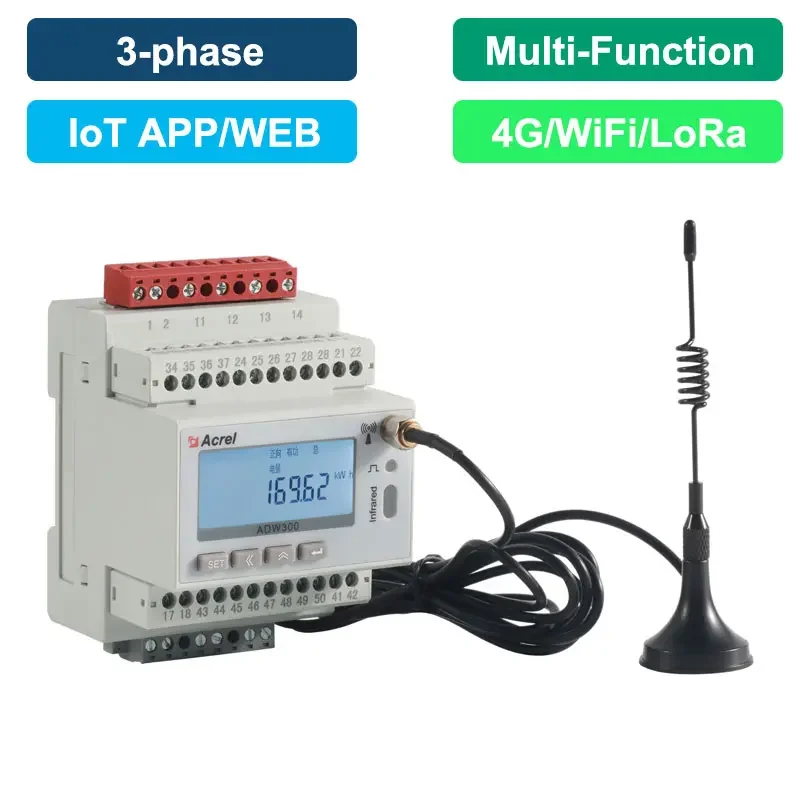

ADW300 IoT Wireless Smart Energy Meter
ADW300 IoT Wireless Smart Energy Meter is new designed loT Wireless Mult-function Smart Energy Meter,it usually used in 660V low voltage system to measure current,voltage,power consumption,energy and any other electric parameters.It is designed for reconstruction project,The Three-phase DIN Rail Energy Meter can monitor one channel three phase,have built-in wireless
communication like wifi,4G,lora and so on.The iot based wireless energy meter can upload data to Acrel IoT EMS Cloud Platform
directly,you can see data online or by mobile app.At the same time,you don't need to configure it ,just download the mobile app
then scan the QR mode on energy meter,then all data will be uploaded to the platform.
communication like wifi,4G,lora and so on.The iot based wireless energy meter can upload data to Acrel IoT EMS Cloud Platform
directly,you can see data online or by mobile app.At the same time,you don't need to configure it ,just download the mobile app
then scan the QR mode on energy meter,then all data will be uploaded to the platform.
● Communication Methods: 4G LTE, WiFi, LoRa, LoRaWAN, NB-IoT, RS485
● Communication Protocol: MQTT, MODBUS-RTU, MODBUS-TCP
● Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.
● Application Scenario: Building, Factory, Smart Grids, DB Room and etc
● Rated Voltage: Up to 3x660~792Vac L-L
● Rated Current: 3x1(6)A AC (via CTs)
● HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc
● Standard&Certificate: CE; IEC; LVD
● Communication Protocol: MQTT, MODBUS-RTU, MODBUS-TCP
● Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.
● Application Scenario: Building, Factory, Smart Grids, DB Room and etc
● Rated Voltage: Up to 3x660~792Vac L-L
● Rated Current: 3x1(6)A AC (via CTs)
● HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc
● Standard&Certificate: CE; IEC; LVD

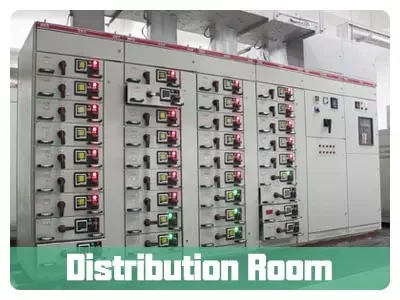

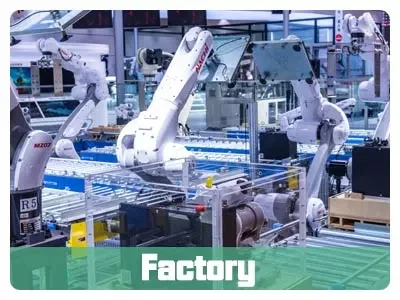

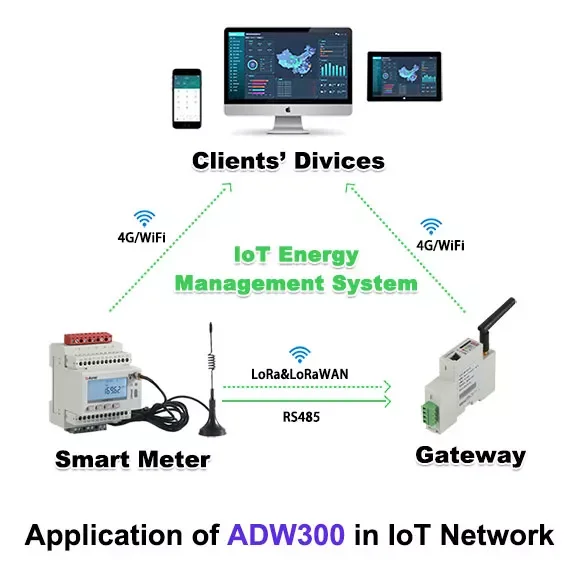

Application Sceanrio

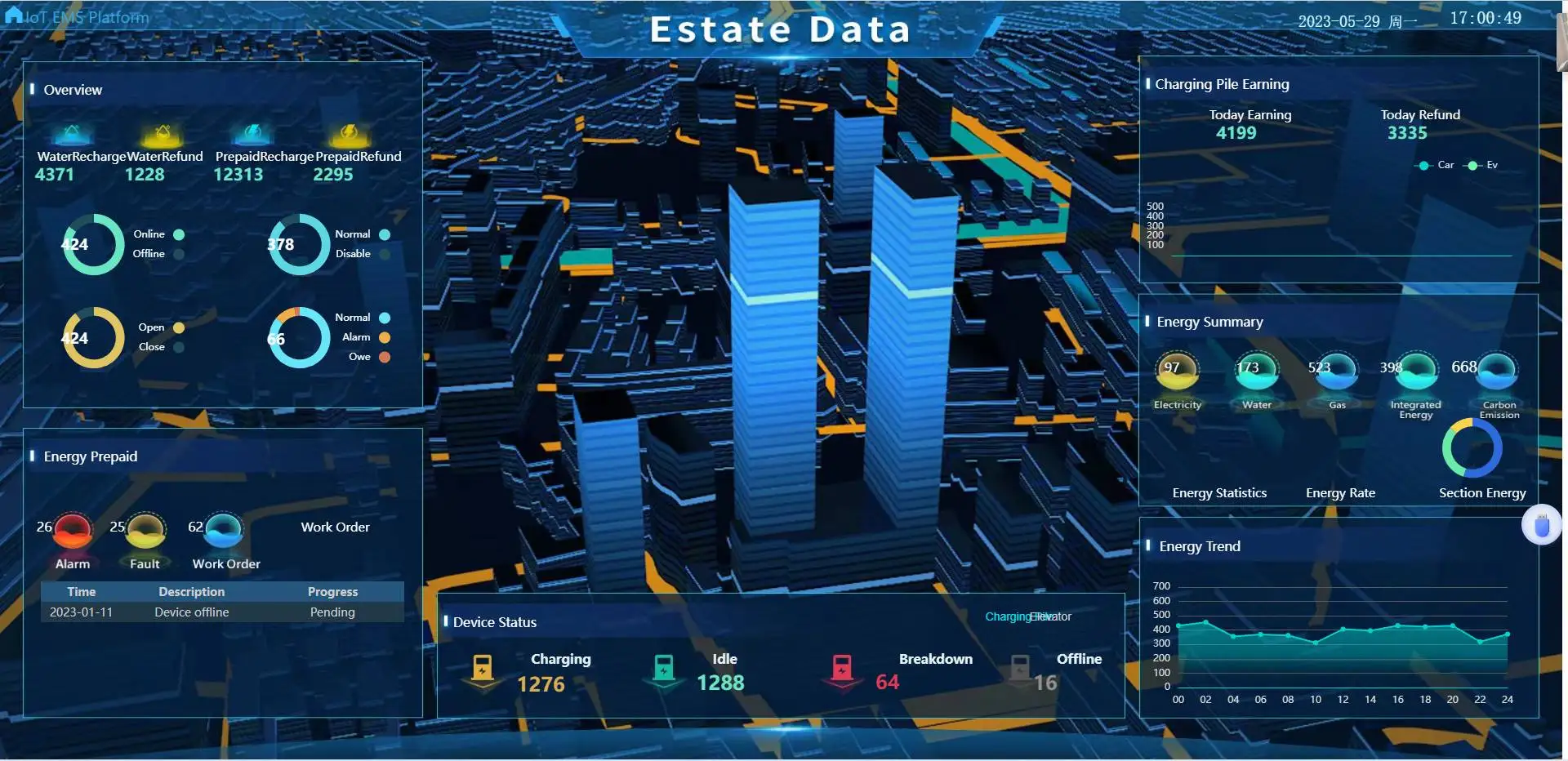

Acrel IOT Cloud Platform Demo:https://iot.acrel-eem.com/
Admin:acrel Pawword:123456
By install acrel energy meter or any other devices,can got different data by different devicesThrough the analysis and comparison of data, energy management solutions are obtained, so as to solve energy management problems under different needs.
Acrel IOT Cloud Platform support API forward to the third party platform or provide standard MQTT to support.

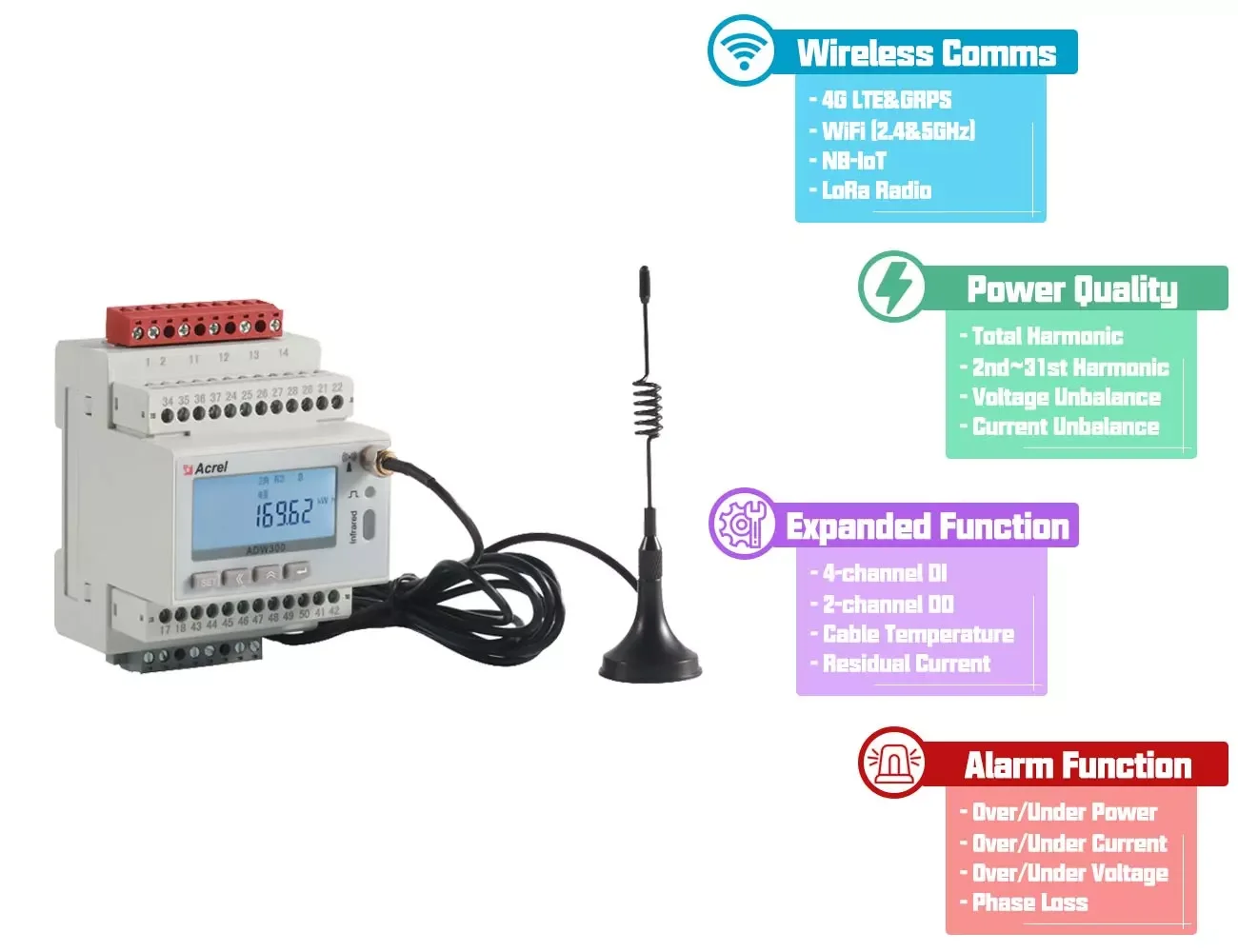

Features
Multiple Communication Methods
● NB-IoT
● WiFi (2.4GHz&5GHz)
● LoRa
● RS485 (MODBUS-RTU)
● Paired with IoT Energy Monitoring System
● 4G LTE
● NB-IoT
● WiFi (2.4GHz&5GHz)
● LoRa
● RS485 (MODBUS-RTU)
● Paired with IoT Energy Monitoring System

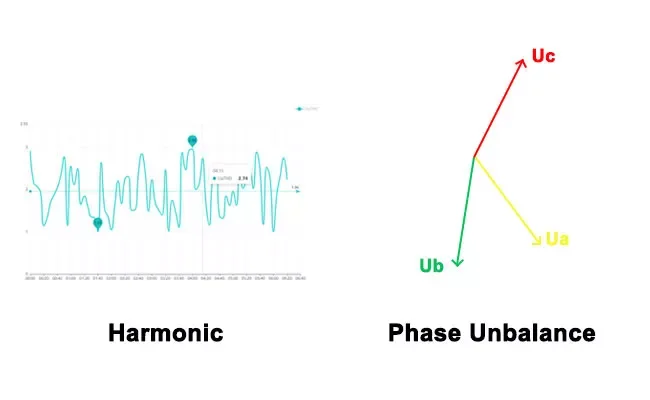

Power Quality Analysis
● Total Harmonic● 2nd~31st Harmonic
● Voltage Unbalance
● Current Unbalance

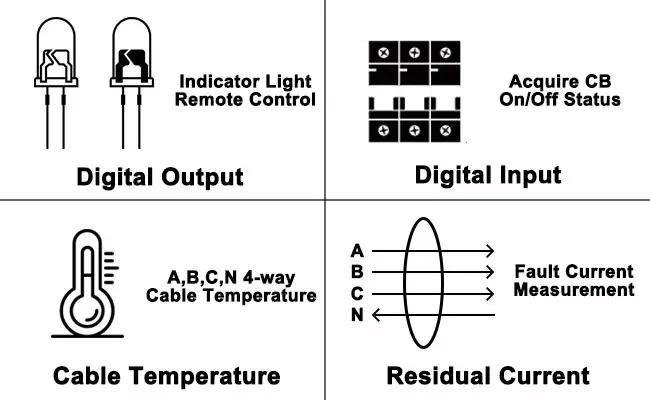

Expanded Function
● 4-channel DI (Digital Input)
● 4-channel Cable Temperature Monitoring
● 1-channel Residual Current Measurement

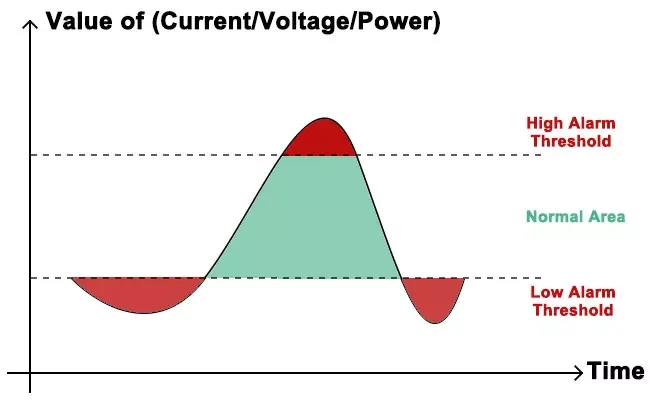

Alarm Function
● Over/Under Voltage
● Over/Under Power
● Phase Loss

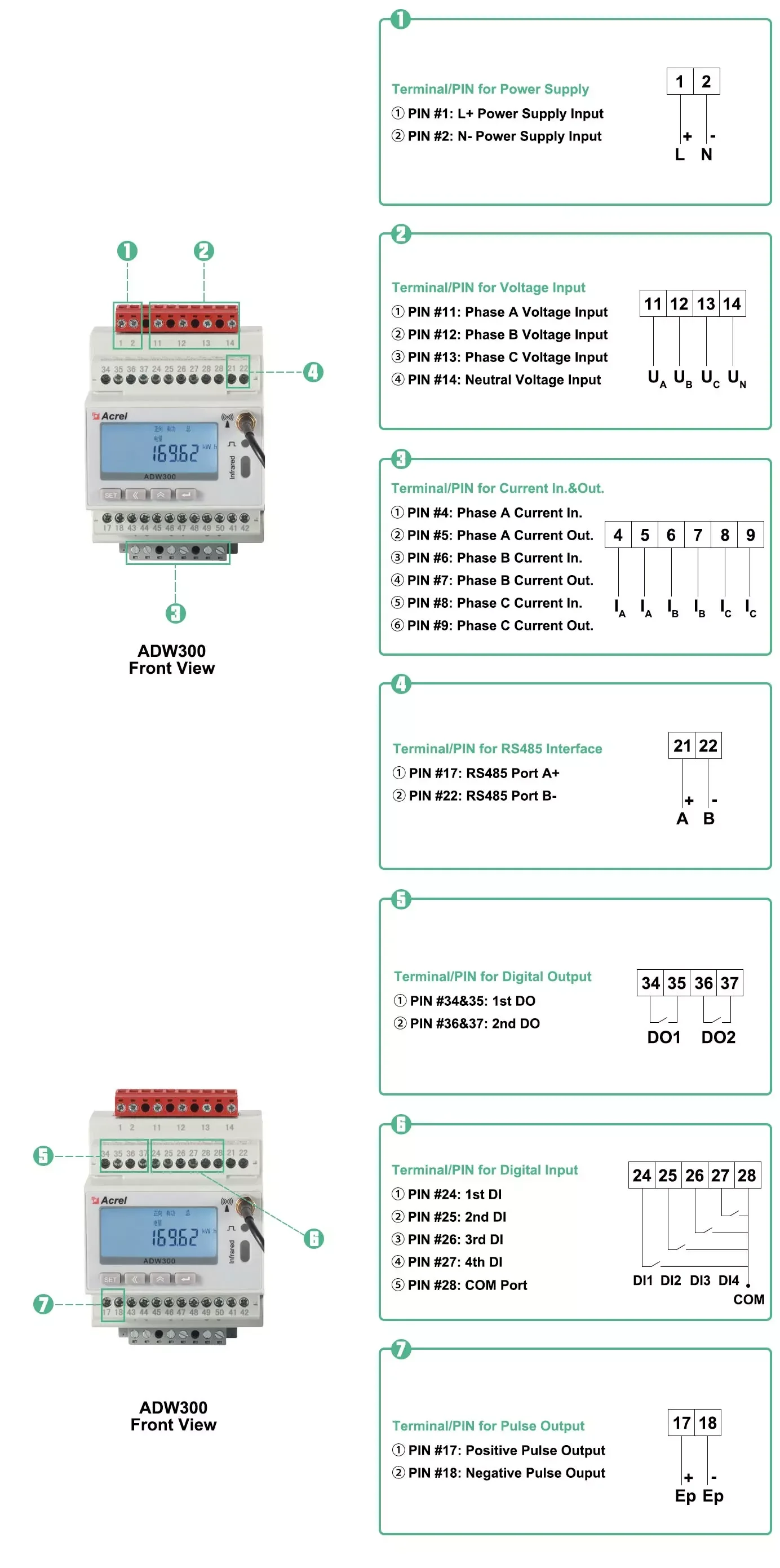

Wiring Illustration

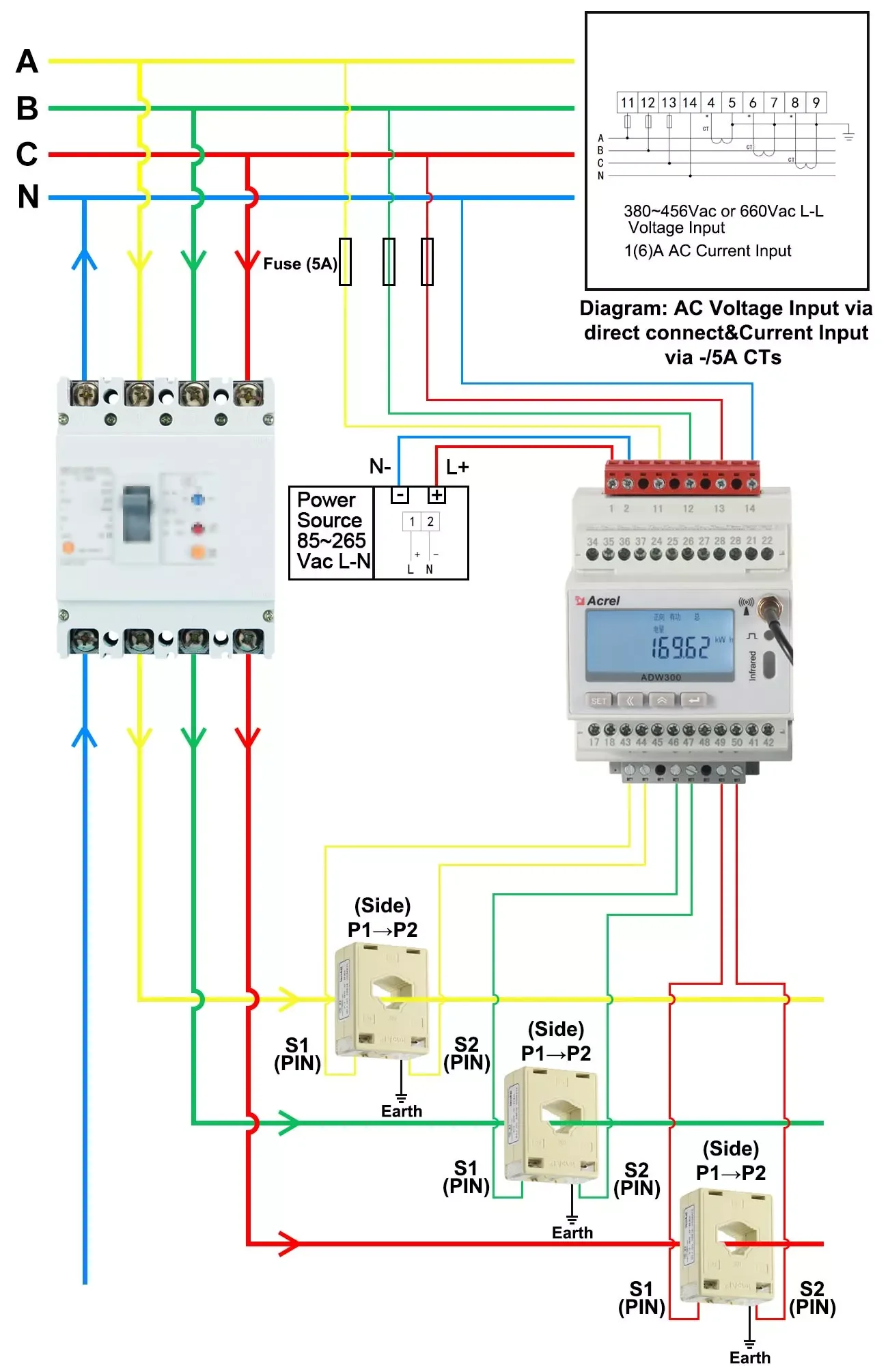

3-phase 4-wire CT operated

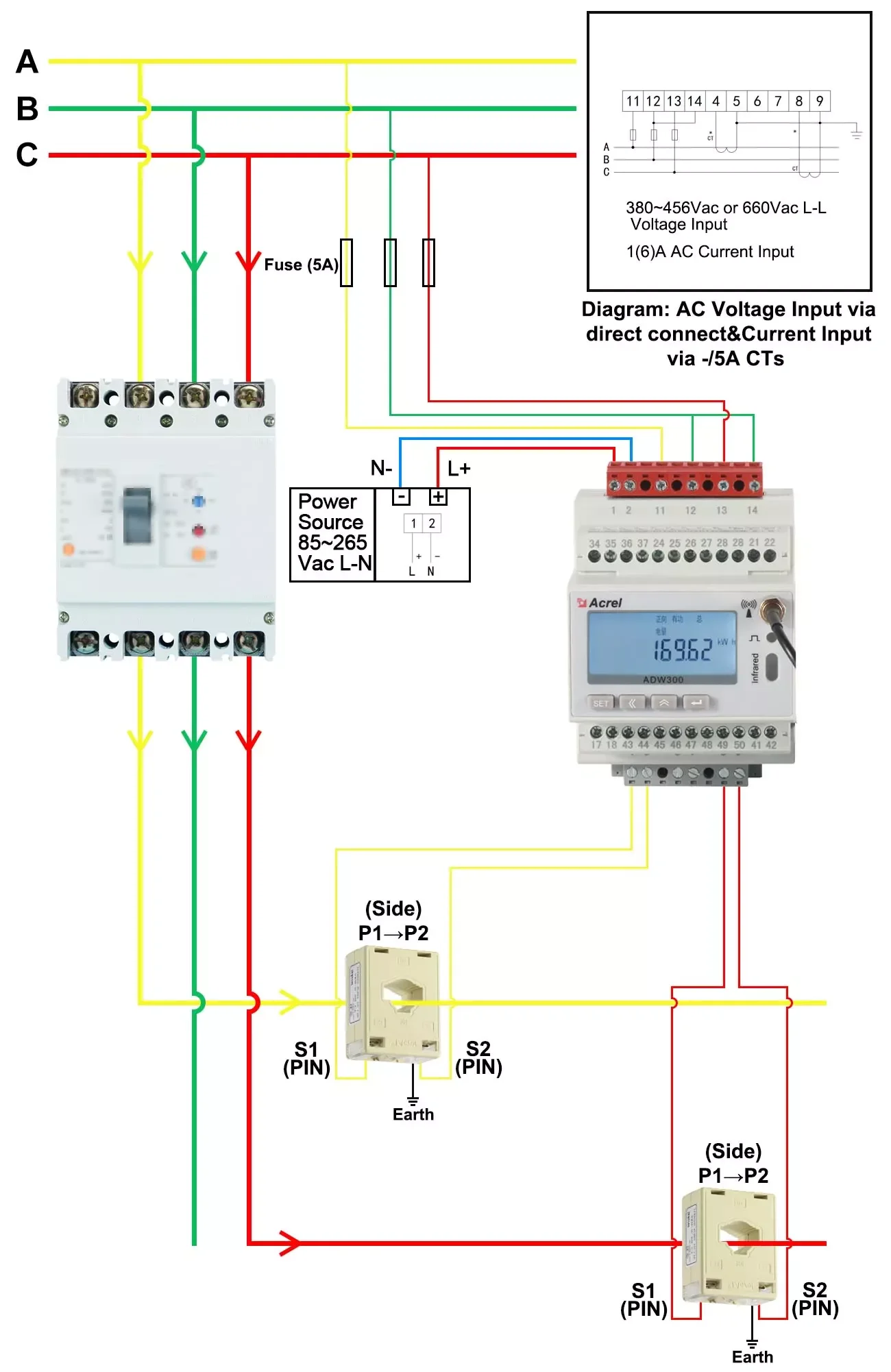

3-phase 3-wire CT operated

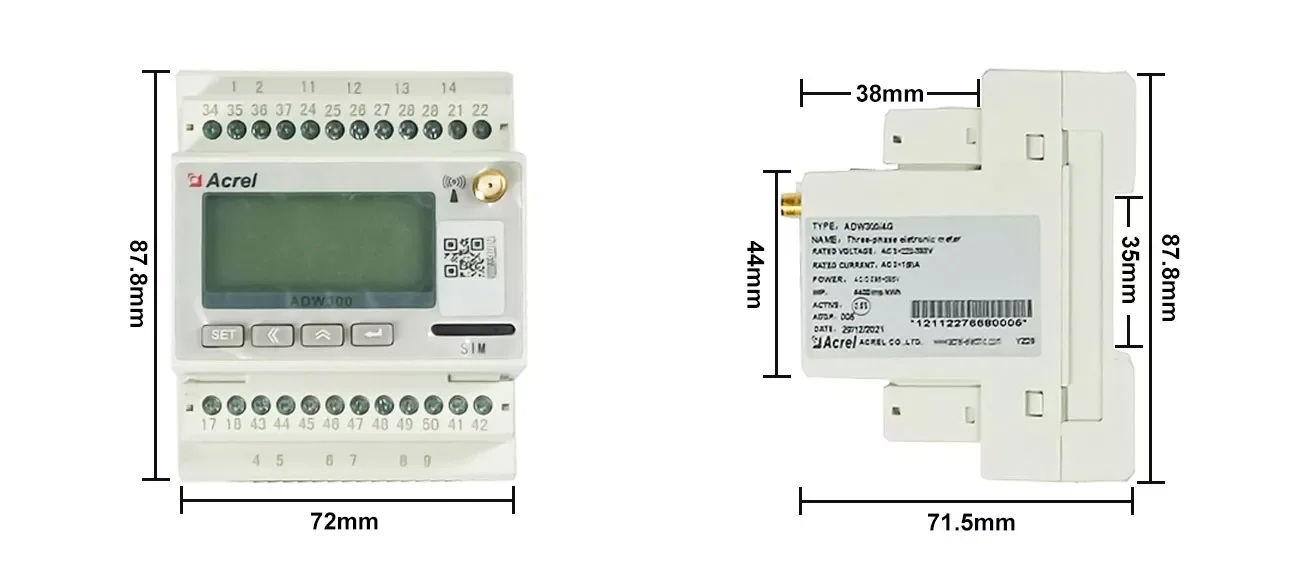

Dimension
Packing Dimension and Weight (Minimum) | Minimum Package Contain 1 pcs Products Dimension: 170mm*150mm*130mm | Total N.W. (1 pcs) 0.233 KG | |
Packing Dimension and Weight (Large) | Large Package Contain 36 pcs Products Dimension: 540mm*530mm*490mm | Total N.W. (48 pcs) 10 KG | |
Average Lead Time | Manufacturing: 3~4 days (If paired with system need extra 1~2 days for adjustment) | Shippment: 8~9 days (World Wide Shipment) | |
Product HS Code | 9028301400 | ||
CO Country of Origin | China | ||
Company Profile

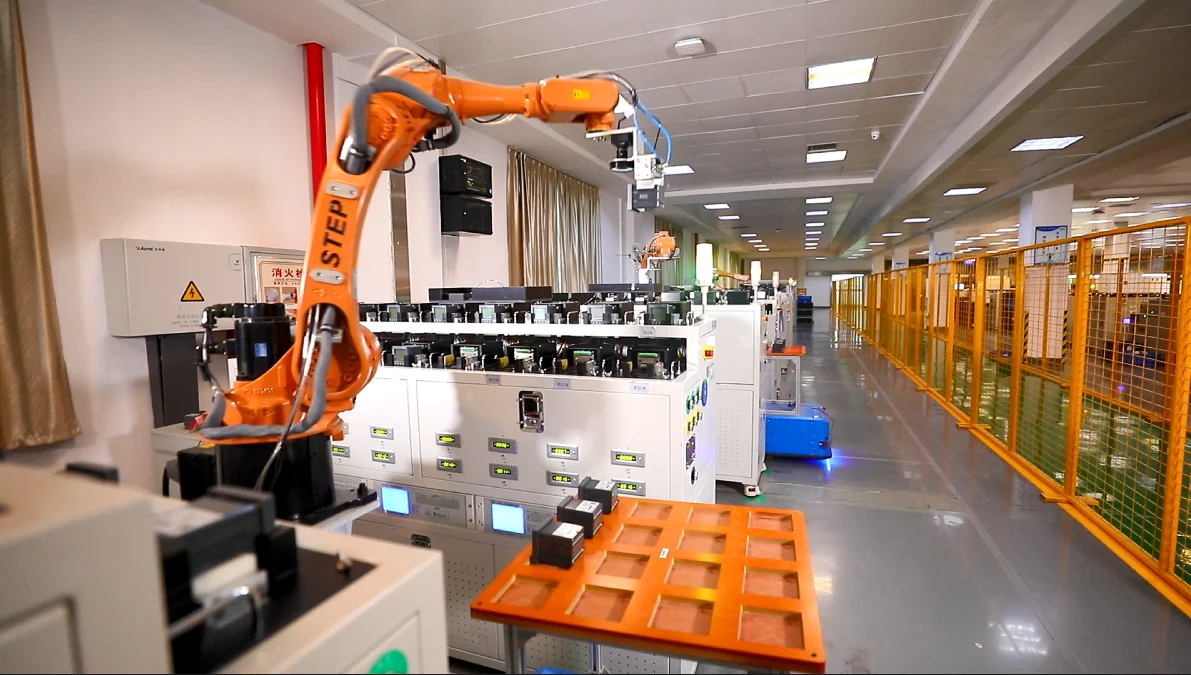

Jiangsu Acrel Electrical Manufacturing Co., LTD. a production base located in Jiangyin City, Wuxi, is a pilot enterprise of Jiangsu Province, which integrates informatization and industrialization. It has a well-functioned product test center, and can carry out environmental, electromagnetic compatibility, safety and reliability tests. The production process relies on advanced information management system and strict implementation of ISO 9001 management standards, which provides guarantee for industrialization and large-scale implementation of products. The annual production capacity of meters, power sensors and energy-saving cabinets is 3.5 million units, 2 million units and 10,000 sets.
