Honglin stainless Steele fermentation jacket tank 5000L conical fermenter
- Category: >>>
- Supplier: Jinan Honglin Beer Equipment Co. Ltd.
Share on (1600948815378):
Product Overview
Description
Product Description
Basic configurations
Jinan Honglin Beer Equipment Co.,Ltd
No. | Item | Specification |
01 | Gross capaity | 1000L+25% |
02 | Effective capacity | 1000L |
03 | Thickness | Inner (SUS304) container thickness: 3.0mm; External(SUS304) container thickness: 2.0mm |
04 | Material | Stainless steel 304 |
05 | Cooling way | Dimple jacket plate |
06 | Cleaning way | CIP for cleaning, with rotary spray cleaning ball |
07 | Insulation | Polyurethane-thickness: 80mm |

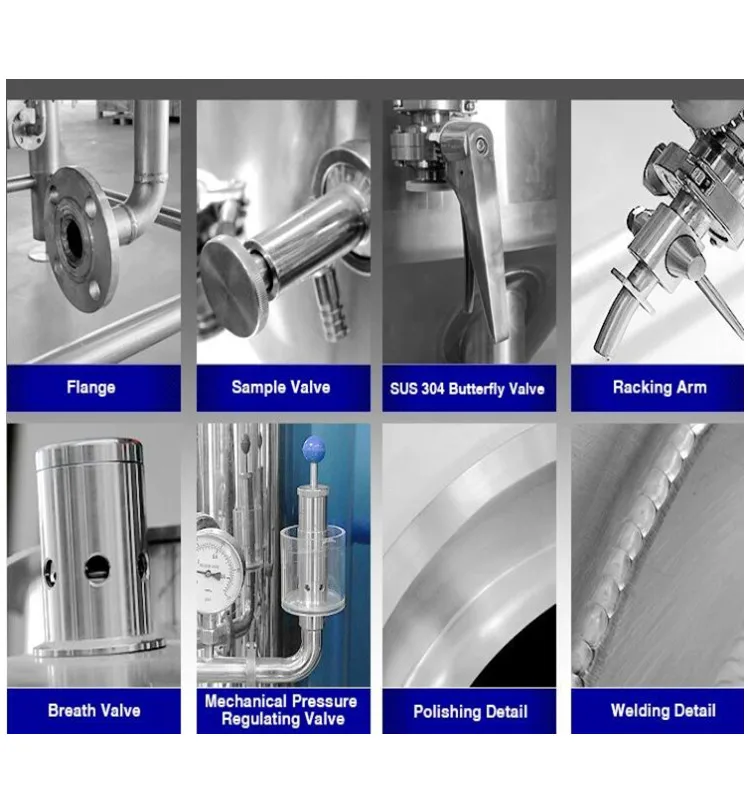

08 | Accessories | Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on. |

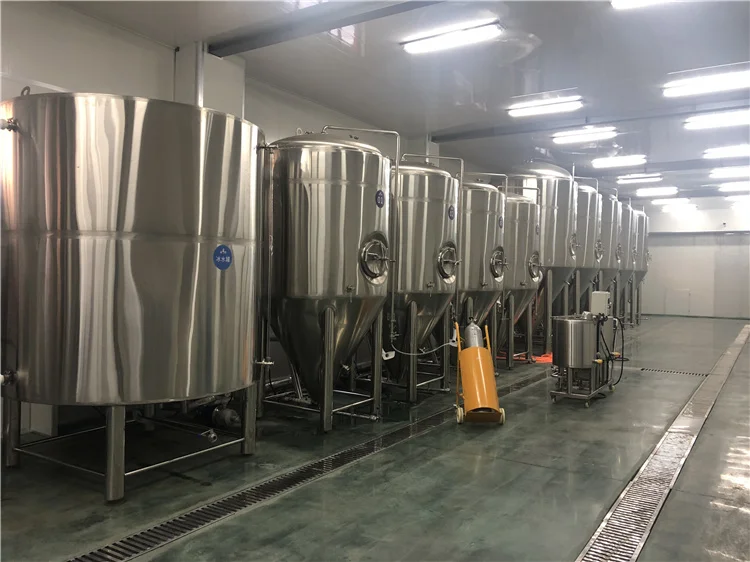

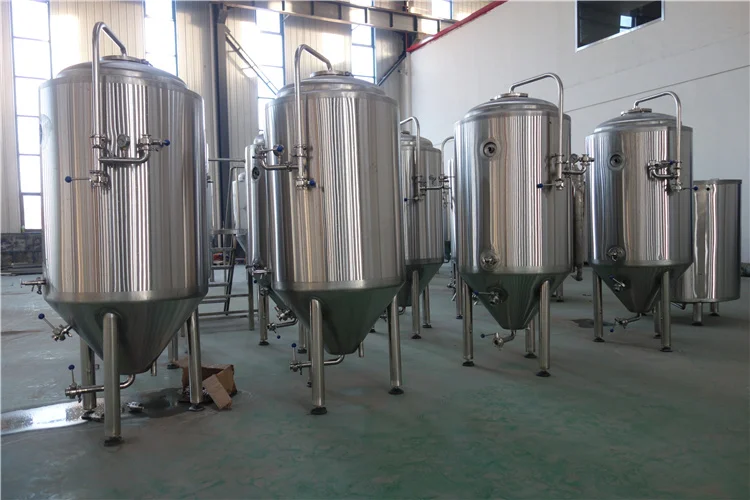

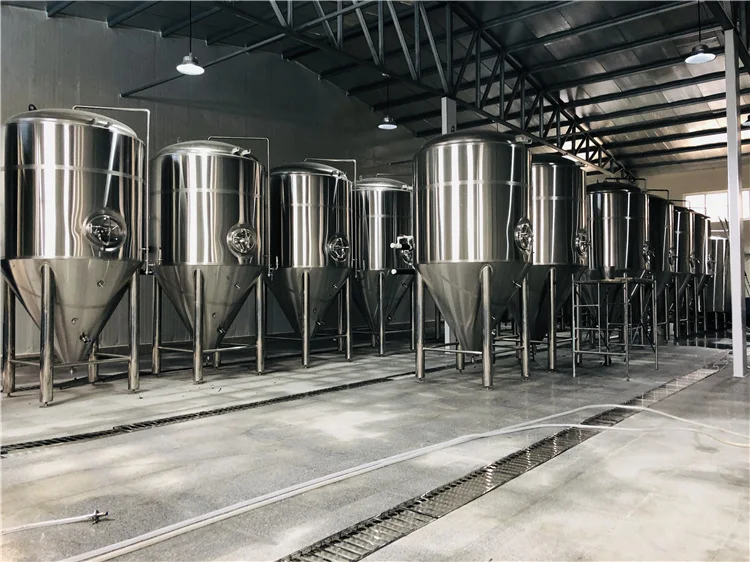

Fermentation tank
Jinan Honglin Beer Equipment Co.,Ltd
Item | Production capacity | Volume in US Gallon | Diameter | Height |
HL-100L | 100L | 26US Gallon | 660mm | 1600mm |
HL-200L | 200L | 53US Gallon | 860mm | 1800mm |
HL-300L | 300L | 79US Gallon | 960mm | 1900mm |
HL-400L | 400L | 106US Gallon | 960mm | 2100mm |
HL-500L | 500L | 132US Gallon | 1010mm | 2100mm |
HL-800L | 800L | 211US Gallon | 1060mm | 2550mm |
HL-1000L | 1000L | 264US Gallon | 1260mm | 2550mm |
HL-2000L | 2000L | 528US Gallon | 1560mm | 3100mm |
HL-3000L | 3000L | 792US Gallon | 1760mm | 3800mm |
HL-5000L | 5000L | 1320US Gallon | 1960mm | 4400mm |

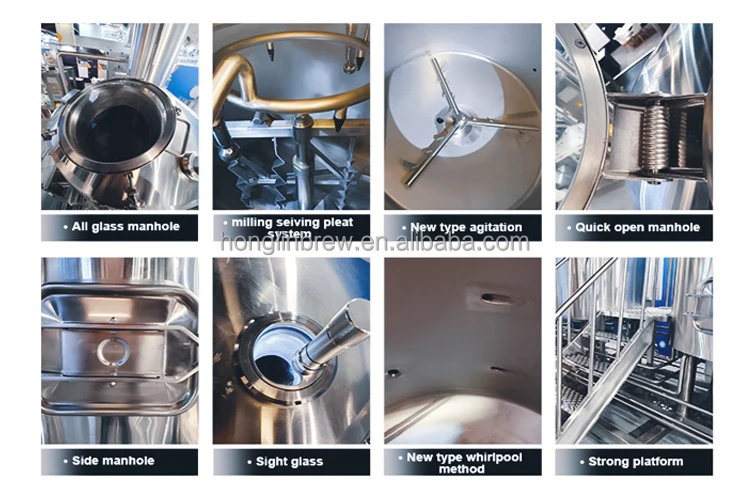

Product Details-Jinan Honglin
Jinan Honglin Beer Equipment Co.,Ltd is a professional manufacture of brewery equipment,certified by CE, ISO,ROHS and TUV.
We are specialized in brewery design,manufacture,installation and commissioning.With fine workmanship,excellent performance and simple operation,Honglin Brewery Equipment is your wise choice for beer brewing.
No matter in appearance,quality,technology or service,Honglin product stands for the top level of beer brewing equipment domestically and worldwide.As an Original Design Manufacture,Honglin Brewery Equipment perfectly fits various brewing process.
Our engineers had been sent all over the world for brewery designing,installation, training and technical supporting .
Product advantages:
1. The fermentation tank adopts 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China.
2. The corrosion resistance of the equipment is improved by pickling and passivation inside the fermentation tank.
3. The cooling efficiency of Maitreya plate jacket is greatly improved. 4. Two stage cooling mode: the tank body and the lower cone are cooled separately, which reduces the temperature difference.Between the tank body and the lower cone, thus ensuring the quality of beer.
5. The insulation layer material is high-grade polyurethane with a thickness of 80mm.
6. Welding position 2.5mm Stainless steel wire drawing plate protective layer.

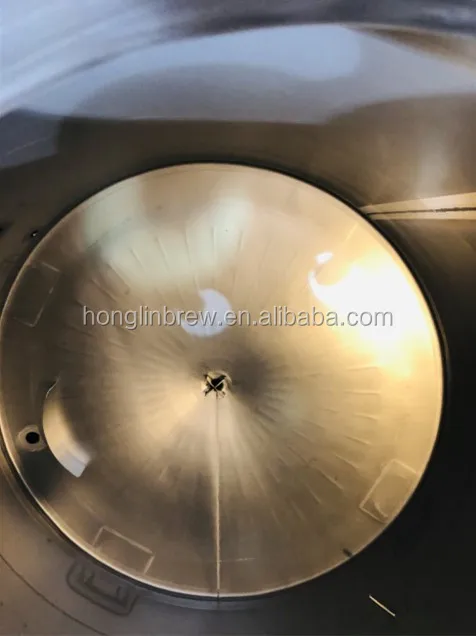

7. The polishing accuracy of fermentation tank has reached 0.4um It reduces the growth of bacteria and guarantees the quality and shelf life of beer.
Company Profile

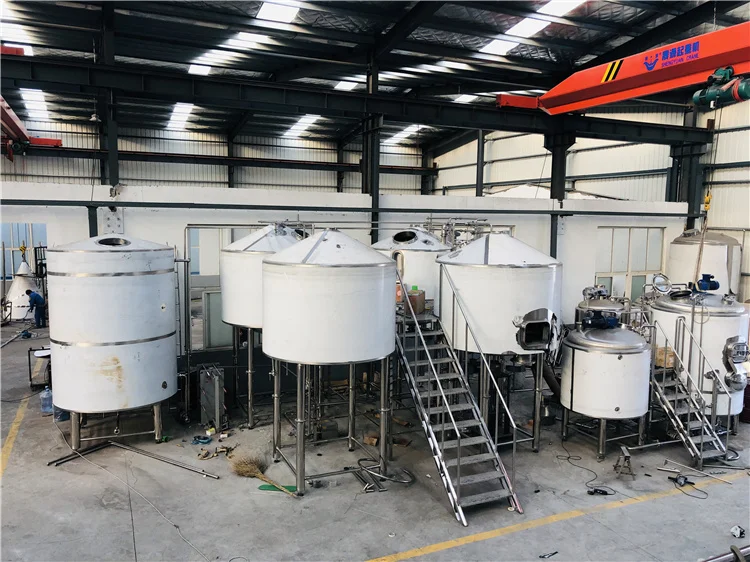

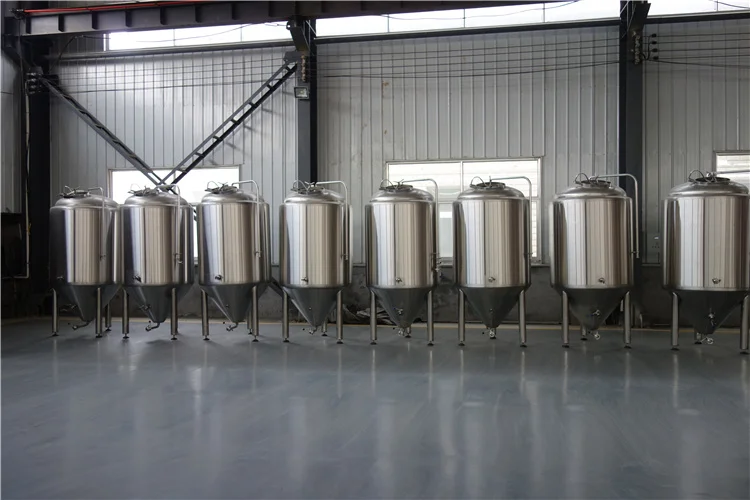

Production process-Jinan Honglin
Who we are
1.Professional technical team, design product layout and structure according to customer demand size and floor plan
2.Professional installation team, providing installation and 10-year after-sales service for main products, 2 years warranty for electronic components1.) 12 Years Experience
2.) 10 Years Warranty For Main Equipment
3.) 300+ Global customers
4.) 24 Hours Online Services
5.) One-stop Service - Design, manufacture, ship, install etc
6.) Competitive Price - Scale Production
2.) 10 Years Warranty For Main Equipment
3.) 300+ Global customers
4.) 24 Hours Online Services
5.) One-stop Service - Design, manufacture, ship, install etc
6.) Competitive Price - Scale Production
Our Service

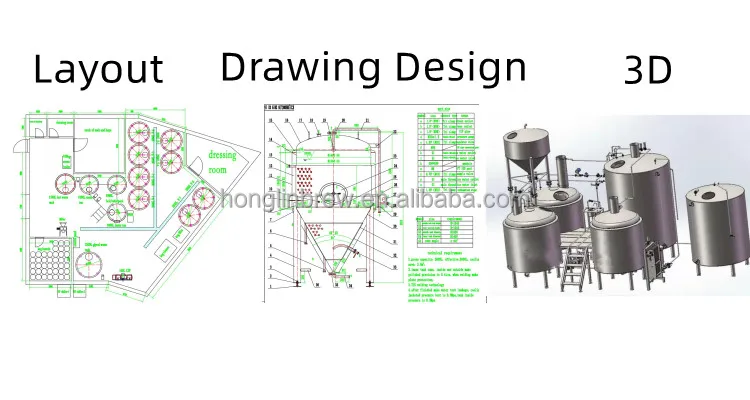

1.Pre-Service: -Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer
you an equipment footprint according to your requirement.
you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tankbased on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive
experience.
experience.
2.After-Service:
-We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the
electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
-After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support.
electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
-After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support.
-We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.

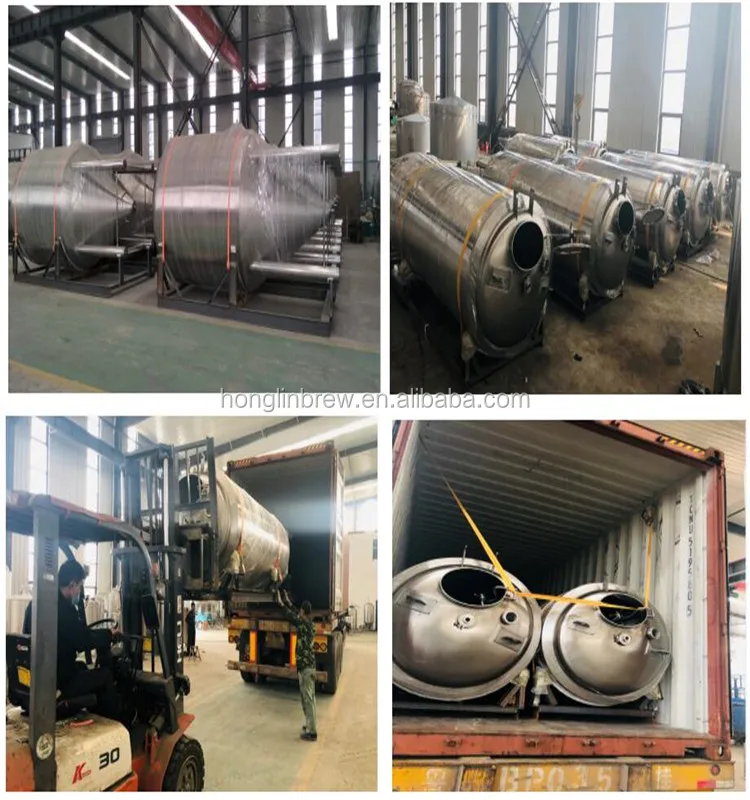

Packaging and shipping
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame

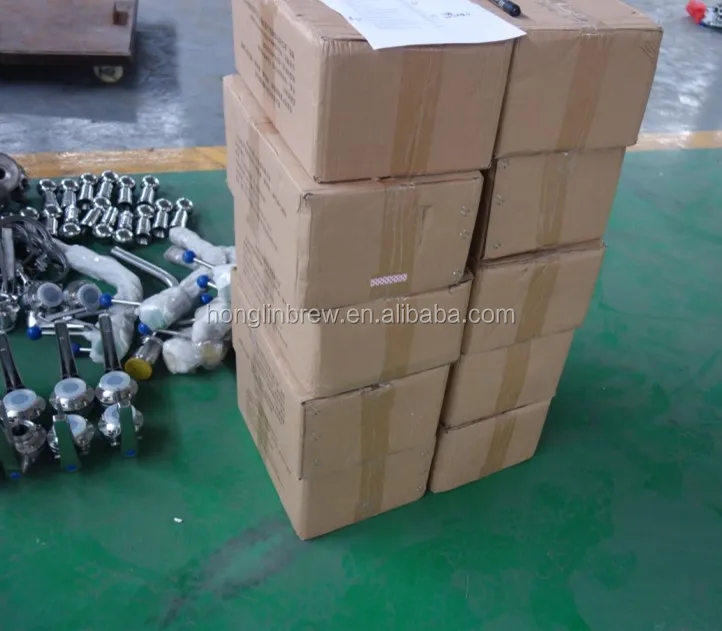

2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
