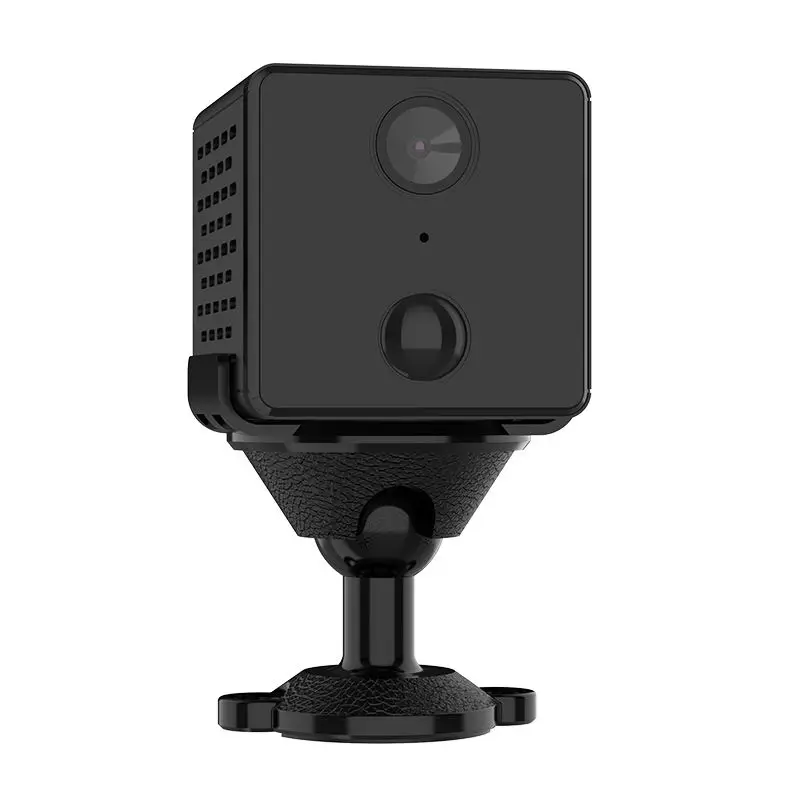

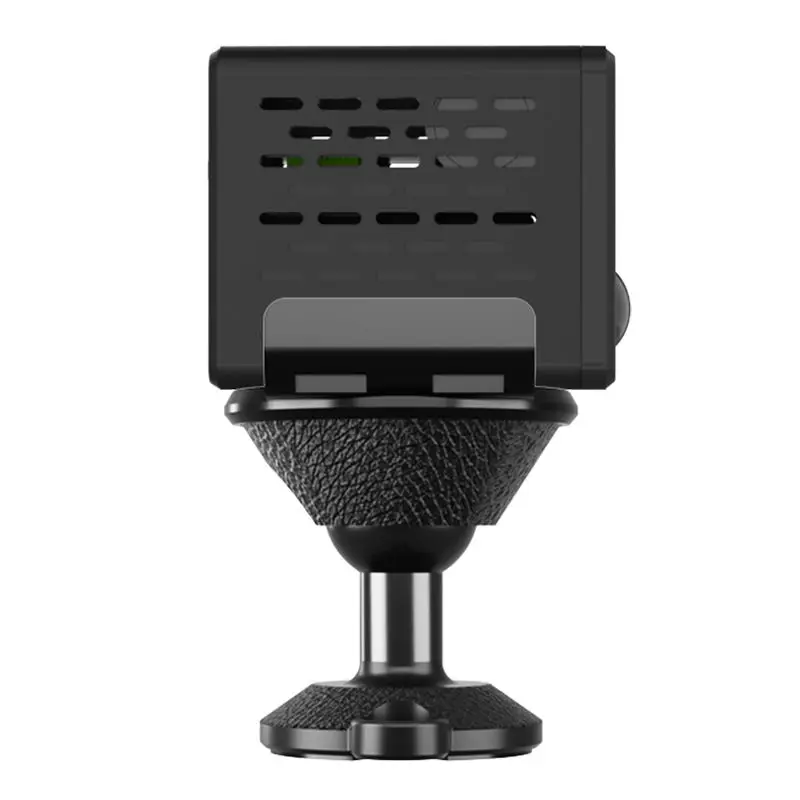

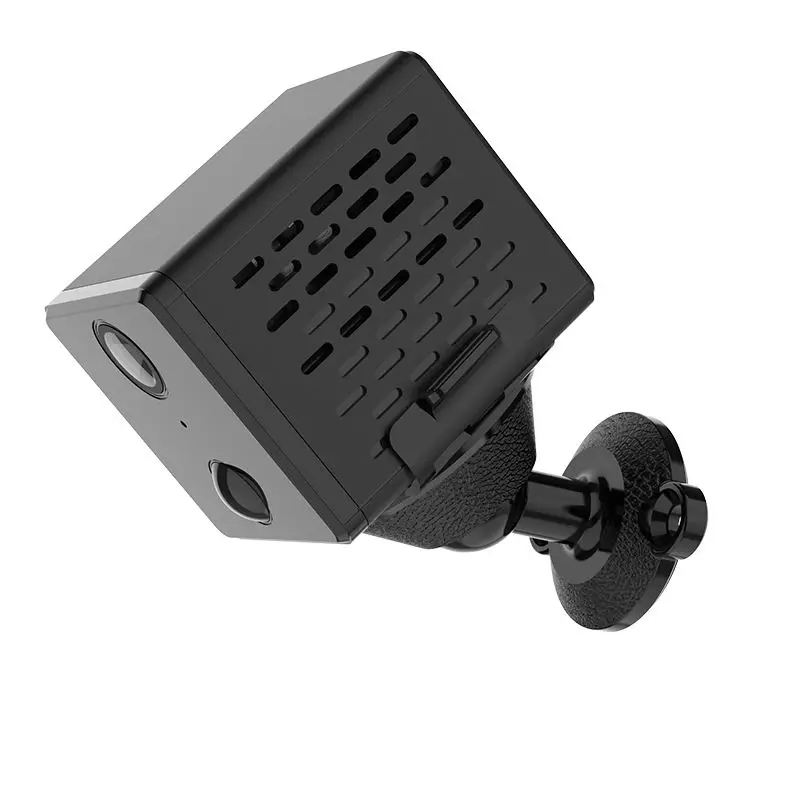

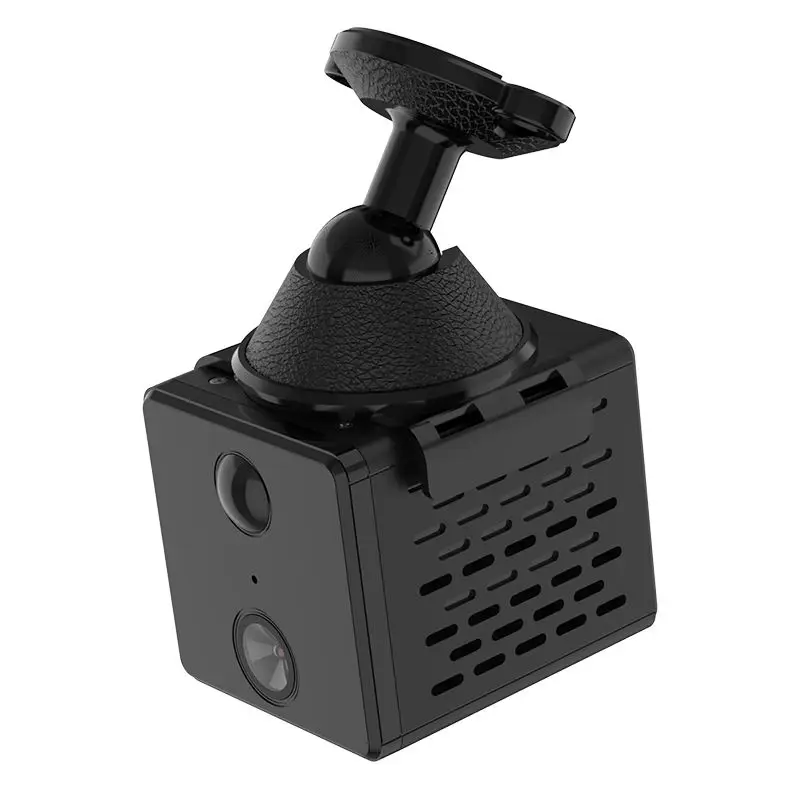

Wifi CB71 Mini wireless CCTV WIFI 1080p With inside 1500mah Battery IR Light mini indoor Camera
- Category: >>>
- Supplier: Shenzhen Future Hi-Tech Co. Ltd.
Share on (1600948828225):
Product Overview
Description
Product Description
Specification
| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| CPU | ||
| Image Capture | Image sensor | GC2053 1/2.9-inch 1080p Progressive Scan CMOS sensor |
| Minimum Illumination | 0.3-0.5Lux(color mode), 0 Lux(B&W mode) | |
| Lens | 3.2mm module | |
| View Angle | 145(Diagonal) | |
| Night vision | Automatic lens sensing switch,6pcs 940nm SMD IR LED, IR irradiation distance:5-10 m | |
| Video | Encode format | H.264+/H.264 main profile/Motion-JPEG/JPEG |
| Streams | Main stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps | |
| Bit Rate/Max Fps | 128~4096kbps/30pfs | |
| Image adjustment | Brightness and contrast can be adjusted | |
| Encode format | H.264+/H.264 main profile/Motion-JPEG/JPEG | |
| Audio | Input | Built-in 38db microphone |
| Output | 8Ω0.5W speaker | |
| Sampling frequency /Bit width | 8KHz/16bit | |
| Compression standard /code rate | ADPCM/32kbps | |
| Network | Ethernet | N/A (connect via AP hotpot mode) |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P etc | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Memory | Socket | TF Push-push socket,Maximum support 256GB |
| Alarm | Alarm Trigger | PIR detection |
| Physical Environmental | Rated voltage | DC5V±5% |
| Power supply | Built-in 1500mAh batteries | |
| Power consumption | Rated power: 2.05W (with infrared lights on) Maximum power: 3.0W(All function on)/Standby power:0.002W | |
| Operating condition | Temperature:-10~50℃,humidity:<90% | |
| Weight | Net: 60g Gross:210g(Note: in kind prevail) | |
| Package size | 130x90x45mm (L×W×H) |
