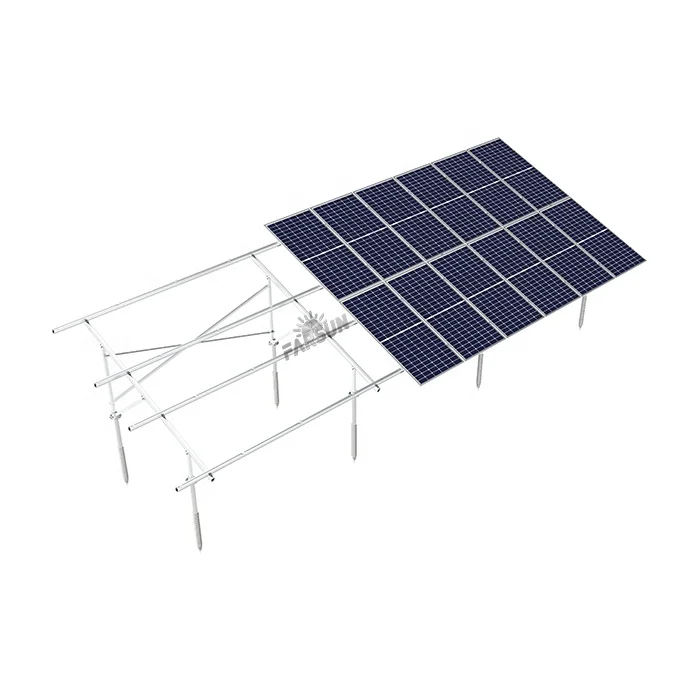

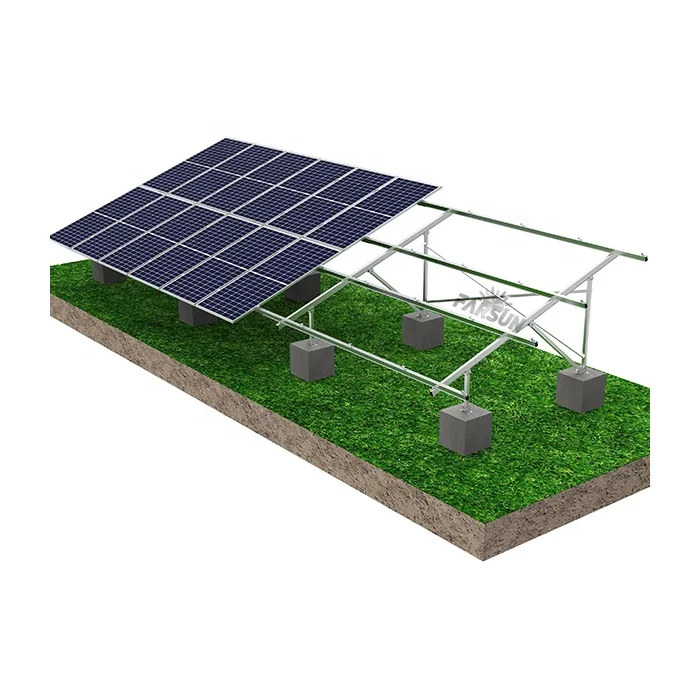

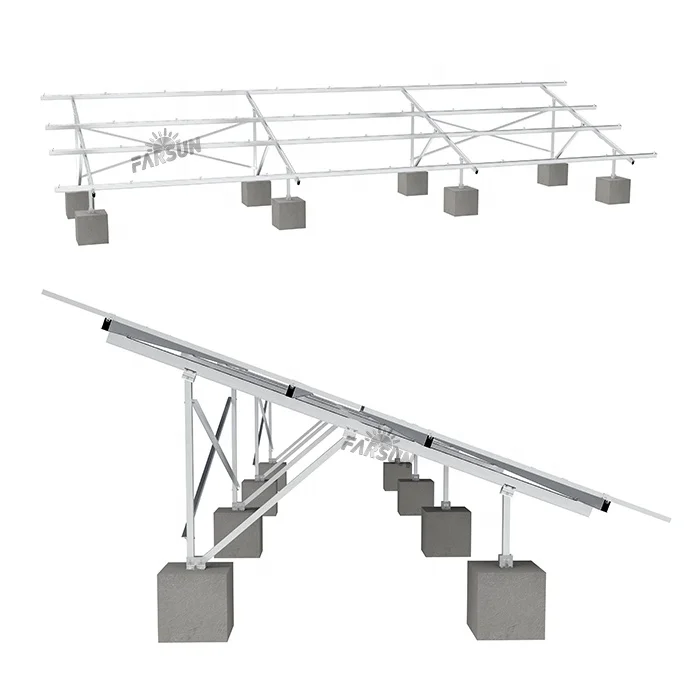

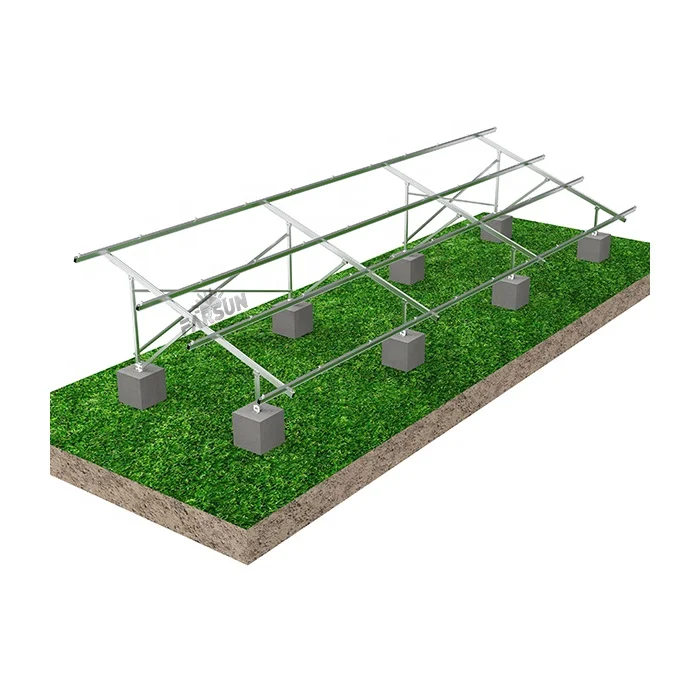

FarSun Pre Assembly Factory Solar PV Mounting Structure Ground Mount
- Category: >>>
- Supplier: Xiamen Farsun Technology Co. Ltd.
Share on (1600948837254):
Product Overview
Description

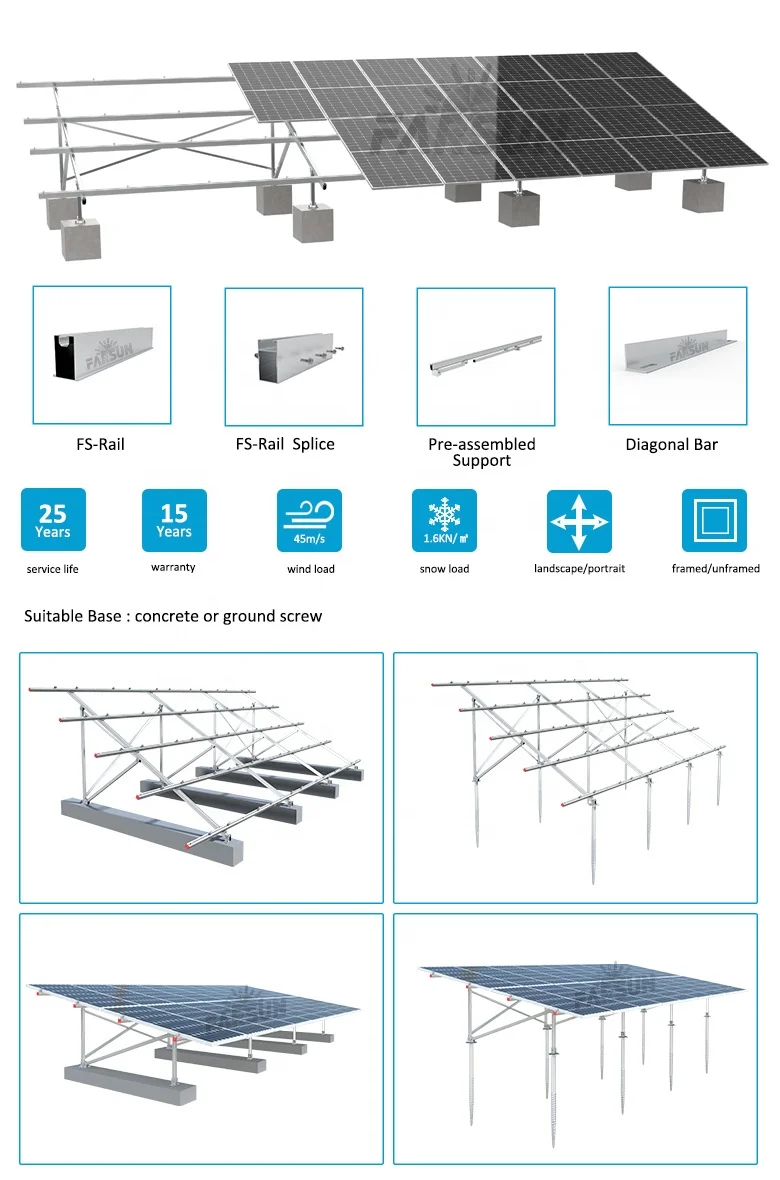

FS Pre Assembly Factory Solar PV Mounting Structure Ground Mount
Product Paramenters
Install site | Open Field | Material | AL6005-T5 & SUS304 |
TIlt Angle | 5 °~60 ° | Color | Natural, Black |
Module Type | Any sizes, Framed or Frameless | Finishing | Anodizing |
Max Wind Speed | 45 m/s | Concrete | |
Max Snow Load | 1.6 KN/m2 | Ground Screw | |
Standard | ASCE_7-10, EN1090, JIS 8955:2017 | Warranty | 15 Years Quality Warranty 25 Years Service Life |
The solar ground aluminum bracket has an adjustable angle function, which can flexibly adjust the inclination of the solar panel according to the sunshine angle and seasonal changes in different areas to obtain higher energy output.

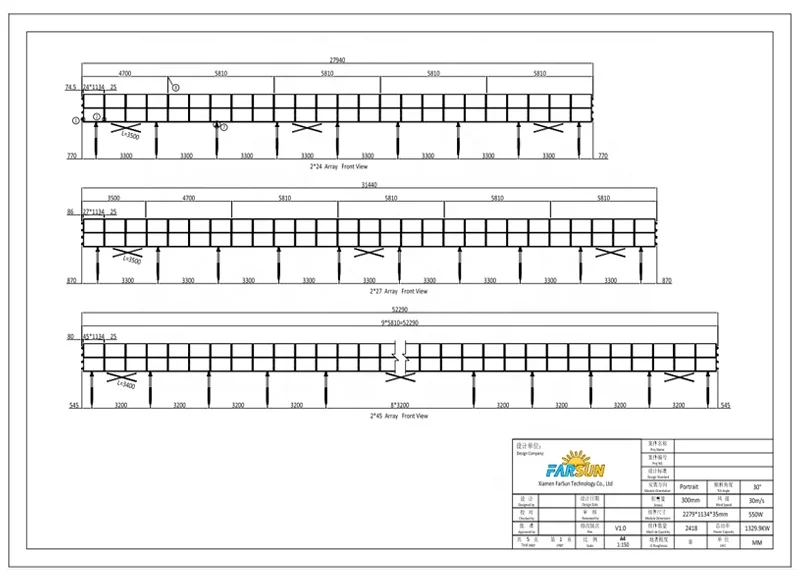

Solution Design
More Details & Free Design
1. What is dimension of the solar panel? _____mm Length x_____mm Width x____mm Thickness
2. How many panels will be mounted for the project? _______PCS.
3.What is your planned panel layout? ________Nos. in a row × ________Nos. in a column
(OPTIONAL/RECOMMEND please advise place images and size)
4. What's wind speed and snow load? ___m/s wind speed and____KN/m2 snow load
5. What installation orientation for solar panel? _______(Horizontal or Vertical)
2. How many panels will be mounted for the project? _______PCS.
3.What is your planned panel layout? ________Nos. in a row × ________Nos. in a column
(OPTIONAL/RECOMMEND please advise place images and size)
4. What's wind speed and snow load? ___m/s wind speed and____KN/m2 snow load
5. What installation orientation for solar panel? _______(Horizontal or Vertical)
6. Ground clearance or other requirements? ______________
