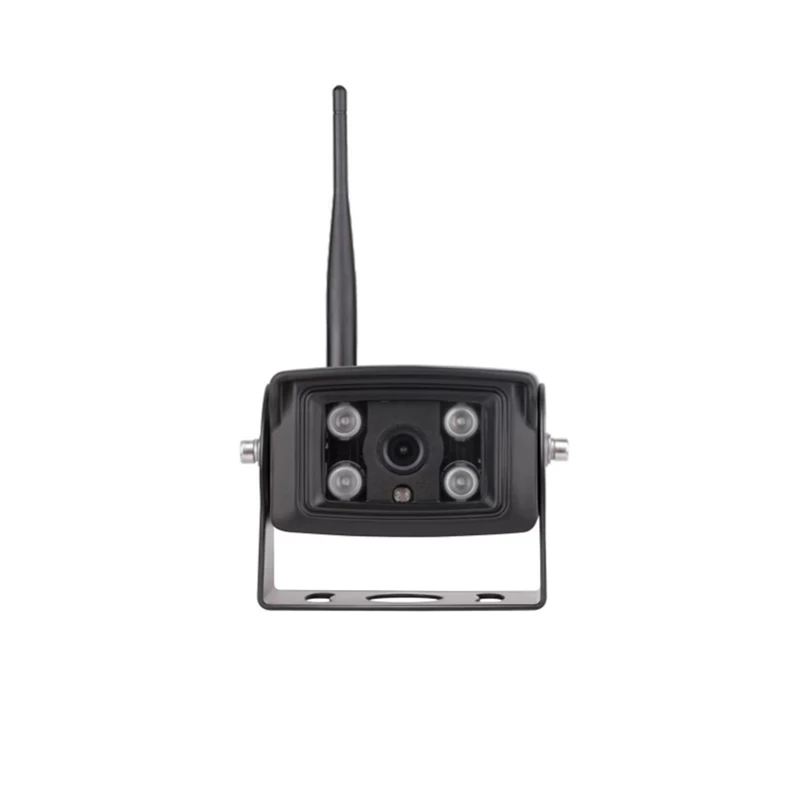

| Image Device | 1/3 CMOS |
| Effective Pixels | 1920(H) X 1080(V) |
| Sensing Area | 2.8 X 2.8μm |
| Frequency coverage | 2.4GHz~2.4835GHz |
| Resolution | 200W |
| Transmitting power | 17±1dBm@typ |
| Modulation method | CCK,DQPSK,DBPSK 64-QAM,16-QAM,QPSK,BPSK |
| Receiving Sensitivity | -94dBm(Min) |
| Transmitting power | 18.5dBm(Max) |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Yes |
| IR LED Qty | 4PCS |
| Infrared night vision distance | 10M |
| Effective transmitting distance | 60M |
| Signal to noise ratio | ≥48dB |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC9V±32V |
| Lens | 2.8mm |
| Lens Angle | 115° |
| Current Drain | DAY: 160mA±10mA/12V Night: 230mA±10mA/12V |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |






Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?

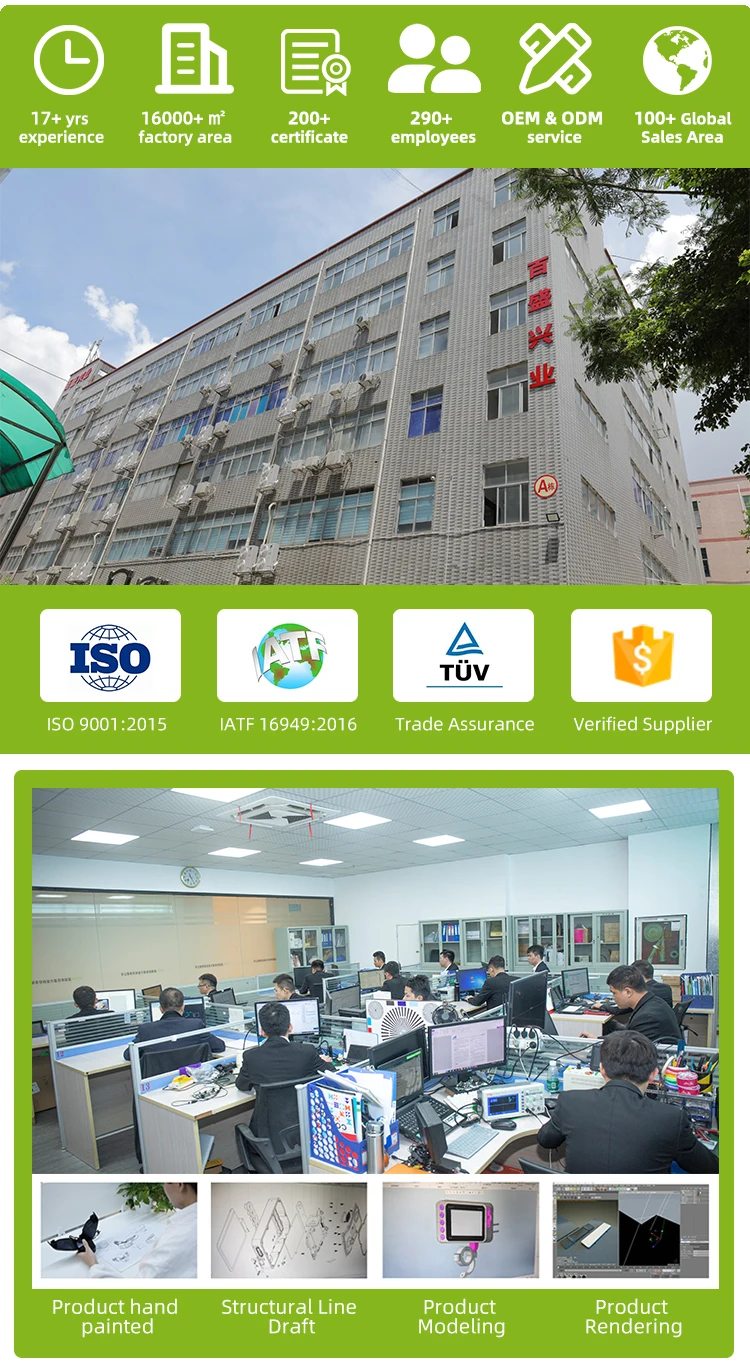

A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
CEO: "If you want competitive products or custom designed products or OEM your own products or become an agent for a win-win situation, please contact me".
