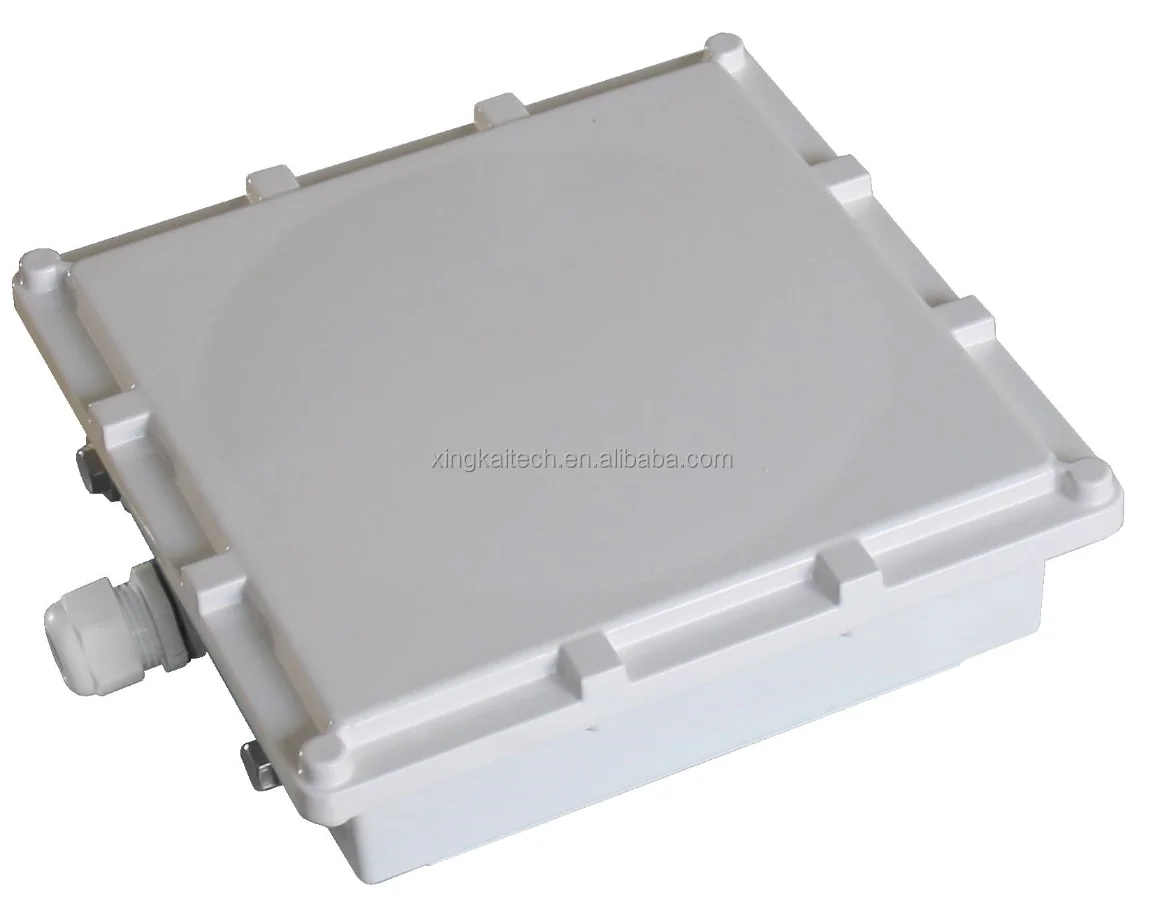

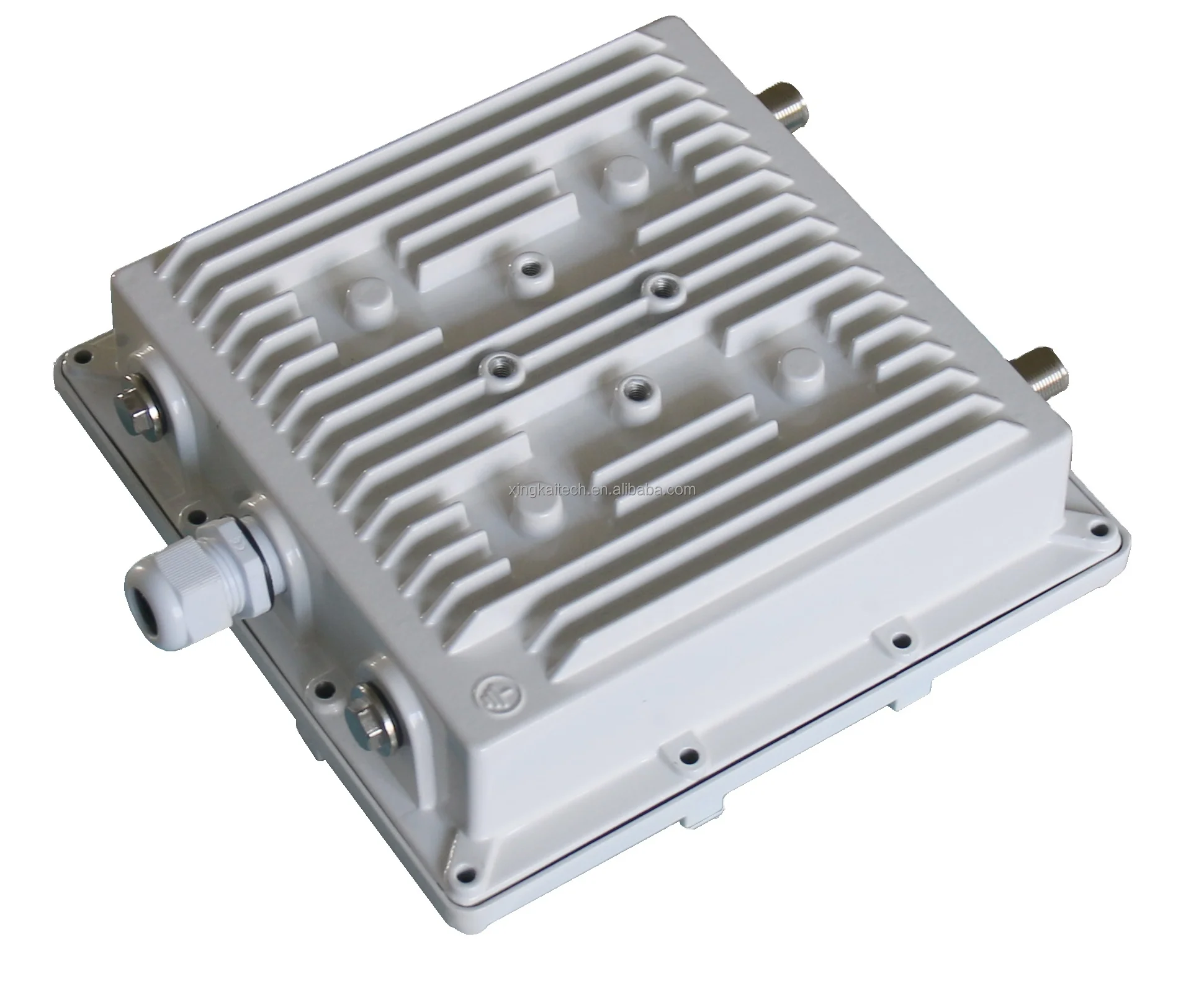

5.8G N LOS OFDM AIRBORNE Multi hop ad hoc Network MIMO MESH Networks Hopping Frequency Drones Accessories
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1600948863208):
Product Overview
Description
Product Description
Product Name | XK-M372 |
Function | wireless transmission capability |
Package | Packed in a professional shipping box |
5.8G N-LOS AIRBORNE MIMO MESH Networks RADIO for Police Surveillance Tactical army long range beamforming For UAV /UGV/USV/Vehicle Video+Telemetry+RC Link
XK-M372 is a high-performance with non-visual transmission wireless transmission capability development platform, XK-M372 using Qualcomm AR9344 chip design on board 30dBm 5G 11AN; the highest rate of up to 96Mbps, output power has 1W, the platform provides no dead uboot and openwrt sdk open support, can be widely used in fire, armed police, military and other fields of emergency communications. Army and other areas of emergency communications.
2.Product parameters
RF Parameters | Networking frequency | 802.11AN,5.180G~5.825GHz |
Modulation | DSSS/CCK;BPSK/QPSK;OFDM BPSK/QPSK//16-QAM/256-QAM | |
Transmitting power | 30dBm | |
Reception sensitivity | Highest-97dBm | |
RF Interface | 5GHz U.FL*2 | |
Channel bandwidth | 5M/10M/20M/40MHz(Adjustable) | |
Rate | 300Mbps,MIMO 2*2 | |
wifi | 5.8G | |
Range | 10 - 20km | |
Nodes quantity | No less than 50pcs | |
Configuration | WEB | |
System | Sdk Open Support | |
Physical / Environmental | Working Temp | -40℃ ~ +65℃ |
Working humidity | 5% ~ 95%(non-condensing) | |
Storage temperature | -45ºC ~ +85ºC | |

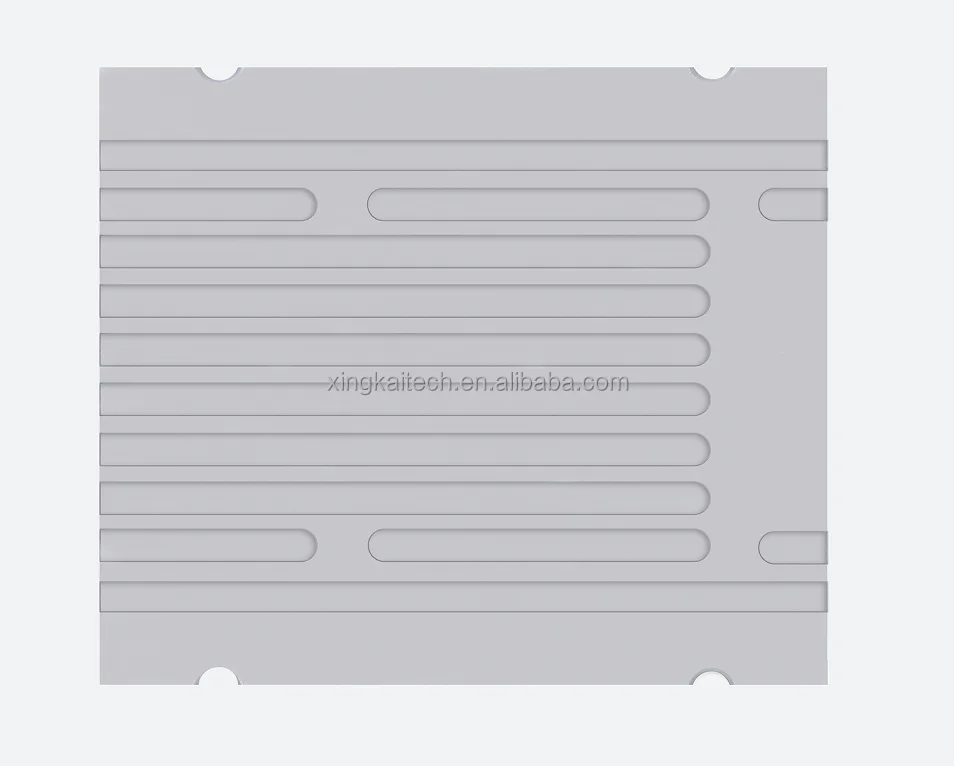

Weight | Motherboard:16g,With heat sink:55g | |
Dimension | Motherboard:60 x 45 x 8mm,With heat sink:60 x 51 x 13mm | |
Electrical Characteristics | Power supply | DC:7-12V |
Power consumption | 6W | |

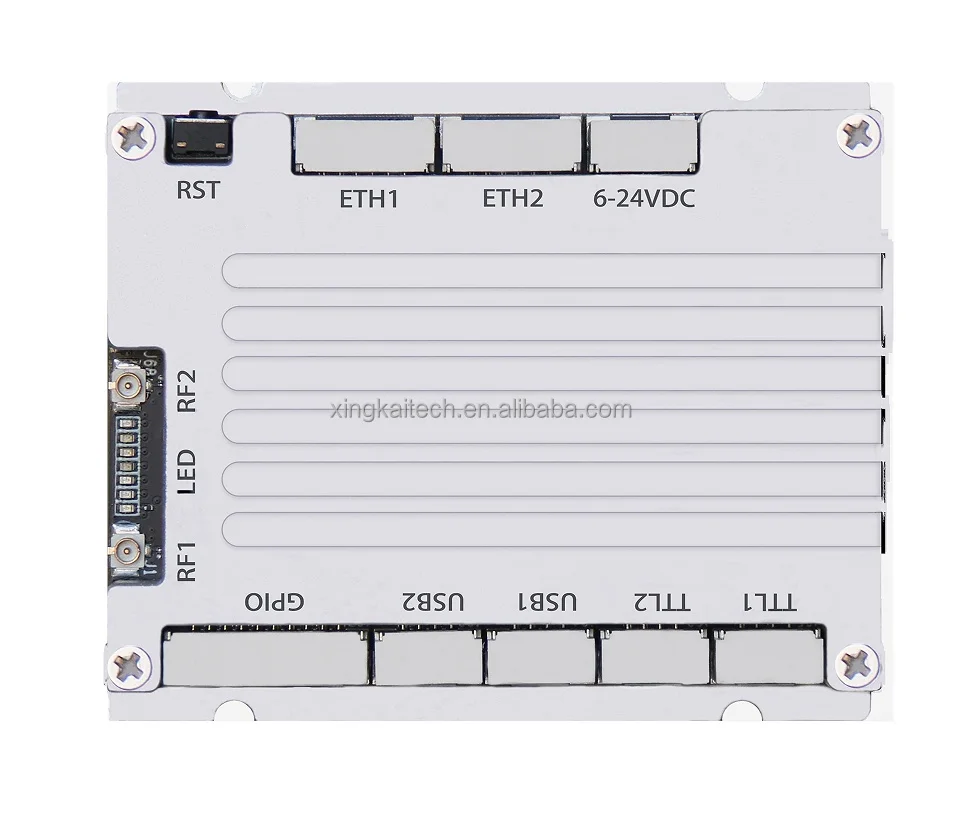

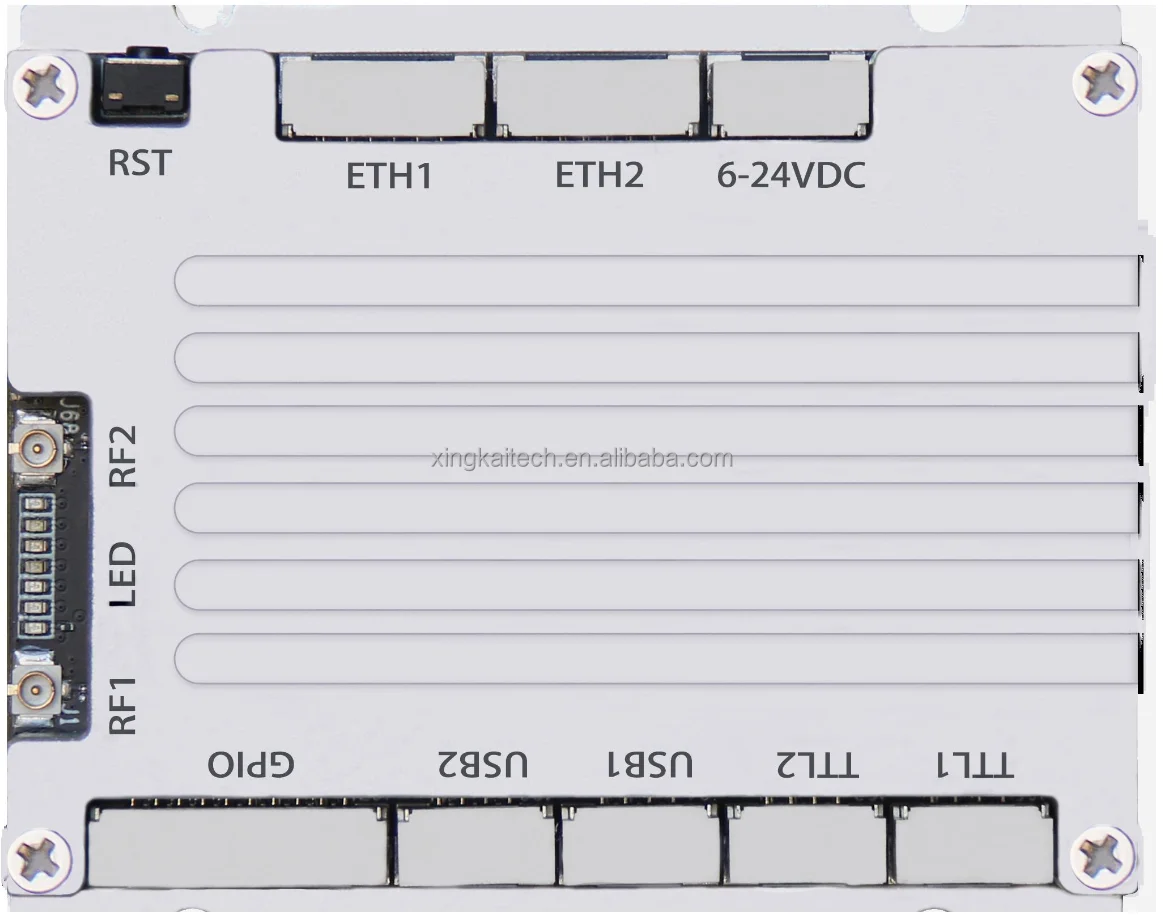

Exterior Interface | Interface | 10/100M Network port*2 USB*2 TTL*2 11AN 5G U.FL*2 |
3.RFParameters
TX SPECIFICATIONS | ||||||||||||||||
MCS | Modulation | TX Power | Tolerance | |||||||||||||
HT20 | HT40 | |||||||||||||||
1x1 | 0 | BPSK | 7.2Mbps | 30dBm | 15Mbps | 30dBm | ±2dB | |||||||||
1 | QPSK | 14.2Mbps | 30dBm | 30Mbps | 30dBm | ±2dB | ||||||||||
2 | QPSK | 21.7Mbps | 30dBm | 45Mbps | 30dBm | ±2dB | ||||||||||
3 | 16-QAM | 28.9Mbps | 30dBm | 60Mbps | 30dBm | ±2dB | ||||||||||
4 | 16-QAM | 43.3Mbps | 30dBm | 90Mbps | 30dBm | ±2dB | ||||||||||
5 | 64-QAM | 57.8Mbps | 29dBm | 120Mbps | 29dBm | ±2dB | ||||||||||
6 | 64-QAM | 65Mbps | 28dBm | 135Mbps | 28dBm | ±2dB | ||||||||||
7 | 64-QAM | 72.2Mbps | 27dBm | 150Mbps | 27dBm | ±2dB | ||||||||||
2x2 | 8 | BPSK | 14.4Mbps | 30dBm | 30Mbps | 30dBm | ±2dB | |||||||||
9 | QPSK | 28.4Mbps | 30dBm | 60Mbps | 30dBm | ±2dB | ||||||||||
10 | QPSK | 43.3Mbps | 30dBm | 90Mbps | 30dBm | ±2dB | ||||||||||
11 | 16-QAM | 57.8Mbps | 30dBm | 120Mbps | 30dBm | ±2dB | ||||||||||
12 | 16-QAM | 86.7Mbps | 30dBm | 180Mbps | 30dBm | ±2dB | ||||||||||
13 | 64-QAM | 115.6Mbps | 29dBm | 240Mbps | 29dBm | ±2dB | ||||||||||
14 | 64-QAM | 130Mbps | 28dBm | 270Mbps | 28dBm | ±2dB | ||||||||||
15 | 64-QAM | 144.4Mbps | 27dBm | 300Mbps | 27dBm | ±2dB | ||||||||||
RX SPECIFICATIONS | ||||||||||||||||
MCS | Sensitivity | Tolerance | ||||||||||||||
HT20 | HT40 | |||||||||||||||
1x1 | 0 | BPSK | 7.2Mbps | -97dBm | 15.0Mbps | -97dBm | ±2dB | |||||||||
1 | QPSK | 14.2Mbps | -97dBm | 30.0Mbps | -96dBm | ±2dB | ||||||||||
2 | QPSK | 21.7Mbps | -96dBm | 45.0Mbps | -95dBm | ±2dB | ||||||||||
3 | 16-QAM | 28.9Mbps | -95dBm | 60.0Mbps | -92dBm | ±2dB | ||||||||||
4 | 16-QAM | 43.3Mbps | -92dBm | 90.0Mbps | -90dBm | ±2dB | ||||||||||
5 | 64-QAM | 57.8Mbps | -89dBm | 120.0Mbps | -87dBm | ±2dB | ||||||||||
6 | 64-QAM | 65.0Mbps | -86dBm | 135.0Mbps | -84dBm | ±2dB | ||||||||||
7 | 64-QAM | 72.2Mbps | -81dBm | 150.0Mbps | -79dBm | ±2dB | ||||||||||
2x2 | 8 | BPSK | 14.4Mbps | -97dBm | 30Mbps | -97dBm | ±2dB | |||||||||
9 | QPSK | 28.4Mbps | -97dBm | 60Mbps | -96dBm | ±2dB | ||||||||||
10 | QPSK | 43.3Mbps | -96dBm | 90Mbps | -95dBm | ±2dB | ||||||||||
11 | 16-QAM | 57.8Mbps | -95dBm | 120Mbps | -92dBm | ±2dB | ||||||||||
12 | 16-QAM | 86.7Mbps | -92dBm | 180Mbps | -90dBm | ±2dB | ||||||||||
13 | 64-QAM | 115.6Mbps | -89dBm | 240Mbps | -87dBm | ±2dB | ||||||||||
14 | 64-QAM | 130Mbps | -86dBm | 270Mbps | -84dBm | ±2dB | ||||||||||
15 | 64-QAM | 144.4Mbps | -81dBm | 300Mbps | -79dBm | ±2dB | ||||||||||
