Guangzhou Building Construction Steel Ladder Frame Scaffolding For Sale
US $300.00-$900.00
electric lifti automatic electric lifting scaffolding mobile Wire rope/Chain multiple models folding scaffolding load 500 kg
- Category: >>>
- Supplier: Zhengzhou Yize Machinery Co. Ltd.
Share on (1600948868016):
Product Overview
Description
Product Description
Removable Electric Lifting Scaffold Aluminum Tubular steel Scaffolding System Small Steel Tube Bracket Platform scaffolding

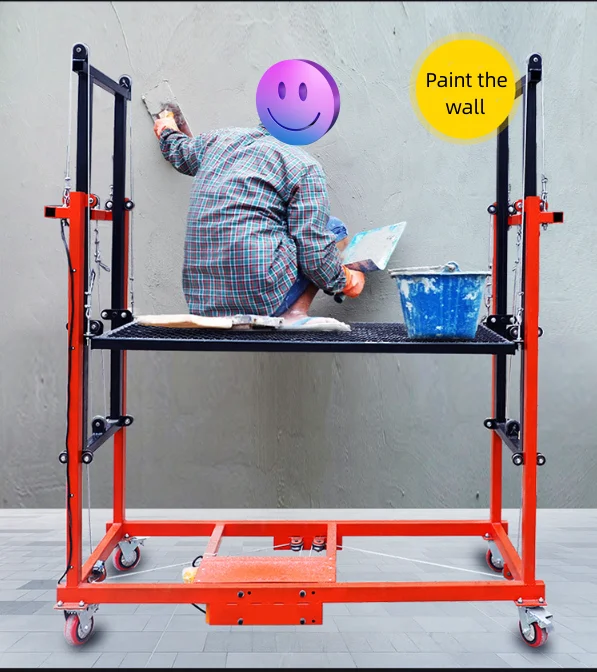

Electric multifunctional lifting scaffolding, used for construction, installation of billboards, wall painting, indoor and outdoor decoration and other scenes.

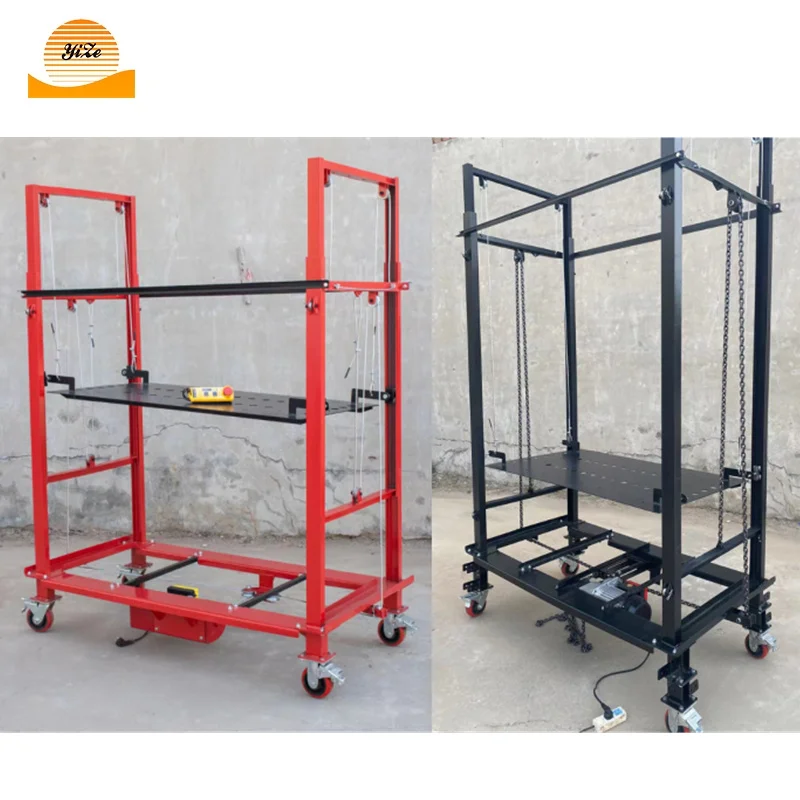

Two styles:
wire rope style chain style
Wire rope electric lifting scaffold | ||||||||
length | width | hoisting height | Chain specification | weight | ||||
1.5M | 1.2M | 1.5M | 5MM | 80kg+ | ||||
2M | 1.5M | 2M | M55 | 120kg+ | ||||
Chain electric lifting scaffold | ||||||||
length | width | hoisting height | Chain specification | weight | ||||
1.5M | 0.7M | 2M | 6MM | 120KG+ | ||||
1.5M | 0.8M | 3M | 6MM | 170KG+ | ||||
1.5M | 0.8M | 4M | 6MM | 210KG+ | ||||
1.8M | 0.8M | 5M | 6MM | 250KG+ | ||||
Electric lifting platform scaffold
Advantages of electric scaffolding:
1.Remote lifting
2.load 500KG
3.support custom
We have a wide range of styles and colors as well as sizes, looking forward to your inquiry
Other styles:
Blue Scaffold Parameter | ||||||||||
Model | 4m | 5m | 6m | 8m | 10m | |||||
Machine packing size | 2.8*0.95*0.7m | 2.8*0.95×0.7m | 3.7*0.95*0.75m | 3.5*1.35*0.9m | 4.2*0.95*0.9m | |||||
Machine packing weight | 220KG | 230KG | 240KG | 350KG | 380KG | |||||
Machine material | 4×6 square steel | 4×6 square steel | 4×6 square steel | 6×6 square steel | square steel | |||||
Machine voltage | 220V50HZ | |||||||||
Bear weight | 500KG(Foldable) | |||||||||
Red Scaffold Parameter | ||||||||||
Model | SIZE | Motor Bearing | Actual weight | Resting height | Actual folding size weight | |||||
2m | 1.5m*0.8m | 800 | 300kg | 1.6m | 1.3m*0.8m*0.6m | |||||
3m | 1.5m*0.8m | 800 | 300kg | 2.1m | 1.8m*0.8m*0.6m | |||||
4m | 1.5m*0.8m | 800 | 300kg | 2.6m | 2.3m*0.8m*0.6m | |||||
5m | 1.5m*0.8m | 800 | 300kg | 3.1m | 2.8m*0.8m*0.6m | |||||
6m | 1.5m*0.8m | 800 | 300kg | 3.6m | 3.3m*0.8m*0.6m | |||||

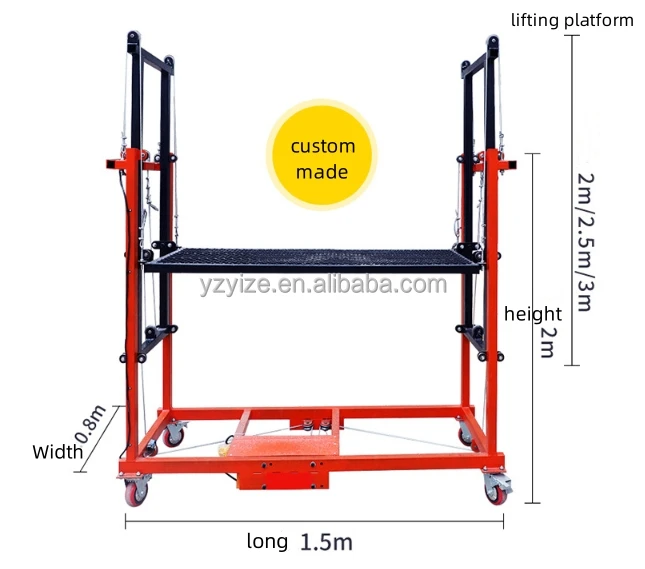

Details Images
electrical scaffolding
Wire rope: Professional gravity galvanized steel wire rope
Bottom roller: Rotate the universal wheel 360 degrees without dead Angle
Lifting height: up to 8 meters (customizable)
Actual weight: 500KG
Bottom roller: Rotate the universal wheel 360 degrees without dead Angle
Lifting height: up to 8 meters (customizable)
Actual weight: 500KG

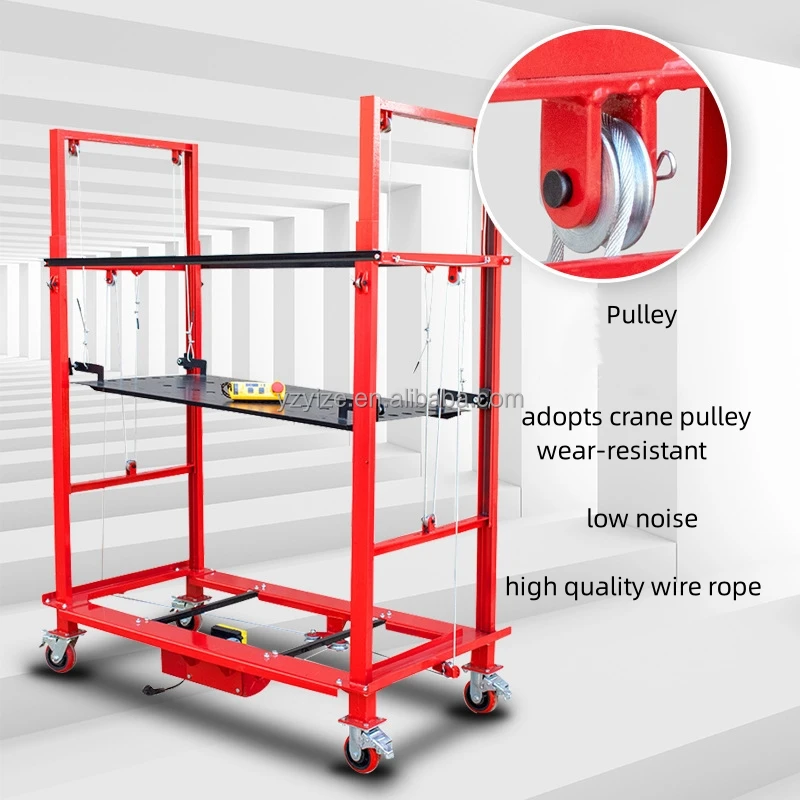

pulley
Wear resistance
Thick galvanized steel wire rope
Enhanced durability
Copper core motor
High power, low noise
1: large bearing capacity: under normal circumstances, the bearing capacity of the single tube column of scaffolding can reach
15kN ~ 35kN 2: convenient installation and disassembly, erection flexible: thus can adapt to a variety of planes, elevations of buildings and
structures with scaffolding
3: economic and practical, simple processing: a low investment cost
