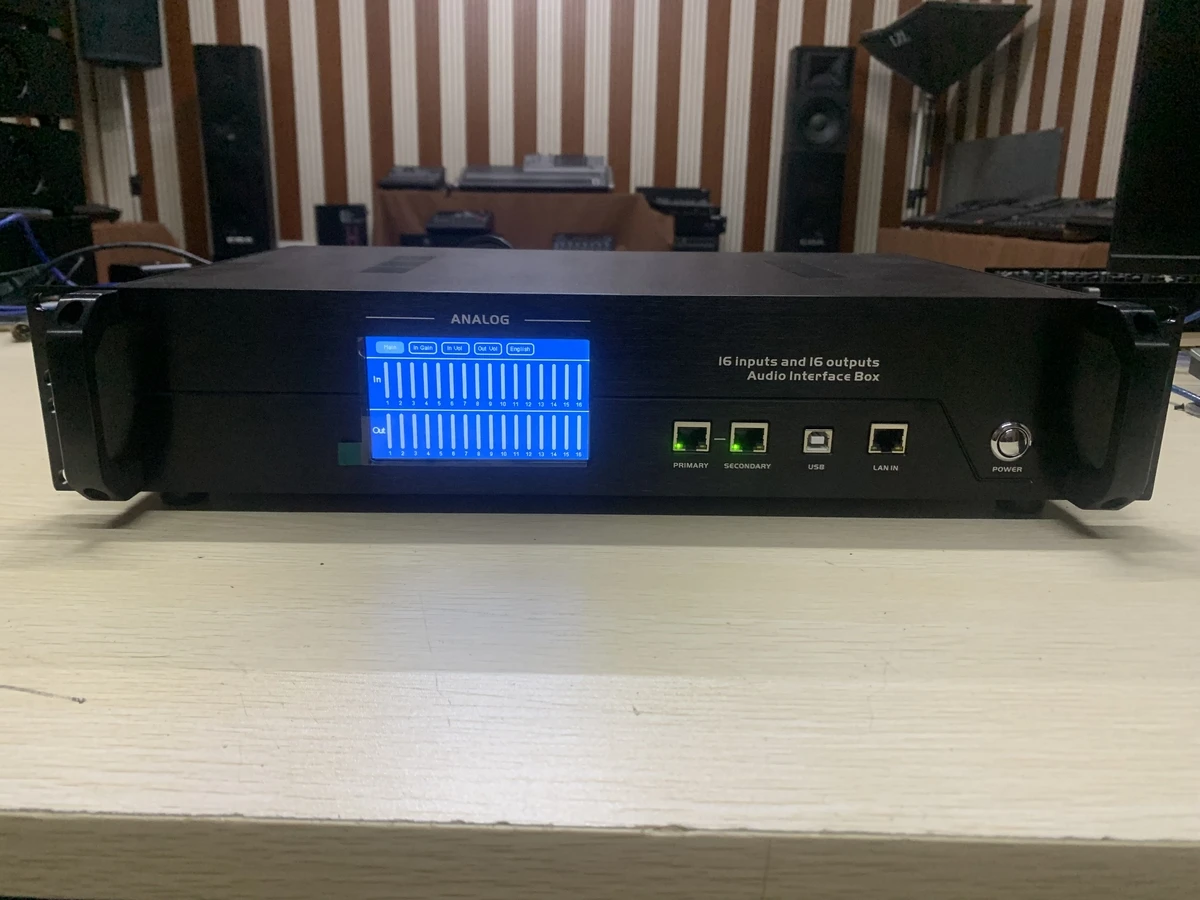

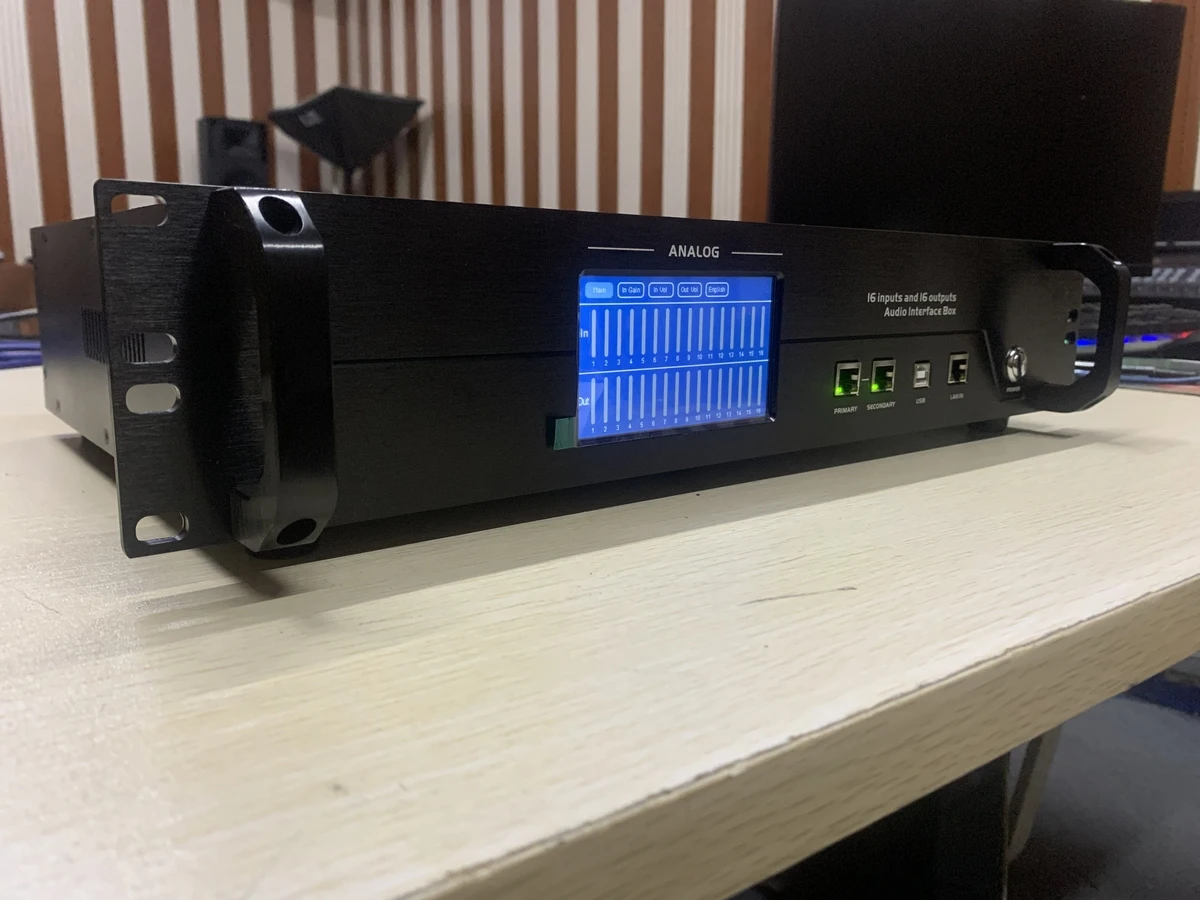

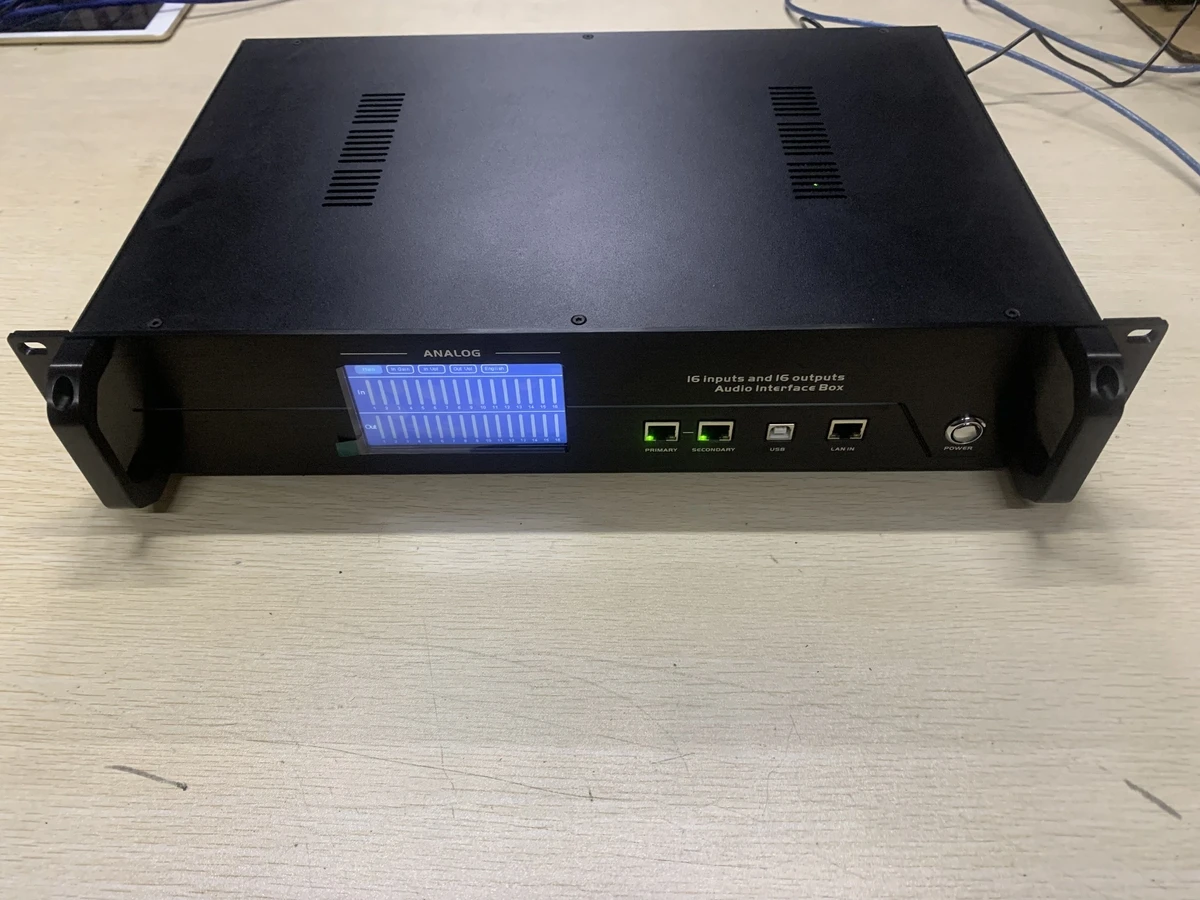

DL16 Dante Audio Converter Interface Box Professional Speakers Audio System

Dante converter with 16-channel analog line input/output, compatible with the Dante protocol. Supports building highly stable and
flexible systems

Each analog input supports independent 48V phantom power supply control

Each input supports independent feedback suppression

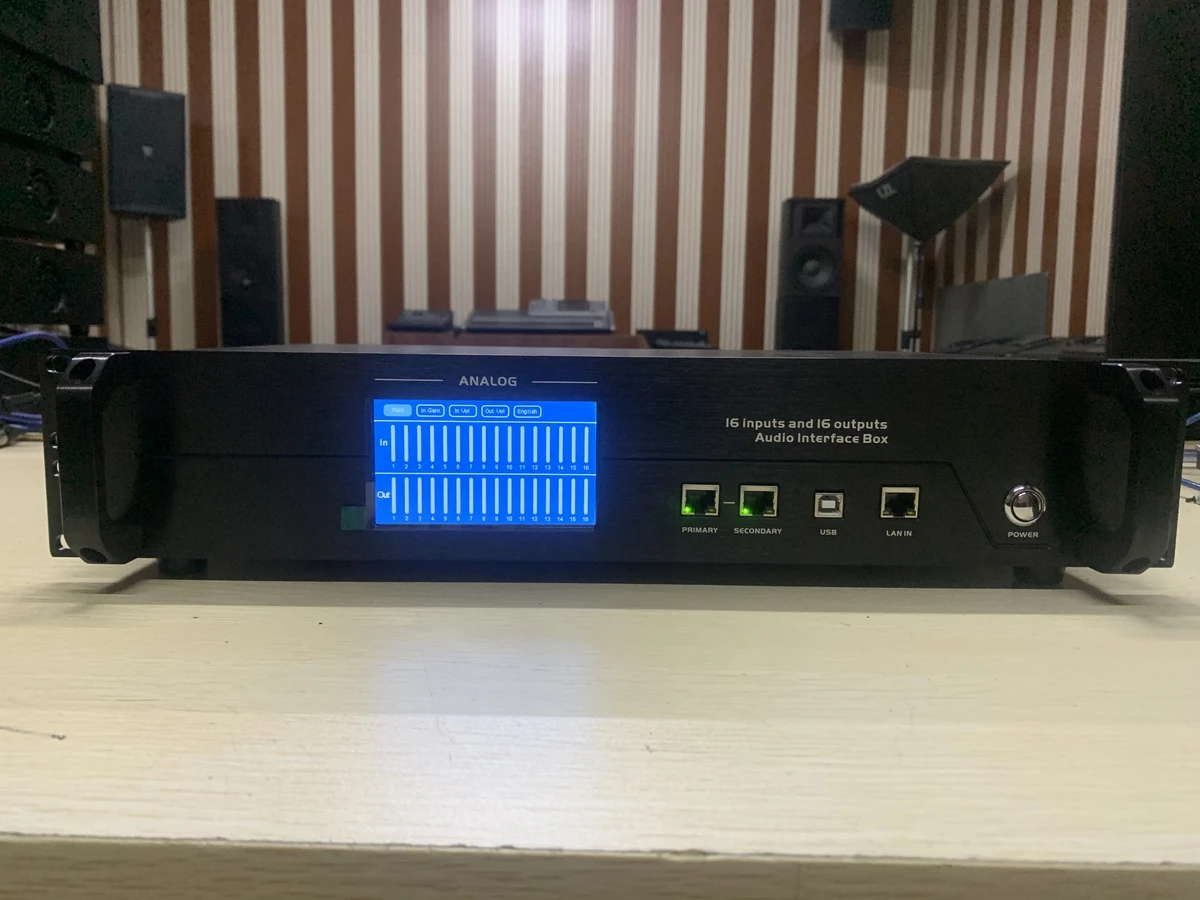

4.3-inch TFT color display touch screen, real-time display of output and output status, and can adjust the input and output
volume, support English language switching

Output output independent 7 parameter EQ adjustment

One active network port and one standby network port are connected

Supports USB connection PC debugging

Dante Controller enables flexible routing configuration

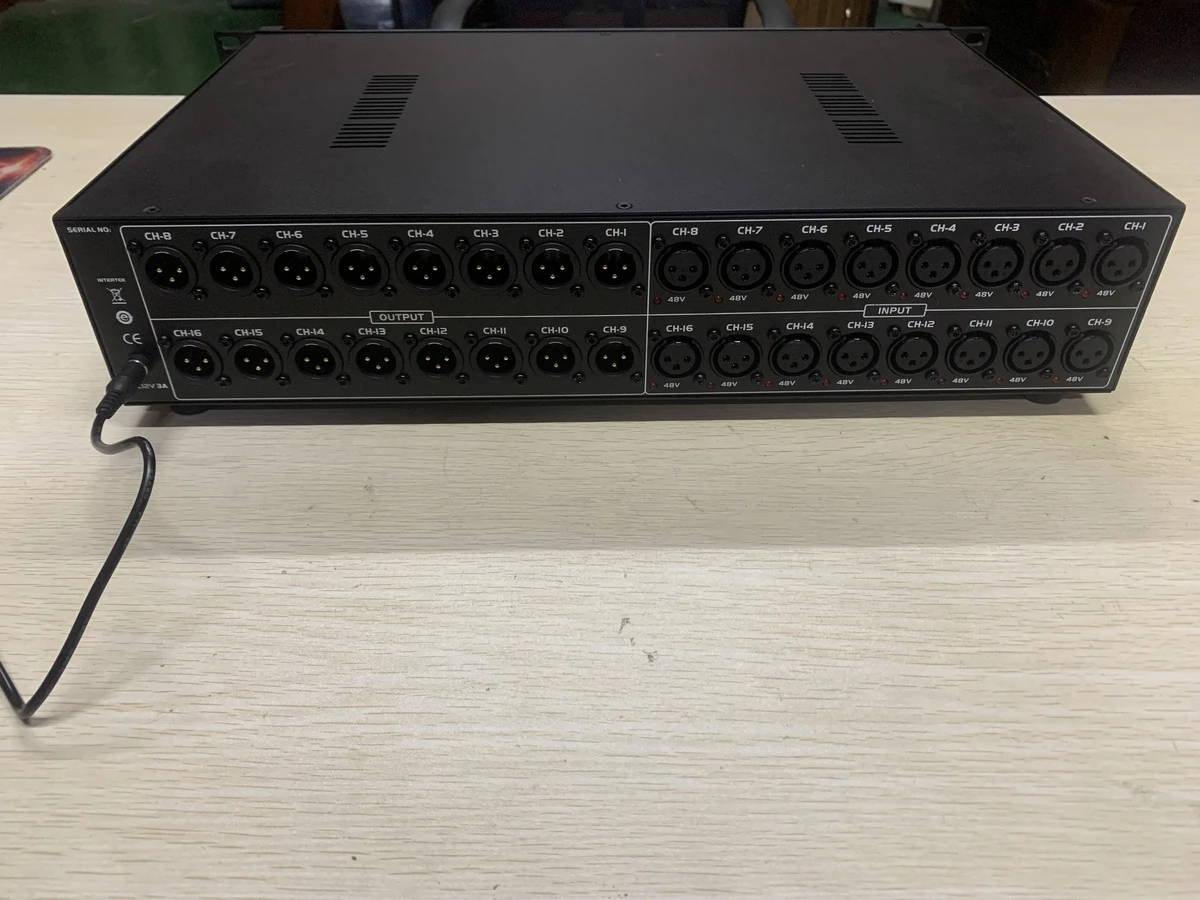

Input and output are equipped with 16 cannon interfaces for easy connection to other wiring devices

2.5 U rack mounting dimensions

20-20k Hz

+0.1dB/-0.5dB (-16dBFS input, Fs=44.1k/48k Hz sampling frequency, JEITA)

20-40k Hz

+0.1dB/-0.5dB (-16dBFS input, Fs=88.2k/96k Hz sampling frequency, JEITA)

distortion(THD+N)

0.001% or less (-1dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)

S/N

113dB or higher (Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)

115dB or higher (1kHz, Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)

20-20k Hz

+0.1dB/-0.5dB (-16dBFS input, Fs=44.1k/48k Hz sampling frequency, JEITA)

20-40k Hz

+0.1dB/-1.0dB (-16dBFS input, Fs=88.2k/96k Hz sampling frequency, JEITA)

distortion(THD+N)

0.001% or less (-1dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)

S/N

110dB or higher (Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)

crosstalk

115dB or higher (1kHz, Fs=44.1k/48k/88.2k/96k Hz sampling frequency, JEITA)
