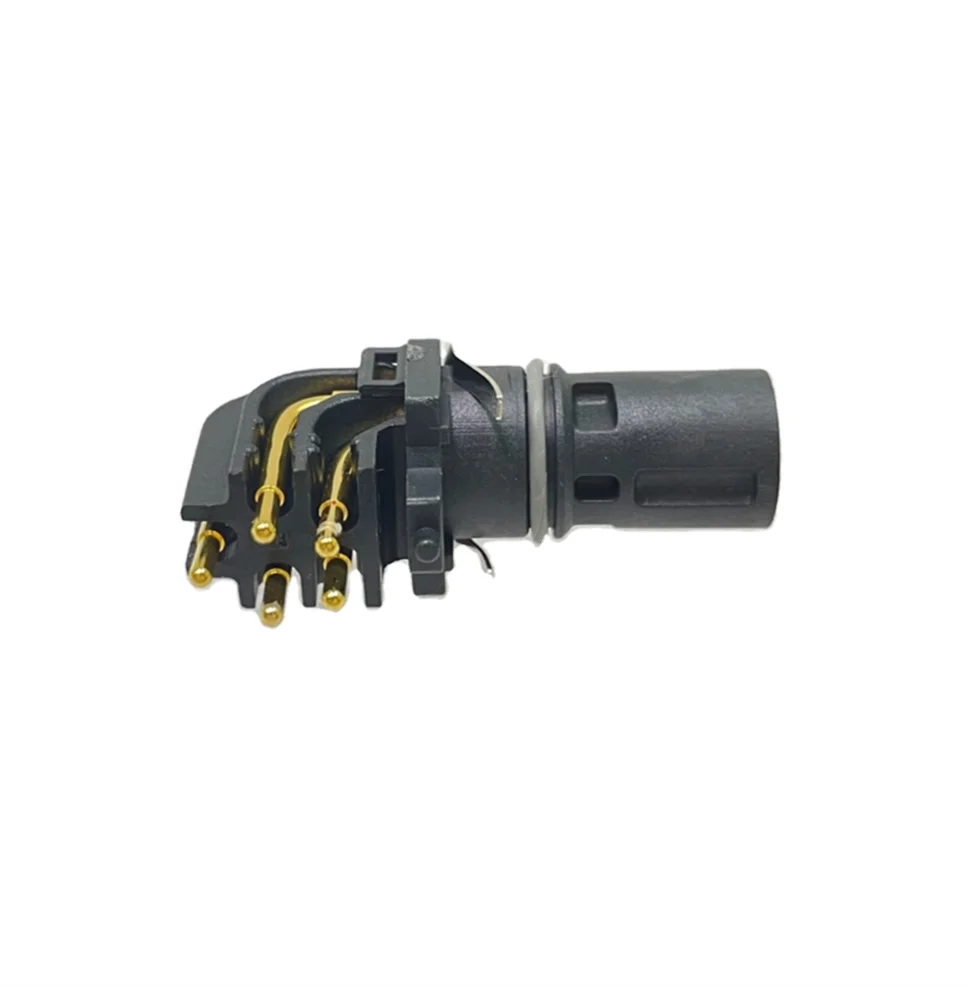

Mating part for phoenix 1456514 SACC DSI MSD 4CON L180/SH TQ MSDS 04PMMP SF8002
- Category: >>>
- Supplier: GSTART INTERNATIONAL CO. LTD.
Share on (1600948880595):
Product Overview
Description
General | Code | A | ||||||||||
Pin# | 3 | 4 | 5 | 8 | 12 | 17 | ||||||
Mating Style | Screw Thread | |||||||||||
Operating Voltage | 250V AC / DC | 60V AC / DC | 30V AC / DC | |||||||||
Current Rating | 4A | 2A | 2A | 1.5A | ||||||||
Waterproof Rating | IP67 (IP68 Optional) | |||||||||||
Working Temperature | -40 ~ 105°C | |||||||||||
Salt Spray Resistance | 48H | |||||||||||
Durability (Pin Contact) | 100 Cycles (IEC) | |||||||||||
Vibration | 5 ~ 150Hz | |||||||||||
Receptacle / Panel | Available Pin Type | PCB 90° / PCB 180° / Solder | ||||||||||
Panel Thickness | Max. 4.5mm | |||||||||||
Nut Torque | 6 ~ 8 kgf cm | |||||||||||
Field Installable | Available Pin Type | Solder / Screw-in / Crimp | ||||||||||
Recommend Cable OD | 5.0 ~ 6.8mm | |||||||||||
Overmolded Cable | Outer Mold | TPU, Black | ||||||||||
Cable | UL2464 PVC, Black | |||||||||||
