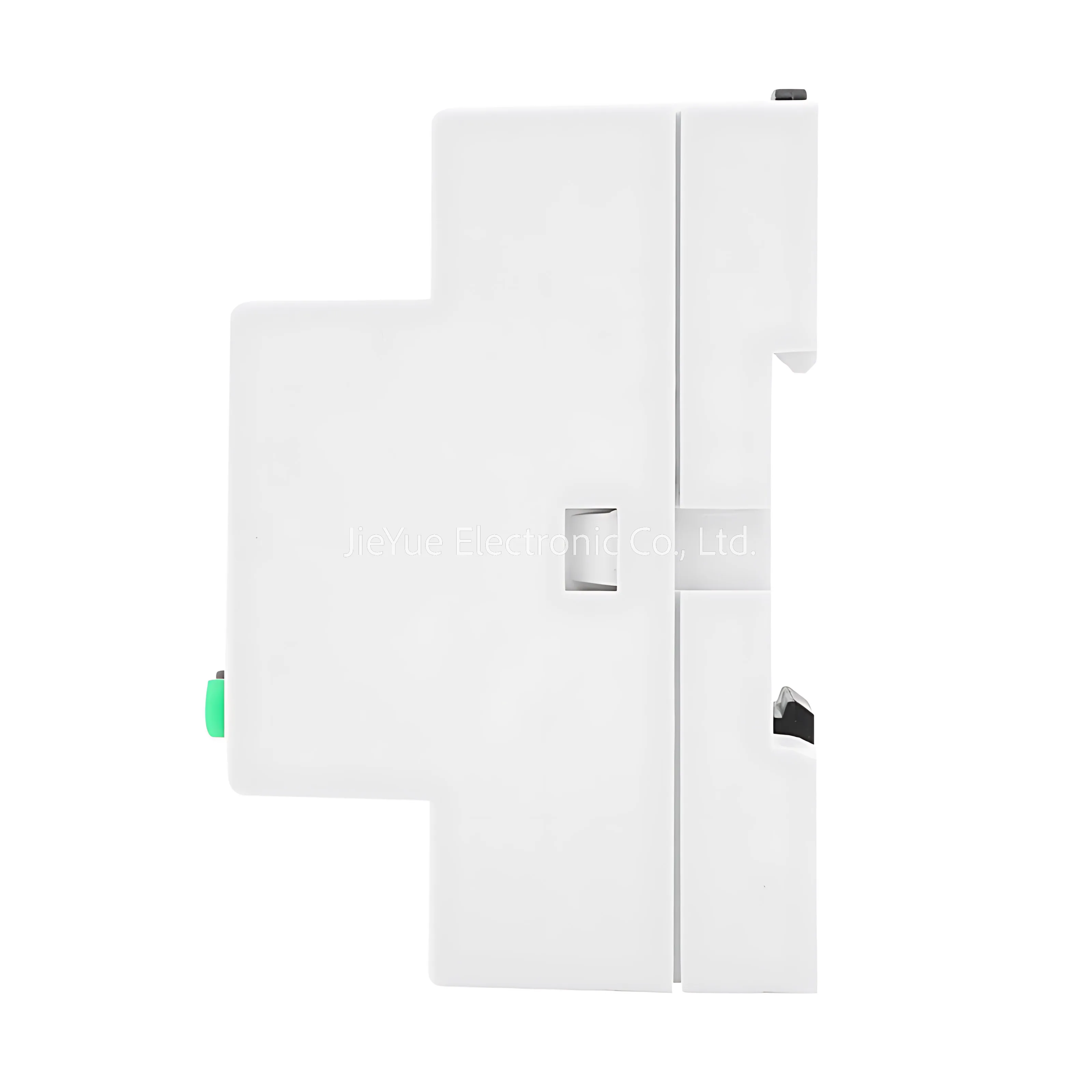

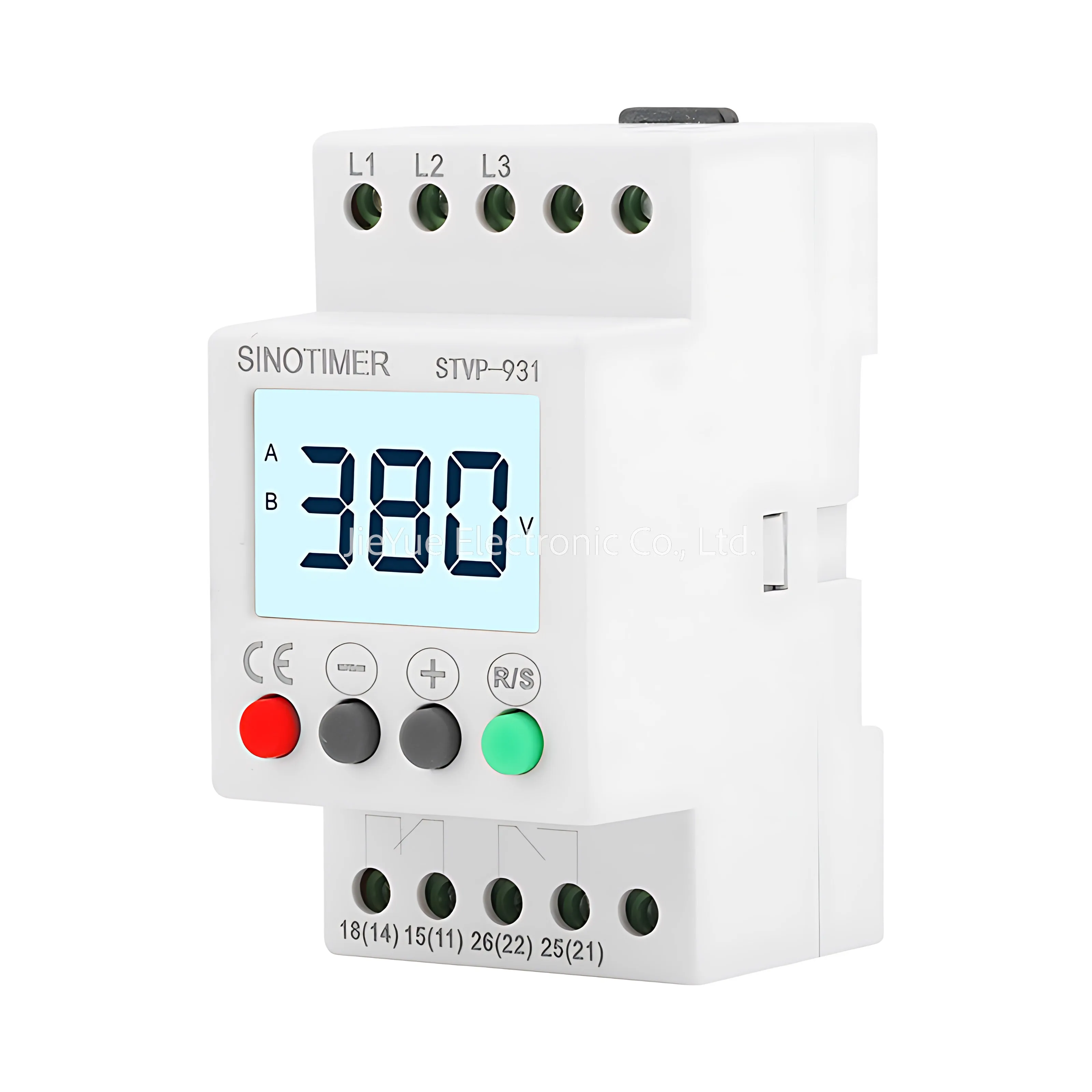

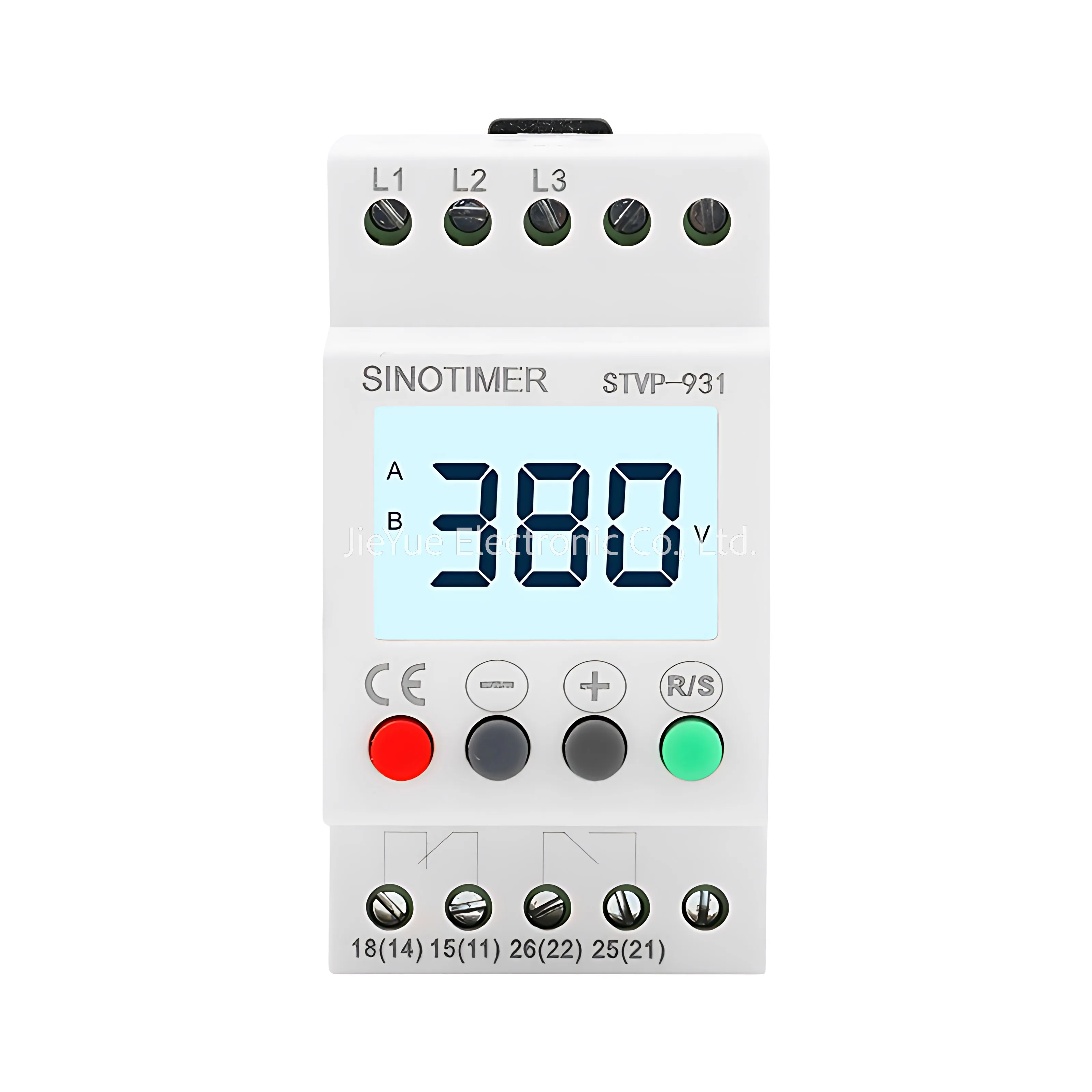

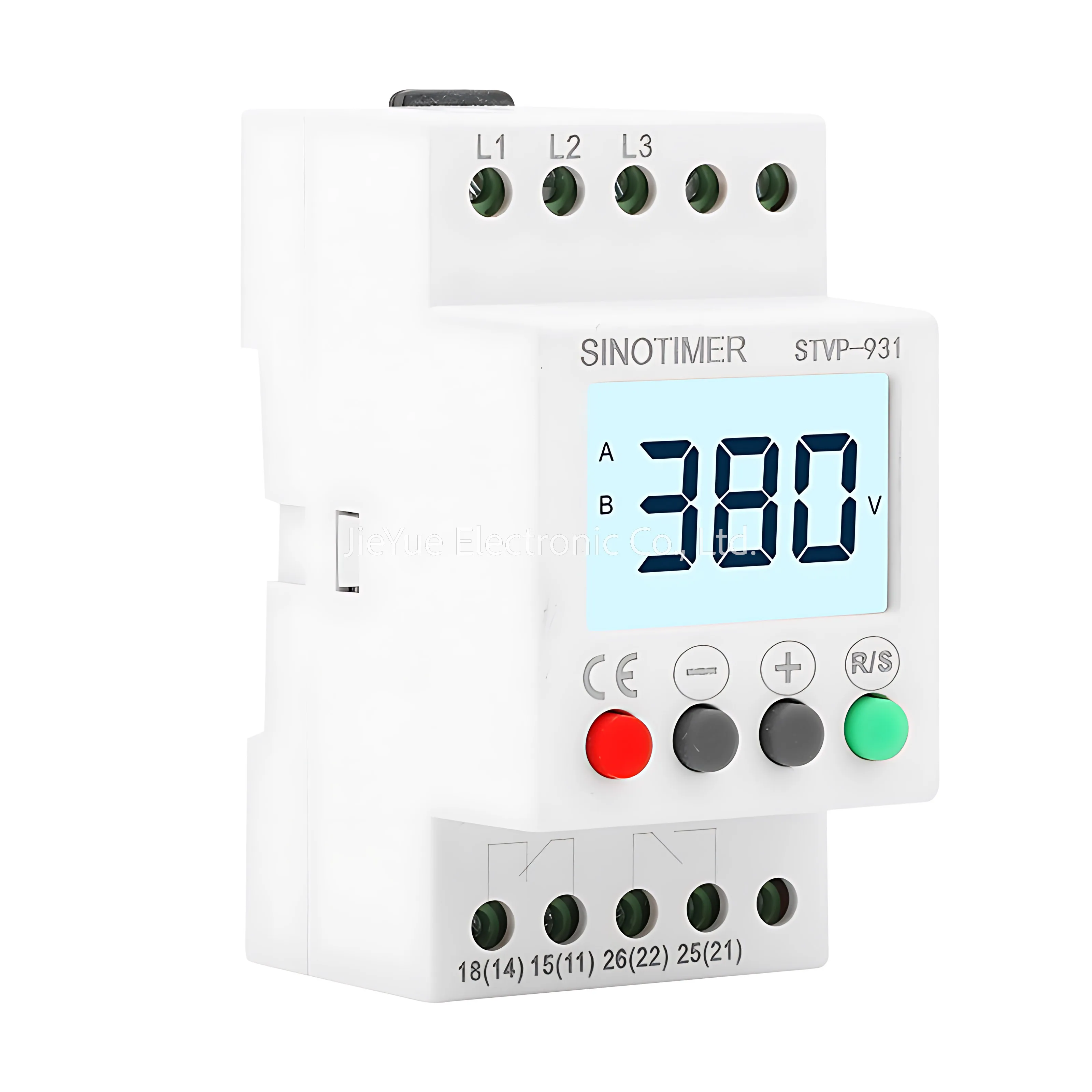

3 Phase Voltage Monitoring Relay LCD Display Voltage Protection Relay With Multi Protective Function 380V relay
- Category: >>>
- Supplier: Yueqing Jieyue Electronic Co. Ltd.
Share on (1600948909138):
Product Overview
Description
Why Choose US
We Gained Plenty of Experience For Customized OEM ODM Orders
Hi，You can bring your pictures to make an inquiry? | ||||||||
If you need other specifications, please remember to write to me or contact to discuss. | ||||||||
Products Description
Features:
●Microprocessor technology provideshighly accurate and repeatable protection
●Built-in LCD and keypad afford a precisediqital setting
●Compact modular 43mm housing
●Adjustable over-and undervoltage,phase unbalance threshold
●Independent adjustable delay time forovervoltage, undervoltage phase unbalance
●Adjustable reset method automatic resetor manual reset
●1 NO& 1 NC contacts
●Failure recording with last 3 faults
●Rated voltage: 380V 50-60Hz, Operating range: 300-490VAC
Protective Functions:
●Phase Loss(Failure)
●Phase Sequence(Reversal)
●Phase Unbalance(Asymmetry)
●Undervoltage
●Overvoltage
Applications:
●Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors
Product Parameters:
1.Model number : STVP-931
2.Rated supply voltage:380VAC
3.Operating Range:300-490VAC
4.Voltage Hysteresis:10V
5.Automatic reset time:5s
6.Asymmetry Hysteresis 2%
7.Phase loss tripping time:1s
8.Phase sequence tripping time:instant
9.Measurement error:<1% with ajustable voltage range
10.falure recording:three times
11.Output type:1NO&1NC
12.Contact capacity:6A,250VAC/30ADC(resistive load)
13.Degree of protection:IP20
14.Working condition:-25-65 degree,<85% RHmbon-condensing
15.Mechanical durability:1000000 cycles
16.Dielectric strength:>2K Vac 1MIN
17.Weight:128g
18.Mounting:35mm DIN rail

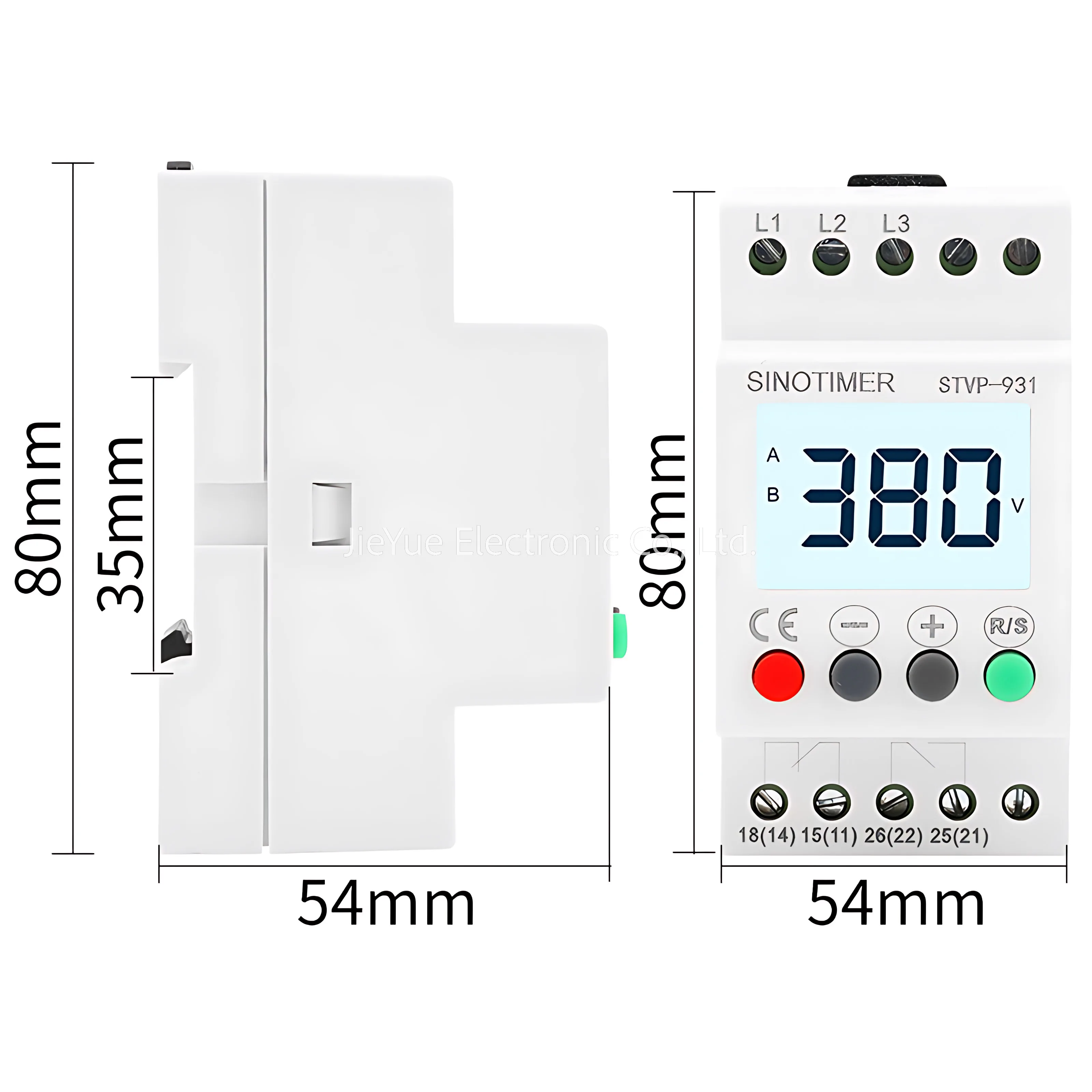

19:Dimensions:80*54*44mm
●Microprocessor technology provideshighly accurate and repeatable protection
●Built-in LCD and keypad afford a precisediqital setting
●Compact modular 43mm housing
●Adjustable over-and undervoltage,phase unbalance threshold
●Independent adjustable delay time forovervoltage, undervoltage phase unbalance
●Adjustable reset method automatic resetor manual reset
●1 NO& 1 NC contacts
●Failure recording with last 3 faults
●Rated voltage: 380V 50-60Hz, Operating range: 300-490VAC
Protective Functions:
●Phase Loss(Failure)
●Phase Sequence(Reversal)
●Phase Unbalance(Asymmetry)
●Undervoltage
●Overvoltage
Applications:
●Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors
Product Parameters:
1.Model number : STVP-931
2.Rated supply voltage:380VAC
3.Operating Range:300-490VAC
4.Voltage Hysteresis:10V
5.Automatic reset time:5s
6.Asymmetry Hysteresis 2%
7.Phase loss tripping time:1s
8.Phase sequence tripping time:instant
9.Measurement error:<1% with ajustable voltage range
10.falure recording:three times
11.Output type:1NO&1NC
12.Contact capacity:6A,250VAC/30ADC(resistive load)
13.Degree of protection:IP20
14.Working condition:-25-65 degree,<85% RHmbon-condensing
15.Mechanical durability:1000000 cycles
16.Dielectric strength:>2K Vac 1MIN
17.Weight:128g
18.Mounting:35mm DIN rail
19:Dimensions:80*54*44mm
