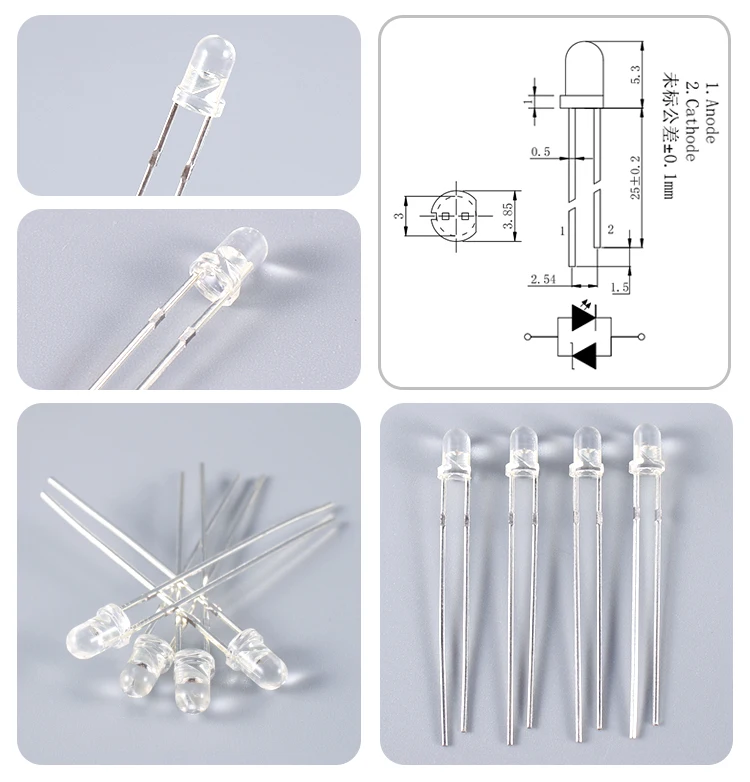

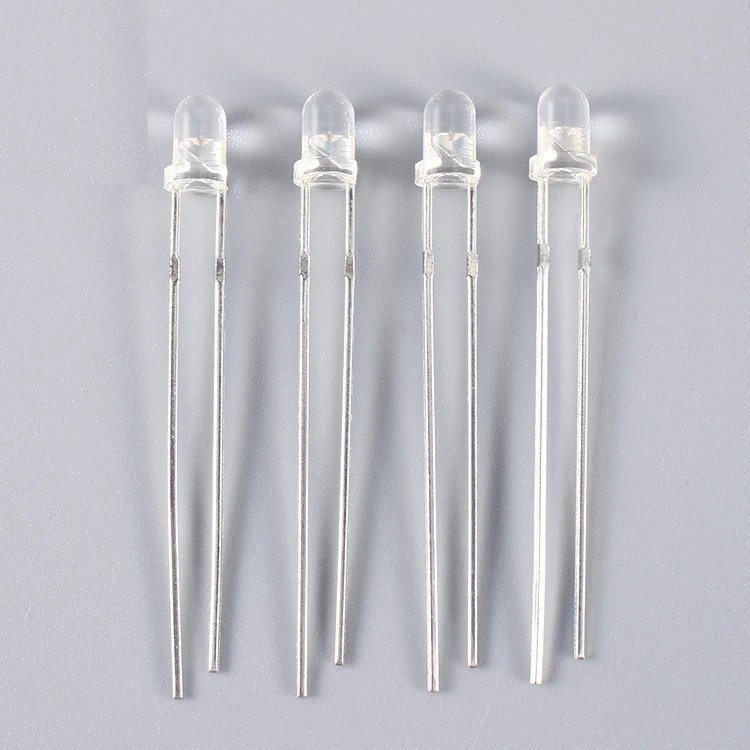

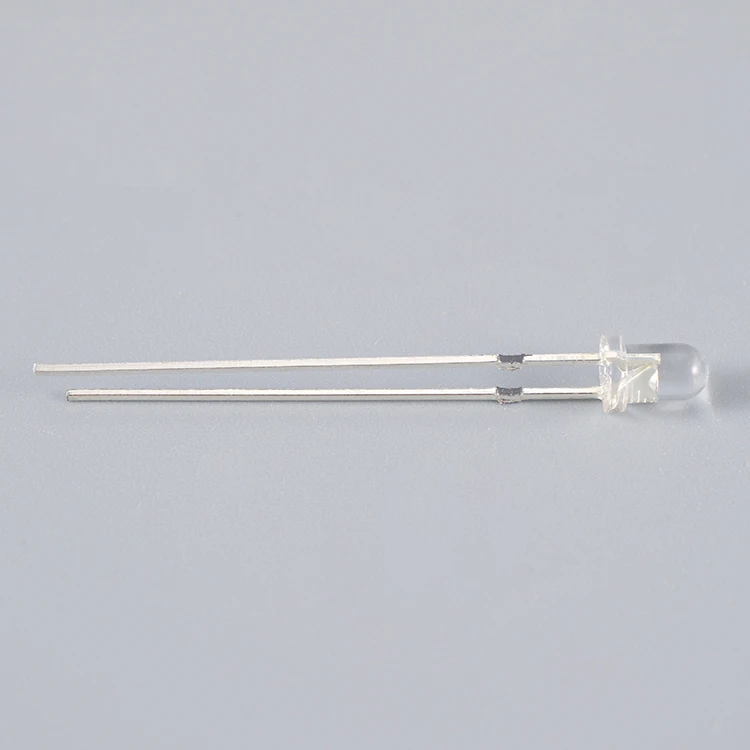

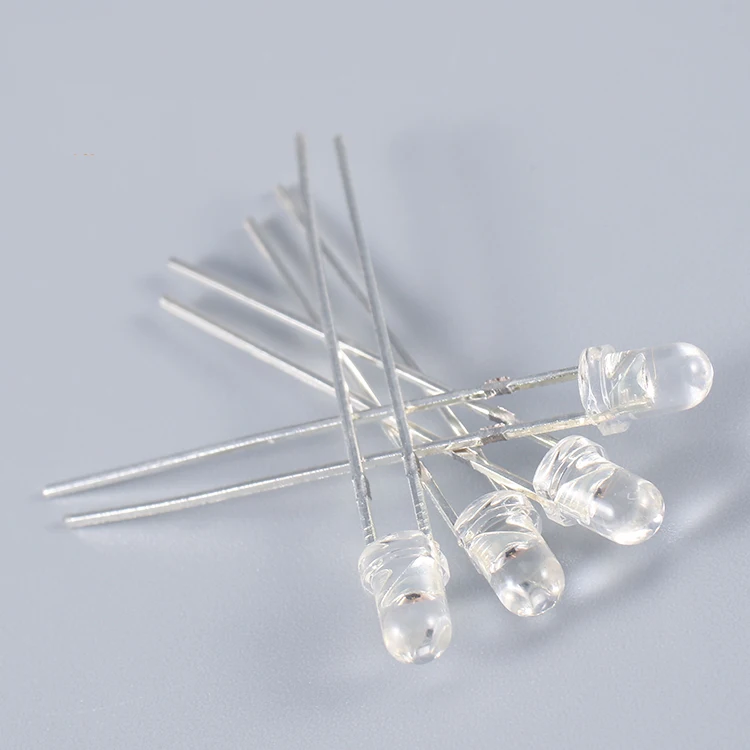

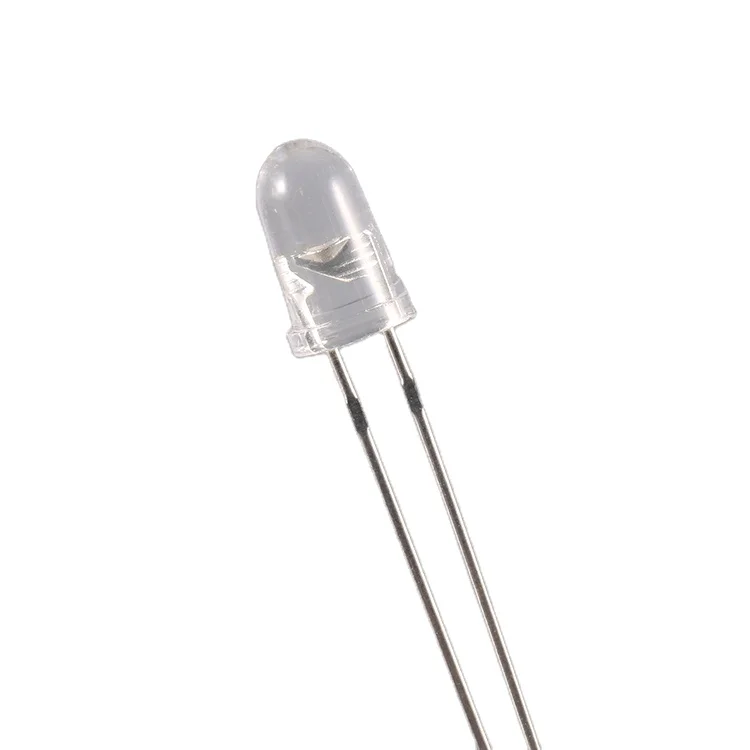

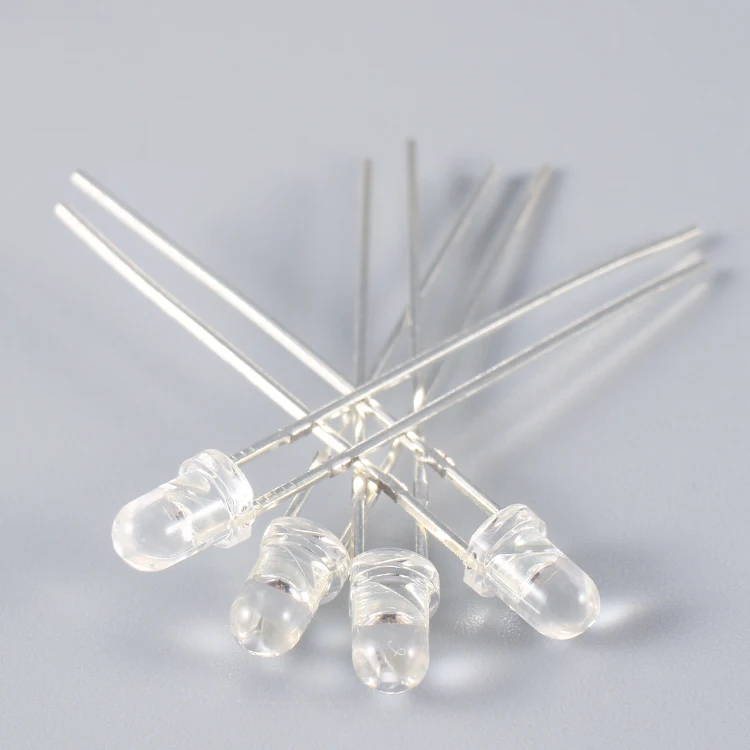

Through Hole Package Type infrared Diode F5/F3 infrared 2000nm 3000nm 4000nm 4500nm 5500nm Dip IR LED chip
- Category: >>>
- Supplier: Shenzhen Heyi Optical Control Co. Ltd.
Share on (1600949035292):
Product Overview
Description
| Order Code | Voltage (V) | Peak Wavelength (nm) | Radiant Power (mW) | Radiant Intensity (mw/sr) | Current (mA) | Half Width (nm) | Angle (0) |
| YFL555U13PC0141-J365 | 3.4-3.8 | 365-375 | 5--10 | 11 | 20 | 10 | 7 |
| YFL555U13PC0141-J380 | 3.0-3.4 | 380-390 | 25-35 | 92 | 20 | 13 | |
| YFL555E15PC0141-J400 | 3.0-3.4 | 395-400 | 25-35 | 127 | 20 | 17 | |
| YFL555U13PC0141-J415 | 3.0-3.6 | 410-420 | 25-35 | 121 | 20 | 17 | |
| YFL555U13PC0141-J420 | 3.0-3.6 | 420-430 | 25-35 | 162 | 20 | 19 | |
| YFL555U13PC0141-J430 | 3.0-3.6 | 430-440 | 25-35 | 237 | 20 | 19 | |
| YFL555O12BC0141-455 | 3.0-3.4 | 450-460 | 20-30 | 341 | 20 | 20 | |
| YFL555O12BC0141-465 | 3.0-3.4 | 465-475 | 20-30 | 399 | 20 | 20 | |
| YFL555G13BC0141-480 | 3.0-3.4 | 470-490 | 10--20 | 257 | 20 | 28 | |
| YFL555O12PGC0141-500 | 3.0-3.4 | 495-510 | 10--20 | 237 | 20 | 25 | |
| YFL555O12PGC0141-520 | 3.0-3.4 | 520-530 | 10--20 | 295 | 20 | 30 | |
| YFL555O12PGC0141-530 | 3.0-3.4 | 530-540 | 10--20 | 173 | 20 | 35 | |
| YFL555E14YC0141-590 | 2.0-2.4 | 590-600 | 10--20 | 289 | 50 | 20 | |
| YFL555E140C0141-600 | 2.0-2.4 | 600-610 | 10--20 | 416 | 50 | 15 | |
| YFL555E14RC0141-630 | 2.0-2.4 | 620-640 | 35-45 | 1176 | 50 | 16 | |
| YFL555E14RC0141-660 | 2.0-2.4 | 655-665 | 55-65 | 2392 | 50 | 16 | |
| YFL555L14IC0141-680 | 2.0-2.4 | 670-690 | 80-90 | 2657 | 100 | 17 | |
| YFL555L14IC0141-700 | 2.0-2.4 | 690-710 | 80-90 | 2510 | 100 | 20 | |
| YFL555L14IC0141-720 | 1.8-2.2 | 720-740 | 90-100 | 228 | 100 | 22 | |
| YFL555L14IC0141-760 | 1.6-2.0 | 755-765 | 90-100 | 472 | 100 | 25 | |
| YFL555L14IC0141-780 | 1.6-2.0 | 775-785 | 90-100 | 718 | 100 | 27 | |
| YFL555L14IC0141-800 | 1.4-1.8 | 800-820 | 80-90 | 727 | 100 | 30 | |
| YFL555L14IC0141-820 | 1.6-2.0 | 820-830 | 90-100 | 811 | 100 | 33 | |
| YFL555E14IC0141-850 | 1.4-1.8 | 840-860 | 80-90 | 630 | 100 | 35 | |
| YFL555L14IC0141-880 | 1.4-1.8 | 870-890 | 80-90 | 820 | 100 | 39 | |
| YFL555L14IC0141-900 | 1.4-1.8 | 900-920 | 80-90 | 488 | 100 | 40 | |
| YFL555L14IC0141-940 | 1.2-1.6 | 930-950 | 80-90 | 559 | 100 | 45 | |
| YFL555L14IC0141-970 | 1.2-1.6 | 960-980 | 70-80 | 764 | 100 | 55 | |
| YFL555L14IC0141-1000 | 1.0-1.4 | 1000-1100 | 50-60 | 350 | 100 | 60 | |
| YFL555L14IC0141-1300 | 0.5-1.0 | 1300-1400 | 20-30 | 200 | 100 | 80 | |
| YFL555L14IC0141-1400 | 0.5-1.0 | 1400-1500 | 20-30 | 180 | 100 | 90 |
Warm Tip: The above parameters are for reference. Wavelength Angle, PCB can be Customized according to requirement
Our products are widely used in various applications such as medical, life science, industrial Equipment, non-destructive testing, and analytical equipment
