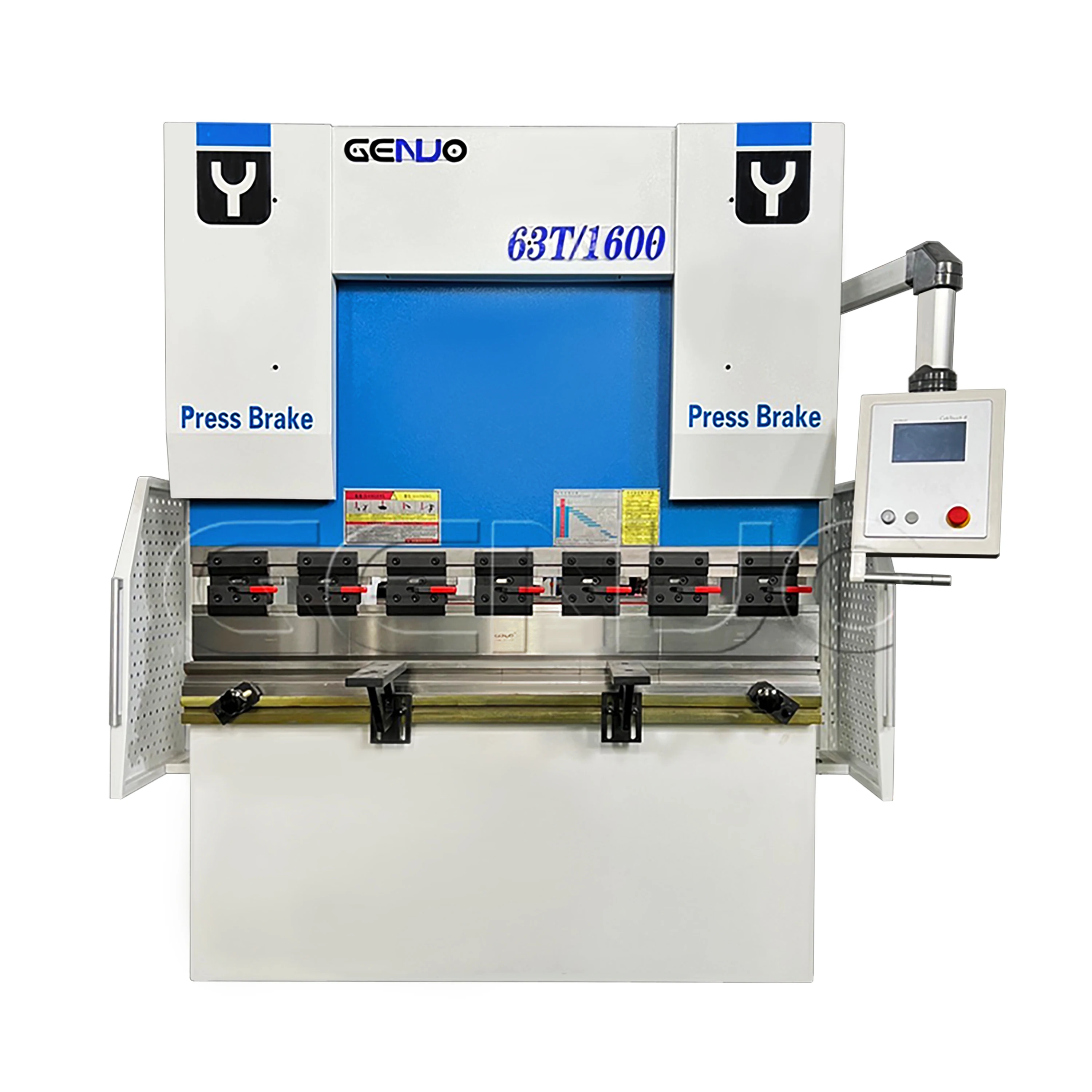

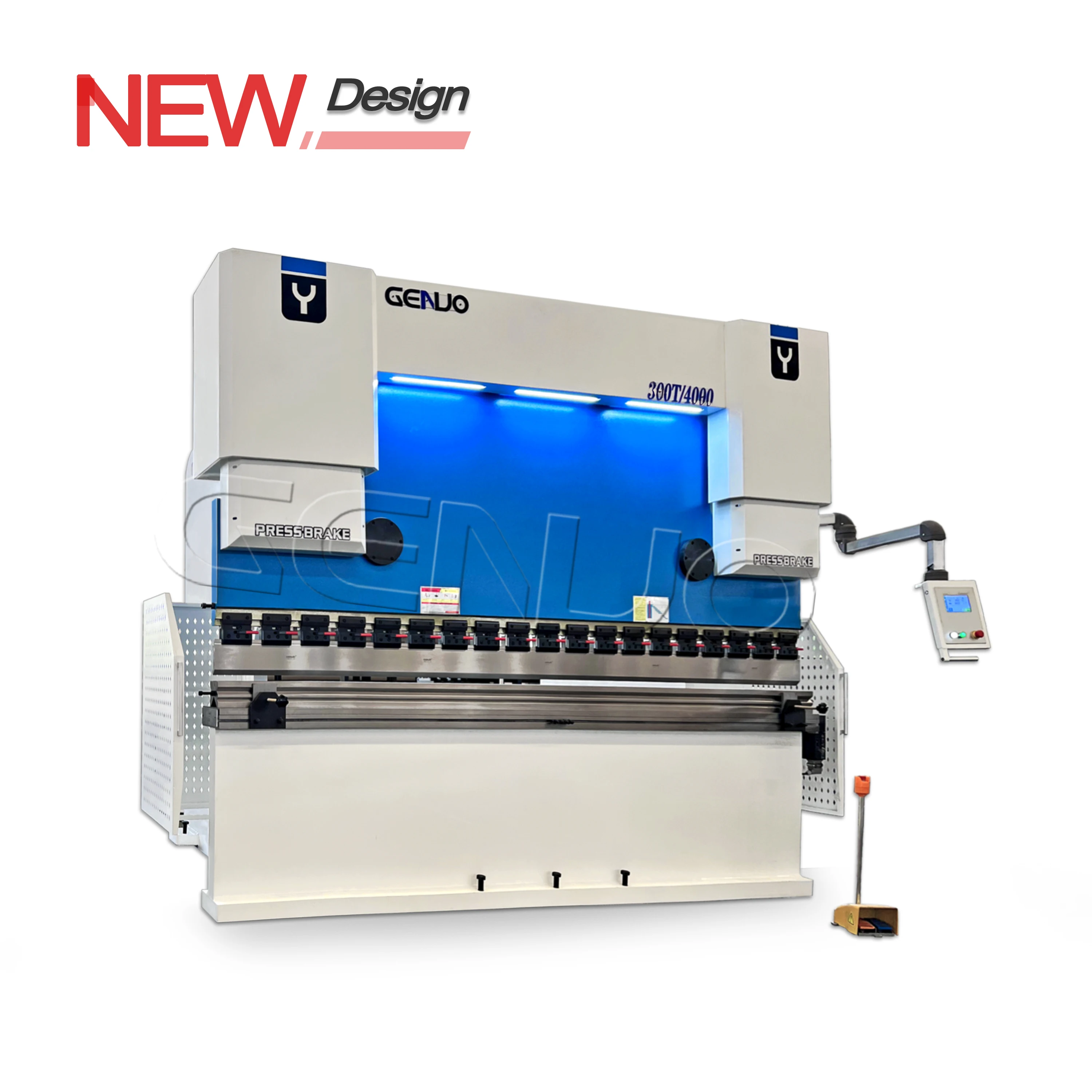

High configuration automatic sheet metal bending machine 4 1 Axis CNC metal bending machine with DELEM controller
- Category: >>>
- Supplier: Maanshan Genuo Machinery Manufacturing Co. Ltd.
Share on (1600949195535):
Product Overview
Description
Products Description
Machine Feature

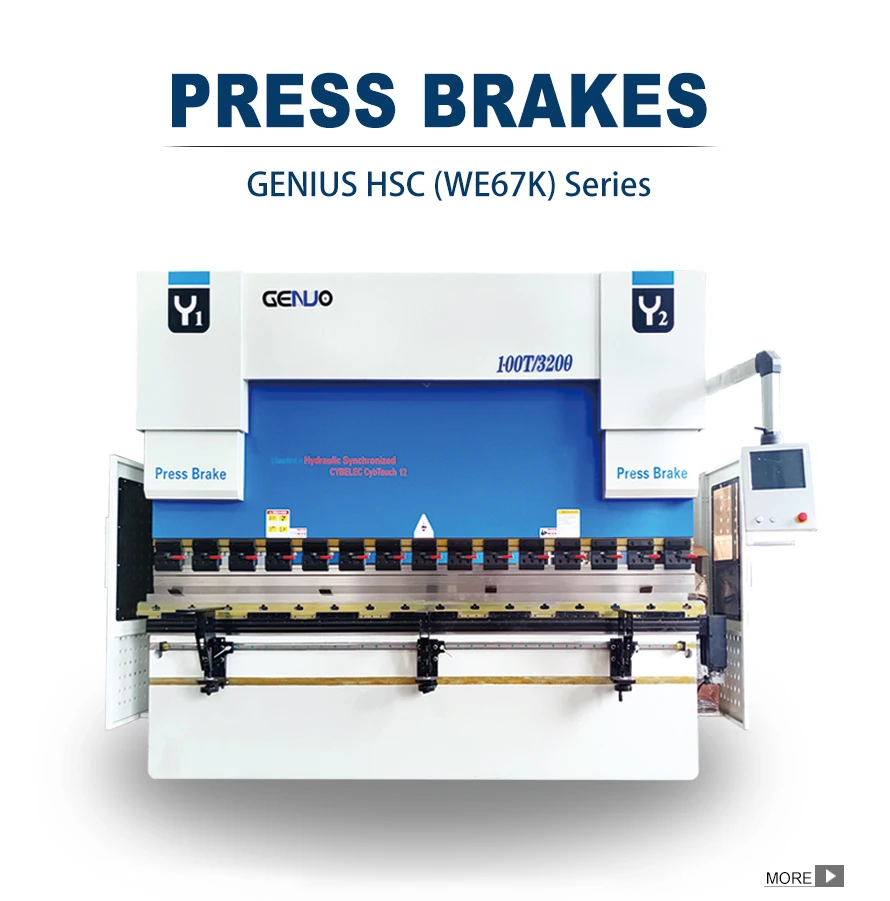

GENUO Genius HSC series CNC press brake adopts integral processing and tempering
ultra-high strength frame. The CNC control system can independently and accurately
control Y1 and Y2 axes to make the ram run synchronously.The advanced servo
proportional valve ensures high bending accuracy and stability through real-time
feedback of grating ruler. Large stroke and daylight combined with multi axis optional
high-precision back guiding rule system can realize more flexible bending size and
angle.

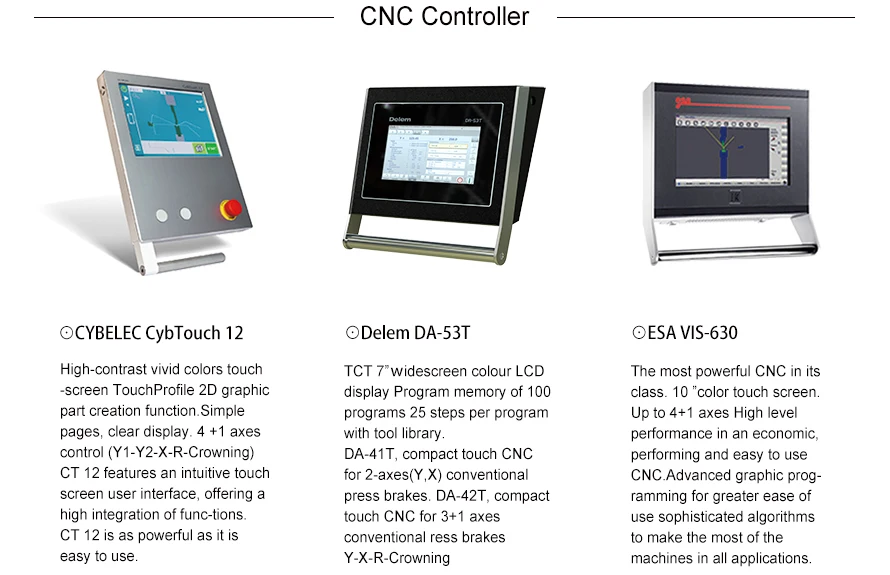

The multi-functional CNC control can automatically calculate the pressure, crowning
and unfolding size according to the length and thickness of the workpiece.
There are also 2D and 3D image editing and demonstration options to make bending
easier and more efficient. This is the most mainstream and popular cost-effective
CNC press brake in the market. 40T ~ 800T optional.
Standard Equipment | Optional Equipment | ||||||||
◆CYBELEC CybTouch 12 CNC Control | ◇Delem DA-58T,ESA S640,DA-66T,ETC-16T | ||||||||
◆Mono block welded rigid to deflection and high tensile steel frame | ◇2 axis back gauge with R-axis or mutil-axis | ||||||||
◆High precision Y1,Y2 axis synchronized closed-loop feedback | ◇Z1,Z2 Joy stick control back gauge fingers | ||||||||
◆Accurate heavy-duty X axis back gauge system | ◇DSP or SDKELI Laser front guard options | ||||||||
◆Auto Motorized crowning system/Hydraulic cylinder crwoning | ◇Energy saving and low noise main servo motor drive | ||||||||
◆European-style punch and 4V/2V/1V Dies | ◇WILA type top and bottom tool clamping system | ||||||||
◆Fast punch clamps and movable sliding front support | ◇Bending tools management cabinet or trolley | ||||||||
◆BOSCH Rexroth hydraulic system,GIVI linear encoder | ◇Special heights, Daylight, Throat Depth are available | ||||||||
◆SIEMENS main motor,Sunny pump,Schneider Electric | ◇40~800 Tons and 4~20ft Bending Lengths options | ||||||||
◆EMB ferrule type pipe connector, NOK sealing rings | ◇Single/Tandem/Trio optional | ||||||||

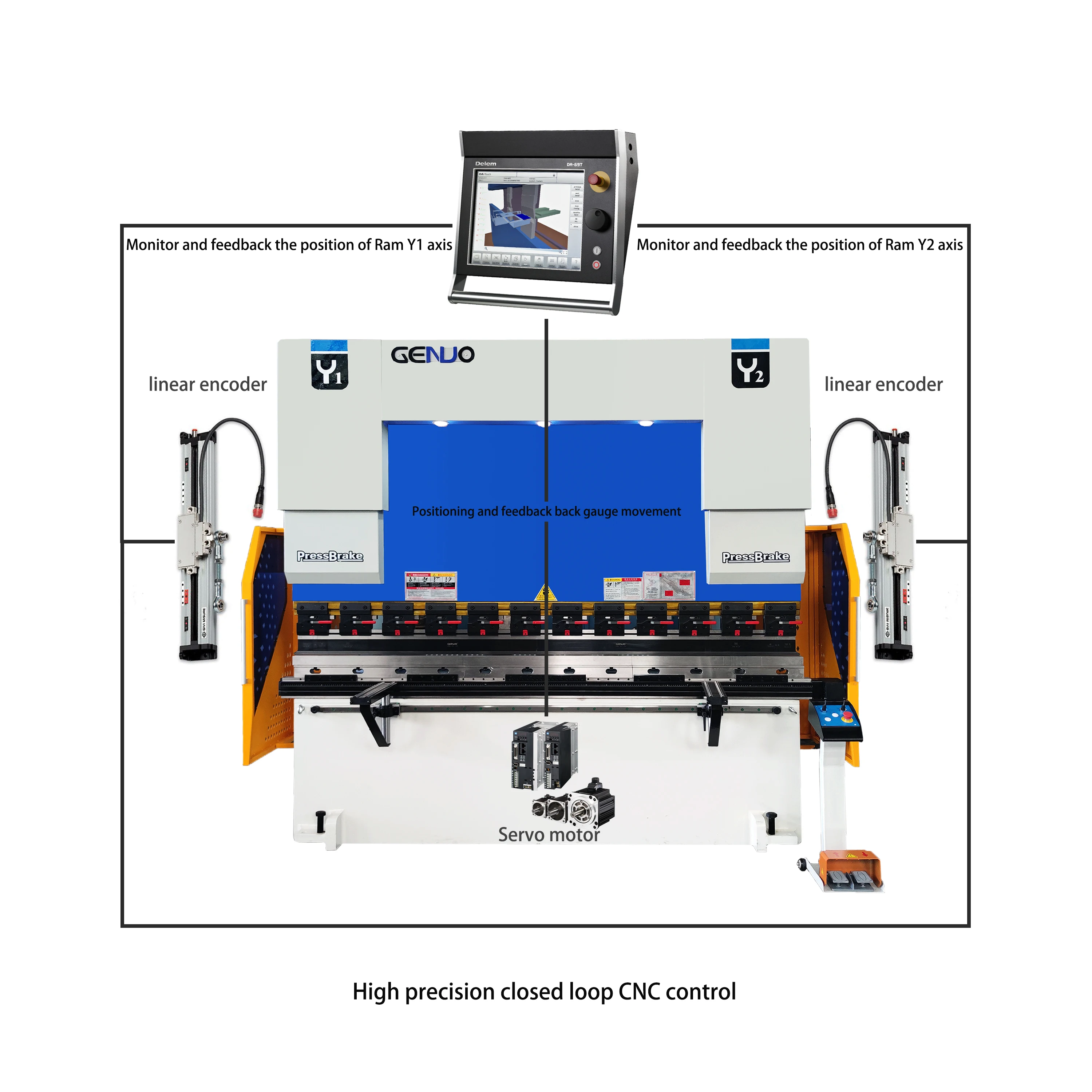

High precision closed loop CNC control

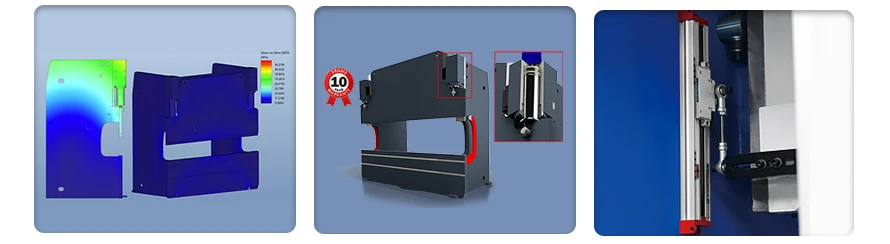

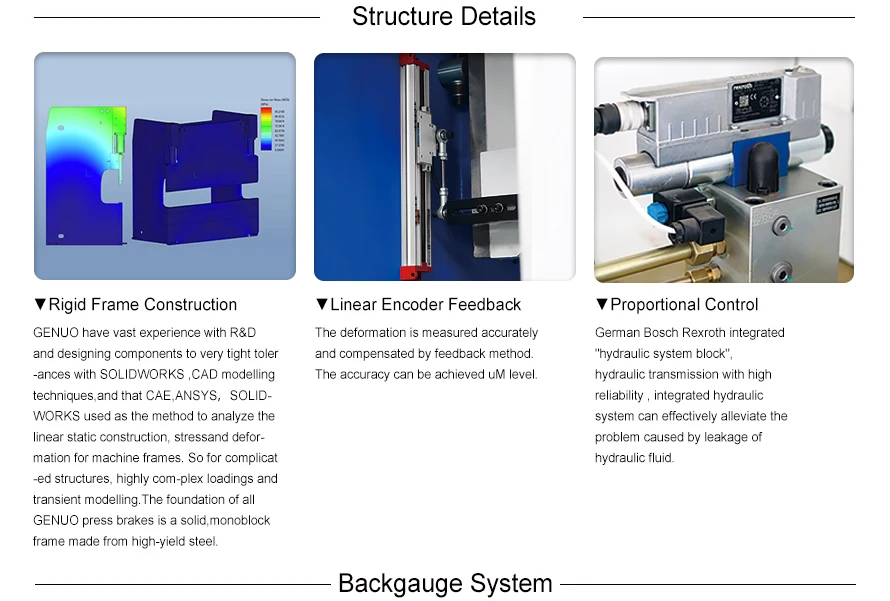

▼Rigid Frame Construction
GENUO have vast experience with
R&D and designing components to
very tight tolerances for machine
frames. So for complicated
structures, highly complex
structures, highly complex
loadings and transient modelling.
The foundation of all GENUO press
brakes is a solid,monoblock frame
made from high-yield steel.
made from high-yield steel.
▼Proportional Control
German Bosch Rexroth integrated
"hydraulic system block",
hydraulic transmission with high
reliability , integrated hydraulic
system can effectively alleviate
"hydraulic system block",
hydraulic transmission with high
reliability , integrated hydraulic
system can effectively alleviate
the problem caused by leakage
of hydraulic fluid.
▼Linear Encoder Feedback
The deformation is measured
accurately and compensated
by feedback method.
The accuracy can be achieved
uM level.

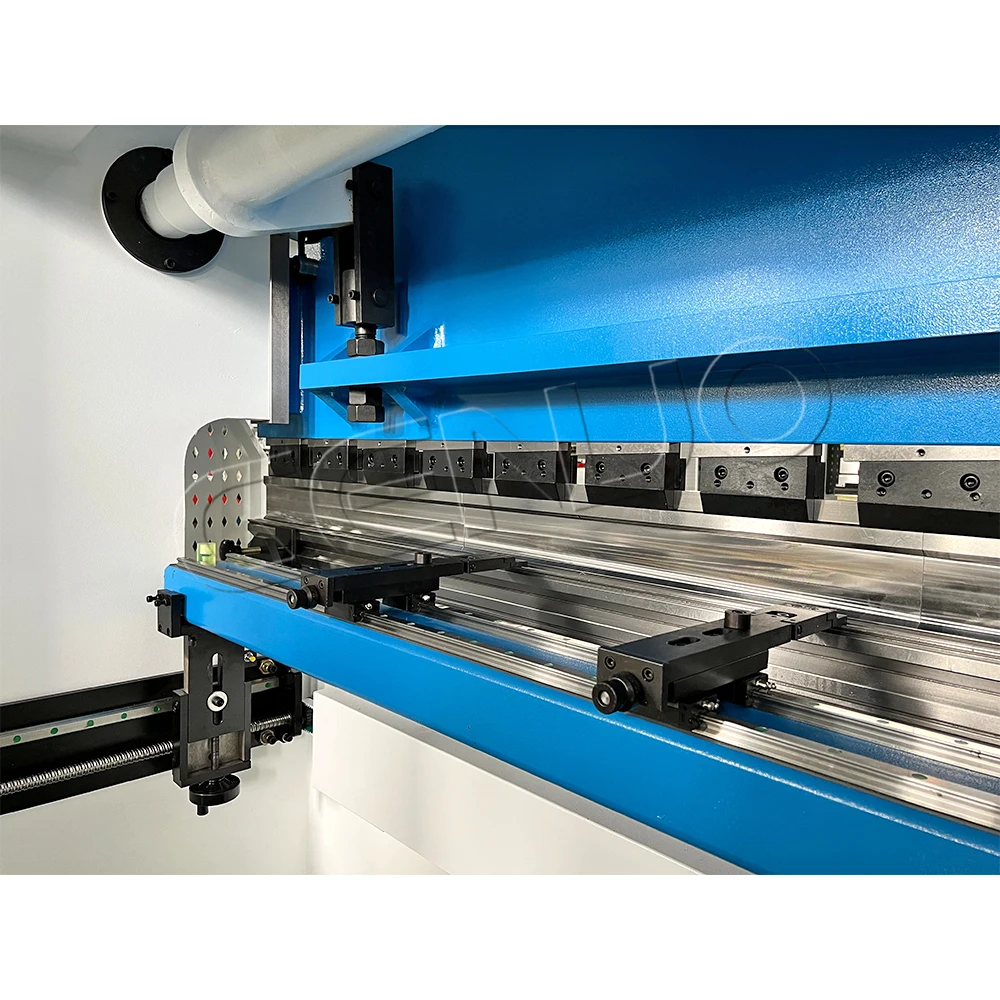

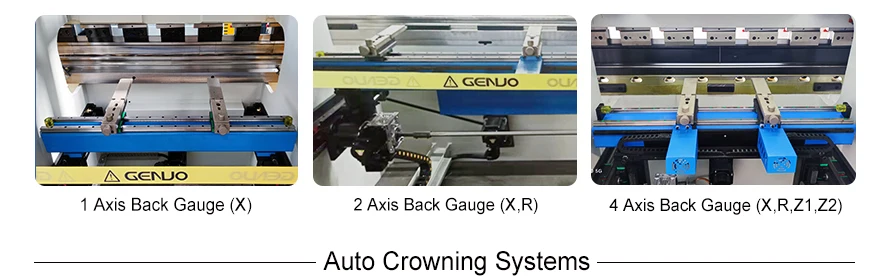

Establishing the right back gauge for your projects will allow for increased part production
and precision.From intricate parts which typically require more axes to large quantities
that require more time and therefore increased cost, the correct back gauge for each
job is essential to lowering costs per part which ultimately benefts your bottom line.
GENUO technicians are happy to assist you with any questions you may have on your
project requirements.

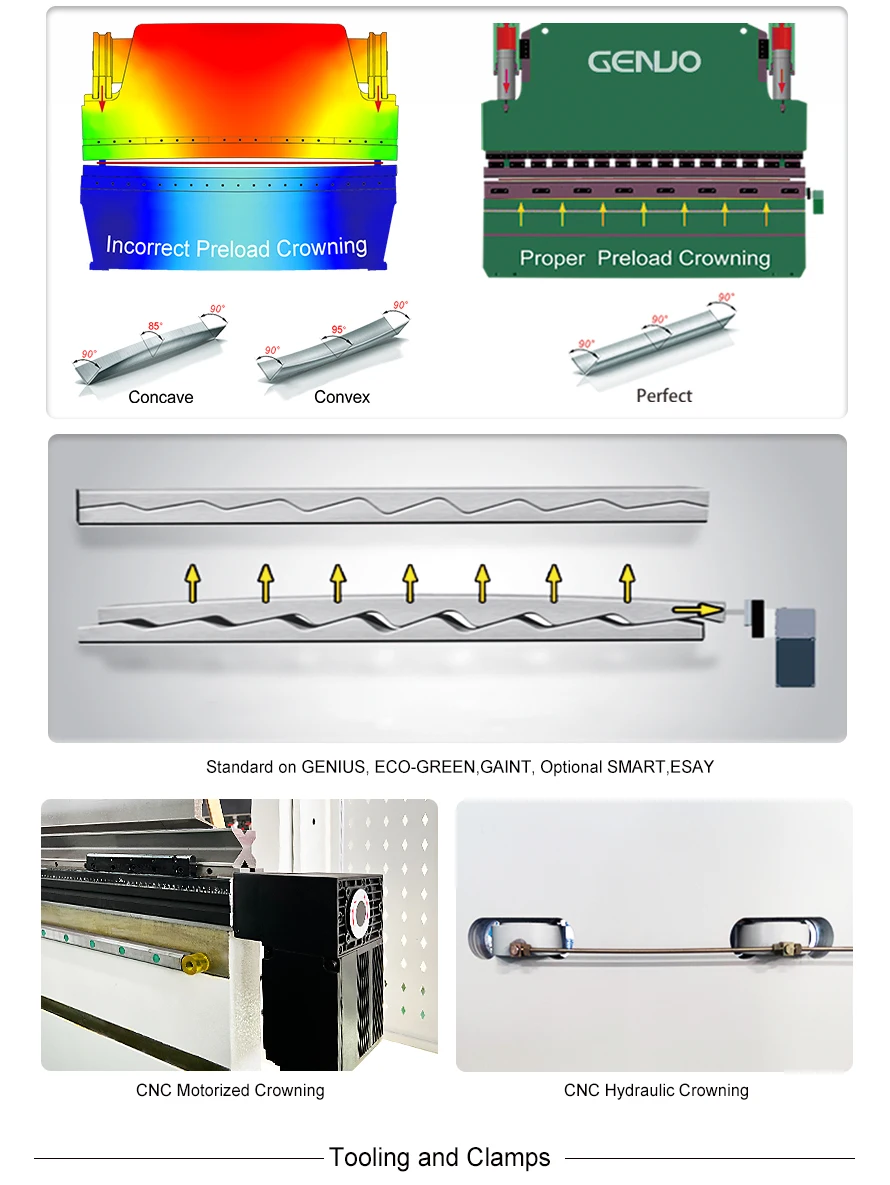

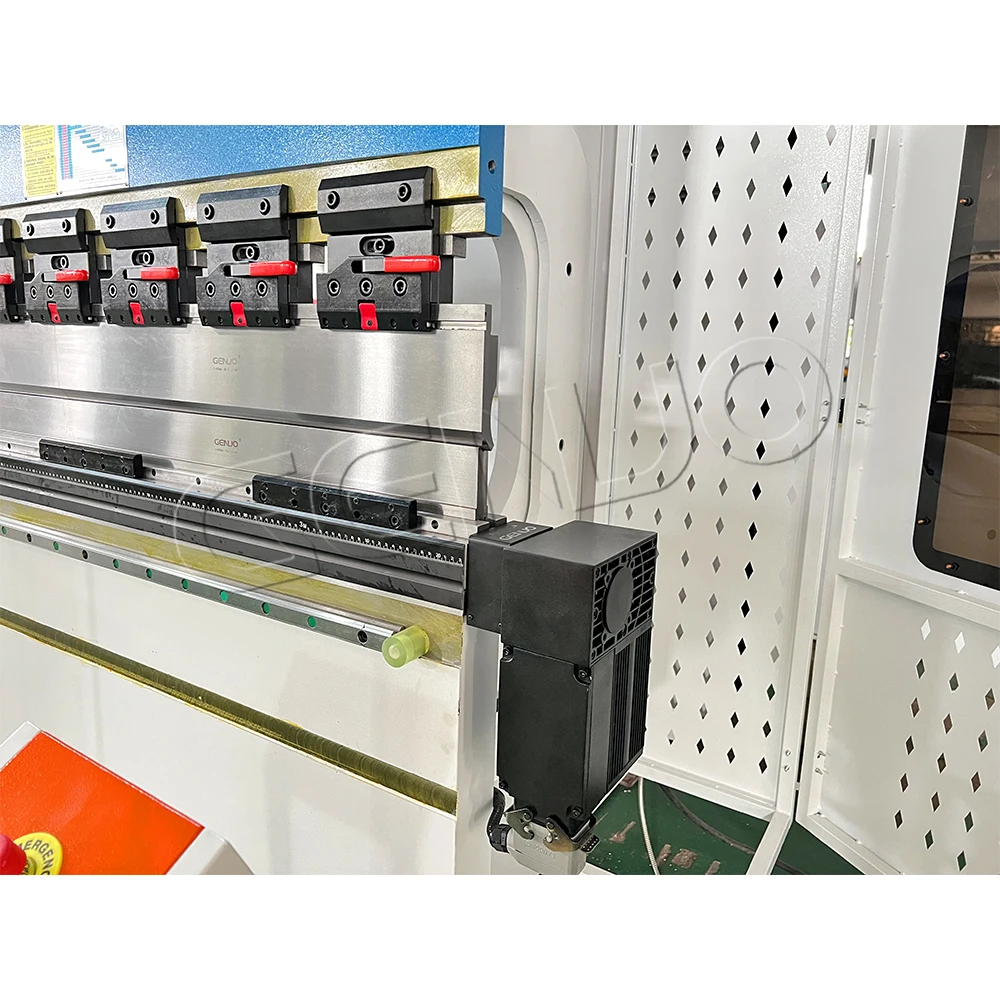

To confrm a constant bend angle, manual or CNC crowning is essential which will offset
potential deviations and allow for possible tooling wear to maintain parallel contacting
surfaces.CNC crowning systems allow the press brake control to be pre-programmed
with machine characteristics and defection data.
Adjust the calculate and setting accordingly for different characteristics of different
materials.

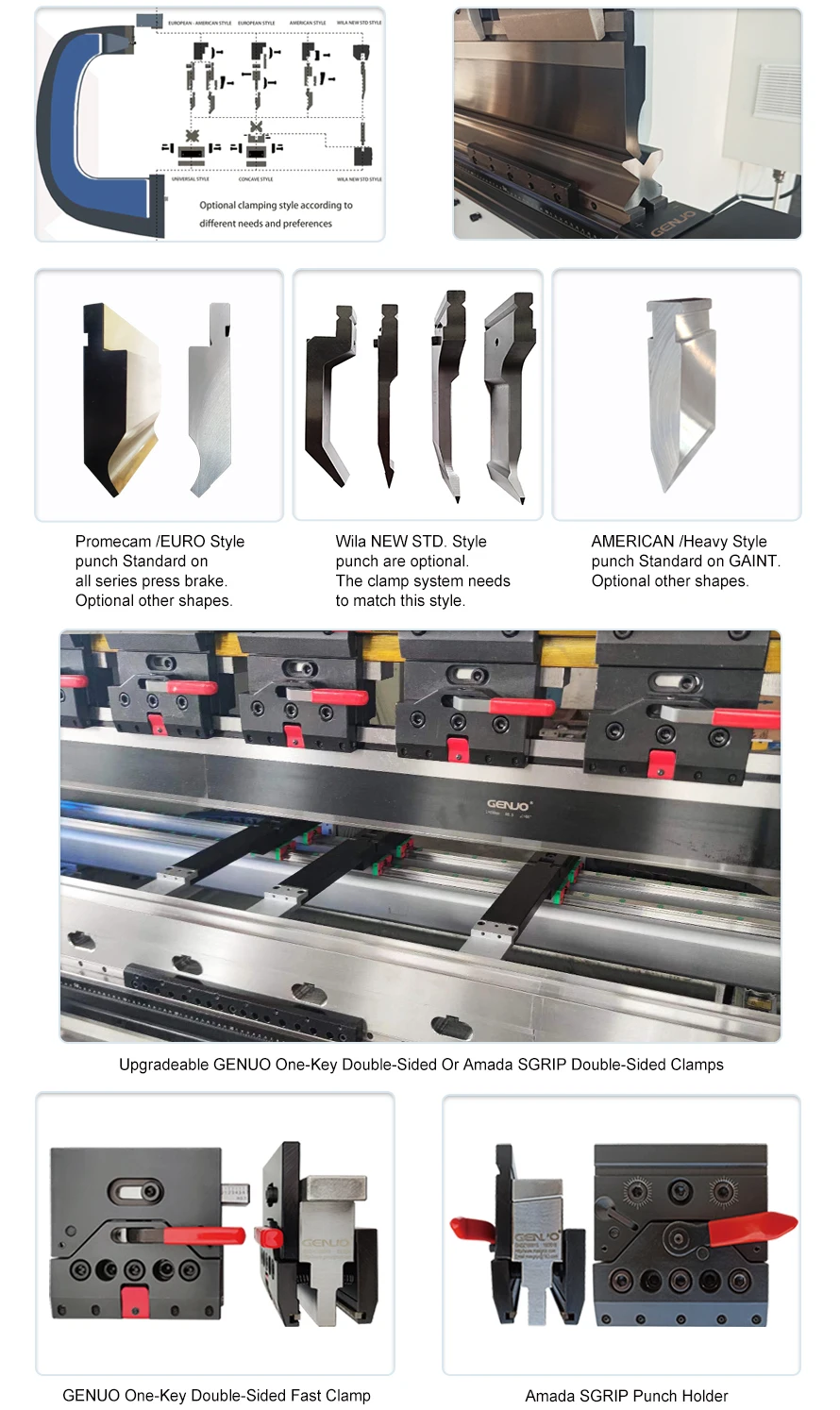

GENUO provides a variety of tooling solutions to meet your different production needs.
Not only that, we are also experts in the field of bending tools. If you have any special
bend, our engineers will customize special tools for each workpiece, which greatly
expands your press brake function and revenue.
To help greatly improve your productivity and business benefits.

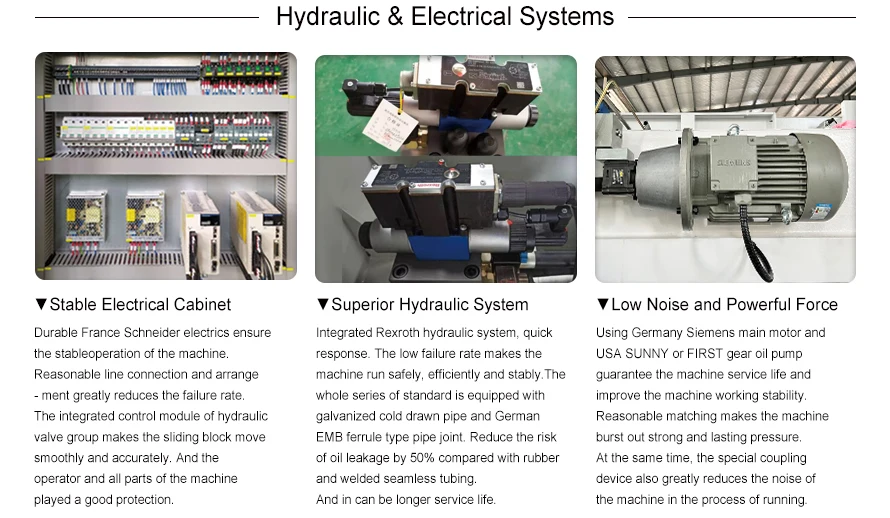

▼Stable Electrical Cabinet
Durable France Schneider electrics
ensure the stableoperation of the
machine.Reasonable line
connection and arrangement
greatly reduces the failure rate.
The integrated control module of
The integrated control module of
hydraulic valve group makes the
sliding block move smoothly and
accurately. And the operator and
all parts of the machine played a
good protection.
▼Superior Hydraulic System
Integrated Rexroth hydraulic system,
quick response. The low failure rate
makes the machine run safely,
efficiently and stably.The whole
series of standard is equipped with
galvanized cold drawn pipe and
galvanized cold drawn pipe and
German EMB ferrule type pipe joint.
Reduce the risk of oil leakage by
50% compared with rubber and
welded seamless tubing.
And in can be longer service life.
▼Low Noise and Powerful Force
Using Germany Siemens main motor and USA SUNNY or FIRST gear oil
pump guarantee the machine service life and improve the machine working stability.
Reasonable matching makes the machine burst out strong and lasting pressure.At the same time, the
Reasonable matching makes the machine burst out strong and lasting pressure.At the same time, the
special coupling device also greatly reduces the noise of the machine in
the process of running.

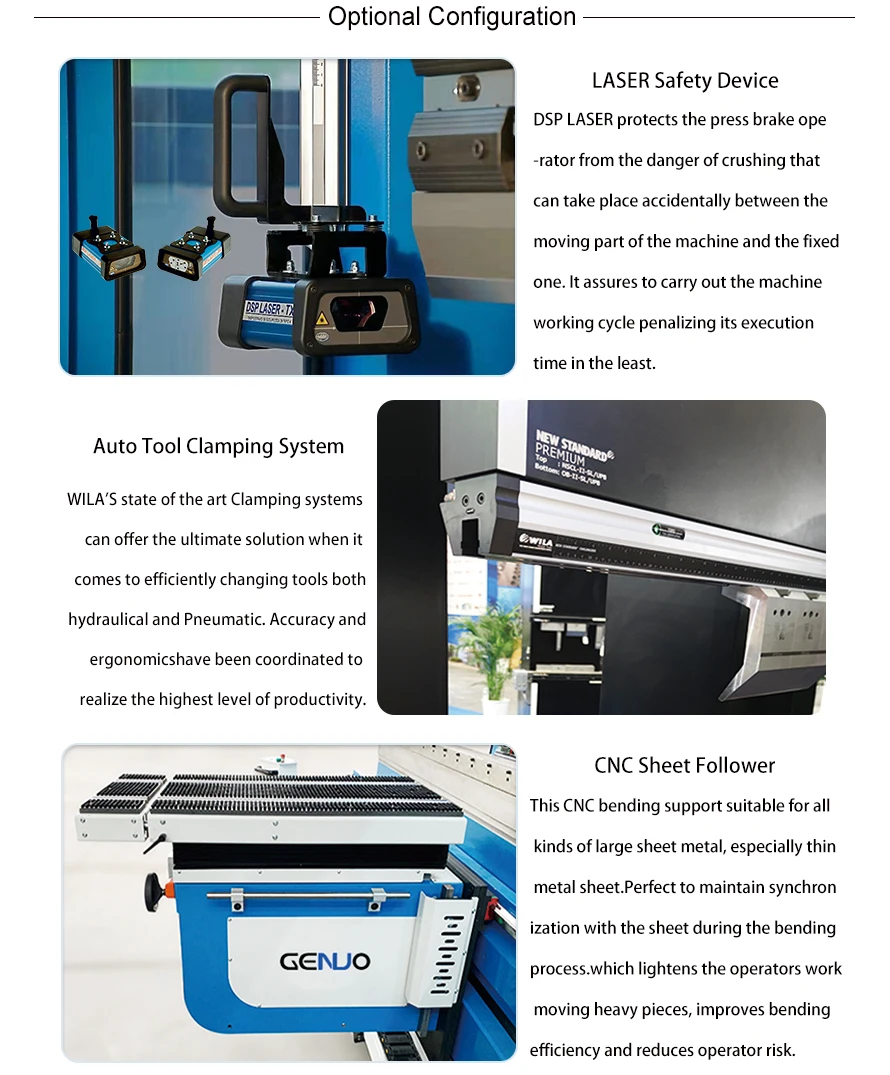

DSP LASER protects the press brake
operator from the danger of crushing
that can take place accidentally
between the moving part of the
machine and the fixed one.
It assures to carry out the machine
working cycle penalizing its execution
time in the least.

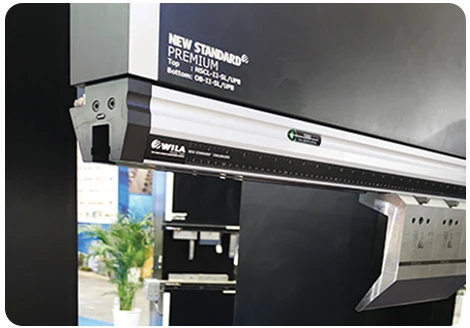

WILA'S state of the art Clamping
systems can offer the ultimate
solution when it comes to efficiently
changing tools both hydraulical and
Pneumatic.
Accuracy and ergonomics have been
coordinated to realize the highest
level of productivity.

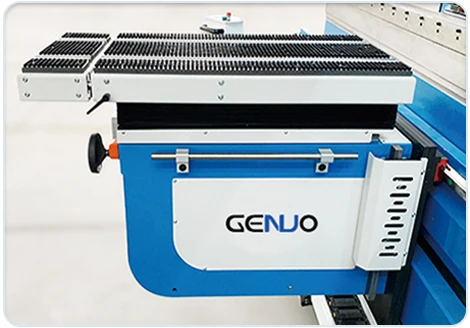

This CNC bending support suitable
for all kinds of large sheet metal,
especially thin metal sheet.Perfect to
maintain synchronization with the
sheet during the bending process.
which lightens the operators work
moving heavy pieces, improves
bending efficiency and reduces
operator risk.

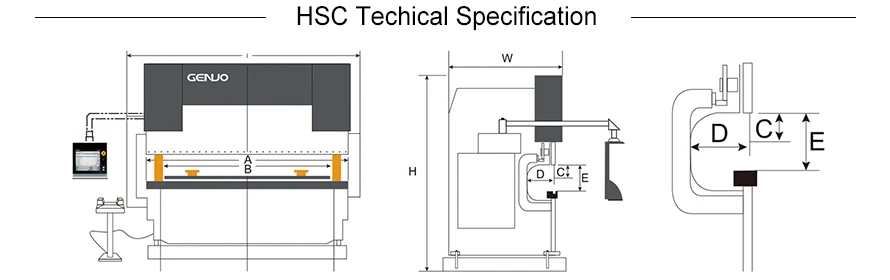

Product Paramenters
Model | Nominal Pressure (kn） | Bending Length （mm） | Columns Distance （mm） | Ram Strokes（mm） | Throat Death (mm) | Open Height (mm) | Motor Power （kw） | Dimension (L x W x H) (m) | ||||||||
HTC PTO | / | A | B | C | D | E | / | / | ||||||||
40T1600 | 400 | 1600 | 1250 | 150 | 300 | 420 | 4 | 2.0*1.8*2.4 | ||||||||
63T2500 | 630 | 2500 | 1960 | 150 | 320 | 420 | 5.5 | 2.9*1.8*2.4 | ||||||||
100T3200 | 1000 | 3200 | 2600 | 200 | 400 | 480 | 7.5 | 3.9*1.9*2.6 | ||||||||
100T4000 | 1000 | 4000 | 3200 | 200 | 400 | 480 | 7.5 | 4.6*1.9*2.7 | ||||||||
125T3200 | 1250 | 3200 | 2600 | 200 | 400 | 480 | 11 | 3.9*1.9*2.6 | ||||||||
160T3200 | 1600 | 3200 | 2600 | 200 | 400 | 480 | 11 | 3.9*1.9*2.6 | ||||||||
200T3200 | 2000 | 3200 | 2600 | 200 | 400 | 480 | 15 | 3.9*1.9*2.7 | ||||||||
320T4000 | 3200 | 4000 | 3200 | 200 | 400 | 480 | 22 | 4.8*2.1*3.2 | ||||||||
500T6000 | 5000 | 6000 | 4900 | 320 | 500 | 600 | 37 | 6.5*2.8*4.5 | ||||||||
The above data is only for reference only,to prevail in kind. More specifications available. Please click here! | ||||||||||||||||
