Product Overview
Description

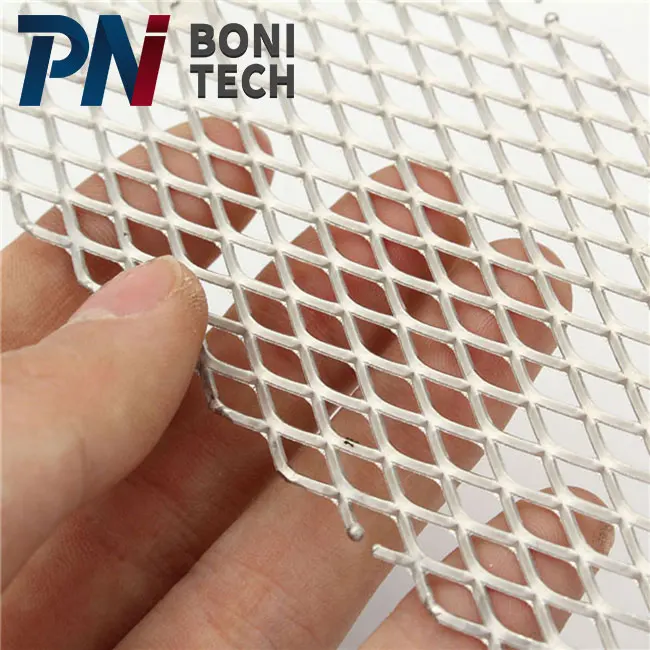

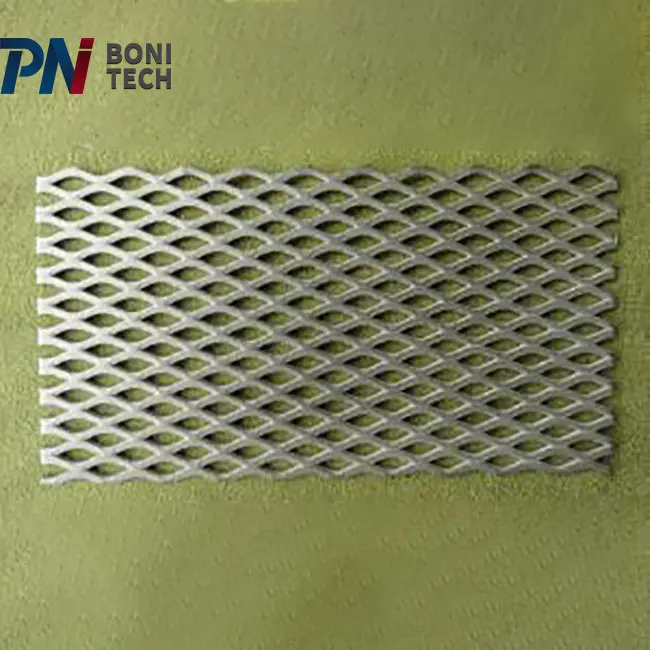

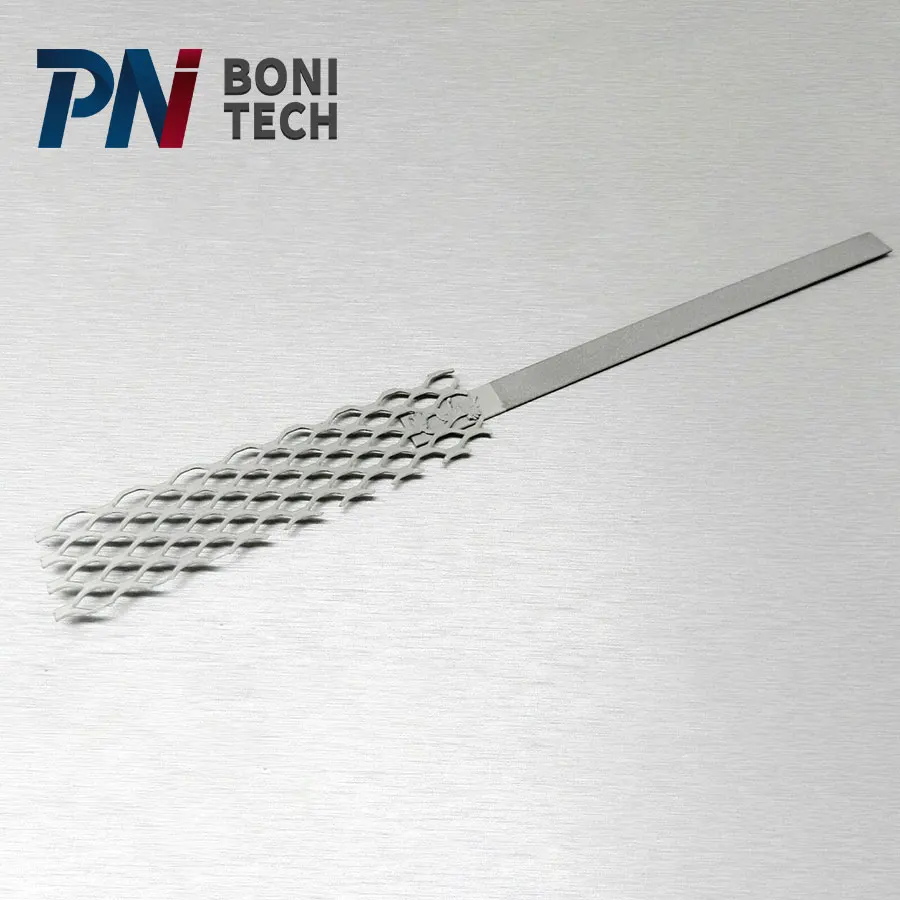

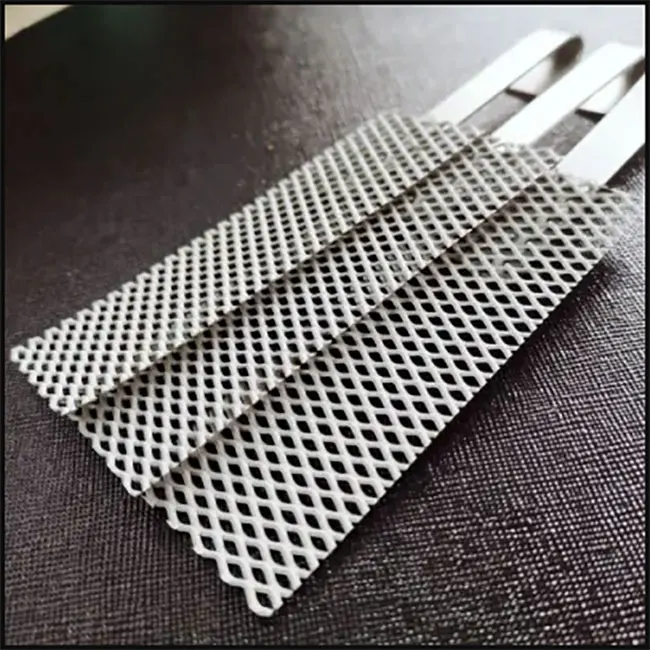

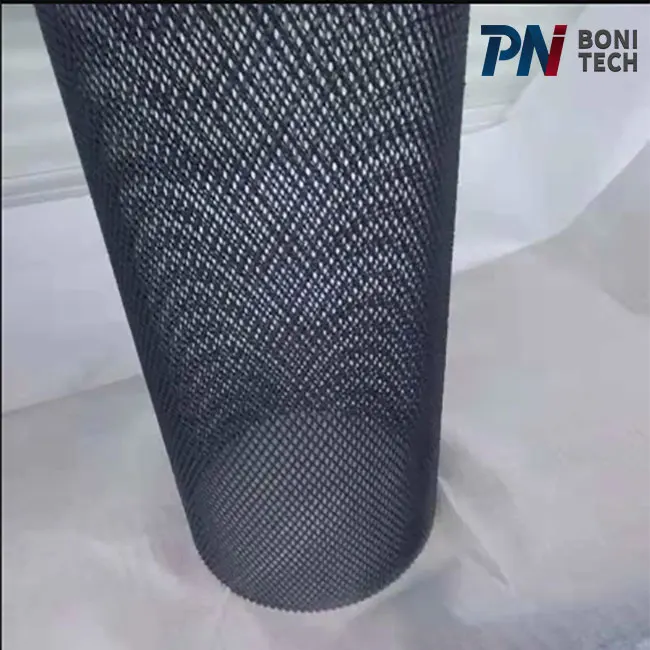

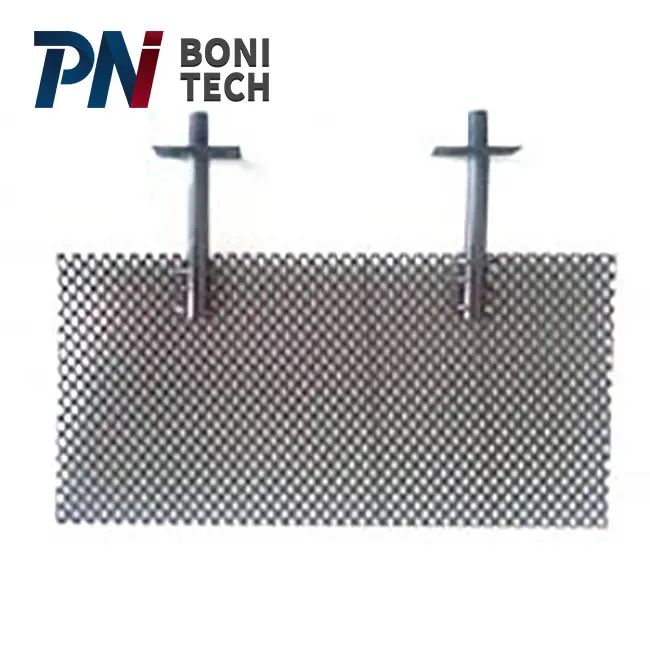

Titanium mesh is pure titanium material, which is not easy to dissolve, is not easy to change color, and has good electrical conductivity.
The titanium mesh adopts an electroplating machine and electrolyzed water, and the surface is effectively cleaned and activated by gold, silver, and copper ornaments to clean the surface of the workpiece.

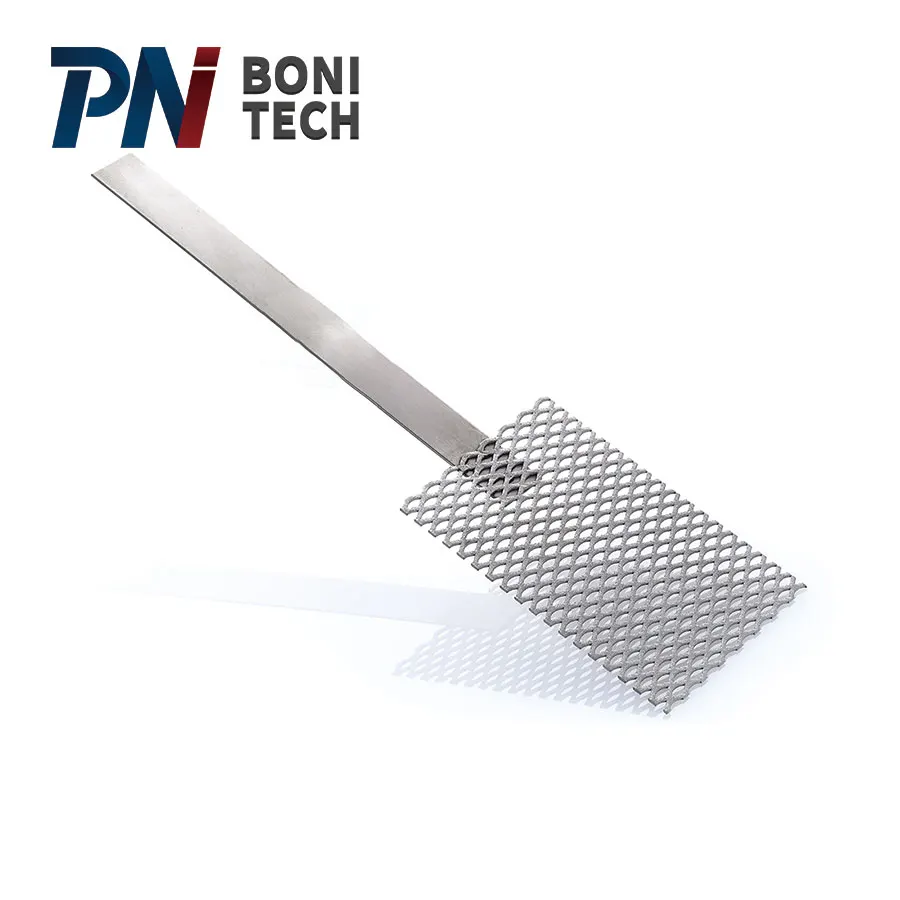

Optional Type: Single Mesh, Handle Mesh; Size: 9 * 5.3cm / 3.5 * 2.1in; 10 * 5.3cm / 3.9 * 5.3in
The titanium mesh adopts an electroplating machine and electrolyzed water, and the surface is effectively cleaned and activated by gold, silver, and copper ornaments to clean the surface of the workpiece.
Optional Type: Single Mesh, Handle Mesh; Size: 9 * 5.3cm / 3.5 * 2.1in; 10 * 5.3cm / 3.9 * 5.3in
Products Description

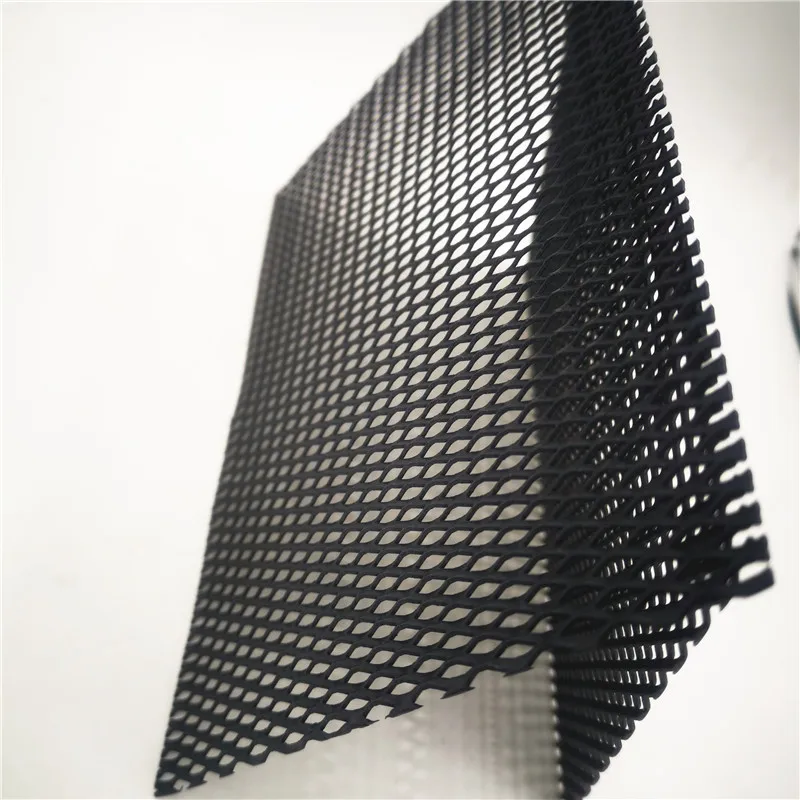

NET SPECIFICATIONS | ||||||
Technical Data | CN15 | CN25 | CN35 | |||
Maximum rated current output per unit of concrete surface FHWA maximum anode current density(*) | 20 mA/m 110mA/m2 | 30mA/m2 110mA/m2 | 40mA/m2 110mA/m2 | |||
(*)Anode curren densi y may be increased o 220 mA m2. in he short term, during initial polarization, the anode current density may be increased to 400 mA/m2 | ||||||
Substrate material Catalyst | ASTM 8 265 TITANIUM grade 1 Mixed Metal Oxide for Oxygen Evolution | |||||
Nominal diamond dimensions Nominal thickness(Approx) Lengthwise Electrical Resistance (1, 2 m wide strip) With current distributor bar type 1: With current distributor bar type 2: | 85mm x 38mm 1.8 mm 0.080 Ohm/m 0.013 Ohm/m 0.017 Ohm/m | 62mm x 22mm 1.8mm 0.070ohm/m 0.0110hm/m 0.0130hm/m | 40mm x 19mm 2 mm 0.039ohm/m 0.009ohm/m 0.0110hm/m | |||
Net roll nominal dimensions Width Length Weight per roll(Approx) Weight/m'of net(Approx) | 1.24m 50m 10Kg 0.16Kg/m2 | 1.24m 50m 13Kg 0.22Kg/m2 | 1.24m 50m 16Kg 0.27Kg/m2 | |||
Current Distributor Type 1 Type 2 | 15mm(width)x 1mm(thickn ess) 10mm(width)x 0.5mm(thickness) | Electrical resistance 0.037ohm/m 0.110hm/m | ||||

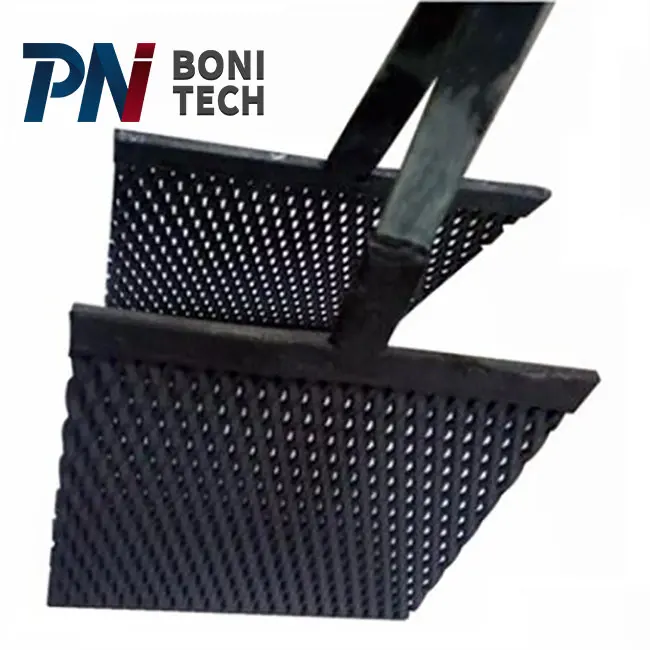

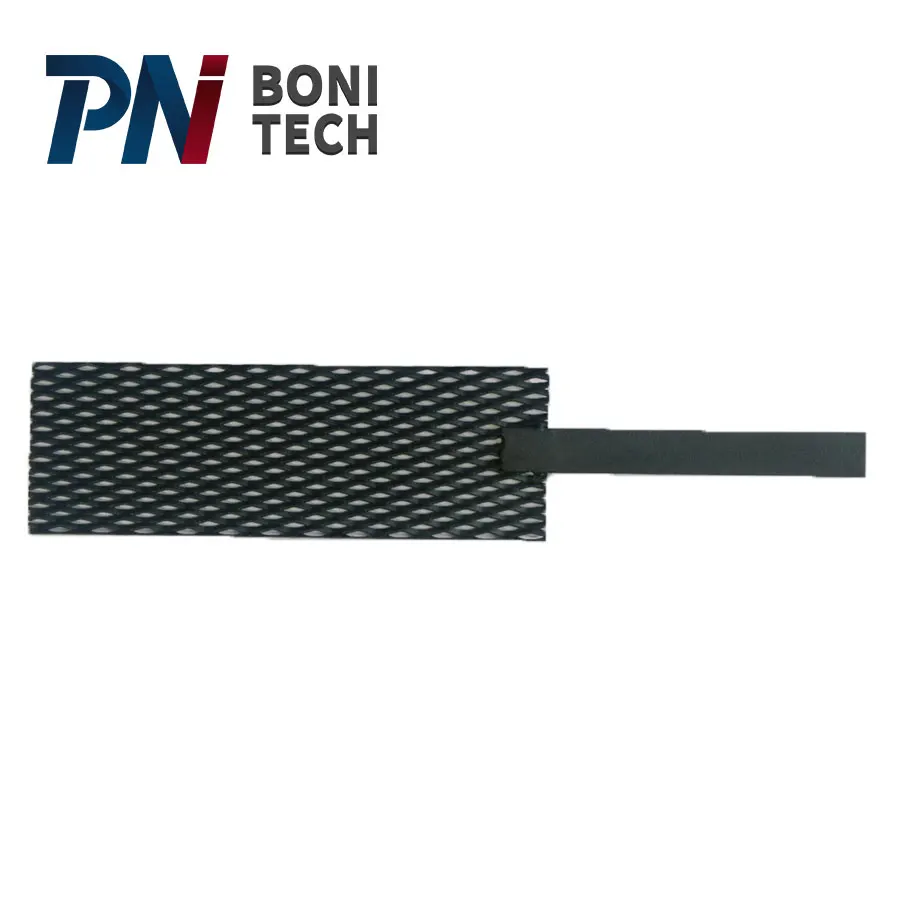

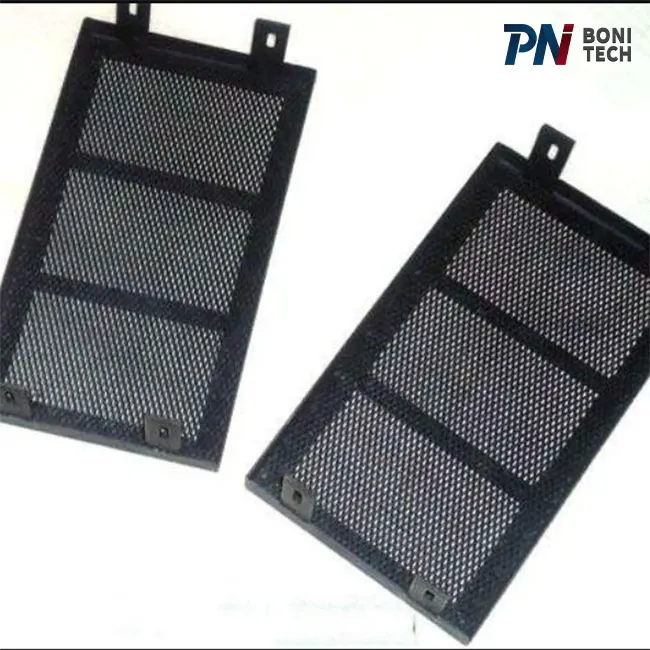

Details Images
Recommend Products
Why Choose Us

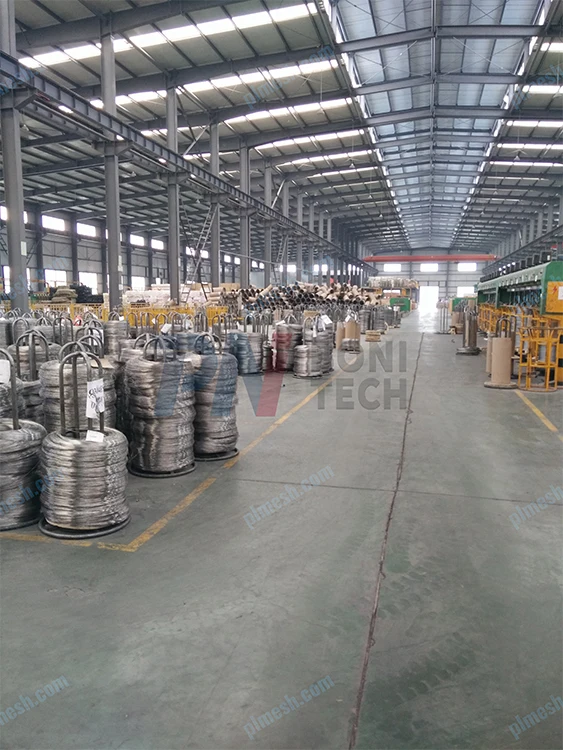

Company Profile
Customer Photos

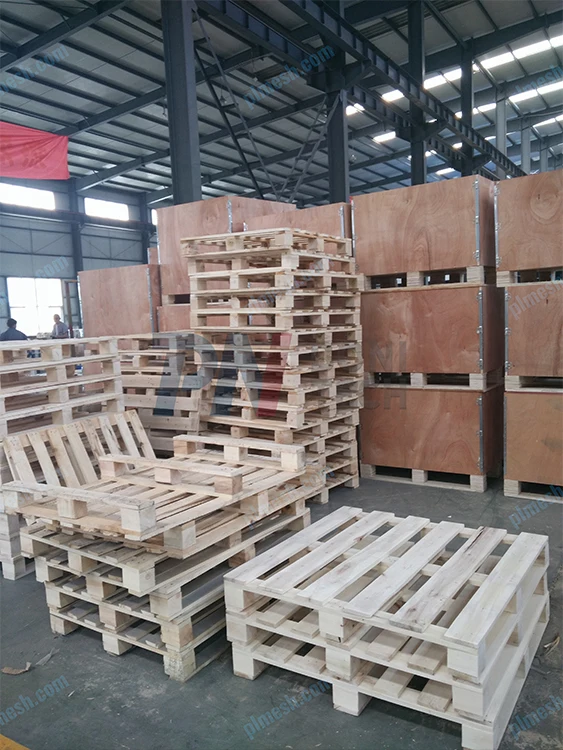

Product packaging
FAQ
1. Q: Do you have XX model titanium anode?
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.
2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.
3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.
4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte
5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.
2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.
3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.
4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte
5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime
