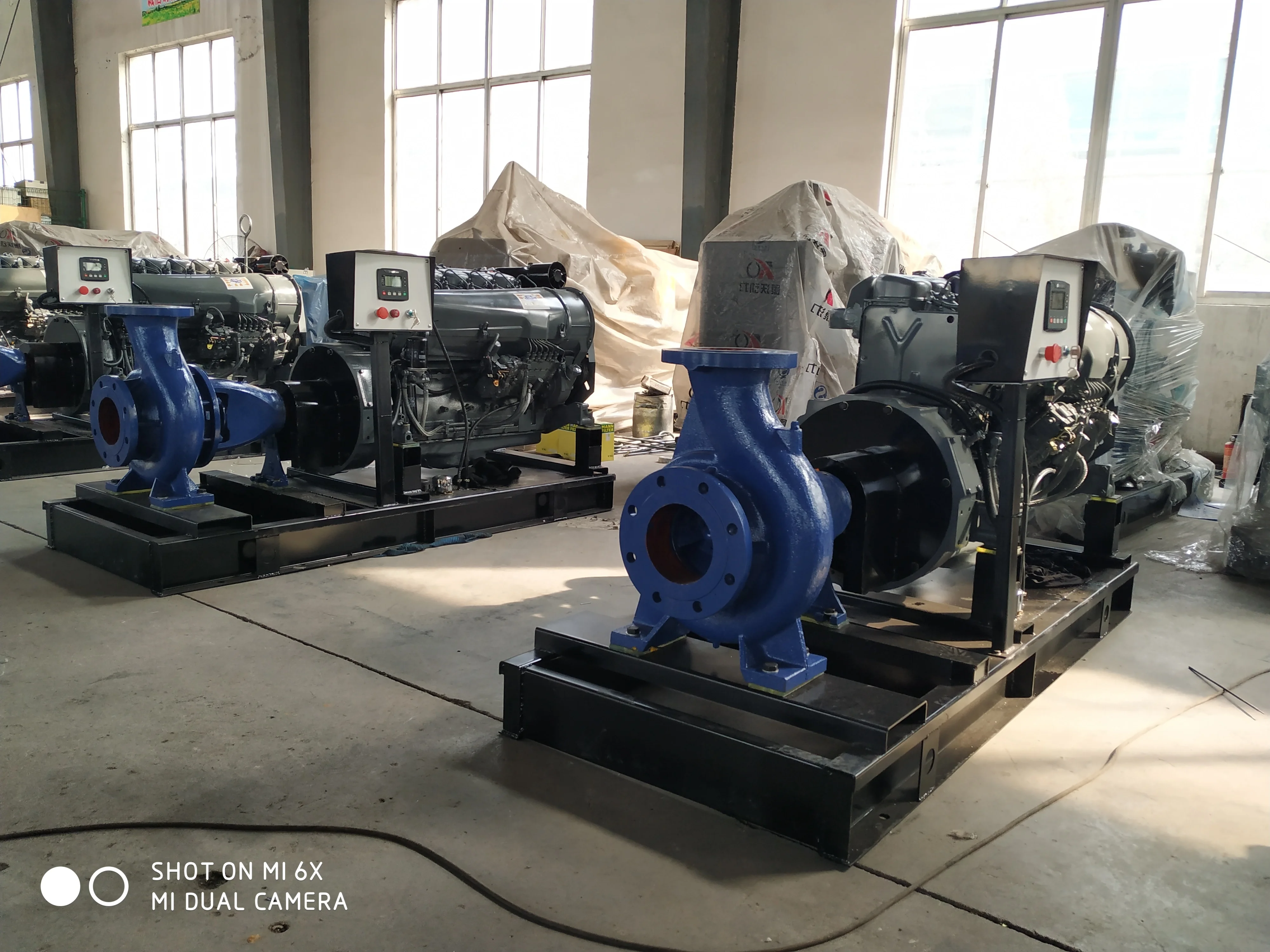

High Quality 6 Cylinder Deutz Air Cooled Diesel Engine Water Pump 8inch

Product Overview

Description

High Quality 6 Cylinder Deutz Air Cooled Diesel Engine Water Pump 8inch









-----------F6L912 6 cylidner air cooled diesel engine driven water pump specification:





DEUTZ AIR COOLED DIESEL WATER PUMP QUOTATION
Model of Diesel pump set	V48DPD01T          (Q=450m3/h       H=35m)
Model Diesel Engine	F6L912
Brand	DEUTZ AIR COOLED
Rated Power	48KW
Rated Speed (r/min)	1500
Bore×Stroke	100mm×120mm
Displacement	5.655Liters
Compression Ration	17:1
Starting Method	12V DC Electric motor
Induction system	Natural intaking
Cylinders	6
Type	Vertical, 4 stroke, air cooled direct injection
Model Pump	VIS200-150-315
Type	Single-stage, single-suction, centrifugal pump
Outflow	450m3/h
Head lift	35M
Suction lift	5.5m
Shaft Power	36KW
Inlet diameter	200mm  / 8 inch
Outlet diameter	150m   / 6inch
Casing material	cast iron
Shaft material	Stainless steel
Impeller material	Stainless steel
Sealing method	Stuffing seal
Control System	Display of oil pressure,rotation speed, water temperature,oil temperature etc.
Standard Equipments	Diesel engine: 1set
	Water pump: 1set
	Common base with 8 hour fuel tank:1 set
	Oil filter:1set
	Fuel filter:1set
	Air filter:1set
	Control System: 1 set
	Accessary spare parts
	Technic file: 1set
	All mounting accessries
Warranty	24 months from delivery
Payment Terms	T/T30% deposit,balance before shipment
Delivery Time	15 working days after received 30%deposit

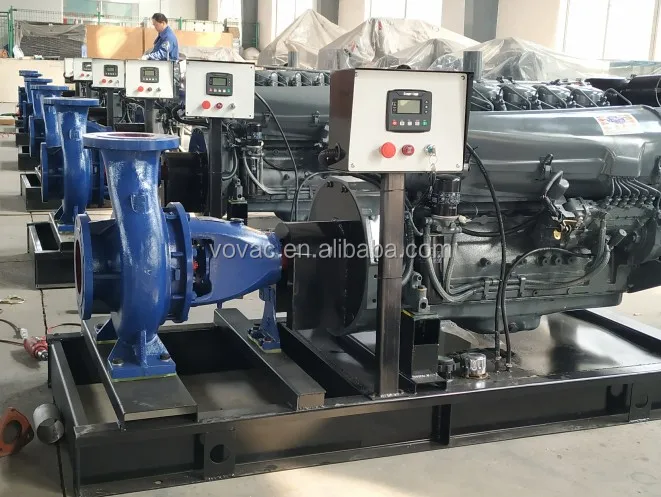

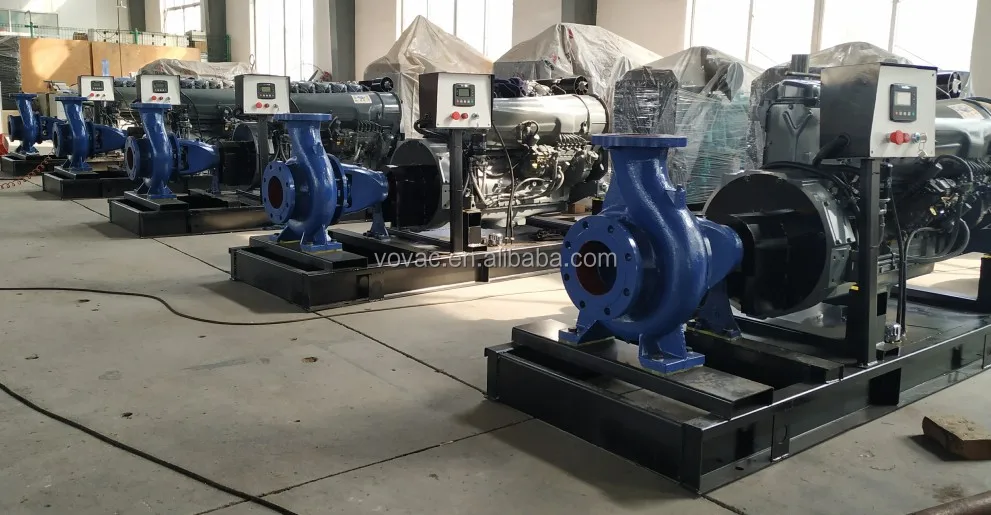

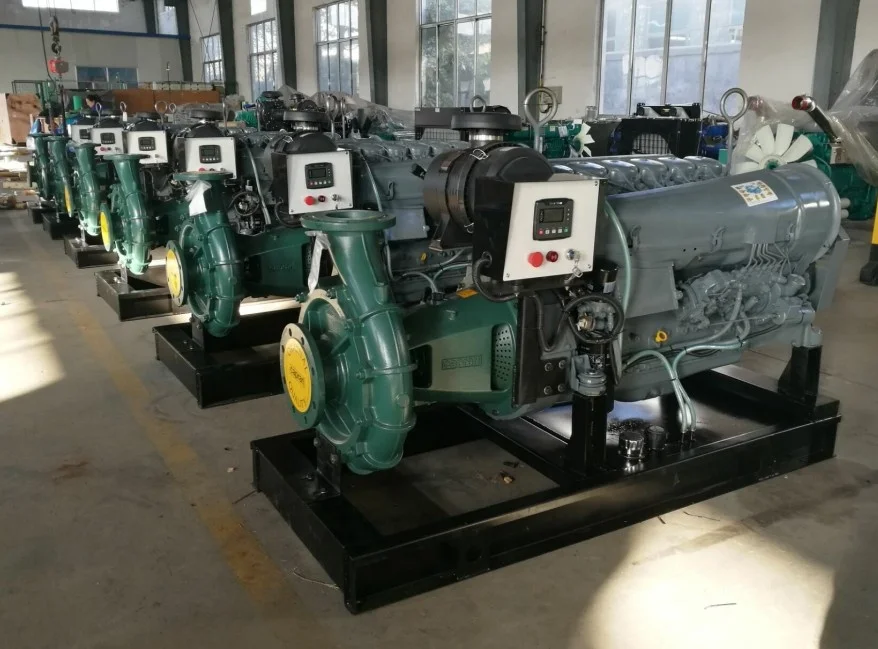

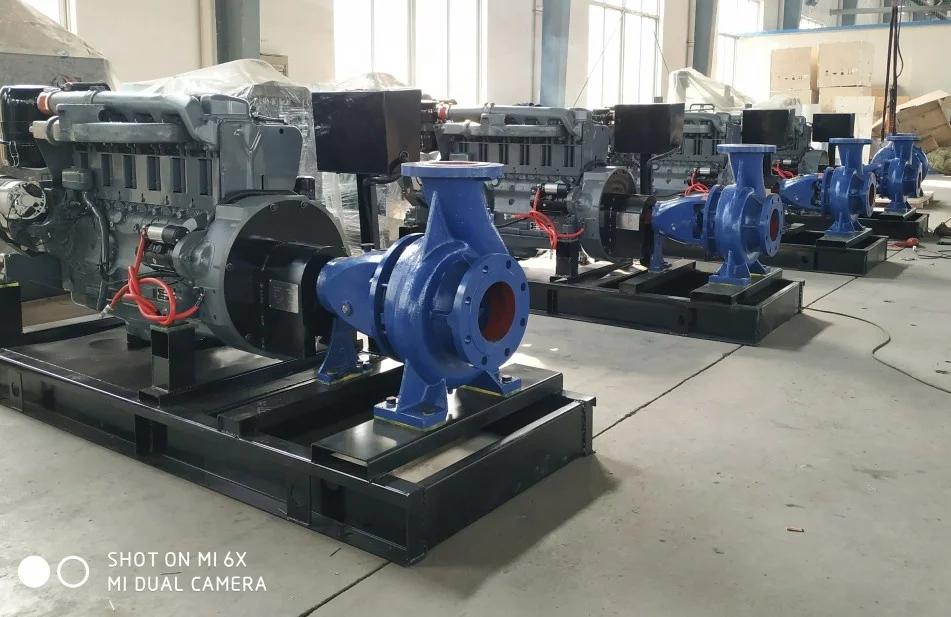

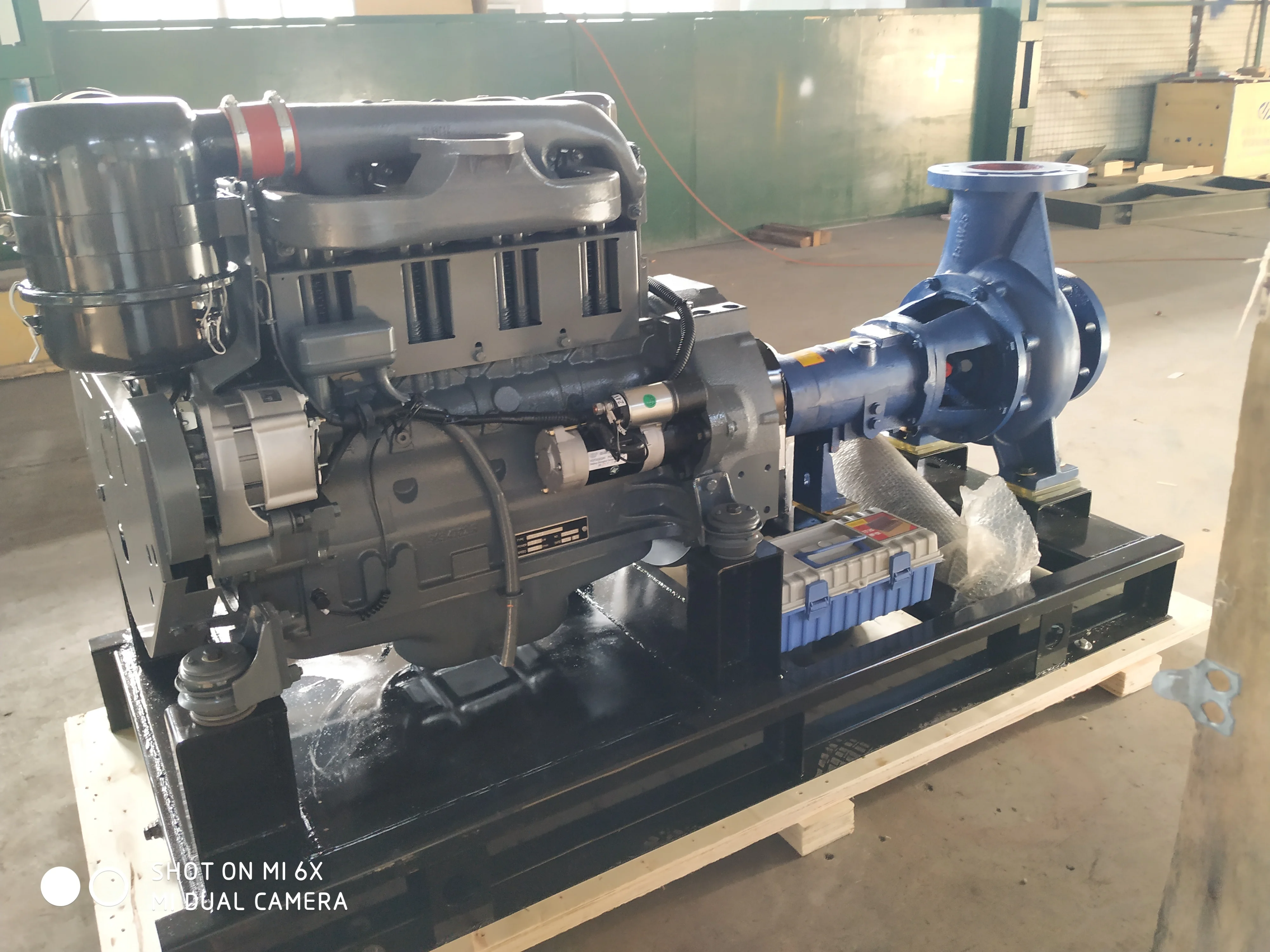

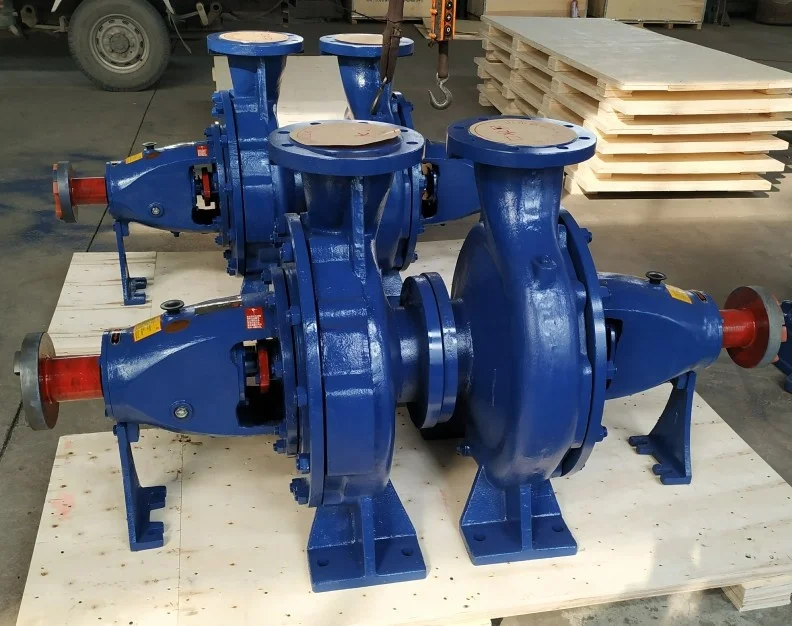

-------------Reference details picture

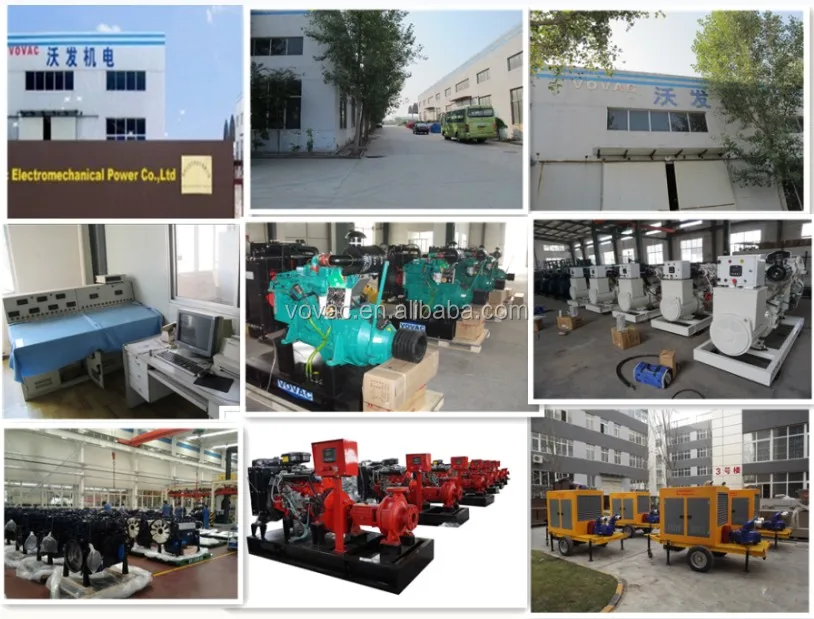

------------------Our company detai information

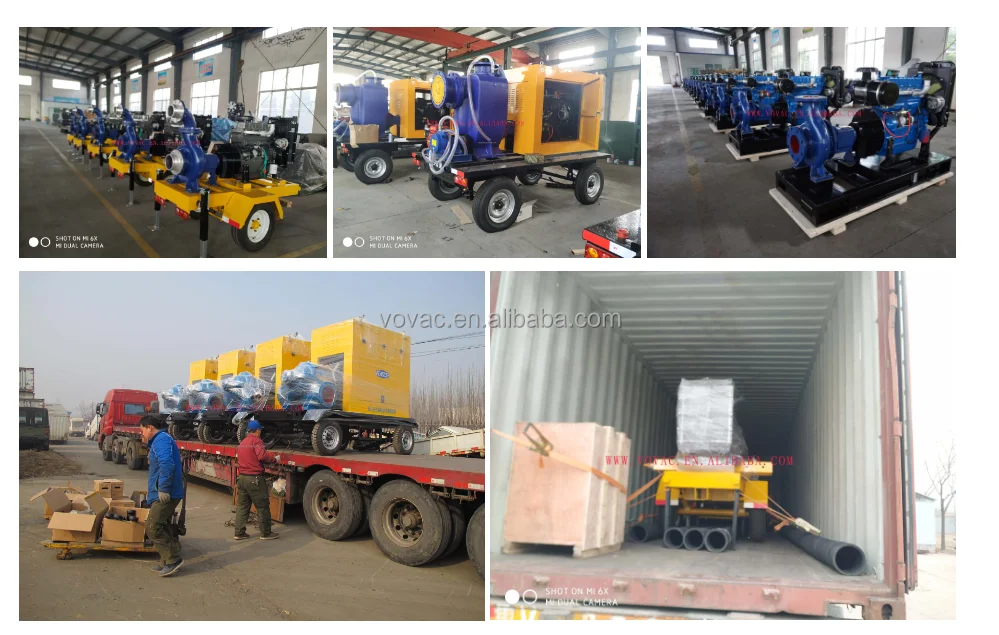

-------Packaging type





----------Any requirements, welcome to contact with me



My Whatsapp: 0086-13031682622
