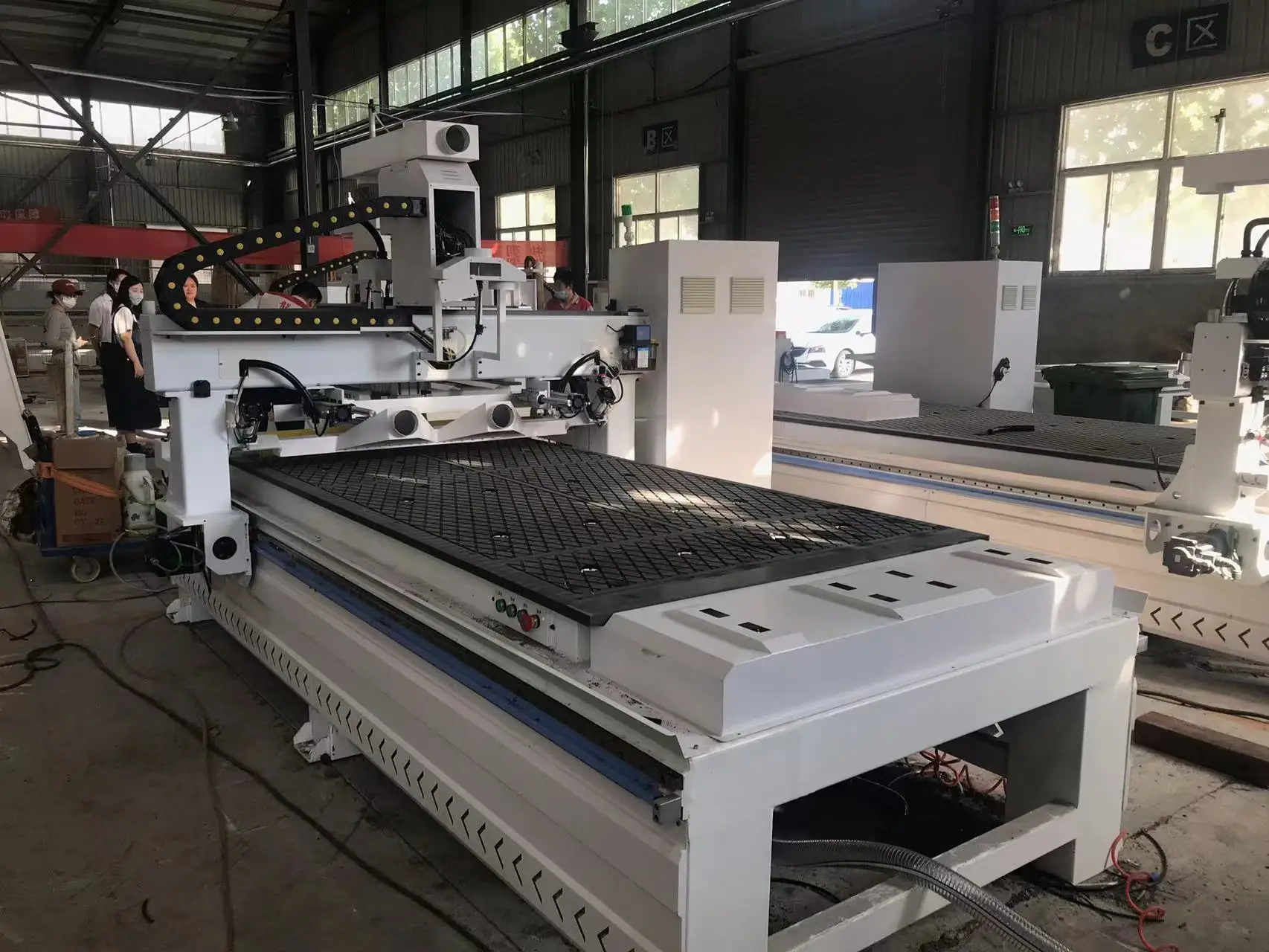

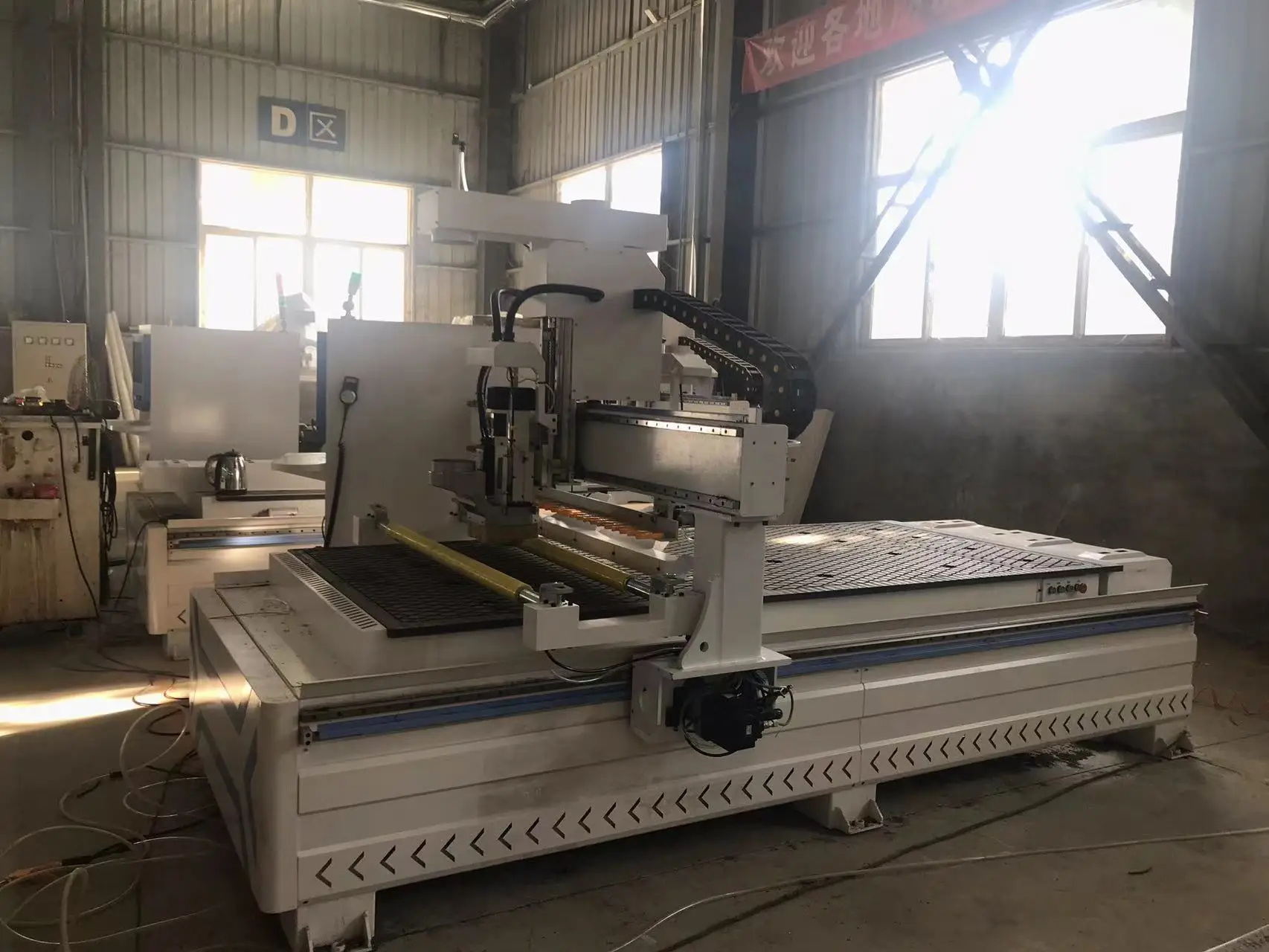

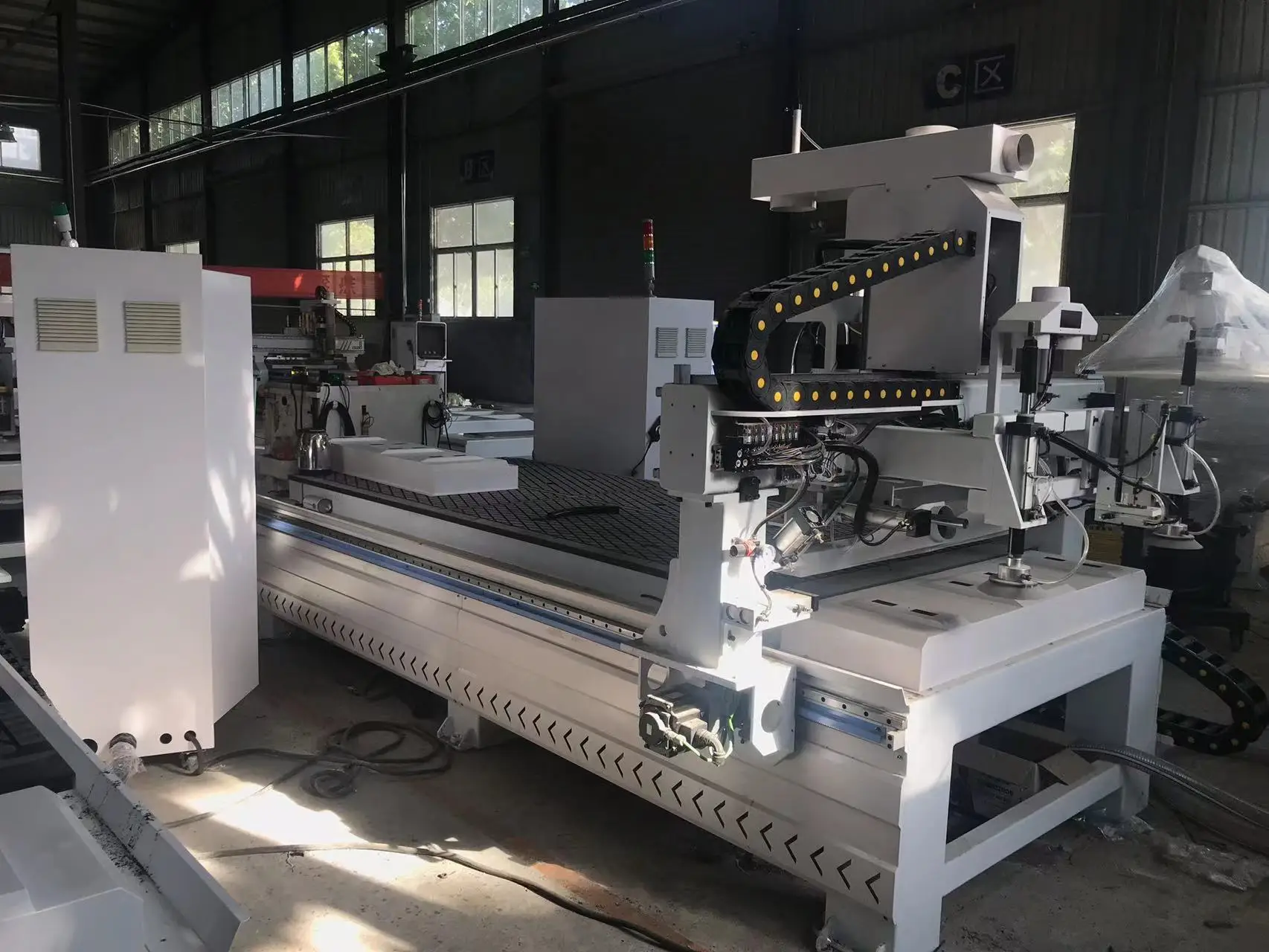

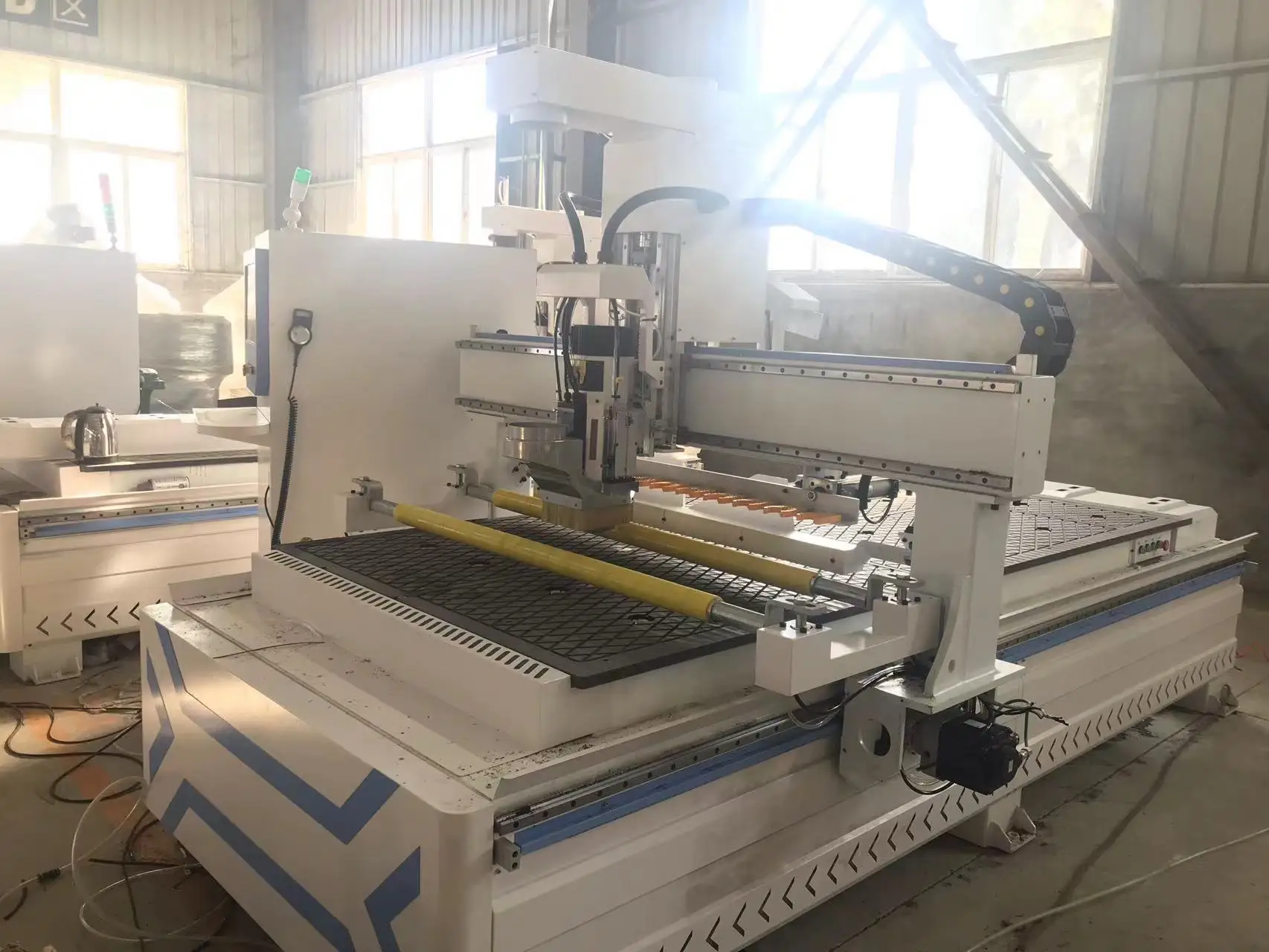

3 Axis 1325 working size wood cnc router machine for wood carpentry tools and equipment
- Category: >>>
- Supplier: Jinan JCUT CNC Equipment Co. Ltd.
Share on (1600949264155):
Product Overview
Description
Product Description
3 Axis 1325 working size wood cnc router machine for wood carpentry tools and equipment
This machine is a high-performance, cost-effective, high-efficiency cutting machining center. The standard configuration is a gantry-following in-line tool magazine with 12 and 16 tool positions. It has fast tool changing speed and stable structure, and can be used for wood carving. Simultaneous production of relief carving, hollow carving, cabinet door sliding door of panel furniture, home improvement door and cabinet body. In addition to processing traditional three-in-one connection and two-in-one connection, this machine also supports Lamello P10 p14, p15, p18 invisible parts and various invisible parts on the market, as well as simple cabinet doors. Door panel production.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Configuration
Descriptions | Parameters | ||||||
Product Name | 12 tools change ATC CNC Router machine | ||||||
Working area | 1300*2500*200mm | ||||||
Tool Magazine | Linear 12-16 tools position tool magazine | ||||||
Auto unloading | Dust collect when unloading the board | ||||||
Spindle | Big Power GDZ/HQD ATC 9KW Air cooling Spindle | ||||||
Motor and Driver | AC 1500W pure servo motor and matching driver | ||||||
Control System | Taiwan LNC control system | ||||||
Machine Table | 7.5KW 380V vacuum pump, 50MM adsorption hole diameter, PVC pipe connection, sub-regional adsorption table, good air tightness, the board is firmly fixed and does not run off the board | ||||||
Positioning | 3+2 Automatic Positioning cylinder | ||||||
Dust Collector | 4KW 380V secondary dust collector with double bag | ||||||
Transmission | X, Y axis adopt HICK 1.5m helical rack,Z axis adopt TBI -2510 ball screw | ||||||
Slinder | Original Taiwan HIWIN 25 Model slinder | ||||||
Linear rail | X, Y, Z axis adopt 25 linear rail | ||||||
Inverter | E&T 11kw inverter | ||||||
Reducer | Japan Shimpo reducer | ||||||
Oil lubrication system | Automatic oil lubrication system | ||||||
Empty travel speed | 100000MM/min | ||||||
Maximum Working Speed | 35000MM/min | ||||||
Auto unloading | Fully automatic tile horizontal push blanking with auxiliary aluminum bar stopper function | ||||||

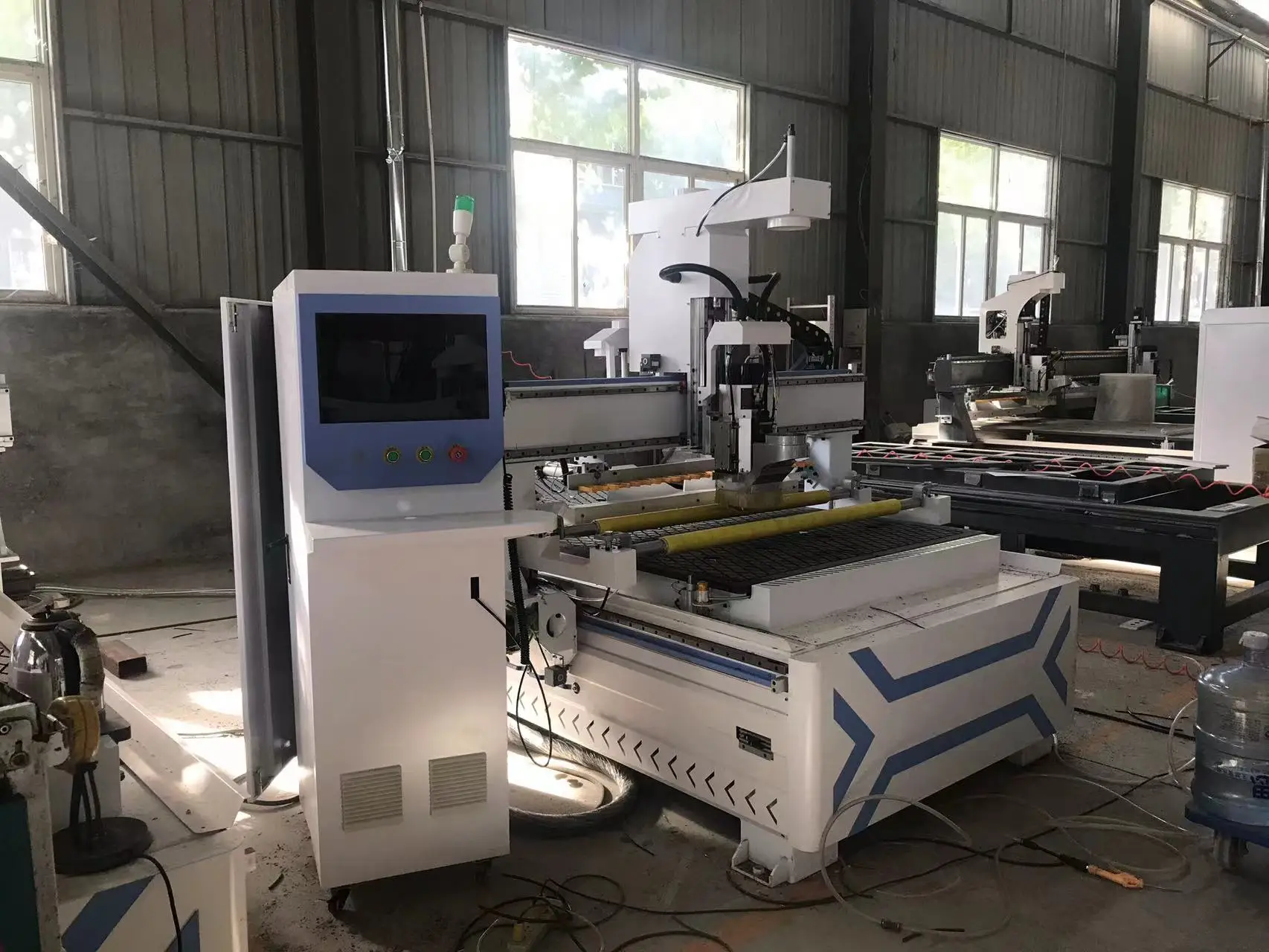

Control Box | Independent and intelligent control box with LED Display Screen | ||||||
Voltage | 380V (220V Customizable) | ||||||
Machine structure | Heavy-duty welded bed,Thickened beam, full sheet metal around | ||||||
Cable | Highly flexible shielded drag chain cable | ||||||
Total Production line weight | 2500kg | ||||||
Machine Accessories | Tools, software, wrenches, screwdrivers, brushes, chucks, tool holders, wires, etc. | ||||||
Machine's Details

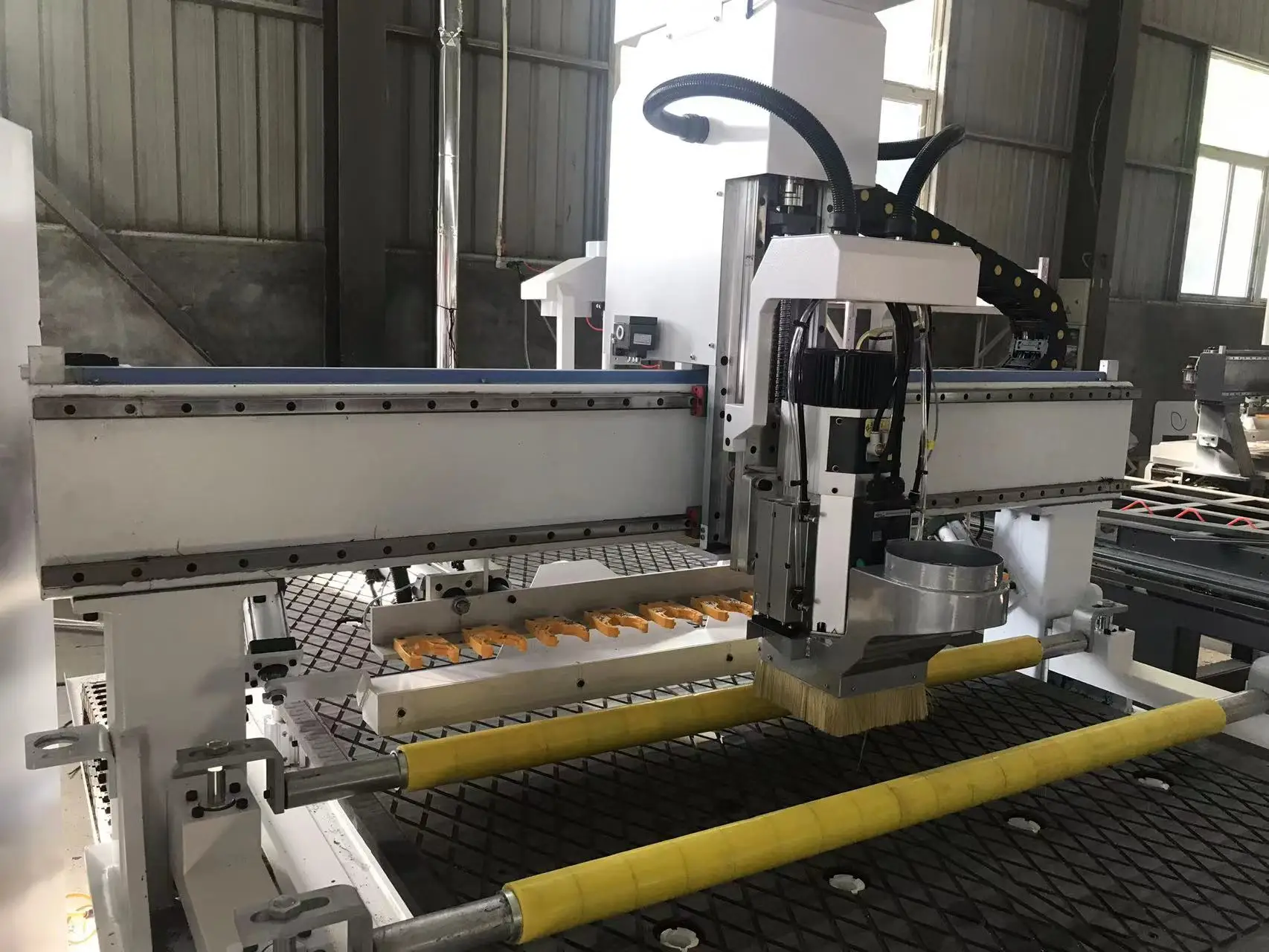

ATC Spindle
GDZ 9KW ATC Air cooling spindle
Motor
AC 1500W pure servo moor and matching driver
Japan Shimpo Reducer
Emergency stop + start + push + positioning button
Auxiliary feeding platform7.5KW big power vacuum table fix the wood plate.
Automatic Positioning bar and automatic positioning cylinder, Helps fix and confirm sheet position.Samples
Packaging&Shipping
Certificate
Company Profile

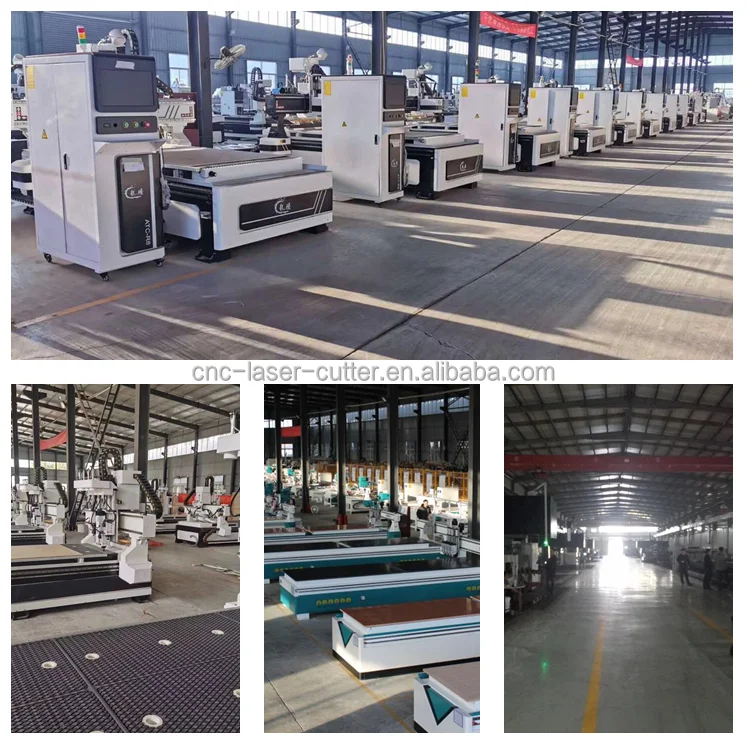

JINAN JCUT CNC EQUIPMENT CO., LTD is located in Jinan, Shandong, China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
Our machine mainly used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
Clients visiting Factory
FAQ
Q1. Are you a trading company or a factory?
A1. We are a factory with more than 50,000 square meters of workshops, located 1,000 meters north of the intersection of Wenliang Road and Airport Road, Licheng District, Jinan City, Shandong Province
Q2. What machine can you supply?
A2. Our main machines are wood engraving cnc router machine,wood cutting machine,wood furniture making auto tool change wood cnc router machine,Edge banding cnc router machine, Side Hole drilling cnc router, Sanding Machine,Laminating machine, Push table saw and wood furniture making production liner etc.widely used for wood door cabinet and panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, Alibaba Pay or by negotiation
Q4. What is the delivery time?
A4. About 15-25 days, Some standard machines have stocks.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes, you will receive support from experienced pre-sales engineers, including not only the operation and use of the machine,but also the understanding of the system, software, and the machine layout of the factory.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and
consultation, technical support and service by online tools. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
consultation, technical support and service by online tools. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
