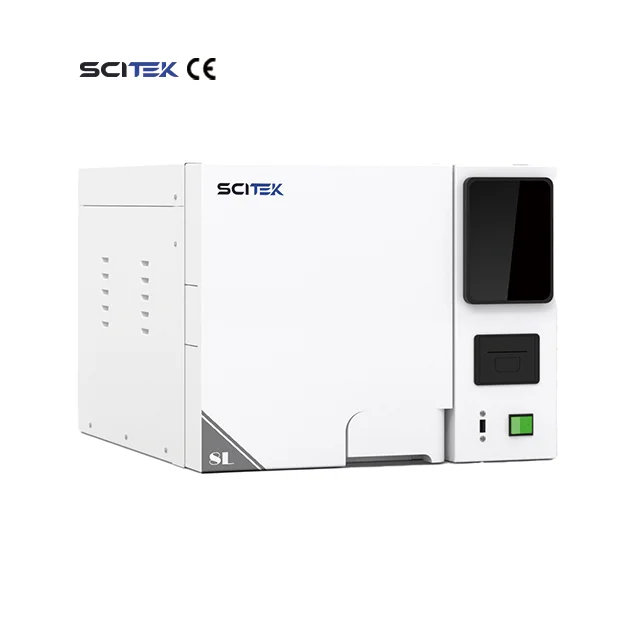

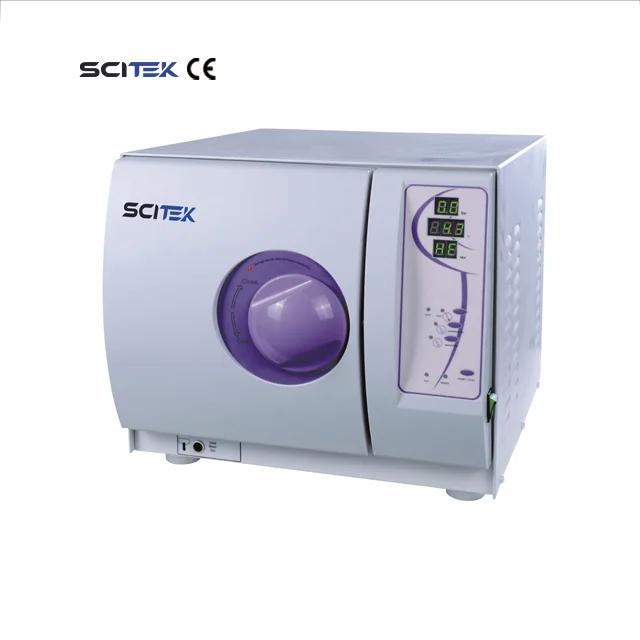

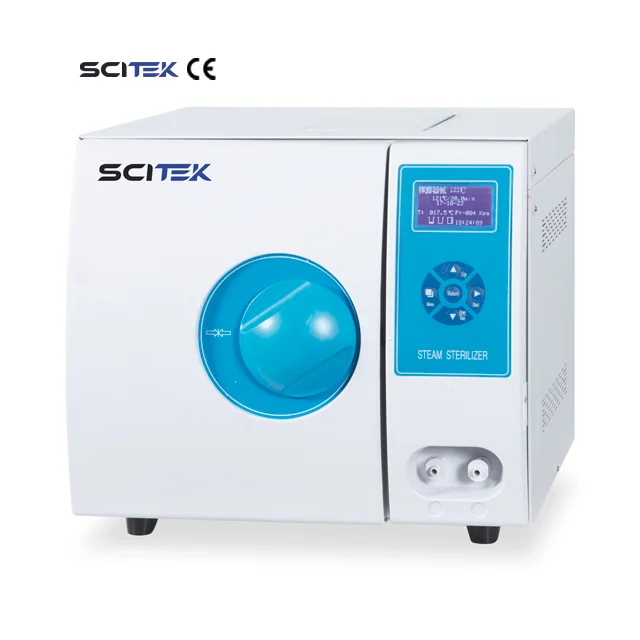

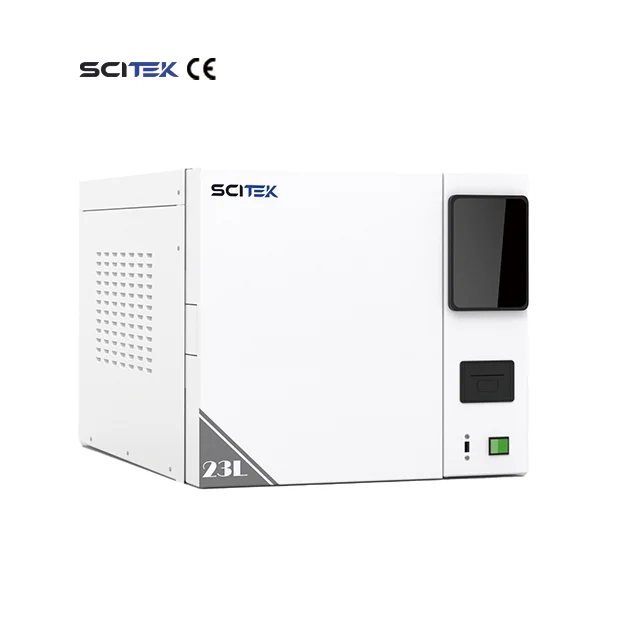

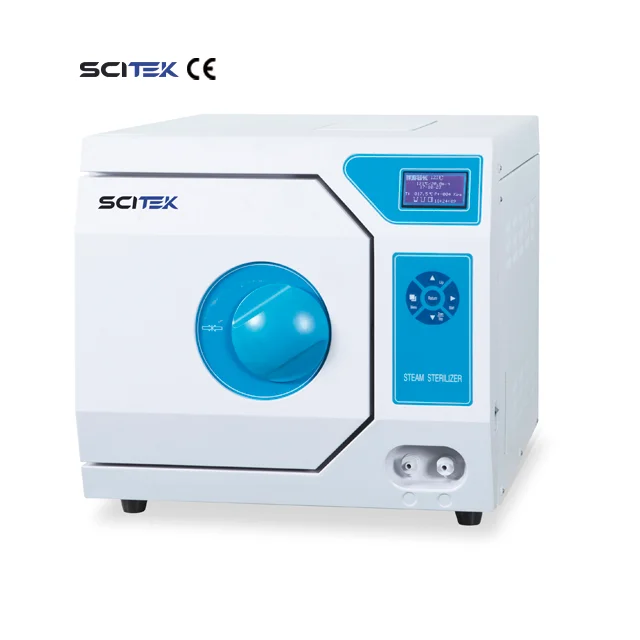

SCITEK Built in steam generator Class B Benchtop laboratory autoclave sterilization dental
- Category: >>>
- Supplier: Scitek Global Co. Ltd.
Share on (1600949323665):
Product Overview
Description
Products Description
Model Features:
* Complies with European Class B standard for effective sterilization.
* Microcomputer control wirh LCD display and touch buttons ensures easy monitoring and precise operation.
* Equipped with BD test, HELIX test, and VACUUM test for comprehensive sterilization performance.
* Open-type top water tank for easy refilling and maintenance.
* Automatic protection function includes over temperature, over pressure, and low water level protection, as well as anti-dry burning and safety door lock. Safety interlocking device ensures proper operation and prevents accidents.
* Three times pre-vacuum enhances sterilization efficiency and effectiveness.
* Buzzer reminder signals the completion of sterilization cycles, and automatic stop ensures safety.
* Automatic discharge of cold air and steam exhaust after sterilization for efficient and safe operation.
* Built-in steam generator provides quick production of saturated steam for sterilization processes.
* Complies with European Class B standard for effective sterilization.
* Microcomputer control wirh LCD display and touch buttons ensures easy monitoring and precise operation.
* Equipped with BD test, HELIX test, and VACUUM test for comprehensive sterilization performance.
* Open-type top water tank for easy refilling and maintenance.
* Automatic protection function includes over temperature, over pressure, and low water level protection, as well as anti-dry burning and safety door lock. Safety interlocking device ensures proper operation and prevents accidents.
* Three times pre-vacuum enhances sterilization efficiency and effectiveness.
* Buzzer reminder signals the completion of sterilization cycles, and automatic stop ensures safety.
* Automatic discharge of cold air and steam exhaust after sterilization for efficient and safe operation.
* Built-in steam generator provides quick production of saturated steam for sterilization processes.
Product Parameters
Model | ST-B8B | ST-B12B | ST-B18B | ST-B23B | ST-B29DZB | ||||
Volume | 8L | 12L | 18L | 23L | 29L | ||||
Power | 2kw | 2kw | 2kw | 2kw | Automatic | ||||
Voltage | 220V110V;50/60Hz | ||||||||
Design pressure | 0.25Mpa | ||||||||
Design temperature | 139℃ | ||||||||
Rated working pressure | 0.22 Mpa | ||||||||
Temp accuracy | ±1℃ | ||||||||
Rated working temperature | 134℃ | ||||||||
Chamber volume | Ø170x320 | Ø200x355 | Ø250x370 | Ø250x452 | |||||
Sizes(WxDxH)(mm) | 580x445x400 | 600x445x400 | 640x480x450 | 690x480x450 | |||||
Shipping Size(WxDxH)(mm) | 650x500x450 | 660x510x460 | 720x560x510 | 760x560x510 | |||||
N.W./G.W. (kg) | 42/45 | 44/48 | 48/57 | 53/60 | |||||
Pulse times | 1~5 | ||||||||
Sterilization Program | Fast 134℃ Fabric 134℃ Packaging Equipment 134℃ Enhanced Mode 134℃ Rubber program 121℃ Packaging Equipment 121℃ DIY Program HELIX/B＆D Test Vacuum Test | ||||||||
Evaporator | New generation evaporator | ||||||||
Water Injection method | Build in water tank | ||||||||
Standard Sterilization Shelf | 3pcs SS shelf | ||||||||
Power Consumption | 2500w | 2600w | 2700w | 2700w | 2800w | ||||
Power Supply | 220V ±22V 50/60Hz ±1Hz | ||||||||
Chamber Size(ØxH) | Ø170x320mm | Ø248x350mm | Ø248x450mm | Ø248x450mm | Ø320x362mm | ||||
External Size(WxDxH) | 550x436x375mm | 600x483x455mm | 700x483x455mm | 700x483x455mm | 658x638x580mm | ||||
Net Weight | 37kg | 47kg | 53kg | 53kg | 95kg | ||||
