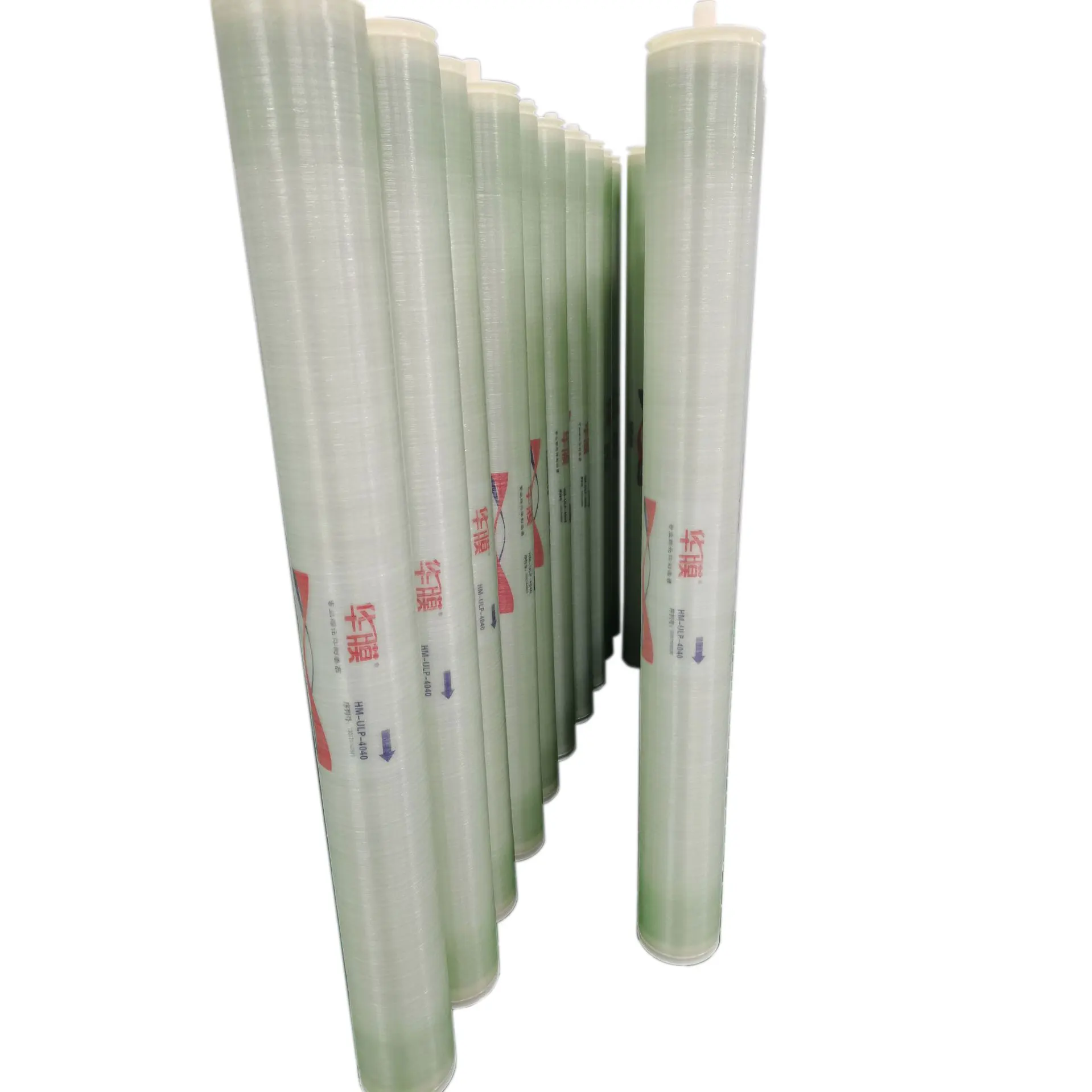

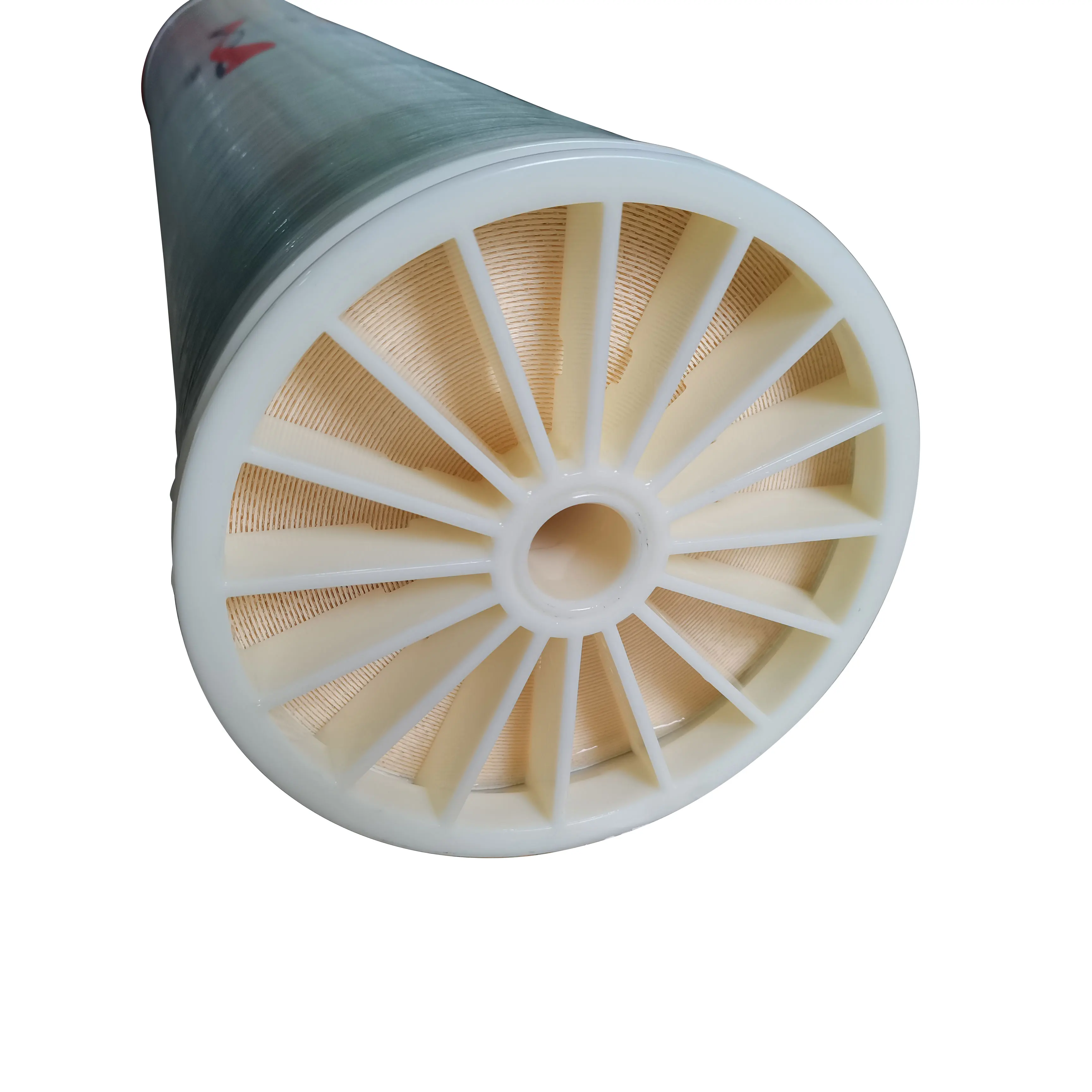

Lp/bw/sw/ulp 8040 Reverse Osmosis Membrane Ro Membrane For Water Treatment Equipment
- Category: >>>
- Supplier: Huzhou Xianhe Instrument Technology Co. Ltd.
Share on (1600949415446):
Product Overview
Description
Product Description

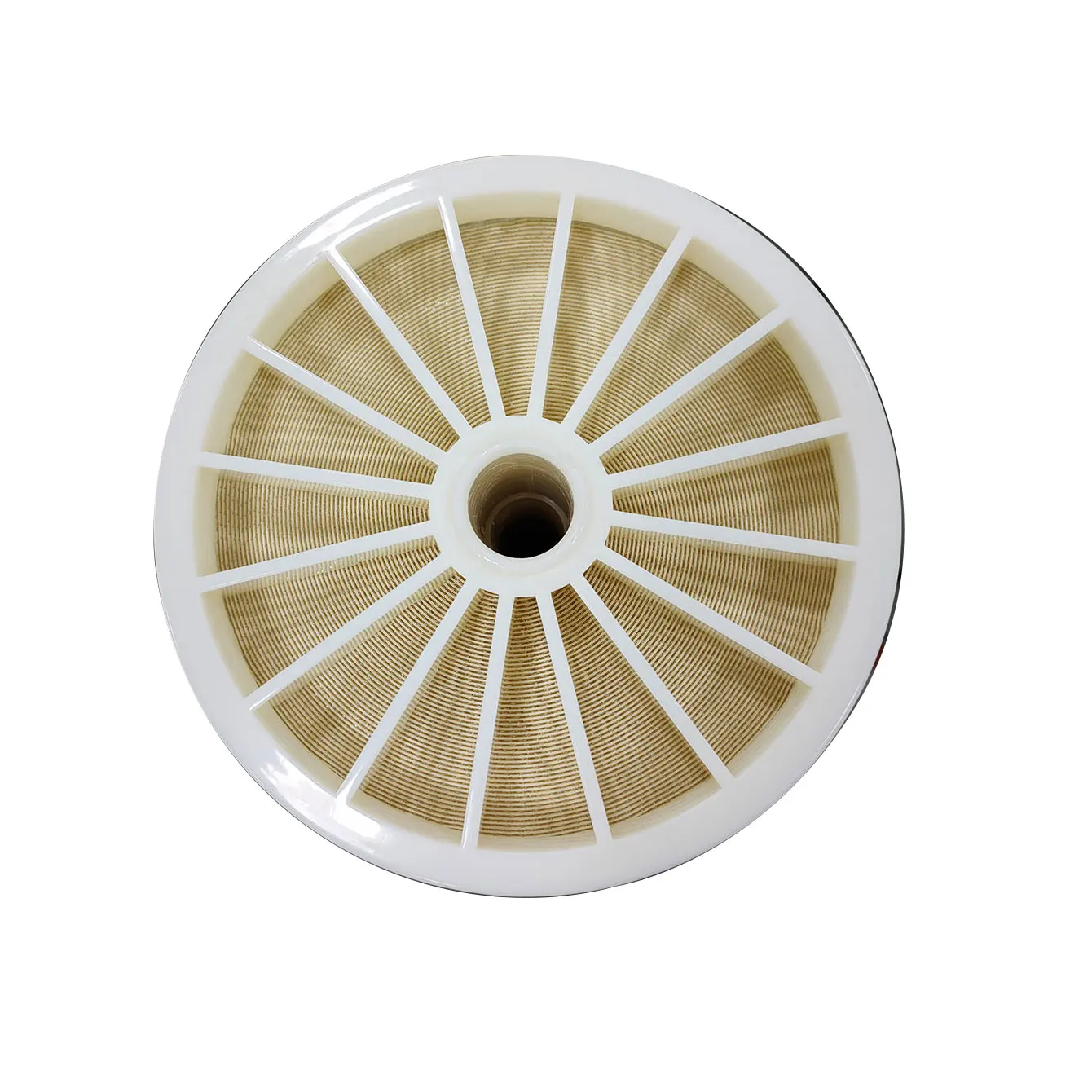

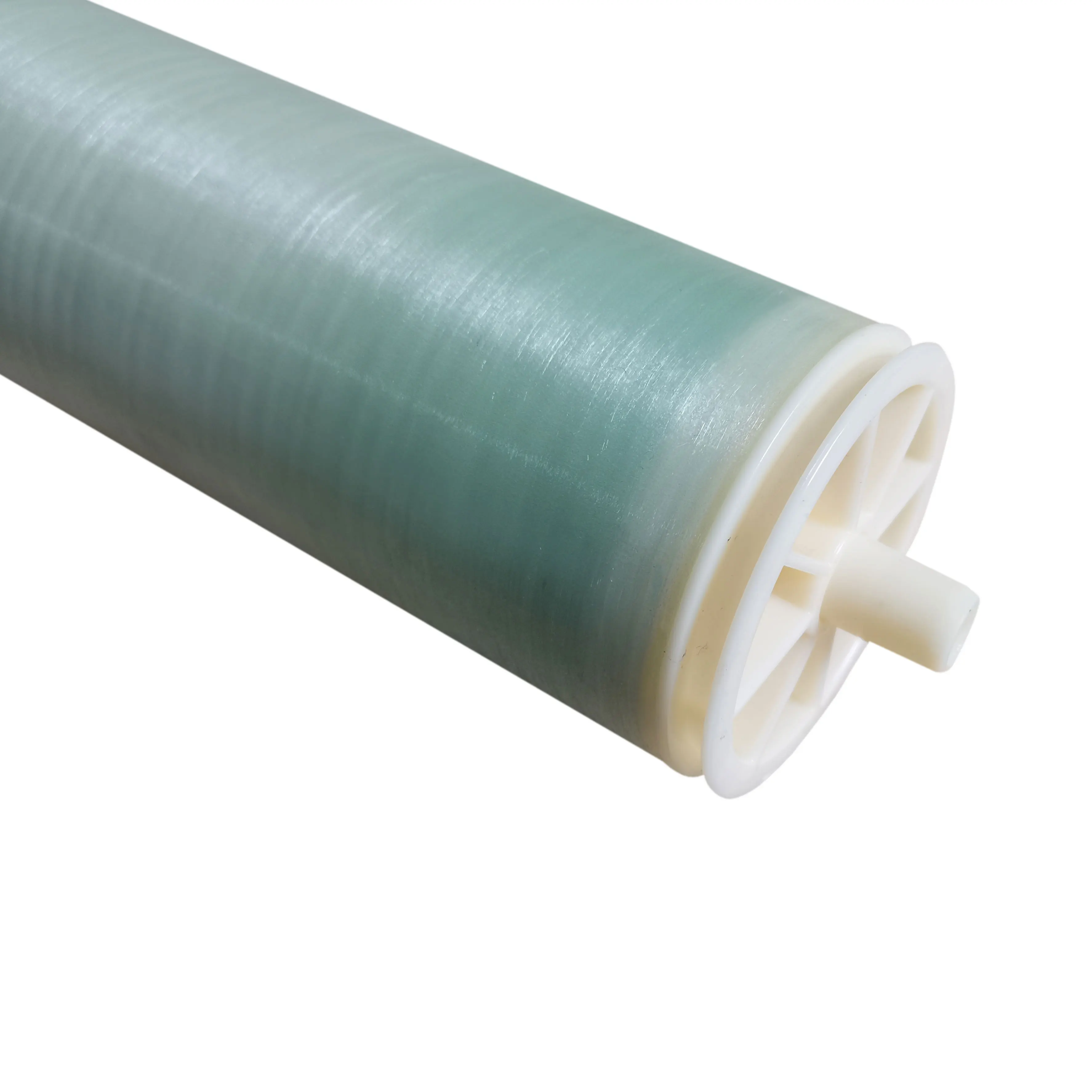

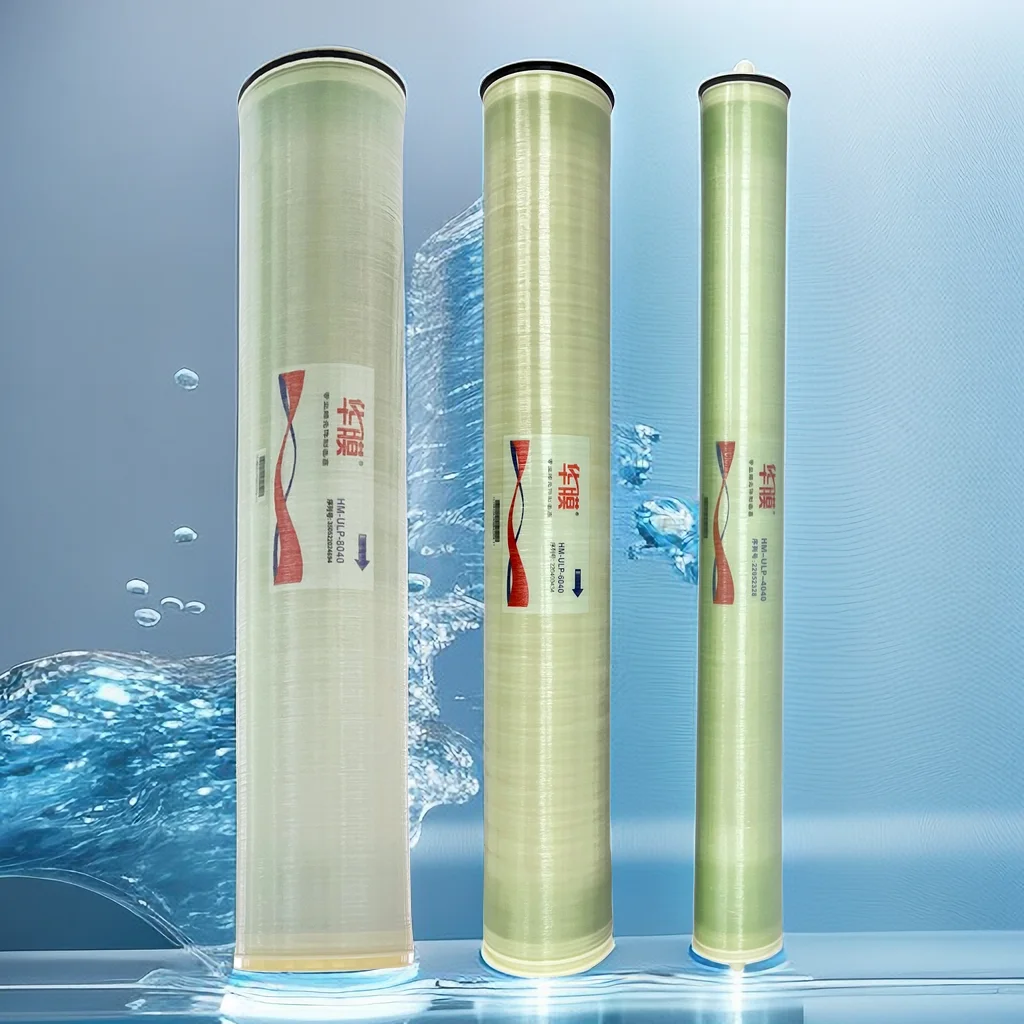

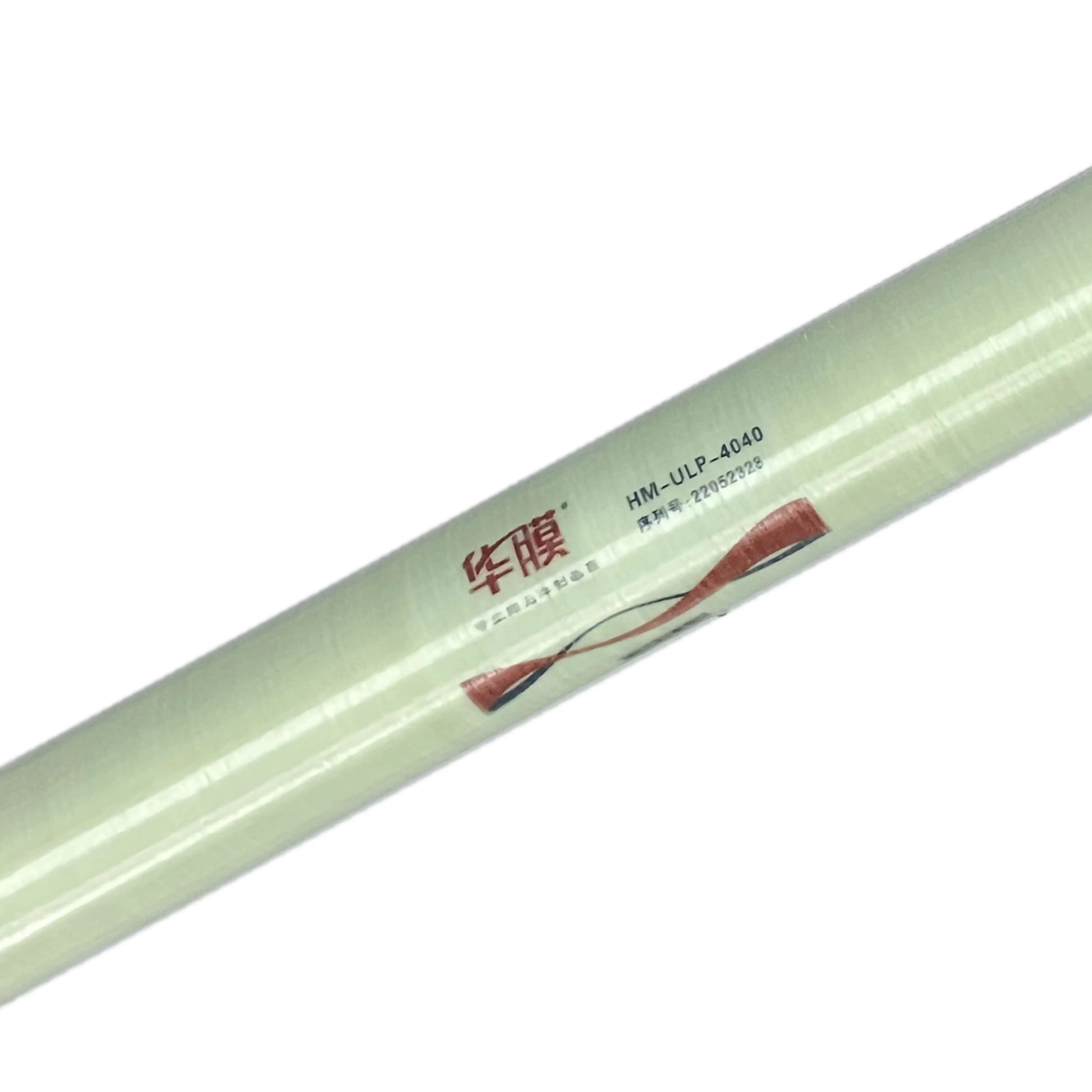

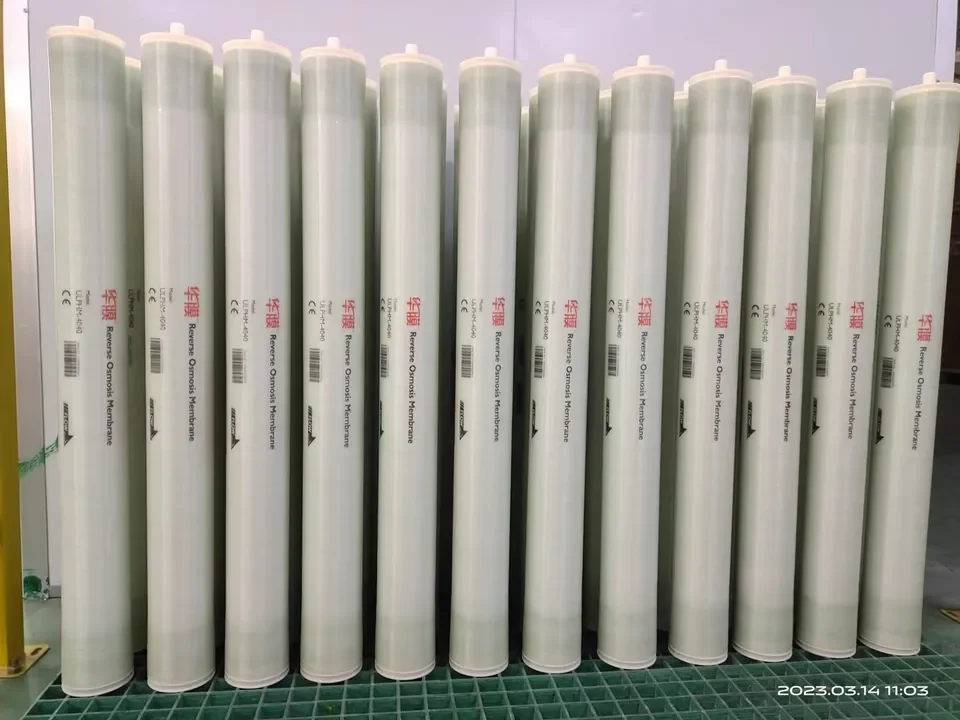

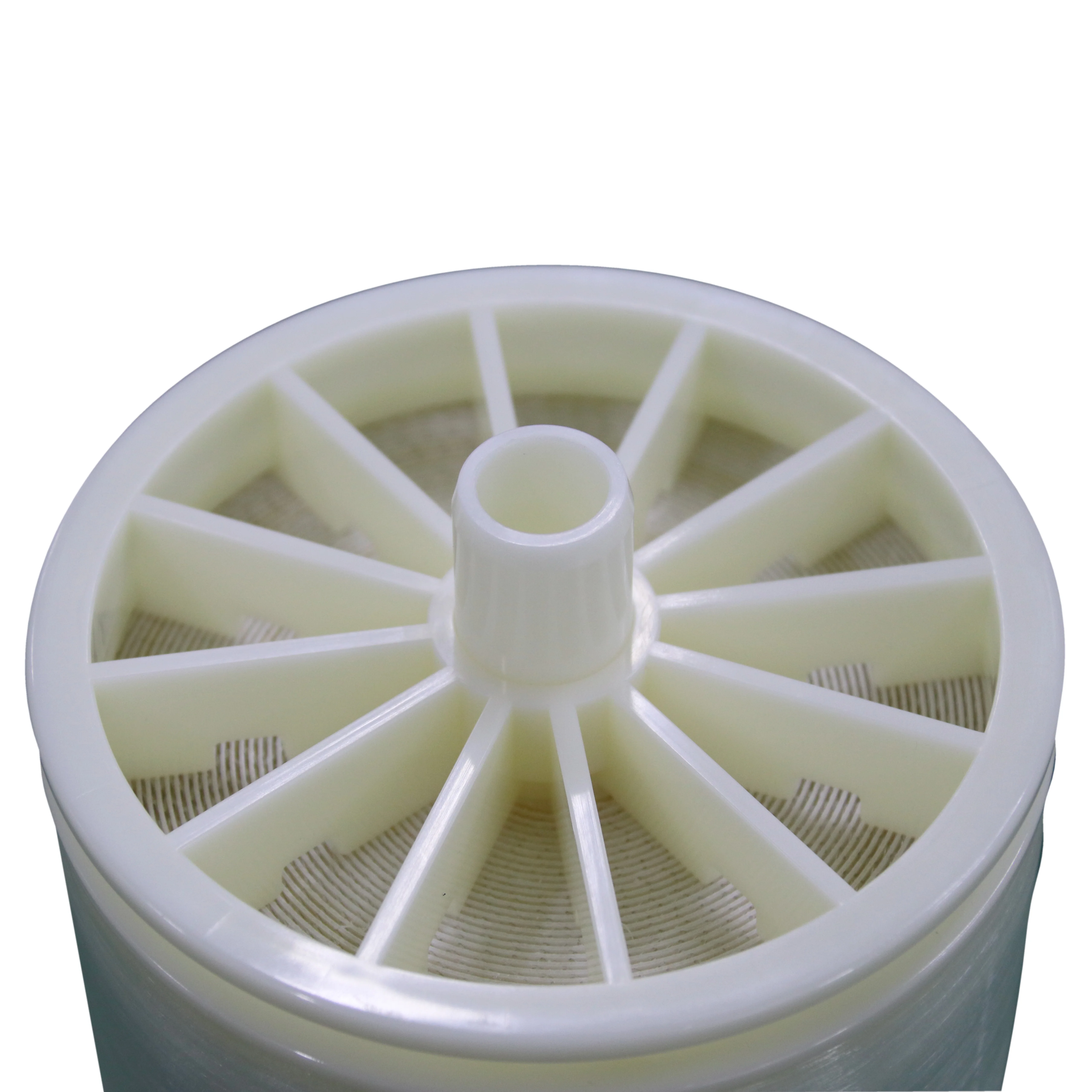

REVERSE OSMOSIS MEMBRANE ULP4040/ULP6040/ULP8040

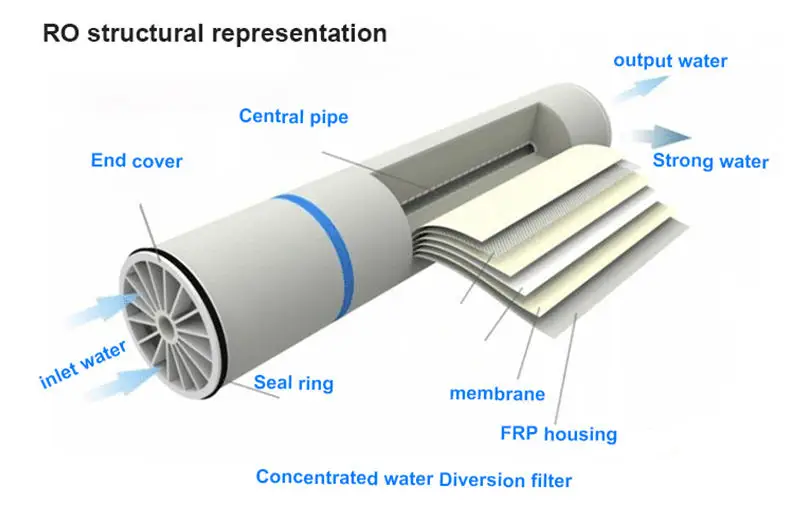

ULP series is a low-pressure aromatic polyamide composite membrane element.
It has the characteristics of large flux and high desalination rate. The operating pressure is about 2/3 of normal membranes.
It is suitable for desalination of RO water, groundwater, municipal water and other water sources. It is mainly used in pure
water, boiler feed water, food and pharmaceutical manufacturing industries and other fields.
It has the characteristics of large flux and high desalination rate. The operating pressure is about 2/3 of normal membranes.
It is suitable for desalination of RO water, groundwater, municipal water and other water sources. It is mainly used in pure
water, boiler feed water, food and pharmaceutical manufacturing industries and other fields.
Advantage
High water production
Low operating pressure
High desalination rate
Great capacity of impurity and long life
Less replacement saves labor cost
Easier installment and lower labor cost
Specification
Model | Active Membrane Area ft2（m2） | Stabilized Salt Rejection % | Minimum Salt Rejection % | Permeate Flow Rate gpd（m3/d） |
ULP-4040 | 78(7.2) | 99.3 | 98.7 | 2250(8.7) |
ULP-6040 | 185(17.2) | 99.2 | 98.7 | 4120(15.6) |
ULP-8040 | 400(37) | 99.3 | 98.7 | 11,500(44) |
Test Condition: Feed Water Pressure 1.03MPa (150 psi); Feed Water Temperature: 25 °C (77 °F); Feed Water Concentration 1,500 ppm NaCl; Feed Water pH: 8; Permeate Recovery 15%.

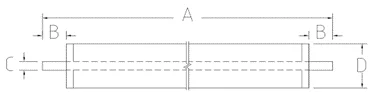

Dimensions
The reverse osmosis membrane component production facility was launched in 2014, and the products include 4 inch, 6 inch and 8 inch specification series.
Model | A inch（mm） | B inch（mm） | C inch（mm） | D inch（mm） |
BW-4040 | 40(1,016) | 1.05(26.7) | 0.75(19) | 3.9(99) |
BW-6040 | 40(1,016) | 1.05(26.7) | 0.98(25) | 5.75(146) |
BW-8040 | 40(1,016) | 0 | 1.125(29) | 7.95(201.9) |
Maximum Operating Pressure | 41 bar(600 psi) |
Maximum Operating Temperature | 45℃（113℉） |
Maximum Pressure Drop per Element | 1.0 bar (15 psi) |
pH Range, Continuous Operation | 2-11 |
pH Range, Chemical Cleaning | 1-13 |
Maximum Feed Silt Density Index(SDI15) | 5.0 |
Free Chlorine Tolerance | < 0.1 ppm |
1. Permeate flow rates for individual elements may vary ±15%.
2. Membrane active areas may vary ±4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
2. Membrane active areas may vary ±4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.

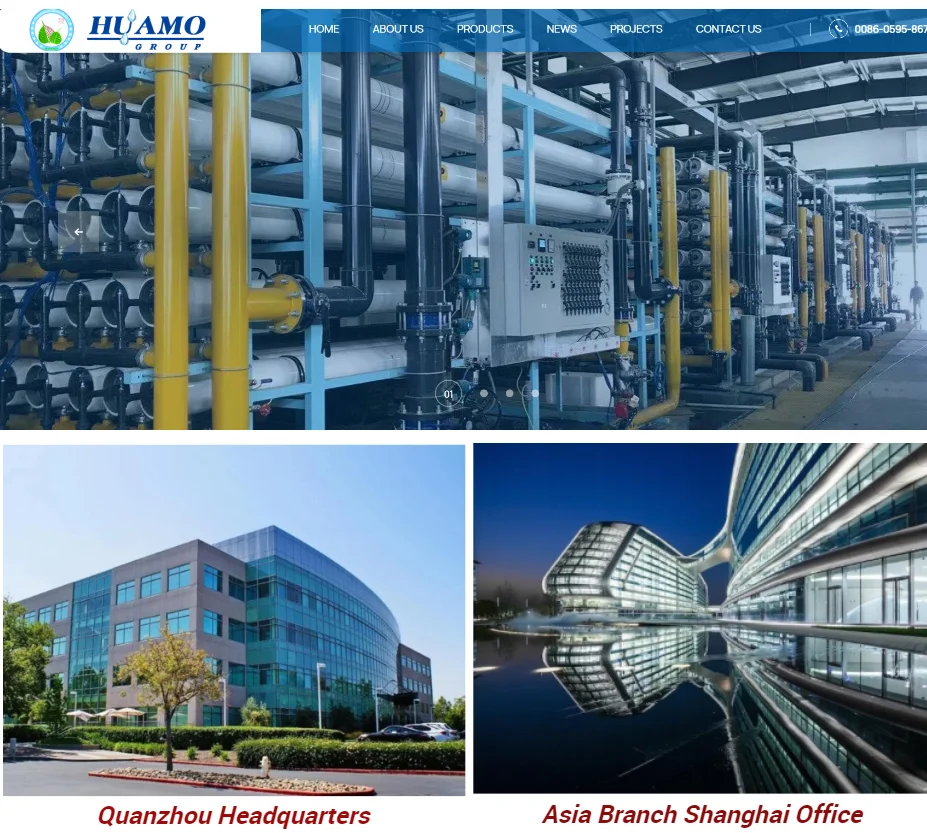

Company Profile
HUAMO Membrance Team started in Silicon Valley by a group of scientists, engineers and market specialists who are highly motivated,innovative, experienced and knowledgeable in water treatment, filtration and separation technologies. HUAMO Membrane specializes in the development of Reverse Osmosis, Nano filtration membranes andSea Water membranes for a wide range of industrial applications. HUAMO products are used in chemical&petrochemical, power generation, municipal, food and beverage, oil &gas, dyeing&printing, pulp &paper industries as well as specialty& custom needs.

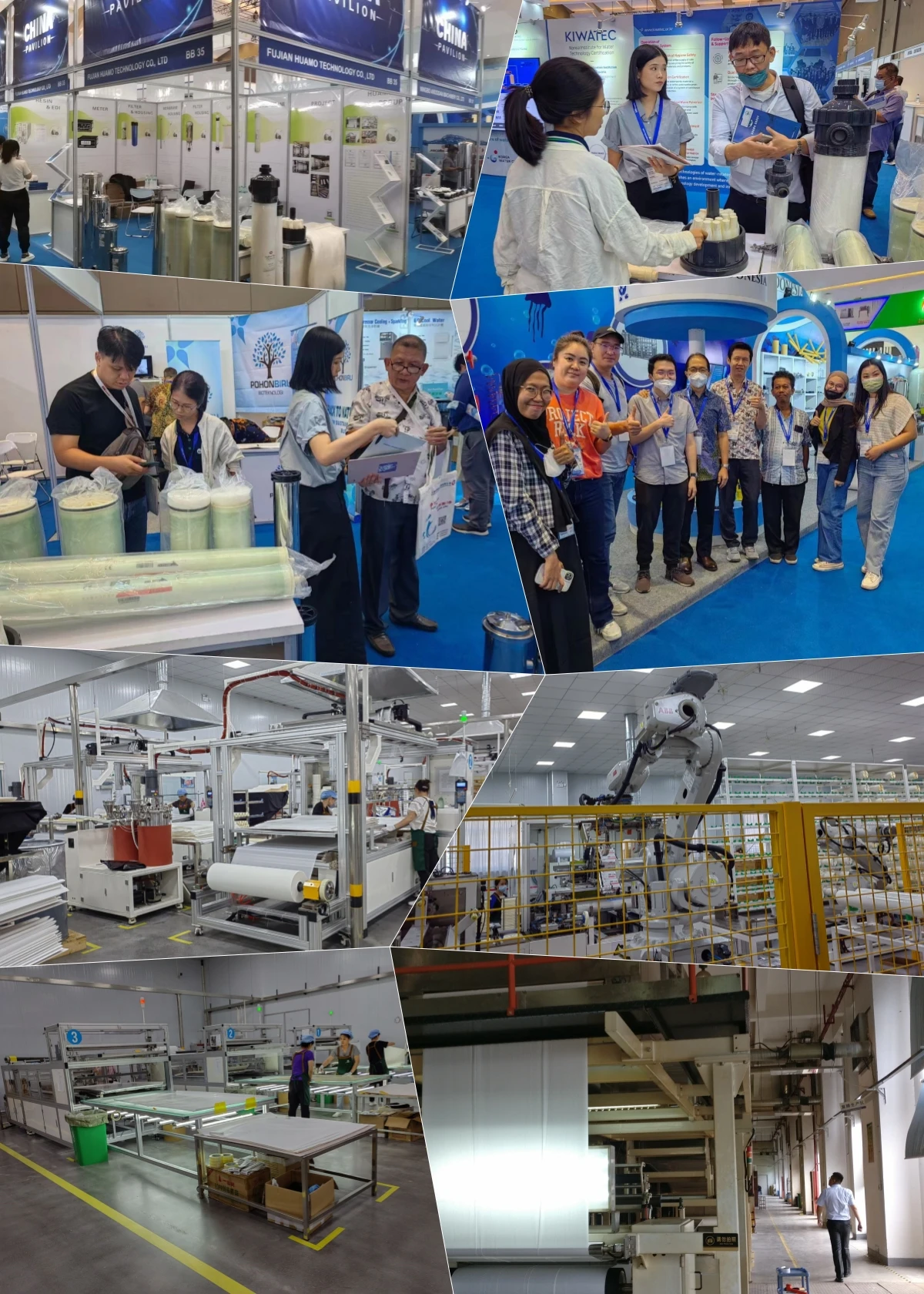

Exhibition & Workshop

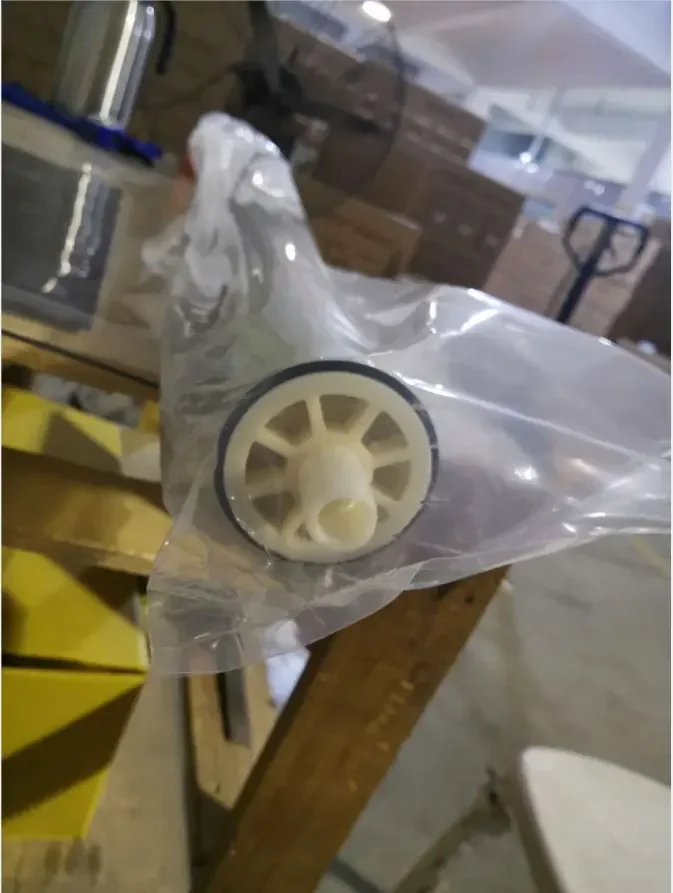

Packing & Delivery
FAQ
Q:1. Do you provide OEM service?
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure watertreatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent?
A: Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create
your company's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure watertreatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent?
A: Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create
your company's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
