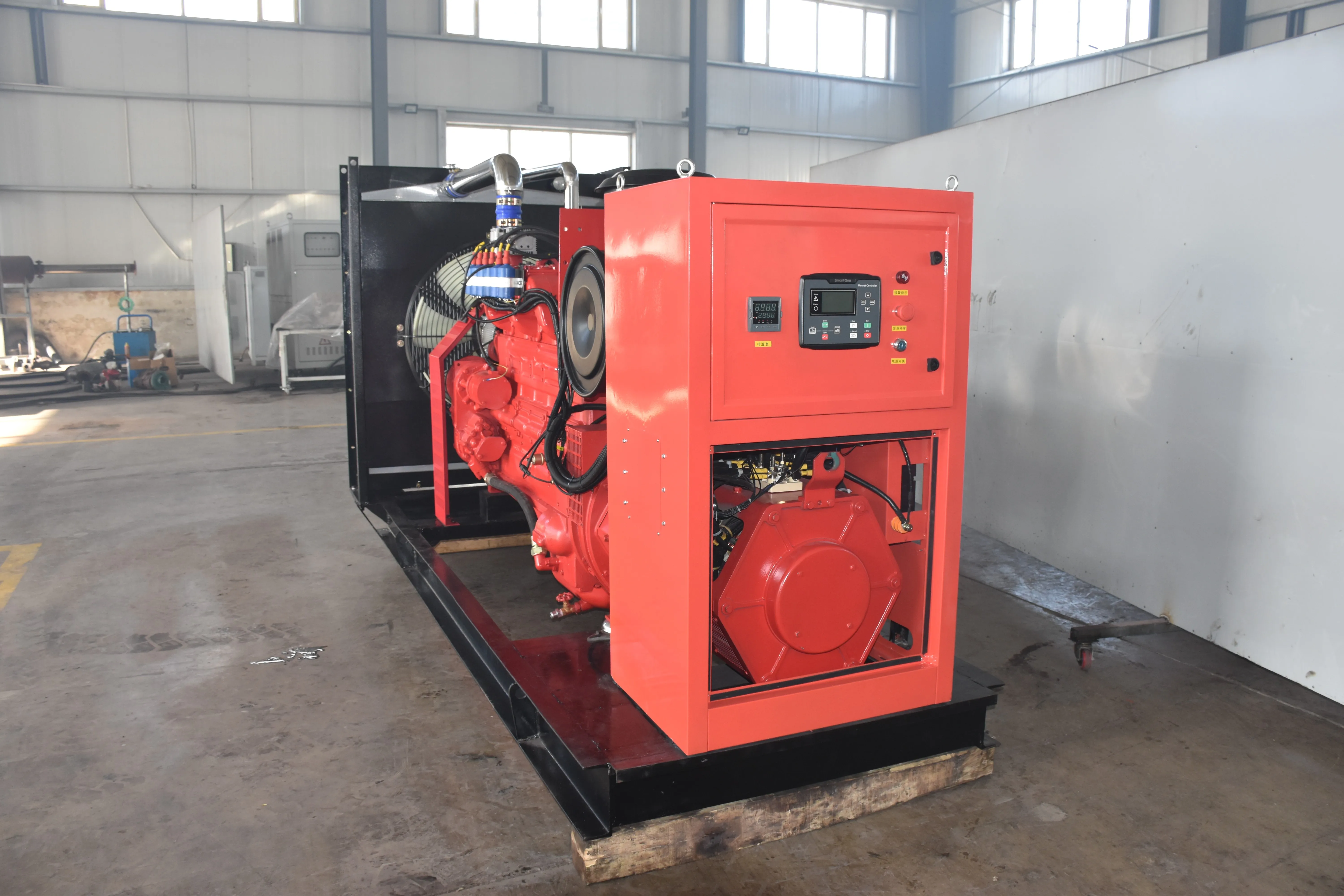

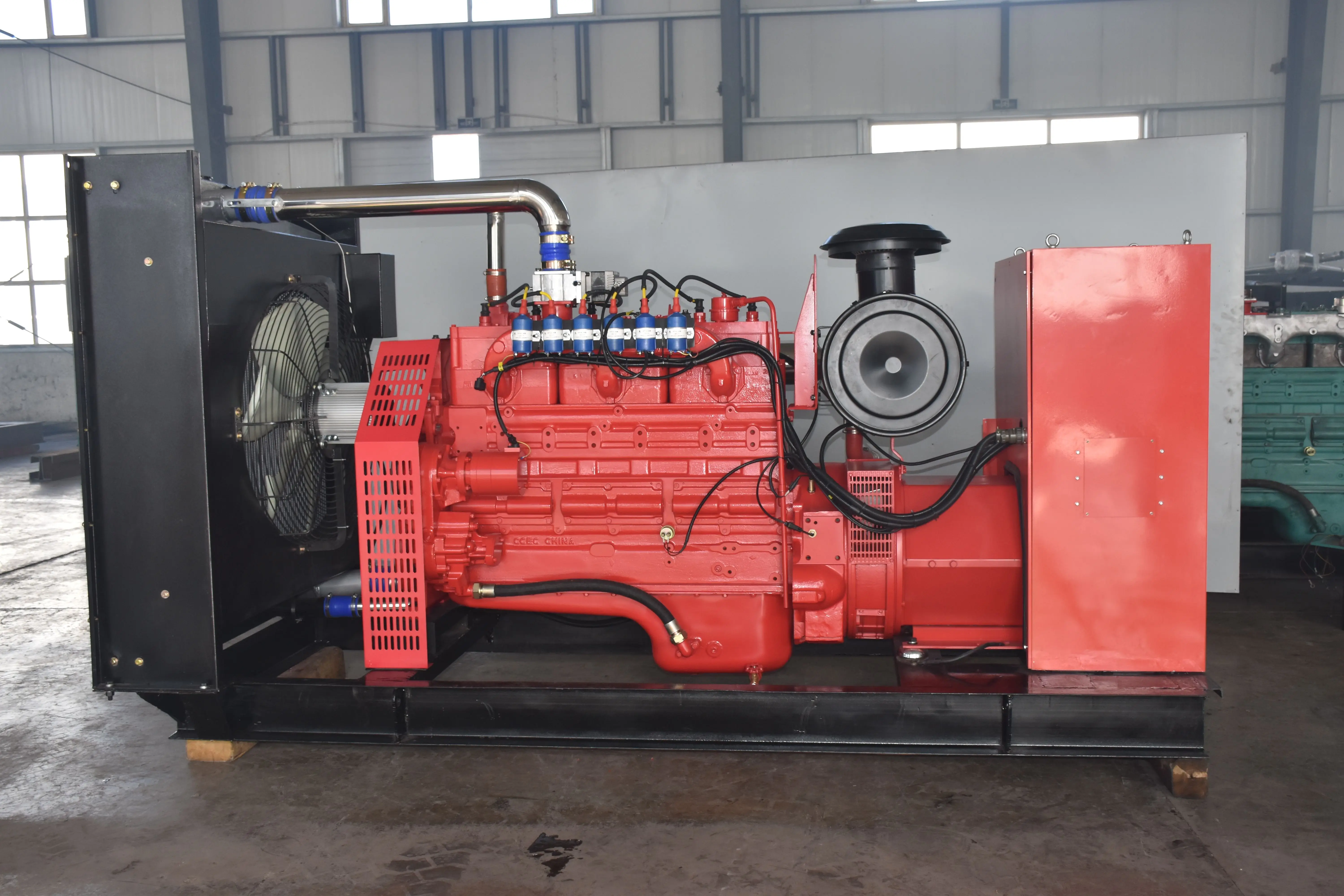

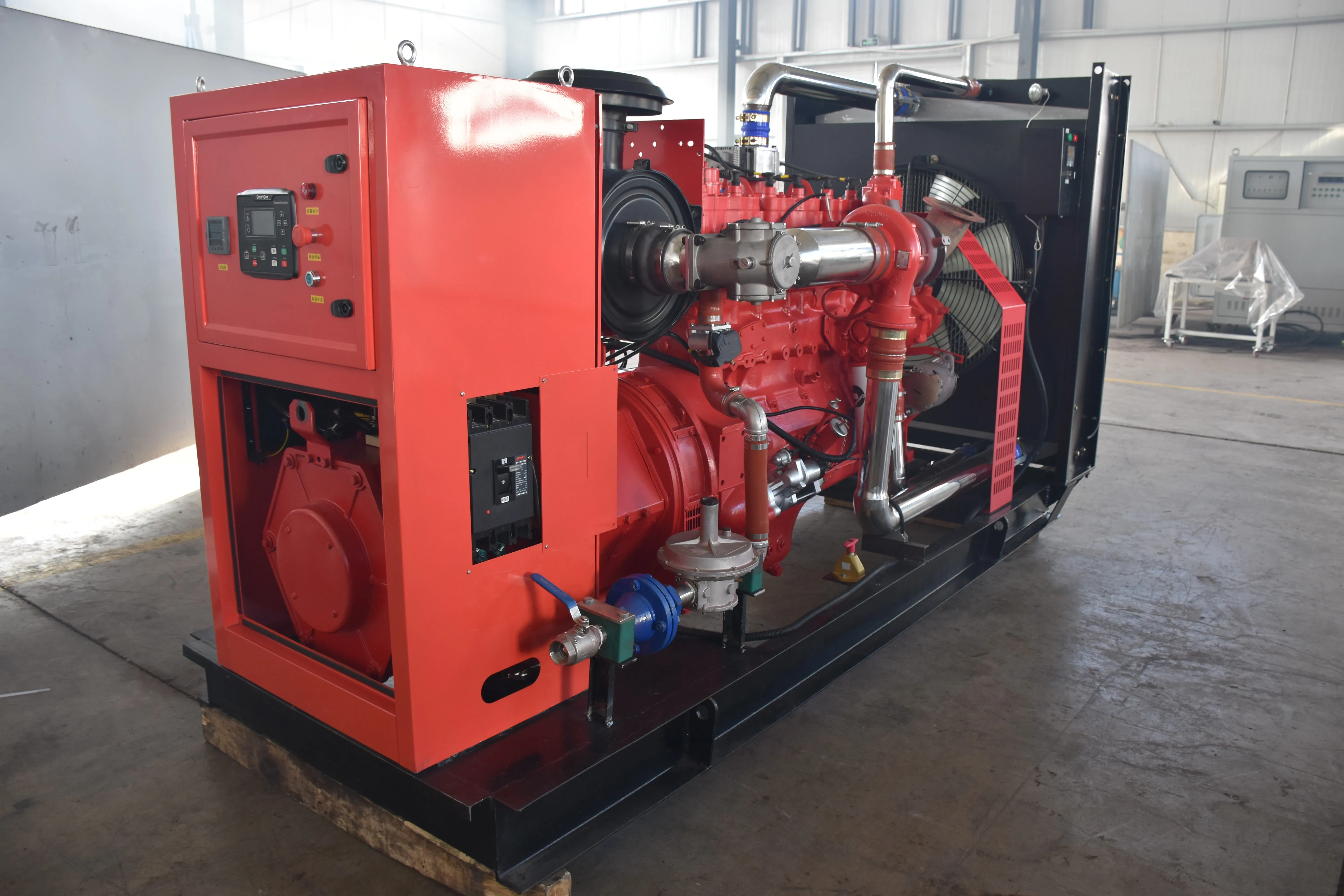

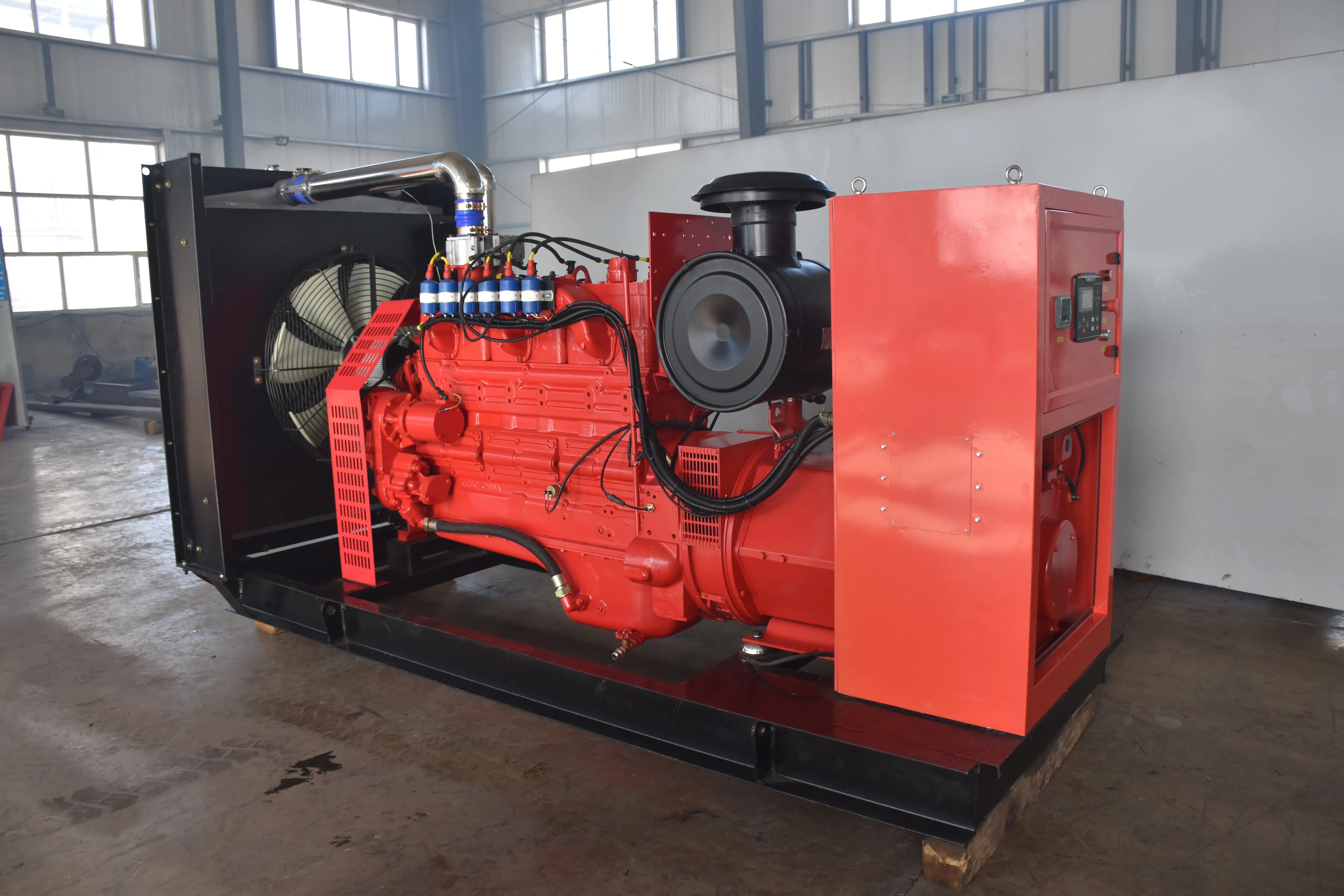

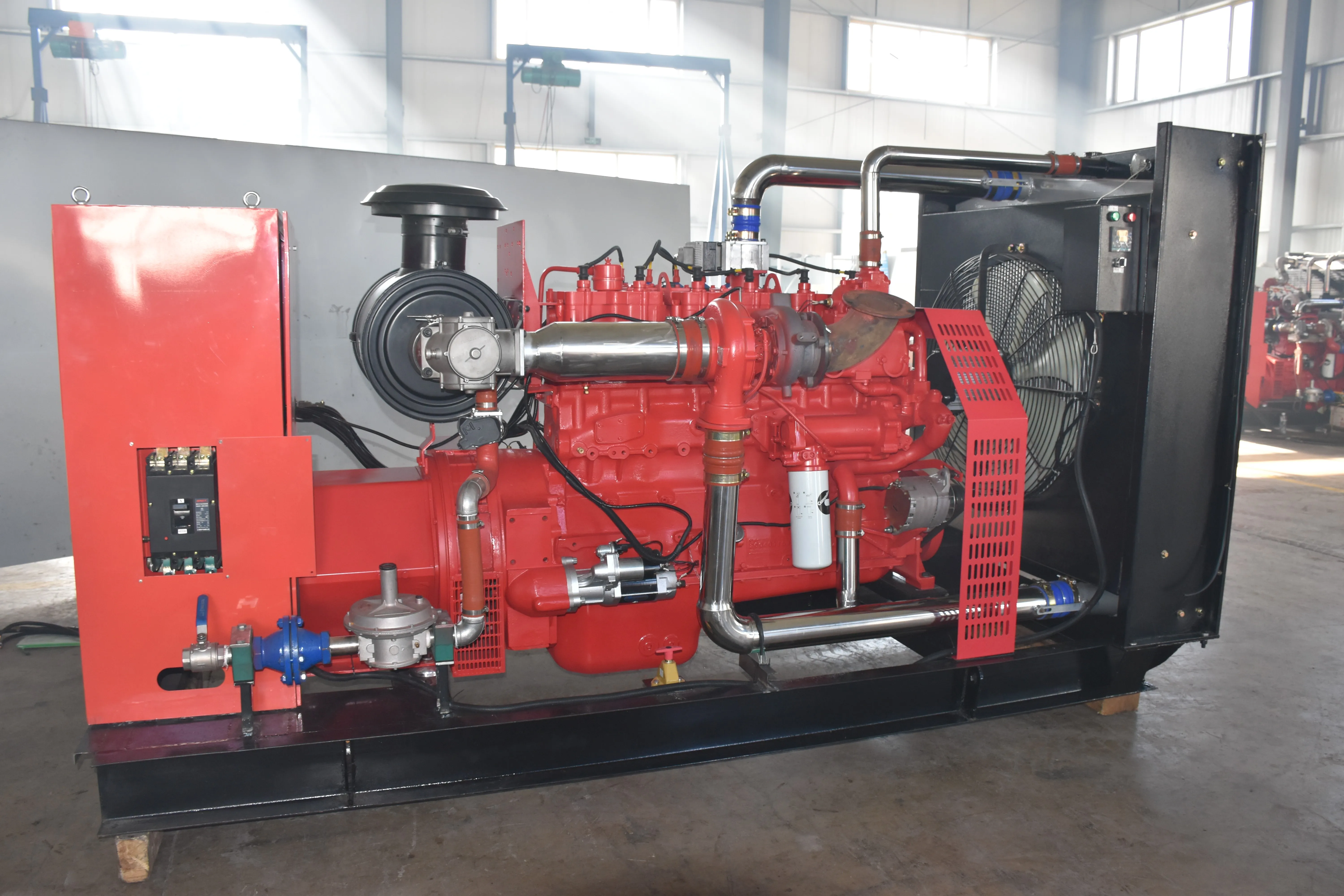

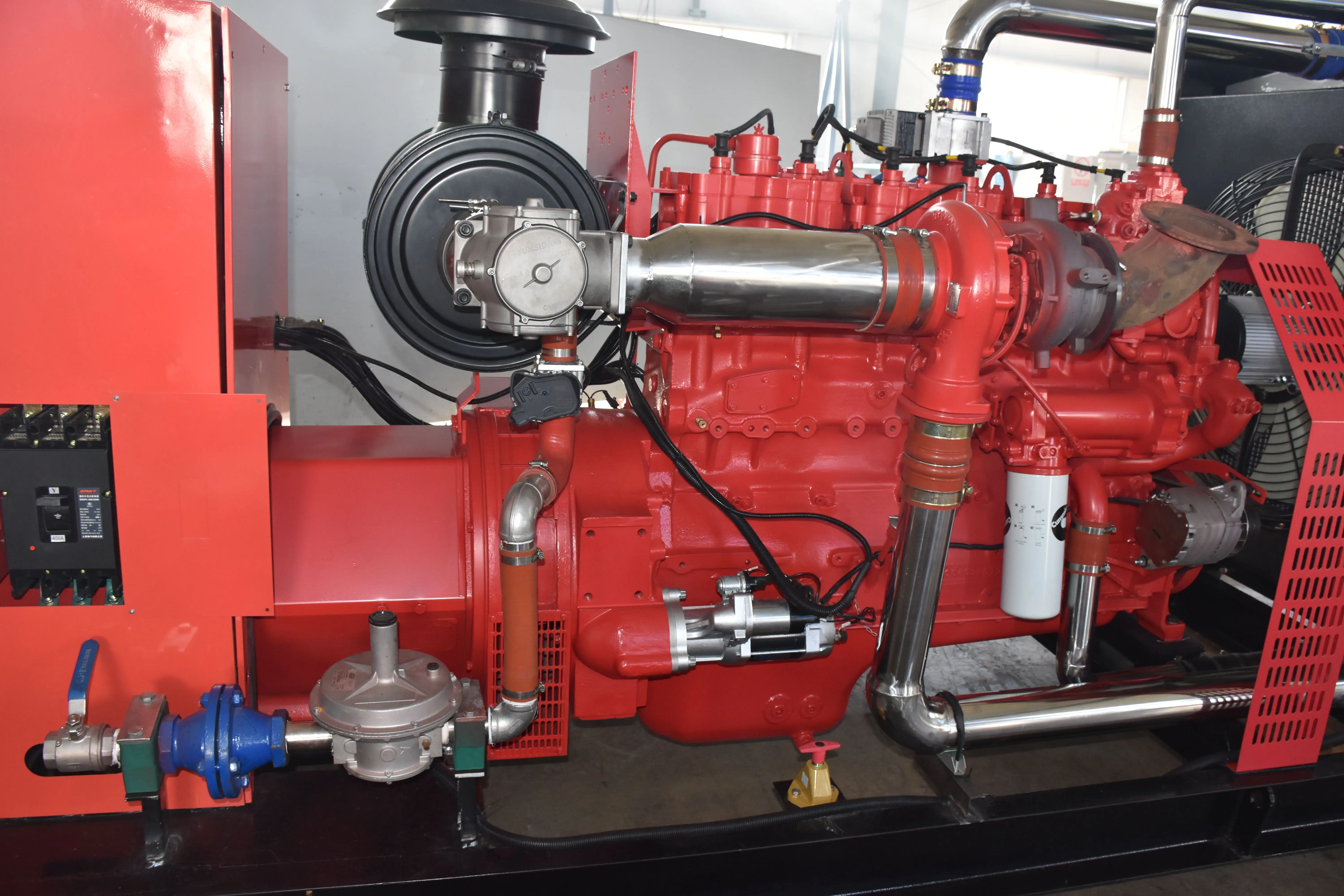

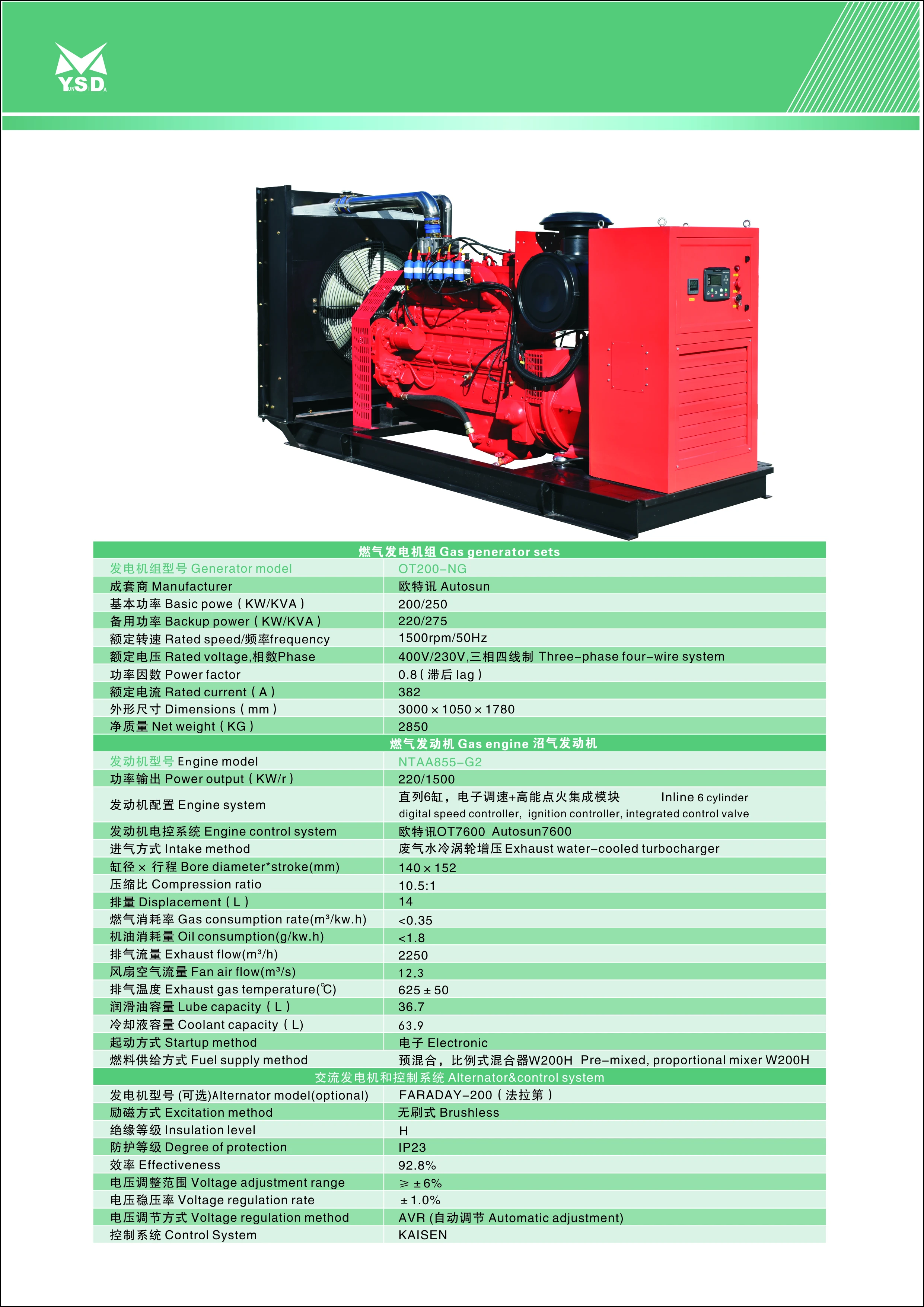

220KW NTAA855 natural gas genset LPG engine Biogas turbine generator set 200KW NT855
- Category: >>>
- Supplier: Datong Autosun Power Control Co. Ltd.
Share on (1600949434534):
Product Overview
Description
FEATURES AT A GLANCE
Generator set model NT855
Main power (KW) 200
Standby power (KW) 250
Main power (KW) 200
Standby power (KW) 250
Rated speed 1500rpm/50Hz
Rated voltage 400V/230V
Rated voltage 400V/230V
Three-phase four-wire system
power factor 0.8（Lag ）
Rated current (A) 360
Dimensions (mm) 3500x1350x1850
Net Weight (KG) 2450
Rated current (A) 360
Dimensions (mm) 3500x1350x1850
Net Weight (KG) 2450
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Engine | Cummins NT855 |
2 | Power output (KW/r) | 300/1500 |
3 | Engine configuration | 6-cylinder, electronic speed regulation + high-energy ignition integrated module |
4 | Engine Electronic Control System | OT3120+GD6 |
5 | Intake method | Exhaust water cooled turbo |
6 | Bore size × stroke (mm) | 140x152 |
7 | Compression ratio | 10.5:1 |
8 | Displacement (L) | 14 |
9 | Gas consumption rate (m3/kw h) | <0.34 |
10 | Exhaust flow (m3/h) | 2300 |
11 | Fan air flow (m3/s) | 12 |
12 | Exhaust temperature (℃) | 625±15 |
13 | Lubricating oil capacity (L) | 36 |
14 | Coolant capacity (L) | 84 |
15 | Starting method | Electronic |
16 | fuel supply method | Premix, Proportional Mixer W300H |
17 | Alternator | FARADAY-250 (Faraday) |
18 | Excitation method | brushless |
19 | Voltage adjustment range | ≥±6% |
20 | Voltage regulation rate | ±1.0% |
Company pictures
Exhibition
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS

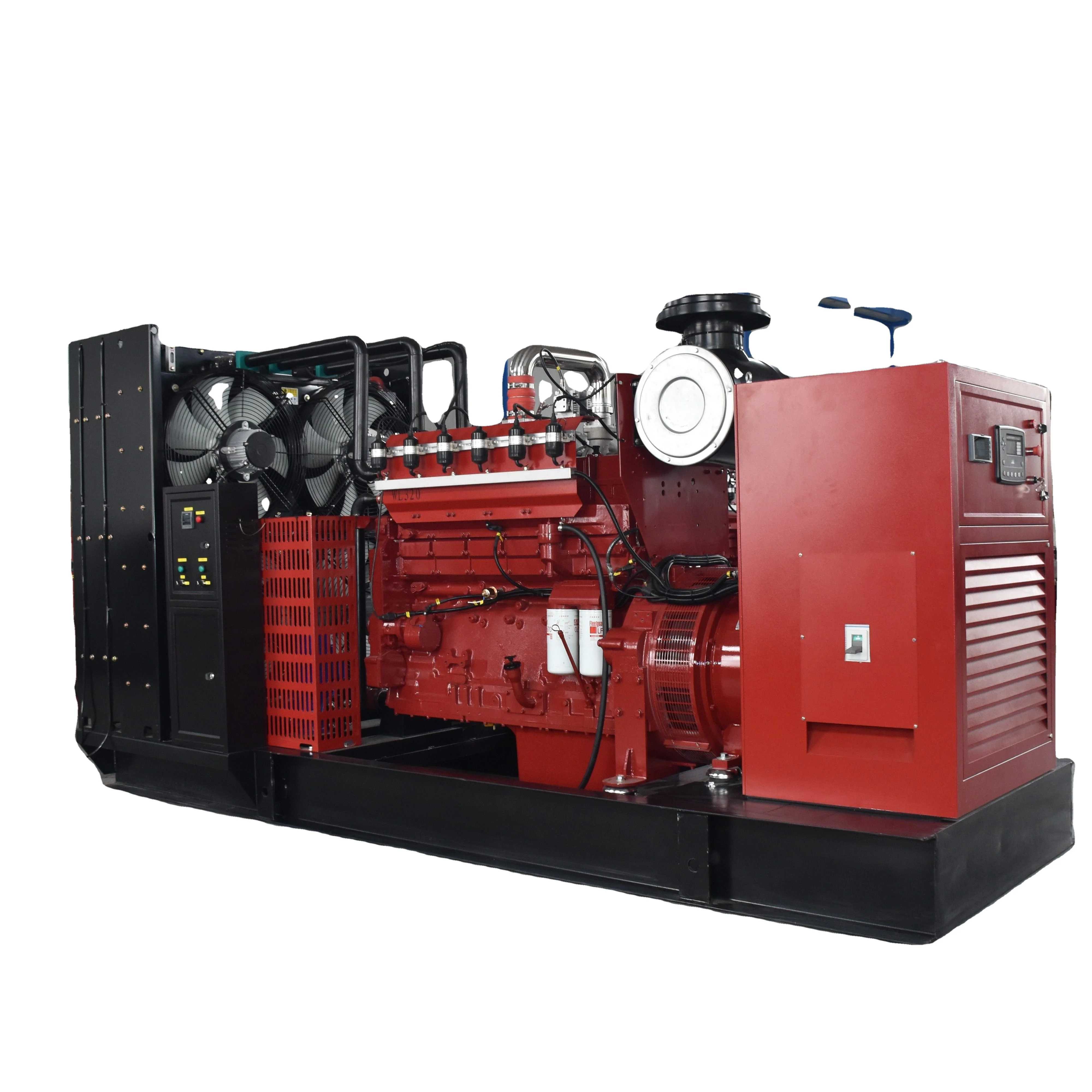

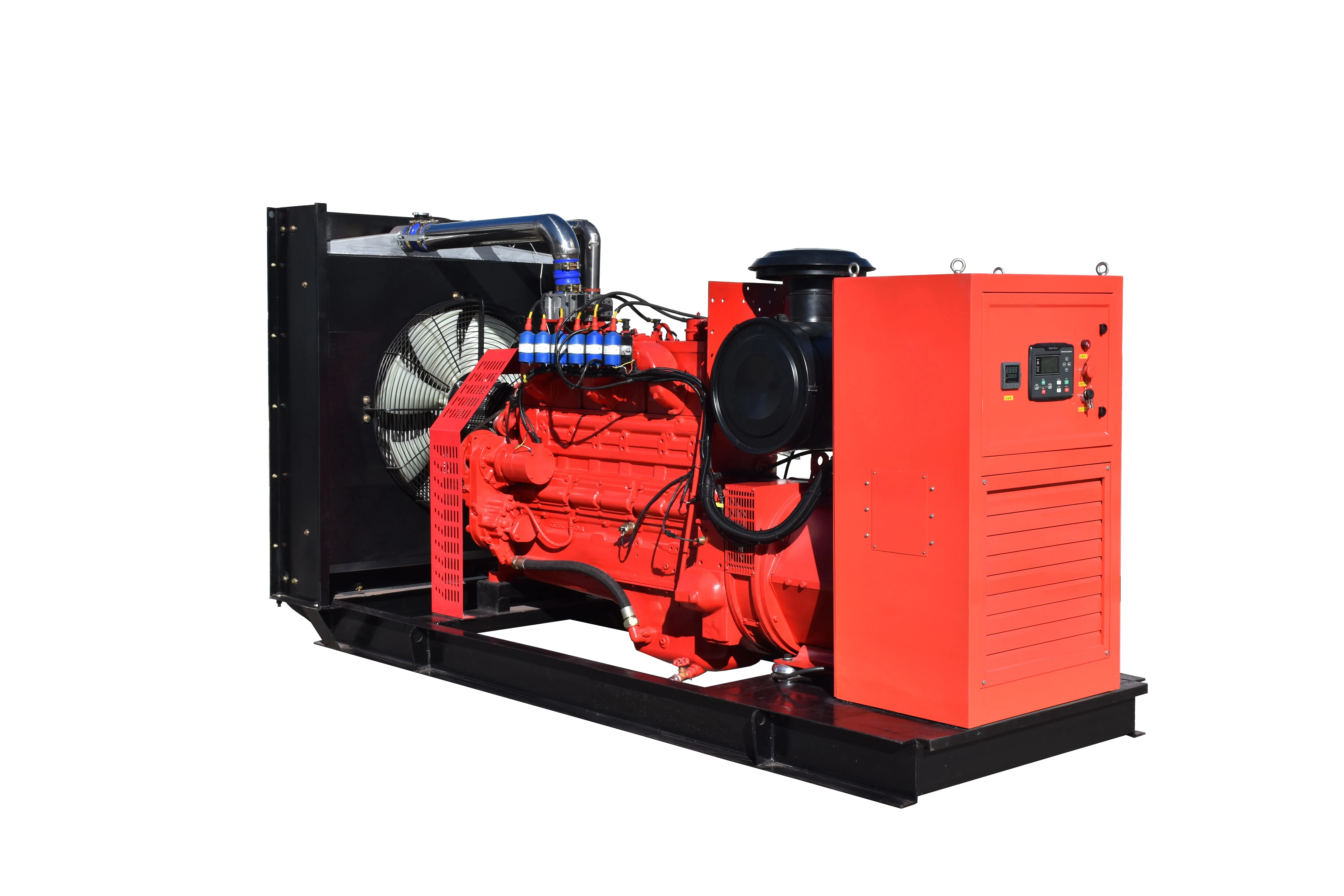

200KW Gas/Bioagas generator set
120KW Gas/Bioagas generator set
300KW Gas/Bioagas generator set
FAQ
Q1：Can the Generator set used for biogas?
A1：Yes, our Generator set can be used for Natural gas, biogas and other different types Gas.
Q2: What is your products warranty?
A2: We provide 1 year warranty for our products.
Q3:How to use your products?
A3: Our products have english manual, you can contact our sales for our products manual details.
A2: We provide 1 year warranty for our products.
Q3:How to use your products?
A3: Our products have english manual, you can contact our sales for our products manual details.
