Product Overview

Description

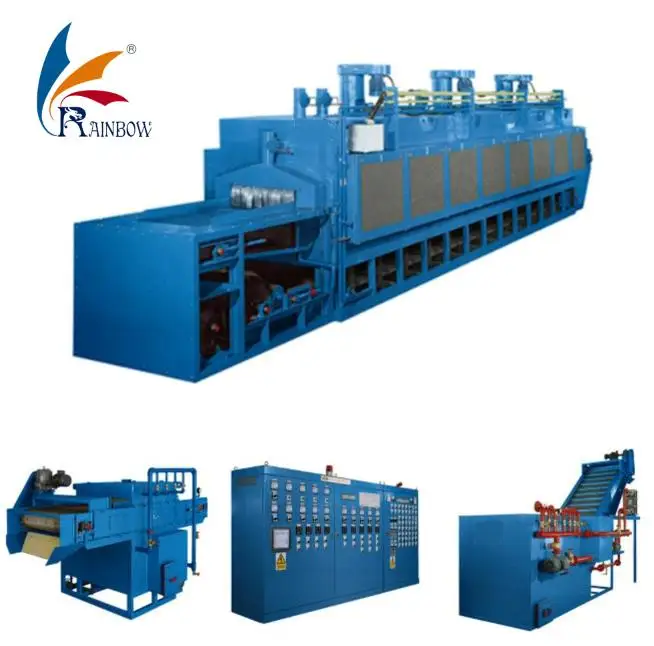

The whole set heat treatment line is composed of :

Automatic Feeding Machine →Front Washer→  Hardening Furnace → Oil quenching tank →

Rear Washer → Tempering furnace→Electric Control Cabinet, etc.



The buyer can compose the treatment line flexiblely due to different demands.



MAIN MACHINES:



FRONT WASHIN MACHINE:





DEPHOSPHORIZATION TANK:





QUENCHIN OOLING TANK:





MAGNETIC FEEDING MACHINE:





DOUBLE-LAYER DYEIN TANK:







SPARE PARTS:







ELECTRIC CONTROL CABINET:



































































Model	POWER(KW)	TOTAL POWER(KW)	Working Temp.(°C)	Working Dimension(mm)	CAPACITY(KGS/H)
RB-30*600*10	#1	90	950	300*6000*100	120-150
RB-40*600*10	#2	120	950	400*6000*100	180-220
RB-50*600*10	#3	180	950	500*6000*100	250-300
RB-60*600*10	#4-1	220	950	600*6000*100	400-450
RB-60*800*10	#4-2	275	950	600*8000*100	450-500
RB-80*600*10	#5-1	275	950	800*6000*100	450-500
RB-80*800*10	#5-2	360	950	800*8000*100	650-750
RB-80*1000*10	#6	410	950	800*10000*100	900-1000
RB-100*1000*10	#7	500	950	1000*10000*100	1200-1300
RB-120*1000*10	#8	600	950	1200*10000*100	1400-1500
RB-120*1350*10	#9	950	950	1200*13500*100	1800-2000

 *SIZE & SPECIFICATION CAN BE CUSTOM MADE..........
