Product Overview
Description
WHAT ARE THE GENERATOR USAGE AREAS?
The generator is mainly used for two purposes
Main power supply:
as a continuous energy source in areas where there is no electrical energy or too far from the mains energy.
Backup power supply:
as an alternative to power cuts where mains energy is available.
The application areas of the generator are:
house, housing estate, summer house, chalet, caravan, camping areas, boat and social use areas, office, workplace, workshop, store, factory, construction sites, data centers, poultry farms, mines and quarries, industrial areas, hospitals, shopping malls, stadiums, sports halls, convention centers, all kinds of sports events. JUSTPOWER generator provides a wide range of services in the aforementioned application areas.
Main power supply:
as a continuous energy source in areas where there is no electrical energy or too far from the mains energy.
Backup power supply:
as an alternative to power cuts where mains energy is available.
The application areas of the generator are:
house, housing estate, summer house, chalet, caravan, camping areas, boat and social use areas, office, workplace, workshop, store, factory, construction sites, data centers, poultry farms, mines and quarries, industrial areas, hospitals, shopping malls, stadiums, sports halls, convention centers, all kinds of sports events. JUSTPOWER generator provides a wide range of services in the aforementioned application areas.
Products Description
1 | Brand new water-cooled diesel engine with 50ºC tropical radiator. | |
2 | Brand new brushless alternator, 2 years warranty. | |
3 | Deepsea/ComAp/Smartgen/Justpower digital smart controller. | |
4 | Maintenance-free battery with battery cable, battery terminal caps and battery isolator switch. | |
5 | Oil, coolant, fuel and water drain on the base frame. So make it easier to clean your genset. | |

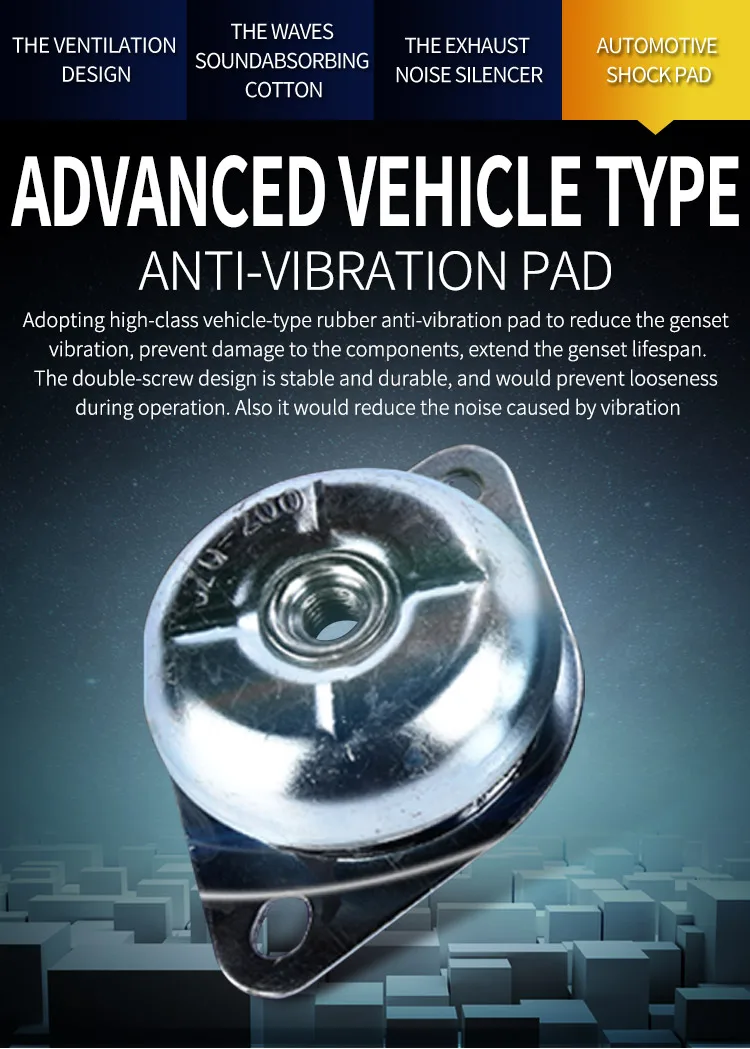

6 | Hight quality anti-vibration pads between engine/alternator and base frame. | |
7 | 0%, 25%, 50%, 75%,100%,110% loading test for each generator before shipment. | |
8 | Genset with 8-10 hours basis fuel tank. | |
9 | General manuals in English that illustrates the quality and added values of manufacturing. | |
10 | Basic spare parts and tools are provided for all models. | |
11 | Using 100% free-resistant sound attenuation material, with good adhesive strength and ensures tha the sound attenuation materials do not fall off over time. | |
12 | Manufacured strictly according to ISO9001-2008, GB/T19001-2008 internatioal quality management system. | |
Optional | ||
1 | 50Hz (380/220V, 400/230V, 415V/240V, 440V etc) Or 60Hz (110/220V, 115/230V,127/220V, 220/440V, etc ) | |
2 | Single phase or Three phase | |
3 | ATS(Automatic Transfer Switch) | |
4 | Water/oil/air pre-heater | |
5 | Genset in 20FT/40HQ container design | |
6 | Other requirements | |

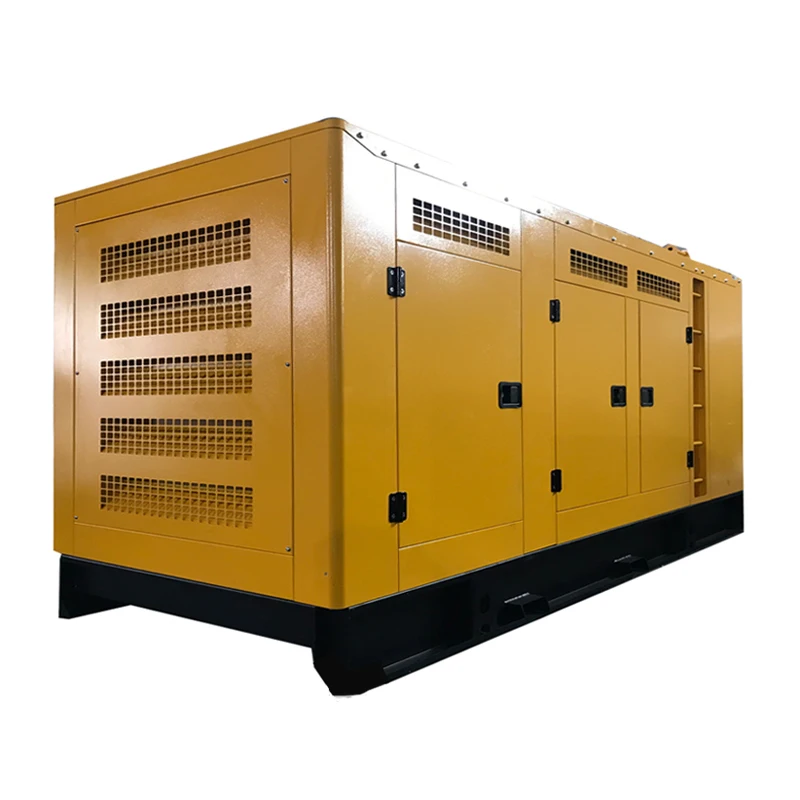

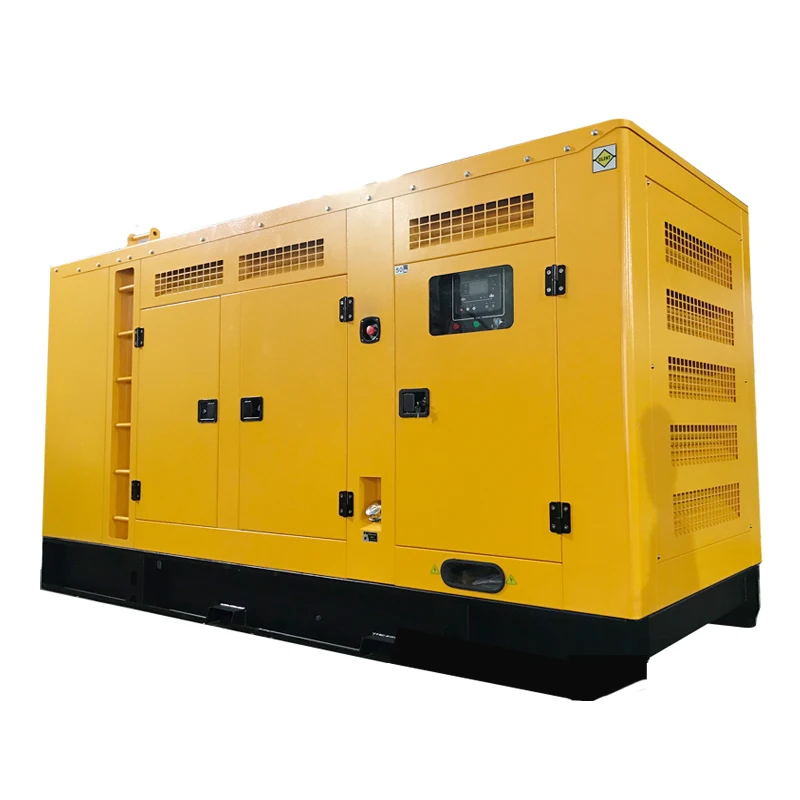

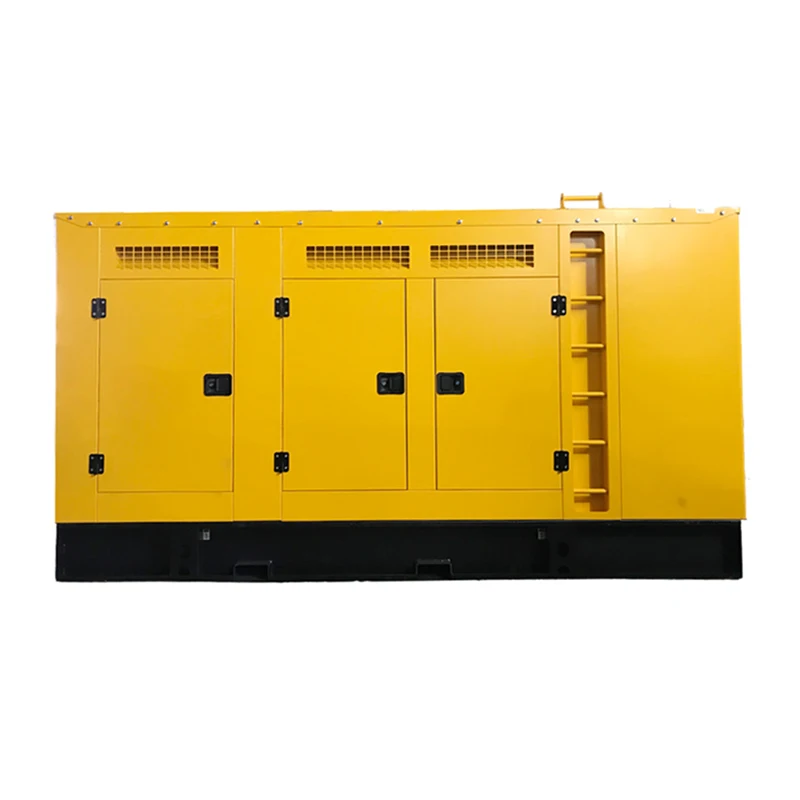

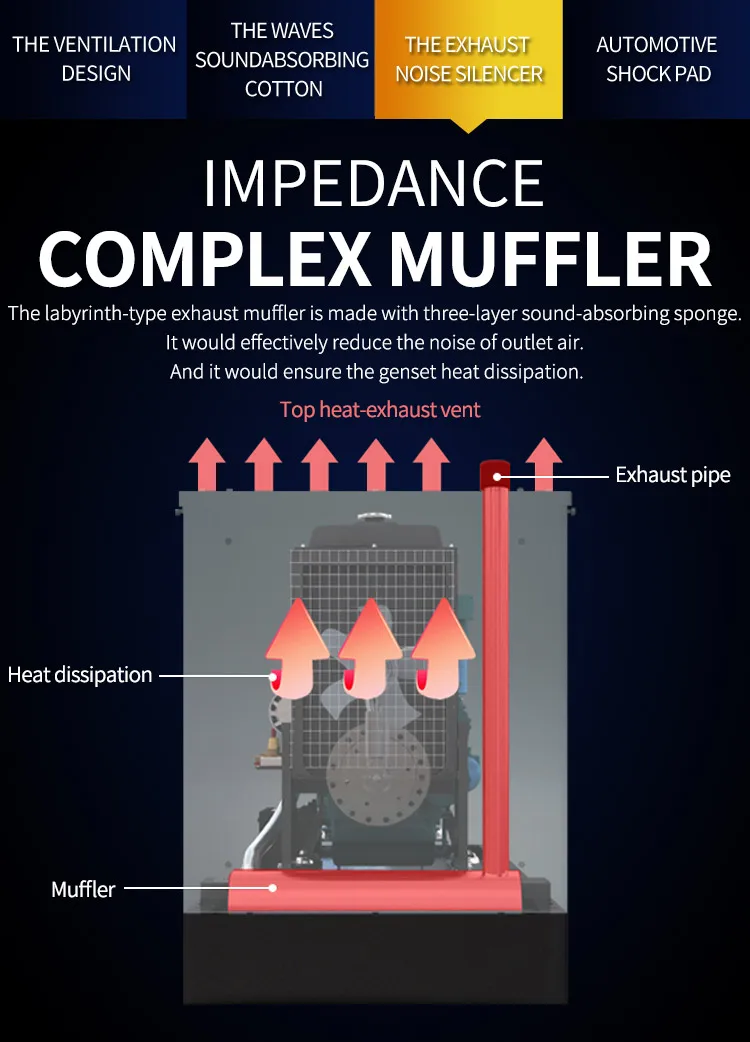

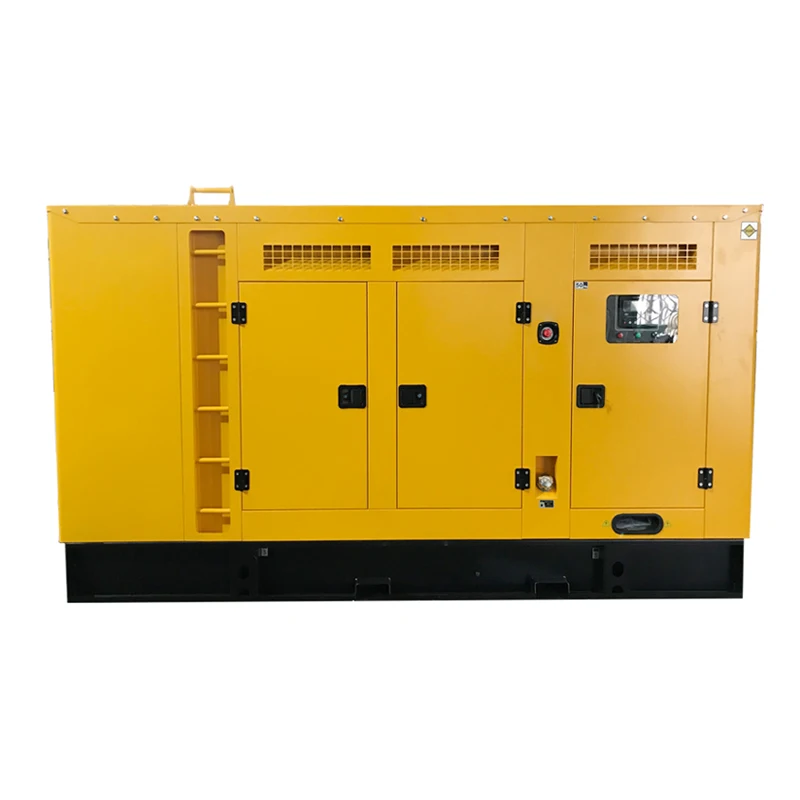

JUSTPOWER Silent Canopies
• JUSTPOWER manufactures a complete line of genset canopies. During the process, we try our best to ensure the most suitable engineering design, the highest level of durability, and best performance in noise control and weather resistance of each genset.
• All-steel enclosures ensure long life span and reliable protection over generator equipments. Resigned with feet for easy lifting.
• By spray coating process, paint particles evenly cover each part of the metal surface for lasting protection of canopy and base fuel tank against the elements.
• Design with 180 degree swing doors to ensure full access to insider equipments for easy maintainence. Also provide built-in box and trays for placing tools and batteries.
• Industrial steel basis built and designed to withstand high-torque transient conditions and eliminate vibrations. With vibration dampers between engine & alternator and chassis. Basis-integrated fuel tank ensure long-time continuous operation of genset.

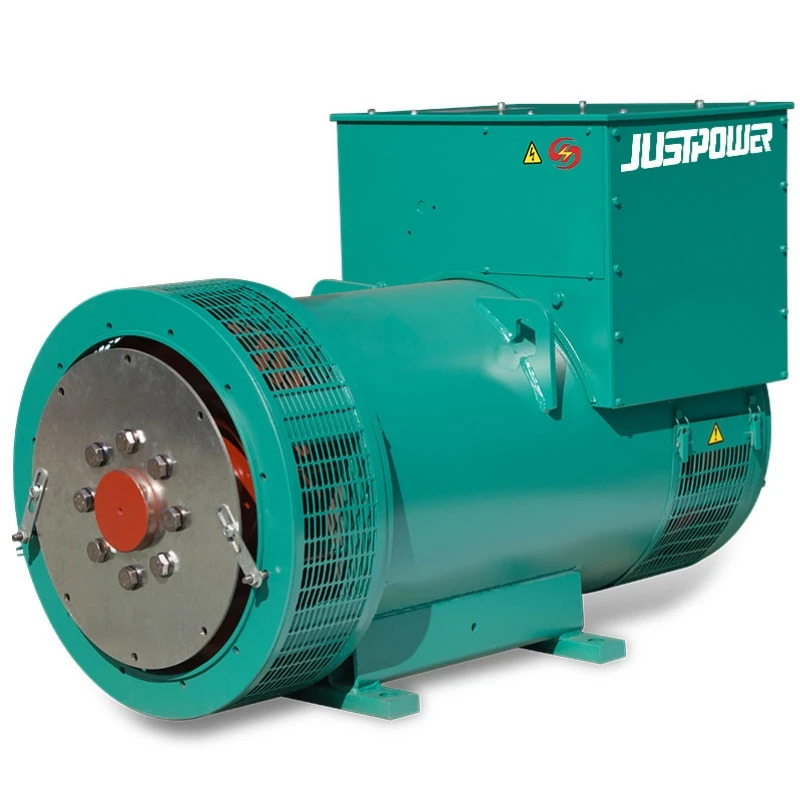

Alternator - Generator
• Two full load testing processes to ensure product quality
• Reliable performance
• 100% copper, 100% power
• 100% copper, 100% power
• H Class insulation
• Stable voltage output
• Synchronous type
• Stable voltage output
• Synchronous type
• With reliable performance stable voltage output and long lifespan.
• High quality materials, like 800 silicon, H class insulation and 100% pure copper wire.
• AVR Automatic Voltage Regulated for clean safe power for all your sensitive electronics.
Engine
• Strong output
• Good performance
• Good performance
• Good fuel utilization
• Long lifespan
• Easy avalibility of spare parts
• Long lifespan
• Easy avalibility of spare parts

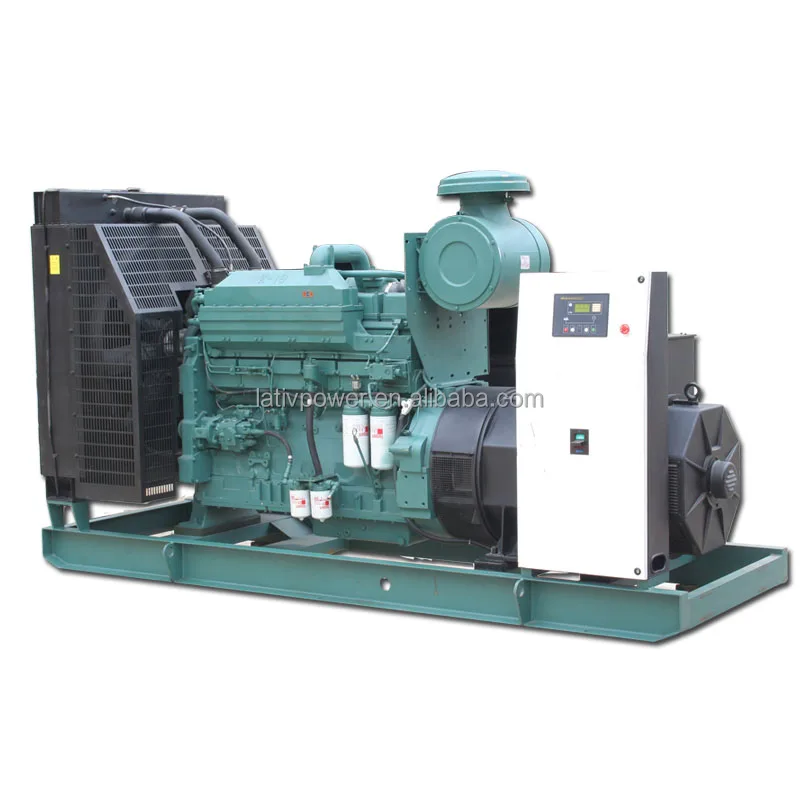

• Heavy-duty industrial diesel engine
• We are OEM partner for Perkins, Cummins, Deutz, WeiChai, Isuzu, FAW, YTO & SIDA.
• JUSTPOWER searches and tests various industrial heavy-duty engine to find engine with maximum performance, better fuel utilization and longer lifespan to power our genset.

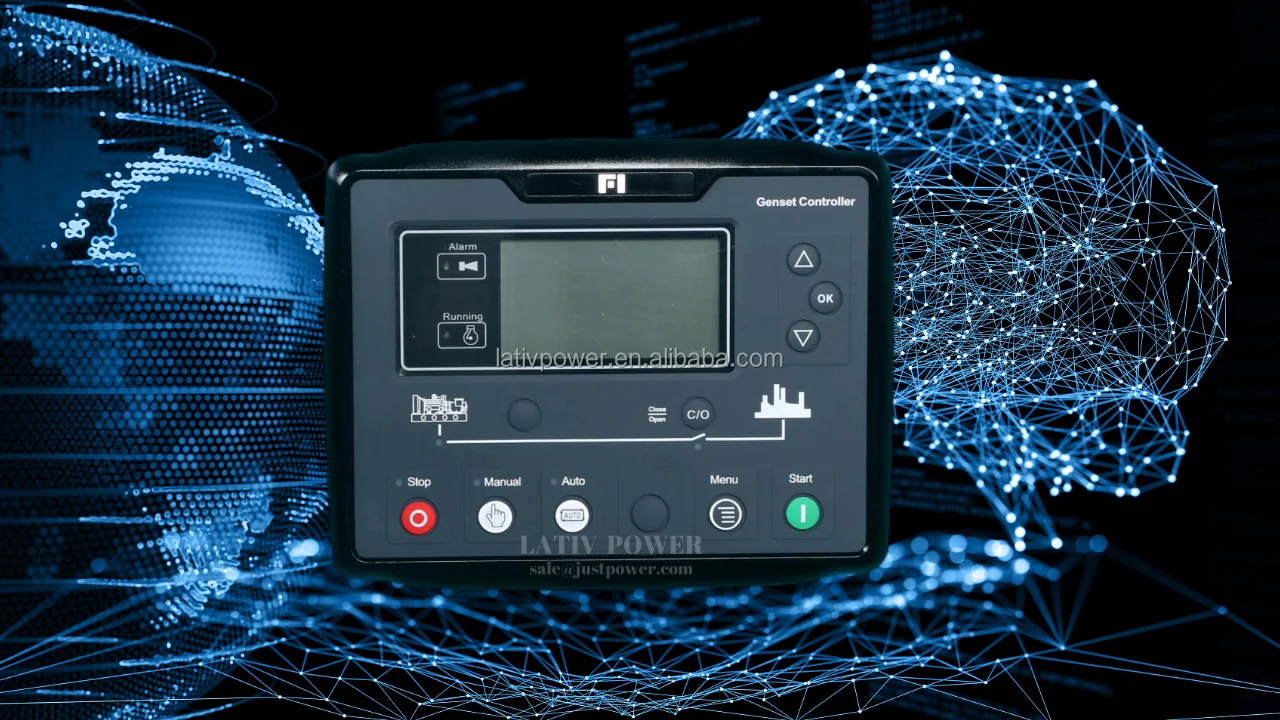

Control system
• Automatic controllers are available.
• Monitor & control all key parameters.
• User-friendly operating interface
• Monitor & control all key parameters.
• User-friendly operating interface
• Easy operation for start & stop
• Genset protection
• ATS & remote control are optional
• Genset protection
• ATS & remote control are optional
• Safety warning and shut-down levels
• Easy operation compact design
• One-click starting, easy operation.
Displays and monitors engine run time, speed, frequency, power, battery, temperature and more.
Automatic control system Digital & LCD controller allow user to monitor and control all key parameters of genset only by pushing a few buttons. Besides, constant monitoring capacity, adjustable parameters and built-in protective alarms help ensure safety and convenience for users. AMF(Auto Mains Failure) start or shut genset when power gose out or resume without any manual operation.

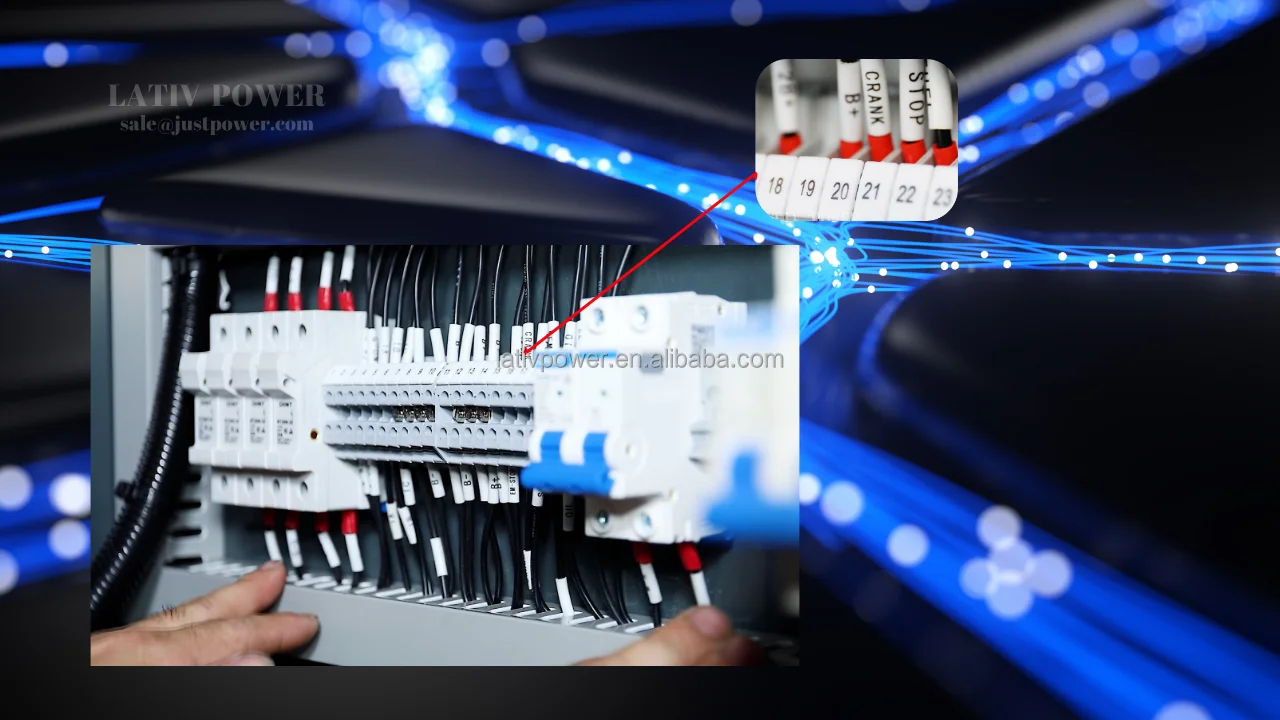

wiring
• Well-arranged wire connection
• Each line has an independent serial number. when you need to do the maintenance, just follow our wiring diagram.
• Wiring Use anti-flaming and heat-resistant silicon rubber wires for safe operation.

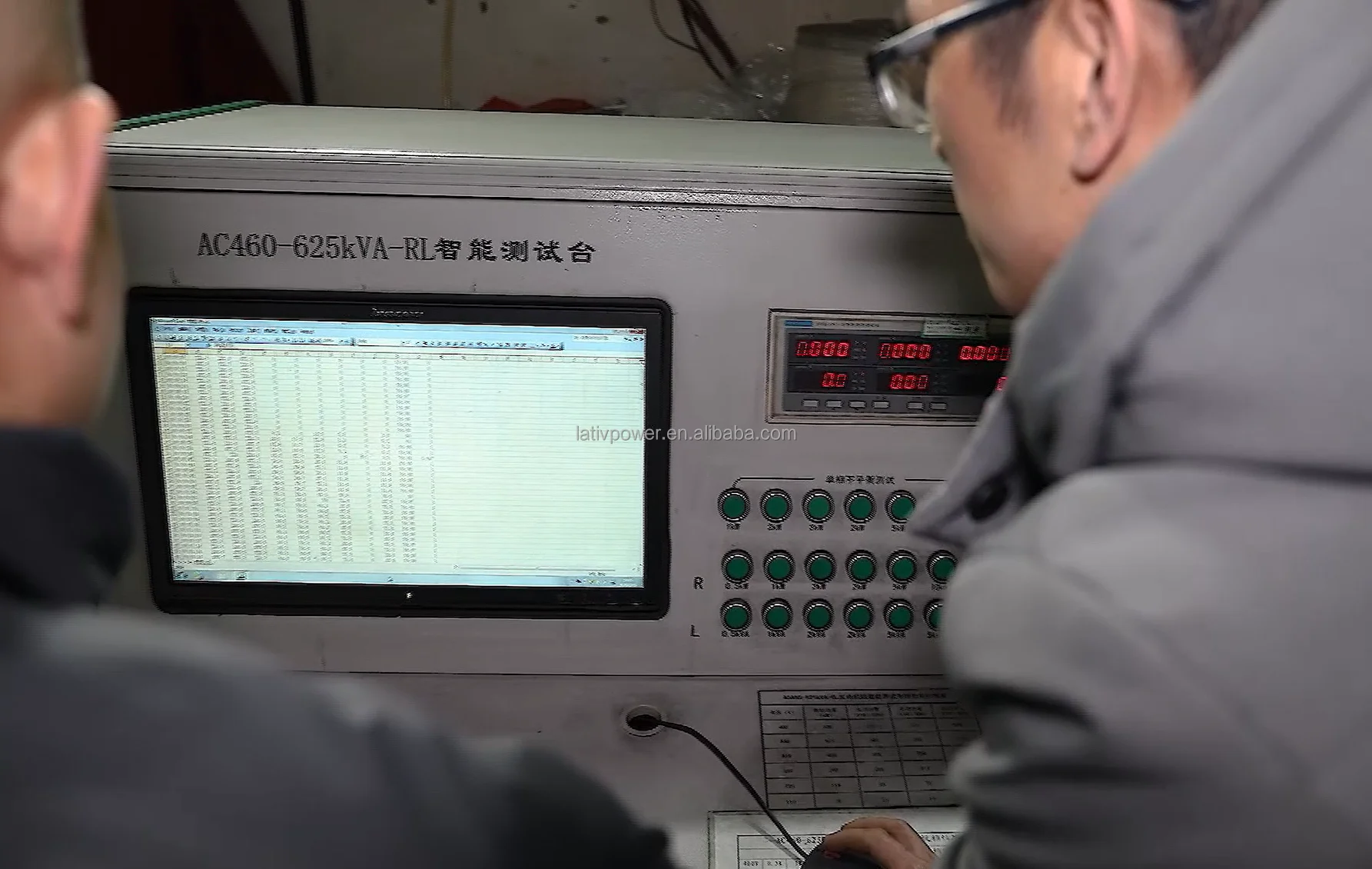

Each and every unit is strictly tested before shipment.
√ Parts faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting finishing testing
√ Temperature testing
√ Noise testing
√ Loading Testing (0%, 25%, 50%, 75%, 100%, 110% loading)
√Check verify the functions of control systems and protection system
√Check verify the functions of control systems and protection system
Power Range
ULTRA COMPACT 10KVA-20KVA 50HZ | ||||||||||||
GENSET MODEL | POWER KW/KVA | Engine | Alternator | Fuel Capacity (L) | Dimension (mm) | Weight (KGS) | ||||||
JPG10S | 8/10 | 385D | JPA164B | 30 | 1350*800*1100 | 580 | ||||||
JPG13S | 10/12.5 | 480D | JPA164C | 30 | 1400*800*1100 | 620 | ||||||
JPG15FS | 12/15 | 4DW81-23D | JPA164D | 30 | 1550*850*1100 | 672 | ||||||
JPG20FS | 16/20 | 4DW91-29D | JPA184E | 45 | 1550*850*1100 | 750 | ||||||
Chinese Top Engine Series 15KVA-400KVA 50HZ | ||||||||||||
GENSET MODEL | POWER KW/KVA | Engine | Alternator | Fuel Capacity (L) | Dimension (mm) | Weight (KGS) | ||||||
JPG15SS | 12/15 | 4BW21E | JPA164D | 30 | 1850*860*1100 | 666 | ||||||
JPG20SS | 16/20 | 4BW21E | JPA184E | 45 | 1850*860*1100 | 672 | ||||||
JPG23SS | 18/22.5 | 4BW22E | JPA184E | 45 | 1850*860*1100 | 678 | ||||||
JPG30SS | 24/30 | 4BW30E | JPA184G | 60 | 1850*860*1100 | 820 | ||||||
JPG38SS | 30/37.5 | 4DW38E | JPA184H | 90 | 2130*900*1250 | 1020 | ||||||
JPG50SS | 40/50 | 4BM46E | JPA224D | 120 | 2280*950*1300 | 1080 | ||||||
JPG63YTS | 50/63 | YT4B2Z-D | JPA224F | 140 | 2450*950*1300 | 1150 | ||||||
JPG80YTS | 64/80 | LR4A3L-D | JPA224G | 160 | 2650*1050*1400 | 1250 | ||||||
JPG100YTS | 80/100 | LR4M3L-D | JPA274C | 180 | 2680*1100*1600 | 1515 | ||||||
JPG125YTS | 100/125 | LR4M3L-DA | JPA274E | 230 | 2680*1100*1600 | 1557 | ||||||
JPG150YTS | 120/150 | LR6B3L-D | JPA274F | 280 | 3200*1100*1800 | 1780 | ||||||
JPG175YTS | 140/175 | LR6M3L-D | JPA274G | 310 | 3200*1100*1800 | 1800 | ||||||
JPG188YTS | 150/187.5 | LR6M3L-D | JPA274H | 350 | 3200*1100*1800 | 1820 | ||||||
JPG200YTS | 160/200 | LR6M3L-D | JPA274H | 380 | 3200*1100*1800 | 1820 | ||||||
JPG225YTS | 180/225 | YM6H4LF-D | JPA274J | 420 | 3800*1300*1900 | 2580 | ||||||
JPG250YTS | 200/250 | YM6S4L-D | JPA274K | 480 | 3800*1300*1900 | 2600 | ||||||
JPG275YTS | 220/275 | YM6S4LF-D | JPA314D | 510 | 3800*1300*1900 | 2650 | ||||||
JPG325YTS | 260/325 | YM6S9L-D | JPA314E | 560 | 4000*1600*2000 | 3700 | ||||||
JPG350YTS | 280/350 | YM6S9L-DB | JPA314F | 630 | 4000*1600*2000 | 3720 | ||||||
JPG375YTS | 300/375 | YM6S9FL-D | JPA314G | 680 | 4200*1700*2000 | 3750 | ||||||
JPG400YTS | 320/400 | YM6S9FL-DA | JPA314H | 720 | 4200*1700*2000 | 3800 | ||||||
Chinese Top Engine Series 16KVA-425KVA 60HZ | ||||||||||||
GENSET MODEL | POWER KW/KVA | Engine | Alternator | Fuel Capacity (L) | Dimension (mm) | Weight (KGS) | ||||||
JPG16SS | 13/16 | 4BW23E | JPA164D | 30 | 1850*860*1100 | 666 | ||||||
JPG20SS | 16/20 | 4BW23E | JPA184ES | 45 | 1850*860*1100 | 672 | ||||||
JPG23SS | 18/22.5 | 4BW23E | JPA184E | 45 | 1850*860*1100 | 678 | ||||||
JPG30SS | 24/30 | 4DW30E | JPA184G | 60 | 1850*860*1100 | 820 | ||||||
JPG40SS | 32/40 | 4DW44E | JPA184J | 90 | 2130*900*1250 | 1020 | ||||||
JPG60SS | 48/60 | 4BM55E | JPA224E | 120 | 2280*950*1300 | 1080 | ||||||
JPG69YTS | 55/69 | YT4B2Z-D | JPA224F | 140 | 2450*950*1300 | 1150 | ||||||
JPG85YTS | 68/85 | LR4A3L-D | JPA224G | 160 | 2650*1050*1400 | 1250 | ||||||
JPG100YTS | 80/100 | LR4M3L-D | JPA274C | 180 | 2680*1100*1600 | 1515 | ||||||
JPG106YTS | 85/106 | LR4M3L-DA | JPA274D | 230 | 2680*1100*1600 | 1557 | ||||||
JPG131YTS | 105/131 | LR4M3L-D88 | JPA274E | 260 | 2680*1100*1600 | 1580 | ||||||
JPG160YTS | 128/160 | LR6B3L-D | JPA274F | 280 | 3200*1100*1800 | 1780 | ||||||
JPG169YTS | 135/169 | LR6M3L-D | JPA274G | 310 | 3200*1100*1800 | 1800 | ||||||
JPG188YTS | 150/188 | LR6M3L-D | JPA274H | 350 | 3200*1100*1800 | 1820 | ||||||
JPG219YTS | 175/219 | YM6H4L-D | JPA274J | 420 | 3800*1300*1900 | 2580 | ||||||
JPG244YTS | 195/244 | YM6H4LF-D | JPA274K | 420 | 3800*1300*1900 | 2580 | ||||||
JPG269YTS | 215/269 | YM6S4L-D | JPA314D1 | 480 | 3800*1300*1900 | 2600 | ||||||
JPG300YTS | 240/300 | YM6S4LF-D | JPA314D | 510 | 3800*1300*1900 | 2650 | ||||||
JPG360YTS | 288/360 | YM6S9L-D | JPA314F | 560 | 4000*1600*2000 | 3700 | ||||||
JPG383YTS | 306/383 | YM6S9L-DB | JPA314F | 630 | 4000*1600*2000 | 3720 | ||||||
JPG410YTS | 328/410 | YM6S9FL-D | JPA314G | 680 | 4200*1700*2000 | 3750 | ||||||
JPG425YTS | 340/425 | YM6S9FL-DA | JPA354C | 720 | 4200*1700*2000 | 3800 | ||||||
Our diesel generators can be configured to meet almost any demands.
Customization: Need something special?
We can customize any of our generators to better fit your needs. Tell us what you want or don't want. We can save you money and make sure that you are completely satisfied, we guarantee it.
Customized Product
Customization | ||
You can tell us if you have any customization requirements | ||
Controller | Deepsea, ComAp, Smartgen,ect. | |
Circuit Breaker | ABB,SCHNEIDER,CHINT,Etc. | |
Alternator | Stamford,Mecc Alte,Leroy Somer, Etc. | |
Type | Open/Silent/Super Silent/Compact/Weatherproof/Containerized | |
Fuel Tank | 8 hours, 12 hours, 24 hours, 48 hours, base tank, external daily tank can be customized. | |
Movable supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank,Etc. | |
Contact us for customized details.
We support products from different engine families, which are very popular and competitive.
We support products from different engine families, which are very popular and competitive.

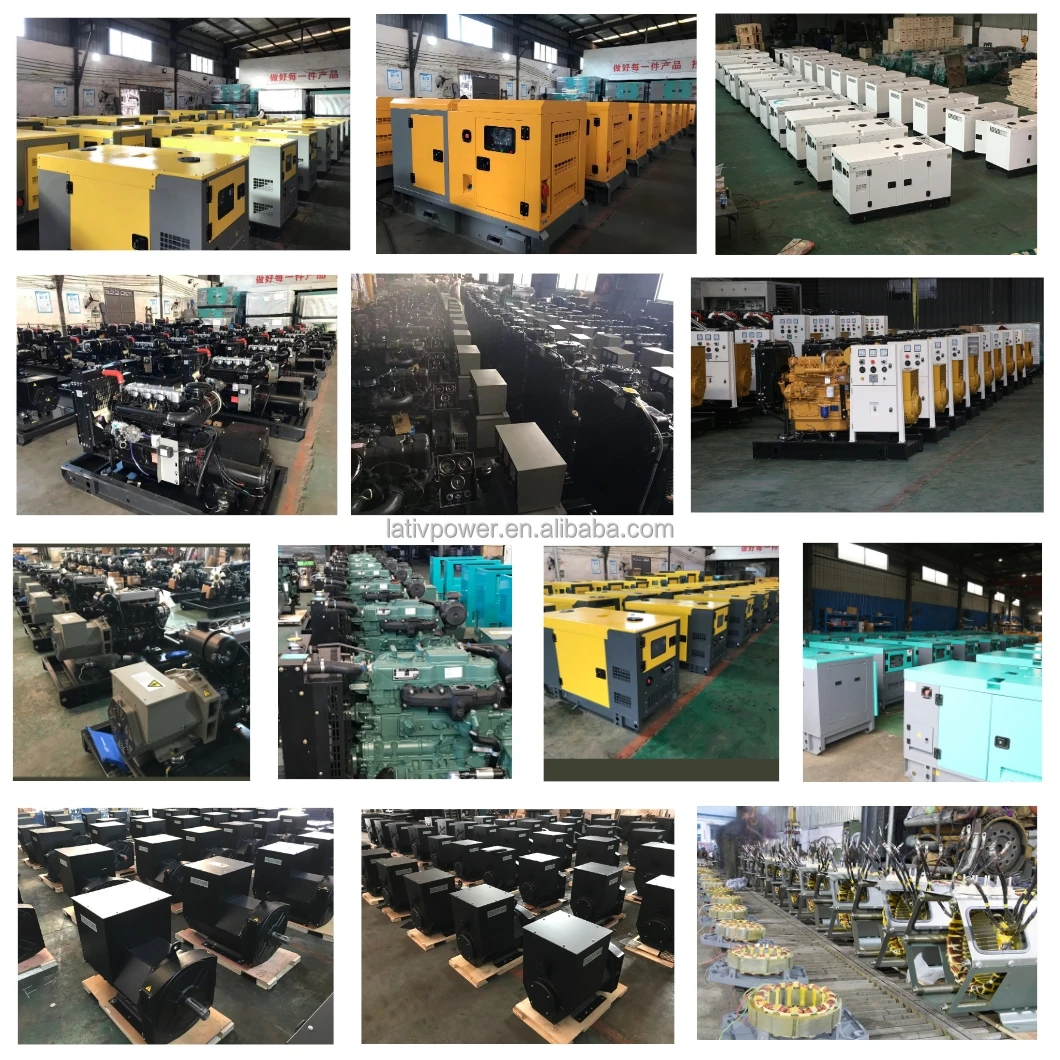

Company Profile
Recommend Products
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory. You are welcome to vistit our factory anytime.
Q2: What is the power range of your diesel generator?
A: Our mainly power range is from 5-3000KVA
Q3: How long is your delivery time?
A: 2-6 weeks.
Q4: What is your terms of payment?
A: T/T 30% in advance and TT 70% balance to be paid before shipment, or 100% irrevocable LC at sight.
Q5: What is your warranty period?
A: 1 year or 1000 running hours for generator set. For genset with JUSTPOWER alternator, we provide 2 years/2000 hours warranty for alternator. If you need longer warranty for special project, you can contact us for details.
Q6: Do you offer OEM service?
A : Yes, OEM is welcomed.
Q7: How could I trust you?
A: Here are a few reasons we hope to present you:
a: We have been in this industry for nearly 20 years, and have a good reputation among customers.
b: We do every production detail carefully, especially, we pay special attention to the testing.
c : Our company's philosophy is to do long-term business with customers. For this, we only make professional engineering design for the generators, as well as use top quality materials, hire most experienced and reliable workers, take strict QC process all over the production. In this way, we can offer the most stable quality as promised to our partners.
A: We are factory. You are welcome to vistit our factory anytime.
Q2: What is the power range of your diesel generator?
A: Our mainly power range is from 5-3000KVA
Q3: How long is your delivery time?
A: 2-6 weeks.
Q4: What is your terms of payment?
A: T/T 30% in advance and TT 70% balance to be paid before shipment, or 100% irrevocable LC at sight.
Q5: What is your warranty period?
A: 1 year or 1000 running hours for generator set. For genset with JUSTPOWER alternator, we provide 2 years/2000 hours warranty for alternator. If you need longer warranty for special project, you can contact us for details.
Q6: Do you offer OEM service?
A : Yes, OEM is welcomed.
Q7: How could I trust you?
A: Here are a few reasons we hope to present you:
a: We have been in this industry for nearly 20 years, and have a good reputation among customers.
b: We do every production detail carefully, especially, we pay special attention to the testing.
c : Our company's philosophy is to do long-term business with customers. For this, we only make professional engineering design for the generators, as well as use top quality materials, hire most experienced and reliable workers, take strict QC process all over the production. In this way, we can offer the most stable quality as promised to our partners.
d : We also welcome you to visit us for further discussion.
