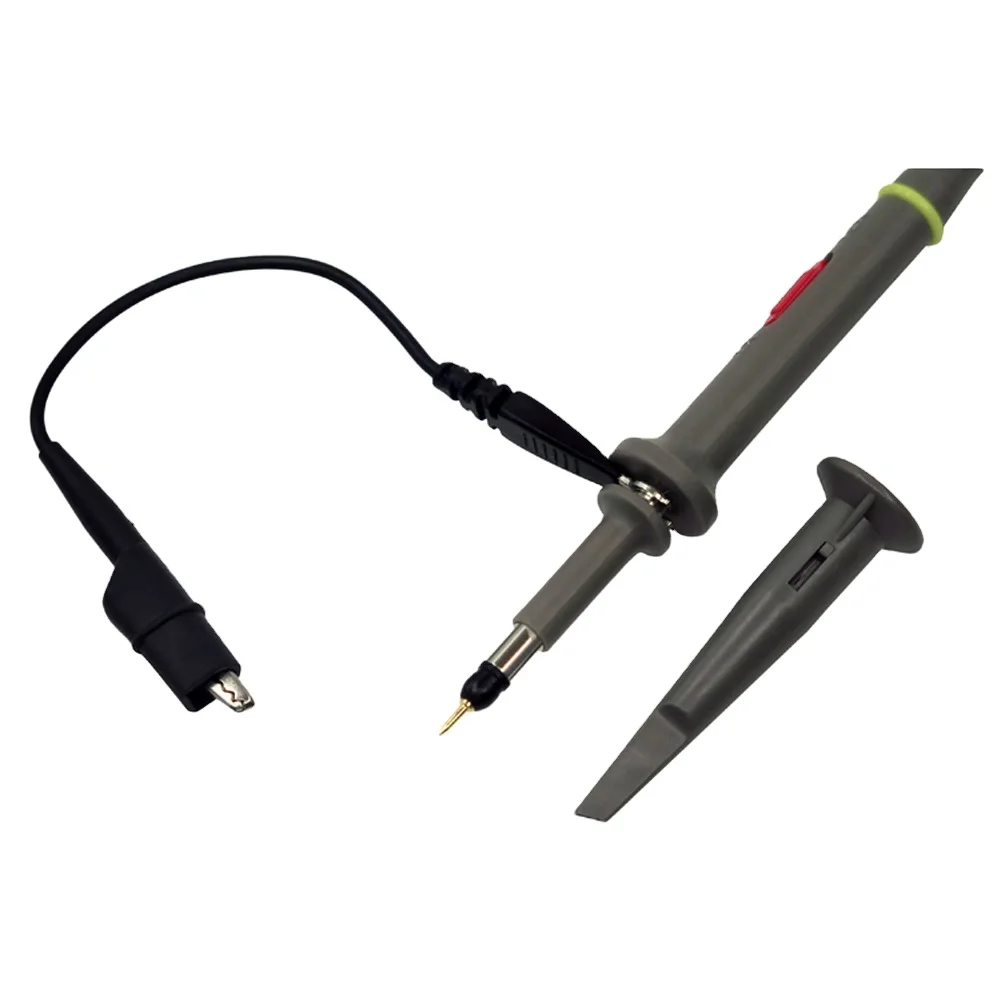

RUIST P6100 Oscilloscope Cost 1x 10x 100mhz Oscilloscope Digital Oscilloscope Portable 10:1 Switchable Scope Probe With Accessor

Product Overview

Description

P6100 oscilloscope cost 1x 10x 100mhz oscilloscope digital oscilloscope portable 10:1 switchable scope probe



Product Name
Oscilloscope Probes 100 MHz with Accessories Kit P6100 High Sensitivity Oscilloscope Clip Probe 10x Switchable with Mini Alligator and Ground Lead 600V DC Lab Oscilloscope 1 Probe

Product Description

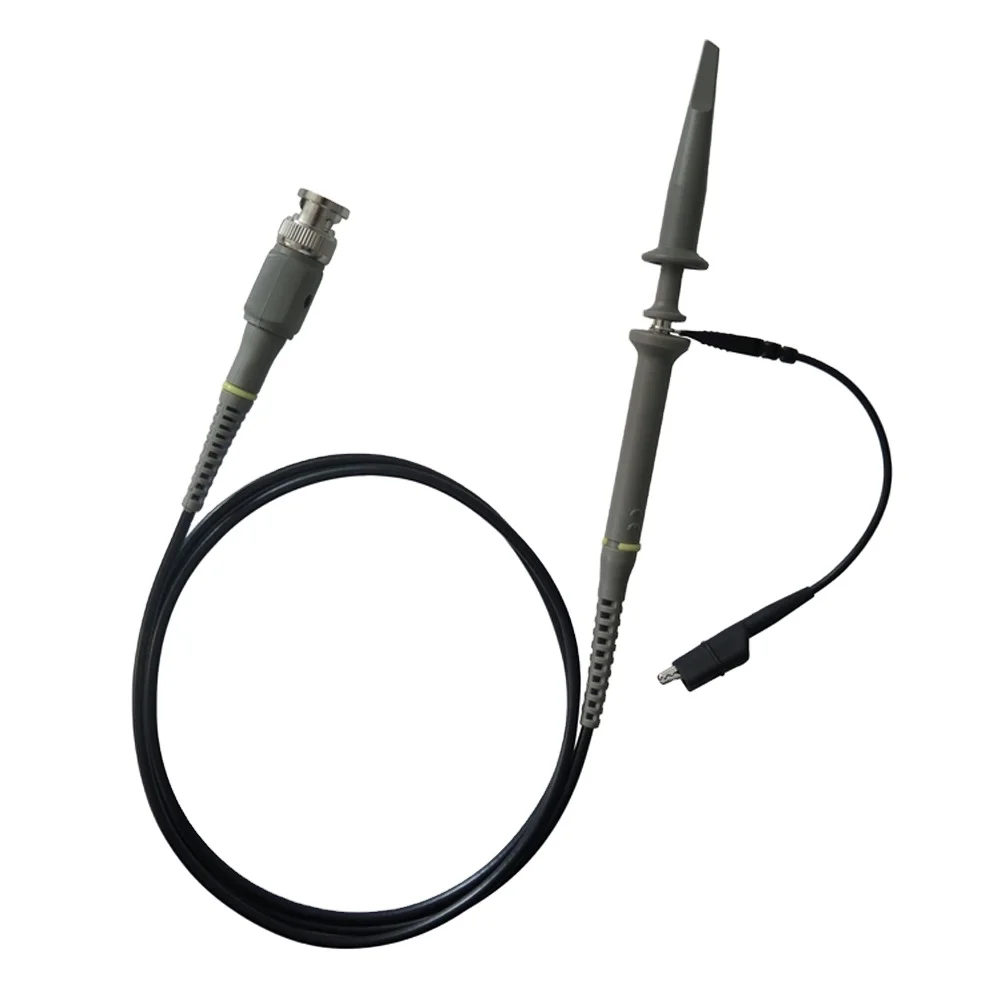

High Sensitivity High Frequency High Performance 100MHz Oscilloscope Probe P6100 is an electric component that connects circuit-under-test and oscilloscope input.

Specifications:
Model: P6100

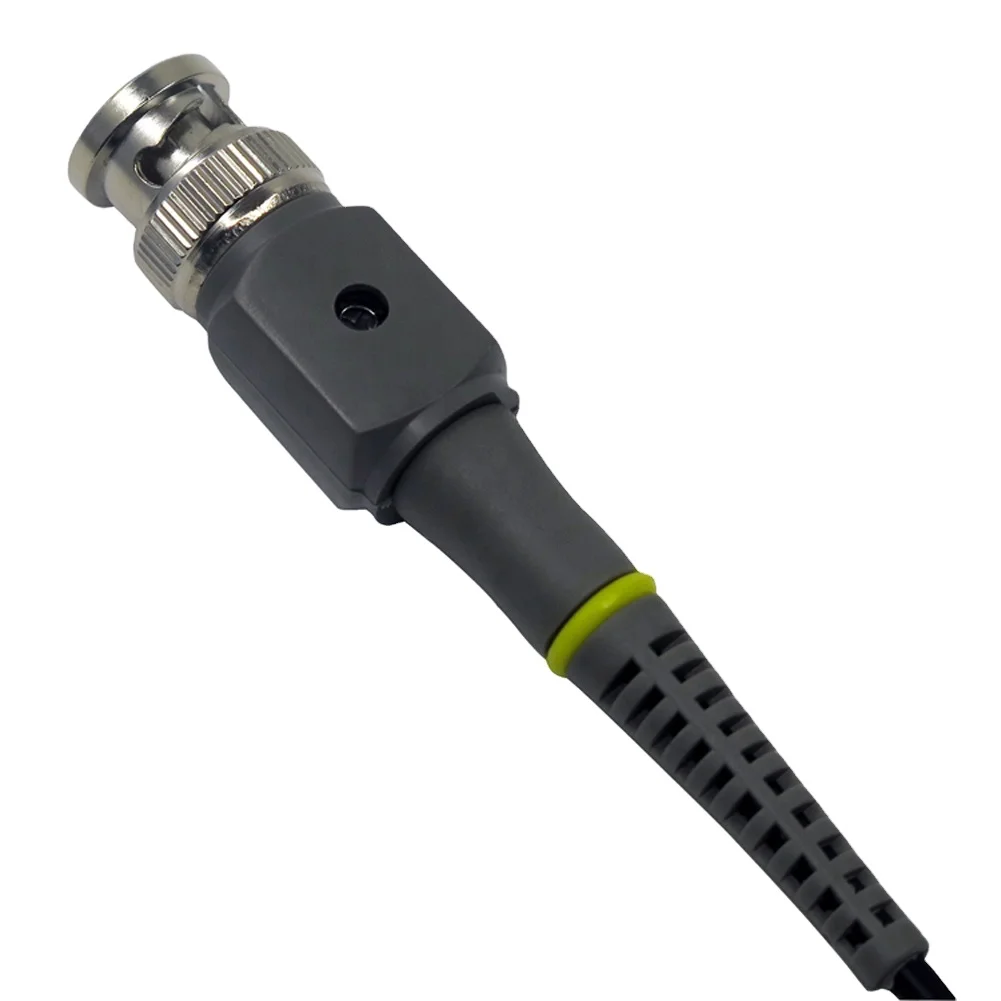

Bandwidth: 100MHz Oscilloscope Probe P6100 with Universal standard BNC connector

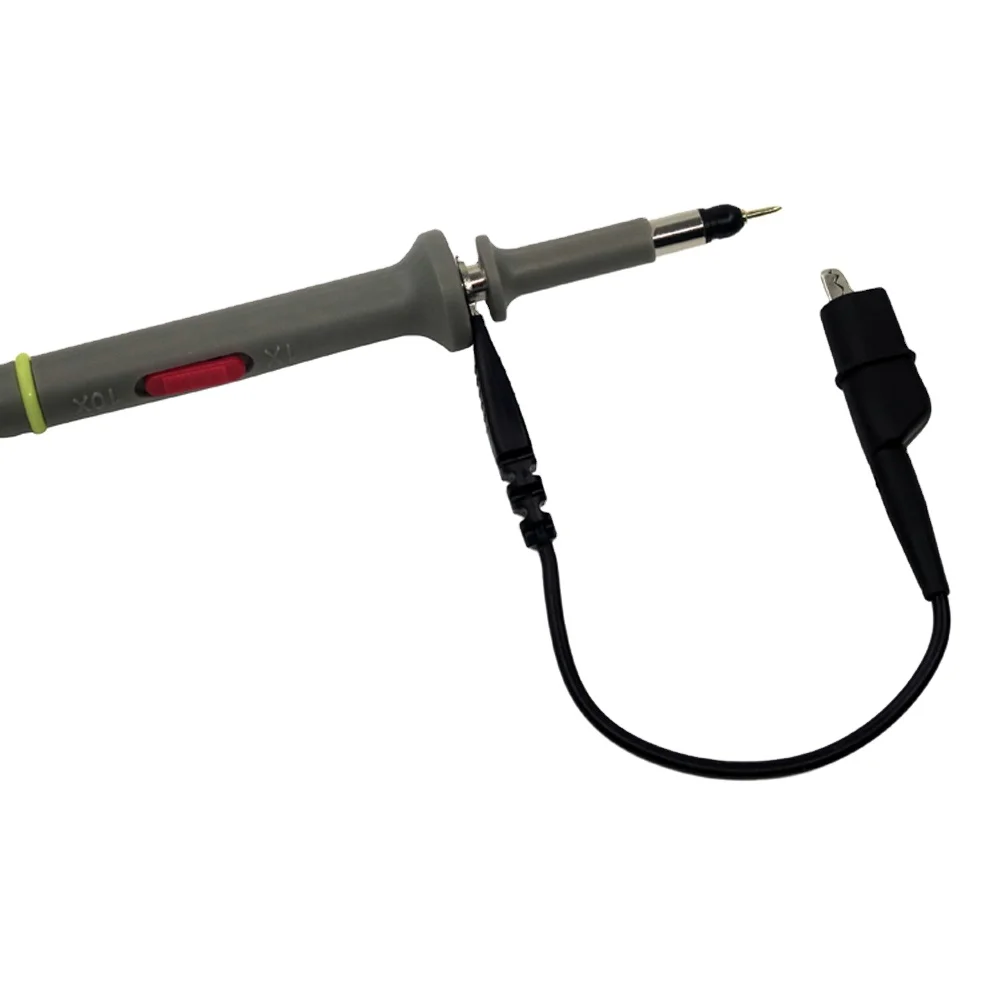

Attenuation: 10:1 and 1:1 switchable (slide switch on the handle, Rise Time: 3.5ns, Tip / head style: 5mm,
The Ground Spring makes sure the signal is not oscillating when measuring the high frequency signal due to the shortest distance ground.
Max. Voltage: x1: <300V DC + peak AC, x10: <600V DC + peak AC,
System input resistance: x1: 1MΩ, x10: 10MΩ,
Operating Temperature: -10℃ - +50℃,
Typical input capacity: x1: 85-120PF, x10: 18.5-22.5PF
Compensation range: 15-45 PF

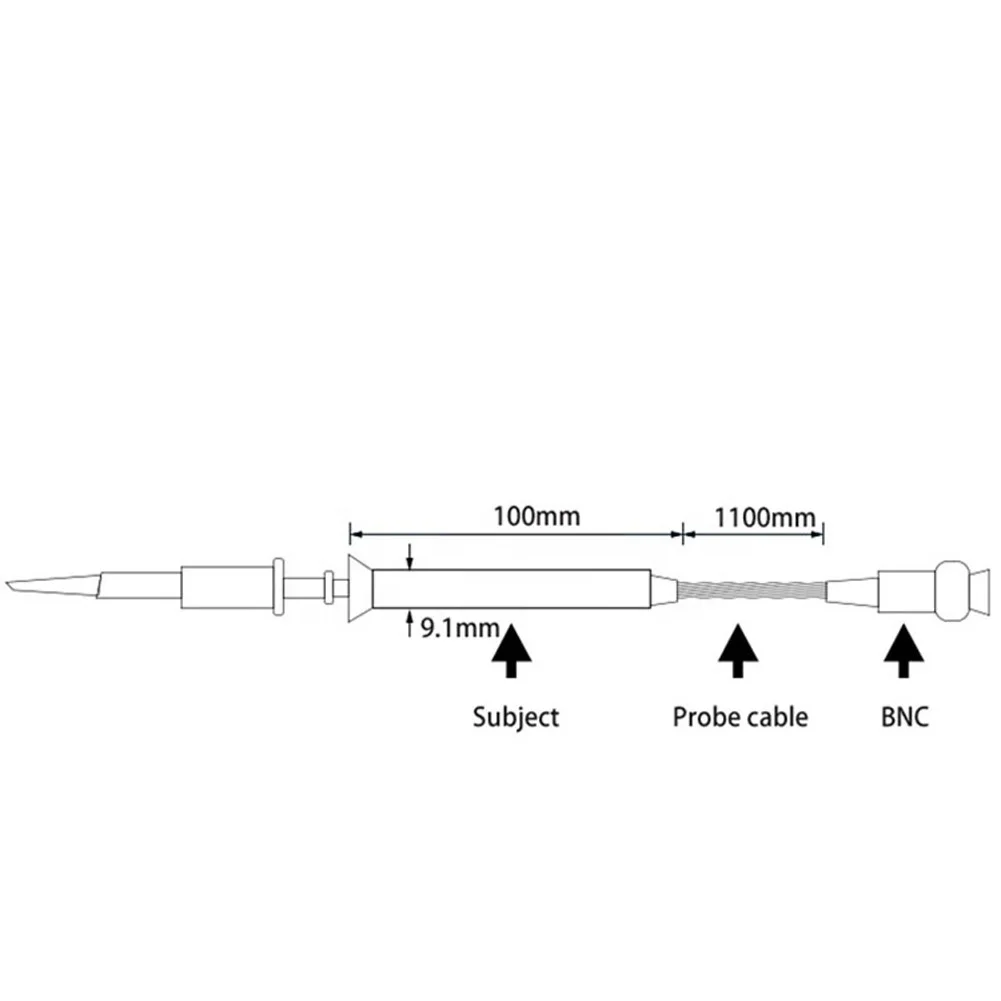

Cable Length 120cm
Weight: 48 g
Color: Gray

Operation manual:
Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph
Contractive-type acuminate hook
12cm earth wire with alligator clip
Locating sleeve adapts to IC testing
4 pairs of colorized cable markers

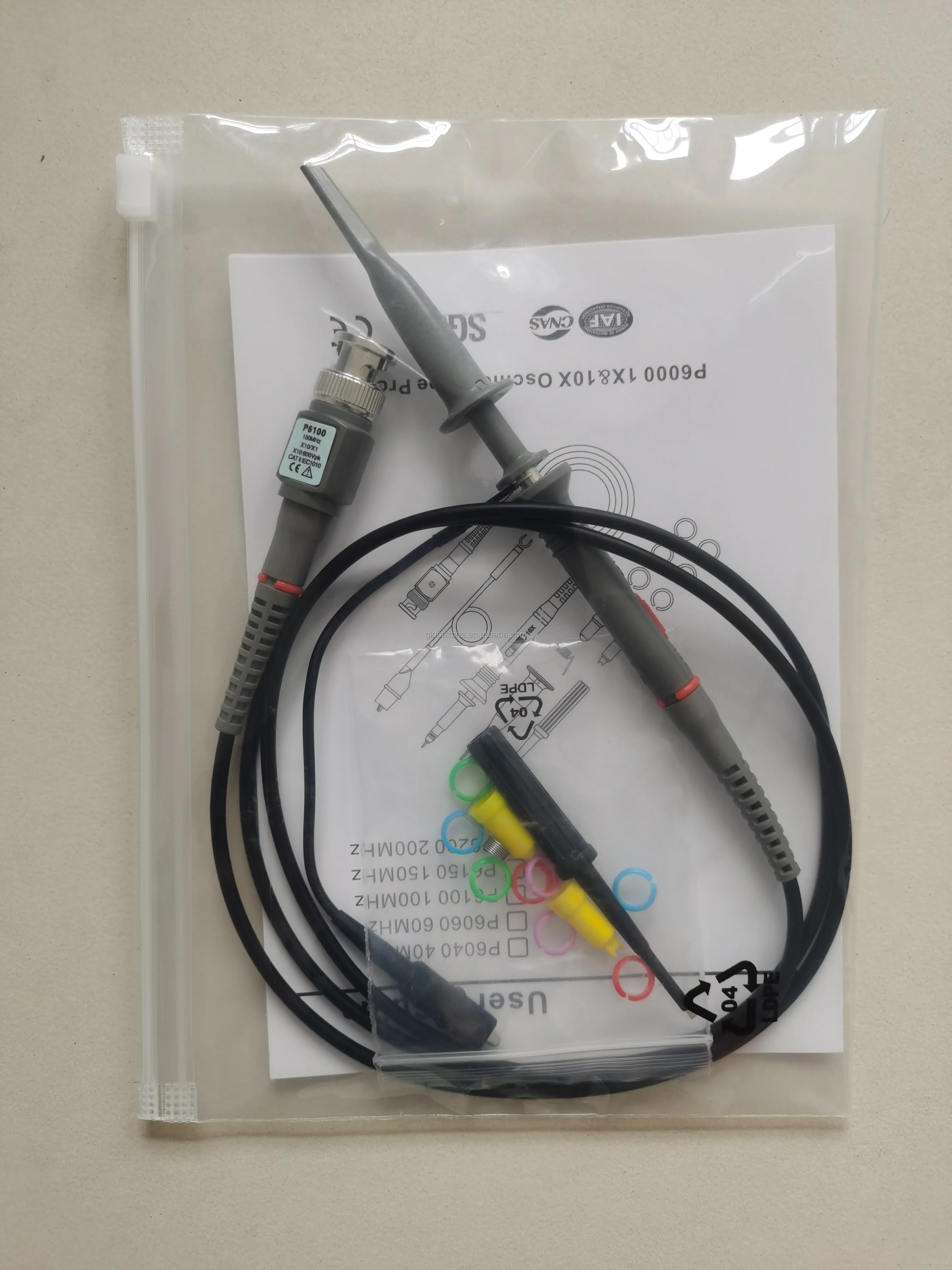

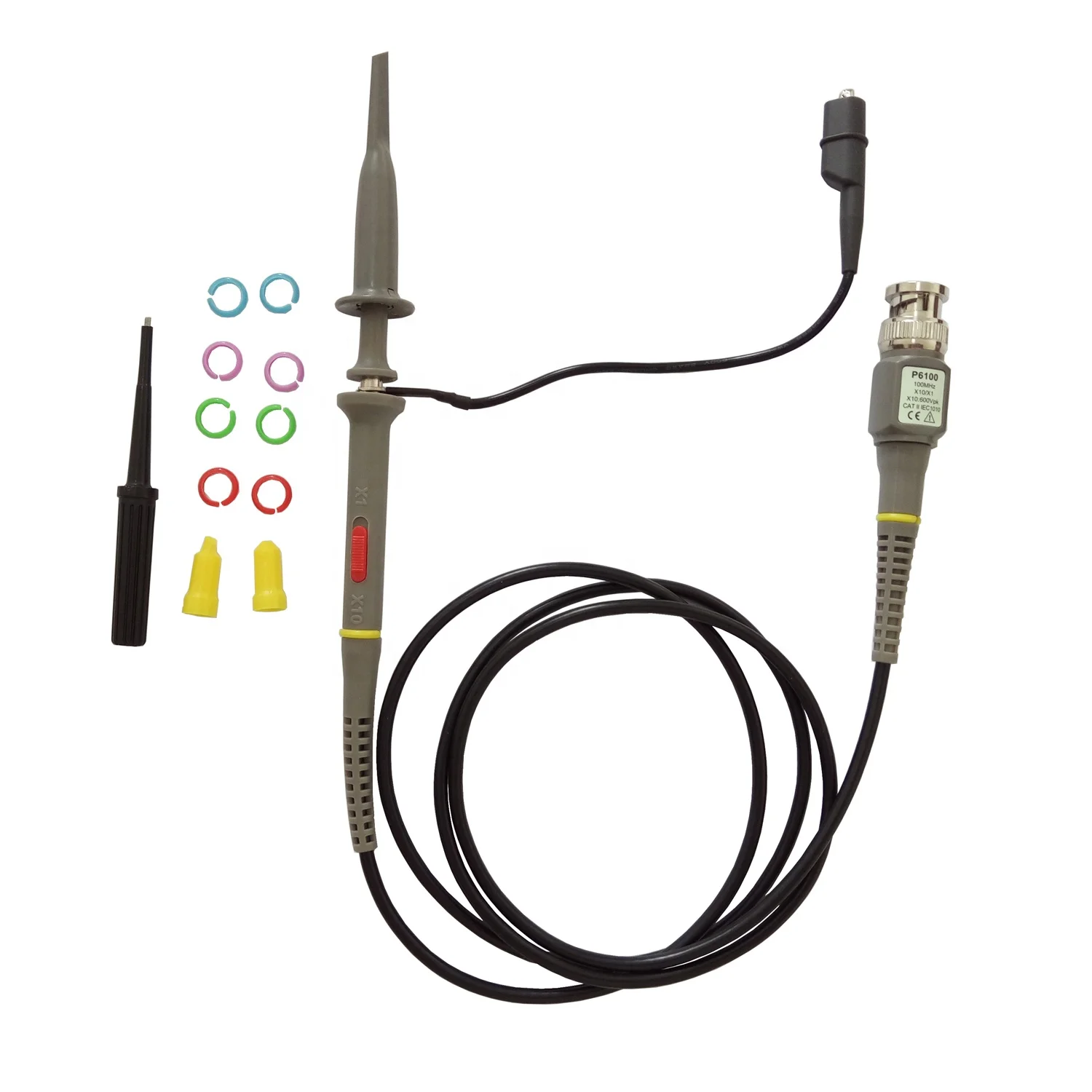

Package Content:

1 x Adjustment Tool,

1 x Probe,

1 x Interchangeable Probe Clip Tips,

1 x Mini Alligator Clips and Ground leads,

1 x Ground Springs,

8 x Marker Rings,

1 x User Manual
