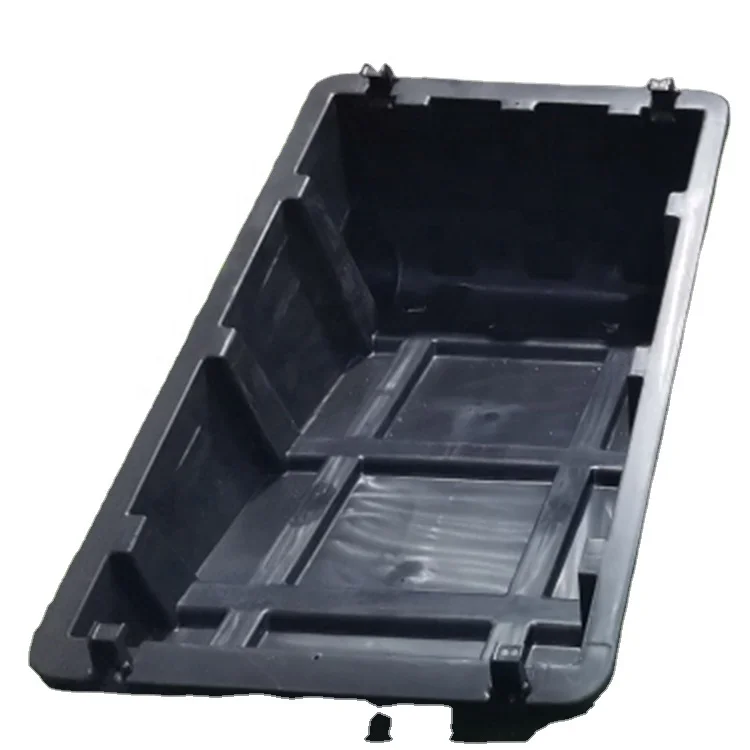

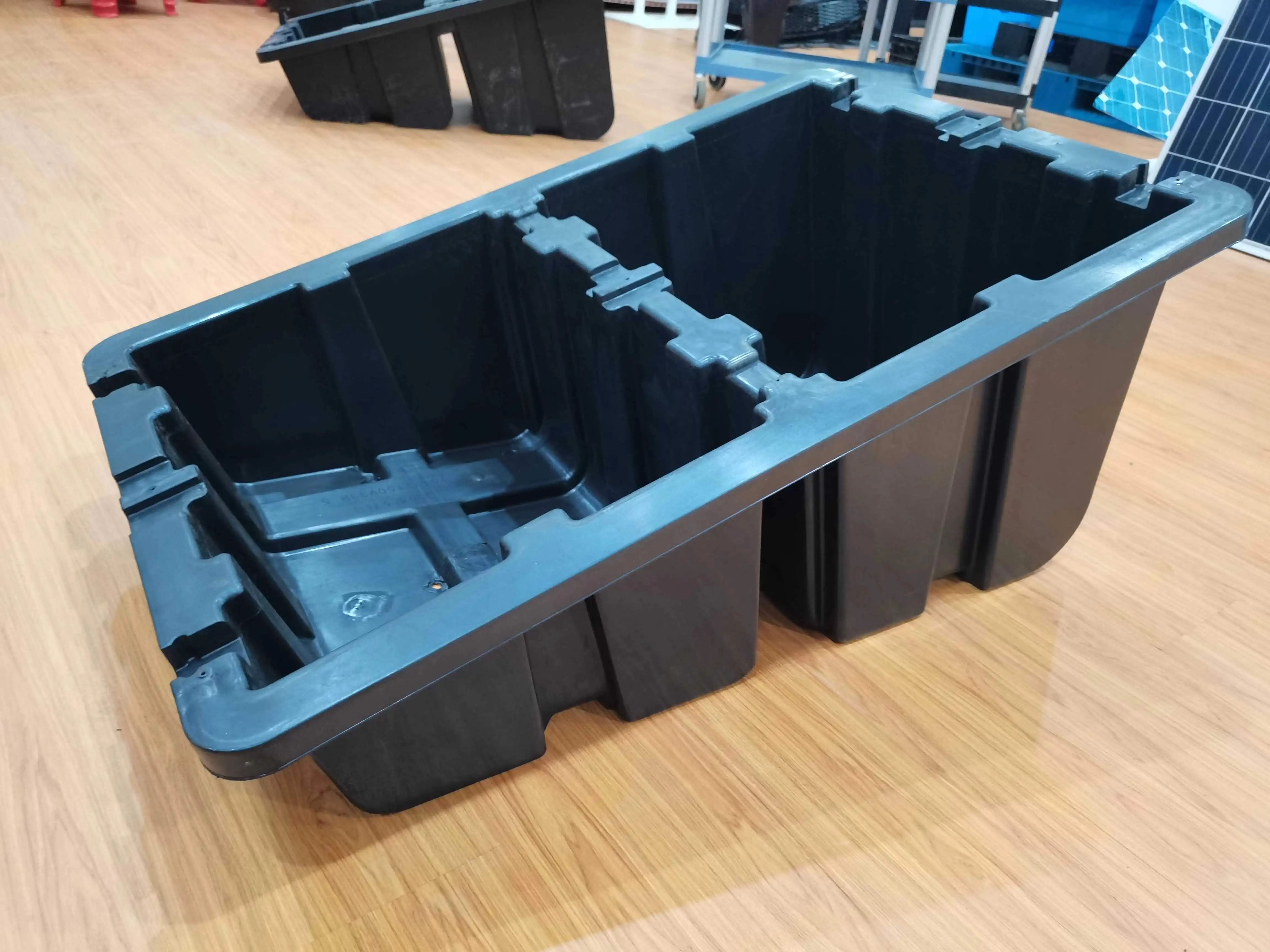

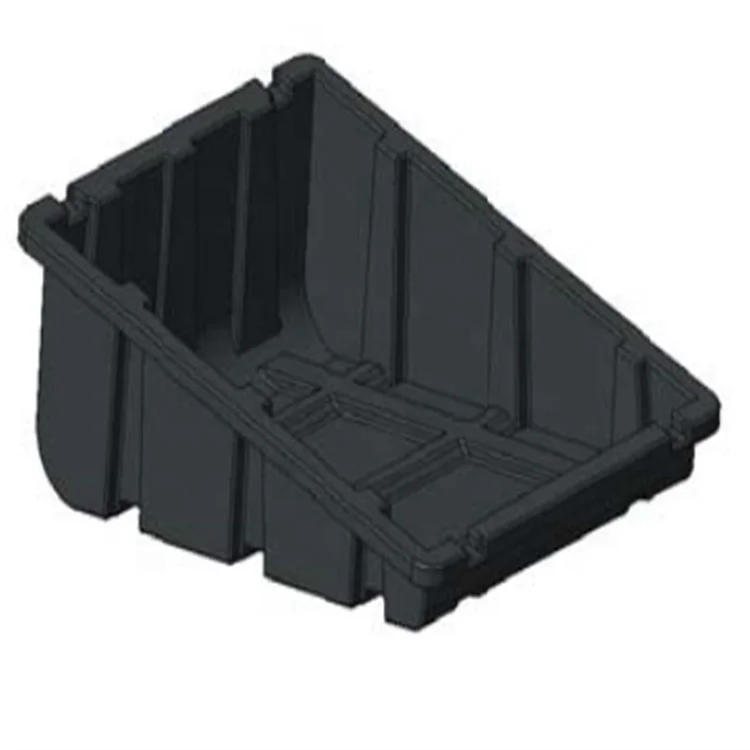

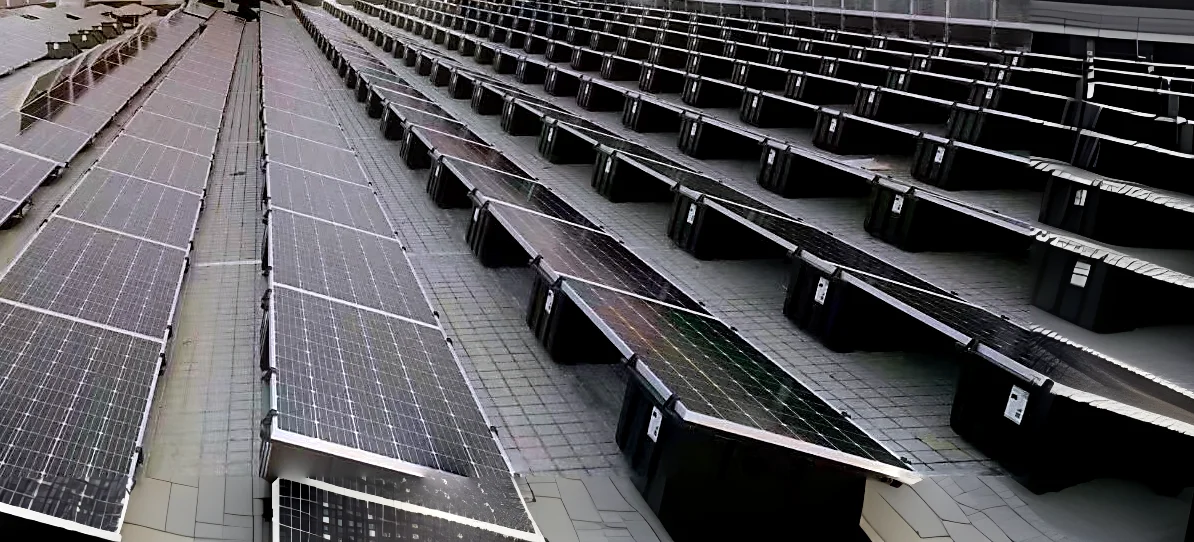

Plastic Ground Bracket Polypropylene Ballast For Roof Mount Solar Panel Roof Ballast Mounting for solar roof solar energy system

1) Positioning: Open spaces,greenareas(excluding hydrogen sulphide exposure)

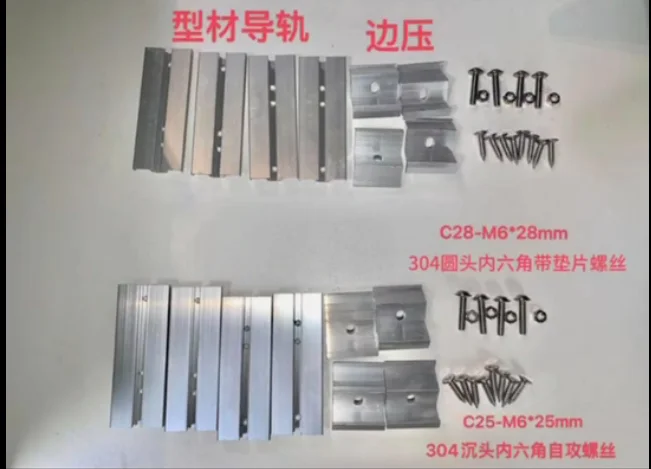

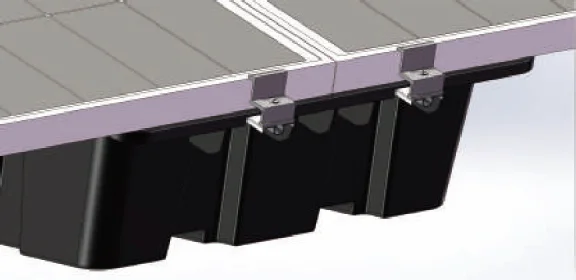

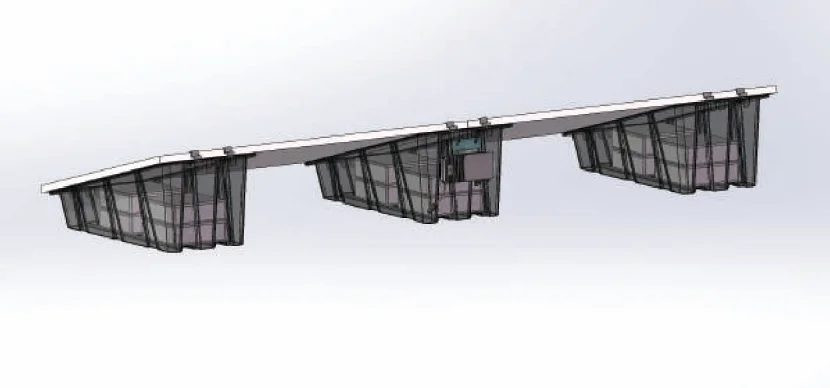

2)How to install:Take out 2 pcs rails and use 4pcs M6*25mm self-tapping screws to fix the rails on the bracket dege bottom. Then take out 2pcs rails and use 4pcs M6*25mm self-tapping screws to fix the rails on the upper edge of the bracket; then place the filler ( Bricks, stones, not less than 70kgs) ;Adjust the position of the bracket according to the length of the solar panel, take out the end clamp, install the M6*28mm round head screws on the end clamp, put the side pressure on the rail, do not lock it, and put the solar panels after confirming the position of the solar panel, tighten the end clamp screws to fix it.

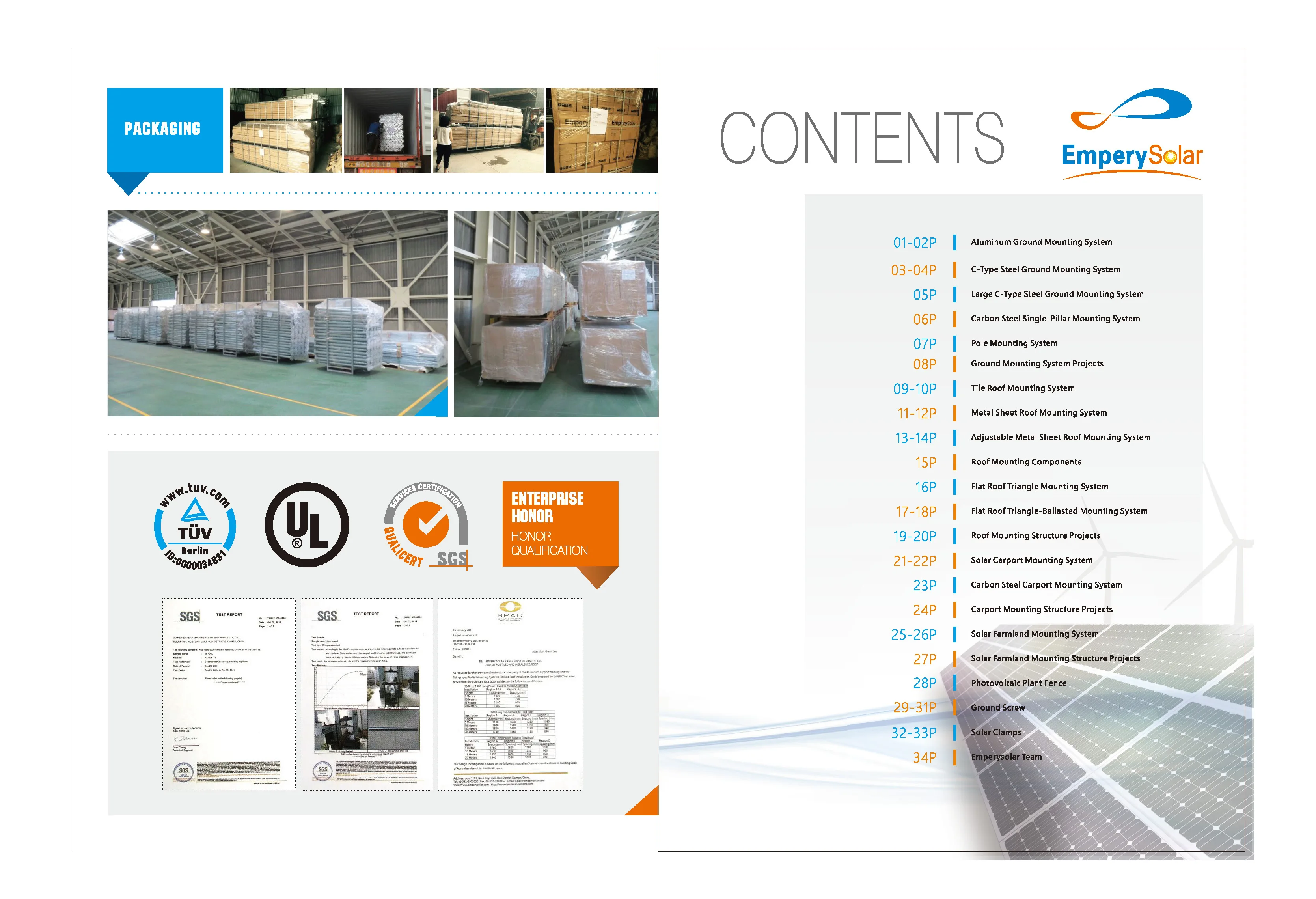

3) Package:
