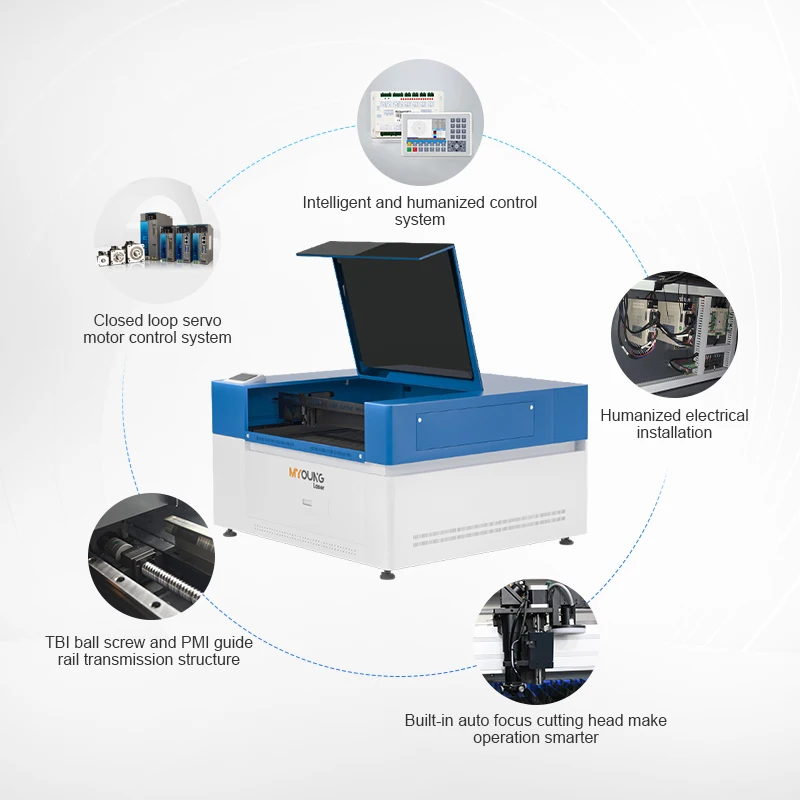

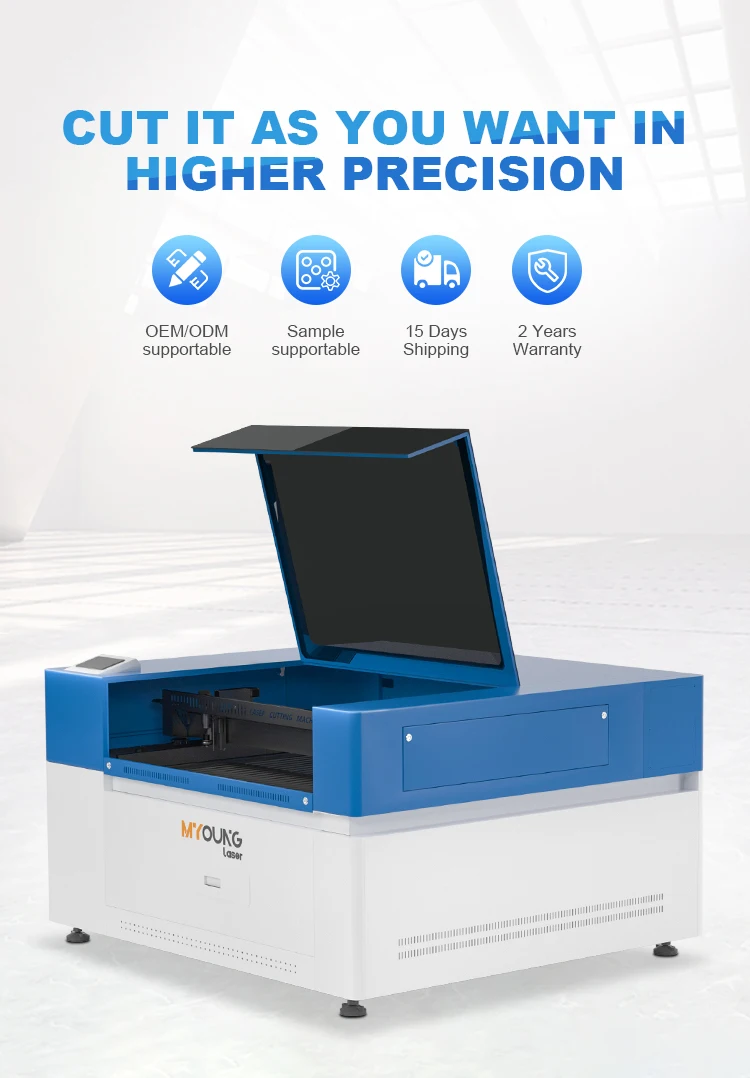

1310 CO2 Laser Cutting machine with TBI ball screw and PMI guide and rudia system 150W 260W 300W
- Category: >>>
- Supplier: Foshan Myoung Laser Technology Co. Ltd.
Share on (1600949548648):
Product Overview
Description
Products Description
Product Paramenters
To learn more about the rule parameters or to customize the size of the machine
Please contact the online customer service
Model | MIX 13 |
Work Space | 1300x1000mm |
Laser Power | CO2laser glass tube:150W/280W/300WRECI/YongLi/Joy Laser/ECO2 as optional) |
RF Laser tube | 300W/400W from RECI company |
Machine Size | 2100*2300*1200mm |
Empty Running Speed | 0-500mm/s |
Machine Working Speed | 0-500mm/s |
Repeat Positioning Accuracy | 0.1mm |
Control System | RDC6445G(RDV6445G with CCD camera as optional) |
XYZ Transmission Mode | Ball Screw |
Servo Motor & Driver | Taiwan Delta |
Ball Screw | TBI |
Guide Rail | HIWIN |
Water Chiller | CW5000/CW5200 for 150W Laser TubeCW6000 dual temperature and dual control water chiller |
Gross Weight | 500kg |
Exhaust Blower | 750W |
Equipment Working Environment | Clean And Free Of Dust |
Application Materials
It is suitable for engraving cutting wood, plastic, MDF, glass, leather, rubber, laminate and other non-metallic materials.(For more materials and finished products, please contact online customer service)
Product Advantages

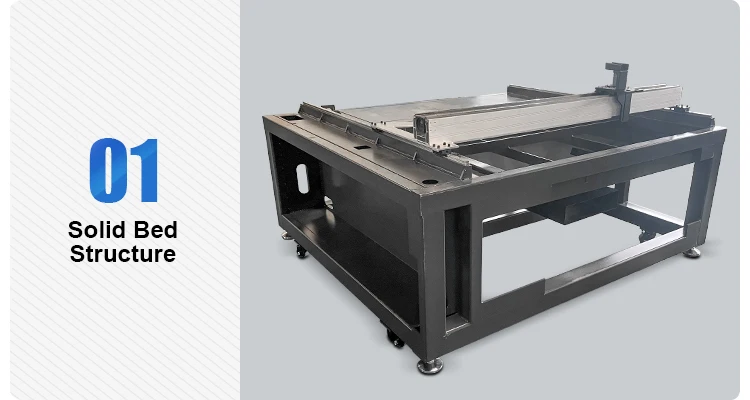

MIX13 uses square metal tubes to weld the overall metal frame and sheet metal structure, and the cutting accuracy is within 0.2mm.

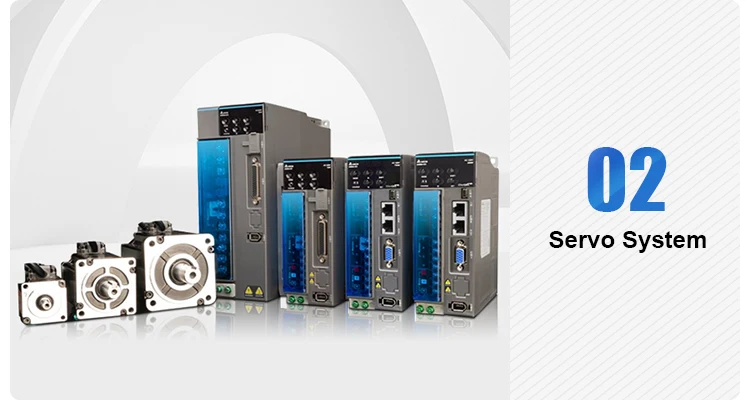

The closed-loop control system improves the precision and anti-interference ability of the system output. MIX13 equipped with Delta servo motor is 30%-40% faster than other belt structure machines.

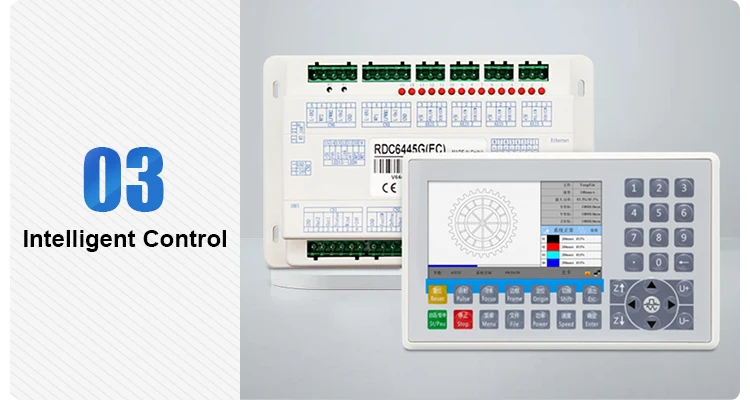

The RDC6445G offers the advantages of stability, voltage resistance and anti-static. The controller provides large capacity file memory, supports Ethernet communication, automatically selects USB communication with PC, etc.

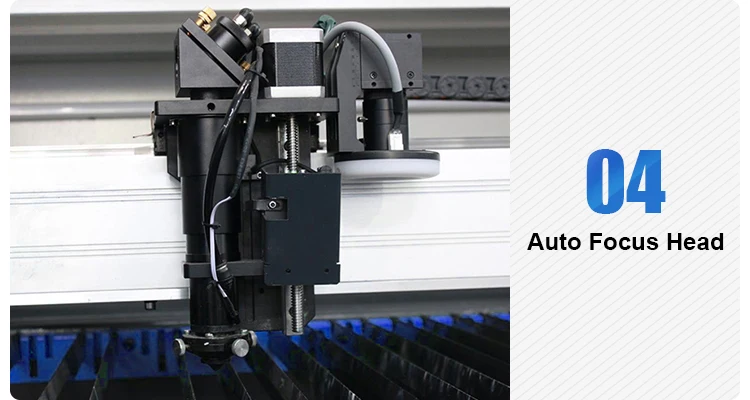

When cutting materials of different thicknesses, the new generation of built-in autofocus cutting heads will automatically find the distance to the corresponding material surface, allowing for smarter operation.

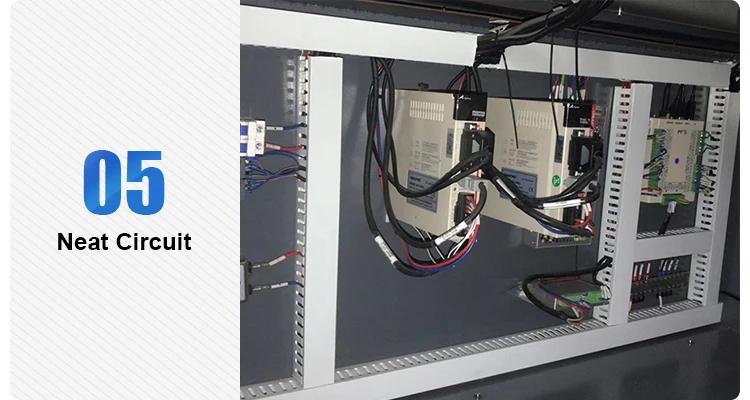

MIX13 adopts Taiwan Meanwell power supply with stable output, equipped with a heat exchanger to keep the electric box at a constant temperature and prolong the service life of the circuit.

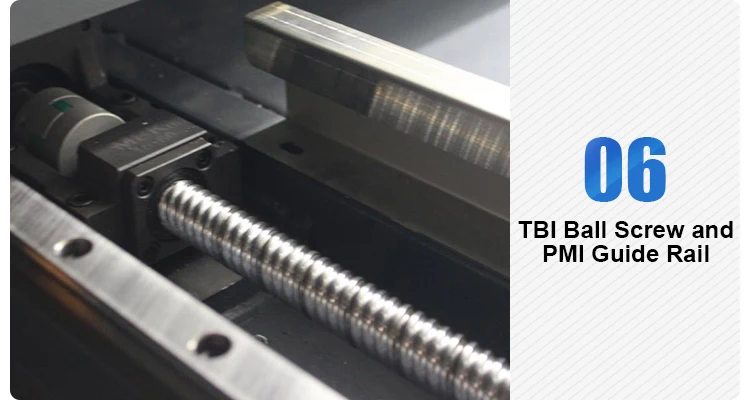

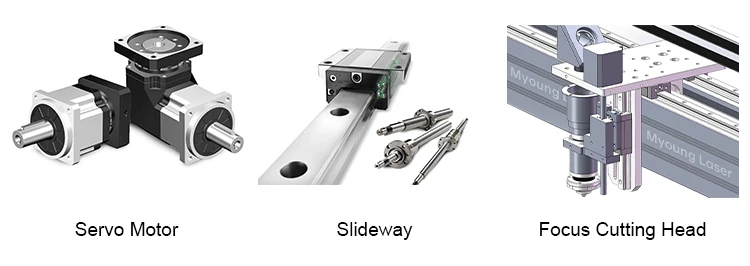

PMl and TBI allow for repetitive positioning and maintain high accuracy for long periods of time with low noise. tbi ball screws allow for higher precision cutting of materials, increasing productivity and product quality.

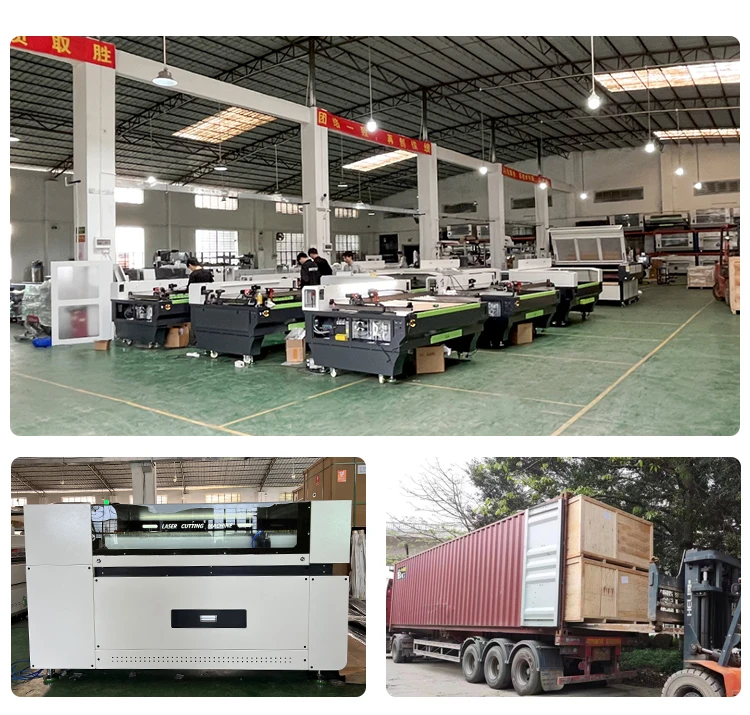

Real Photograph
For more information about machine configurations, please contact online customer service.

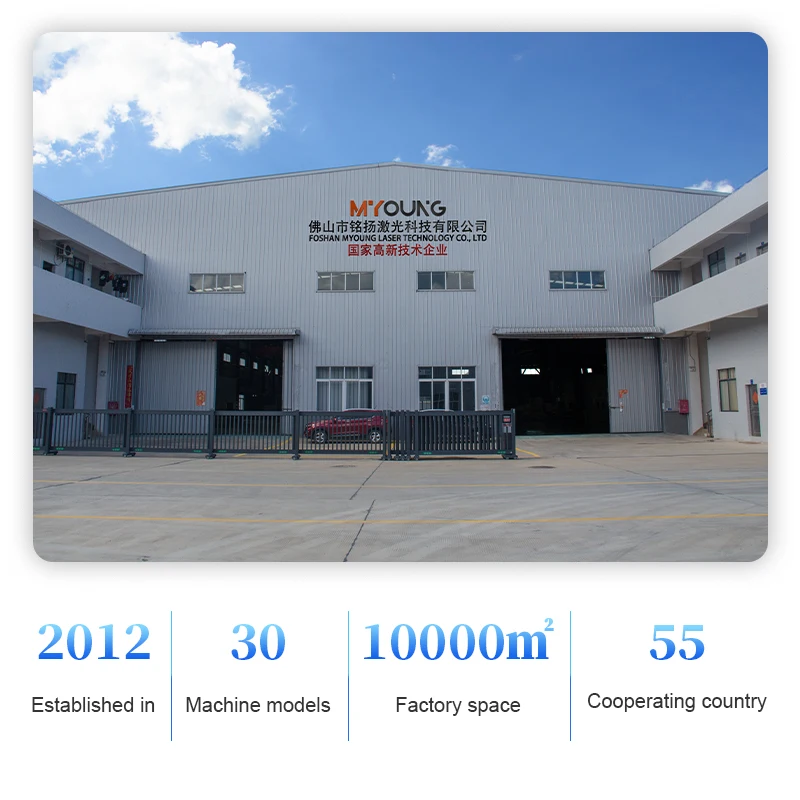

Enterprise information
More machine types
Other models of co2 laser cutting and engraving machines can be found by clicking on the pictures for details. For more questions, please consult online customer service.
FAQ
Q1: What materials is this machine suitable for?
Mainly used for laser cutting of acrylic, wood, PVC, MDF, fabric, cloth and other materials.
Q2: lf we don't know how to use the machine, do you have teaching ortraining class for us?
Yes. We have fully customers service training video for your kindlyreference, attached will also be machine cutting parameters and worknotes. lfyou still confused about it, please contact our sales and we willhelp you any mins as your service.
Q3: How long is the delivery time?
For standard machines, it would be 1-2 weeks; For non-standard machinesand customized machines according to clien's specific requirements, itwould be 3-4 weeks.
Q4: How do you guarantee the quality of the machine?
The whole production will be under regular inspection andstrict quality control. Myoung machines will be tested before shipmentwith our fully quality control system. CE Certificate qualified, meetEuropean and American standard.ean and American standard.
Q5: Do you arrange shipment for the machines?
Yes, any shipping terms could be negotiable. For EXW price,clients needto arrange shipment by themselves or their agents.
