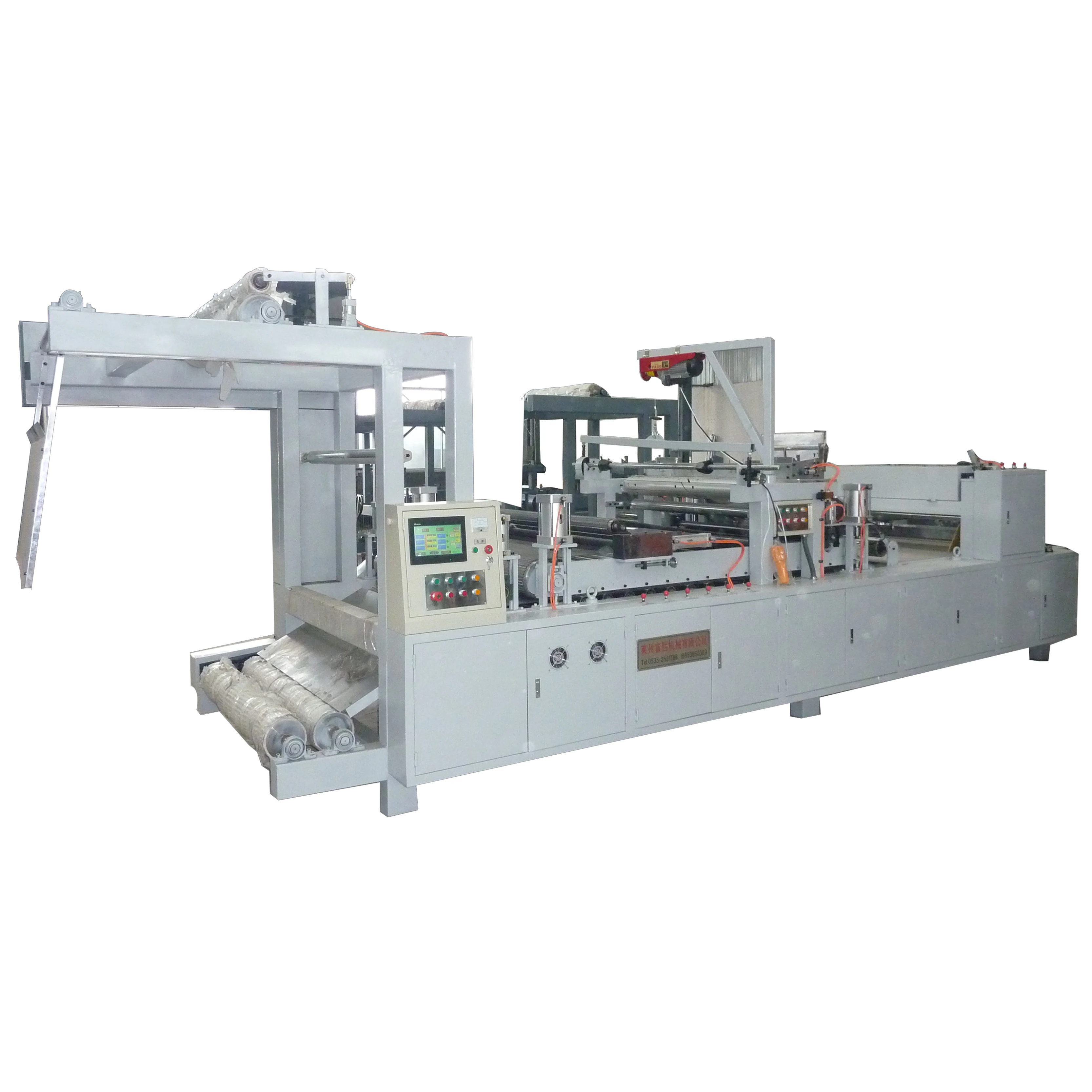

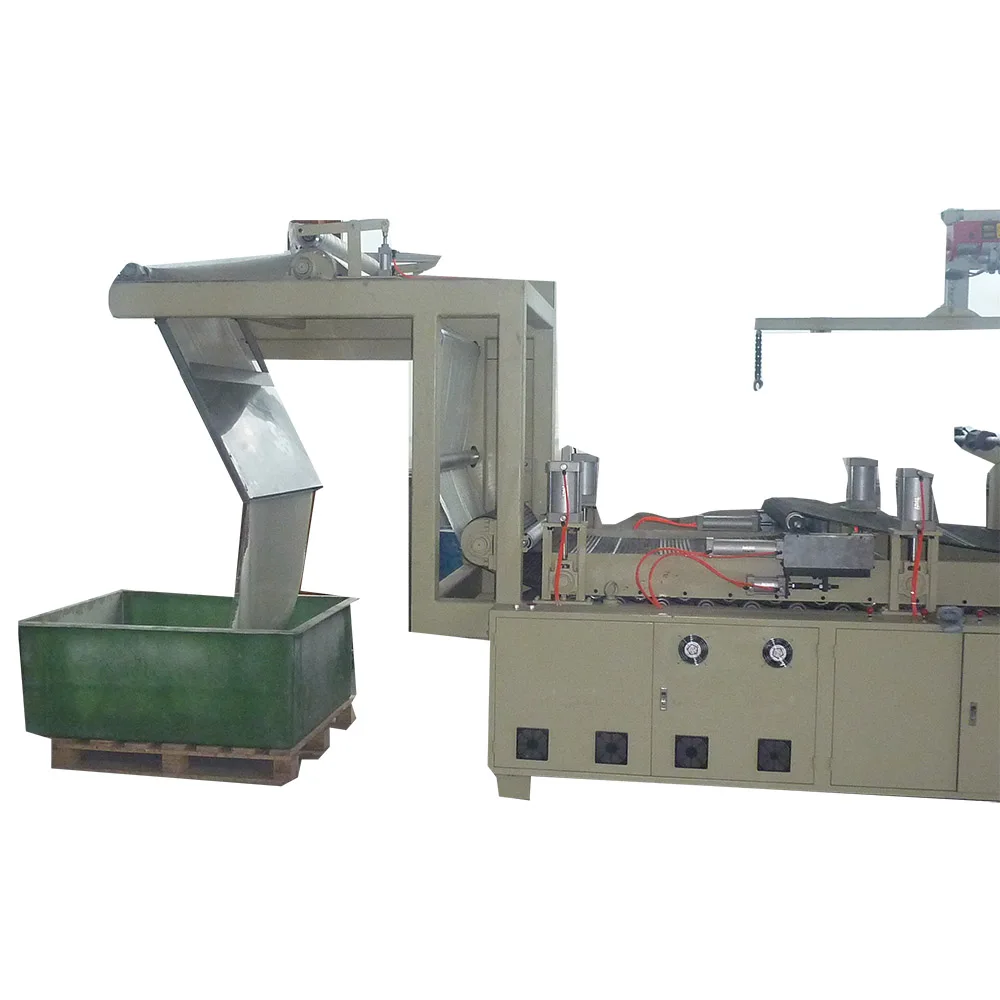

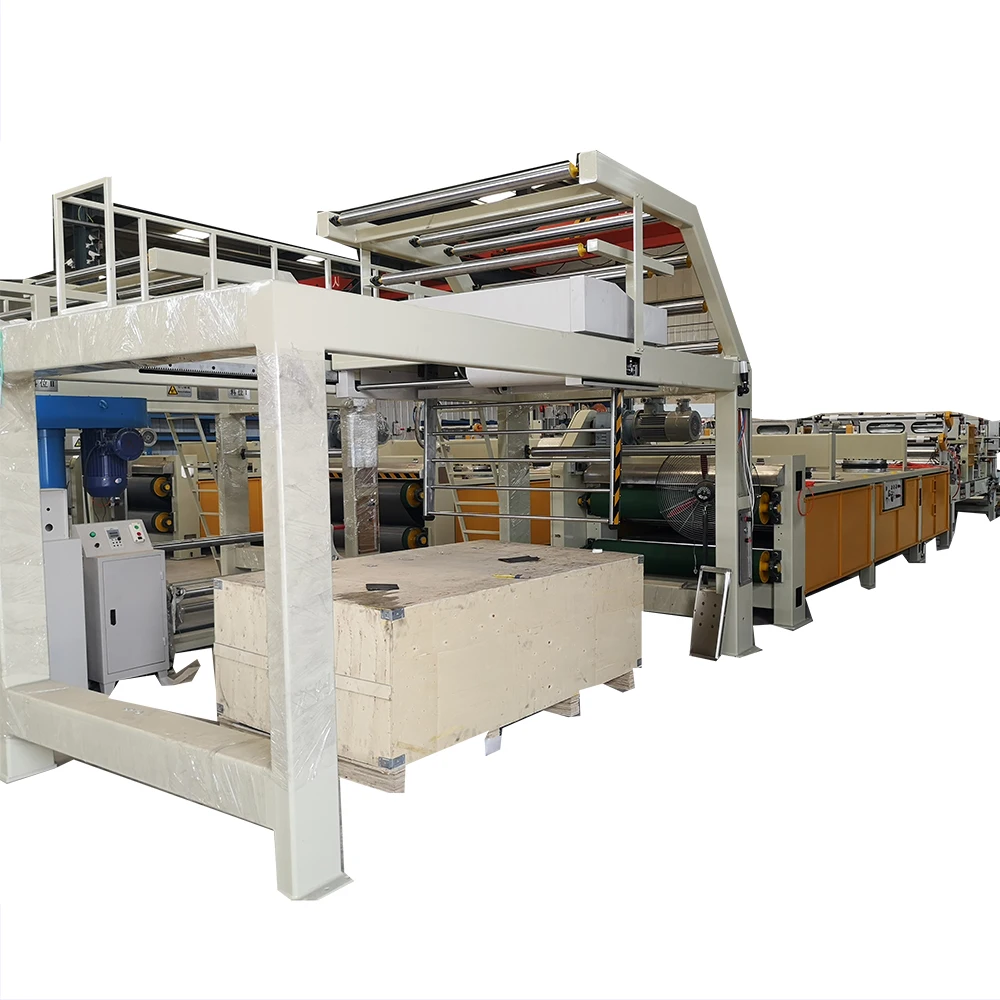

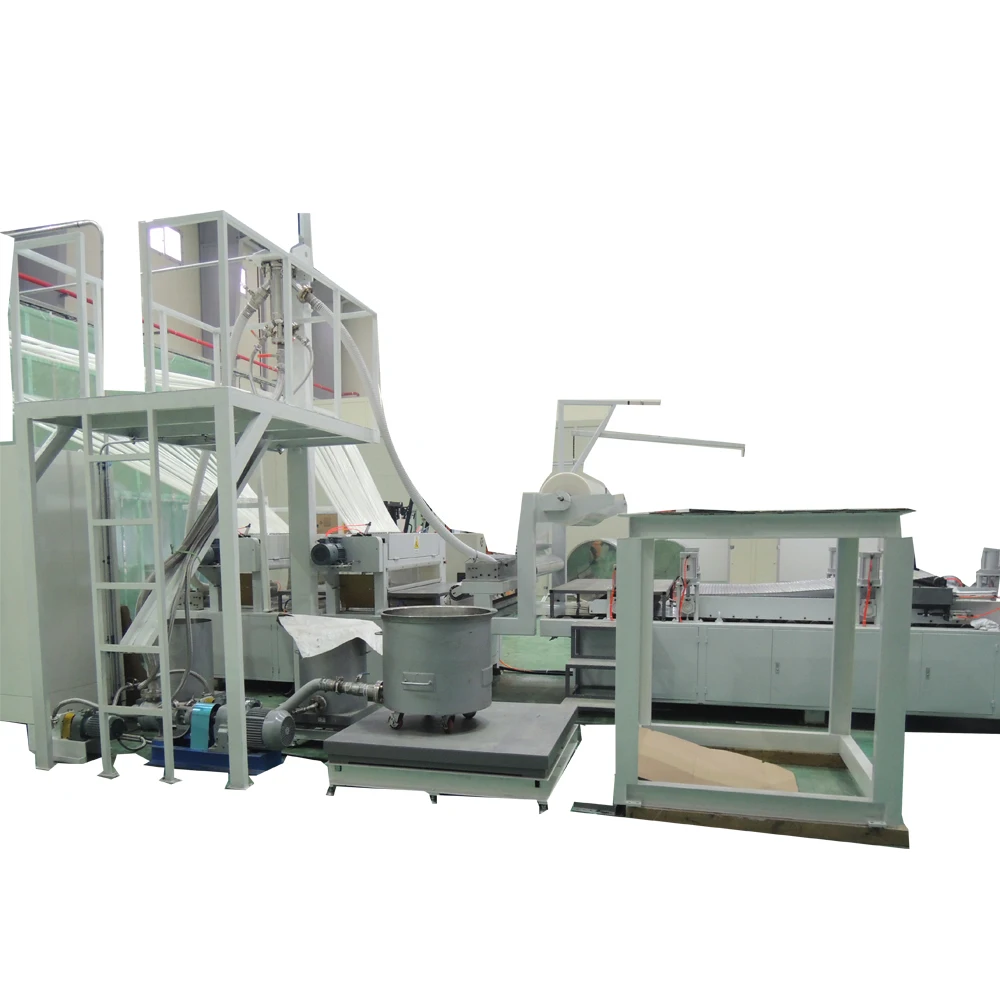

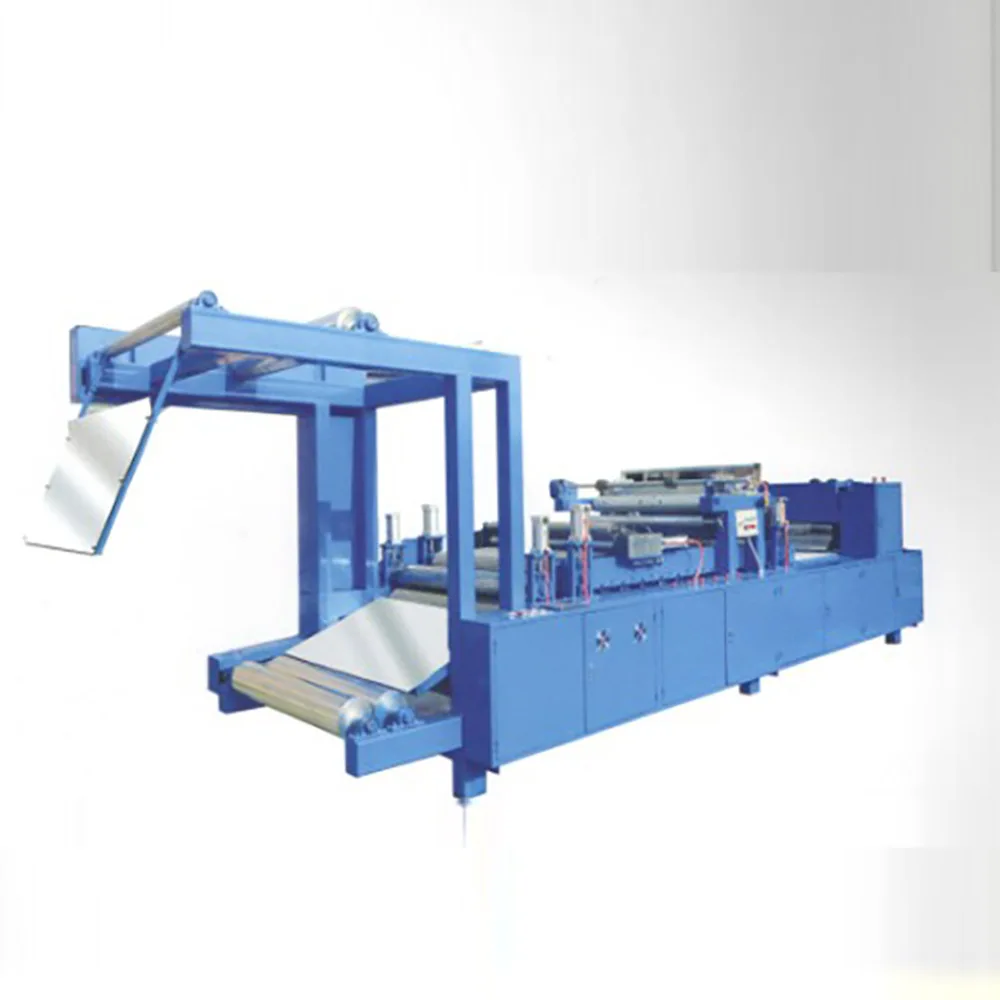

1200B SMC sheet molding compound machine Expansion Tank Making Machine
- Category: >>>
- Supplier: Laizhou Demeter Imports And Exports Co. Ltd.
Share on (1600949566366):
Product Overview
Description
SMC Machine Unit Technical Data Sheet
Model | SMC1000A (Single Chopped Fiber) Standard Version | SMC1000B (Single Chopped Fiber) High-end Version | SMC1000B (Double Chopped Fiber) High-end Version |
Max. Sheet Width | 950mm | 950mm | 950mm |
Sheet Thickness | 2-3mm | 2-4mm | 2-5mm |
Density | 1-5g/m² | 1-5g/m² | 1-5g/m² |
Single Class Capacity | 6Ton | 16Ton | 16Ton |
Electric Control System | Frequency Control | PLA Digital Control Systerm | PLA Digital Control Systerm |
Chain Belt Deviation Rectification Control | Automatic Control | PLC Control | PLC Control |
Fiber Content | 10-30% | 18-45% | 18-45% |
Fiber Length | Max. 25.4mm or multiple | Max. 25.4mm or multiple | one for min. 12.7mm the other for min. 25.4mm |
Suitable Viscosity | 15-48pas | 15-48pas | 15-48pas |
Total Power | 6kw | 5kw | 8kw |
Machine Dimension (LxWxH) | 7x2x2.5m | 8.5x2x2.5m | 10x2x2.5m |
Machine Weight | 2.8t | 4t | 5t |
Model | SMC1200B(Single Chopped Fiber) High-end Version | SMC1200B(Double Chopped Fiber) High-end Version |
Max. Sheet Width | 1150mm | 1150mm |
Sheet Thickness | 1-4mm | 1-4mm |
Density | 1-5g/m² | 1-5g/m² |
Capacity per Hour | 3.5Ton | 3.5Ton |
Single Class Capacity | 24Ton | 24Ton |
Chain Belt Deviation Rectification Control | PLA Automatic Control | PLA Automatic Control |
Fiber Content | 18-45% | 18-45% |
Fiber Length | Max. 25.4mm or multiple | one for min. 12.7mm the other for min. 25.4mm |
Suitable Viscosity | 15-48pas | 15-48pas |
Total Power | 7kw | 10kw |
Machine Dimension (LxWxH) | 8.5x2.2x2.5m | 10.5x2.2x2.5m |
Machine Weight | 5t | 5t |
FEATURES AT A GLANCE
Advantage
1. It adopts advanced mechanical structures & technilogy.
2.It has achieved domestic advanced level with advanced technology and reasonable craft, high degree automation and high outputs.
3. It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning
and more automation.
4. Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high
durability, good looking, etc.
combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.
5. Increase the operation rate of the material and lower the cost
3. It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning
and more automation.
4. Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high
durability, good looking, etc.
combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.
5. Increase the operation rate of the material and lower the cost

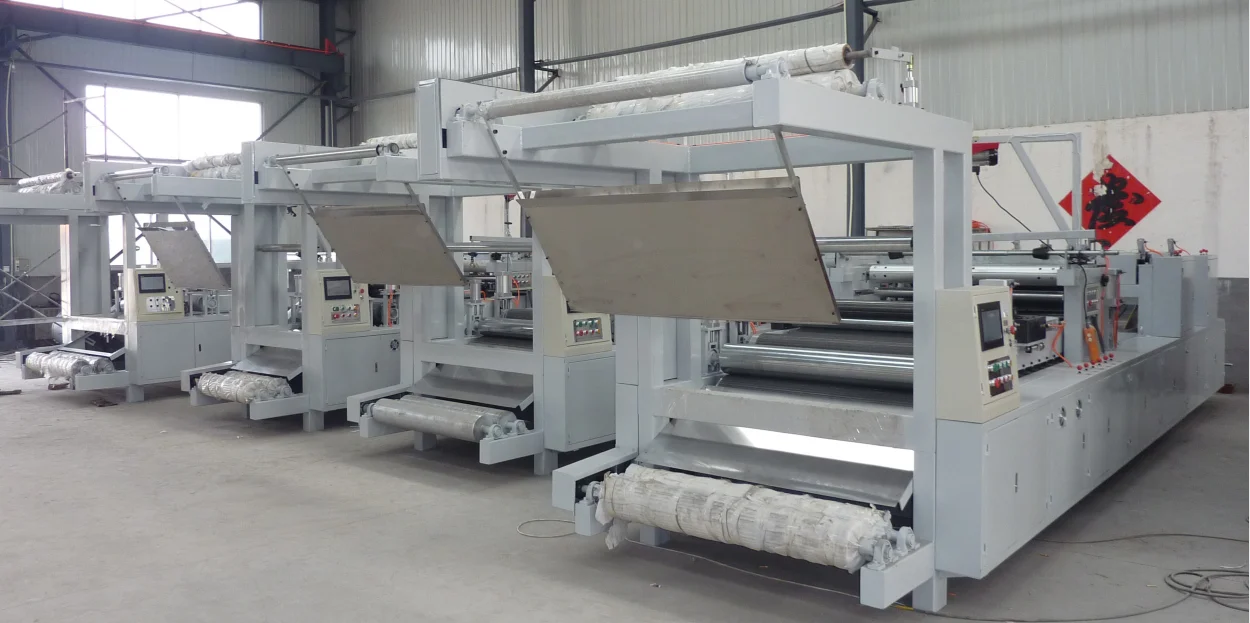

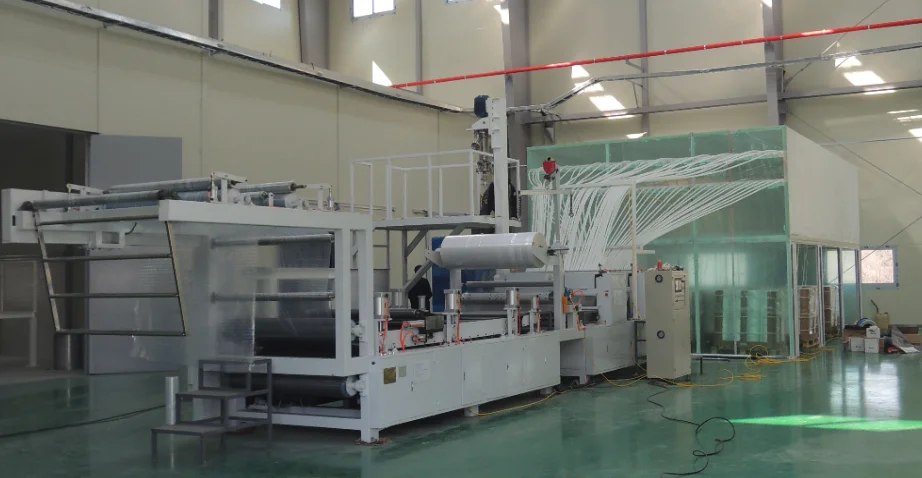

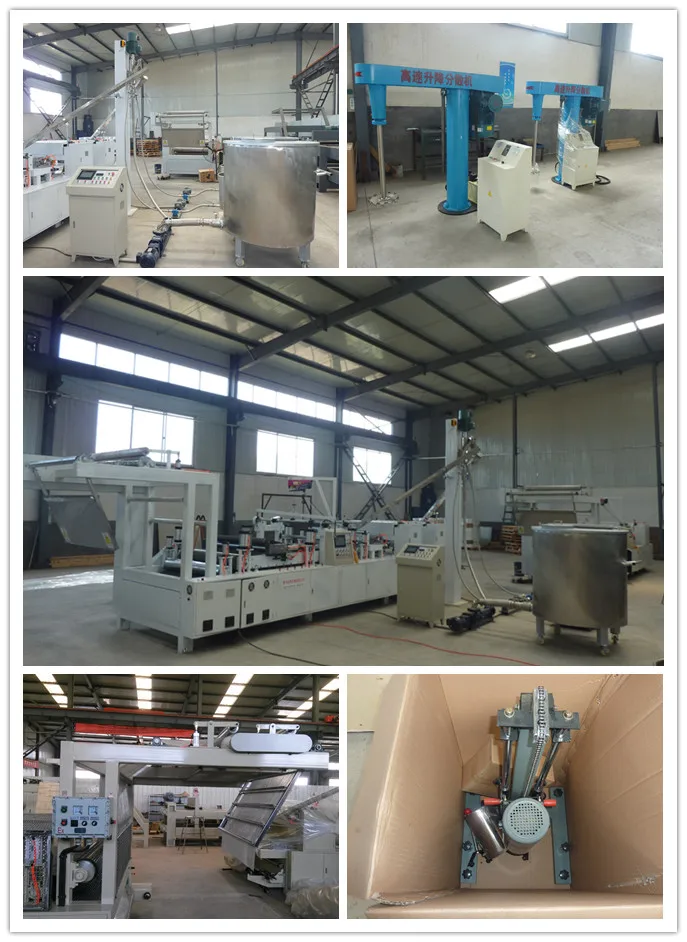

Our Factory
Application
A new kind of thermosetting plastic moulding machine
Used for manufacturing of Molding Materials such as automobile spare parts, electrical components, dinner tables and chairs, ship
devices, refragerator, manhole cover and agruculture facilities,etc, widely used in automotive industry, rail vehicles,
construction, electrical, communication engineering, catering appliances, sports equipment etc
It is used to produce Sheet Molding Compound (SMC) which is a new type of thermosetting plastic.
Used for manufacturing of Molding Materials such as automobile spare parts, electrical components, dinner tables and chairs, ship
devices, refragerator, manhole cover and agruculture facilities,etc, widely used in automotive industry, rail vehicles,
construction, electrical, communication engineering, catering appliances, sports equipment etc
It is used to produce Sheet Molding Compound (SMC) which is a new type of thermosetting plastic.

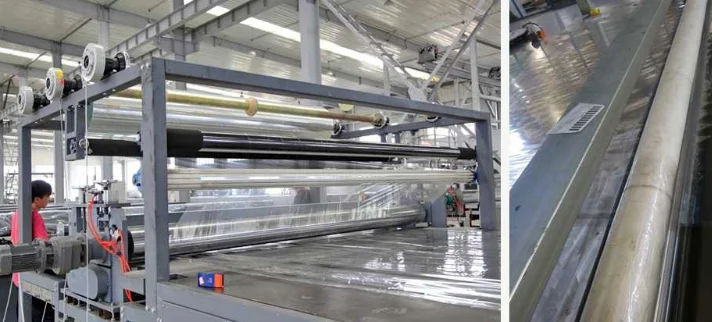

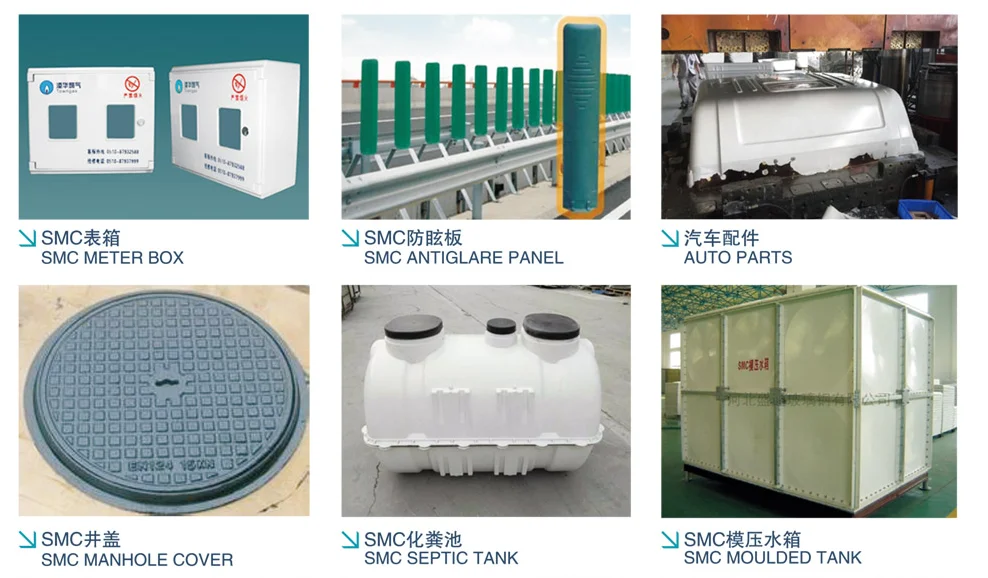

Finished Products

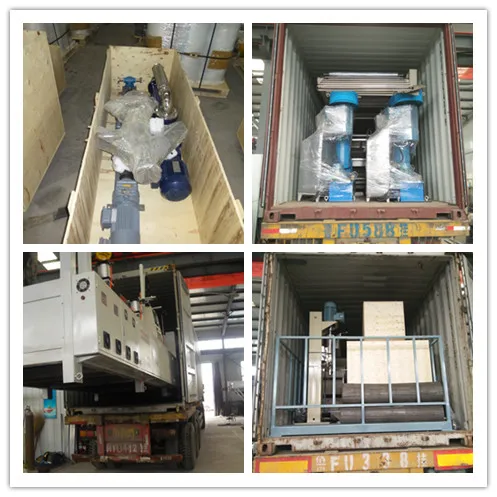

Packaging&Logostics

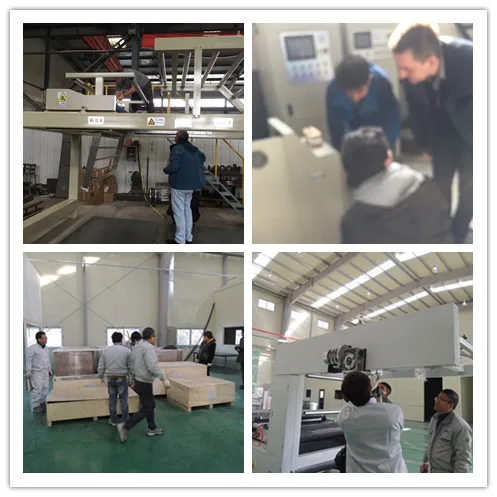

Quality Inspection&After-sales Service
1. The warranty period for the machine will be one year after the SMC sheet machine is delivered to the customer.
2 You can send the technician to the factory to test the machine after the production is finished;
When the SMC sheet machine passed the test, we will stuff the machine into the container and arrange shipment
When the SMC sheet machine passed the test, we will stuff the machine into the container and arrange shipment
3. I necessary, we can provide technical support and engineer to your factory to help you with installation&debugging
Exhibition
FAQ
Q: What is your Payment term?
A: TT, LC at sight, Western Union, master card, visa, e-checking can be accept.
2) Q: What is your Trade term?
A: EXW, FOB, CNF, CIF all accept.
3) Q: What is the Loading Port?
A: Qingdao, China
4) Q: What is your Product Warranty?
A: We guarantee the products customers receive are qualified. If there are any broken parts, please send us some detailed
photos,video by email, and then we will send you the replacement parts according to actual conditions.
5) Q: Can you make custom design?
A: Yes, we can design the machine according to your requirement
6): Q: Do you test and inspect the manchine?
A: Yes, our QC will inspect the machine in every step of production.
A: TT, LC at sight, Western Union, master card, visa, e-checking can be accept.
2) Q: What is your Trade term?
A: EXW, FOB, CNF, CIF all accept.
3) Q: What is the Loading Port?
A: Qingdao, China
4) Q: What is your Product Warranty?
A: We guarantee the products customers receive are qualified. If there are any broken parts, please send us some detailed
photos,video by email, and then we will send you the replacement parts according to actual conditions.
5) Q: Can you make custom design?
A: Yes, we can design the machine according to your requirement
6): Q: Do you test and inspect the manchine?
A: Yes, our QC will inspect the machine in every step of production.
