Product Overview

Description



We are a real manufacturer. Next I will show you my product information, as well as my production workshop, laboratory, filtration effect, delivery packaging and other information. Please browse.I can provide you with customized products, welcome to consult.


High flow disc filter depth filtration wine beer honey cooking oil filtration cartridge filter housing




Dimensions
12” Depth-stack cartridge
16” Depth-stack cartridge
1PC
2PC
3PC
4PC
1PC
2PC
3PC
4PC
A：Total height（except pressure gage）
650
1210
1490
1760
960
1230
1500
1770
B：Inlet center distance
200
2500
C：Diameter
Φ325



Φ450



D：Terrain clearance of inlet/outlet N1, N2
280



280



Inlet/outlet N1, N2
2"



2"





The deep membrane stack uses deep filter paperboard as the filter material to effectively remove impurities and microorganisms in the night body through mechanical interception, electrostatic adsorption and other methods. This product adopts a new double-layer support separation design, which increases the effective filtration area of the filter element, thereby extending the service life of the filter element.


Products Description




Product Features：
1. Can be backwashed;
2. The filter plate will not deform after heat treatment;
3. The solid outer frame design prevents the filter element from being damaged during installation and removal;
4. The support separation plate fully supports the filter plate and enhances the stability of the filter element;






Application：
1. Particle removal
2. Clarification and filtration
3. Filtration before filling;
4. Pre-filtration before membrane filtration;
5. Polishing and filtering
6. Colloidal removal;
7. Demist filtration after cooling;
8. Filtration after product stabilization;
9. Final filtration (microbial removal);

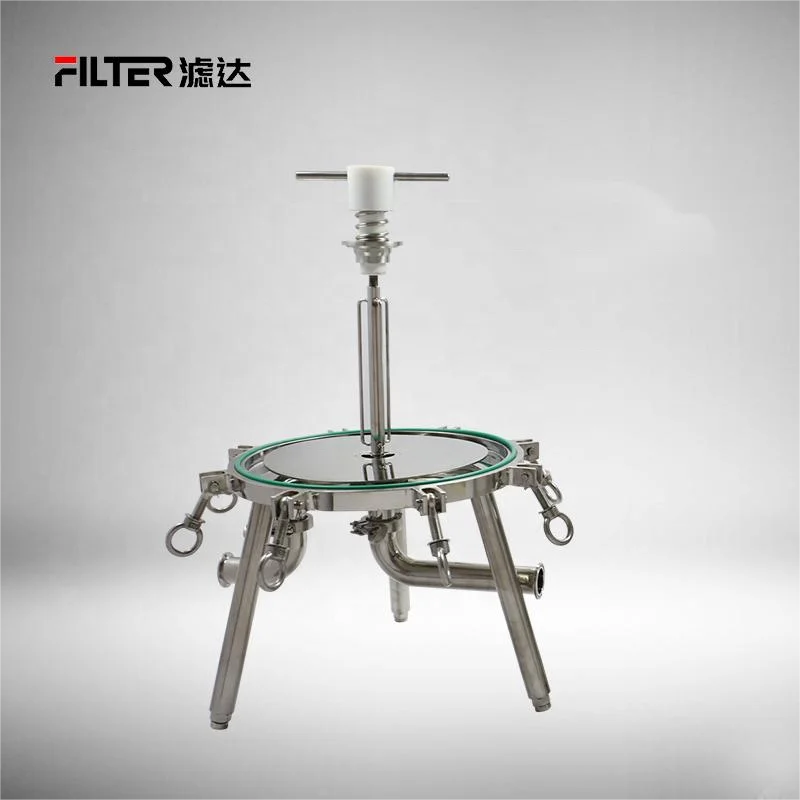

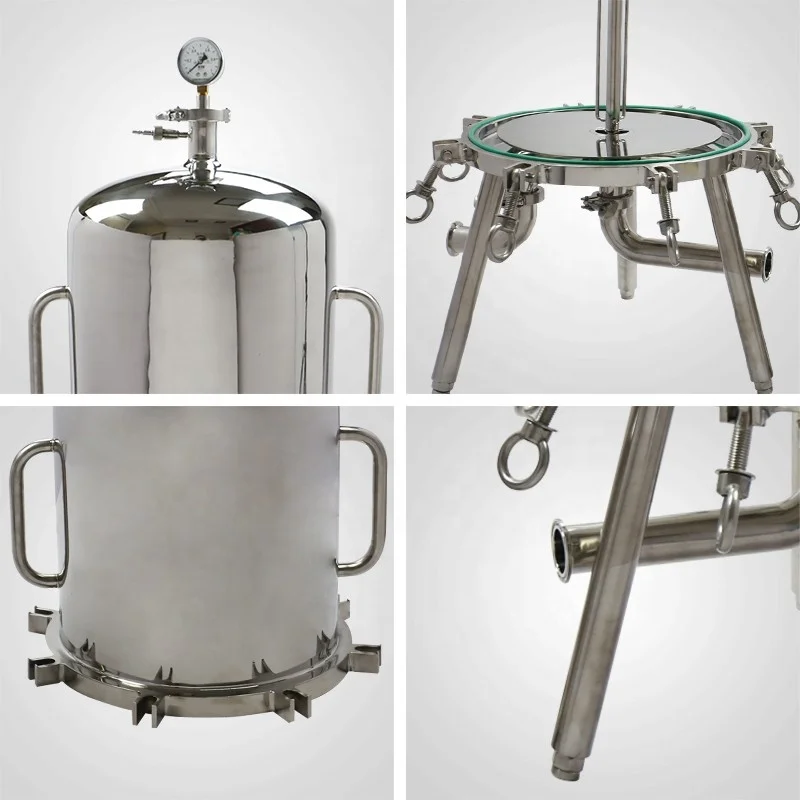

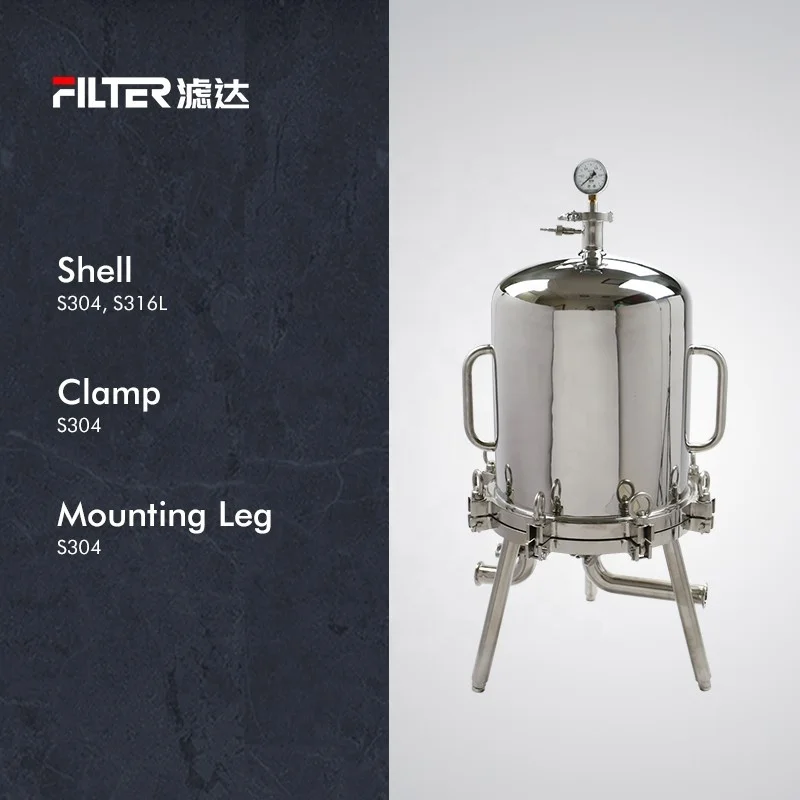

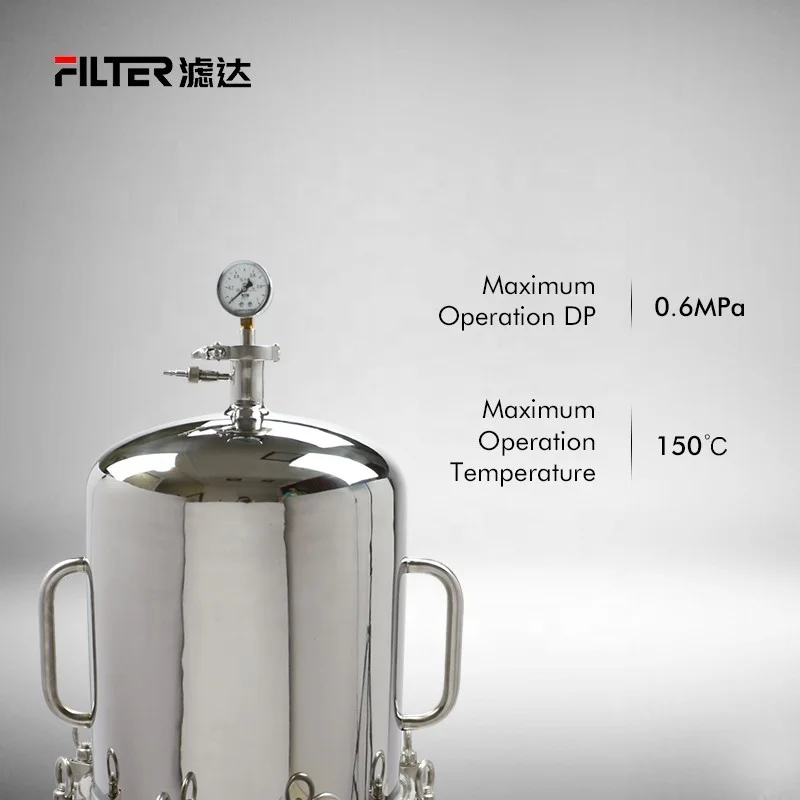

Depth-stack Filter Housings：\t\t\t
Filter Housings are depth housings for Depth-stack filter cartridges. They can replace DE filter to remove the particles in kinds of liquids for filtration,clarification and purification.The housings are constructed under sanitory grade standards with high precision polishing.There is no residual liquid after using and easy to clean. With the bottom inlet and outlet design, it can avoid the turbulence of liquid effectively and improve the filtration performance. The housing can hold 4 pcs depth-stack filter cartridges at most and meet the high flow requirement.\t\t

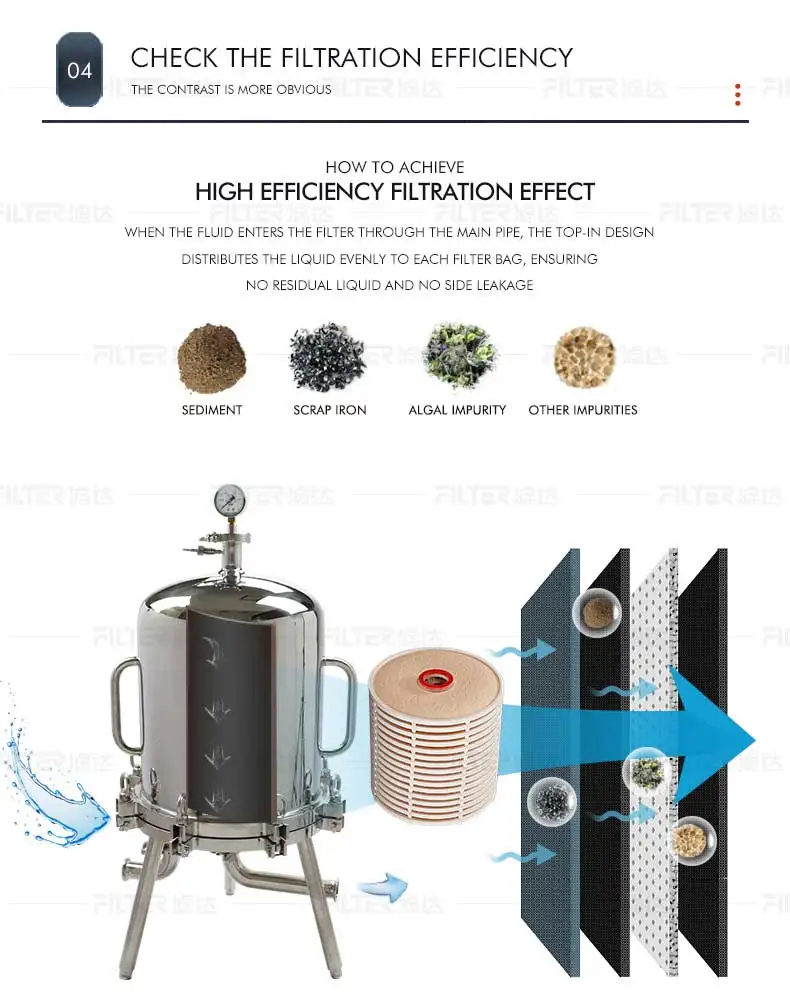

Filtering Effect And Detection

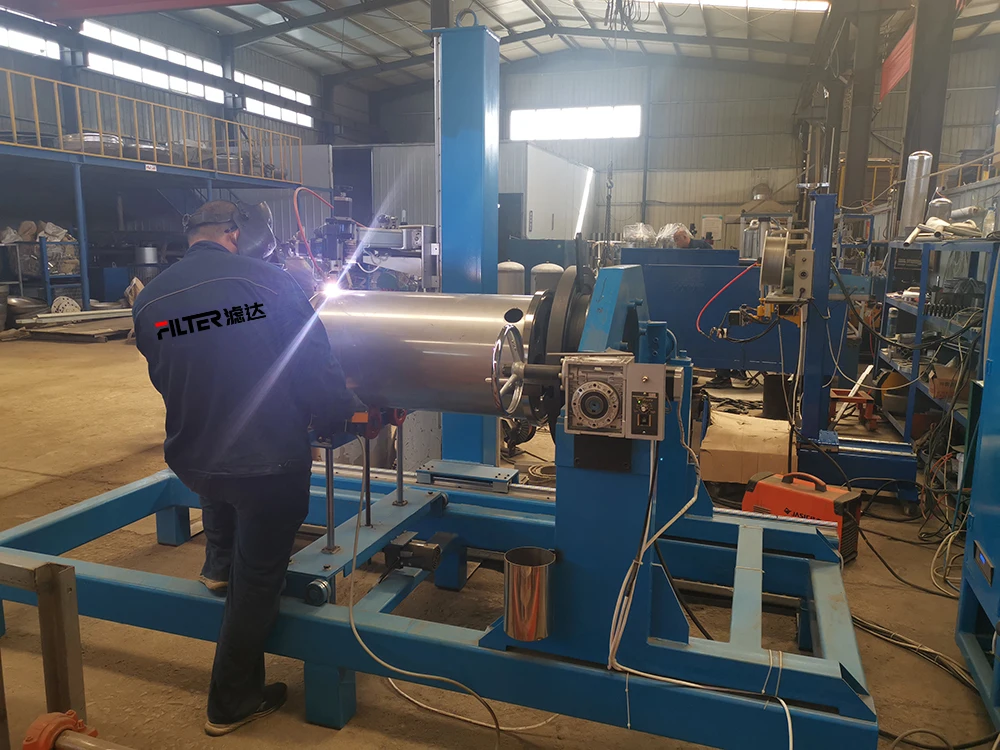

Company Profile






















Shipping and Packing




FAQ


1. What is the minimum order quantity?
A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or
bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
