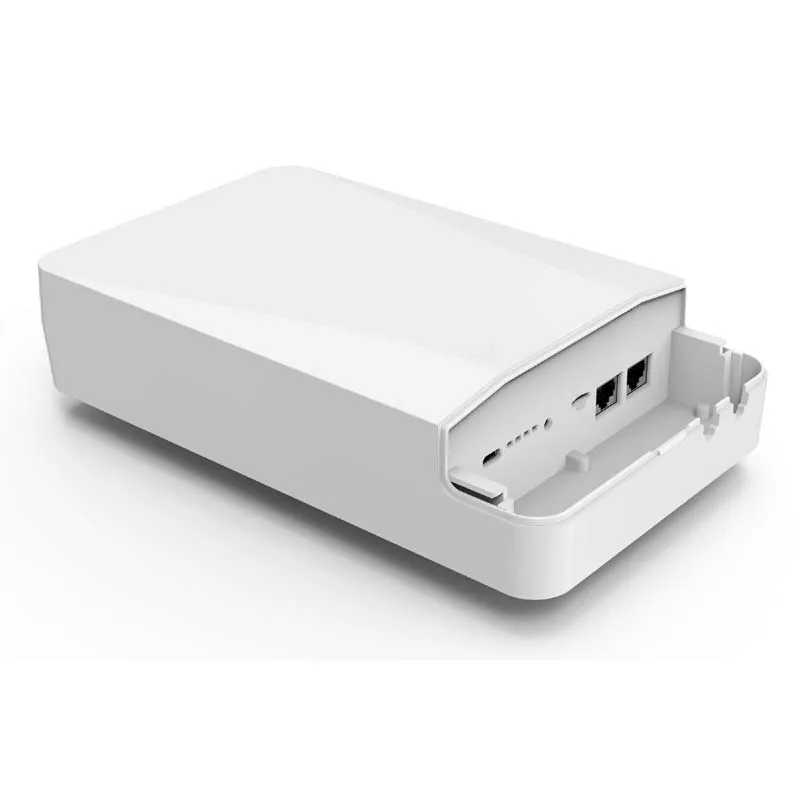

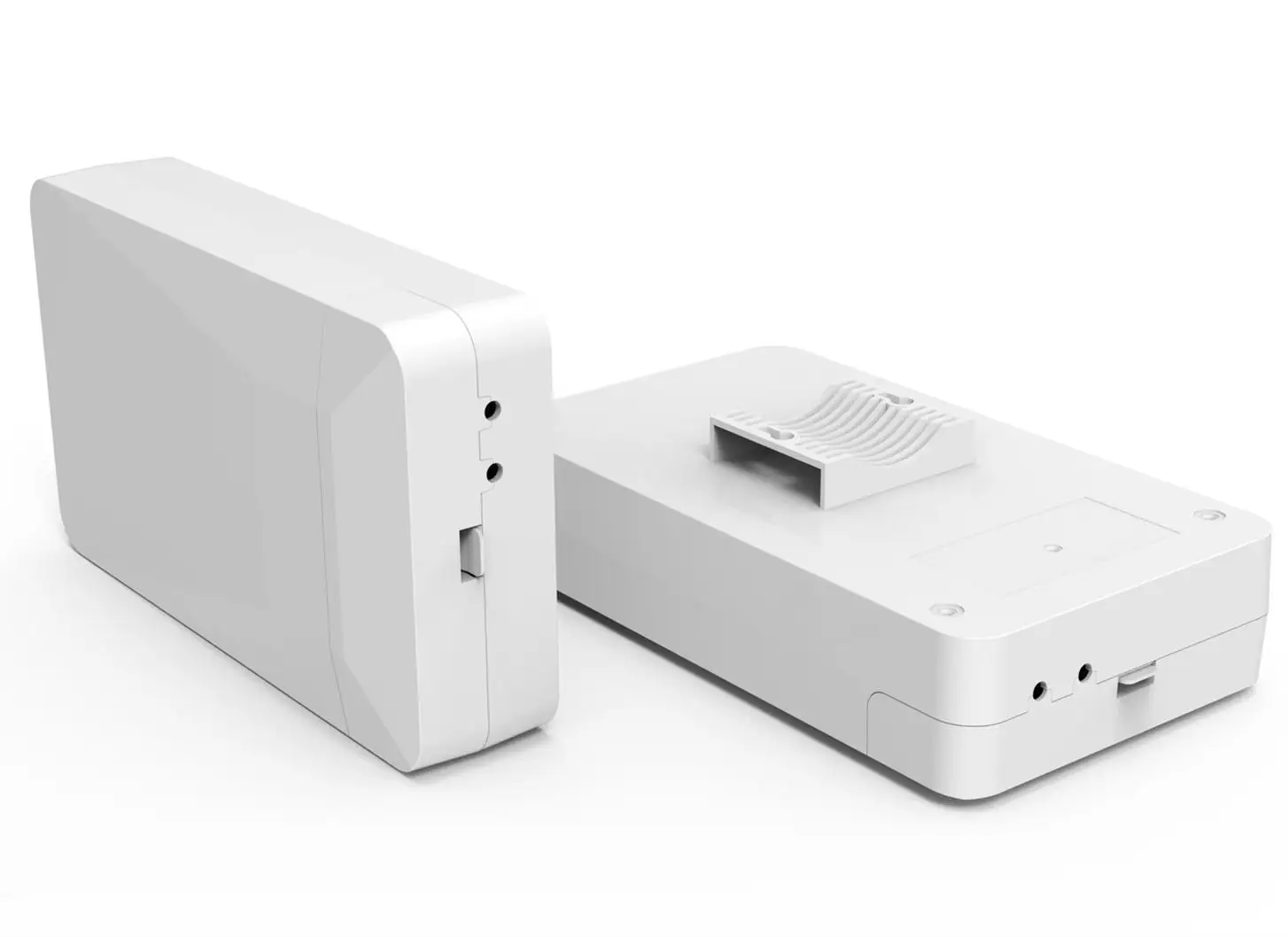

OEM 5G Outdoor CPE X62 PoE Waterproof IP65 Outdoor CPE Router 4G 5G ODU
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600949711044):
Product Overview
Description
OEM 5G Outdoor CPE X62 PoE Waterproof IP65 Outdoor CPE Router 4G 5G ODU
• 3G/4G/5G wireless data transmission.
• Supports global frequency bands.
• Automatic networking and dialing when powered on.
• Built-in watchdog, self-recovery from system crash.
• 2*2 MIMO WIFI antenna. (Optional)
• 4G/5G 4*4 MIMO antennas.
• 3G/4G LTE full-band high gain antenna: 10DBi
• Supports WIFI, GPS functions. (Optional)
• 1 * LAN Gigabit ports,USB2.0.
• Built-in SIM or eSIMcard.
• Built-in communication protocols. PPTP, L2TP, IPSEC VPN, TCP, DHCP, HTTP, DDNS, TR-069, HTTPS, SSH and other protocols.
• Support local UI upgrade and remote upgrade.

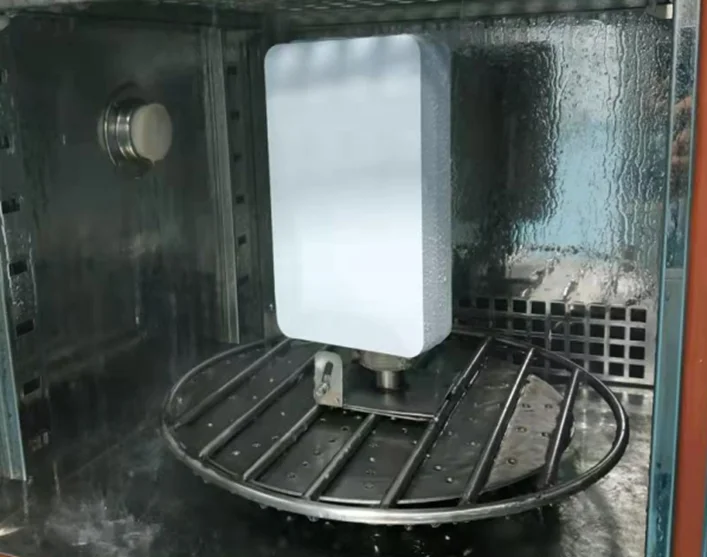

• ABS plastic shell, industrial quality, waterproof, dustproof, lightning proof, grade. IP65.
• Lightning protection, level: 5KA
• Operating system: Openwrt 19.07.
• Operating temperature. -30℃ ~ +70 ℃.

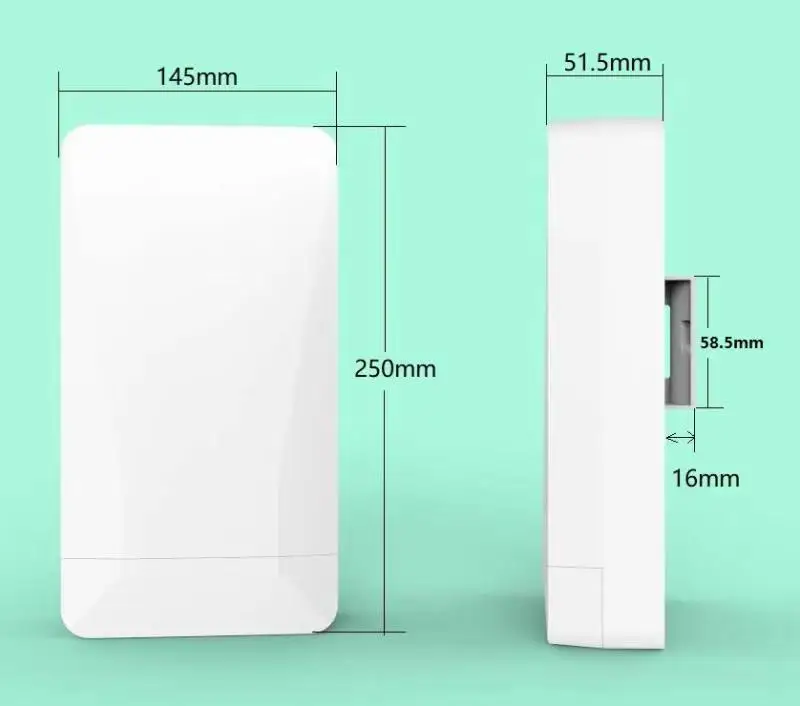

• Size: 250*145*67.5 mm.
Powerful function.
1. Supports multiple WAN connection mode, including static
IP, DHCP,L2TP, PPTP, PPOE,TR-069, 3G/LTE.
2. Supports VPN client (PPTP, L2TP, VPN, IPSEC &GRE,open VPN).
3. Supports remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS and so on.
4. Supports APN/VPDN.
5. DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall and NAT DMZ host, QoS, traffic statistics, real-time display data transmission rate functions
and so on.
6. Supports TCP/IP, UDP, FTP, HTTP network protocol.
Item | Product specification |
Chipset | Qualcomm X55 |
MEMORY | FLASH 512MByte, DDR2 512MByte |
Embedded system | Openwrt 19.07 |
Network | 5G NR, FDD LTE,TDD LTE,WCDMA |
WIFI | WIFI 6,2.4GHz/5.8GHz, 802.11 AX, 1800Mbps |
Data rate | 5G SA Sub-6 . DL 2.1Gbps, UL 900Mbps 5G NSA Sub-6. DL 2.5Gbps; UL 600Mbps |
4G LTE: CAT 20, DL 2Gbps , UL 150Mbps | |
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps | |
WIFI Tx Power | 2.4GHz:20dBm(11b),17dBm(11g),16dBm(11n),14dBm(11AC),13dBm(11AX) 5.8GHz:15.5dBm(11a),15dBm(11n),14dBm(11AC),13dBm(11AX) |
WIFI data rates | l 802.11a: 6 Mbps, 9 Mbps, 12 Mbps, 18 Mbps, 24 Mbps, 36 Mbps,48 Mbps, 54 Mbps l 802.11b: 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps l 802.11g: 6 Mbps, 9 Mbps, 12 Mbps, 18 Mbps, 24 Mbps, 36 Mbps,48 Mbps, 54 Mbps l 802.11n: HT20 (MCS0-7), HT40 (MCS8-15) l 802.11ac: VHT20 (MCS0-8), VHT40 (MCS0-9), VHT80 (MCS0-9) l 802.11ax: HE20 (MCS0-11), HE40 (MCS0-11), HE80 (MCS0-11) |
3G/4G/5G Sensitivity | 5G NR. 91 dBm , +/- 2dBm LTE 95dBm , +/- 2dBm WCDMA 104dBm , +/- 2dBm
|
GPS | GPS/GLONASS,Protocol: NMEA |
WIFI Frequency | 2.4GHz/5.8GHz |
Item | Product specification |
Hardware interface | Support 2 LAN ports, Support one LAN port by default; |
RF | Built-in WIFI, 5G or 4G LTE, GPS antenna |
Security Encryption | Support WEP,WPA,WPA2 encryption ways |
Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH |
LED Indicator | “SYS”, “Net”, “WAN”, “LAN” |
SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card. Or eSIM card. |
Key button | Reset |

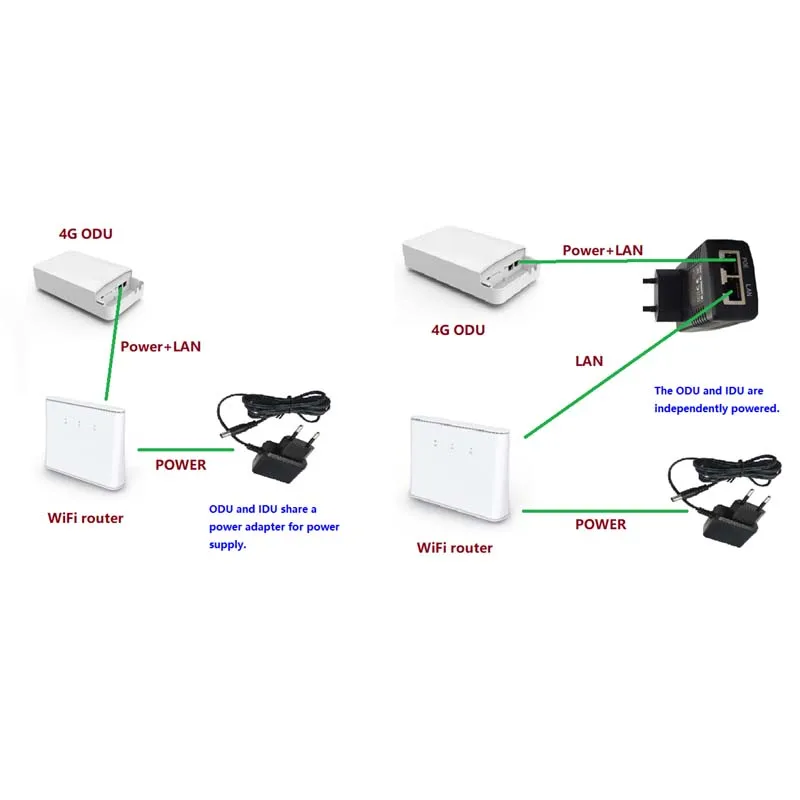

Standard Power | POE input: DC 24V/1A |
Power Supply | POE input: DC +12V/1.5A~+24V/0.8A |
Working current | 2.5A (Max Current) |
Temperature | Operating Temperature -30ºC ~ +70ºC |
Storage Temperature -40ºC ~ +80ºC | |
Environment humidty | 95% |
Case | Waterproof plastic shell, IP65 |
Size | 250mm*145mm*67.5mm |
Weight | 554g |
Item | Product specification |
2G/3G/4G Frequency bands | Version 1. 5G NR n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE TDD.B34/B38/B39/B40/B41/B42
WCDMA B1/B3/B5/B6/B8/B19 DL 4*4 MIMO B1/B3/B38/B40/B41/B42
Version 2. LTE FDD:B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B41/B42/B66/B71 LTR TDD: B41/B48 DL 4*4 MIMO B2/B4/B25/B30/B41/B66 |
Item | Product specification |
3G/4G LTE/5G Frequency bands | 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/
DL 4×4 MIMO: n1/n2/n3/n7/n41/n66/n77/n78/n79 B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42 /B43/B48/B66
B1/B2/B3/B4/B5/B8/B9/B19
|
