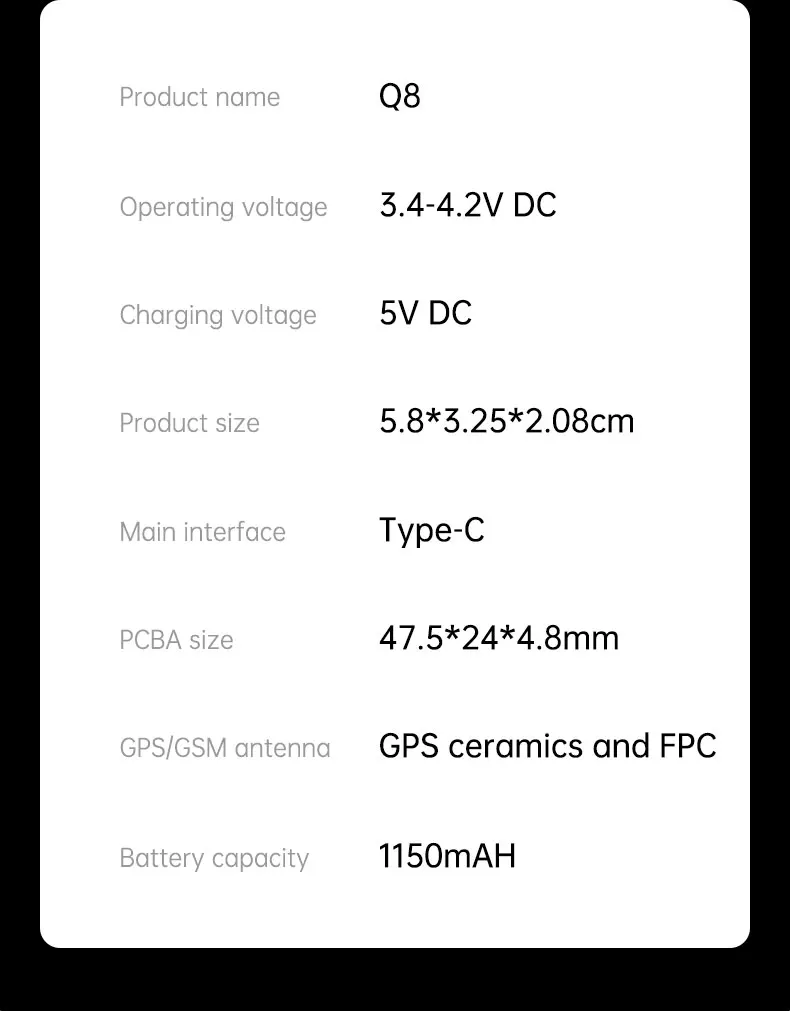

Product name | Q8/Q9/Q10 | Support LTE-FDD/LTE-TDD/GSM wireless communication, Support GPS, Beidou, AGPS, LBS,WIFI, | ||||||
chip | Main control chip: ASR1603, GPS chip: AT6558R | |||||||
Frequency band | 2G/4G | LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 | ||||||
Power supply characteristics | Operating voltage | 3.4-4.2V DC | ||||||
Charging voltage | 5V DC | |||||||

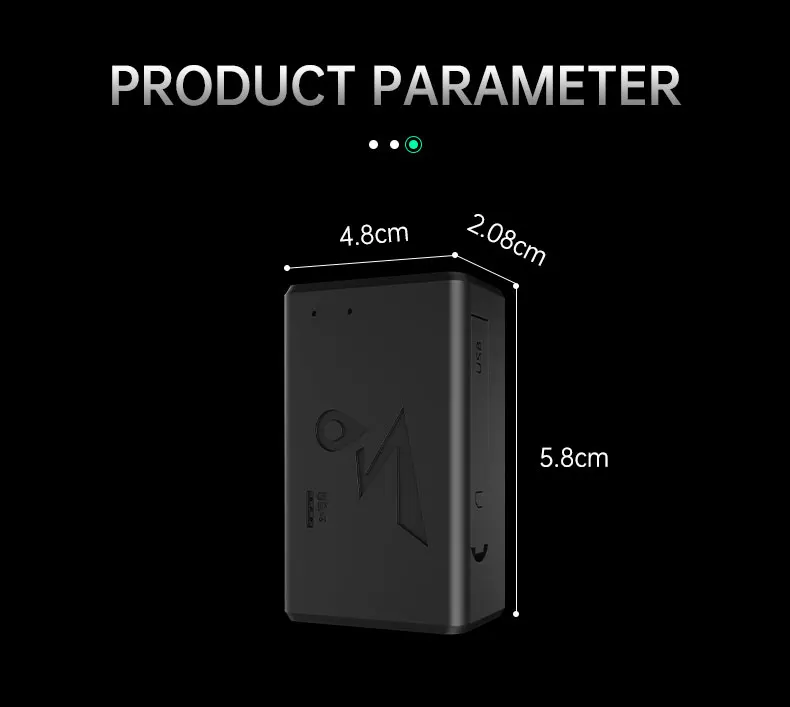

Structural feature | Product size | 58*32.5*20.8 mm | ||||||
PCBA dimensions of the mainboard | 47.5*24*4.8mm | |||||||
Indicator light | 3 | Blue light: network light, green light :GPS light, red light: charging light | ||||||
Connection mode | Main interface | Type-C Indicates the interface | ||||||
GPS antenna and GSM antenna | GPS ceramics and FPC | |||||||
Main hardware function interfaces | SIM | Nano Push self-ejecting booth | ||||||
UART | support | |||||||
USB | support | |||||||
GPS | GPS+BD | |||||||
G-sensor | support | |||||||
MIC | support | |||||||
Wifi | support | |||||||
BT | Do not support | |||||||
horn | Do not support | |||||||
Boot mode | Button start | |||||||
Main software function | battery | Polymer battery 1150 mah | ||||||
Real-time positioning | support | |||||||
Track playback | support | |||||||
Electronic fence | support | |||||||
Alarm information | support | |||||||
Power display | support | |||||||
Anti-demolition alarm | Do not support | |||||||
Remote listening | support | |||||||
Voice-activated recording | support | |||||||
Short message query | Location query, function setting | |||||||
Vibration alarm | support | |||||||
AGPS | support | |||||||
