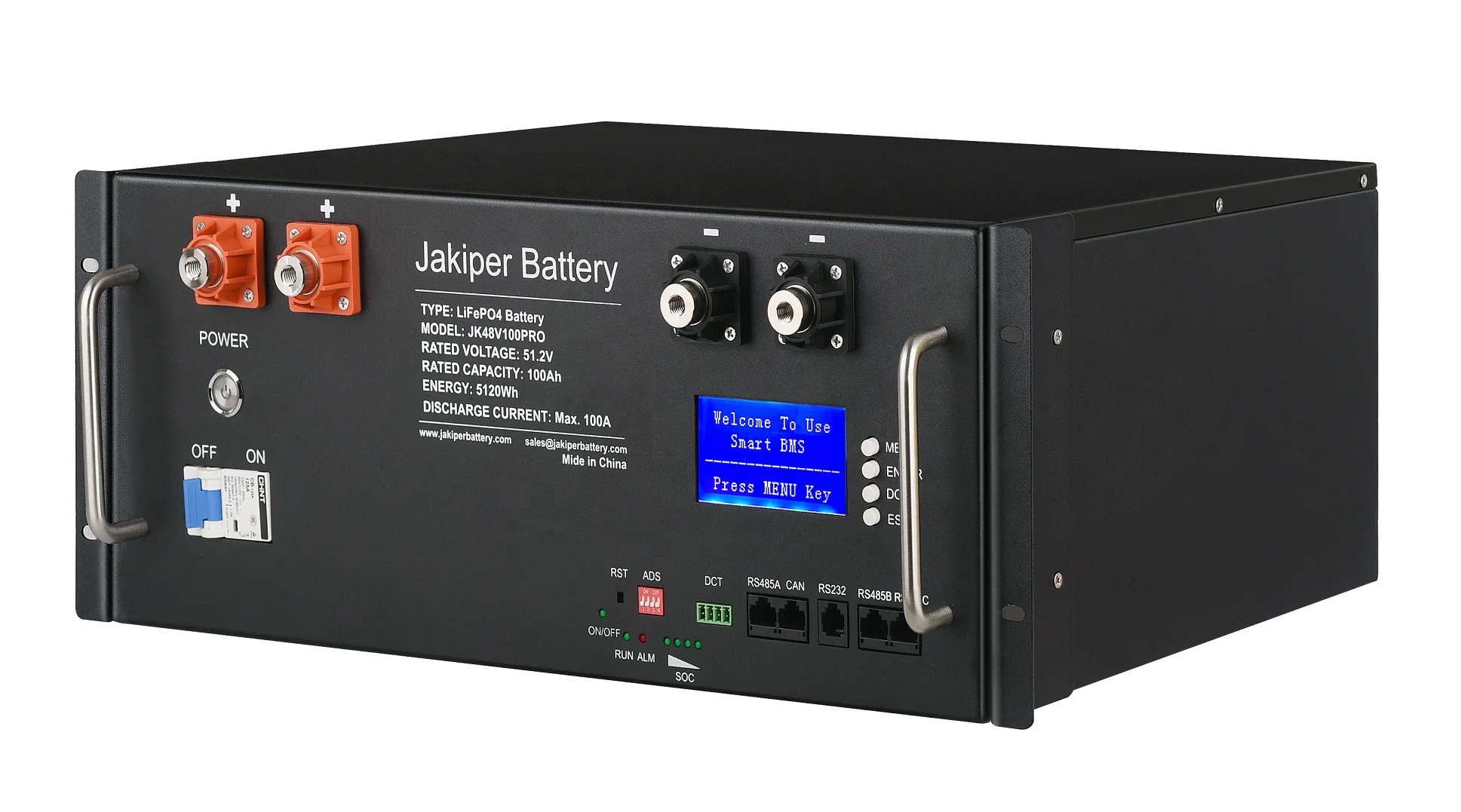

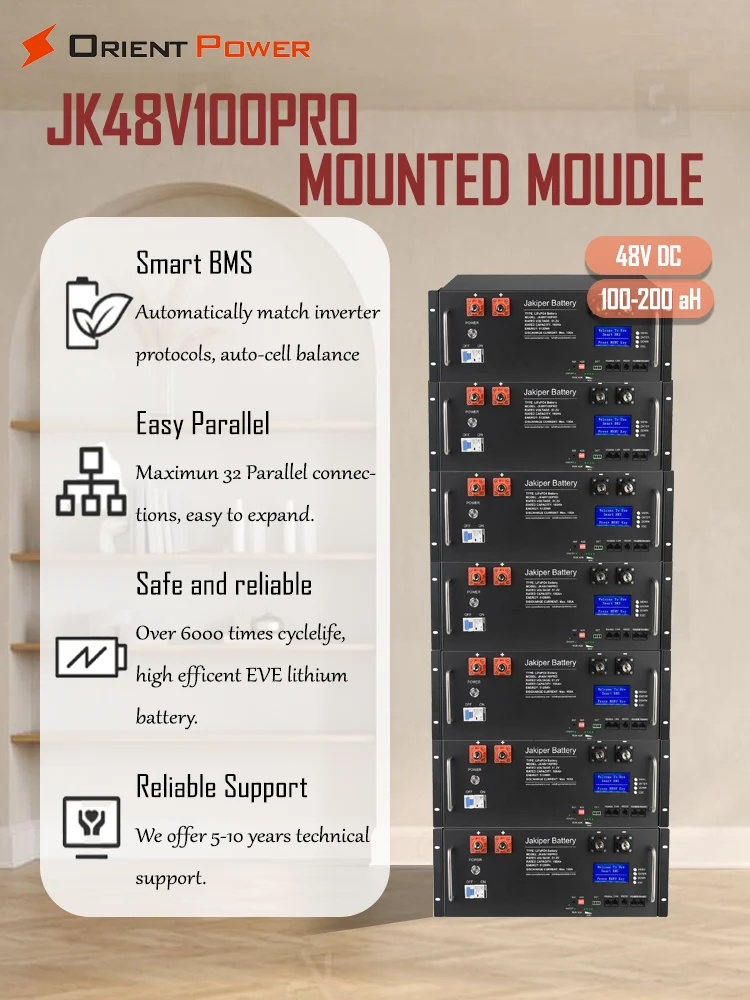

ORIENT POWER JK48V100PRO 5kw 10kw Solar Energy Storage Systems Battery LiFePO4 for cheaper batteries than SOK EG4 Battery
- Category: >>>
- Supplier: Zhuhai Ote Electronic Technology Co. Ltd.
Share on (1600949763384):
Product Overview
Description
Product Description

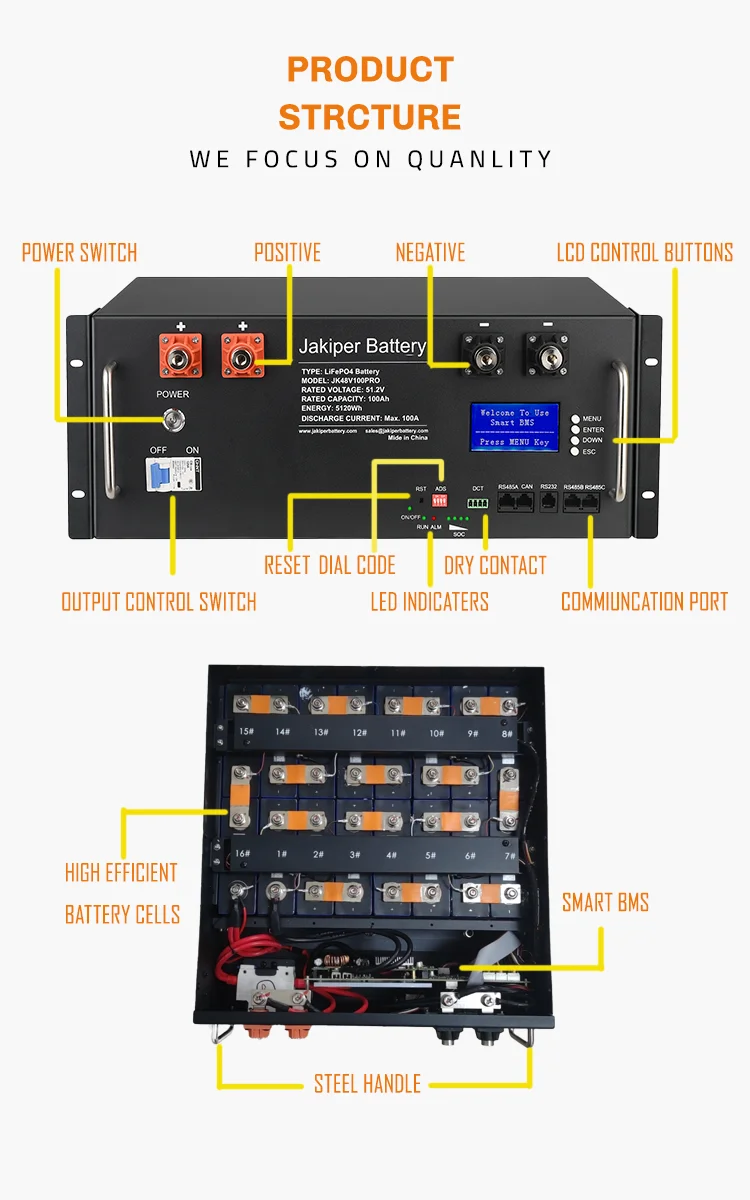

FEATURES AT A GLANCE
left view

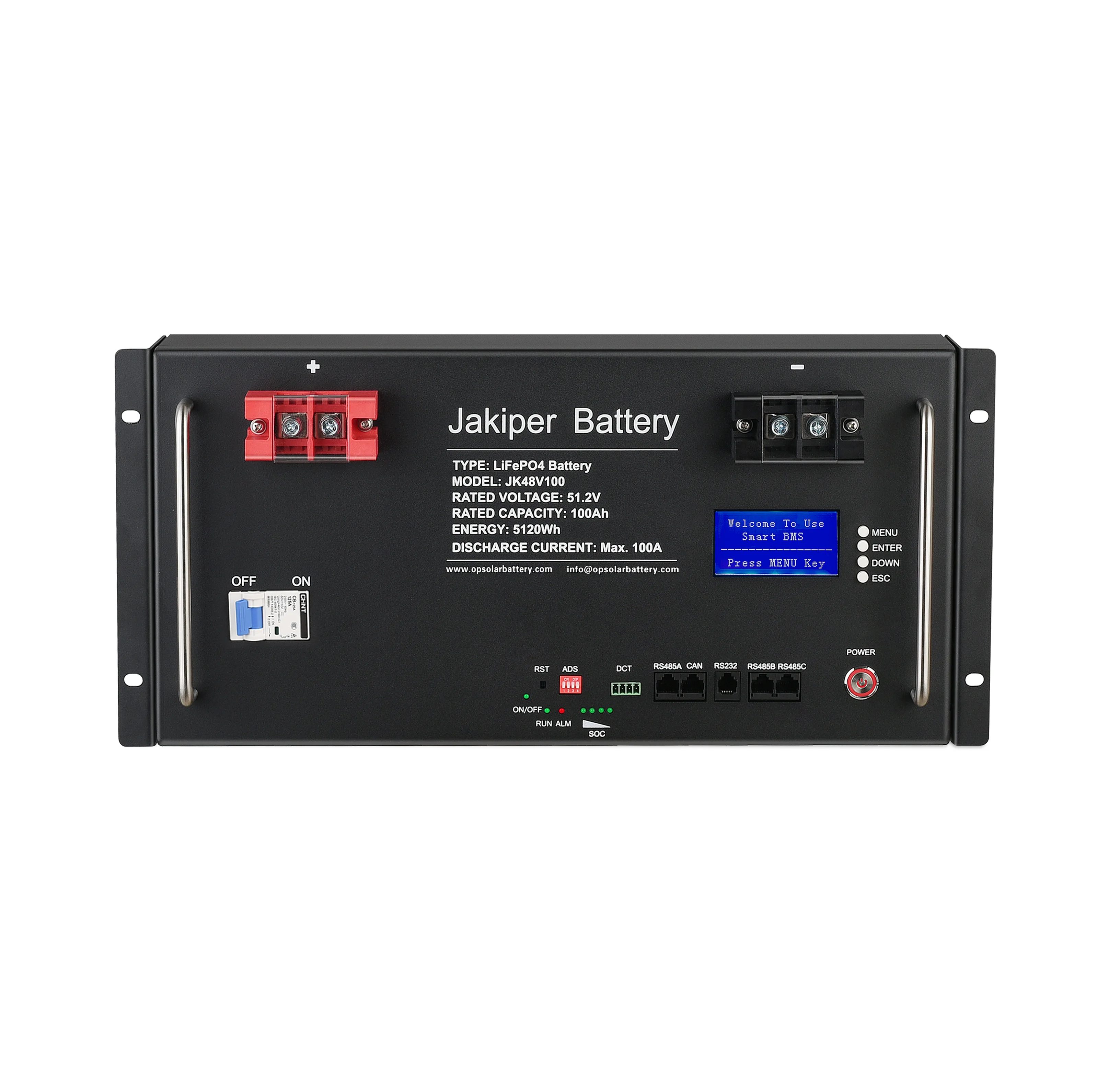

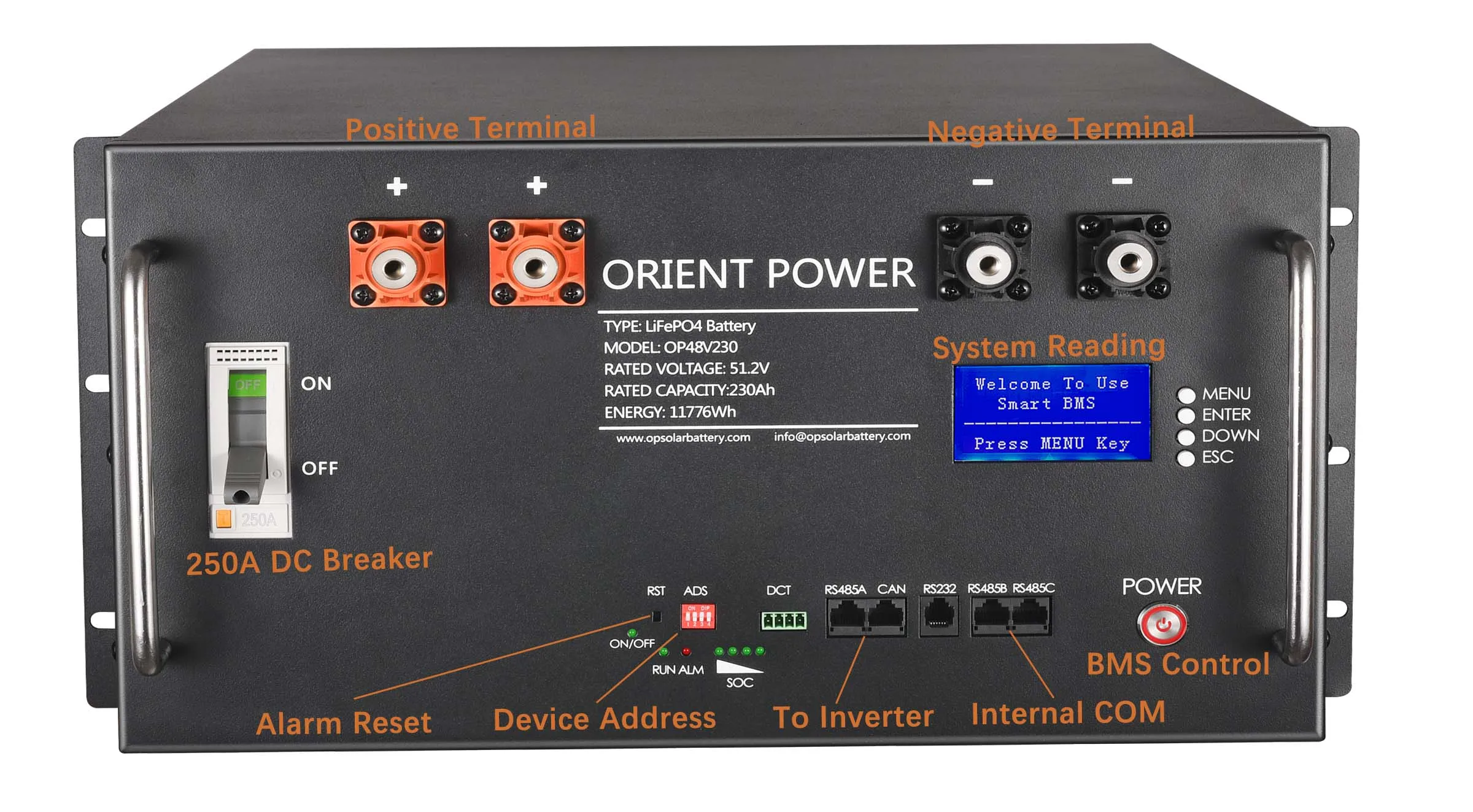

front view
right view

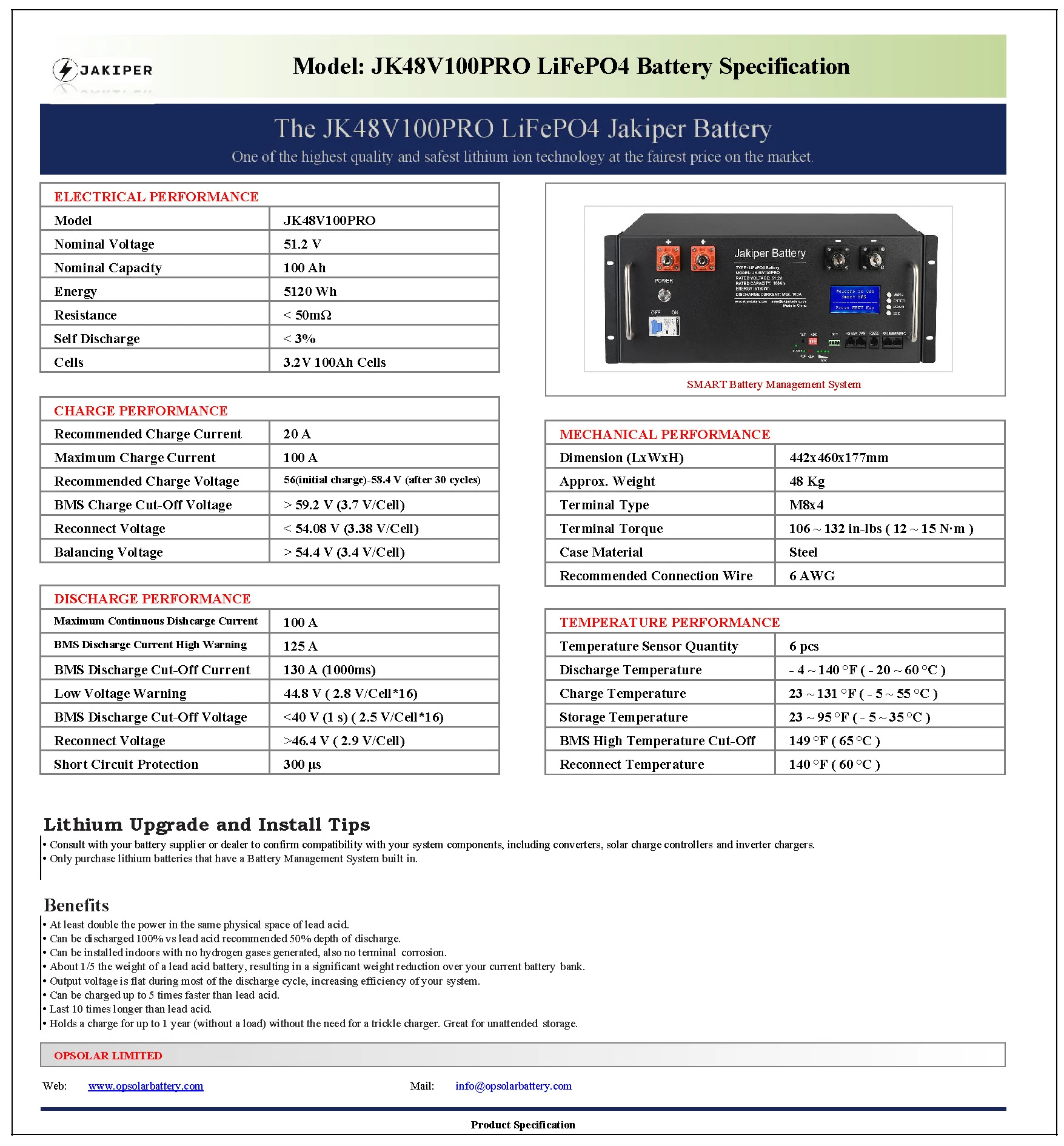

PRODUCT SPECIFICATIONS
ELECTRICAL PERFORMANCE | ||||||||||||||||||
Model | JK48V100PRO | |||||||||||||||||
Nominal Voltage | 51.2 V | |||||||||||||||||
Nominal Capacity | 100 Ah | |||||||||||||||||
Energy | 5120 Wh | |||||||||||||||||
Resistance | < 50mΩ | |||||||||||||||||
Self Discharge | < 3% | |||||||||||||||||
Cells | 3.2V 100Ah Cells | |||||||||||||||||
CHARGE PERFORMANCE | ||||||||||||||||||
Recommended Charge Current | 20 A | |||||||||||||||||
Maximum Charge Current | 110 A | |||||||||||||||||
Recommended Charge Voltage | 56-58.4 V | |||||||||||||||||
BMS Charge Cut-Off Voltage | > 58.4V (or 3.7 V/Cell) | |||||||||||||||||
Reconnect Voltage | < 54V (or all cell <3.38 V) | |||||||||||||||||
Balancing Cell Voltage | > 3.3 V/Cell | |||||||||||||||||
DISCHARGE PERFORMANCE | ||||||||||||||||||
Max Continuous Dishcarge Current | 100 A | |||||||||||||||||
BMS Discharge Current High Warning | 105 A | |||||||||||||||||
BMS Discharge Cut-Off Current | 110 A (7000ms) | |||||||||||||||||
Low Voltage Warning | 44.8 V ( or Cell <2.8 V) | |||||||||||||||||
BMS Discharge Cut-Off Voltage | <43.2V (1 s) (or Cell <2.7 V) | |||||||||||||||||
Reconnect Voltage | >47.2 V ( or all cell >2.95 V) | |||||||||||||||||
Short Circuit Protection | 300 μs | |||||||||||||||||

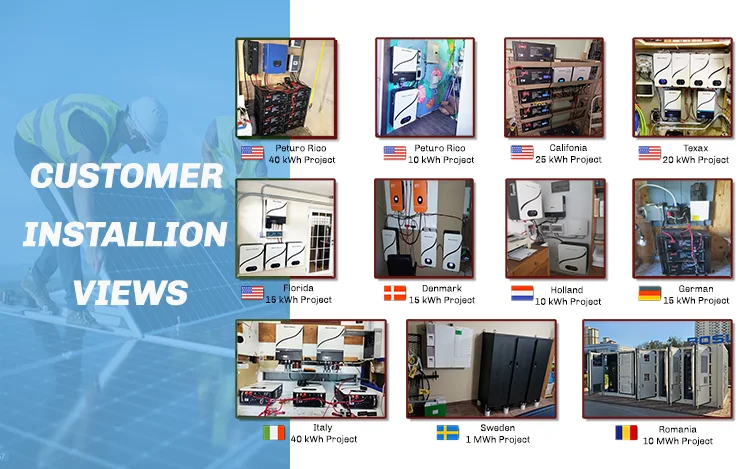

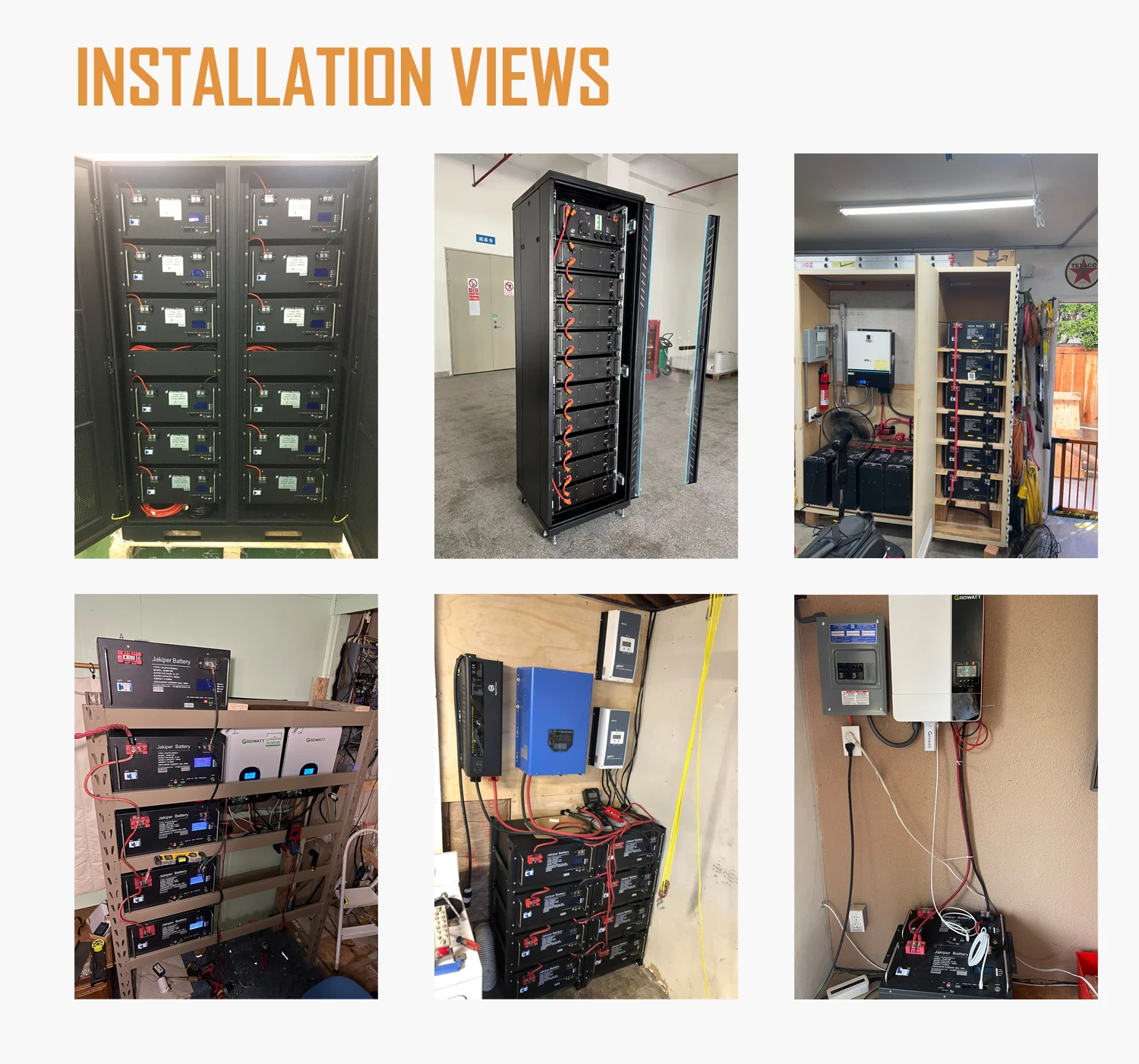

Successful Project
David Poz
Project in USA
Project in USA

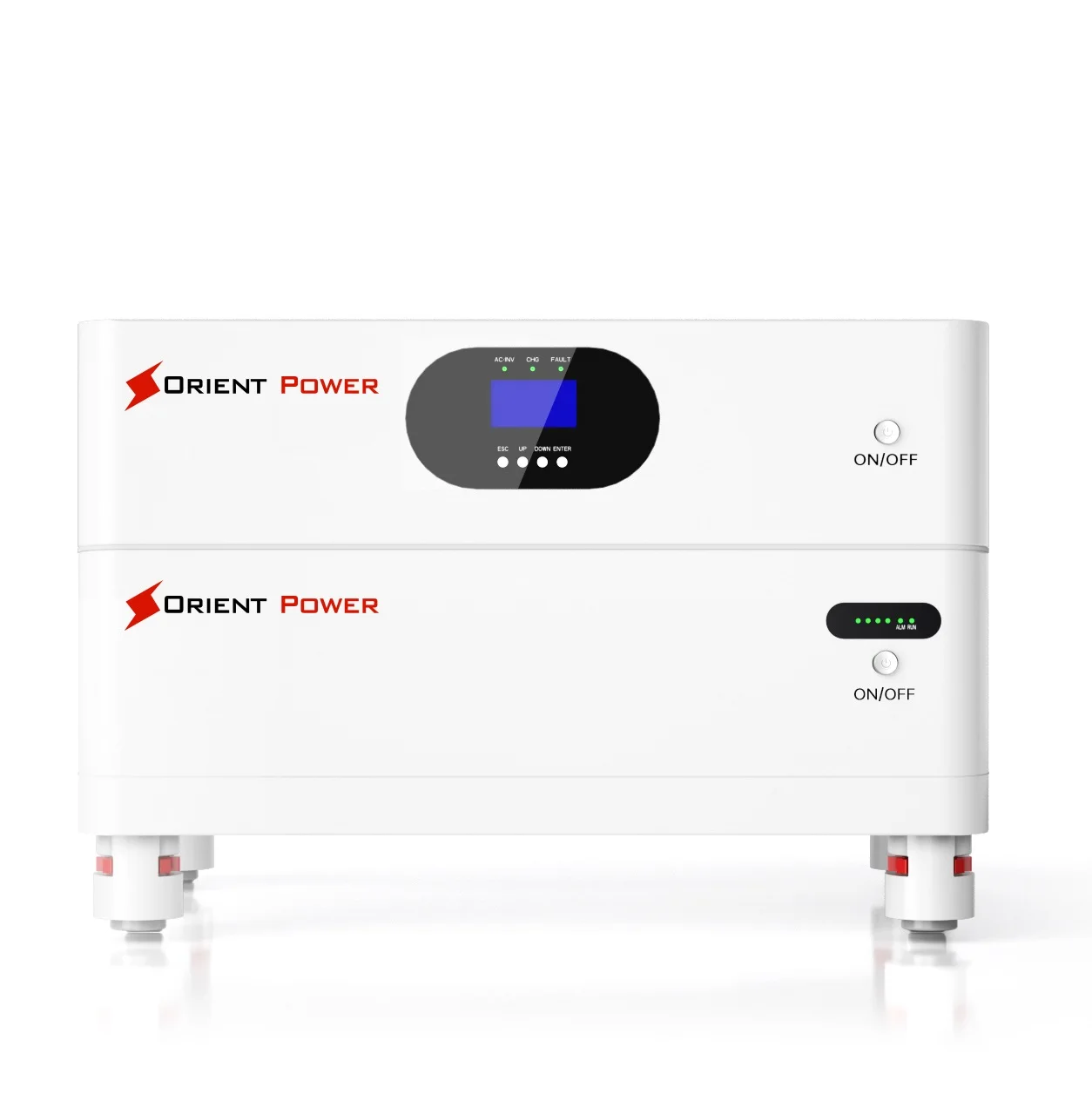

SIMILAR PRODUCTS

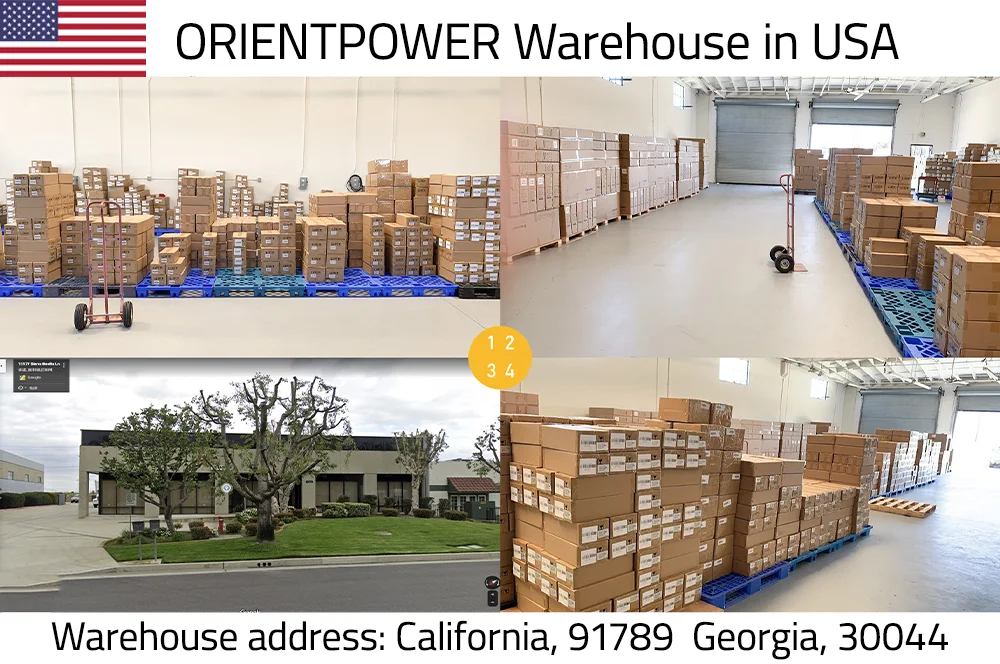

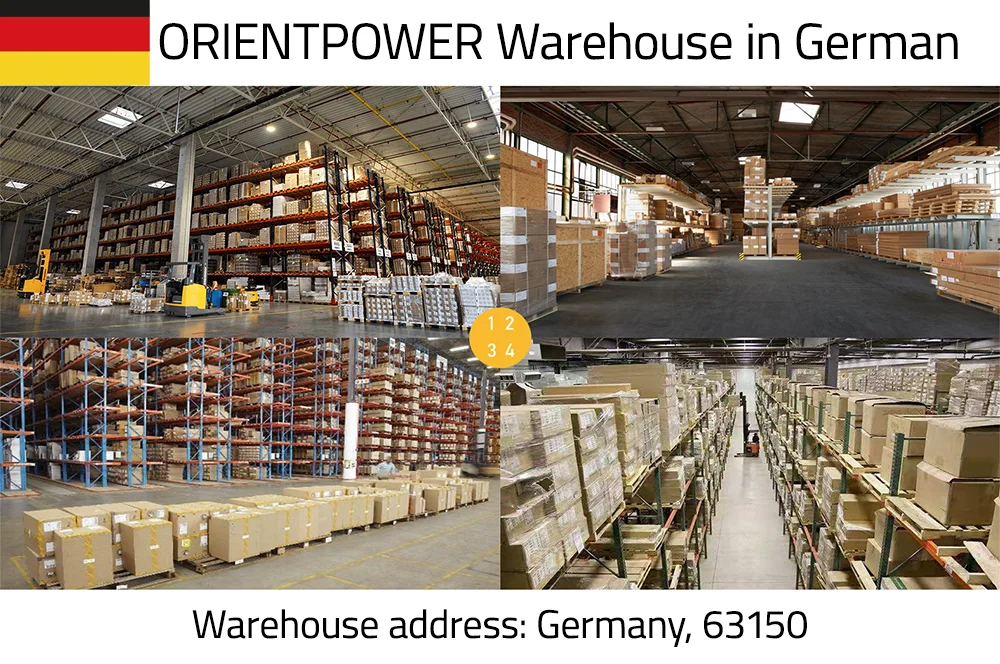

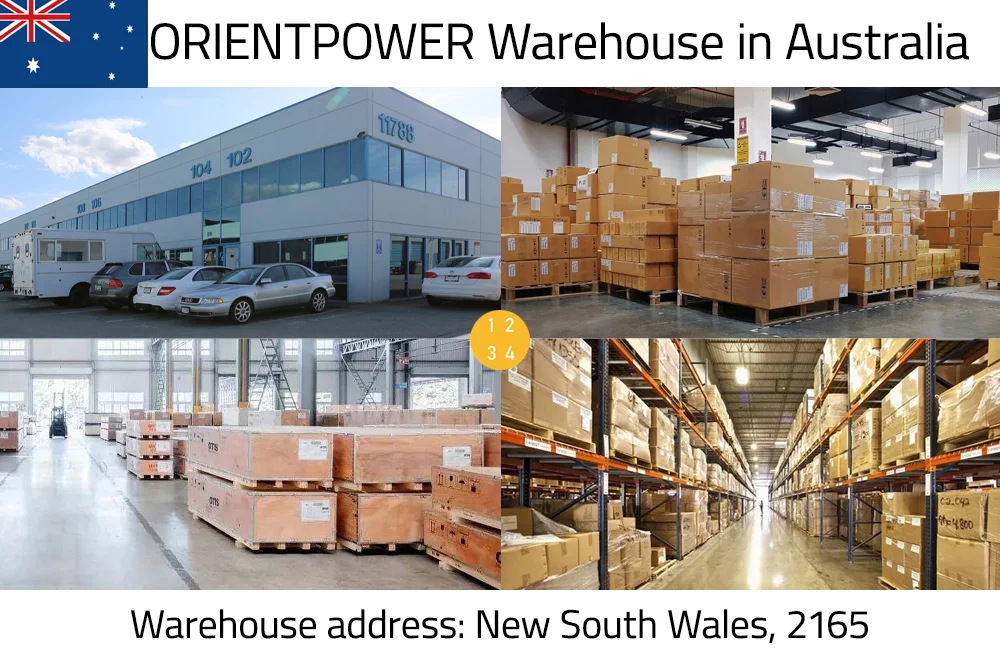

Warehoue located in USA, Canada, Australia, Germany, Romania, UK.
Professional in Batteries
Orient Power is one of the earliest seller that sell LiFePO4 cell on Amazon US, and one of the earliest bring Server Rack & Powerwall Battery to US Market.Powerwall Battery
Off Grid DiY Setup, Hawaii
"I distribute for Orient here in Hawaii and this is yet another one of my customers projects."
"I distribute for Orient here in Hawaii and this is yet another one of my customers projects."
Server Rack Battery
Allen, USA
"I ordered qty 10 of the 4U | JK48V100PRO 51.2V 100Ah Server Rack LiFePO4 Battery’s. They arrived in a large plywood crate and were in perfec..."
"I ordered qty 10 of the 4U | JK48V100PRO 51.2V 100Ah Server Rack LiFePO4 Battery’s. They arrived in a large plywood crate and were in perfec..."
Will Prowse, USA
Tested more than any other batteriesCompany Profile
