Fully automatic 2000BPH 2cavitys plastic bottle making machine for water bottle blow molding machine
- Category: >>>
- Supplier: Zhangjiagang Eceng Machinery Co. Ltd.
Share on (1600949824040):
Product Overview
Description
bottle moulding machine PET blow molding machinery 1L 2L 0.75L 0.5L bottles blowing machines 2 cavity
specification
Item | YCQ-2L-2 | ||
Bottle type specification | Cavity | 2 | |
Theory output | 2000 | ||
Max.volume | 2L | ||
Bottle mouth maximum overall diameter | 80mm | ||
Bottle biggest diameter | 100mm | ||
Bottle maximum height | 330mm | ||
Power specification | Light tube quantity | 32pcs | |
Light tube power | 0.75KW | ||
Maximum heating power | 24KW | ||
All electric machine installation | 27KW | ||
Actual consumption | 19KW | ||
Air pressure specification | Work pressure | 7-9kg/cm2 | |
Low-pressure gas consumption | 1000L/min | ||
Blow bottle pressure | 25-35kg/cm2 | ||
Higher -pressure gas consumption | 1500Ltr/min | ||
Air pressure specification | Work pressure | 5-6 kg/cm2 | |
Temperature range | 10℃ | ||
Consumption | 5000kcal/hr | ||
Frozen water flow | 30L/min | ||
Machine specification | Machine size | 2.25x1.6x1.7 | |
Machine weight | 2.5ton | ||

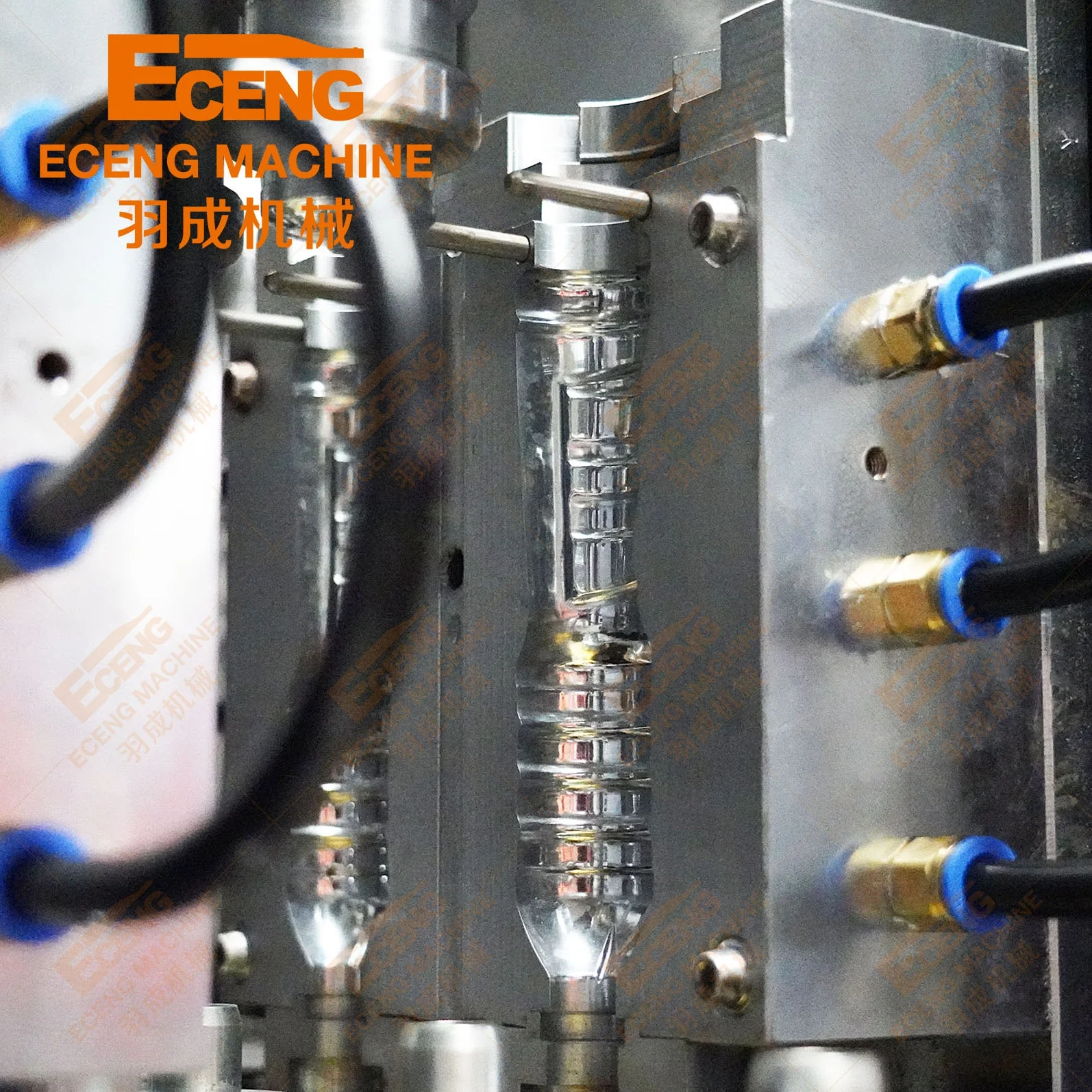

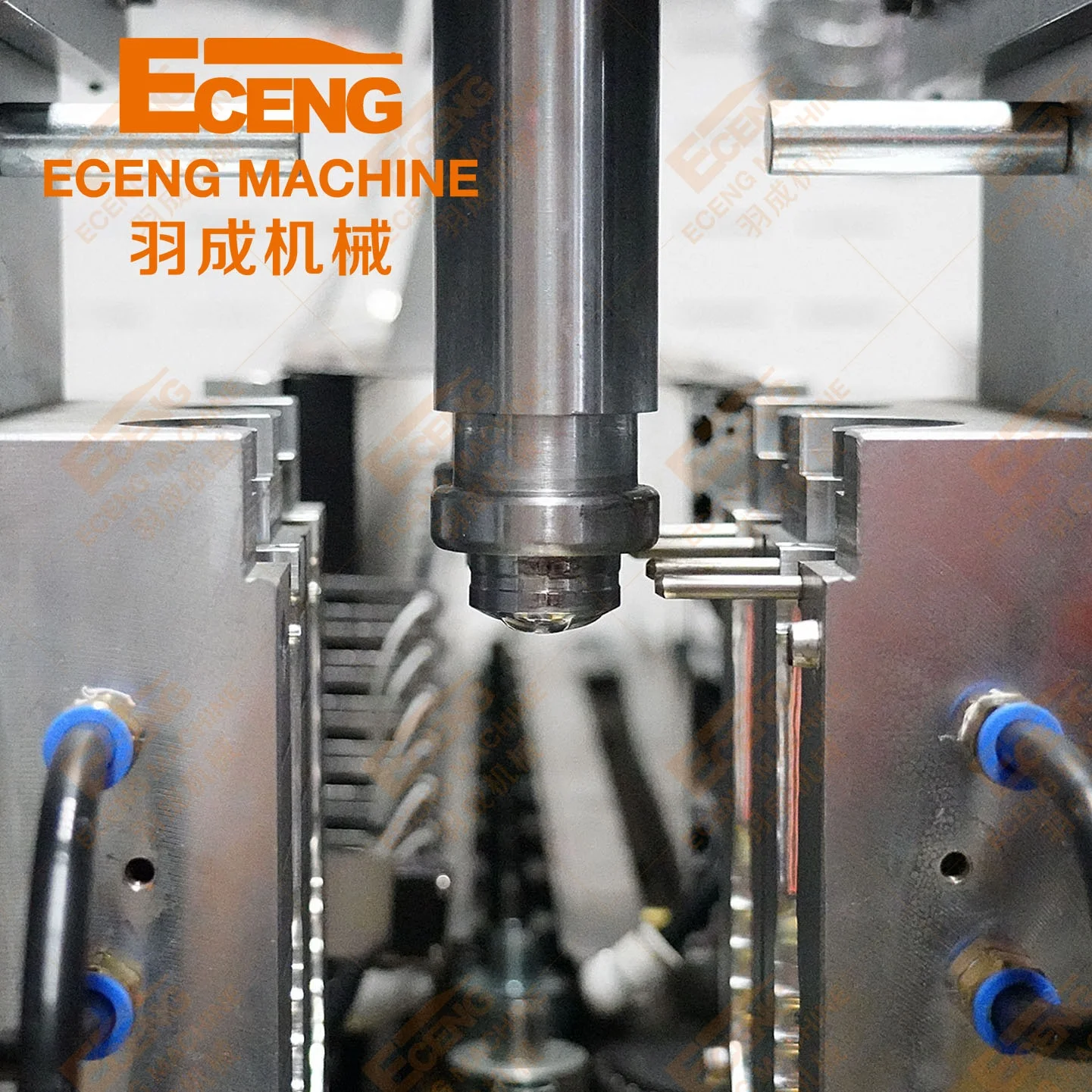

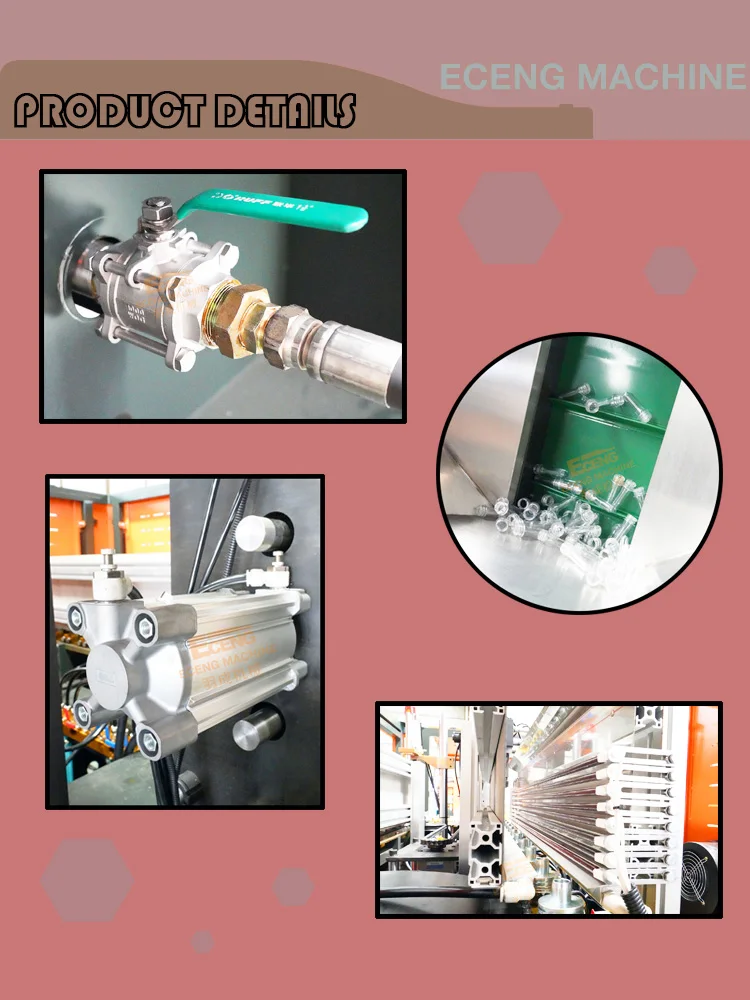

Detailed Images

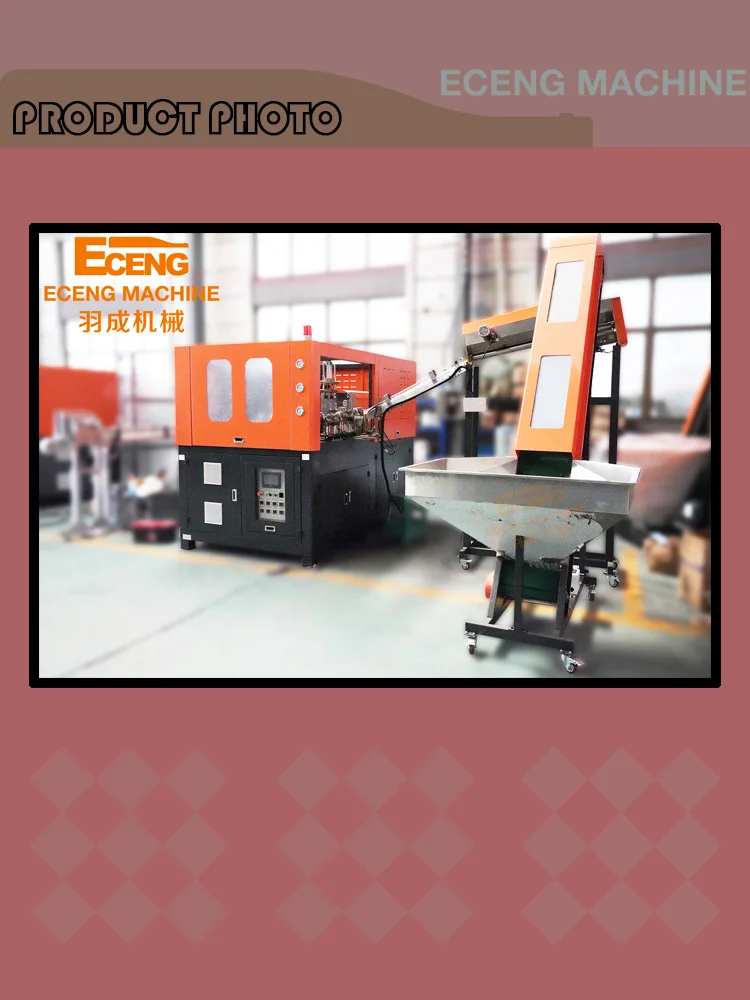

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed
of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated
beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic
bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Feature:
A. Advanced PLC control system, stable and excellent performance.
B. Conveyor belt automatically feeds preforms.

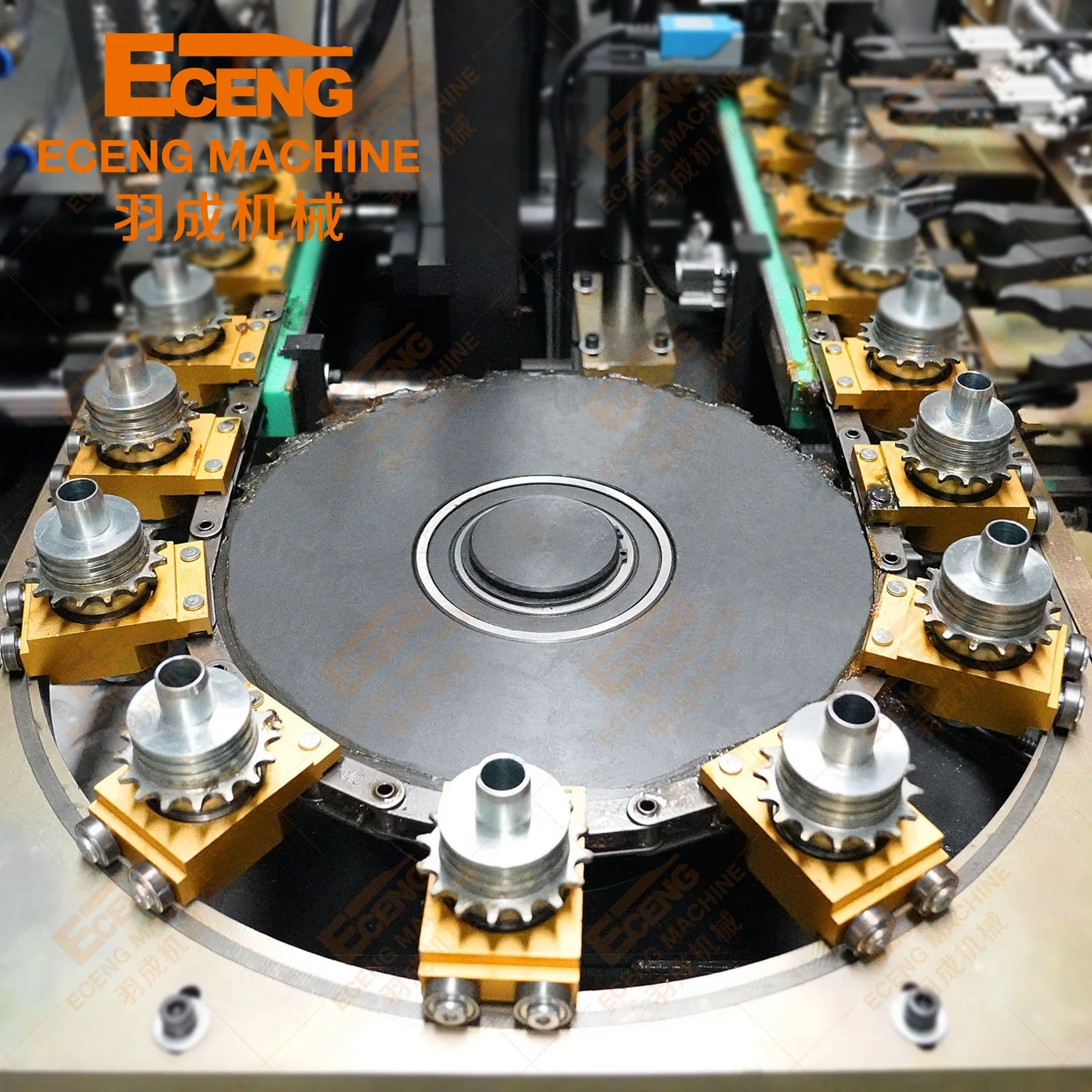

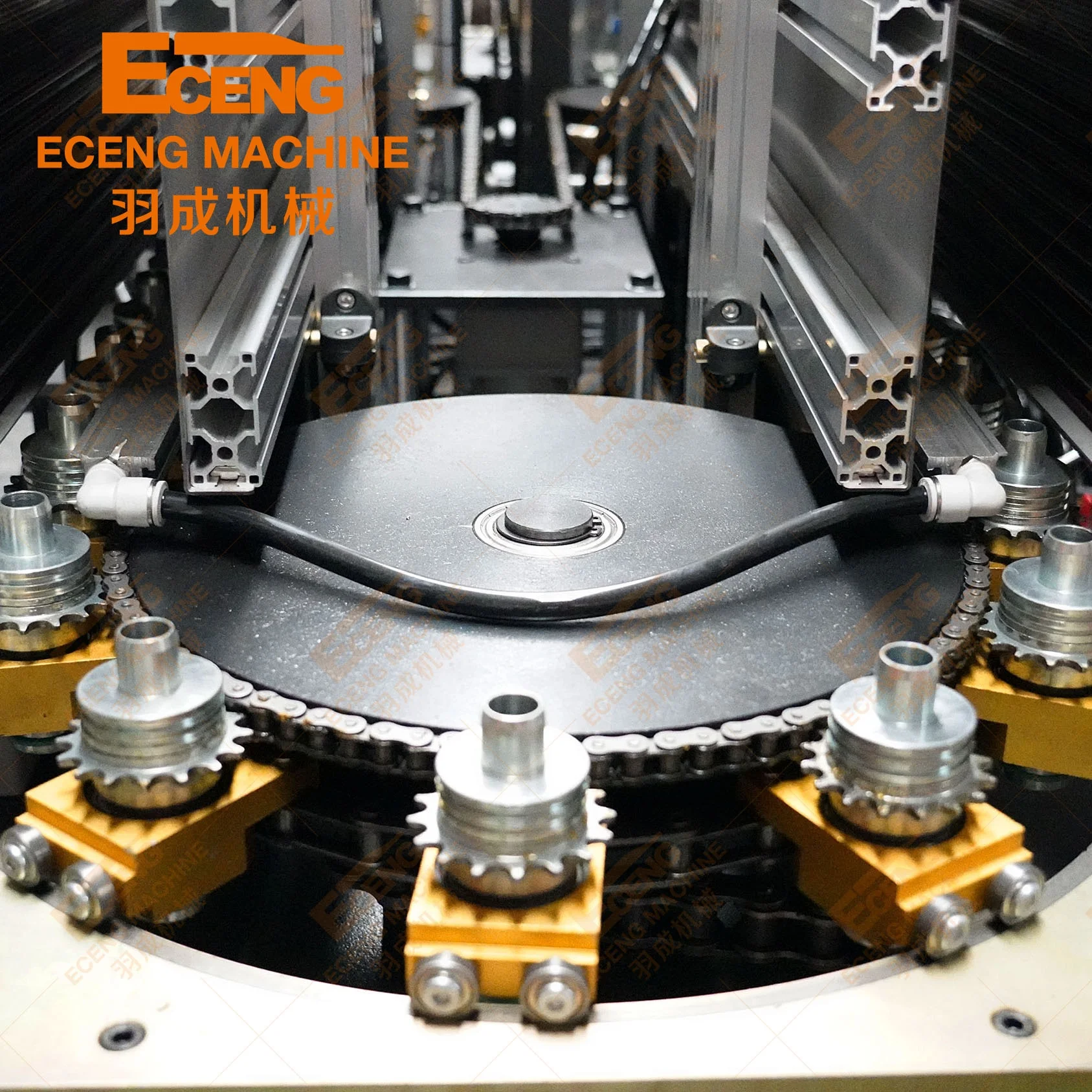

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously inthe infrared pre-heater.
D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature
device,temperature is kept within a certain range.
E. Safety locks are provided during each mechanical action to protect operator's safety.
F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.
G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

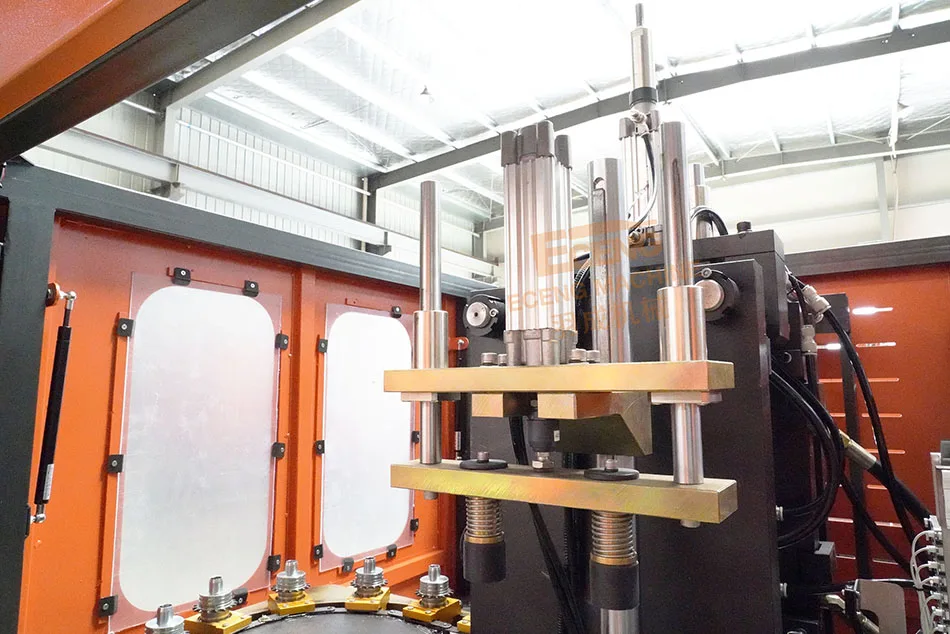

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, unique valve position design makes blowing process easier to control.
K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.
L. Avoid bottle contamination.
M. Protection of low temperature cooling system.
N. Easy to install and start.
O. Low scrap rate.
Product Description

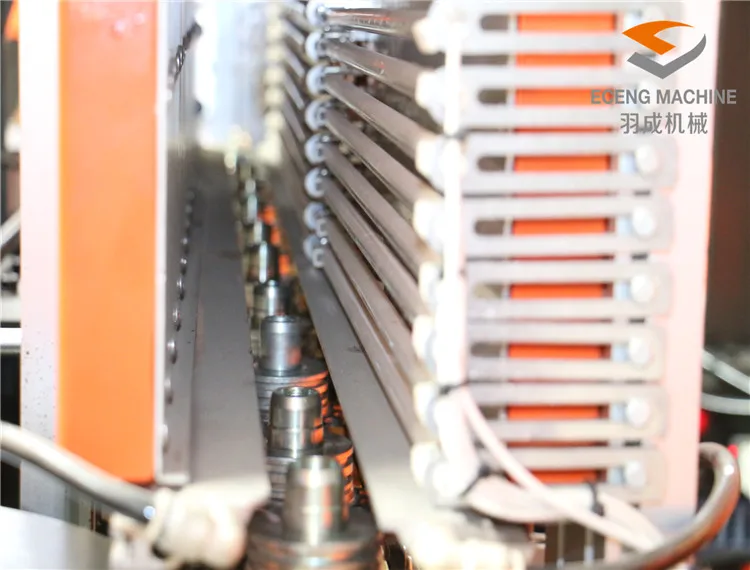

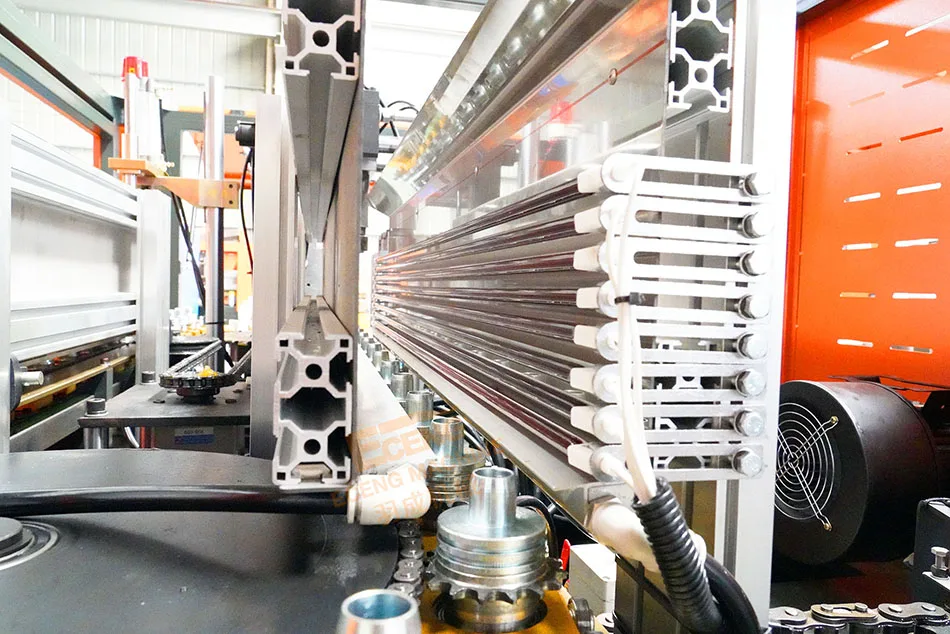

YCQ automatic stretch blow molding machine adopts infrared type heating mode, whose superior thermal-radiation and thermal
penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving. Infrared
heating lamps placed onto three heating zone with 10 sets of independent voltage adjusting module and advanced microcomputer
controller, can offer ideal heating for preform in different size. Each lamp's horizontal position is adjustable to keep the
machine flexible.
penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving. Infrared
heating lamps placed onto three heating zone with 10 sets of independent voltage adjusting module and advanced microcomputer
controller, can offer ideal heating for preform in different size. Each lamp's horizontal position is adjustable to keep the
machine flexible.
Company Introduction
Packing&Shipping
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
