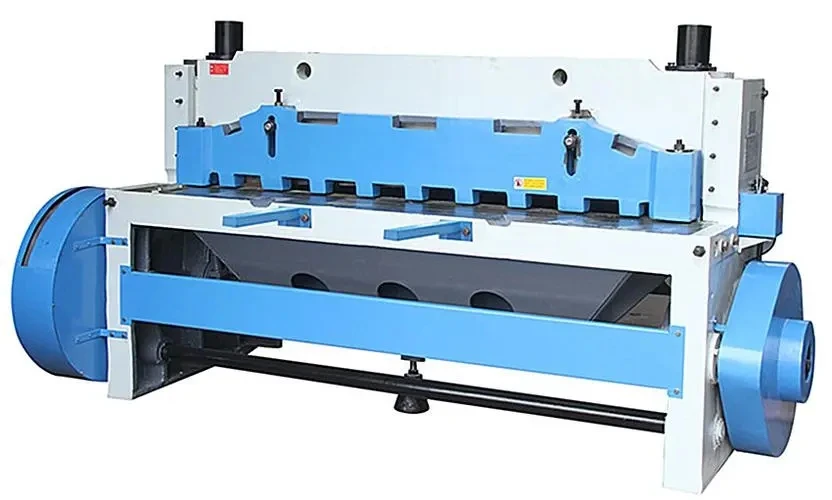

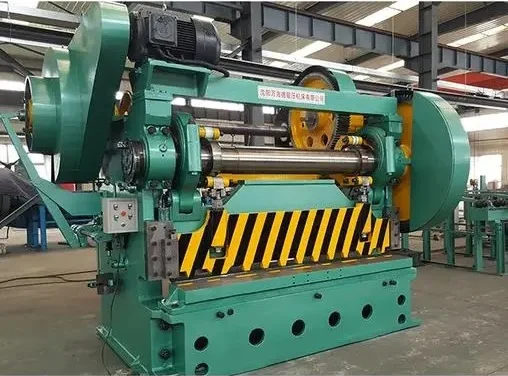

Large mechanical shears, all casting mechanical shears

Product Overview

Description

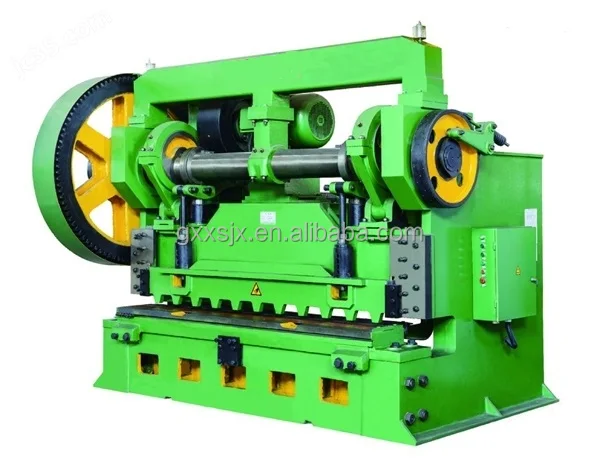

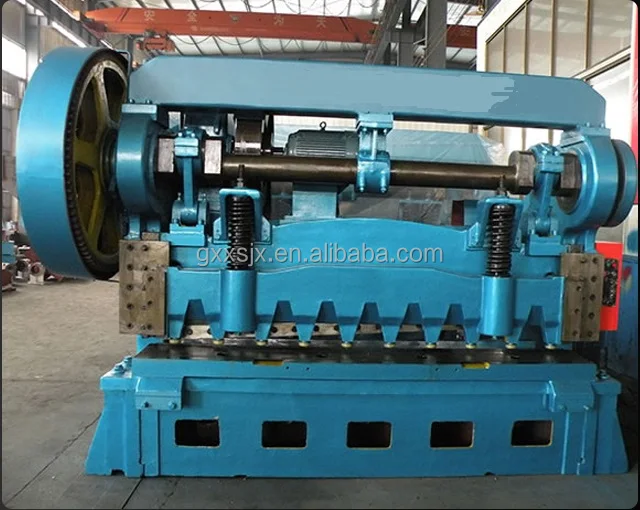

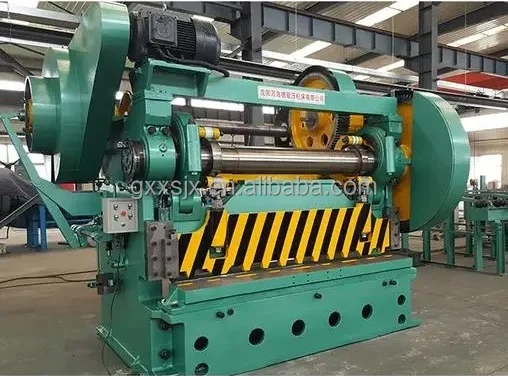

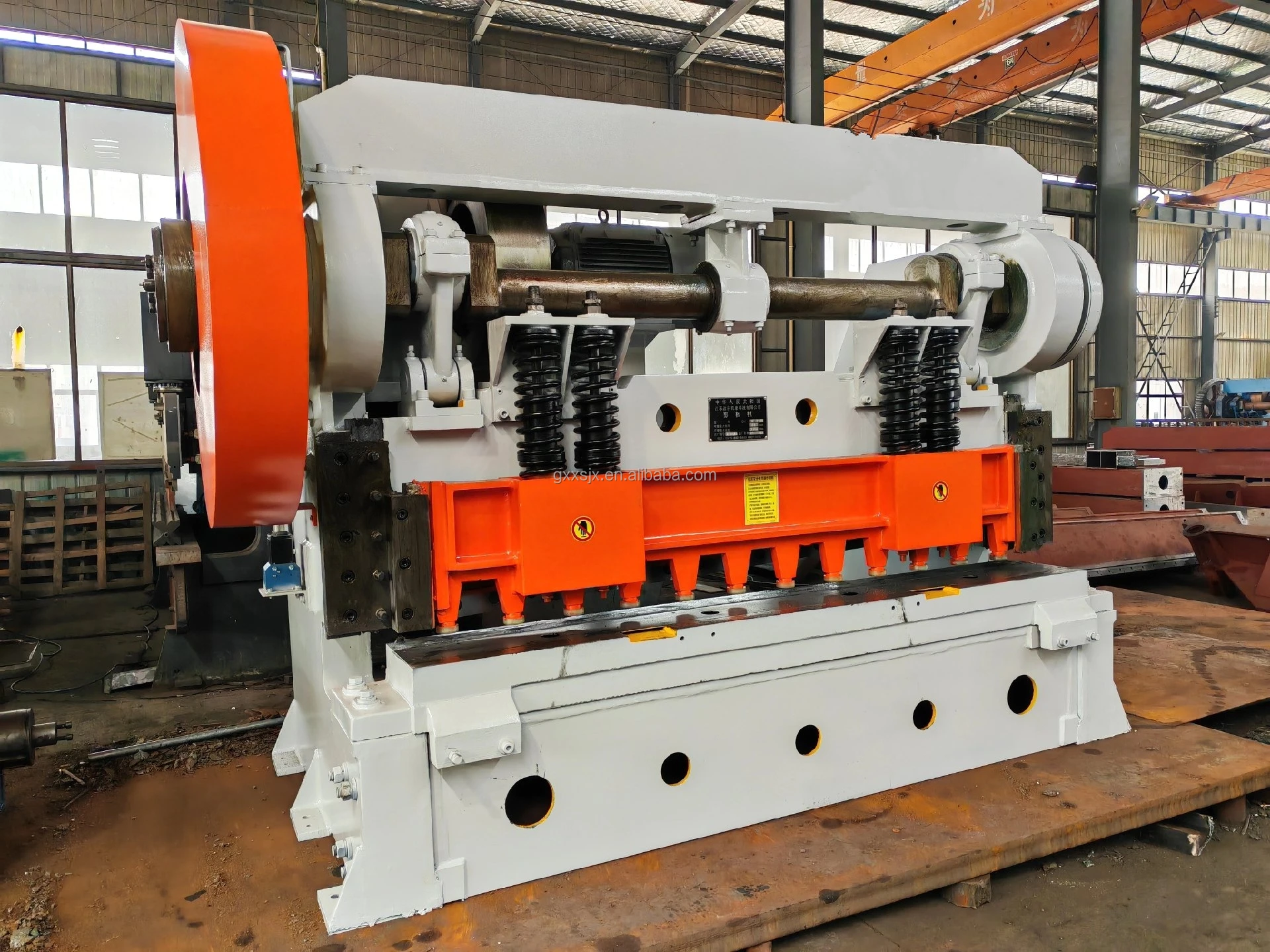

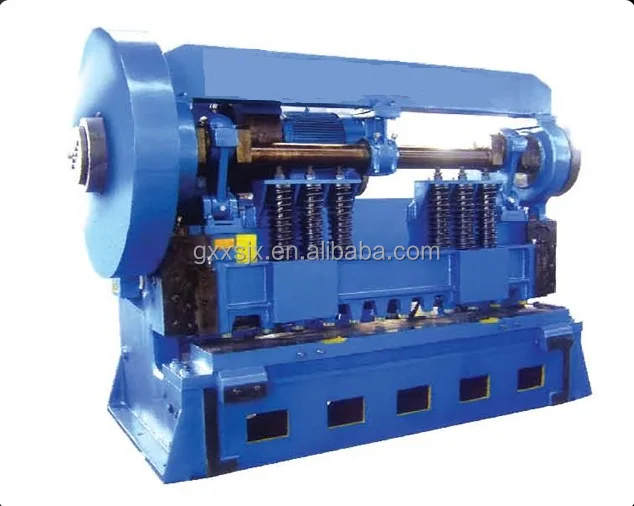

Q11-20 * 2500(up transmission) mechanical shearing machine spindle eccentric wheel frame structure, electrical control, through the combination and separation of key to achieve the goal of shear. Under 10mm specification for double bearing, one-stage open, one-stage closed gear transmission, with reliable positioning of the material pressure and good rigidity.



Product name			Mechanical shears
Model specifications			Q11-20×2500
Can cut the thickness of Big Board		mm	20
It can be cut wide		mm	2500
Sheet strength		MPa	≤450
Depth of throat opening		mm	300
Shear angle		°	3°
Number of times it can be cut		Min-	6
Number of trips		Min-	28
Flywheel speed		rpm	980
Pressure		KN	96
Column spacing		mm	2622
Large back gauge distance		mm	750
Blade length		mm	2540
The working table is away from the ground		mm	675
Motor	Models		Y225M-6
	Power	kW	30
	Number of revolutions	rpm	980
External dimensions	Long	mm	3749
	Wide	mm	2574
	High	mm	2590
Weight of machine tool		kg	17000



Why Choose Us?

•  We have our own factory and strong production capacity.


•  we insist on good quality and have strict quality standards


•  The hiring of experienced staff to guarantee high quality.


•  Our product can be made as per your requirement .


•  24 hour online communication for you.


•  We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

    2. the CNC system you preferred if you need CNC type

    3. the work piece drawing if you have



Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.



Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.



Q: What’s the MOQ?

A: The MOQ is 1 set.



Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.





If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
