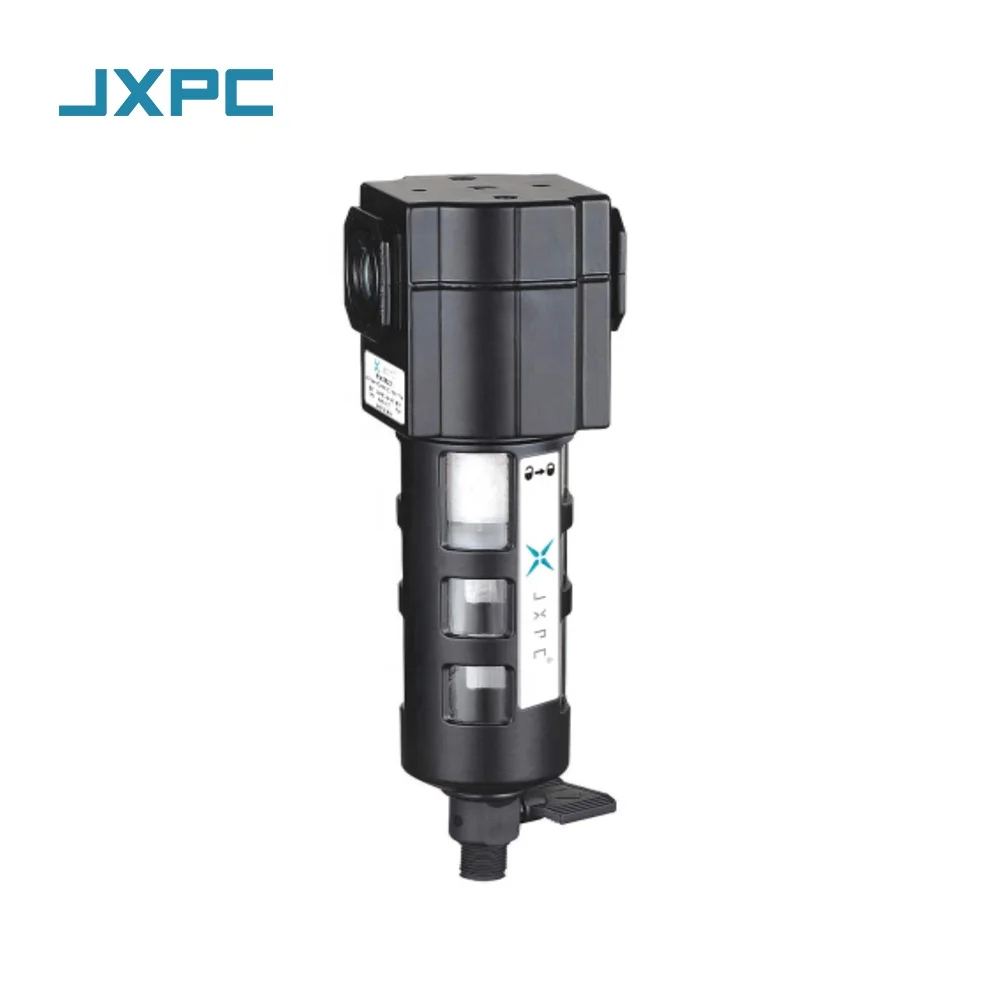

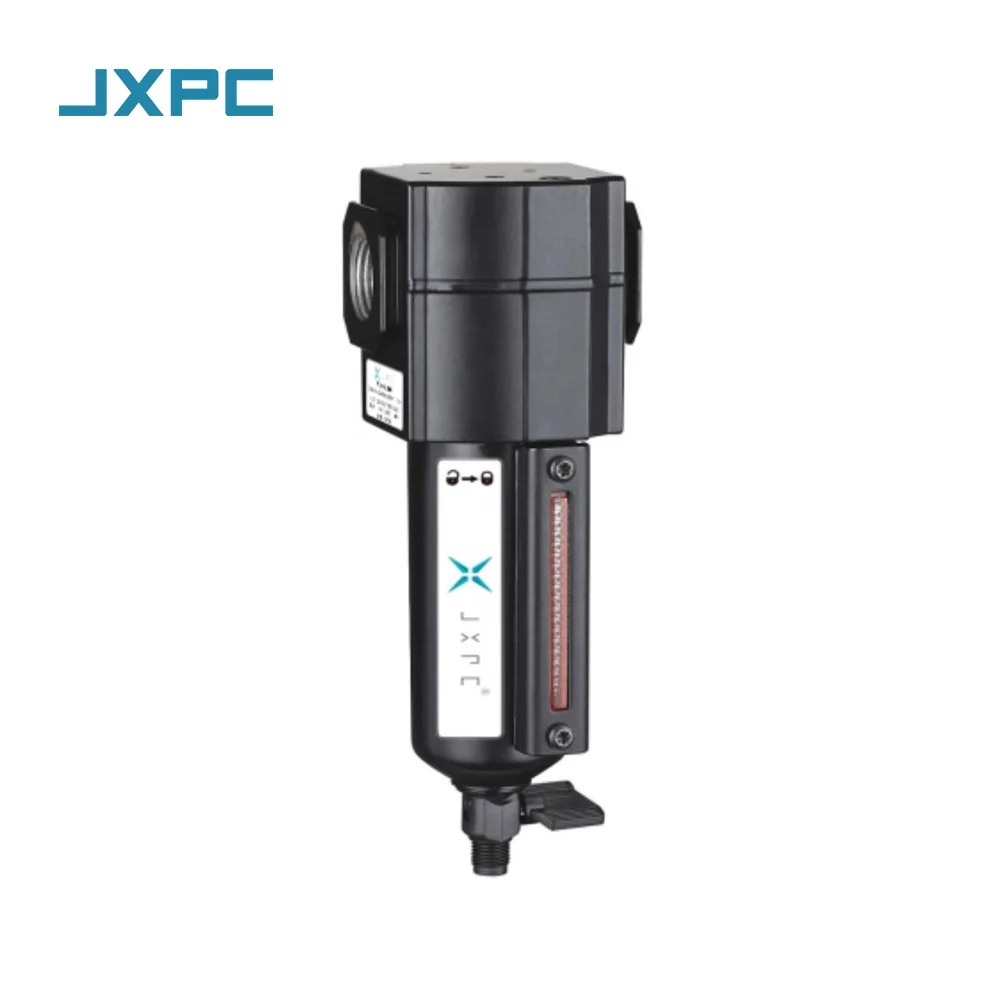

Modular Design High Quality 4Z Series Air Pneumatic Filter
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.Ningbo Ltd.
Share on (1600950147350):
Product Overview
Description
Product Description
Technical Data:
Max. Working Pressure:10bar/150psi
17bar/250psi
Temperature:5-80
Plastic or metal Bowl Optional
5um and 40um filter element optional
Modular design
Pressure up to 17bar/250psi
Auto drain optional

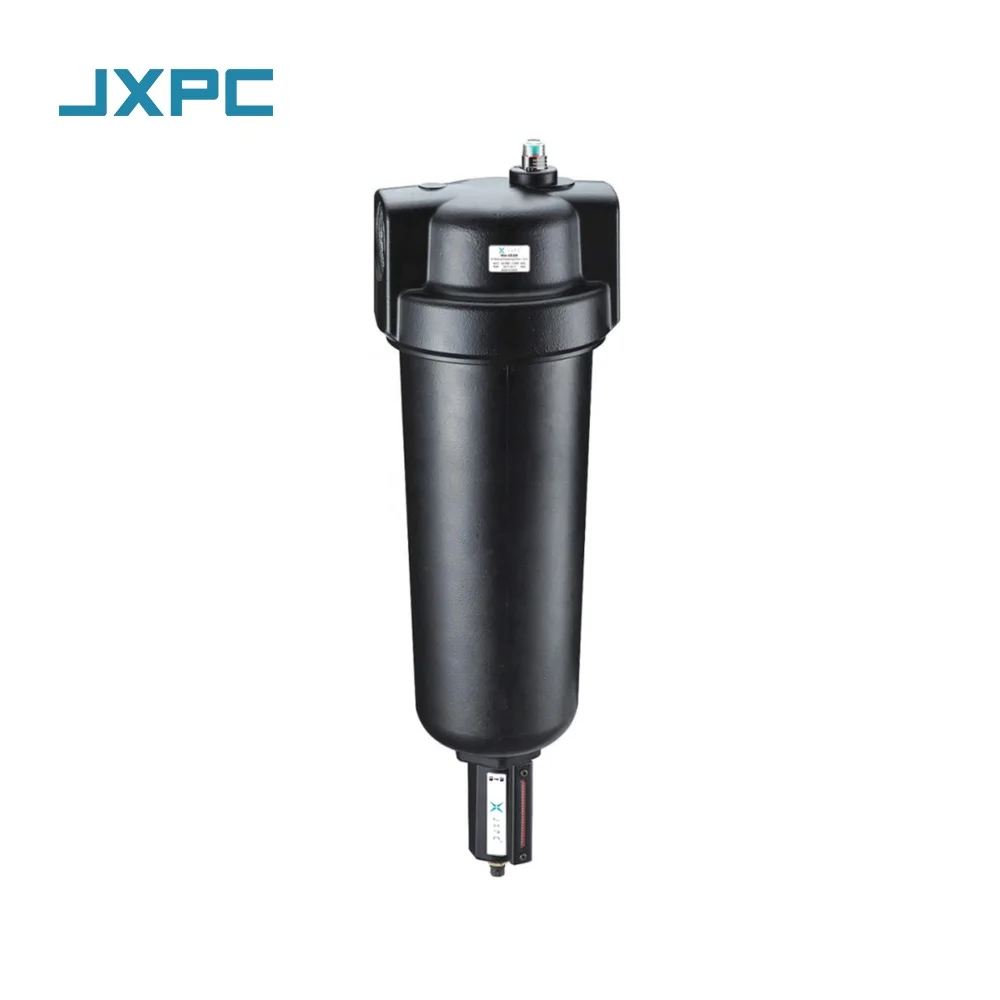

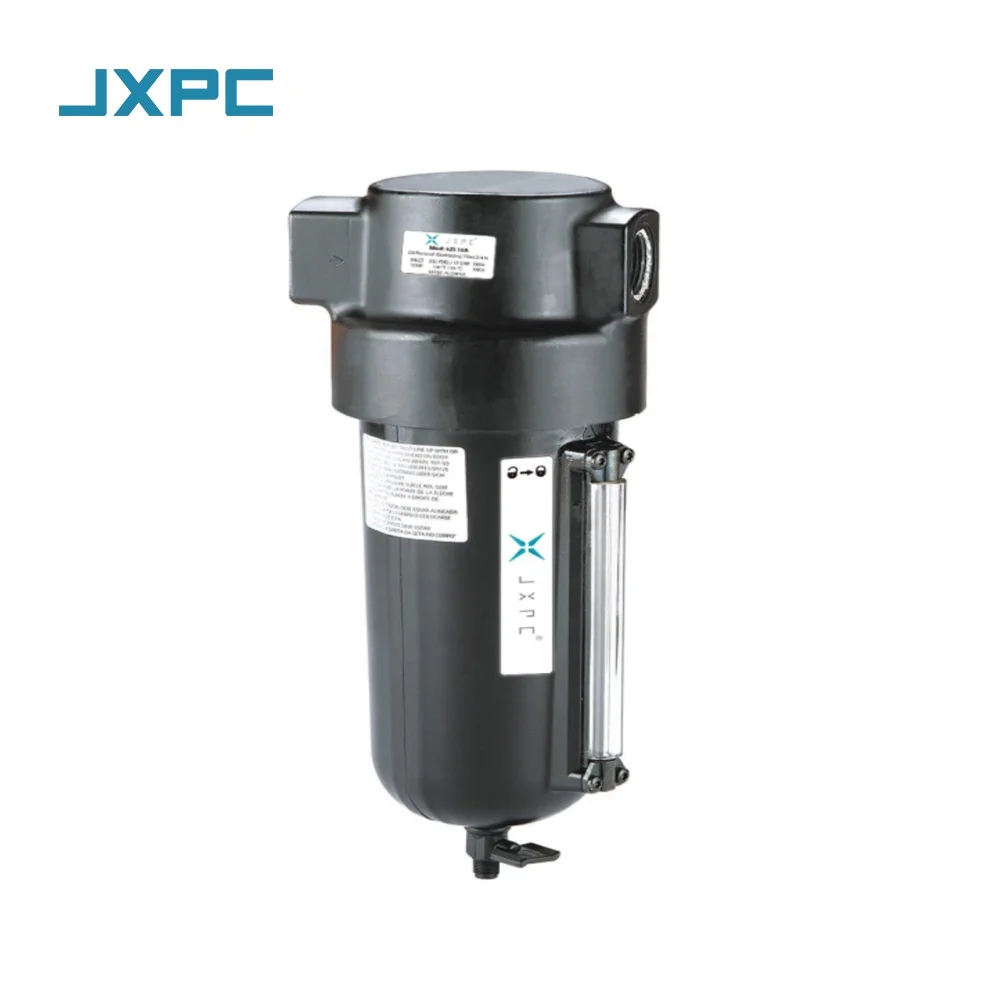

| Specification for Metal Cup | 4Z Series Air Filter | ||||||||||
| Compact | Intermediate | Standard | Heavy Duty | ||||||||
| Model Type | 4ZL27 | 4ZL29 | 4ZL37 | 4ZL39 | 4ZL41 | 4ZL47 | 4ZL49 | 4ZL51 | 4ZL09 | 4ZL10 | 4ZL11 |
| Medium | Compressed Air | ||||||||||
| Filter Precision | 5um(40um is option) | ||||||||||
| Pressure Adjusting Range | 1MPa(150PSI) | ||||||||||
| Max. Working Pressure | 1.7MPa(250psi) | ||||||||||
| Working Temperature | 5-60 | ||||||||||
| Filter Bowl Capacity | 120 | 125 | 245 | 1200 | |||||||
| Flow Rate(cfm) | 55 | 55 | 53 | 65 | 69 | 112 | 140 | 140 | 325 | 425 | 425 |
| Weight(KG) | 0.66 | 0.66 | 0.61 | 0.61 | 0.58 | 0.75 | 0.73 | 0.73 | 2 | 2 | 2.1 |
| Port Size(NPT) | 1/4 | 3/8 | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | 1-1/2 |
| Container Cup Material | Metal cup,zinc alloy | Metal cup,aluminum die-casting | |||||||||

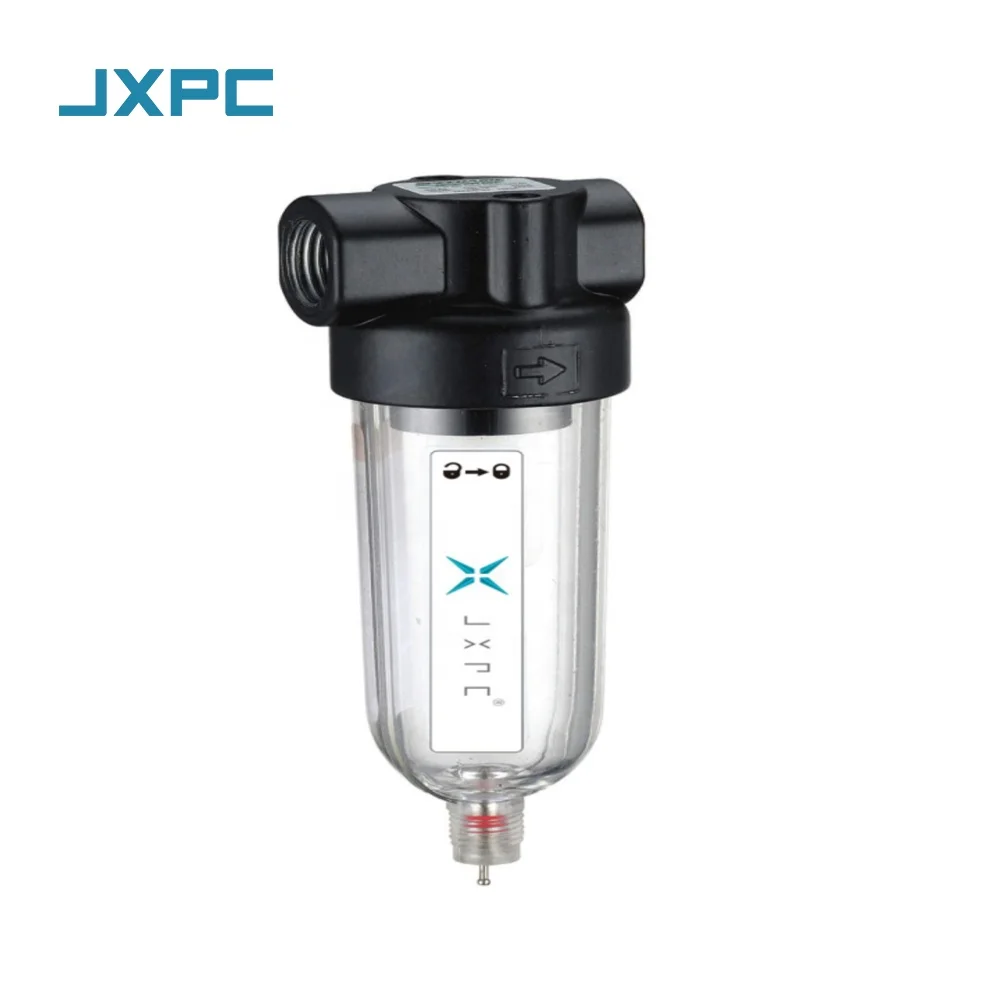

| Specification for Polycarbonate Cup | 4Z Series Air Filter | ||||||||||
| Minature | Compact | Intermediate | Standard | ||||||||
| Model Type | 4ZL07 | 4ZL08 | 4ZL28 | 4ZL30 | 4ZL38 | 4ZL40 | 4ZL42 | 4ZL48 | 4ZL50 | 4ZL52 | |
| Medium | Compressed Air | ||||||||||
| Filter Precision | 5um(40um is option) | ||||||||||
| Pressure Adjusting Range | 0.85MPa(125PSI) | ||||||||||
| Max. Working Pressure | 1.5MPa(220psi) | ||||||||||
| Working Temperature | 5-50 | ||||||||||
| Filter Bowl Capacity | 40 | 75 | 120 | 230 | |||||||
| Flow Rate(cfm) | 19 | 24 | 55 | 55 | 53 | 65 | 69 | 112 | 140 | 140 | |
| Weight(KG) | 0.14 | 0.14 | 0.58 | 0.59 | 0.61 | 0.6 | 0.58 | 0.75 | 0.73 | 0.73 | |
| Port Size(NPT) | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 3/4 | |
| Container Cup Material | water cup,polycarbonate | ||||||||||
