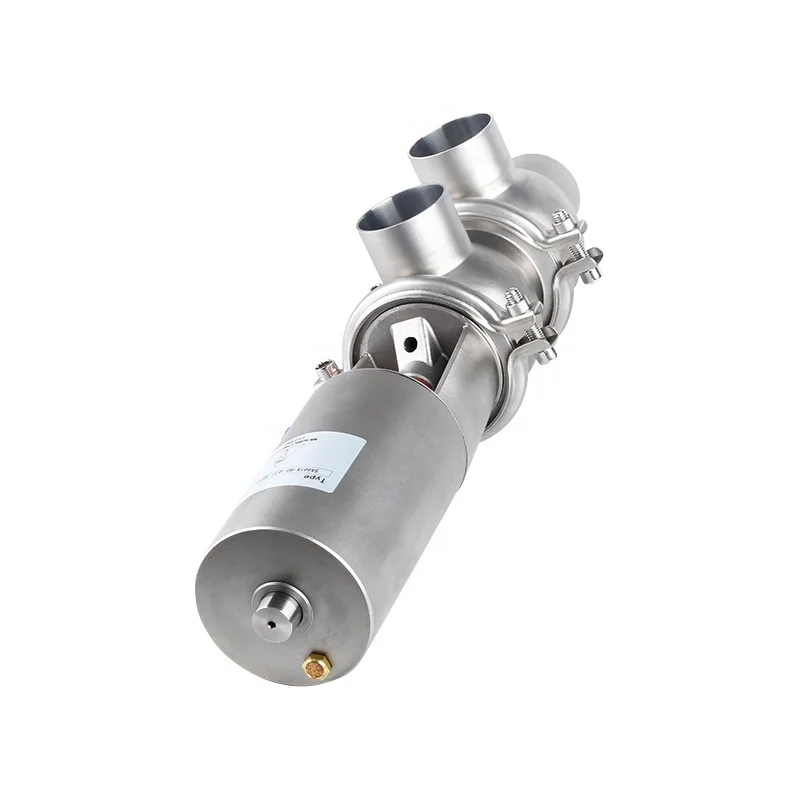

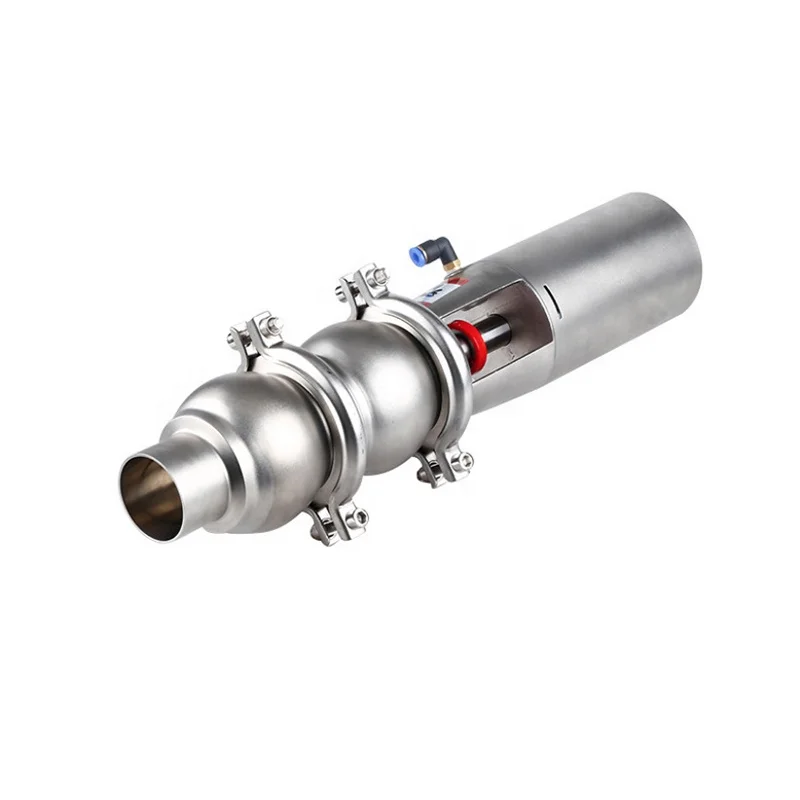

Sanitary Pneumatic Stop Divert Seat Cut off Reversing Valves Stainless Steel Valve
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.
Share on (1600950210689):
Product Overview
Description
Sanitary Pneumatic Stop Divert Seat Cut-off Reversing Valves Stainless Steel Valve
Product Description:
The hygienic sanitary shutoff divert valves are used to stop flow and change flow direction in stainless steel pipe systems for various hygienic industry applications. This kind of valve is operated by pneumatic actuator, and can also be installed with C-Top intelligent control head, to achieve more accurate and automatic operation.
Product Characteristics
1. Special application for various fluid mediums
2. Removable valve body with clamp connection
3. Diversity of pipe fittings (2-3 shutoff valves, 3-5 divert valves)
4. Freely and easily switch between manual and pneumatic modes
5. Anti-water hammer, no noise, reliable sealing performance
2. Removable valve body with clamp connection
3. Diversity of pipe fittings (2-3 shutoff valves, 3-5 divert valves)
4. Freely and easily switch between manual and pneumatic modes
5. Anti-water hammer, no noise, reliable sealing performance

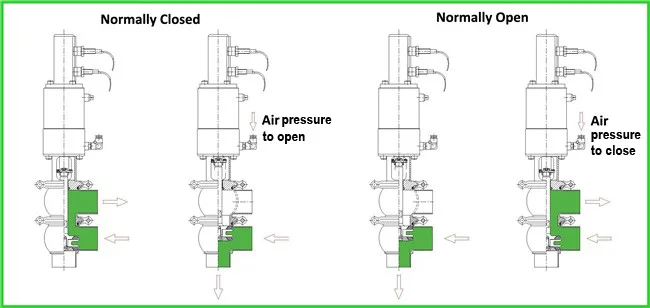

Working Principle:
Pneumatic actuator offers torque force to the valve stem. The valve stem exerts a pressure to the valve clack in axial direction, so the valve can be opened or closed to stop flow and change flow direction.
Specifications
Size range: | DN25 ~ 100, 3/4", 1", 1 1/4",1 1/2", 2", 3", 4" |
Gasket: | EPDM, silicone, teflon |
Material: | SS304 or SS316L |
Temperature: | -10 ~ +100ºC |
Working Pressure: | 0 ~ 10 bar |
Standard: | 3A, SMS, ISO, DIN, BS, JIS |
Connection: | clamp , weld, thread, and so on |
Product Characteristics:
1. Special application to singular medium liquid
2. Safe, clean, long-lasting, sterilization condition applicable
3. Freely and easily switch between manual and pneumatic mode
4. Easy disassembly and maintenance
2. Safe, clean, long-lasting, sterilization condition applicable
3. Freely and easily switch between manual and pneumatic mode
4. Easy disassembly and maintenance

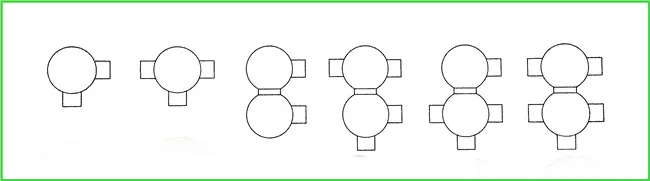

Configurations:

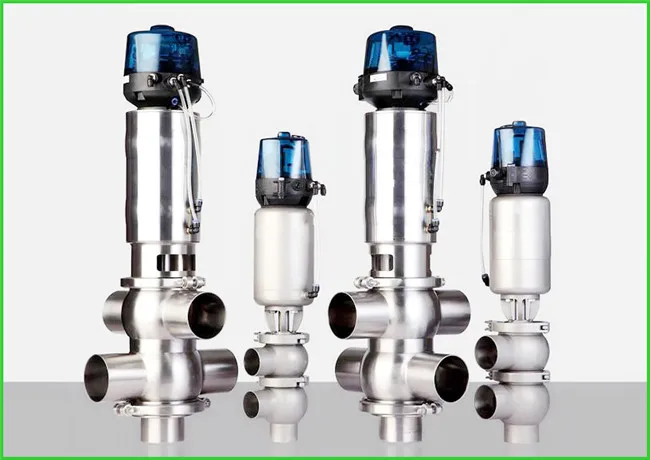

Valve Photos:
