Tobee Effluent Handling
$12,600

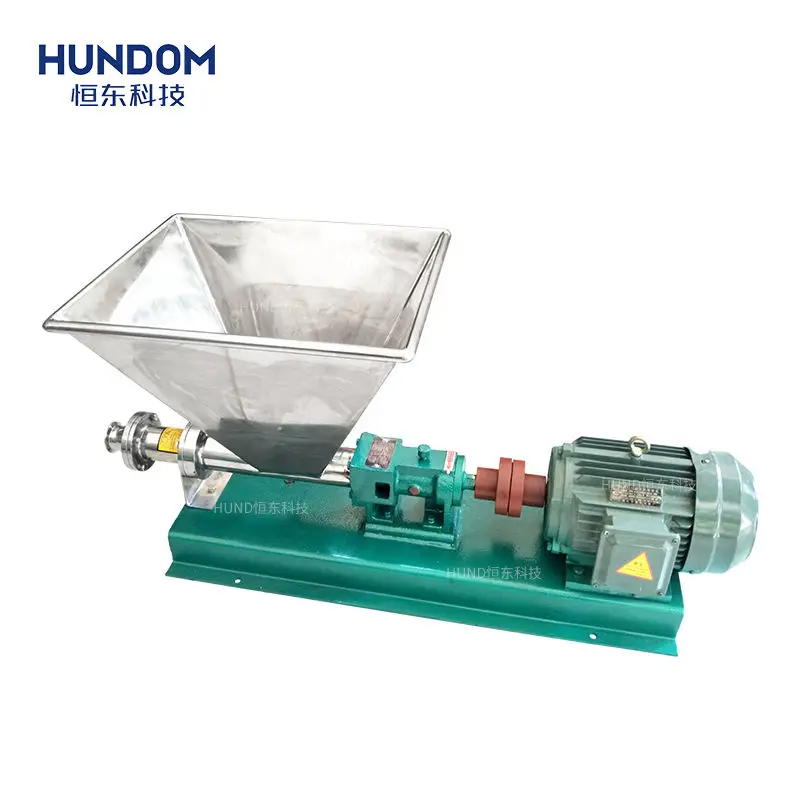

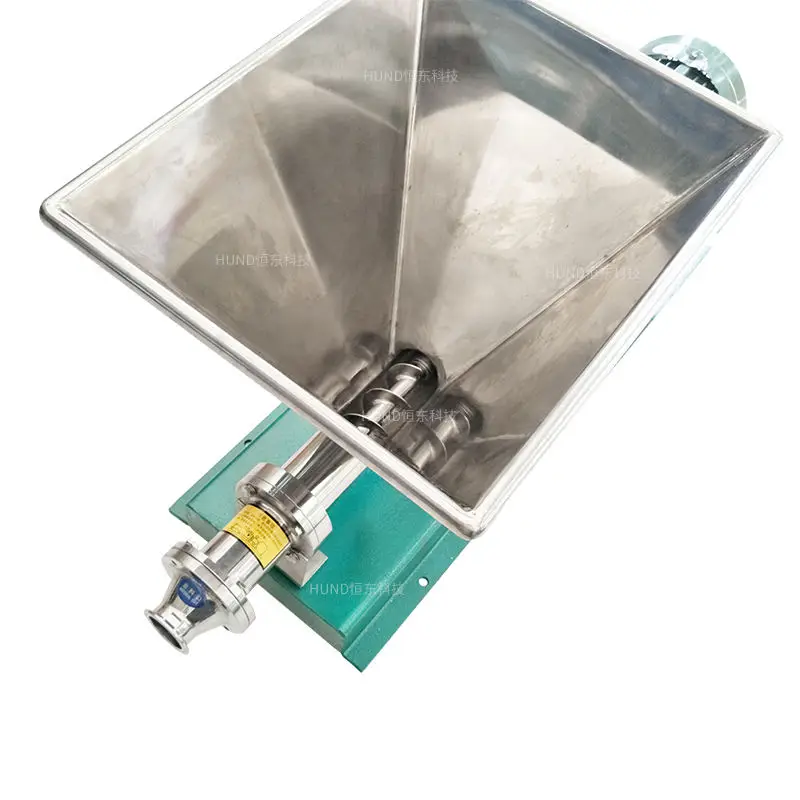

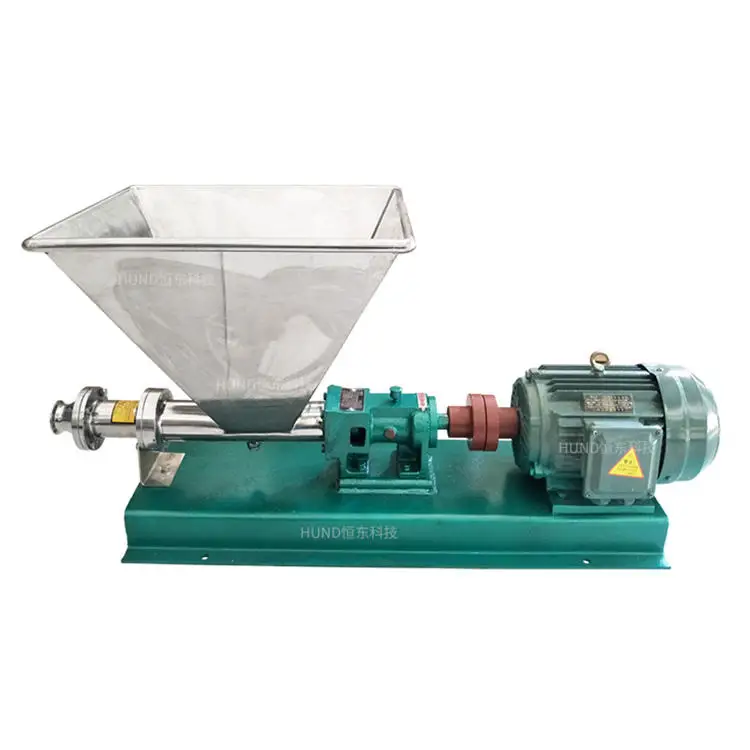

Industrial G Type Stainless Steel Viscous Liquid Paste Sauce Transfer Progressive Cavity Pump
- Category: >>>
- Supplier: Zhejiang Hengdong Stainless Steel Co. Ltd.
Share on (1600950222271):
Product Overview
Description
Products Description

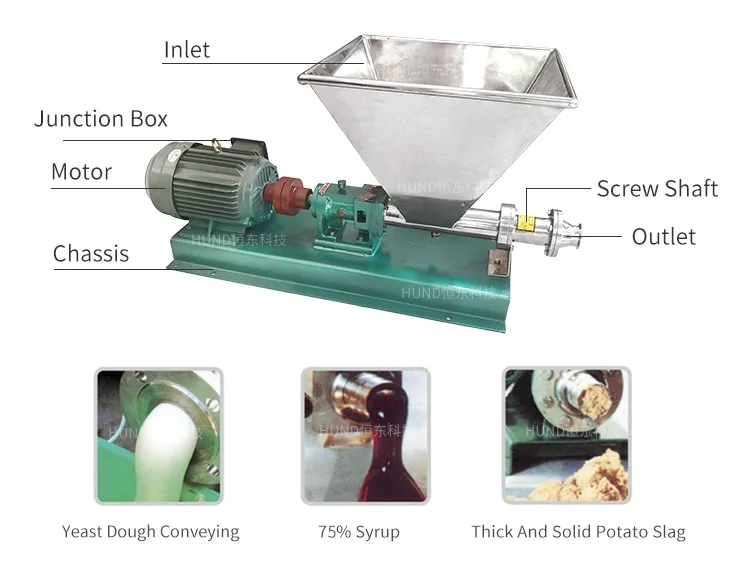

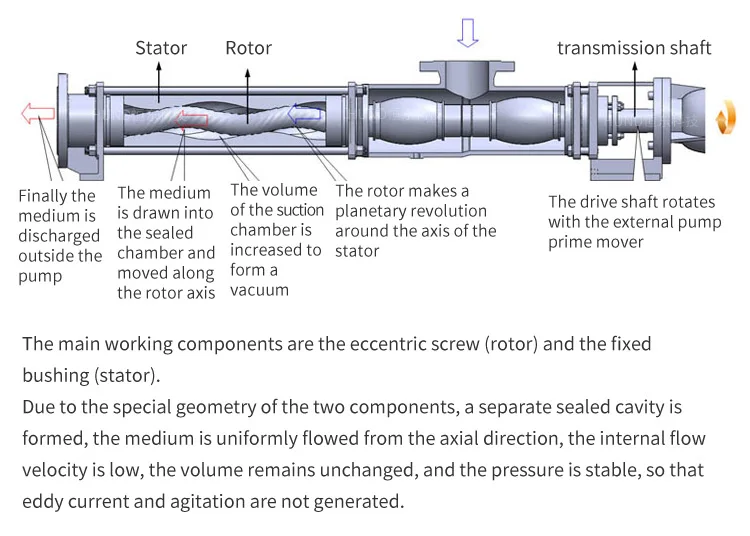

Structure:

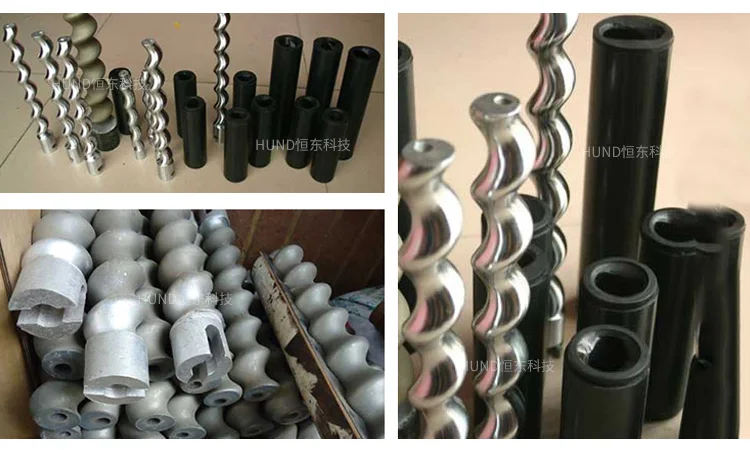

The Sanitary Screw pump is a positive displacement pump with one single rotating shaft. A Stainless steel rotor and a rubber stator are the main pumping components. The Rotor is a circular section single screw. The Rubber stator is vulcanized inside a stainless steel pipe.
Stainless steel material | SS304 or 316L | ||||||
Capacity/Flow | 0-100T (Customized) | ||||||
Pressure | 0-8bar | ||||||
Viscosity | 1~10,000,000 CPS | ||||||
Temperature | 0°C to 100°C | ||||||
Mechanical seal type | Single | Double | |||||
Connection type | Clamp | Union | Flange | ||||
Stator type | Nitrile Rubber | Food grade rubber | Fluoro-rubber | ||||
Motor type | Normal | EX-proof | inverter | ||||
Speed | 0-960rpm | ||||||
Application:
This product is applicable for feeding medium which has following properties:
1. High solid content(diameter of the biggest particle is 50mm)or no solid content
2. Medium with all viscosities(1mPas~3,000,000mPas)
3. Medium that is easy to be generated and swelled
4. Shearing sensitive medium
5. Medium with/without self lubrication
6. Erosive medium(PH=0~14)
7. Adhesive medium
8. Toxicity hazard medium
1. High solid content(diameter of the biggest particle is 50mm)or no solid content
2. Medium with all viscosities(1mPas~3,000,000mPas)
3. Medium that is easy to be generated and swelled
4. Shearing sensitive medium
5. Medium with/without self lubrication
6. Erosive medium(PH=0~14)
7. Adhesive medium
8. Toxicity hazard medium
Parameters：
Model | Speed(rpm) | Flow (T/h) | Power(kw) | Inlet(Φ) |
G10-1 | 960 | 0.5 | 0.55 | Φ25*1.5mm |
G15-1 | 960 | 1 | 0.55 | Φ25*1.5mm |
G20-1 | 960 | 1.5 | 0.75 | Φ38*1.5mm |
G25-1 | 960 | 2 | 1.1 | Φ51*1.5mm |
G30-1 | 960 | 3 | 1.5 | Φ51*1.5mm |
G35-1 | 960 | 5 | 2.2 | Φ51*1.5mm |
G40-1 | 960 | 7 | 3 | Φ51*1.5mm |
720 | 5.5 | 2.2 | Φ63*1.5mm | |
G45-1 | 960 | 9 | 4 | Φ63*1.5mm |
720 | 7 | 3 | Φ76*2mm | |
G50-1 | 960 | 13 | 5.5 | Φ76*2mm |
720 | 10 | 4 | Φ76*2mm | |
G55-1 | 960 | 18 | 7.5 | Φ76*2mm |
720 | 13 | 5.5 | Φ76*2mm | |
G65-1 | 720 | 30 | 11 | Φ102*2mm |
G85-1 | 720 | 60 | 15 | Φ102*2mm |

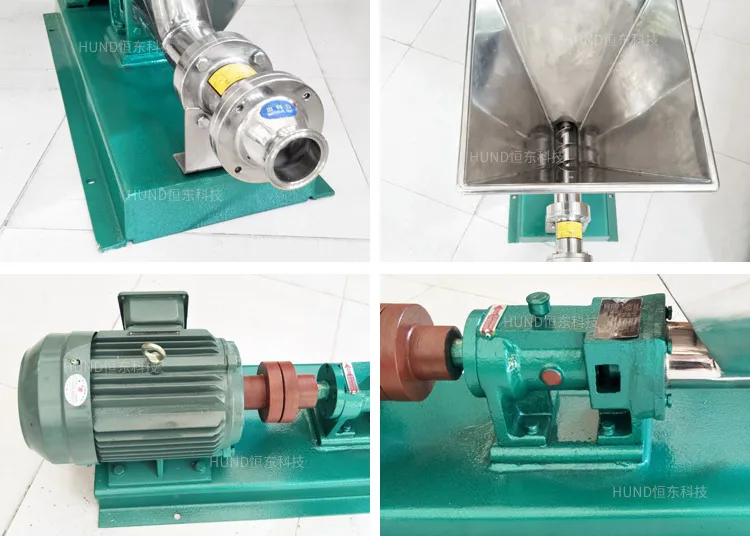

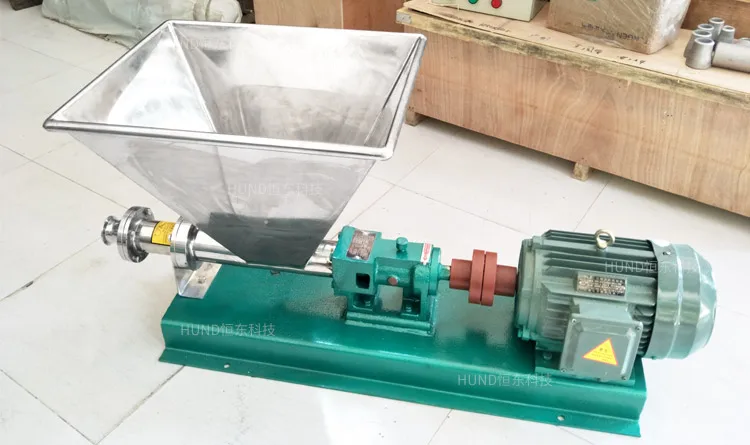

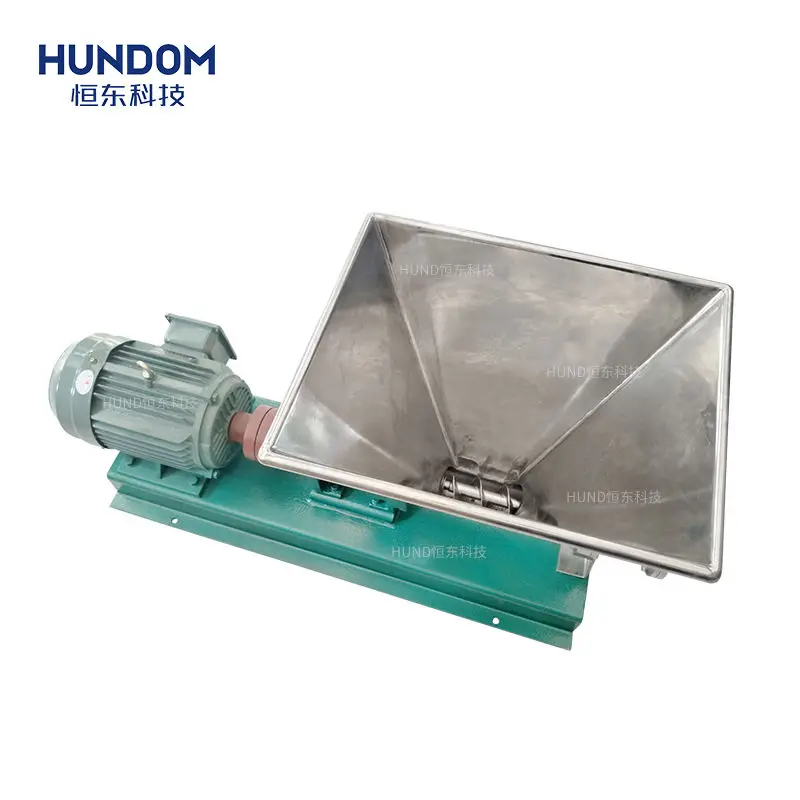

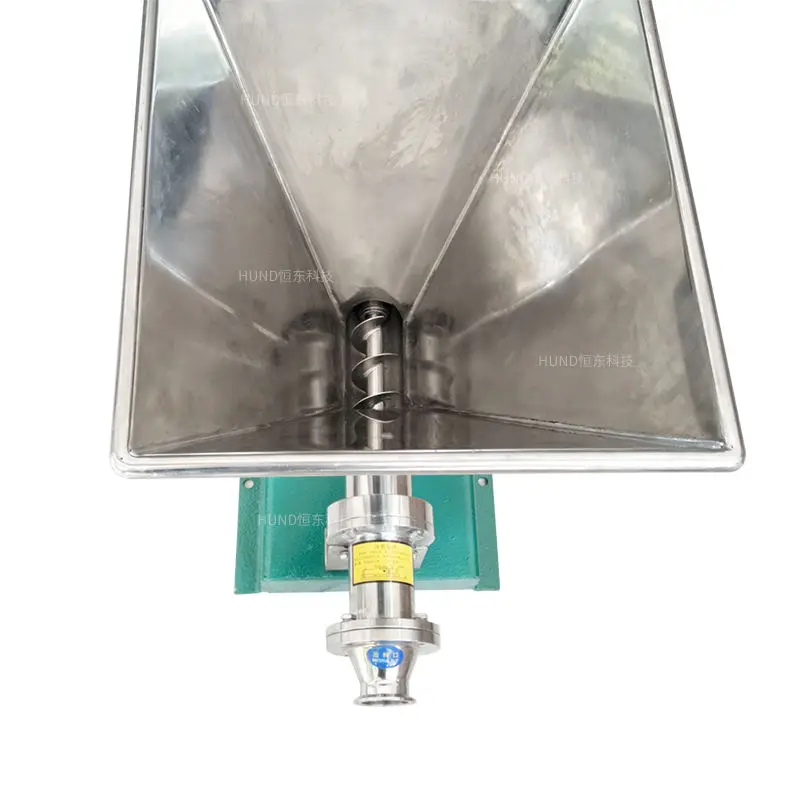

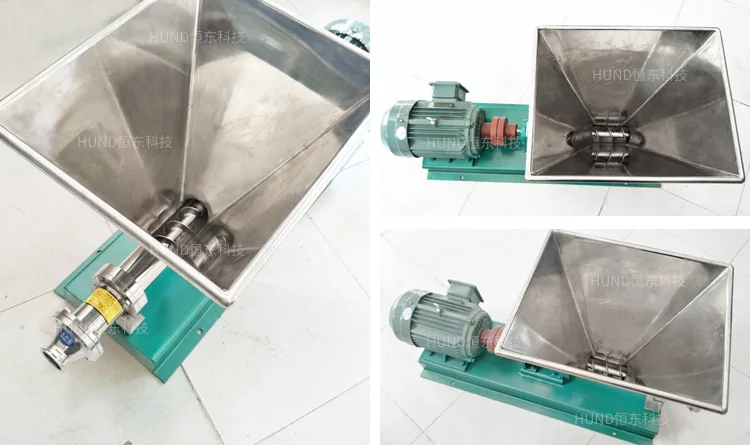

Product showing:

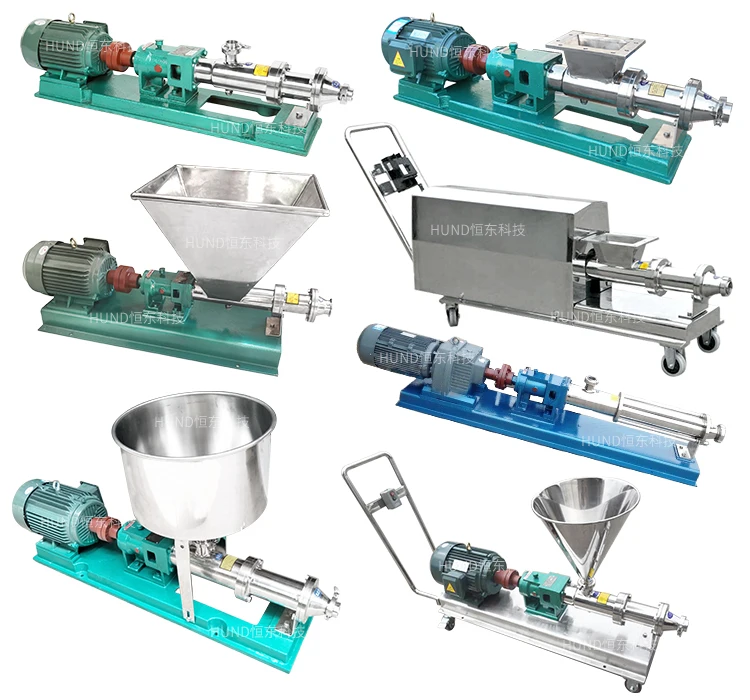

Recommend Products

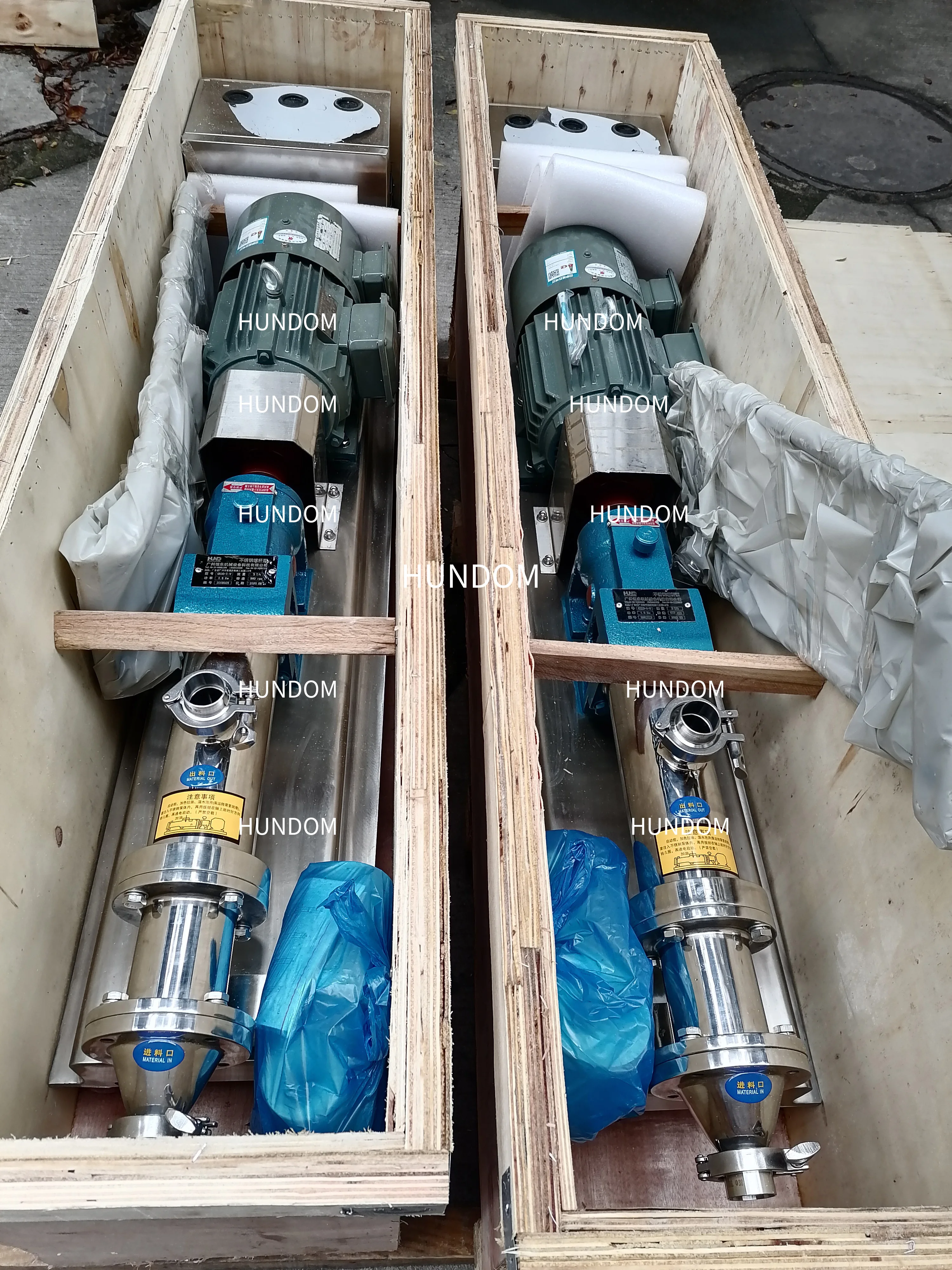

Packing and shipping
Company Profile
HUNDOM is a high-tech enterprise integrating R&D, production and sales. We have more than 18 years of mechanical manufacturing experience. Main production: stainless steel mixing tank,homogeneous emulsion tank, in-line high shear pump,transfer pump,colloid mill, filters etc. HUNDOM has mature technology and high quality products to meet various requirements in the field of food, pharmaceutical and chemical industry.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
Why Choose Us
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
