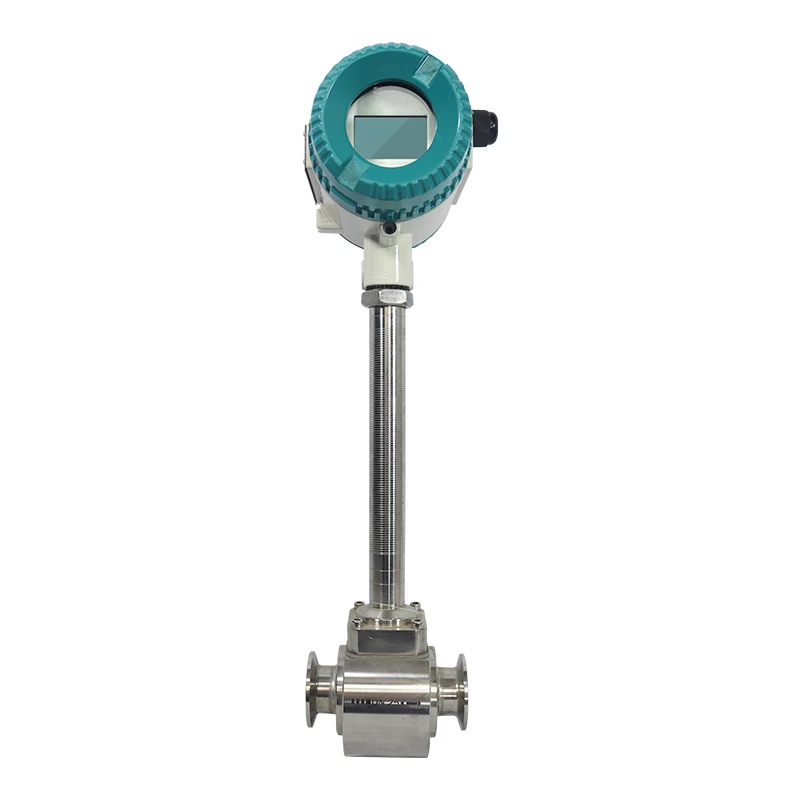

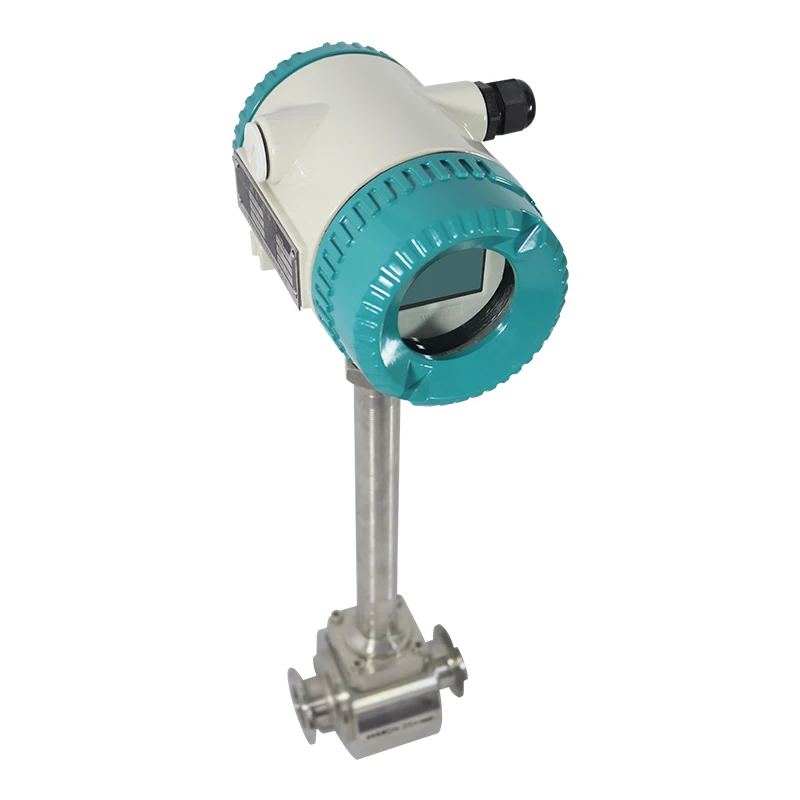

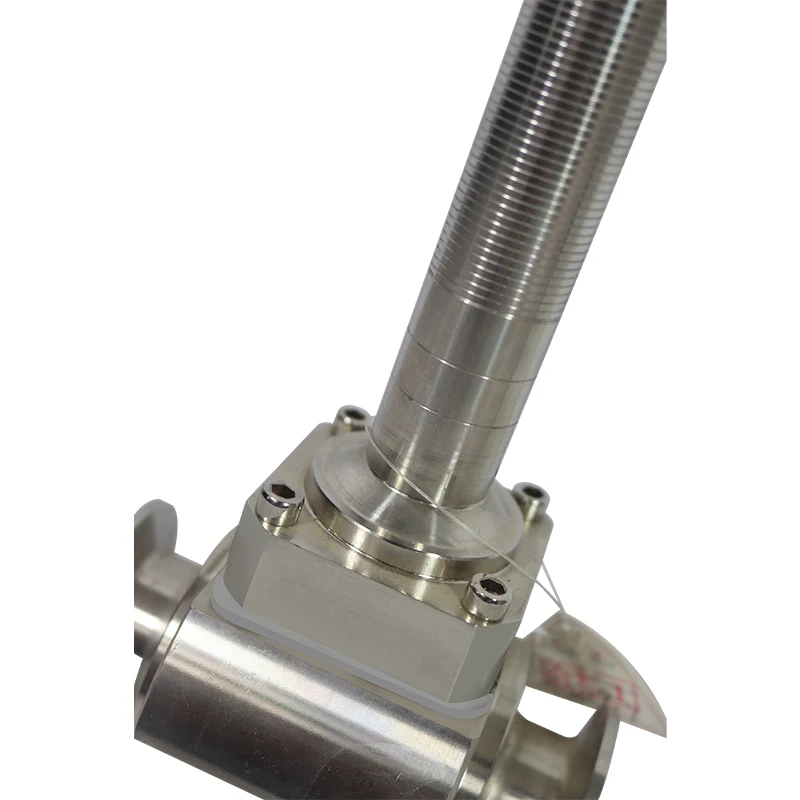

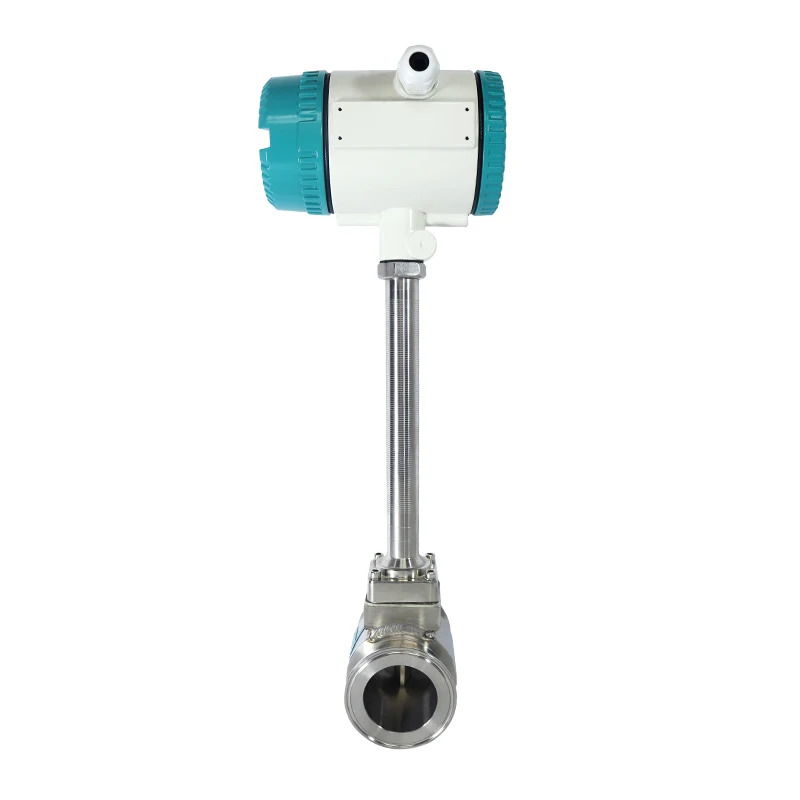

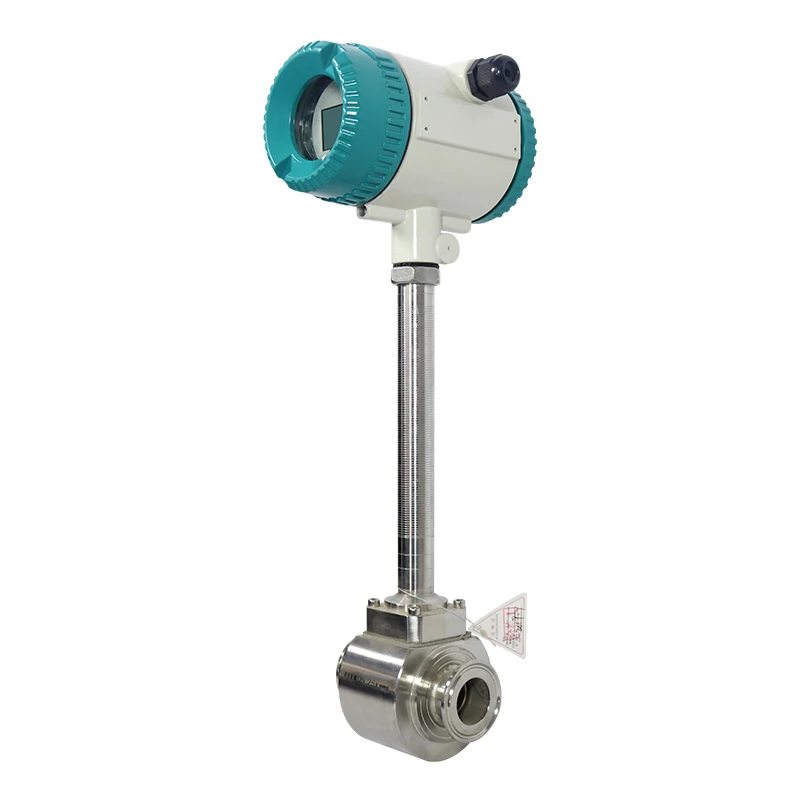

Rs485 Vortex Flow Meter Versatile Liquid Volume Argon Vortex Flowmeter
- Category: >>>
- Supplier: Kaifeng Jingbo Automation Instrument Co. Ltd.
Share on (1600950237331):
Product Overview
Description
Technical parameters | ||||
Product name | Co2 flowmeter vortex flowmeter with 4-20mA 1% accuracy flowmeter | |||
Measured Medium | Liquid;Gas;steam;oxygen;biogas; air;overheat steam | |||
Medium Temp. | -40~+200℃;-40~+280℃;40~+350℃ | |||
Nominal Pressure | 1.6MPa;2.5MPa;4.0MPa;64MPa(Other pressure can be custom) | |||
Accuracy | ±1.0%,±1.5% | |||
Measuring range ratio | 1:8-1:30(Standard air condition as reference), 1:8-1:40(Normal Temperature as reference) | |||
Flow range | Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s | |||
Specifications | DN15~DN600 | |||
Material | 1Cr18Ni9Ti | |||
Reynolds number | Normal 2*104~7*106 | |||
Resistance coefficient | Cd≤2.6 | |||
Vibration acceleration allowed | LUGB≤0.2g | |||
Ex-proof class | IP65 ExiaIICT6 Ga | |||
Ambient condition | Ambient Temp. | -40℃-65℃(Non Display on site); -20℃-55℃(Display on site | ||
Relative humidity | ≤5%~93% | |||
Pressure | 86-106kPa | |||
Power Supply | 12-24V/DC or 3.6V battery powered | |||
Signal Output | Pulse frequency signal2-3000Hz,Low level≤1V,high level≥6V | |||
Two-wire system 4-20 signal(isolated output),Load≤500 | ||||
