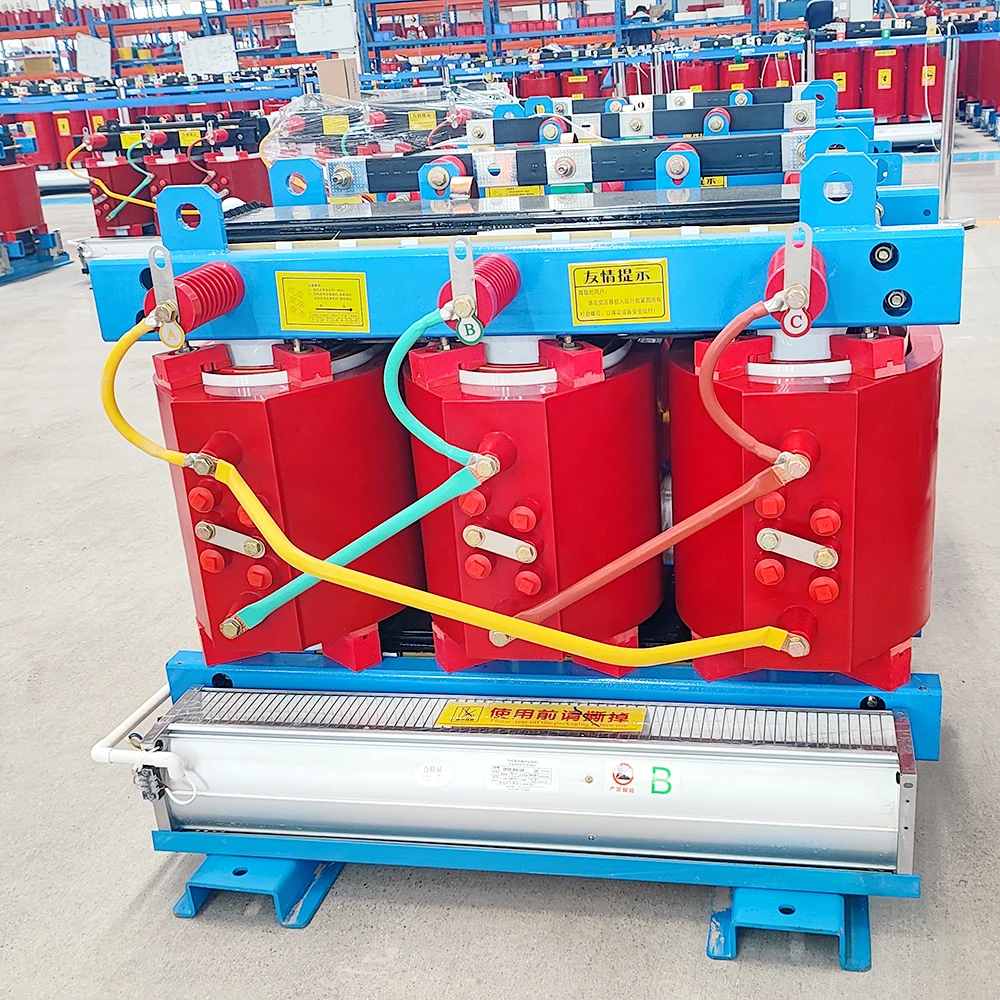

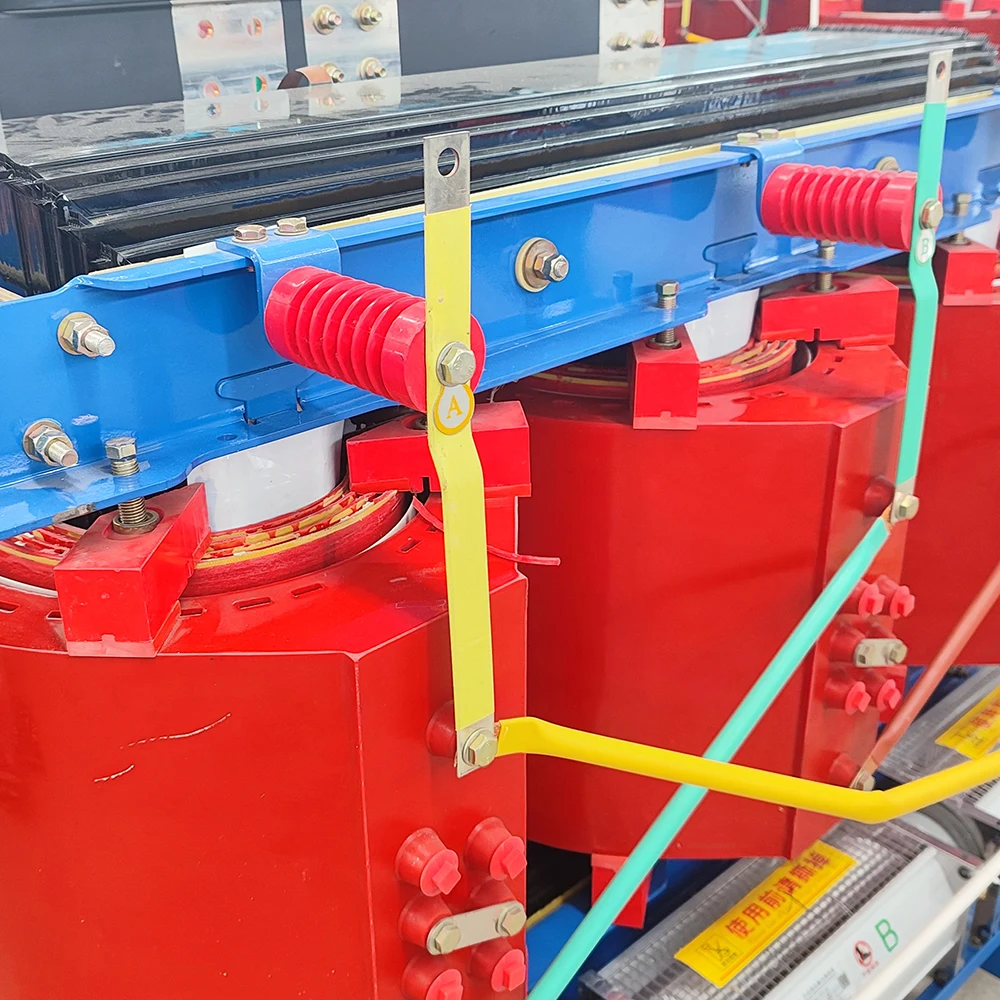

Epoxy case resin deplex aluminium 10500V to 400V 125kva Dry Type Power Transformer
- Category: >>>
- Supplier: Jiangsu Hengtong General Electric Co. Ltd.
Share on (1600950253274):
Product Overview
Description
Xuzhou Hengtong Machinery Transformer CO LTD. established in 2011 year.The company covers an area of 330000 square metersthe registered capital of 20000000 yuan. employeesmore than 1000 people, including 30 senior engineers, in accordance with the standard i S O 9000 quality certificationsystem, using computer aided design, with the regional characteristics of environmental protection, energy saving for customers.
Type 14 of 6kV 10kV dry-type no-excitation distribution transformers Technical Date Sheet | ||||||||||||||||||
Rated Capacity (kVA) | High Voltage (kv) | Low Voltage (kv) | Vector Group | No-load Loss (w) | Under different insulation heat-resisting rank load loss(W) | No-load Current (%) | Short Circuit lmpedance (%) | |||||||||||
130°C(B) (100°C) | 155°C(F) (120°C) | 180°C(H) (145°C) | ||||||||||||||||
30 | 6000 6300 6600 10000 10500 11000 | 400 | Dyn11 Yyn0 | 130 | 605 | 640 | 685 | 2.00 | 4 | |||||||||
50 | 185 | 845 | 900 | 965 | 2.00 | |||||||||||||
80 | 250 | 1160 | 1240 | 1330 | 1.50 | |||||||||||||
100 | 270 | 1330 | 1415 | 1520 | 1.50 | |||||||||||||
125 | 320 | 1565 | 1665 | 1780 | 1.30 | |||||||||||||
160 | 365 | 1800 | 1915 | 2050 | 1.30 | |||||||||||||
200 | 420 | 2135 | 2275 | 2440 | 1.10 | |||||||||||||
250 | 490 | 2330 | 2485 | 2665 | 1.10 | |||||||||||||
315 | 600 | 2945 | 3125 | 3355 | 1.00 | |||||||||||||
400 | 665 | 3375 | 3590 | 3850 | 1.00 | |||||||||||||
500 | 790 | 4130 | 4390 | 4705 | 1.00 | |||||||||||||
630 | 910 | 4975 | 5290 | 5660 | 0.85 | |||||||||||||
630 | 885 | 5050 | 5365 | 5760 | 0.85 | 6 | ||||||||||||
800 | 1035 | 5895 | 6265 | 6715 | 0.85 | |||||||||||||
1000 | 1205 | 6885 | 7315 | 7885 | 0.85 | |||||||||||||
1250 | 1420 | 8190 | 8720 | 9335 | 0.85 | |||||||||||||
1600 | 1665 | 9945 | 10555 | 11320 | 0.85 | |||||||||||||
2000 | 2075 | 12240 | 13005 | 14005 | 0.70 | |||||||||||||
2500 | 2450 | 14535 | 15445 | 16605 | 0.70 | |||||||||||||
1. Who are we?
We are a big professional manufacturer of transformer, substation, HV and LV switchgear, etc electric products, established in2011 year, The company covers an area of 330000 square metersthe registered capital of 20000000 yuan. 30 senior engineers
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. Do you accept FAT(Factory Acceptance Test)?
Yes. It’s available. We are responsible for each set transformer’s testing.
4. Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 16 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L . CE,UL,CSA,TYPE TEST REPORT, etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery, guarantee after-sales service and factory price.
5. What services can we provide?
Accept OEM, business payment and payment are negotiated.
We are a big professional manufacturer of transformer, substation, HV and LV switchgear, etc electric products, established in2011 year, The company covers an area of 330000 square metersthe registered capital of 20000000 yuan. 30 senior engineers
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. Do you accept FAT(Factory Acceptance Test)?
Yes. It’s available. We are responsible for each set transformer’s testing.
4. Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 16 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L . CE,UL,CSA,TYPE TEST REPORT, etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery, guarantee after-sales service and factory price.
5. What services can we provide?
Accept OEM, business payment and payment are negotiated.
