Price:$98.00 - $118.00

Quantity:


Product Overview

Description







Product Information


Product Function description
1.Display: two LED display lights display voltage and electricity usage
2. Charging time: It can be fully charged in 1.5 hours without electricity
3. Use time: the output current is 2.0A, under the condition of normal 8V voltage, the voltage can be stable for more than 8
hours, and the intermittent use can be about 9 hours
4.Strong starting function: the machine comes with strong starting function, no needle card, can drive a large row of needles;
5. Memory function: automatically adjust the voltage when the device is turned off
direction for use

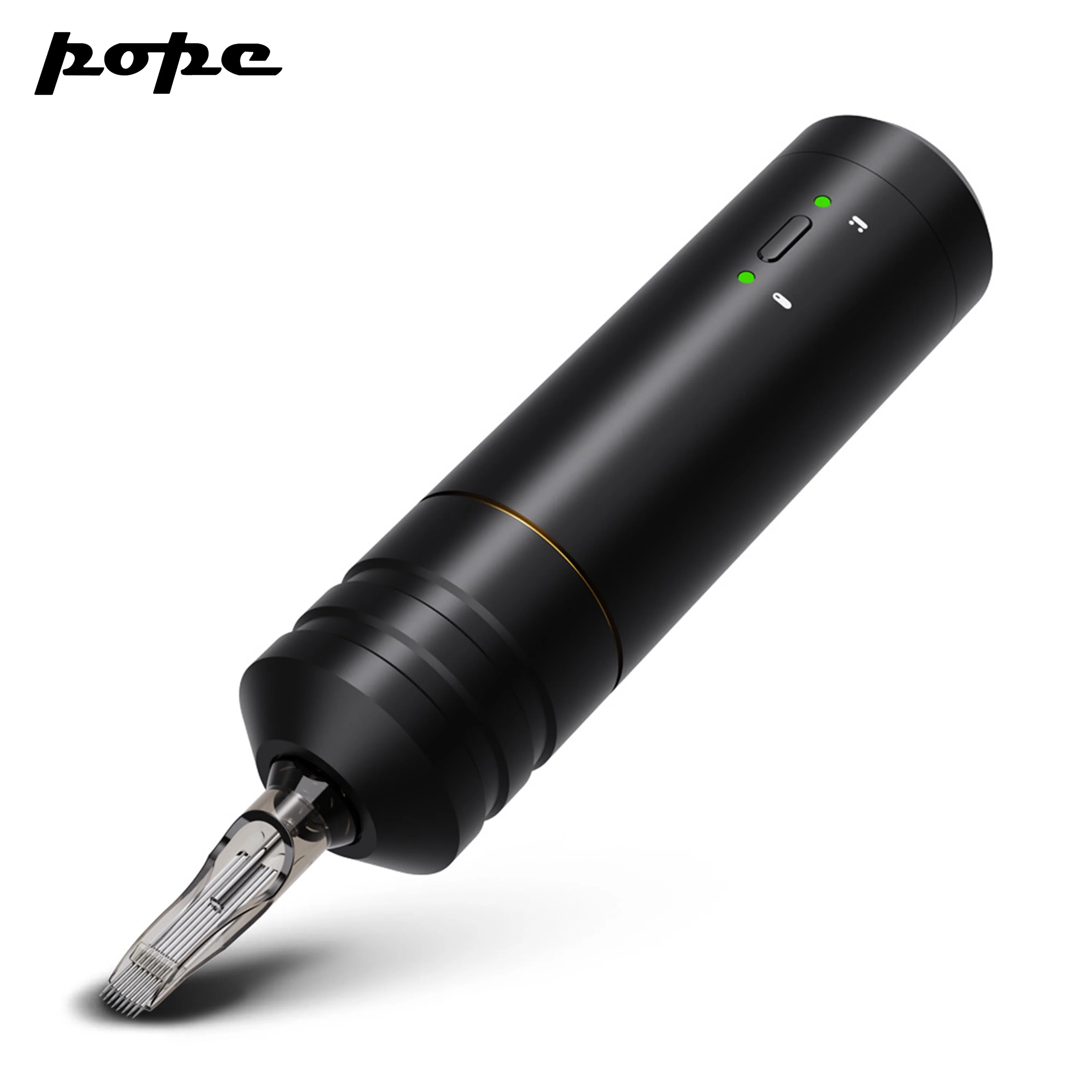

The device is a tattoo pen with a built-in lithium battery,which can be used directly without feet and stitching. The specific functions are as follows:
1. Boot up: Long press the rectangle button on the pen for 5 seconds to boot up, and then long press for 5 seconds to shut down
2. Pause: when working normally, press the button to pause the work, and then press the button to resume the working state
3.Adjust the voltage: adjust the voltage gear by double-clicking the button,and adjust 1V every time, the LED indicator light of the corresponding voltage will emit light.The color of the light corresponds to the voltage size,the small voltage is 5V and the large voltage is 12V
4.The above indicator shows: voltage state, double click the button voltage +1V,and then the indicator light changes color,to 12V and then double click to become 5V again,the corresponding color of the indicator light:
5.The following indicator light shows: the usage of electricity, more than 75% of electricity display green,50%-75% cyan, 25%-50% blue, 25% below red;Example: The picture is 8V, and then the power is 25%-50%.
6.Daily charging: use the matched battery charger to charge, the charger has 0.1.0A,2.0A three current gear mode can be adjusted, corresponding to the charging speed;
selling point of a product
1. Simple operation, easy to use, a pen can work, no need for pedal power;
2. Fashionable and generous style, Cheyenne classic appearance design;
3. The battery life of 2100 mah can be up to 8 hours, the power output is stable, no fever;

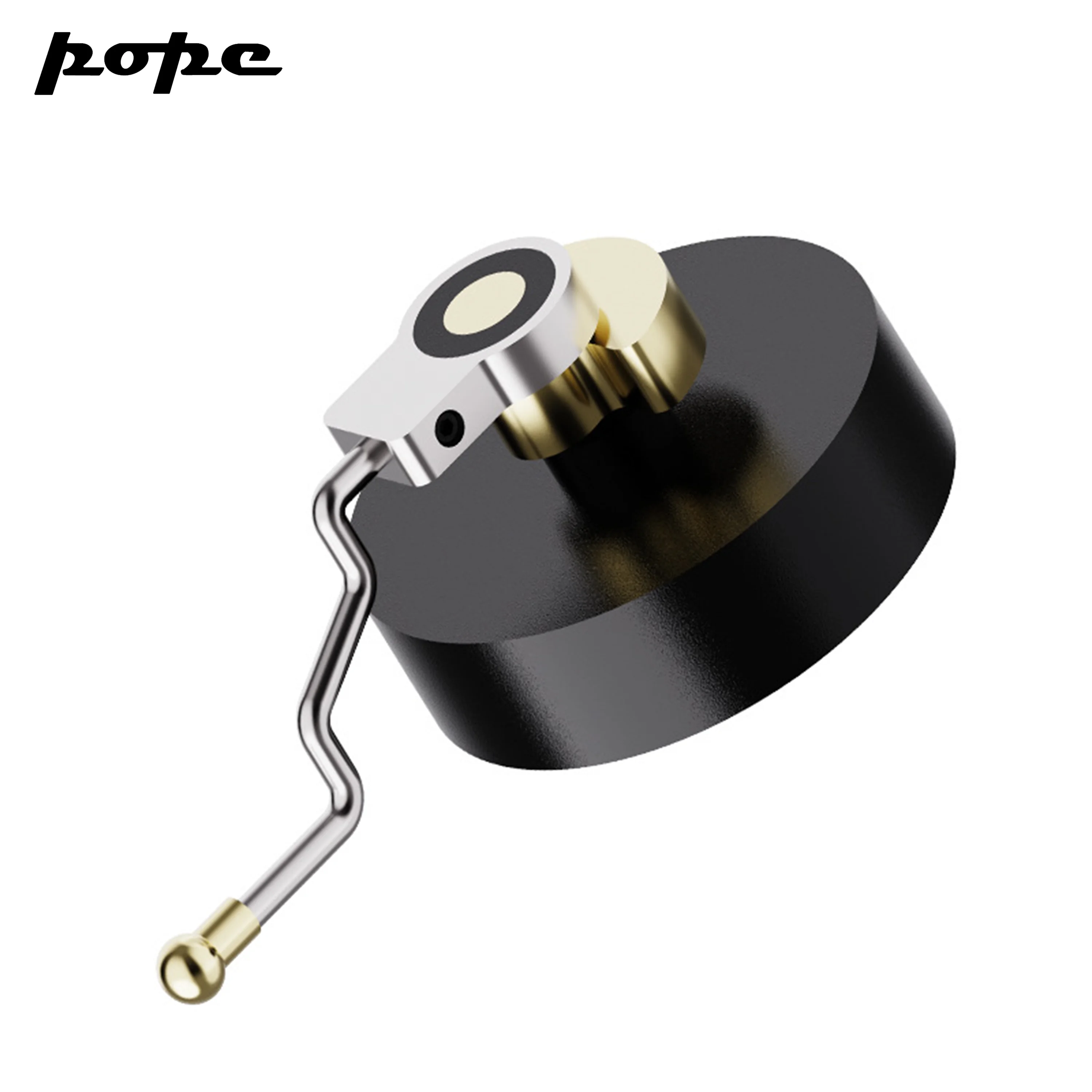

4.Montblanc flat hollow cup motor, large torque, strong power,high stability, light sound (5V36 dB or so),can meet the needs of tattooers for patterns;
5.Handshaking parts carved cutting edge non-slip design, feel good, long use not tired, sweat not slippery hand;
6.The pen tip can be replaced by our disposable Cheyenne silicone pen tip, which feels good and is hygienic.
7.The needle port is Cheyenne standard size, suitable for most of the one-body needles on the market;
8.The lithium battery is SONY 18*50 model size,and it is very easy for customers to buy spare batteries and chargers. In this way, in some areas where the lithium battery is not available,the battery can be removed and issued separately.The battery customers can buy it online by themselves, and the size and specification data are the same.
Product advice and common problem handling
1. After the battery is used up, it is removed and placed in the battery storage box we carry with us.Because it is installed on the machine, it is standby or discharge state,so we also put the battery in the box separately when we ship;
2. After the customer receives the goods,please first arrange the battery to be charged.In order to facilitate the transportation, the express delivery is not fully charged.
3. The charger has a button to adjust 2A-1a-0. The charging mode,customers want to quickly charge can press the 2A mode or replace the high-power charging socket;
4. If there is a flash back phenomenon, it may be caused by insufficient battery power or too much torque of the needle, because the machine comes with automatic power protection function;
5. If the customer in use, press the pause, and then in the boot, the machine is automatically shut down,this situation is not enough torque can not drive or the battery is insufficient
6. If a customer unscrews the gold accessory in the process of unscrewing the needle,this is normal. In order to replace the eccentric block, we did not apply glue to that position, but only tightened it.
7. If the customer wants to replace the built-in eccentric block, the step is to use the silicone sleeve to reverse unscrew the
gold outlet, and then see the accessories to unscrew the screw and replace it, and try to change it as light as possible.

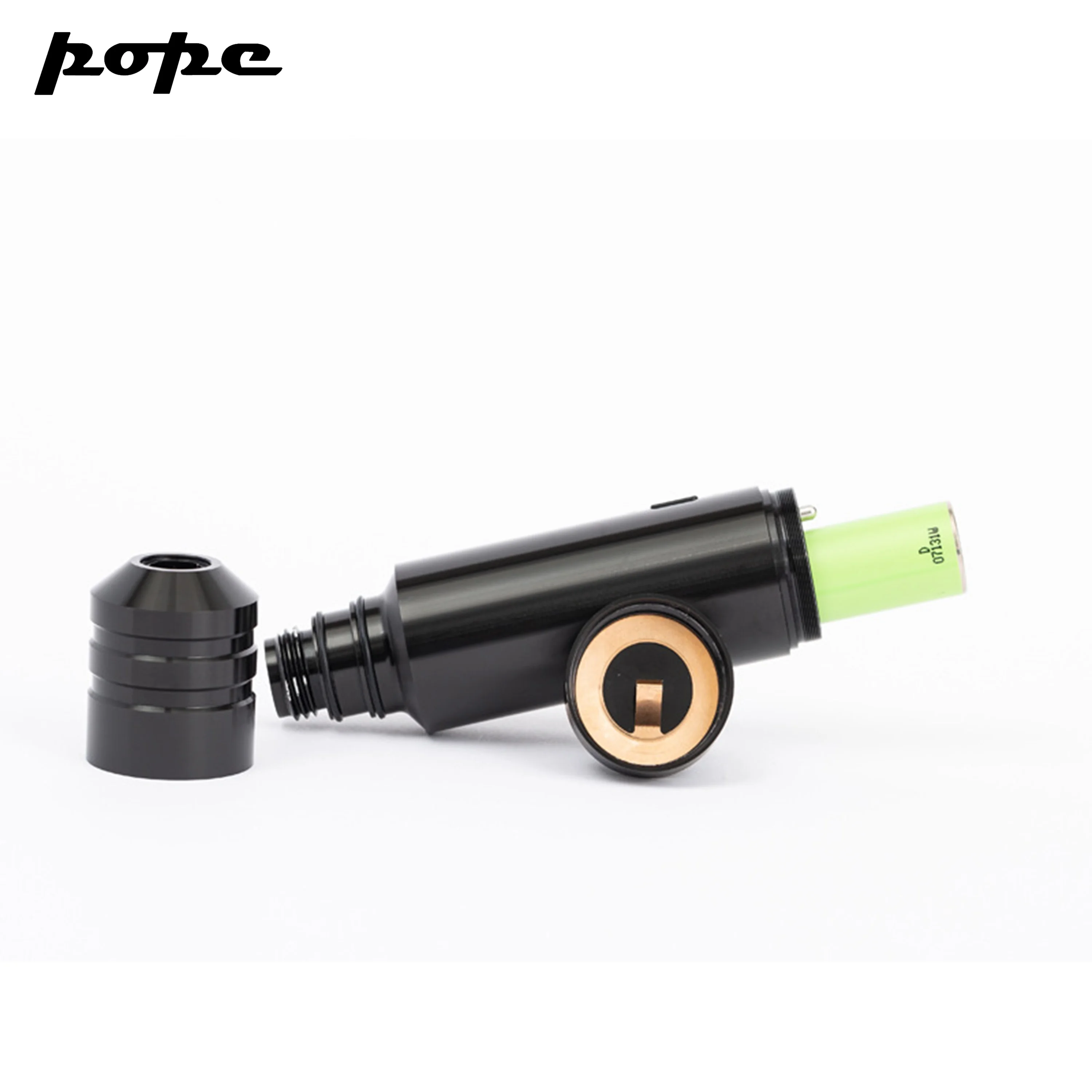

8. When the battery is put into the tattoo pen, the positive + side is down, the negative - side is up, the flat side is up, aiming at the cover, and then the spare battery should be put in a dry place as far as possible,not in direct sunlight, the battery can be recharged 2000 times.


Motor
Japanese Flat Motor
Stroke
0-4mm
Working Time
8-9hours (8V working voltage)
Battery
Sony 18*50 battery, 2100mA
Charging Time
1.5hour
Working Voltage
5-12V
Speed
10V 9000rpm


Size
124.5mm*33mm
