Best Machine Full Automatic Plastic Crate Injection Molding Machine Turnover Basket Machine
- Category: >>>
- Supplier: Zhangjiagang City Best Machine Co. Ltd.
Share on (1600950265117):
Product Overview
Description
Products Description

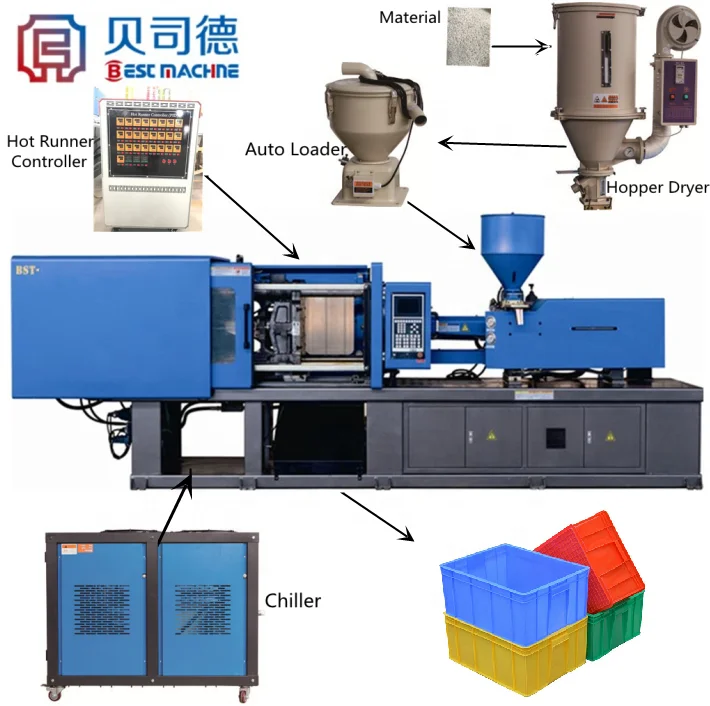

Best Machine BST-5800A 580 ton Plastic Injection Molding Machine

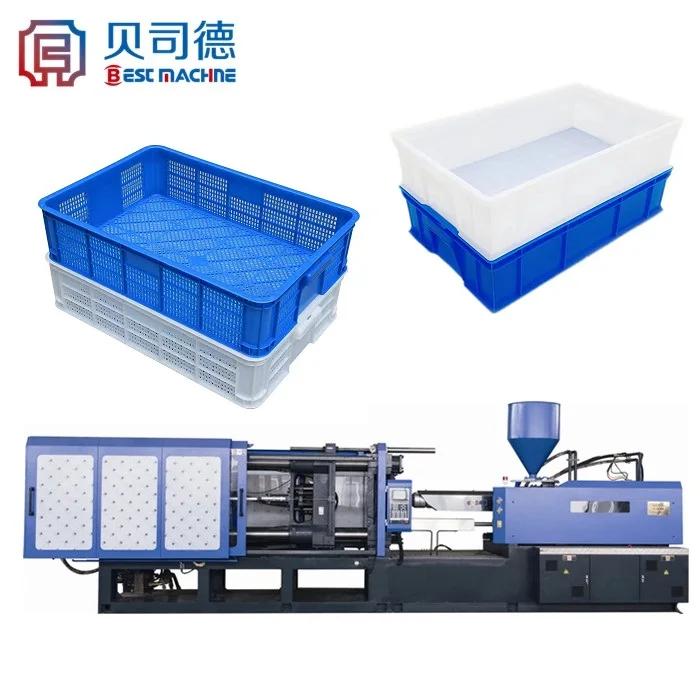

The injection molding machine can be used to produce plastic vegetable fruit crate according to customers' designs.

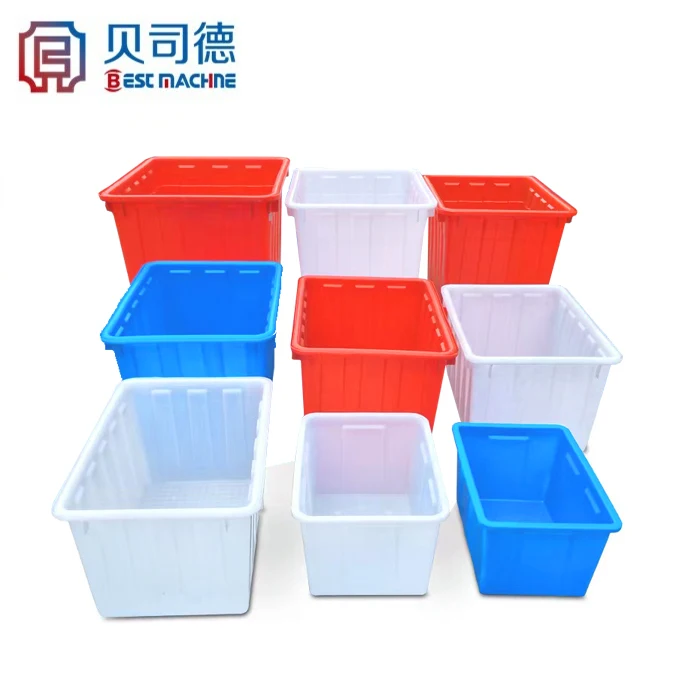

Pictures Of Finished Products Made By Our Machine
Plastic Vegetable Fruit Crates
The specifications are as follows:
- Imported advanced computer systems, Chinese, English, Russian, Spanish, French, Arabic interface.
- Can save 100 sets of mould parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you request we also can provide installation and training abroad,until customer's satisfaction
- Delivery time: 60 days after advance payment
MODEL | BST-5800A | |||||
INJECTION UNIT | A | B | ||||
Screw Diameter | mm | 84 | 86 | |||
Shot Size(Theoretical) | cm3 | 2480 | 2600 | |||
Shot Weight | g | 2230 | 2340 | |||
Injection Pressure | MPa | 152 | 145 | |||
Injection Rate | g/s | 482 | 506 | |||
Screw L/D Ratio | L/D | 20.6 | 20 | |||
Screw Speed | r.p.m | 0-150 | ||||
Nozzle Diameter | srmm | 20 | ||||
CLAMPING UNIT | ||||||
Clamp Tonnage | KN | 5800 | ||||
Toggle Stroke | mm | 760 | ||||
Mould Thickness | mm | 290-810 | ||||
Space Between Tie-bars | mm | 800*774 | ||||
Ejector Stroke | mm | 200 | ||||
Ejector Tonnage | KN | 125 | ||||
Ejector Number | Piece | 13 | ||||
Hole Diameter | mm | 200 | ||||
OTHERS | ||||||
Heat Power | KW | 28.1 | ||||
Max. Pump Pressure | MPa | 16 | ||||
Pump Motor Power | KW | 18.5+30 | ||||
Valve Size | mm | cartridge valve | ||||
Machine Dimension | m | 8.75*.2*2.3 | ||||
Machine Weight | T | 21.8 | ||||
Oil Tank Capacity | L | 850 | ||||

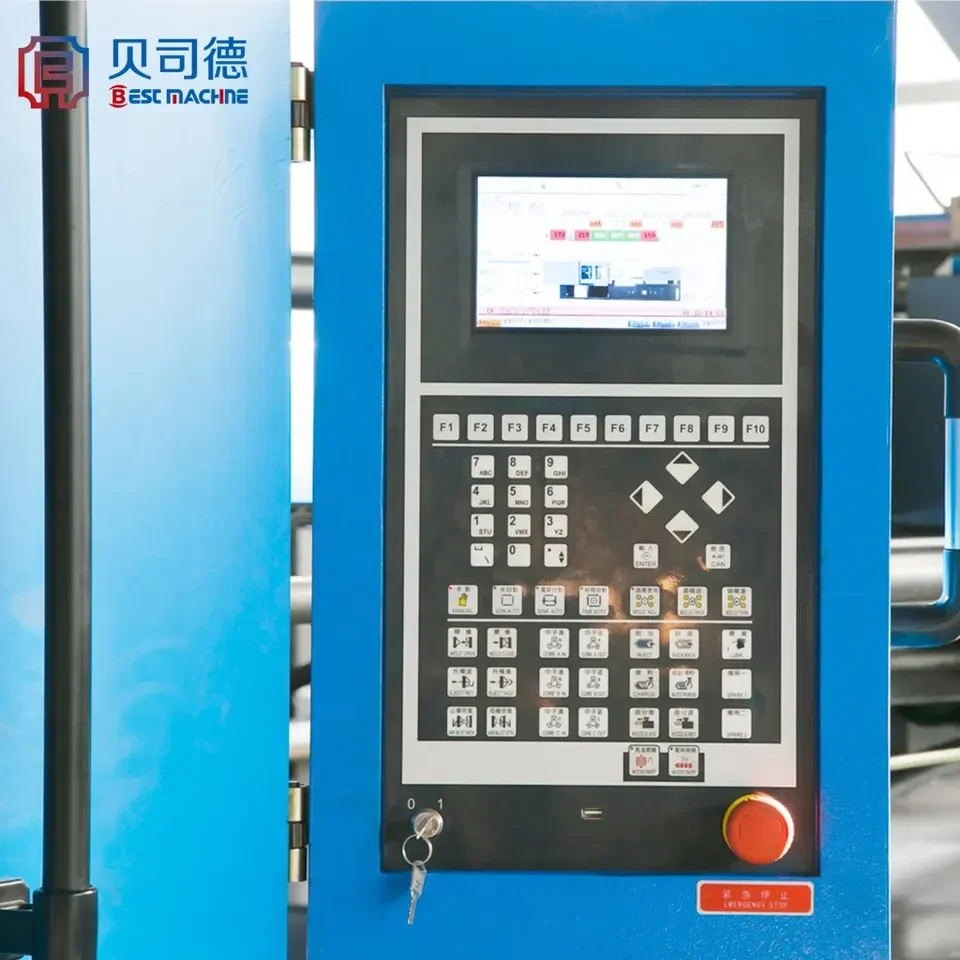

Micropcomputer
The machine is controled by TECHMATION microcomputer, which makes the work reliable and automatic in high level. The advantages are as follows:
1. Large LCD screen
2. Multi-language control interface: Chinese, English, Russian, Spanish, French, Arabic, etc.
3. Can save 100 sets of mould parameter.
4. Automatic alarm, can display problem location, easy for maintenance.
Screw
Using Screw for feeding raw material, allowing processing of various materials. Strong plasticizing ability, high injection speed. Using resistance heating coils to heat the barrel, adopting cold screw protecting device, the screw will not operate until the temperature reaches the setting value.
Safety Door
Adopts electrical and mechanical double safety device. The mould will not clamp when the door is open, which makes the production process safer and reliable.

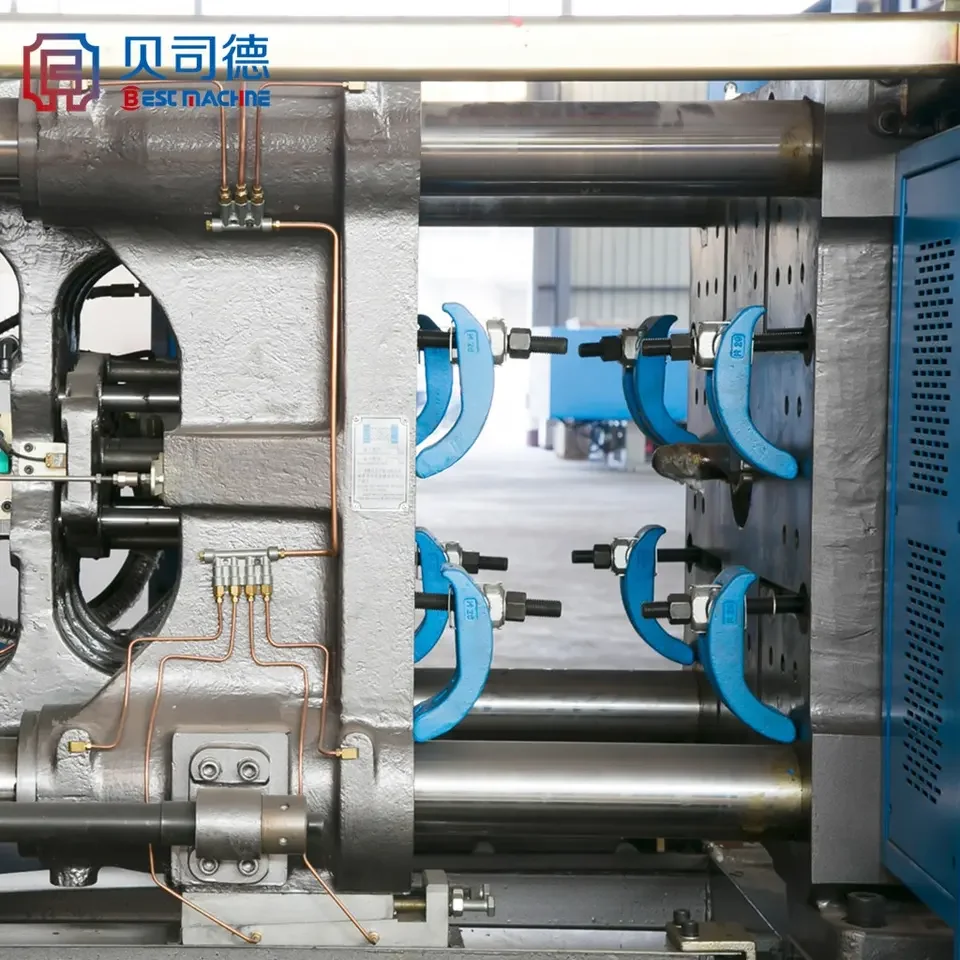

Clamping Mechanism & Pull Rod
5-point double-elbow clamping mechanism allows a high and stable clamping speed.
Pull rods are made of high-quality steel, chrome-plated, makes the service life longer.
Ejector Device
Multi-point hydraulic ejector device, can choose the suitable number of ejector rod according to the actual working needs. It makes the demolding more even
Mould Adjustment Device
Mould adjustment device is drive by hydraulic controlled gear transmission, which is easy for operation.
Electric Gauge
Imported travel switch or electronic gauge, makes the operation in higher precise.
Packing & Shipping
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We will take photos of loading, and send to you for reference before shipping.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We will take photos of loading, and send to you for reference before shipping.
After Sales Service
1. Free spare parts within warranty period.
2. Field installation, commissioning and training.3. Field maintenance and repair service.
4. Video technical support.
5. 24 hours online service
Company Profile
Zhangjiagang Best Machinery Co.,Ltd. is located in a beautiful development zone in Tangqiao, Zhangjiagang, Jiangsu Provice, China.
Our company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 2000million fixed assets, during the past 10 years, we always force our energy into new areas of plastic packaging machinery,to update the technology, to learn advanced experience, to confirm new theory and new design,we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service. We hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field.
Our company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 2000million fixed assets, during the past 10 years, we always force our energy into new areas of plastic packaging machinery,to update the technology, to learn advanced experience, to confirm new theory and new design,we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service. We hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field.
Certifications
TUV
CE
Exhibition
FAQ
1. Are you a manufacturer or trading company?
We are a factory for plastic machines and moulds.
2. How to choose injection molding machine?
The injection weight should be about 1.2* product's weight. The tie-bar space should be bigger than the mold dimension. Contact with us for more information.
3. How to pay?
40% deposit T/T in advance, the balance 60% payment by T/T or L/C before delivery.
4. Is it possible to send engineer to install and commission machine, even train our workers?
Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after sales service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, we need you to prepare invitation letter for visa before shipment. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.
5. If we buy your machines, is there any warranty?
Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.
6. What is different with A,B,C screw, What is the price different?
The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.
7. May I visit your company?
Yes, welcome to visit! Our company is near Shanghai, after you arrive Shanghai, you can take a high-speed rail to Wuxi East Station, we will pick you up there. Now the high-speed railway in our city Zhangjiagang is under construction, it will be much more convenient for you to visit our company in future.
