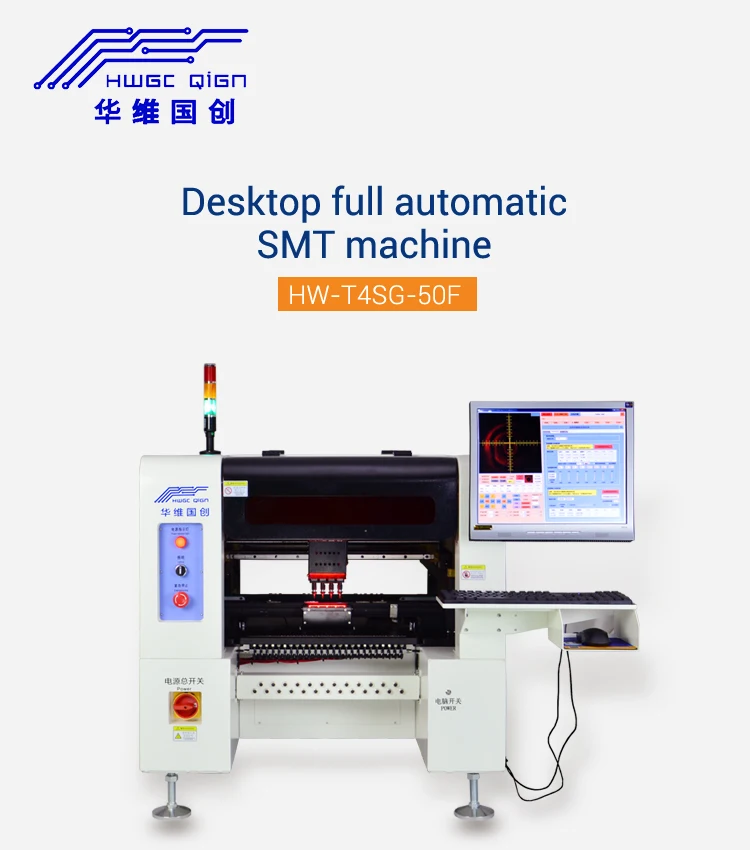

Product Overview

Description



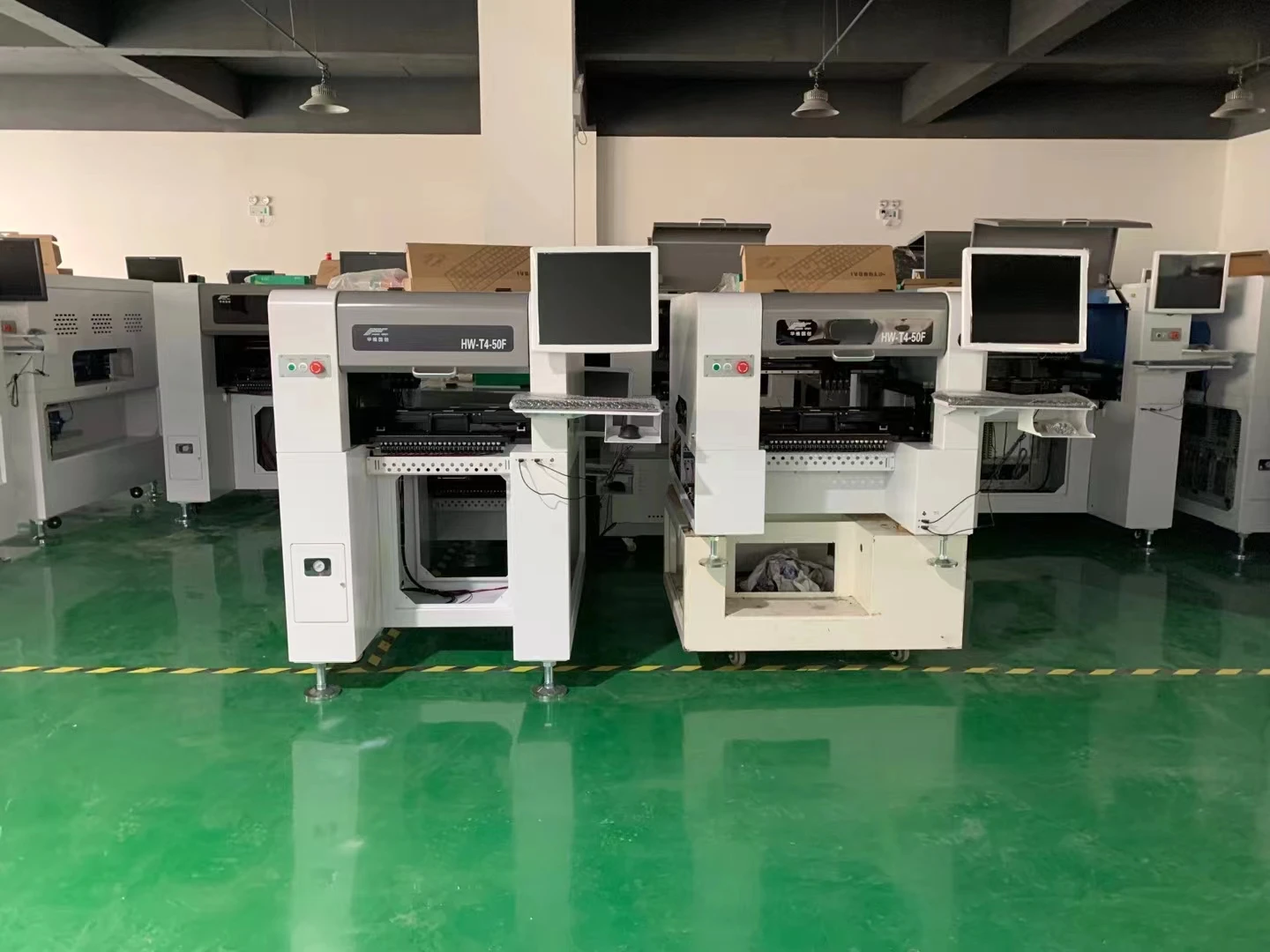

Introduction
The machine 50F with the ball screw and servo motor which is more stable and accurate than normal step motor, software designed and developed by our self.
It is available in English. And we will keep updating it. Customers can get updated software regularly
Machine is of high quality with at least one-year warranty, lifetime maintenance.


Feature

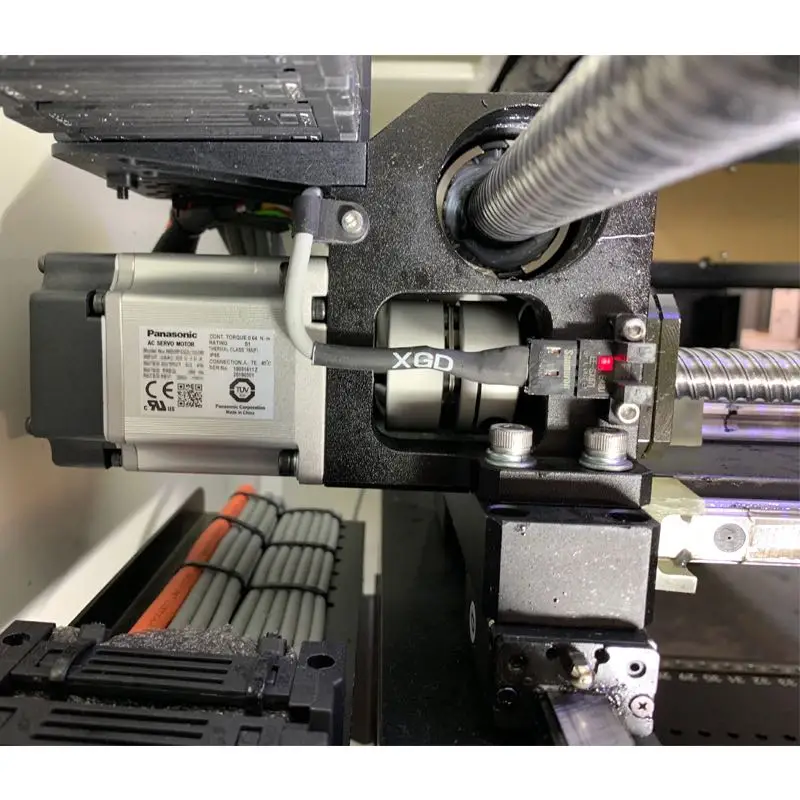

1. SMT pick and place machine with 50 feeders +4 heads adopts Panasonic servo motor to ensure it is stable and accuracy

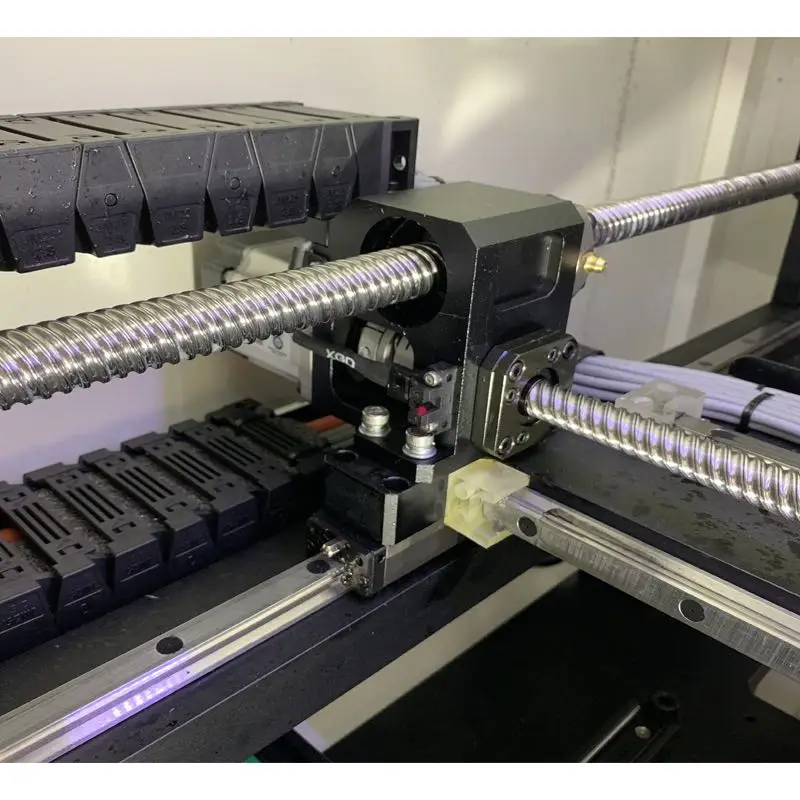

2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable

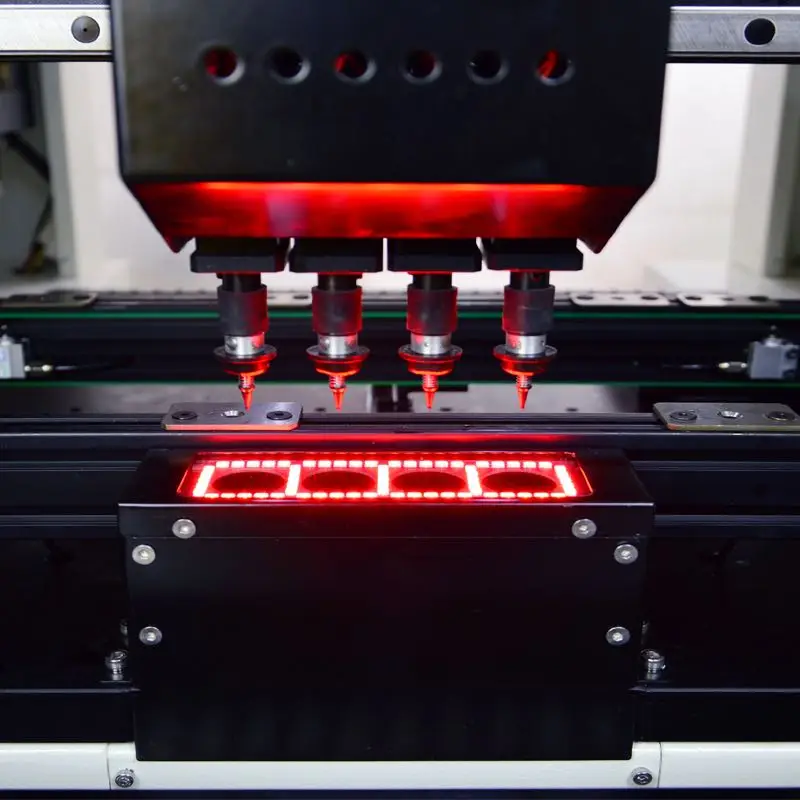

3. Four mounting heads work together, under 6 cameras inspection come with 50 feeder positions will make machine working more


Part List
1.Pick and place machine:1Set
2.IC fixed support:4Sets (four M5*8, four M5*16)
3.JUKI nozzle:12Pcs (502*2，503*3，504*4，505*2，506*1)
4.Calibration suction nozzle:4PCS
5.Power wire:1PC
6.Fixed foot:4PCS (Diameter 20mm)
7.The keyboard and mouse:1Set
8.Nozzle calibration ink-pad:1Box
9.lubricant:1PC
10.Chassis key:1PC
11.PC:1Set
12.17-inch liquid crystal display:1Set








Specification

Maximum circuit board area
400*200 mm
Number of mounting heads
4
Maximum movement range of Z axis
20 mm
Maximum mounting rate
9,500 PCS/hour
Average mounting rate
8,000 PCS/hour
Positioning accuracy
0.01 mm
Buffering range of suction nozzle
4.5 mm
Power supply
220V/110V, 50 Hz
Compressed air:
0.6-0.7 Mpa
Average power
400 W
Recognition Mode
Four Heads Synchronized Recognition
Number of cameras
a Mark camera, four high-speed cameras, a high-definition camera
Product weight
250KG
PCB access mode

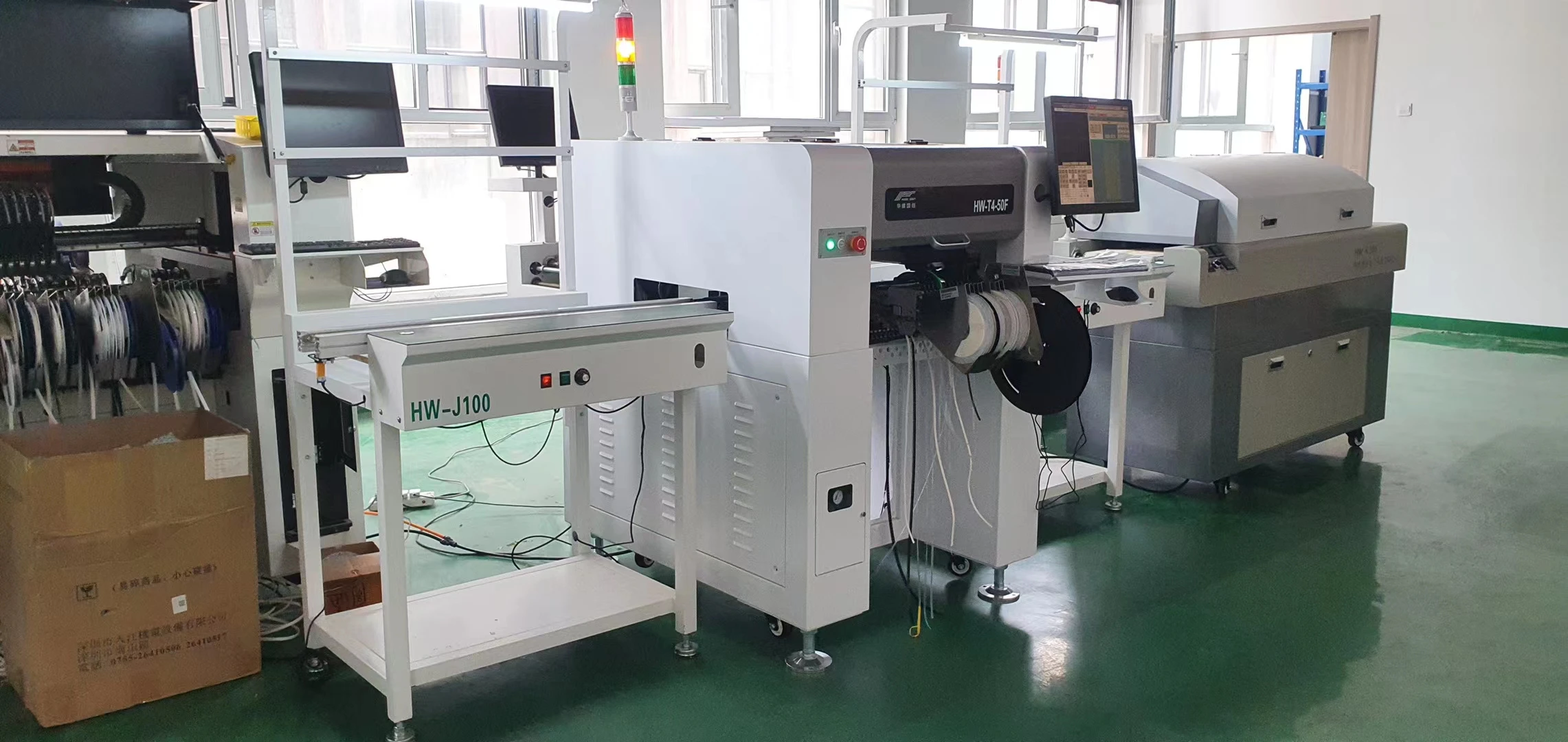

automatic Left-in and right-out access, supporting left-right device connection function
Quantity of trays
Up to 48 non-feeder feeding components are supported, each of which can specify its coordinates within the mounting range.
Complex speed to mount resistance and Chip
6000/CPH

Mounting accuracy range
0201-40*40mm,Pin spacing 0.3mm
Chip(Matching which support electric feeder can mount the 0402,0201)
Quantity of feeders
50 PCS
Service motor
Panasonic servo motor
Guide rail
Taiwan TBI Linear Guide rail
Driving mode
Taiwan TBI ball screw
Nozzle Vacuum Source
Japan CKD High Speed On-off Vacuum Generator with Vacuum Damage
Minimum air capacity of pump
80-120 L/min, volume more than 60 L
Gas quality requirements
oil-water separation device, dust filter device, air pressure stabilization device

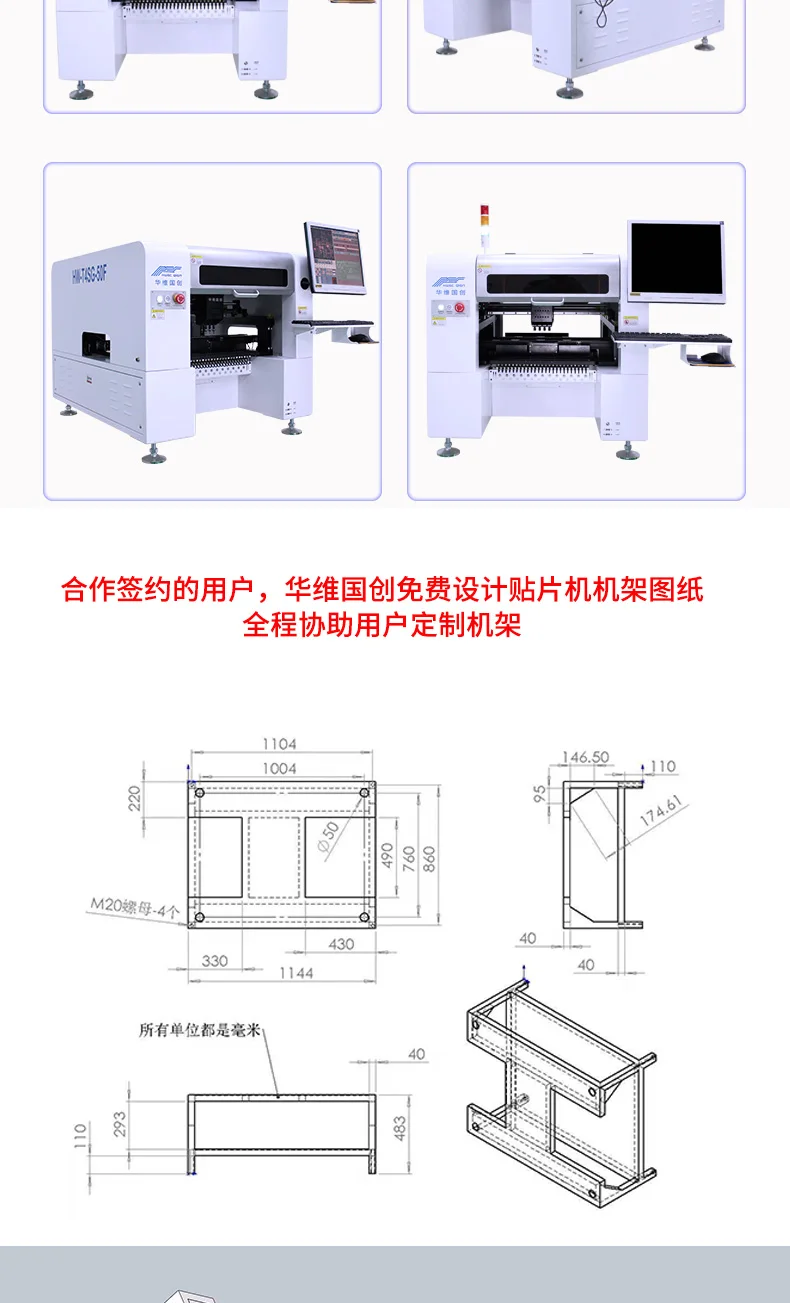

Dimension
900×1140×130mm
