Growatt Three Phase 380V/220V AC Voltage Growatt Solar Inverter 15KW 20KW 30KW 40KW 50KW for Grid Tie System
- Category: >>>
- Supplier: Shenzhen Siko Solar Co. Ltd.Shenzhen Ltd.
Share on (1600950293013):
Product Overview
Description
Product Details
Specification
Datasheet | MID 15KTL3-X | MID 17KTL3-X | MID 20KTL3-X | MID 22KTL3-X | MID 25KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 22500W | 25500W | 30000W | 33000W | 37500W | |||||
Max. DC voltage | 1100V | |||||||||
Start Voltage | 250V | |||||||||
Nominal voltage | 580V | |||||||||
MPPT voltage range | 200V-1000V | |||||||||
No. of MPP trackers | 2 | |||||||||
No. of PV strings per MPP tracker | 2 | 2 | 2 | 2 | 3 | |||||
Max. input current per MPPT tracker | 27A | 27A | 27A | 27A | 27A/40.5A | |||||
Max. short circuit current per MPP tracker | 33.8A | 33.8A | 33.8A | 33.8A | 33.8A/50.7A | |||||
Output data (AC) | ||||||||||
Rated AC output power | 15000W | 1 7000W | 20000W | 22000W | 25000W | |||||
Max. AC apparent power | 16600VA | 18800VA | 22000VA | 24400VA | 27700VA | |||||
Nominal AC voltage(range*) | 230V/400V; 340-440V | |||||||||
AC grid frequency;(range*) | 50/60 Hz (45-55HZ/55-65 Hz) | |||||||||
Max. output current | 24,2A | 27.4A | 31.9A | 35.5A | 40.2A | |||||
Adjustable power factor | 0.8 leading - 0.8 lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N + PE | |||||||||
Efficiency | ||||||||||
Max.efficiency | 98.75% | |||||||||
European efficiency | 98.6% | |||||||||
MPPT efficiency | 99.9% | |||||||||
Protection devices | ||||||||||
DC reverse polarity protection | Yes | |||||||||
DC Switch | Yes | |||||||||
AC/DC surge protection | Type ll/Type II | |||||||||
Insulation resistance monitoring | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
Ground fault monitoring | Yes | |||||||||
Grid monitoring | Yes | |||||||||
Anti-islanding protection | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
String monitoring | Yes | |||||||||
AFCI protection | Optional | |||||||||
General data | ||||||||||
Dimensions (W / H / D) | 525/395/222mm | |||||||||
Weight | 23kg | |||||||||
Operating temperature range | -25 °C ... +60 °C | |||||||||
Self-Consumption (night) | <1W | |||||||||
Topology | Transformerless | |||||||||
Cooling | Smart air cooling | |||||||||
Protection degree | IP65 | |||||||||
Relative Humidity | 0-100% | |||||||||
Altitude | 4000m | |||||||||
DC connection | H4/MC4(Optional) | |||||||||
AC connection | Cable gland+OT terminal | |||||||||
Display | OLED+LED/WIFI+APP | |||||||||
Interfaces: RS485 / USB /WiFi/ GPRS / RF/ LAN | Yes/Yes /Optional/Optional/Optional/Optional | |||||||||
Warranty: 5 years /10 years | Yes /Optional | |||||||||

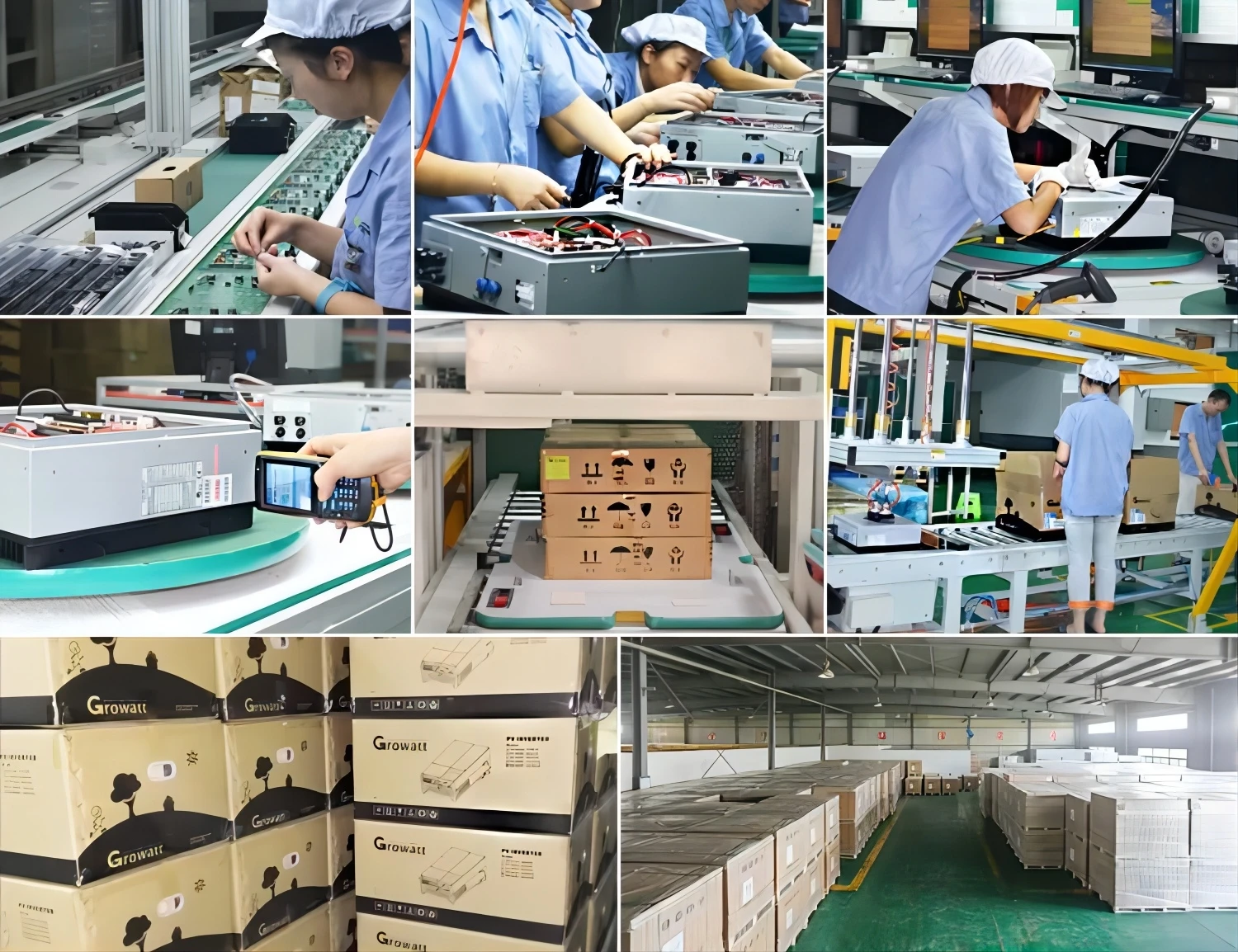

Production line

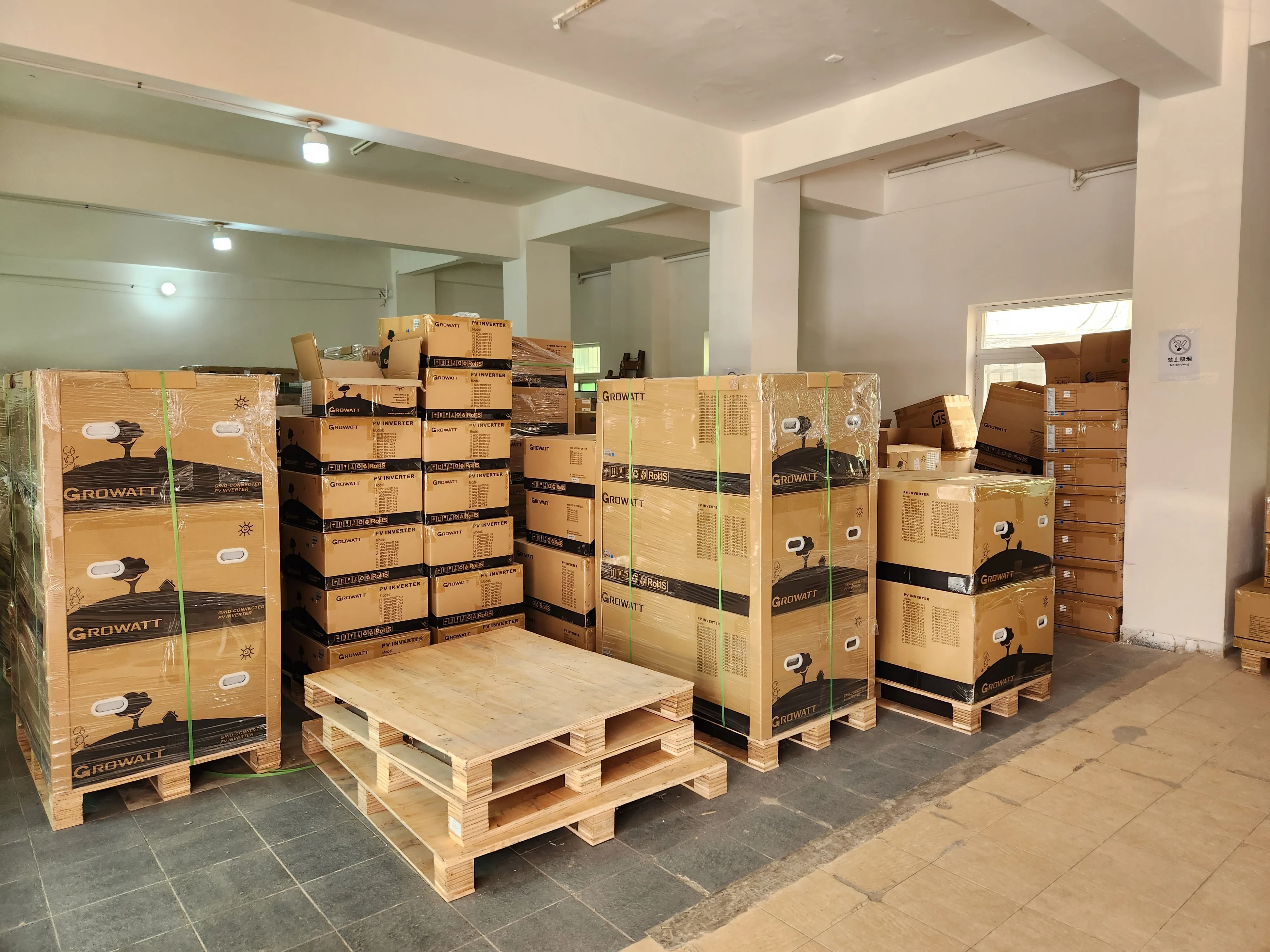

Packing & Delivery
Packing: one piece per carton
Payment term: by TTShipping way: by express,by sea,by air
Lead time: about 7-10 working days after received the payment

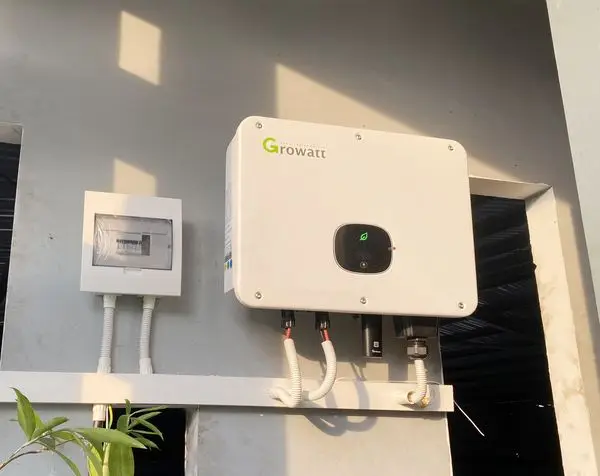

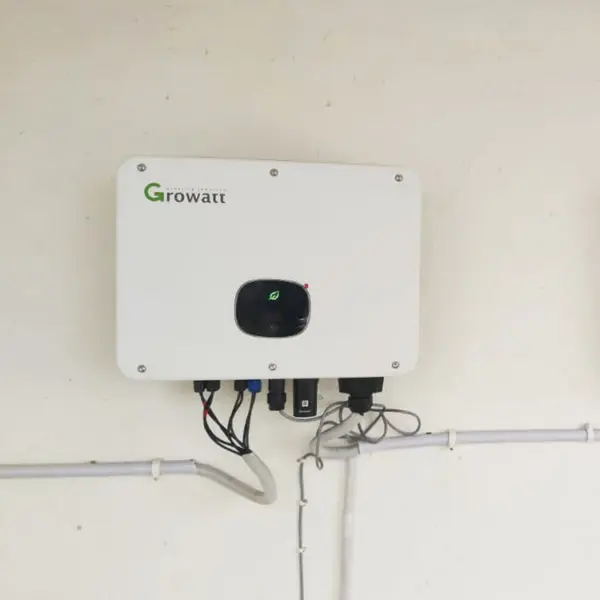

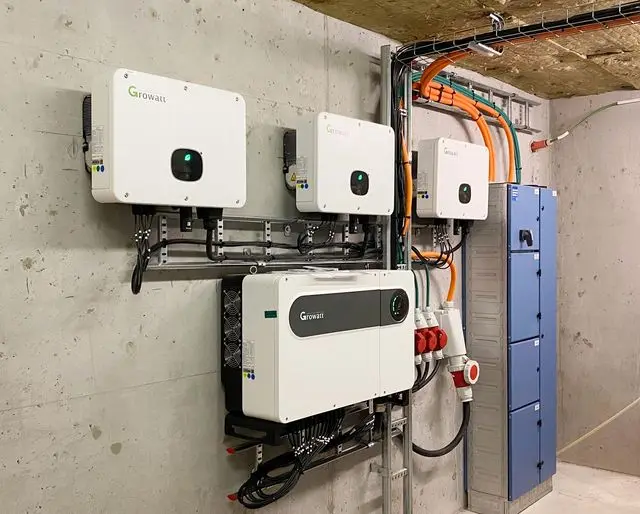

Project Case
