460cfm pneumatic jack hammer diesel mobile screw air compressor price
- Category: >>>
- Supplier: Shanghai Newton Machinery Co. Ltd.
Share on (1600950328995):
Product Overview
Description
460cfm pneumatic jack hammer diesel mobile screw air compressor price
Product Overview
Screw air compressor air end by GHH,Hanbell,Ningbo-Baosi,etc.
Application:
Diesel mobile screw air compressors are our hot sale products. Its efficient and flexible use features have won the favor of customers.
This series machine uses excellent diesel engine with reversing head to greatly improve its reliability and economy. Excellent comprehensive performance, widely used in hydropower, railway, ship repair, mining, highway, shotcrete, oil and gas fields, water well drilling, municipal construction, cable laying and other related fields.
 | Status monitoring
The operation interface is designed with separate instruments according to the primary and secondary, and the interface is more concise, making the operation easier for the user.
|
| Gull wing design
Beautiful appearance, easy maintenance.
|
| Large-capacity fuel tank
Equipped with large-capacity fuel tank, can work continuously for more than 8 hours.
|
| Quiet design
The whole machine is equipped with sound-absorbing sponge,which is quieter. |
According to your needs, diesel engine can be customized, like Cummins, DEUTZ,Yuchai,etc.

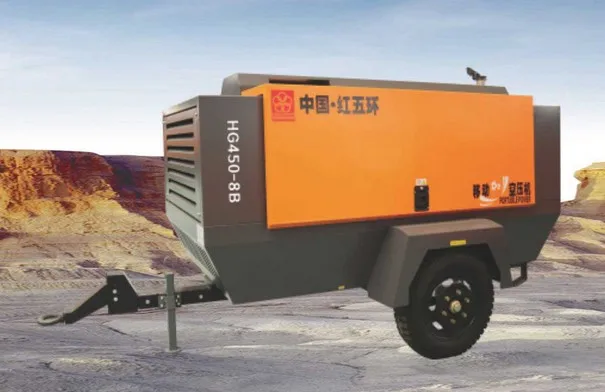

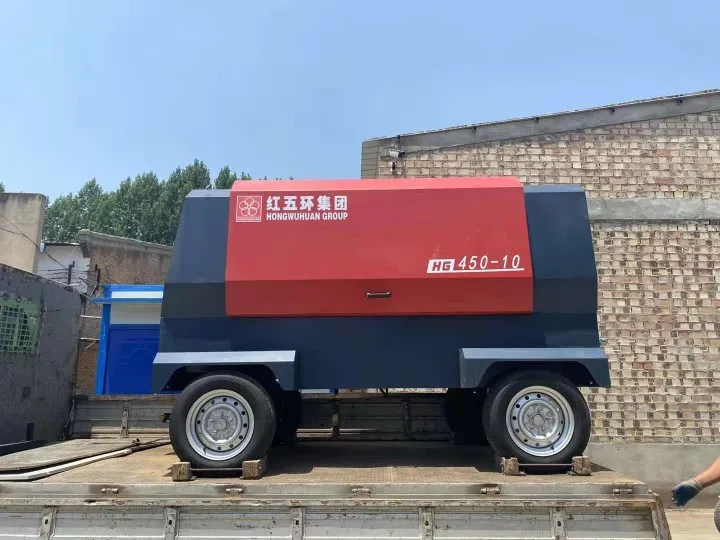

Name | HG450-10 | HG450-8 | HG450L-8 | |
Compressor
| Air Displacement(m3/min) | 12 | 13 | 13 |
Pressure(Bar) | 10 | 8 | 8 | |
Air Tank(L) | 90 | 90 | 100 | |
Lubricant Oil(L) | 54 | 54 |
| |
Diesel Engine
| Brand | DCEC/Yuchai/Weichai | DCEC/Yuchai/Weichai | DCEC/Yuchai/Weichai |
Model | 6BT5.9/YC6108ZG/WP4B120 | 6BT5.9/YC6108ZG/WP4B120 | 6BT5.9-C150/YC6B125-T21/WP4B100E242 | |
No.of cylinder | 6/6/4 | 6/6/4 | 6/6/4 | |
Rated Power(kw) | 110/110/120 | 110/110/120 | 110/93/100 | |
Rotate Speed (rpm) | 2400/2300/2200 | 2400 | 2400/2300/2200 | |
No-load speed(rpm) | 1500 | 1500 | 1400 | |
Lubricant(L) | 12-18 | 12-18 | 12-18 | |
Coolant(L) | 25-28 | 25-28 | 25-28 | |
Fuel tank(L) | 120-160 | 120-160 | 120-160 | |
Machine
| Battery | 2-135MF(12V) | 2-135MF(12V) | 6-QW-135 |
Length(mm) | 3220 | 3220 | 3220 | |
Width(mm) | 1850 | 1850 | 1850 | |
Height(mm) | 1850 | 1850 | 1850 | |
Net Weight(kg) | 2450 (2 wheels) | 2450(2wheels) | 2450(2wheels) | |
Outlet exhaust valve size | R1.1/2’’ R1’’ | R1.1/2” R1” | ||
Recommend: HC Hard Rock Drilling Rigs,please click here.
GIA series Open Pit Crawler Drilling Rigs,pls click here.
Small DTH Electric Drilling Rig,pls click here.
Hydraulic Drilling Rig,click here.
Stationary Diesel Screw Air Compressors,please click here.
Mining Electric Portable Screw Air Compressor,pls click here.
Diesel Piston Air Compressor,pls click here.
Telephone number: 0086-187 2186 2438,welcome your calling!!
Company Information
Our factory was founded in 1997,covers an area of 173,160 square meters,inside there are 70,000 square meters standard workshops. We has advanced production lines,assembly lines,quality control center and electrostatic spray coating lines.Manufactures in making air compressors and drilling machines. We currently manufactures a wide range of machines,such as all kinds of piston air compressors,screw air compressors,pneumatic rock drills,pneumatic and hydraulic down hole drills,breakers,drilling wagons etc.
In May 25th 2016 Our factory signed a strategic cooperation agreement with Atlas Copco (China) Investment Co., Ltd. Under the agreement, and we will jointly develop, produce and sell mining & construction equipments.

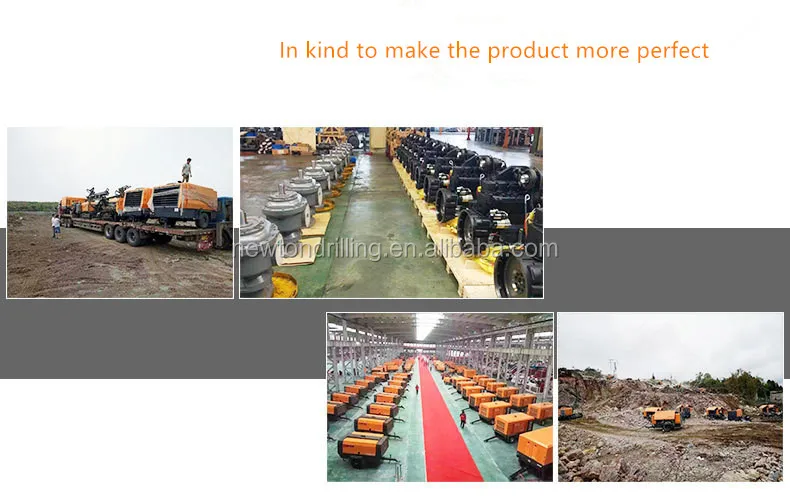

Machine working site
Certifications

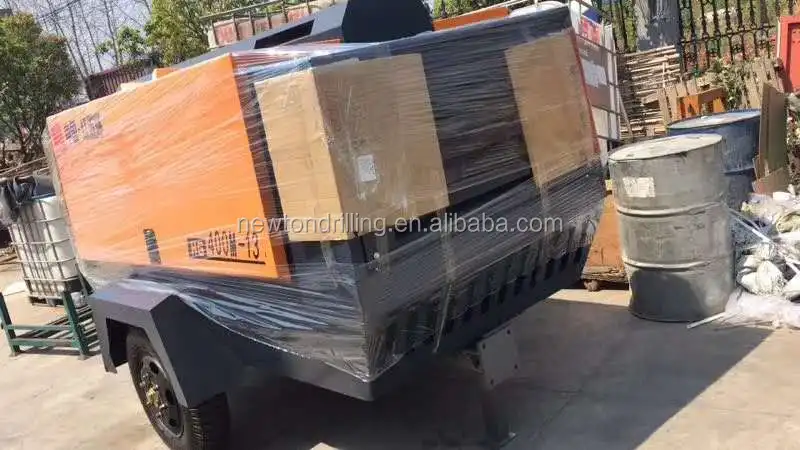

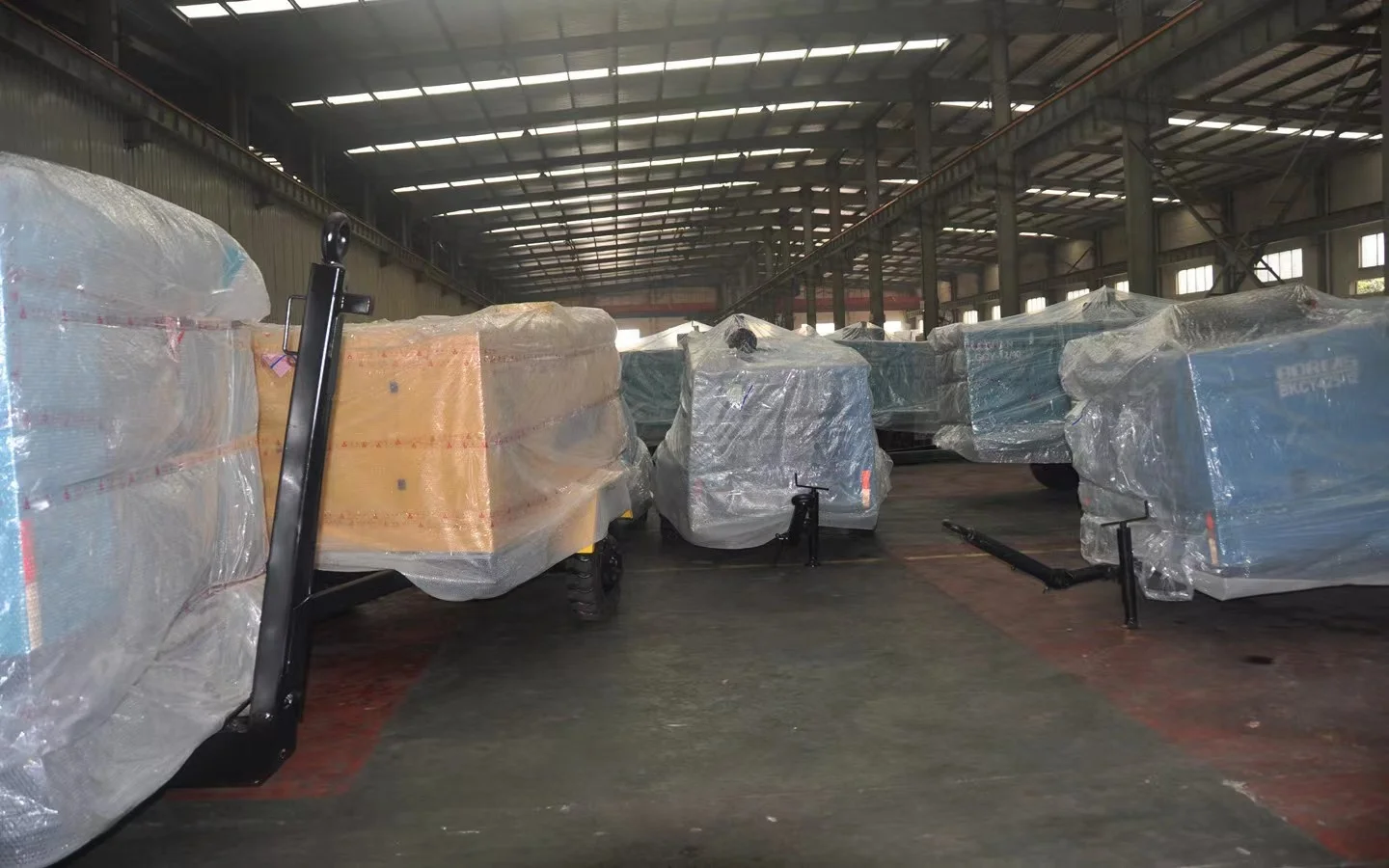

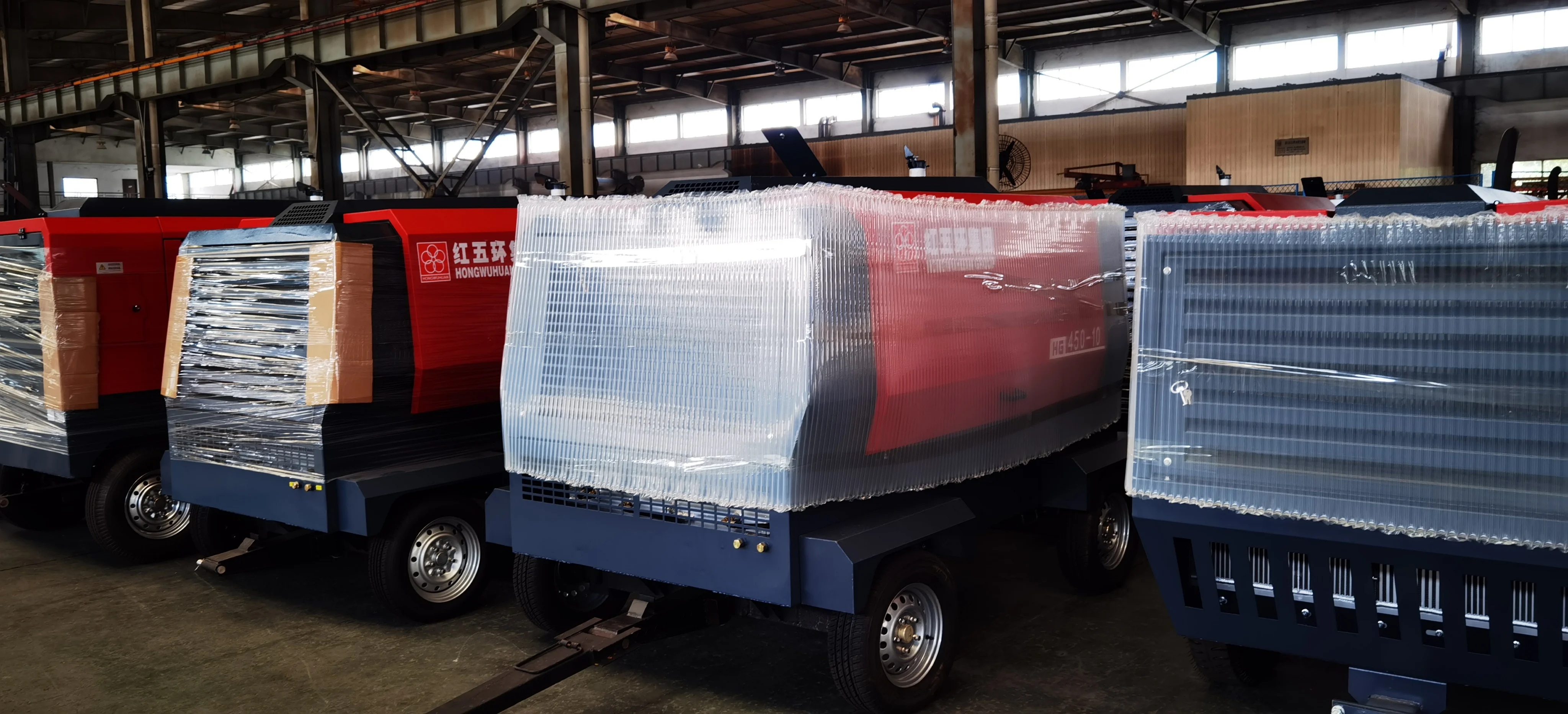

Packaging & Shipping
Our Services
Pre-Sales Service After-Sale Service
•Professional sale service your inquiry & consulting; •Training support of machine operation;
•Customized your machines solutions; •Spare parts supply support;
•Factory & machine inspected; •Problems & Technical supply;
•Training support; •Engineers available to service machine overseas.
FAQ
1. How long is your air compressor & drilling rig warranty?
∗ 1 years for the whole machine after leave the factory
2. Do you provide After- sales service parts?
∗Of course, we have.
3.How long could your machine be used?
∗More than 10 years if have regular maintenance.
4. How is your machine quality?
∗All the machines must pass the strict test before leave factory.
And our factory has above 20 years manufacturing experience,can gurantee the quality.
5.Which payment term you accpet?
∗Now we will accpet TT,LC,Western Union,Trade Assurance online,Paypal,Cash,etc.
6.How about the delivery time?
∗Within about 1 week.
7.Can visit your factory?
∗Yes,welcome to our factory. We will treat you in China,and pick you up at airport.
We are near to Pudong Airport.
8.Are you a manufacturer?
∗We are trade offcie in Shanghaim,our factory is in Zhejiang.
