Hot selling CE certified Foams insert cutter Cutting Machine for polyethylene foam EVA EPE PU PE XPE with factory price
- Category: >>>
- Supplier: Jinan Deveup Intelligent Equipment Co. Ltd.
Share on (1600950333873):
Product Overview
Description
Products Description

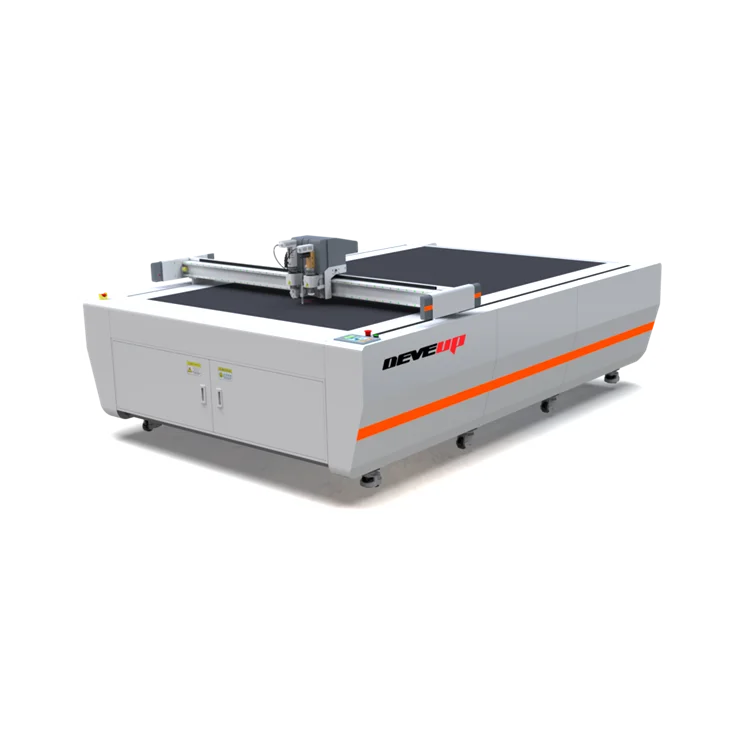

DO1625F CNC OSCILLATING KNIFE CUTTING MACHINE FOR LEATHER FABRIC CLOTH
Deveup foam cutting machine features advanced oscillating knife cutting technology. It is widely used in packaging, crafts, toy manufacturing, advertising, and other industries. Only need to transfer the designed graphics to the computer, CNC oscillating knife cutting machine can automatically and accurately cut a variety of foam materials, such as EPE, EVA, XPE, IXPE silicone and other foam materials. No need for molds, high processing accuracy, high efficiency, neat and smooth cutting edges, no smoke and smell, no burning and yellow edge, to meet the high quality cutting requirements of complex graphics.
Specification
Model | DO1625F |
Working Size | 1600 x 2500mm |
Applicable Industries | EVA, EPE, PE, XPE, IXPE, PET foams, Cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, PVC board, acrylic board, etc. |
Safety device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety |
Cutting Thickness | ≤50mm (Other thickness can be customized according to the material) |
Cutting speed | ≤1500mm/s(The actual speed depends on the material and cutting graphics) |
Cutting precision | ± 0.1mm |
Repeat accuracy | ≤0.05mm |
Cutting circular diameter | ≤3mm Diameter |
Positioning way | Laser positioning also optional CCD camera positioning |
Material fixed way | Vacuum adsorption |
Transport interface | Ethernet front-end ports |
Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization |
Support File Format | DWG, AI, PLT, DXF |
Operation panel | Multilingual languages LCD touch panel |
Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors+ precision reducer |
Voltage / Hz | AC 220 v to 380 v + 10%, 50 - 60hz. |
Power | 11KW |
Dimension(L*W*H) | 3400*2270*1300mm |
Weight | 1400KG |
Warranty | 3 years |
Colorful LCD touch operation panel supports multilingual languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation.

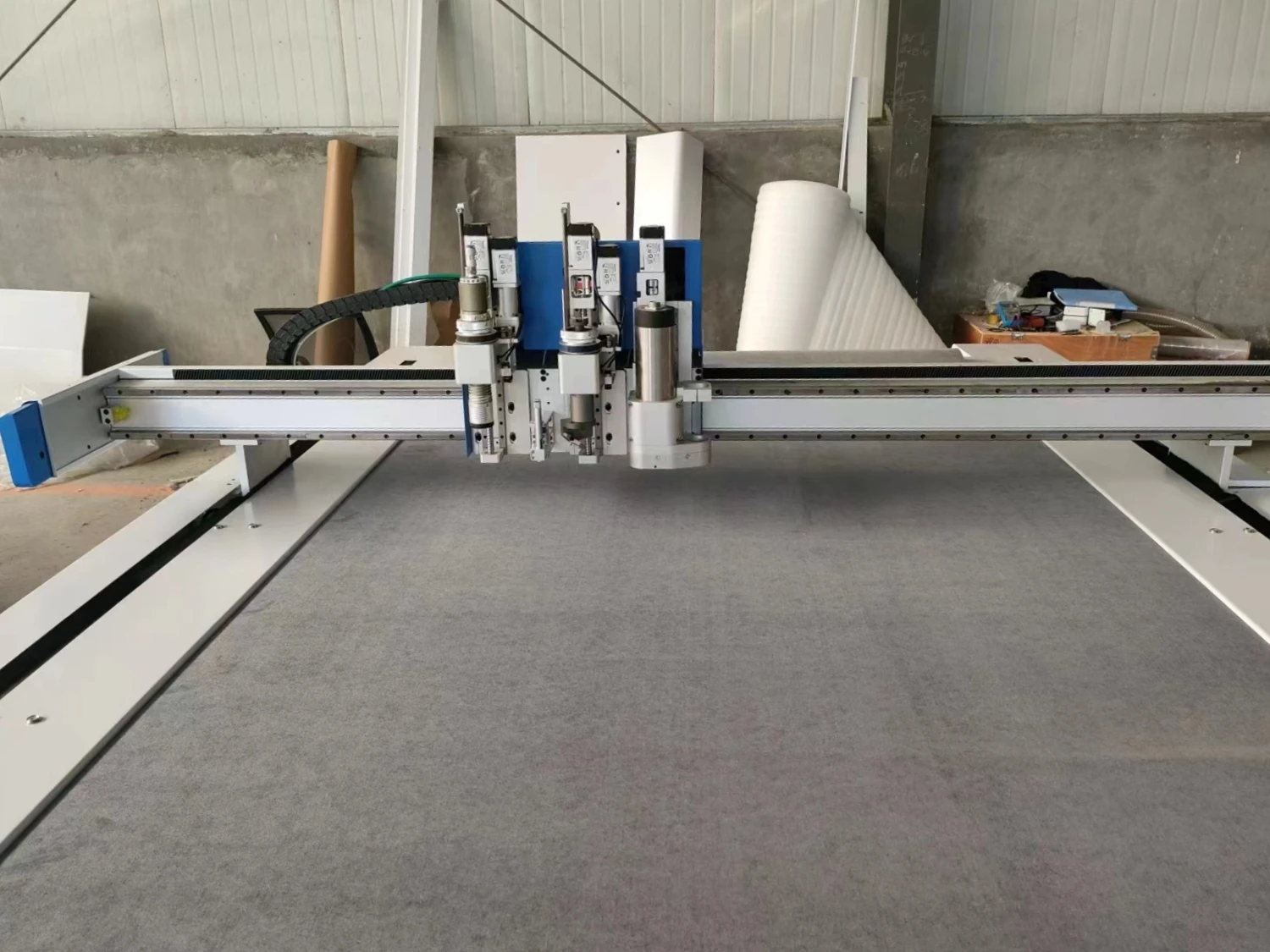

A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high
processing accuracy, truly multi-purpose machine.
processing accuracy, truly multi-purpose machine.
Our machine frame/bed is characterized by high weight, strong load-bearing capacity and good stability, and the use of imported
gantry machining centers ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed for 10 years.
gantry machining centers ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed for 10 years.
The crossbeam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gaskets.
Imported famous brand helical rack pinion , quenching and hardening treatment. High precision, strong load-bearing capacity, smooth running at high speed and less noise.
Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precision
The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable with 40mm thickness. Cooperate with high power vacuum pump to fix the material.
4mm felt with built-in fiber tensile layer to protect the vacuum table and blades while the machine is working. Cutting-resistant, soft, won't scratch the product, non-slip, prevent the material from shifting during the cutting .
Use top quality Japan Panasonic servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.

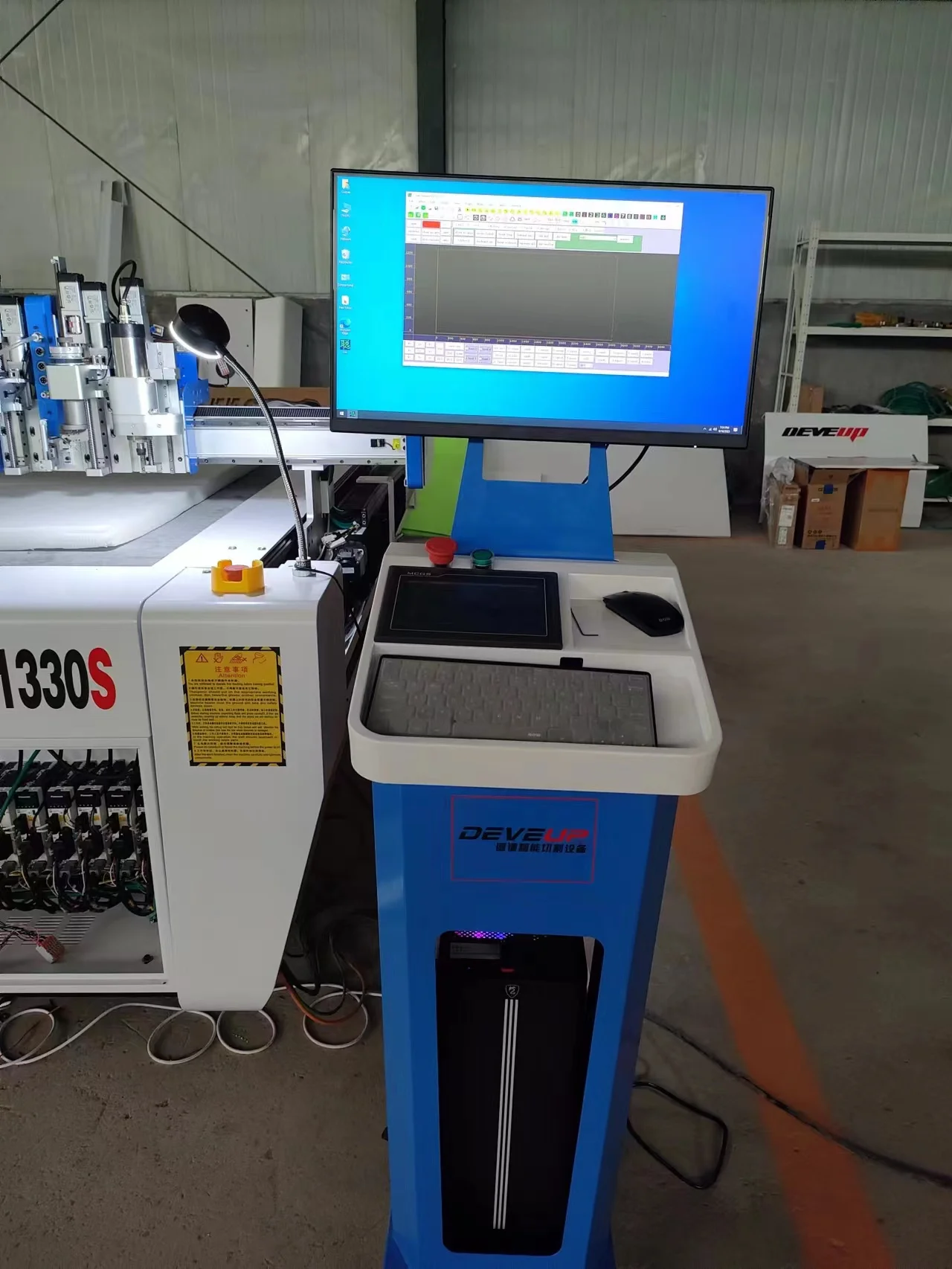

The ergonomic operating cabinet is beautifully designed and friendly to operate. Computer built-in genuine Windows 10 operating system, pre-installed feature-rich cutting software and nesting software, eliminating the need for customers to install software and set up parameters, saving customers' time.
Safety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator.
It has an automatic feeding conveyor for rolls cutting. After cutting the material on the table. The feeding table automatically rolls forward to pull the material behind the table. and keep cutting. No need to manually pull the material forward. The cutting process also does not need to be interrupted, and with automatic deskew function.
Tips

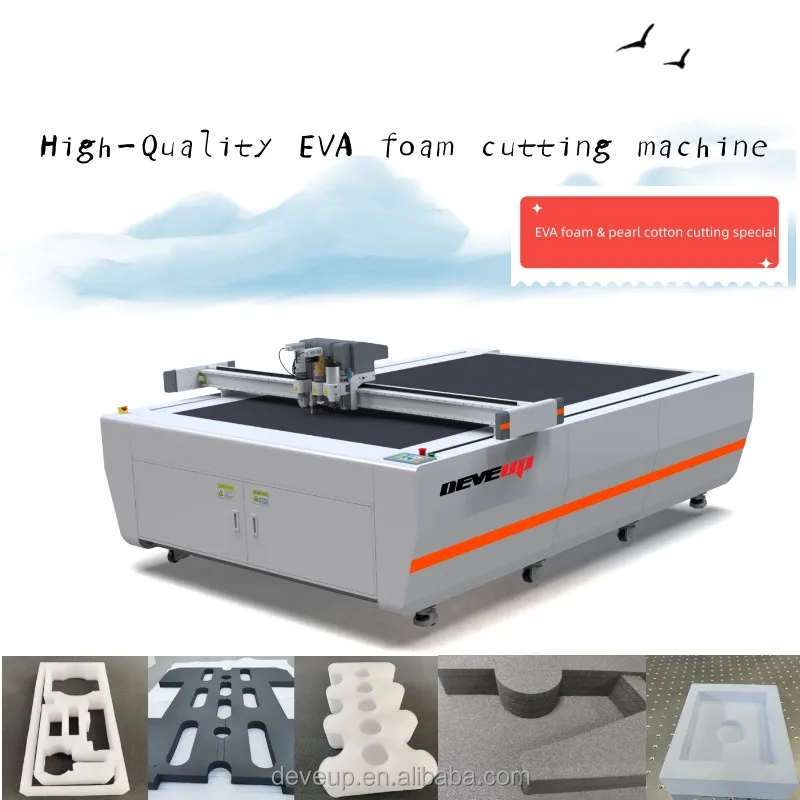

With the continuous development of CNC technology, more and more customers choose Deveup intelligent cutting machine instead of workers. Deveup CNC oscillating digital knife cutter is widely used in the cutting and milling of EVA foam boards. It adopts advanced oscillating knife cutting technology with various cutting tools to meet different materails cutting. It can meet a variety of foam material cutting, such as EVA, EPE, sponge, EPS styrofoam and so on.
Advantages to using the Deveup cnc Oscillator Knife Cutter to cut foam:
1. More smart; EVA foam automatic cutting machine does not need a mold, just process the processing data (PLT, DXF, AI format) into the system to cut, and can modify the size and shape of the processing graphics arbitrarily;
2. Save materials; automatic nesting software can complete typesetting quickly and accurately without manual nesting. After actual testing, using an automatic cutting machine can save more than 10% of material compared to manual cutting;
3. Meet different foam cutting; can cut foam of different width, thickness, and material. High cutting precision and flat cutting to meet the cutting requirements of complex graphics.
4. The processing site is more humanized; Deveup EVA foam cutting machine adopts high-frequency oscillating knife cutting technology. Compared with laser cutting technology, the processing site has no soot, and the cutting speed is 3-4 times that of the laser. More environmentally friendly processing methods.
5. Different types of tools can be configured; customers can configure different processing tools according to the processing materials - round knife, pneumatic knife, punching knife, vibrating knife, and other cutter heads to configure freely to cut other materials except for foam;
6. Achieve higher cutting efficiency; Deveup EVA foam cutting machine adopts Japanese Panasonic servo motors with cutting speed of up to max 1500mm/s. Customers can also choose dual-oscillating tools to cut at the same time, which doubles the processing efficiency.
Advantages to using the Deveup cnc Oscillator Knife Cutter to cut foam:
1. More smart; EVA foam automatic cutting machine does not need a mold, just process the processing data (PLT, DXF, AI format) into the system to cut, and can modify the size and shape of the processing graphics arbitrarily;
2. Save materials; automatic nesting software can complete typesetting quickly and accurately without manual nesting. After actual testing, using an automatic cutting machine can save more than 10% of material compared to manual cutting;
3. Meet different foam cutting; can cut foam of different width, thickness, and material. High cutting precision and flat cutting to meet the cutting requirements of complex graphics.
4. The processing site is more humanized; Deveup EVA foam cutting machine adopts high-frequency oscillating knife cutting technology. Compared with laser cutting technology, the processing site has no soot, and the cutting speed is 3-4 times that of the laser. More environmentally friendly processing methods.
5. Different types of tools can be configured; customers can configure different processing tools according to the processing materials - round knife, pneumatic knife, punching knife, vibrating knife, and other cutter heads to configure freely to cut other materials except for foam;
6. Achieve higher cutting efficiency; Deveup EVA foam cutting machine adopts Japanese Panasonic servo motors with cutting speed of up to max 1500mm/s. Customers can also choose dual-oscillating tools to cut at the same time, which doubles the processing efficiency.
CUTTING TOOL
Company Profile
Jinan Deveup Intelligent Equipment Co.,Ltd, which is committed to providing intelligent and automated cutting solutions for flexible materials cutting, and are a technical enterprise integrating design, R&D, production and sales, with our production site located in the beautiful spring city of Jinan. The company upholds the production concept of "quality for survival, innovation for development" to ensure the performance and quality of each machine, a long warranty period, and to provide customers with the most humane after-sales service, to create a customer-trustworthy products of conscience, to relieve customers of the use of the product worries.We have exported more than 30+countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc.
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a trading company or a factory?
A:We are manufacturers.
Q: When can we arrange shipment?
A:We usually arrange shipment within 15 days after receiving the deposit, but customized machines should be more than 25 days.
Q:what can you buy from us?
A:CNC Oscillating Knife Cutting Machine,Digital Knife Cutting Machine,CNC Knife Cutting Machine
Q:Is equipment operation training provided after sale?
A:Yes. We can send professional engineers to the work site for equipment installation, commissioning and operation training.
Q:Can you customize the machine according to my requirements?
A:Yes. We have experienced engineers and technical team, can provide personalized service
A:We are manufacturers.
Q: When can we arrange shipment?
A:We usually arrange shipment within 15 days after receiving the deposit, but customized machines should be more than 25 days.
Q:what can you buy from us?
A:CNC Oscillating Knife Cutting Machine,Digital Knife Cutting Machine,CNC Knife Cutting Machine
Q:Is equipment operation training provided after sale?
A:Yes. We can send professional engineers to the work site for equipment installation, commissioning and operation training.
Q:Can you customize the machine according to my requirements?
A:Yes. We have experienced engineers and technical team, can provide personalized service
