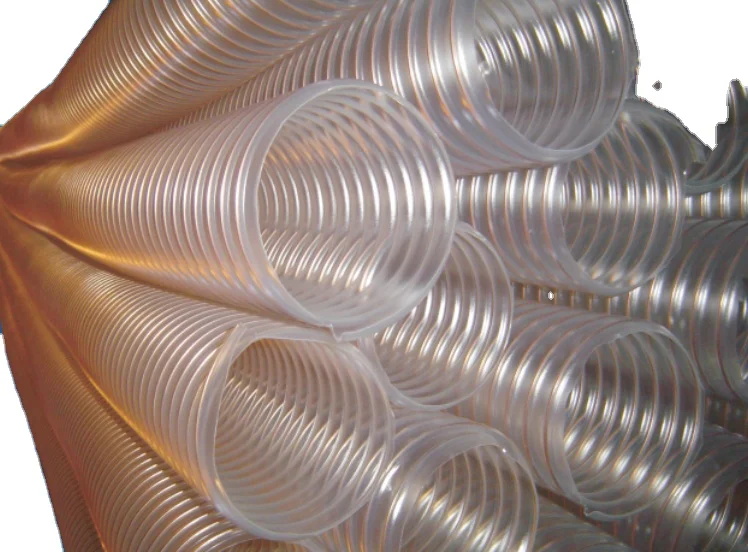

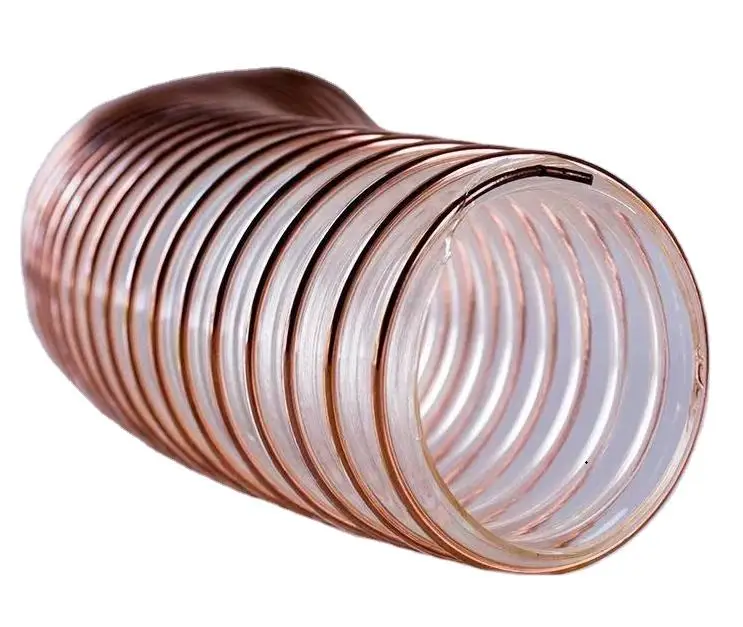

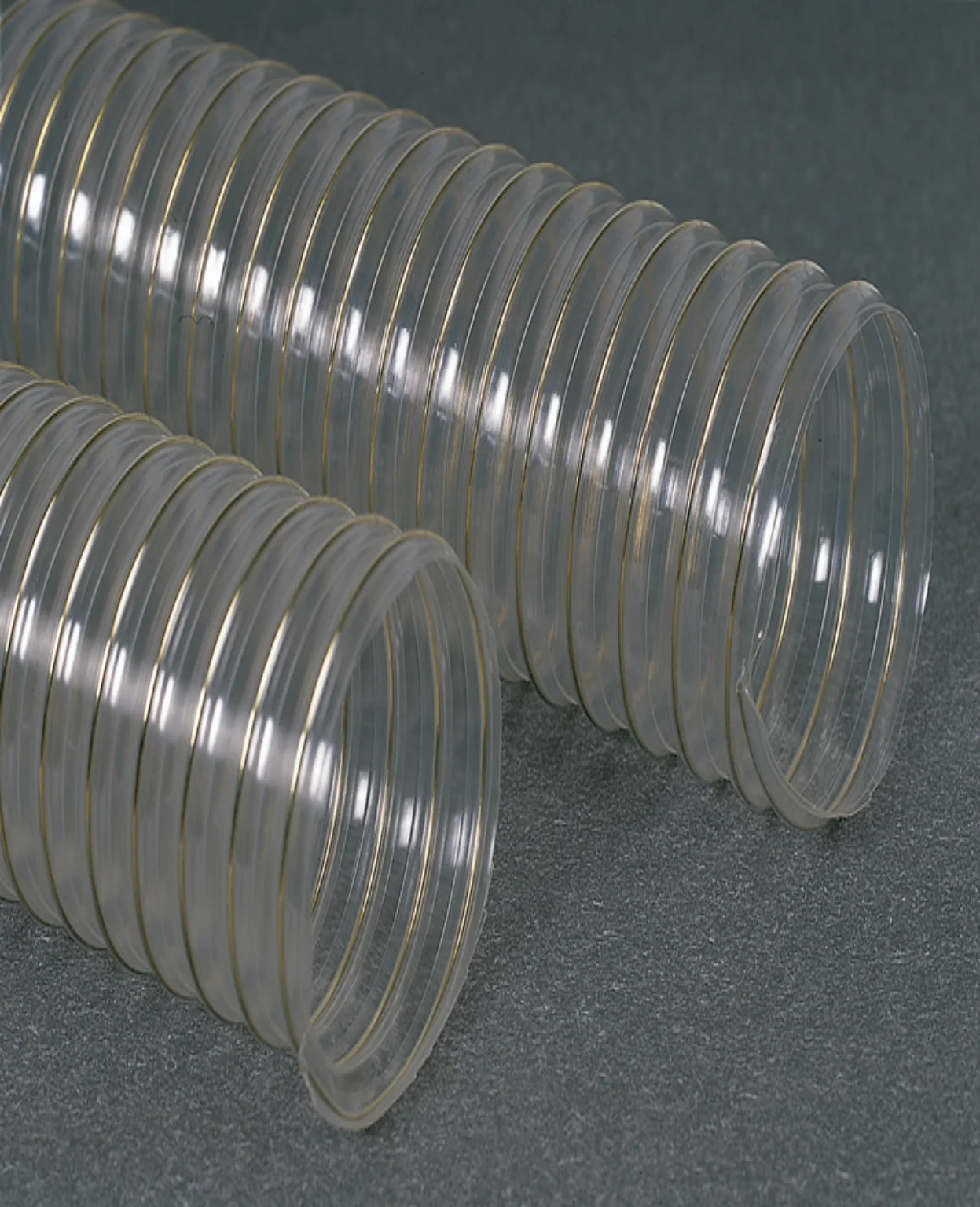

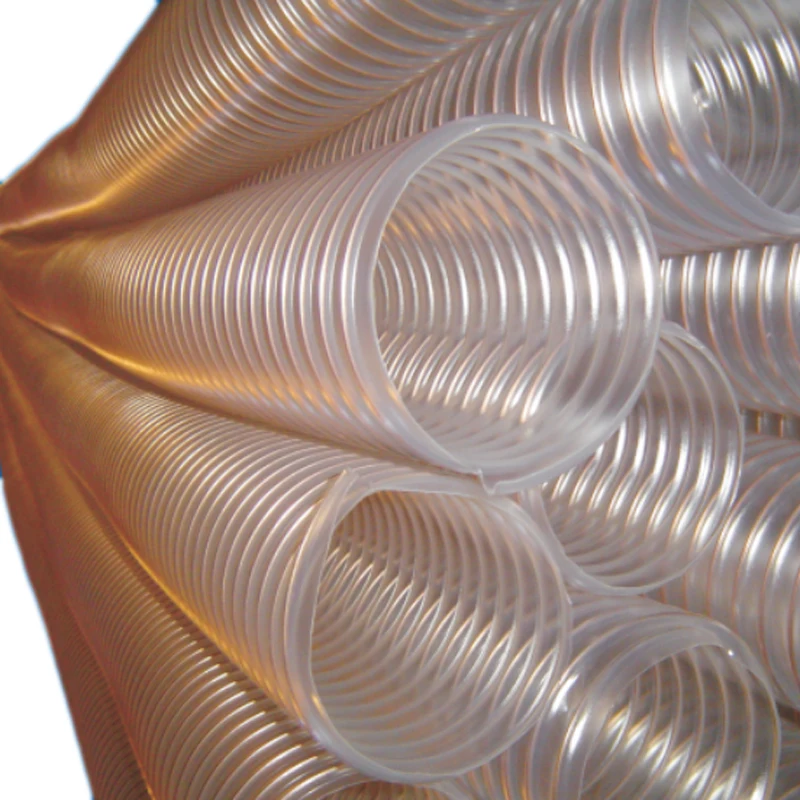

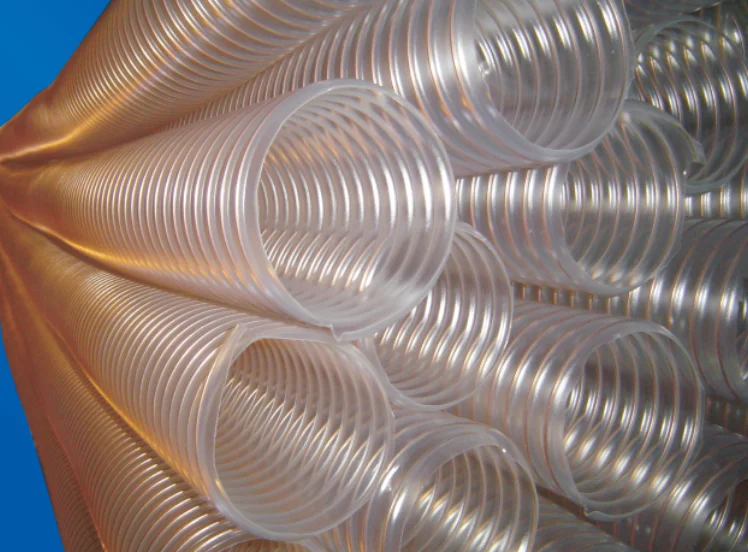

Flame retardant polyurethane hose reinforced pipe flexible pu dust ventilation pipe
- Category: >>>
- Supplier: Shanghai Qianjing Ducting Co. Ltd.
Share on (1600950377065):
Product Overview
Description
Production Paramenters
Product Code | XY-PU |
Construction | Steel Wire+PU |
Color | Transparent |
Available Diameter | 25mm-305mm |
Carbon Steel Wire Diameter | 0.4-1.0mm |
Standard Length | 10(Max) |
Thickness | 0.35mm |
Temperature Range | -40℃/+90℃（Short time to 125°C） |
Operating Pressure | 150-1600Pa |
Production Packing
Carton Measurement for packing(length 10m/pc) | ||||||||
Diamter(mm) | PVC Duct | COMBI PVC Duct | Aluminum Duct | Insulated Duct | ||||
75mm | 100*100*300mm | 100*100*900mm | 100*100*410mm | 150*152*1010mm | ||||
102mm | 125*125*300mm | 130*130*450mm | 125*125*410mm | 182*182*1010mm | ||||
125mm | 150*150*300mm | 150*150*450mm | 150*150*410mm | 200*200*1010mm | ||||
152mm | 175*175*260mm | 180*180*410mm | 175*175*370mm | 230*230*1010mm | ||||
165mm | 185*185*260mm | 190*190*410mm | 185*185*370mm | 240*240*1010mm | ||||
203mm | 225*225*260mm | 230*230*410mm | 225*225*370mm | 280*280*1010mm | ||||
254mm | 275*275*260mm | 280*280*410mm | 275*275*370mm | 330*330*1010mm | ||||
305mm | 325*325*260mm | 330*330*410mm | 325*325*370mm | 380*380*1010mm | ||||
315mm | 340*340*260mm | 340*340*410mm | 340*340*370mm | 390*390*1010mm | ||||
355mm | 375*375*260mm | 380*380*410mm | 375*375*370mm | 430*430*1010mm | ||||
405mm | 425*425*260mm | 430*430*410mm | 425*425*370mm | 480*480*1010mm | ||||
455mm | 475*475*260mm | 480*480*410mm | 475*475*370mm | 530*530*1010mm | ||||
505mm | 520*520*260mm | 530*530*410mm | 520*520*370mm | 580*580*1010mm | ||||
555mm | 575*575*260mm | 580*580*410mm | 575*575*370mm | 630*630*1010mm | ||||
