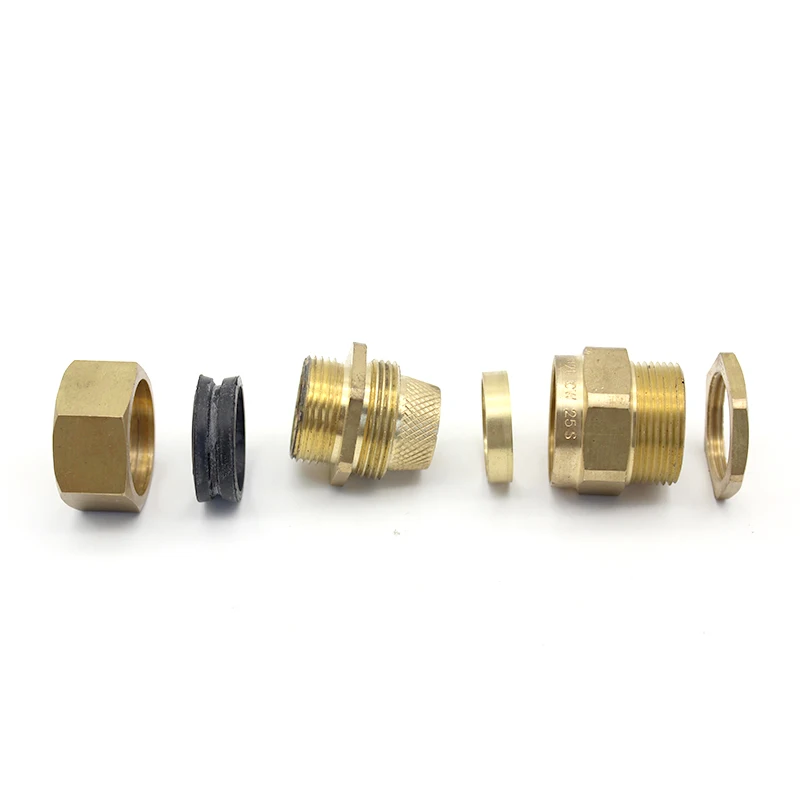

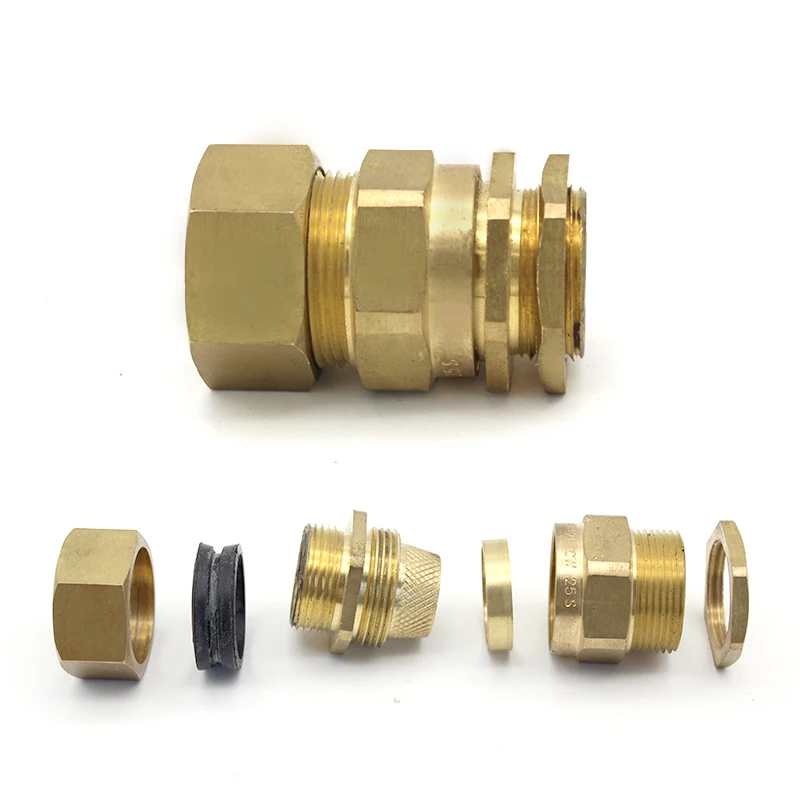

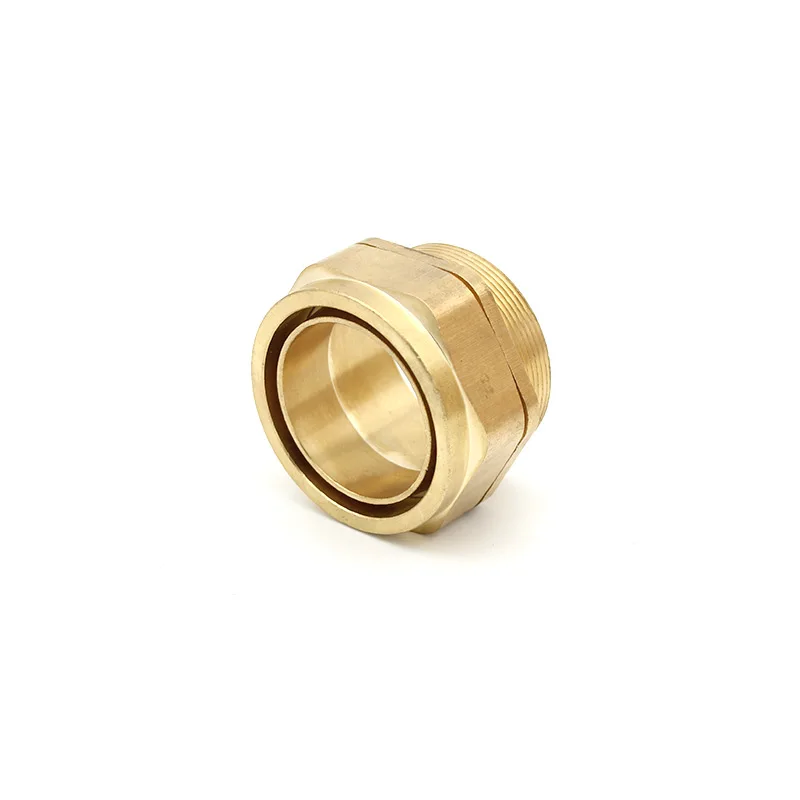

High Quality Copper Waterproof CW Thread Cable Gland Type With Earthing Shroud Armoured & PVC Shroud Outside
- Category: >>>
- Supplier: Yueqing Jixiang Connector Co. Ltd.
Share on (1600950378639):
Product Overview
Description
Product Description
Item Name | CW Cable Gland |
Material | Brass with or without nickel plated |
Standard | BS6121 |
Protection Class | IP66&IP67 |
Temperature | -20°c to 80°c |
Thread options | Metric, NPT, BSP&PG |
Application | For indoor or outdoor use with all types of SWA cables |

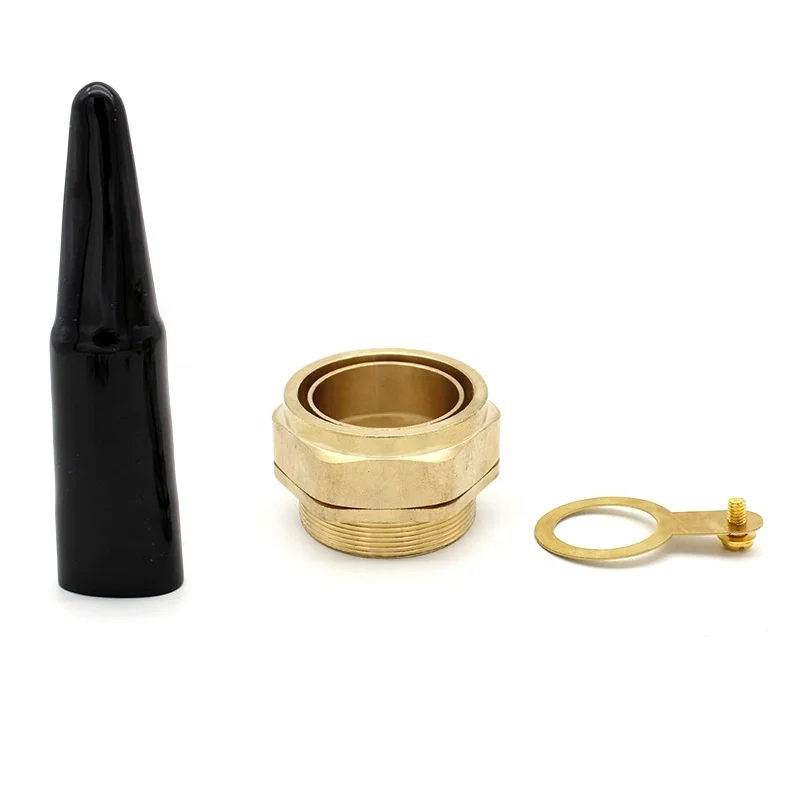

Accessories | Matching accessories available like PVC Shourds locknuts & earth tag |
Function | CW type glands provide a seal on the outer sheath and a specific armour clamp for armoured cable. The armour clamp provides an electrical bond for armour cable and the gland |
Notes | Customization is available |
Code | Thread size "C" | Minimum length of thread "D" | Cable Range Max"A" (mm) | Cable Range Max"B"(mm) |
JX-CW20S | 20 | 10 | 11.8 | 17.8 |
JX-CW20L | 20 | 10 | 14.0 | 20.8 |
JX-CW25S | 25 | 10 | 18.0 | 24.0 |
JX-CW25L | 25 | 10 | 20.3 | 27.4 |
JX-CW32S | 32 | 10 | 24.5 | 31.0 |
JX-CW32L | 32 | 10 | 26.5 | 34.2 |
JX-CW40S | 40 | 13 | 30.4 | 38.5 |
JX-CW40L | 40 | 13 | 33.2 | 41.0 |
JX-CW50S | 50 | 13 | 40.0 | 47 |
JX-CW50L | 50 | 13 | 44.0 | 53.5 |
JX-CW63S | 63 | 14 | 50.0 | 59.0 |
JX-CW63L | 63 | 13.5 | 56.0 | 66.0 |
JX-CW75S | 75 | 15 | 63.5 | 73.0 |
JX-CW75L | 75 | 15 | 69.0 | 73.0 |
Packing & Delivery
1.Commmon Packing: Inner Plastic Bag+Export Caton Box
2. Customized Packing: OEM lable, Inner Box, Plastic Bag, etc, as per requirements.
2. Customized Packing: OEM lable, Inner Box, Plastic Bag, etc, as per requirements.
