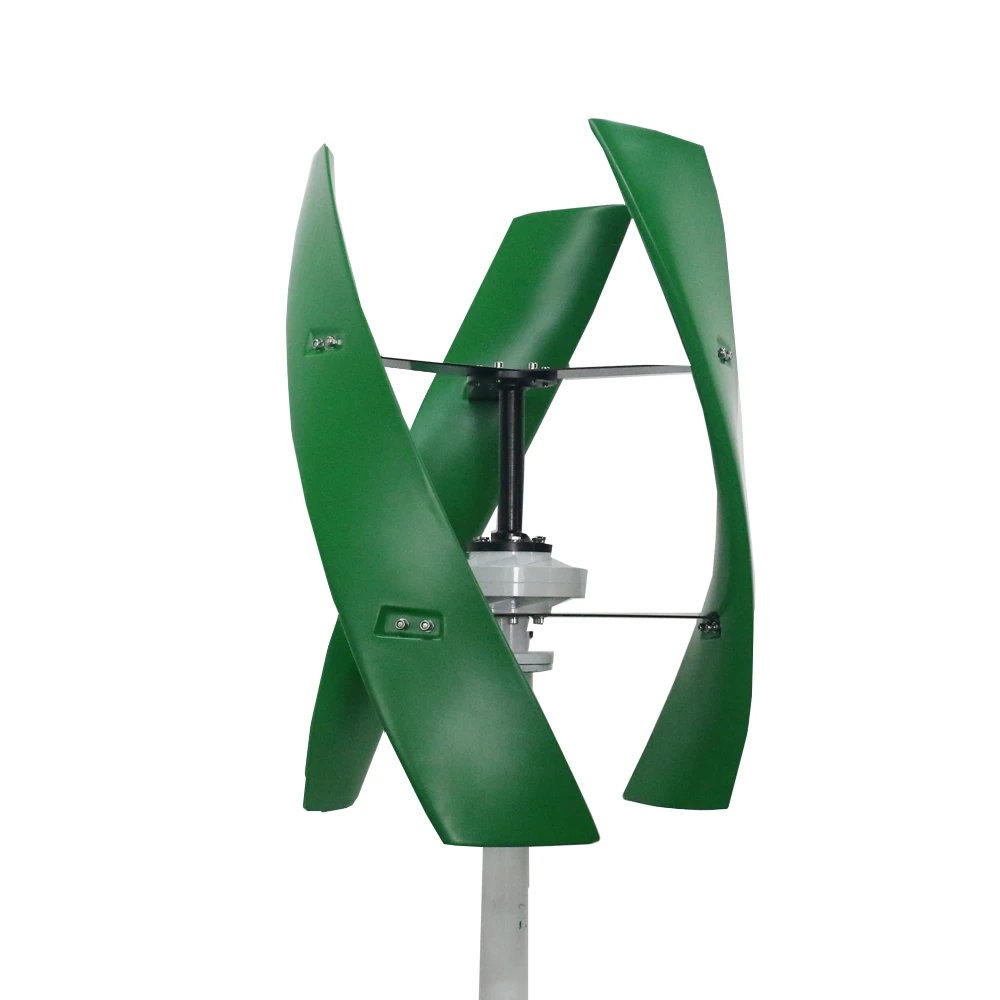

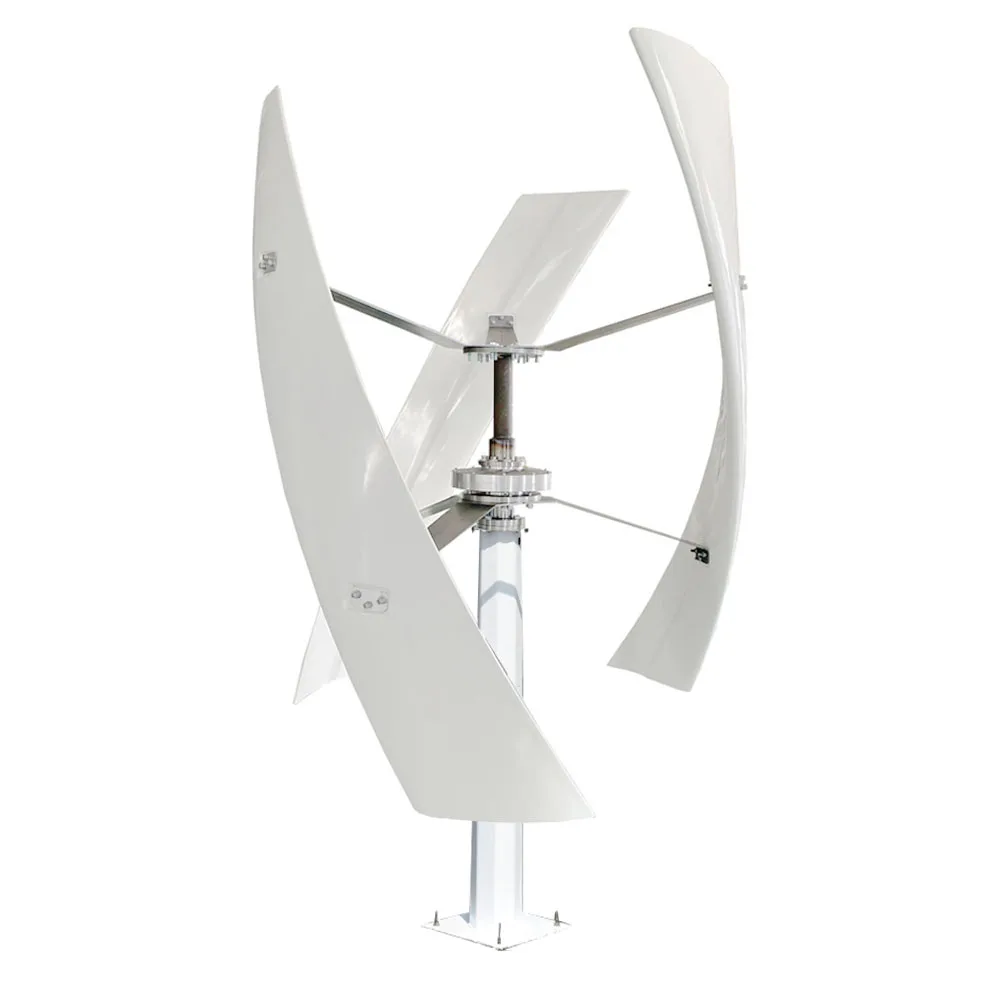

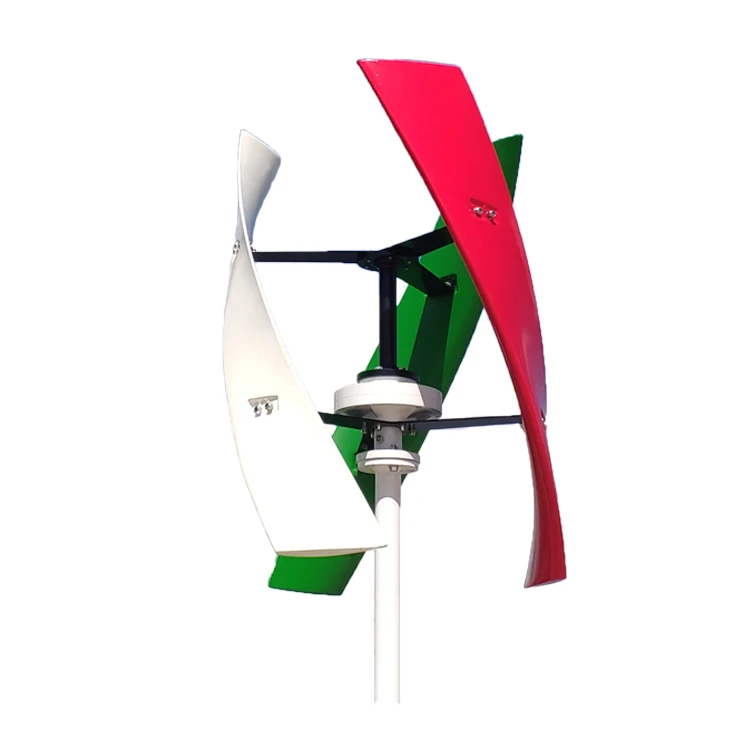

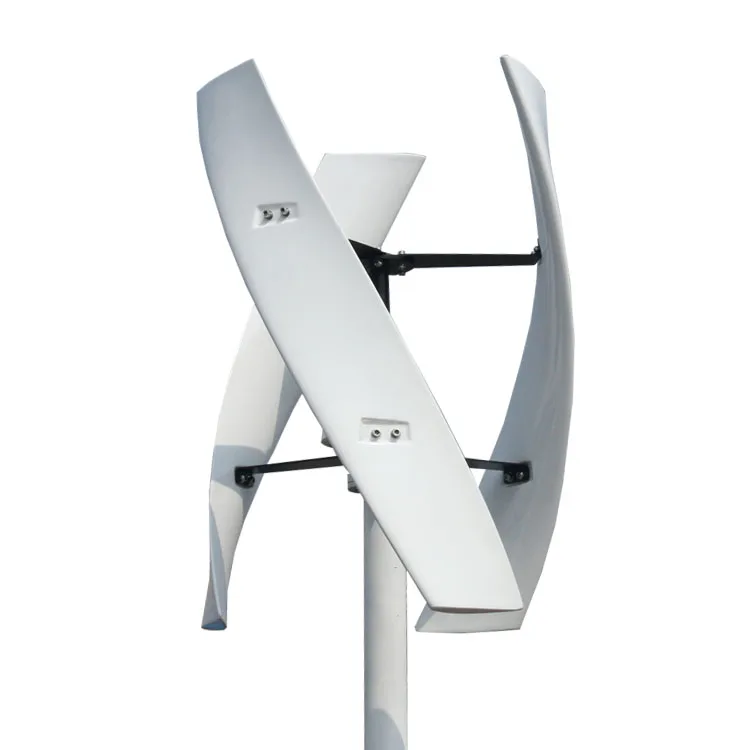

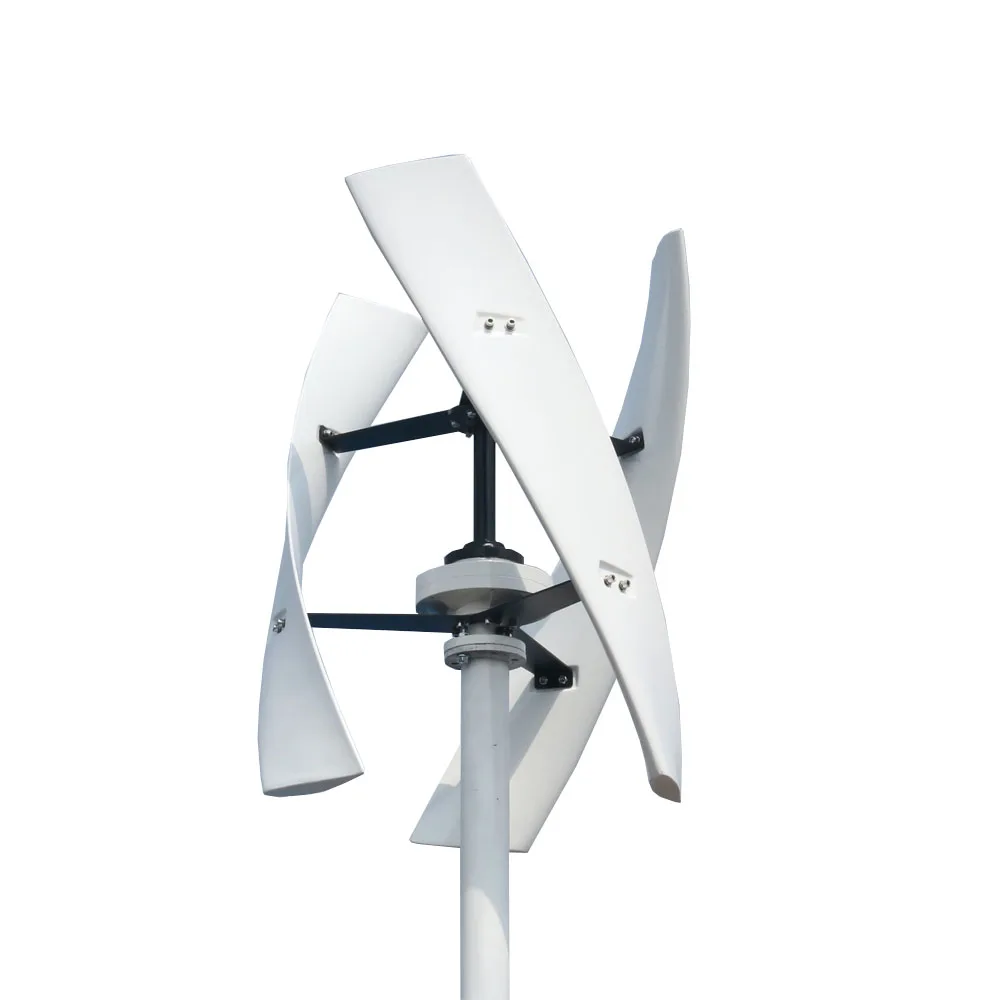

High Efficiency Wind Mill Silent Operation 600w Vertical Axis Wind Turbine 12v 24v 48v Generator 3 Blades with off Grid System
- Category: >>>
- Supplier: Shanghai Lin Joy International Co. Ltd.
Share on (1600950381817):
Product Overview
Description
Products Description
Item | FX-600 | FX-800 | |
Started wind speed (m/s) | 1.3 m/s | 2 m/s | |
Cut-in wind speed (m/s) | 2.5 m/s | 3 m/s | |
Rated Wind speed (m/s) | 10 m/s | 10 m/s | |
Rated voltage(AC) | 12/24V | 12/24V | |
Rated power(W) | 600W | 800W | |
Max power(W) | 650W | 810W | |
Rotor Diameter of Blades(m) | 0.6m | 0.6m | |
Product assembly weight (Kg) | <20Kg | <23Kg | |
Blades height(m) | 0.8m | 1m | |
Safe wind speed (m/s) | ≤40m/s, | ||
Blades quantity | 3 | ||
Blade material | glass/basalt | ||
Generator | Three phase permanent magnet suspension motor | ||
Mount Height(m) | 2~12m | ||
Generator protection grade | IP54 | ||
Work environment temperature | -25~+45ºC, | ||
Item | FX-1000 | FX-2000 | FX-3000 | |
Started wind speed (m/s) | 2 m/s | 2 m/s | 2m/s | |
Cut-in wind speed (m/s) | 3 m/s | 3 m/s | 3m/s | |
Rated Wind speed (m/s) | 10 m/s | 10 m/s | 10m/s | |
Rated voltage(AC) | 12/24/48V | 24/48/96/120V | 48v/96v/120v/220v | |
Rated power(W) | 1000W | 2000W | 3000w | |
Max power(W) | 1050W | 2010W | 3020w | |
Rotor Diameter of Blades(m) | 0.95m | 1.1m | 1.6m | |
Product assembly weight (Kg) | <35Kg | <45Kg | <90kg(CBM 190KG) | |
Blades height(m) | 1.32m | 1.64m | 1.92M | |
Safe wind speed (m/s) | ≤40m/s, | <40M/S | ||
Blades quantity | 3 | 3 | ||
Blade material | glass/basalt | Fiber glass | ||
Generator | Three phase permanent magnet suspension motor | Three phase permanent magnet suspension motor | ||
Mount Height(m) | 2~12m | 3-15m | ||
Generator protection grade | IP54 | IP54 | ||
Work environment temperature | -25~+45ºC, | -25~+45ºC, | ||
