Automatic Equipment Electronic Suppository Making Machine Suppository Filling And Sealing Machine
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600950405330):
Product Overview
Description
Product introduction
The automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 10,000 grain/hour.
Production process：

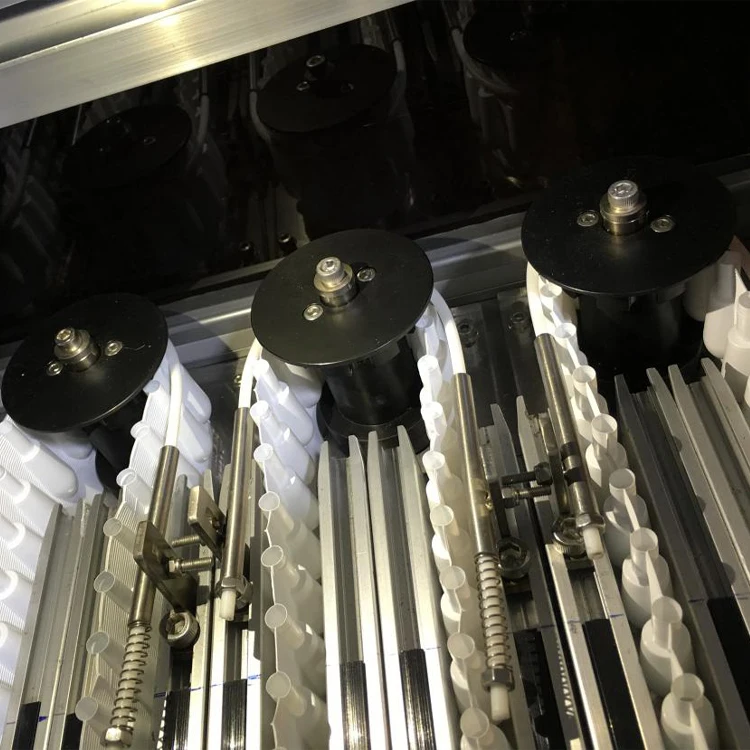

From automatic suppository shell forming, to the filling station of liquid, Recirculating cooling set (liquid to solid),

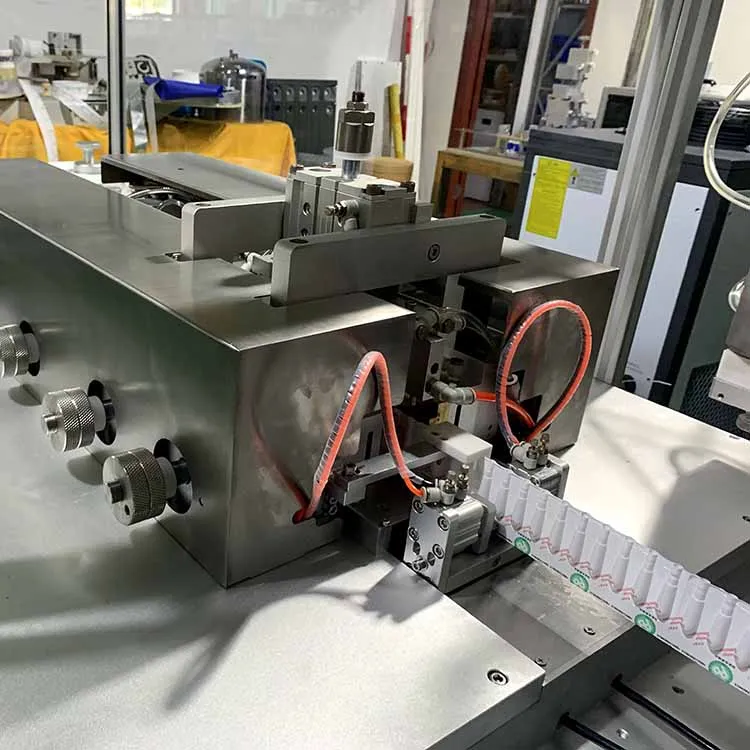

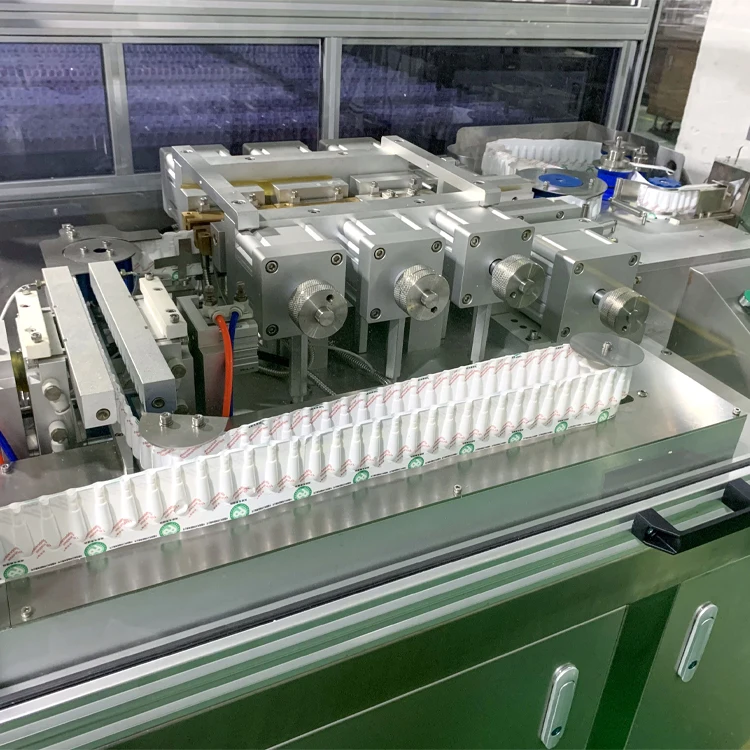

Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
Packaging rang
-- Suitable for the production of special shape such as bullet head, torpedo shape and duck bill.
-- Adapt material: synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.
Data
Model | SupLab-1 | SupLab-3 | SupLab-7 | SupLab-10 |
Filling head | 1 | 3 | 7 | 10 |
Output | 1000-1500 pcs/h | 4500-5000 pcs/h | 10000 pcs/h | 15000 pcs/h |
Single dosage | 0.5—5g | 0.5—5g | 0.5—5g | 0.5—5g |
Dosage allowed | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
Packaging Film | PVC\\PE | PVC\\PE | PVC\\PE | PVC\\PE |
Stirring tank capacity | 20L | 30L | 70L | 70L |
Air pressure | ≥0.6Mpa | ≥0.7Mpa | ≥0.7Mpa | ≥0.7Mpa |
Air consumption | 1.2m³ | 1.5m³ | 1.5m³ | 1.5m³ |
Water consumption | 50kg(recycling) | 50kg(recycling) | 50kg (recycling) | 50kg (recycling) |
Working voltage | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Total power | 4KW | 5KW | 7.5KW | 9.5KW |
Machine Weight | 500KG | 1000KG | 2000KG | 2500KG |
Overall dimensions | 2300*1200*1800mm | 3587*1388*1828mm | 5302*2120*1809mm | 5965*2120*2,150mm |
Product Details

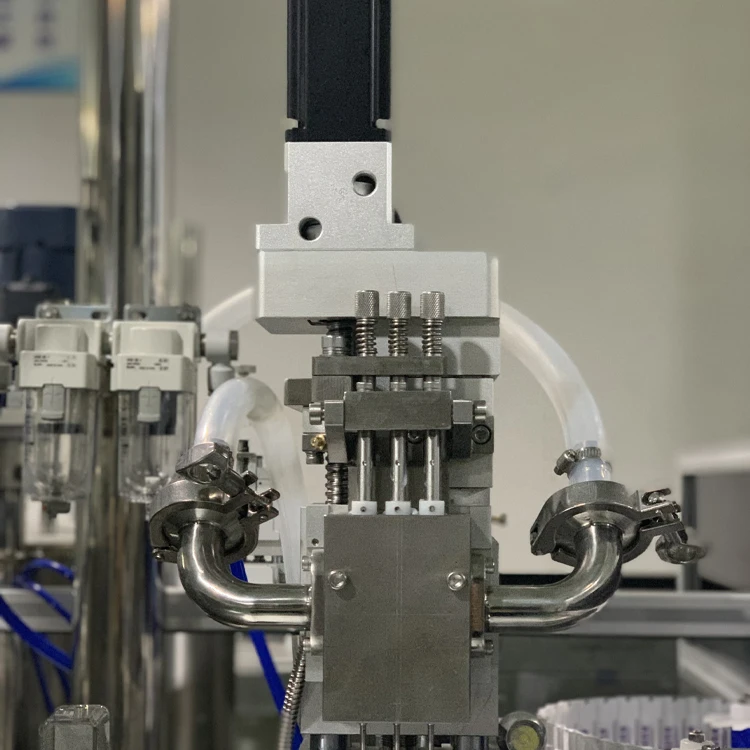

01. The insertion type linear perfusion mechanism
-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
02. Production capacity
-- The production capacity is 4500-5000 grain/hour.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

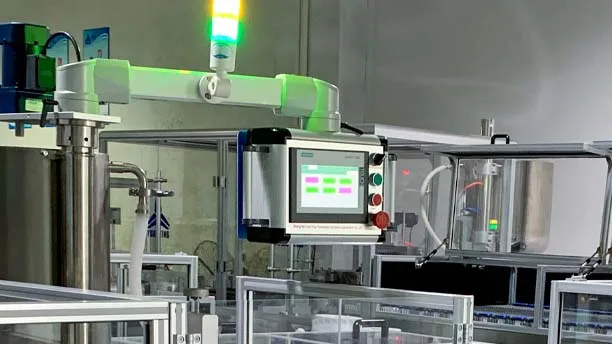

03. Siemens PLC control system
-- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment,
accurate temperature control and smooth operation.
accurate temperature control and smooth operation.

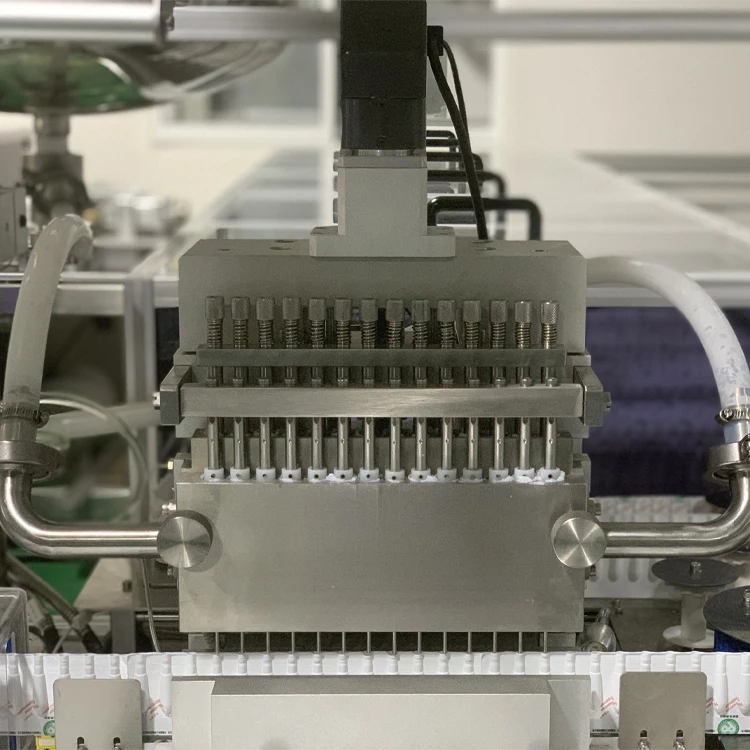

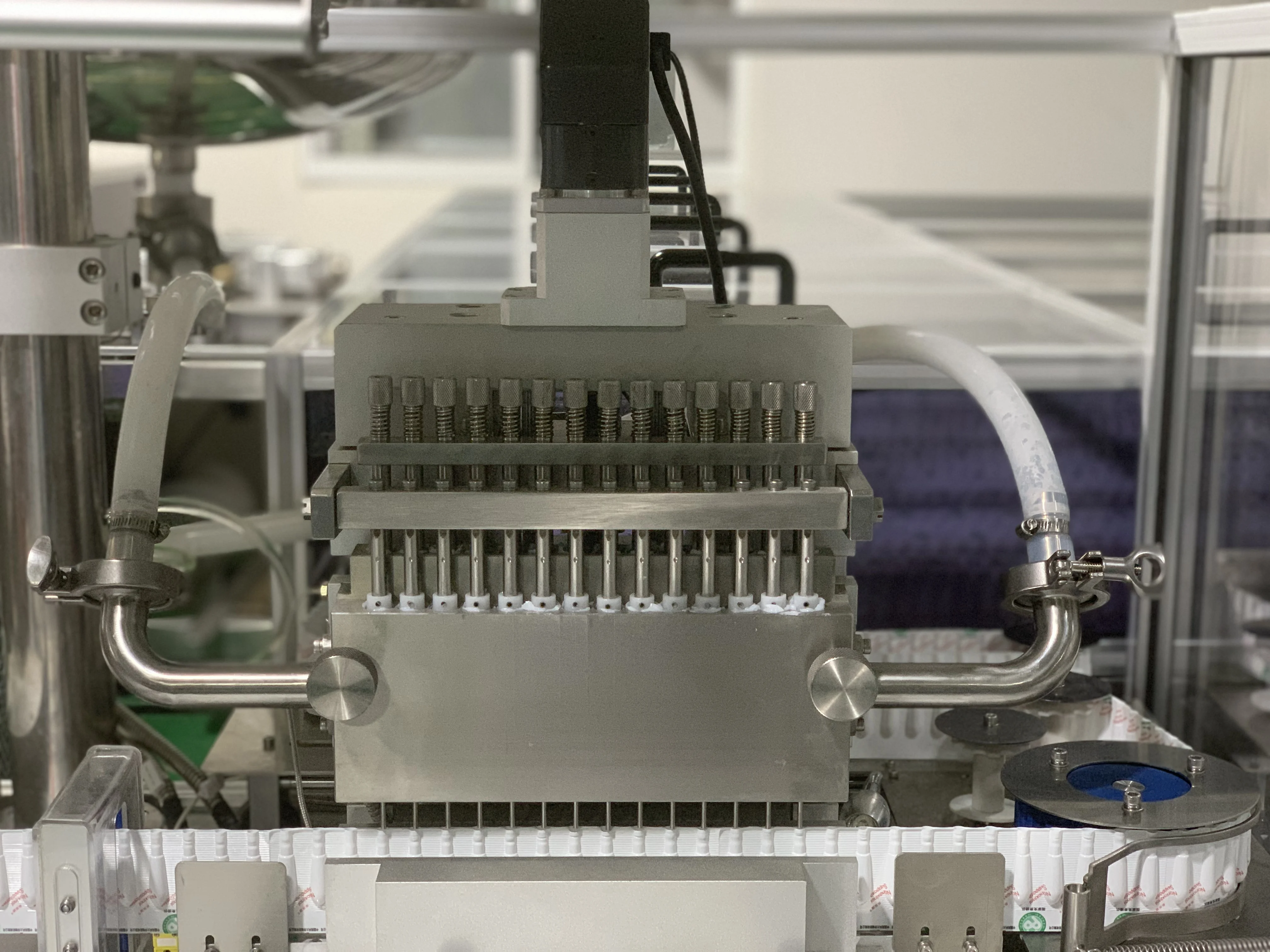

04. Servo high precision filling system
-- Filling, freezing, sealing and other production processes are fully automatic.
-- Filling piston by servo motor with stroke rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!

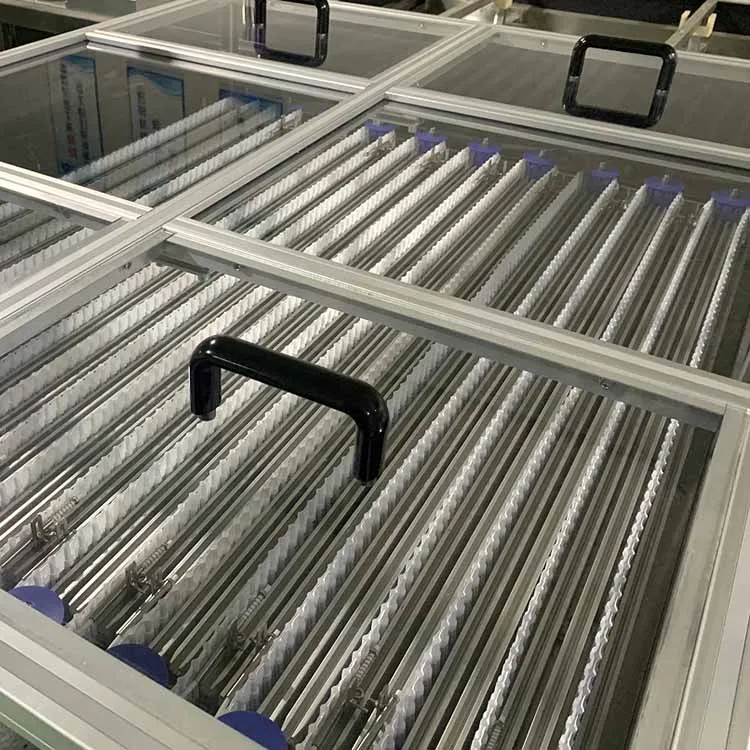

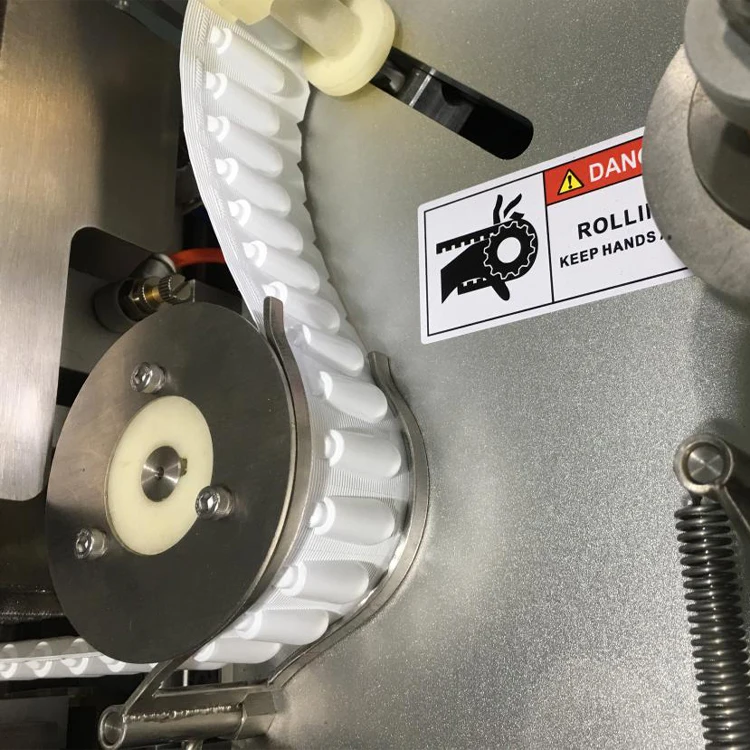

05. exclusive circulation of water cooling system
-- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the
liquid is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.
liquid is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.-- The temperature is adjustable.

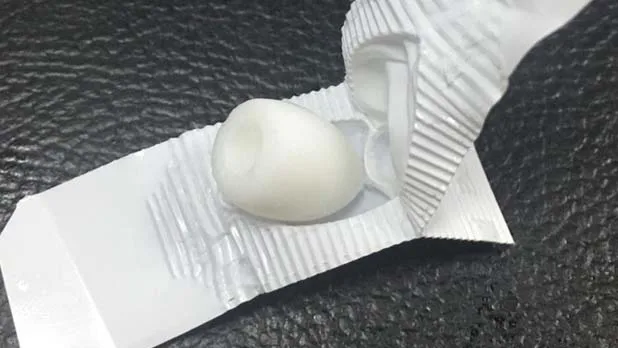

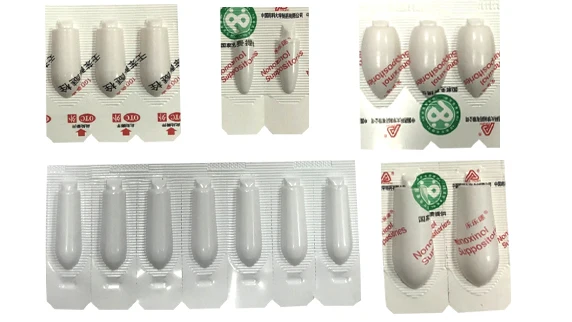

06. Finished product
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Final Product
