10 Tons Plate Ice Machine With Crushed Ice

Product Overview

Description

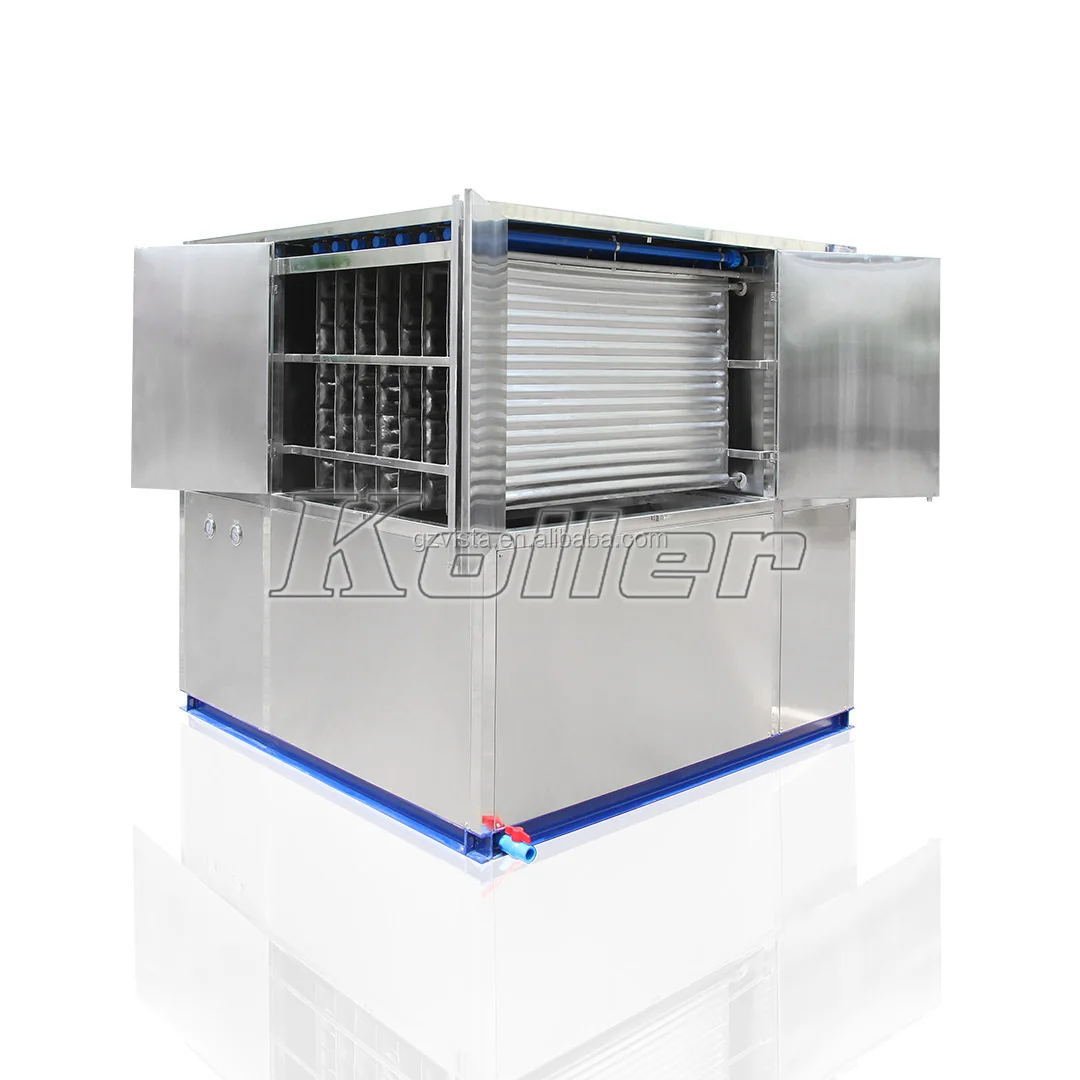

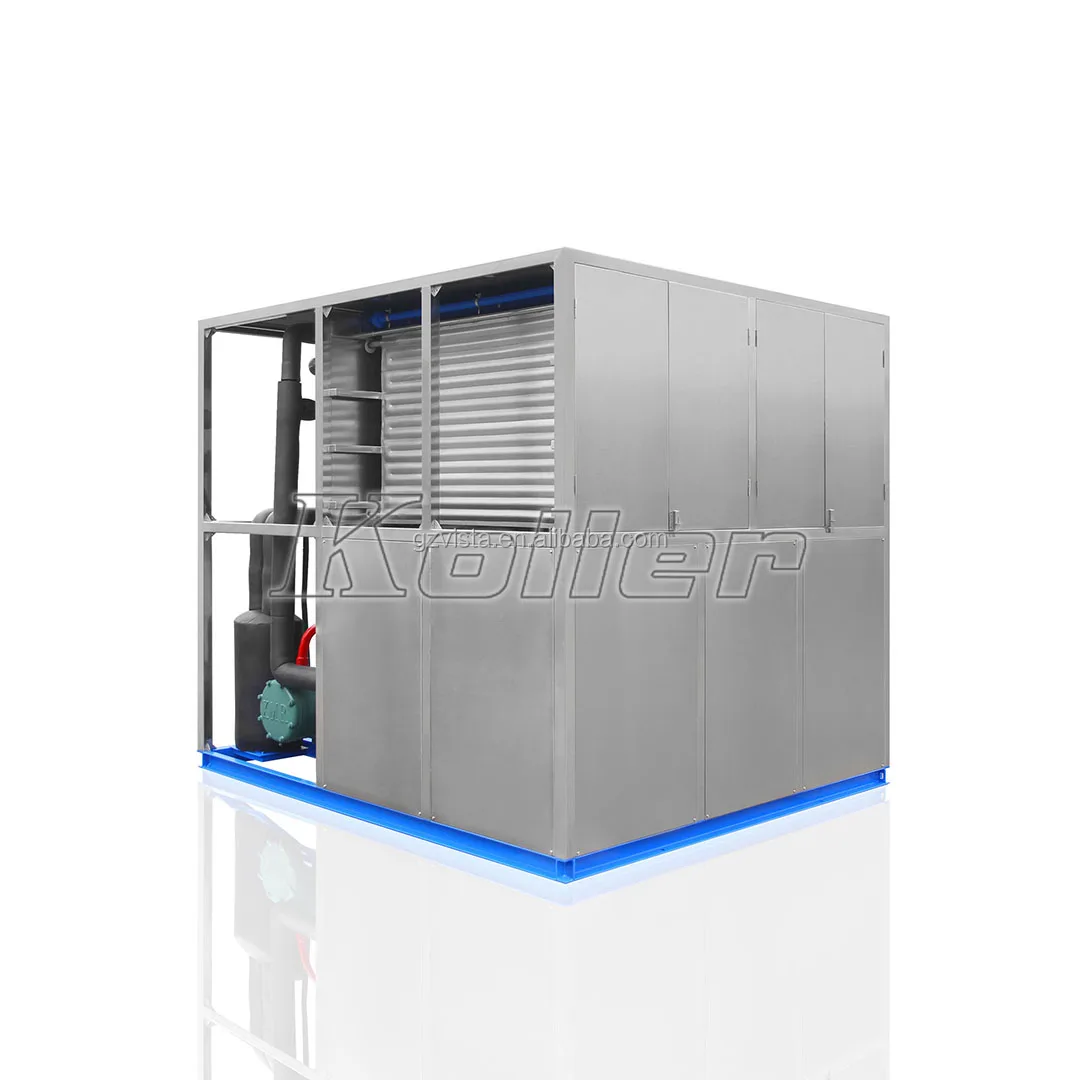

  Plate Ice Machine PM100

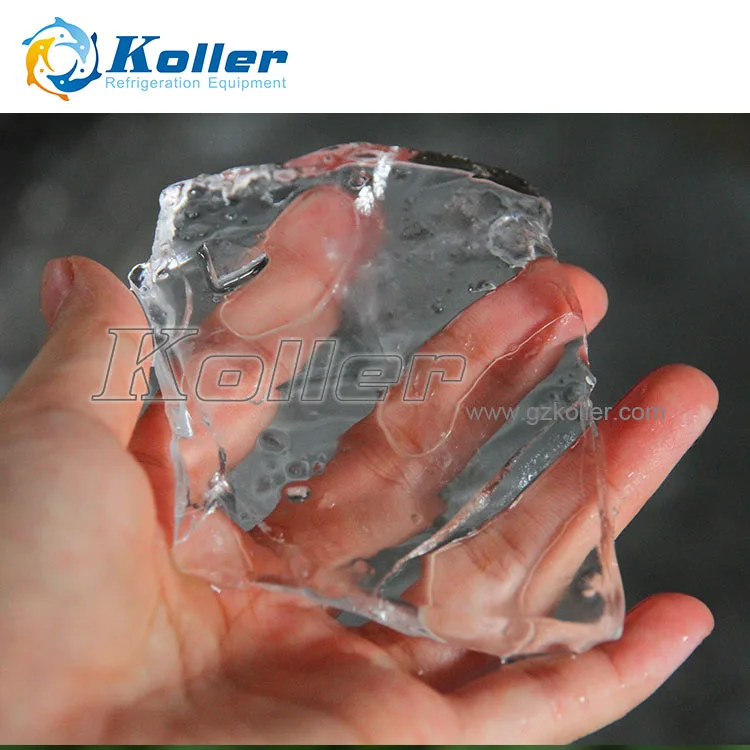

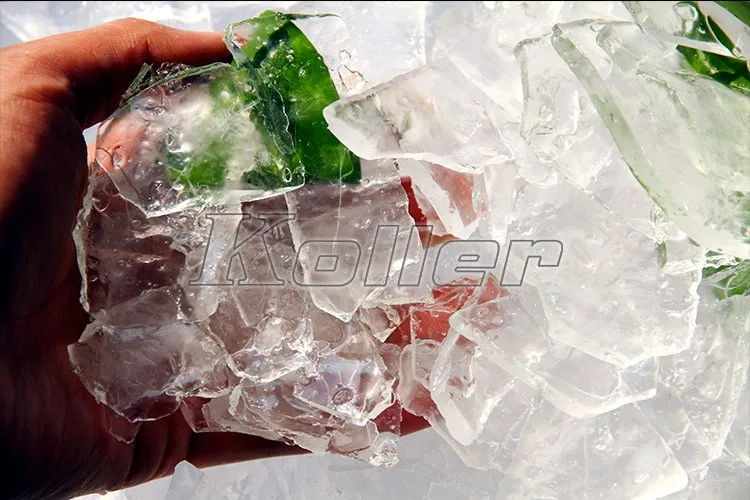

The thickness of the ice:5mm to 10mm. It can be extensively applied into supermarkets, quatic production processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing, concrete cooling, chemical industry and so on.



This product is controlled by micro computer to supervise its running status and how the machine runs, very easy to install and operate with the text display. This kind of machine has a great advantage in energy saving, its energy-saving index can reach 50~65KW/Ton per hour



*Main Components :

Item	Name of Components	Brand Name	Original Country
1	Compressor	BITZER/CARRIER	Germany/USA
2	Ice Maker Evaporator Grid	KOLLER	China
3	Water cooled condenser	KOLLER
4	Refrigeration components	DANFOSS/CASTAL	Demark/Italy
5	PLC Program control	SIMENS	Germany
6	Electrical components	LG (LS)	South Korea



*Plate Ice  Machine:

Model	Ice-making Capacity	Compressor Power	Motor Power	Voltage	Water Comsuption	Dimension   (mm)			Net Gross
	Tons/24h	KW	KW	V	L/H	Length	Width	Height	Kg
HYF10	1	2.51	0.4	380	42	1200	1000	1600	660
HYF15	1.5	3.93	0.4	380	63	1350	1200	1700	730
HYF20	2	5	0.75	380	83	1350	1200	1700	750
HYF25	2.5	5.25	0.75	380	104	1350	1200	1700	890
HYF30	3	7.5	0.75	380	125	1600	1350	1700	1100
HYF40	4	11	0.75	380	167	2000	1600	2200	1500
HYF50	5	15	1.1	380	208	2000	1600	2200	1900
HYF60	6	18.75	1.1	380	250	2500	1600	2480	2100
HYF80	8	22.5	1.5	380	333	2500	1600	2480	2500
HYF100	10	30	2.2	380	417	2500	1800	2480	3100
HYF120	12	37.5	2.2	380	500	2500	1800	2480	3320
HYF150	15	43	3.7	380	625	2500	2200	2480	3500
HYF200	20	59	3.7	380	833	3470	2200	2480	4700
HYF250	25	73	3.7	380	1042	5100	2200	2480	4900
HYF300	30	87	4.5	380	1250	6000	2200	2480	5200
HYF400	40	118	4.5	380	1667	7500	2200	2480	6100
HYF500	50	146	4.5	380	2083	9300	2200	2480	7000



*Supply Power Form:  380V, 50Hz, 3P or 220V, 60Hz, 3P.

*Cooling System:  Water cooled system.

*Installation:

The machine has been installed and tested before delivery, only needs customer to connect water pipes and power, the accessory spared parts are offered free of charge.

*Guarantee Period:

During 12 months after selling, maintenance and parts free of charge.



 Plate Ice Machine
