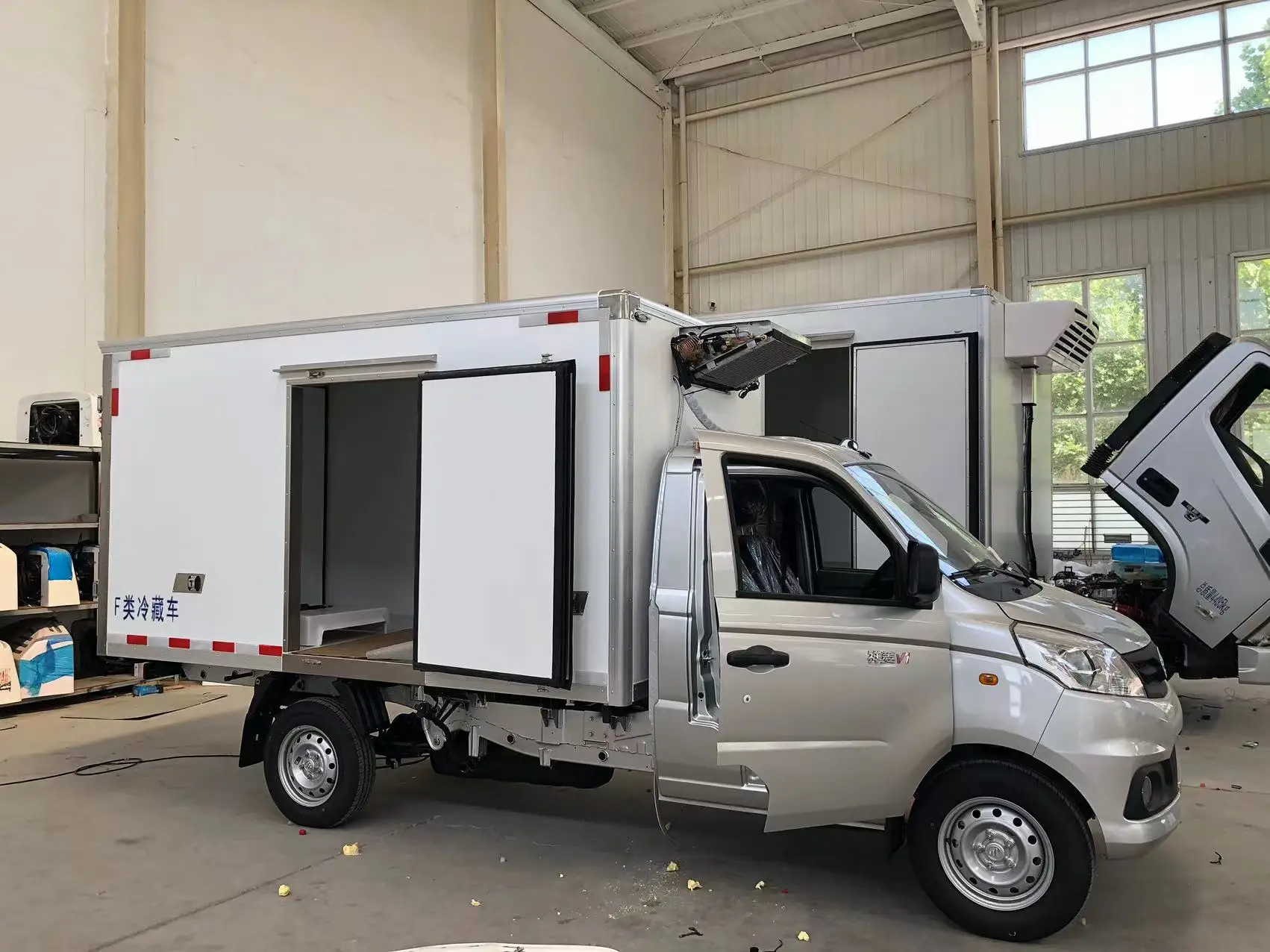

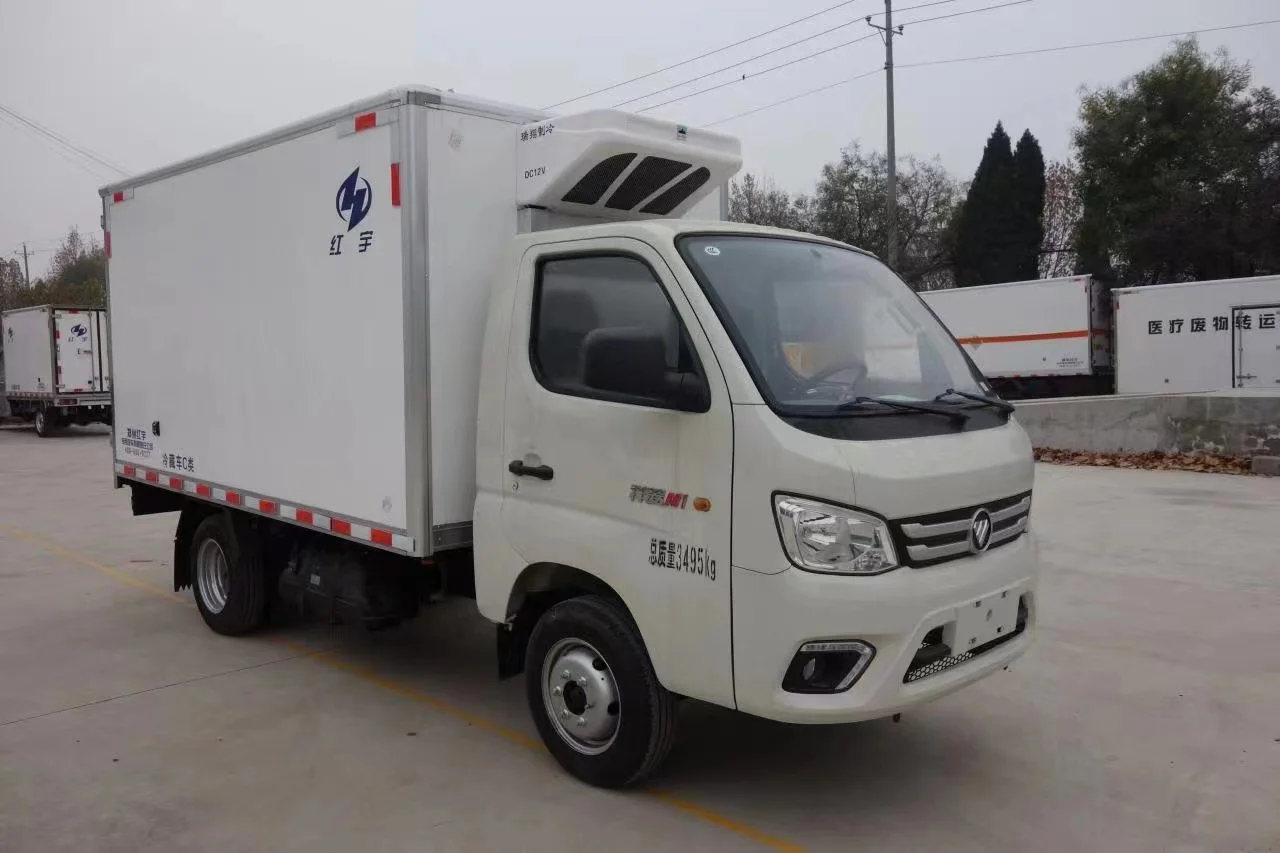

4tons Refrigerator thermo king unit cold room frozen van truck body
- Category: >>>
- Supplier: Shandong Carryman Auto Tech Co. Ltd.
Share on (1600950416113):
Product Overview
Description
Product Introduction

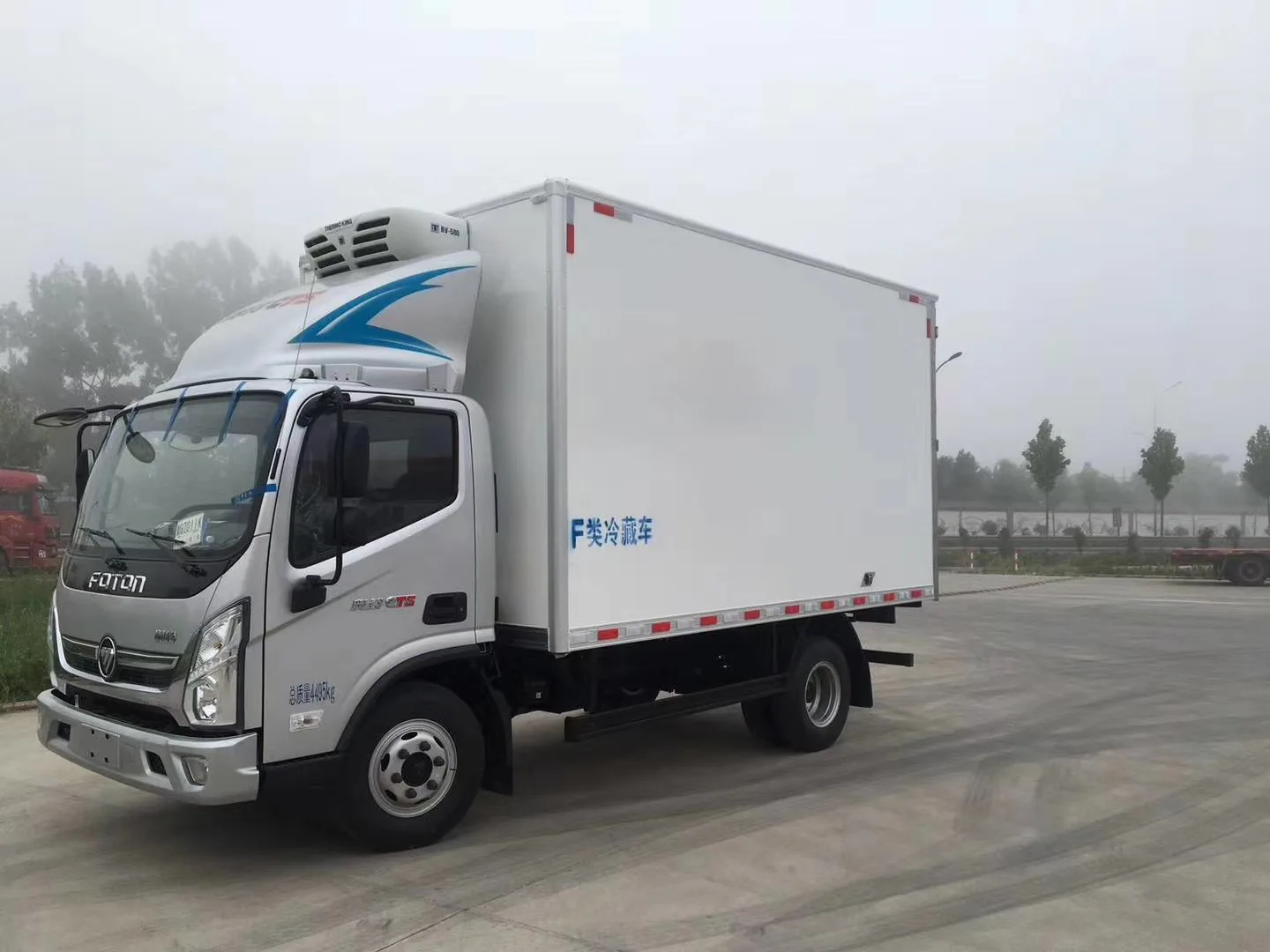

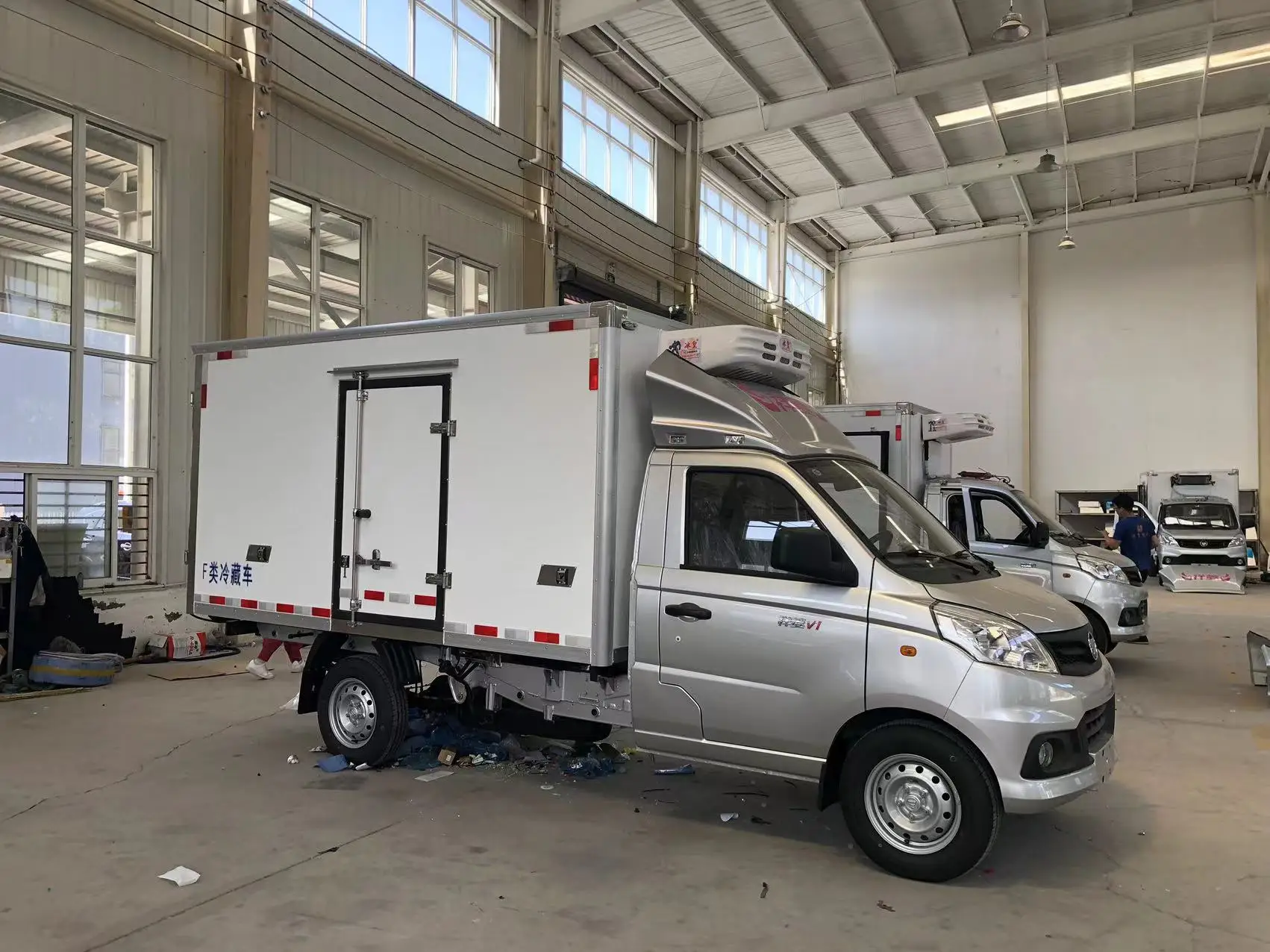

Insulated freezer refrigerated truck body
Insulated chillers and freezers for transporting perishable items. The platform is

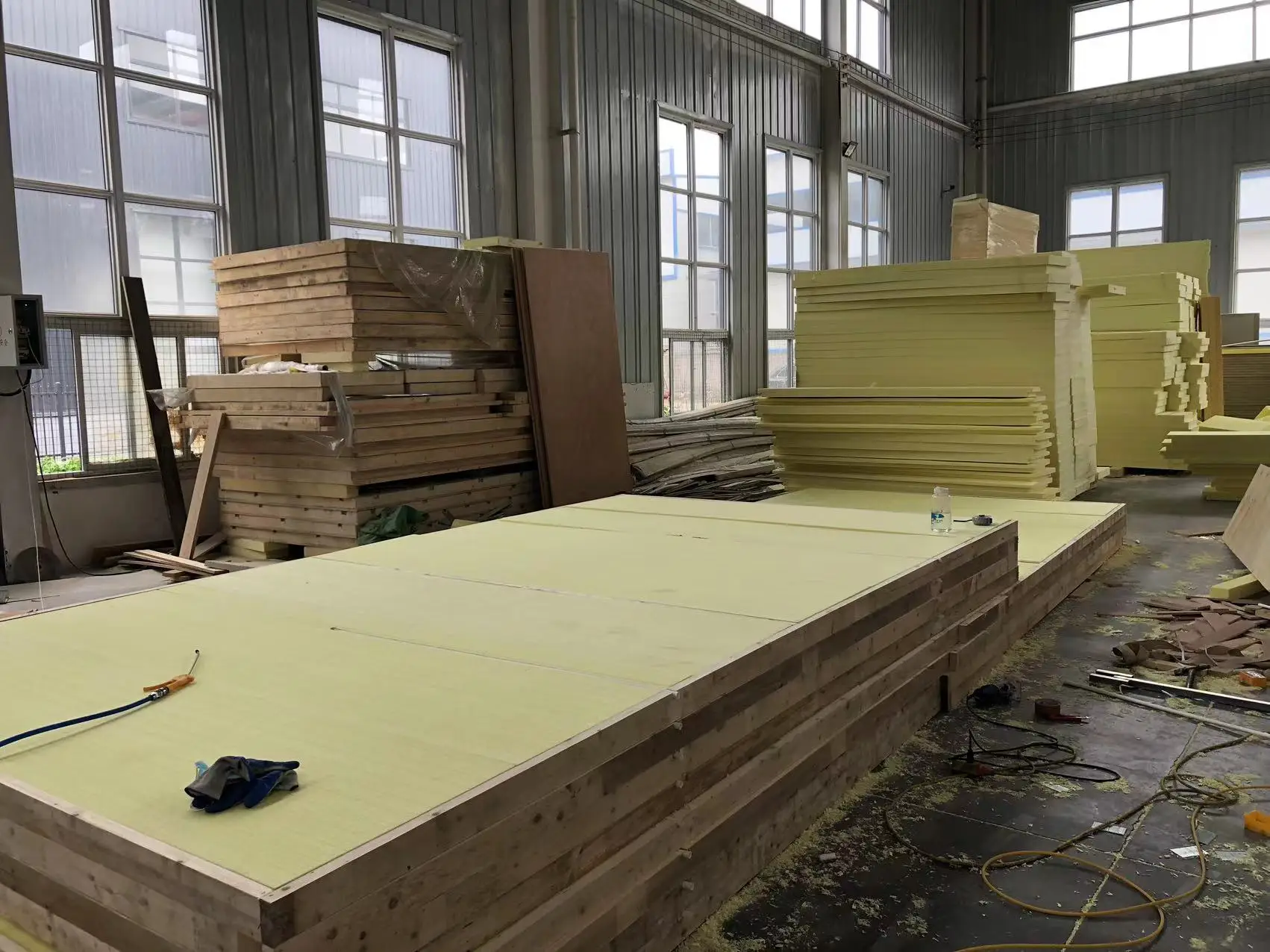

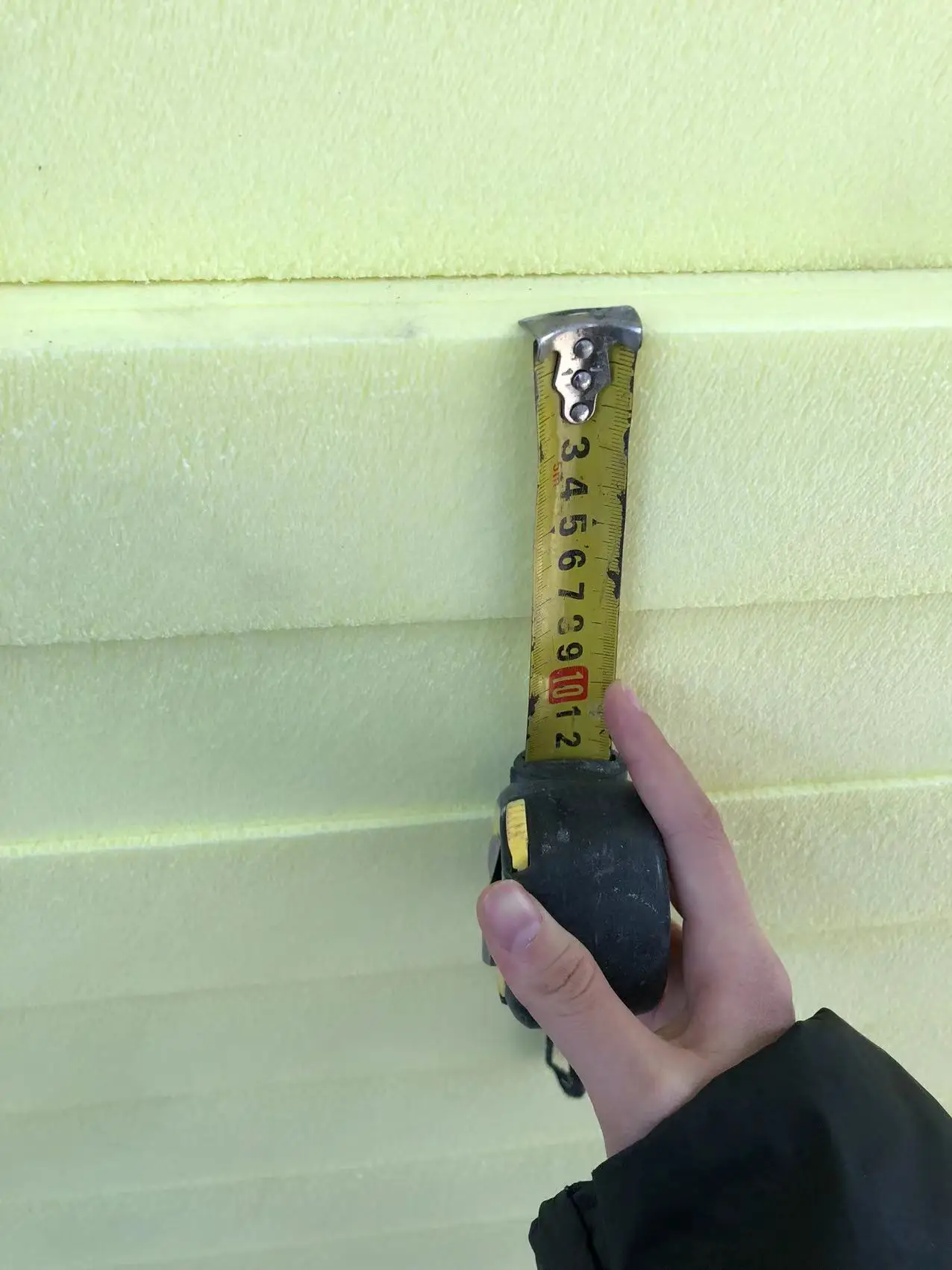

fabricated with steel, sub chasis and cross members are constructed with beams and channels. The floor is finished with checkered aluminum sheet . All walls of the container will be insulated with 100 mm thick PU injected sandwich panels with external and internal cladding is with 0.7 mm thick preprinted GI sheets. All corners are finished with round aluminum profiles that will provide better aesthetics. The locks and hinges are of stainless steel and will be of the same pattern as that of sea going container.
fabricated with steel, sub chasis and cross members are constructed with beams and channels. The floor is finished with checkered aluminum sheet . All walls of the container will be insulated with 100 mm thick PU injected sandwich panels with external and internal cladding is with 0.7 mm thick preprinted GI sheets. All corners are finished with round aluminum profiles that will provide better aesthetics. The locks and hinges are of stainless steel and will be of the same pattern as that of sea going container.

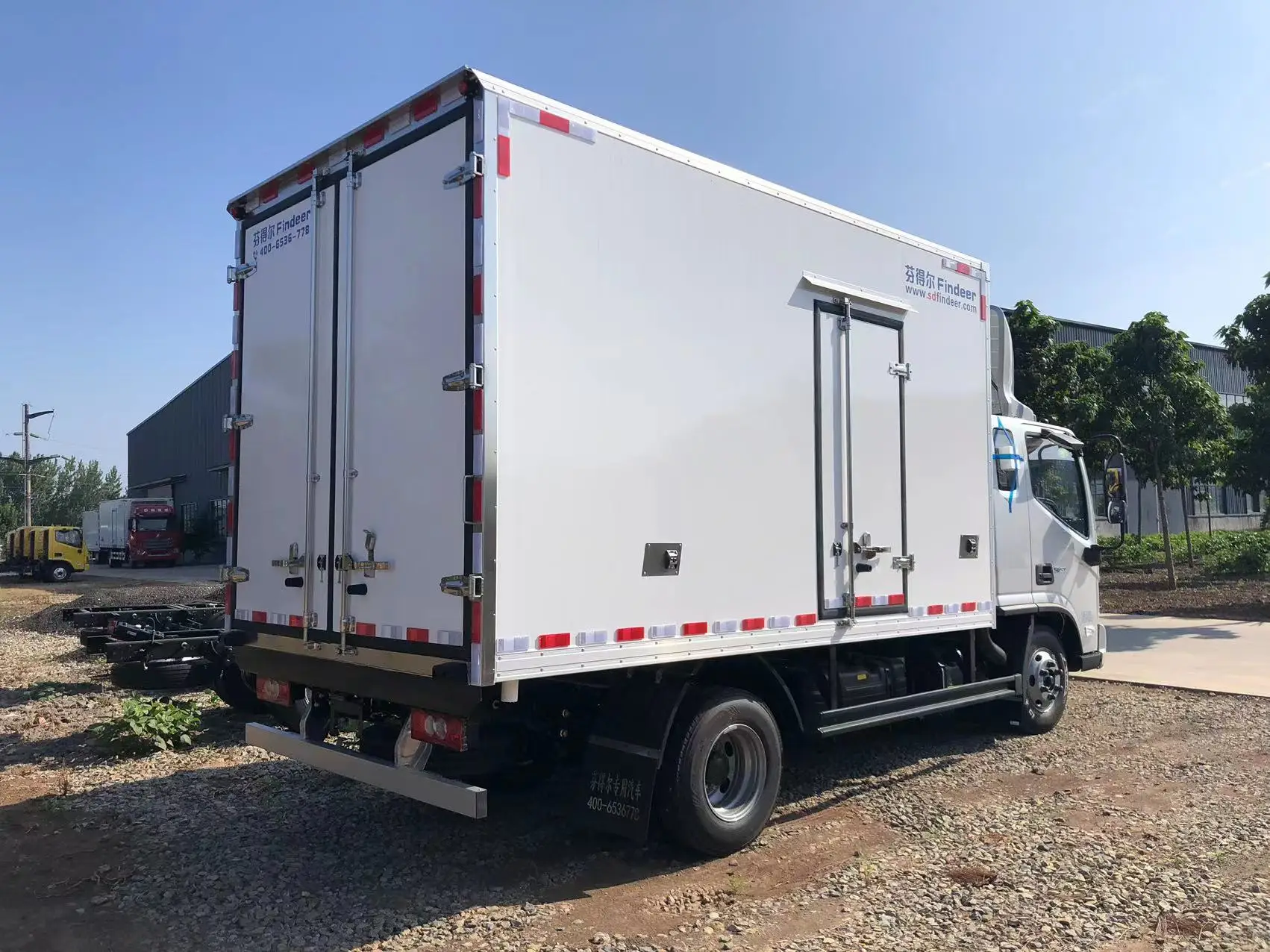

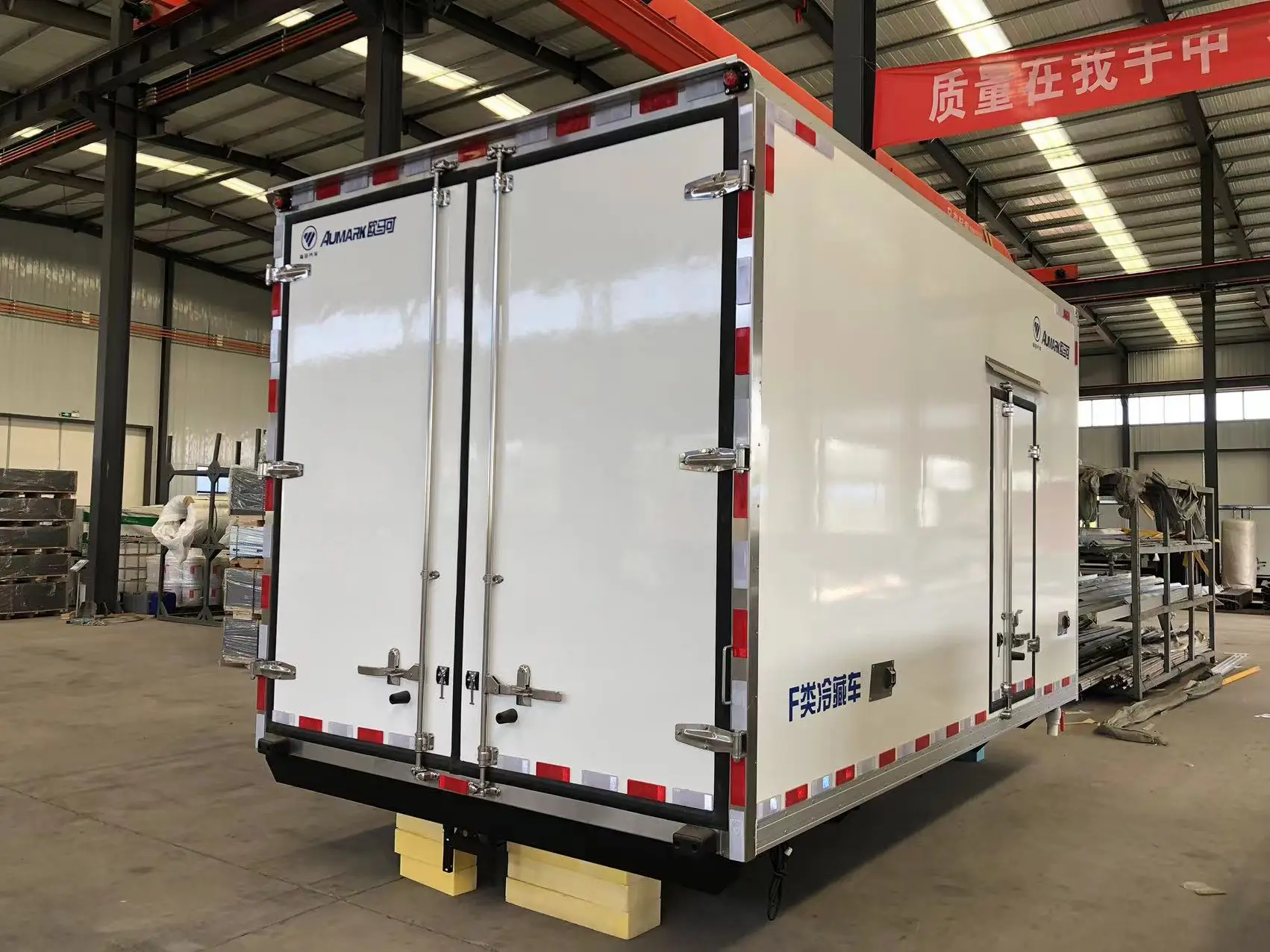

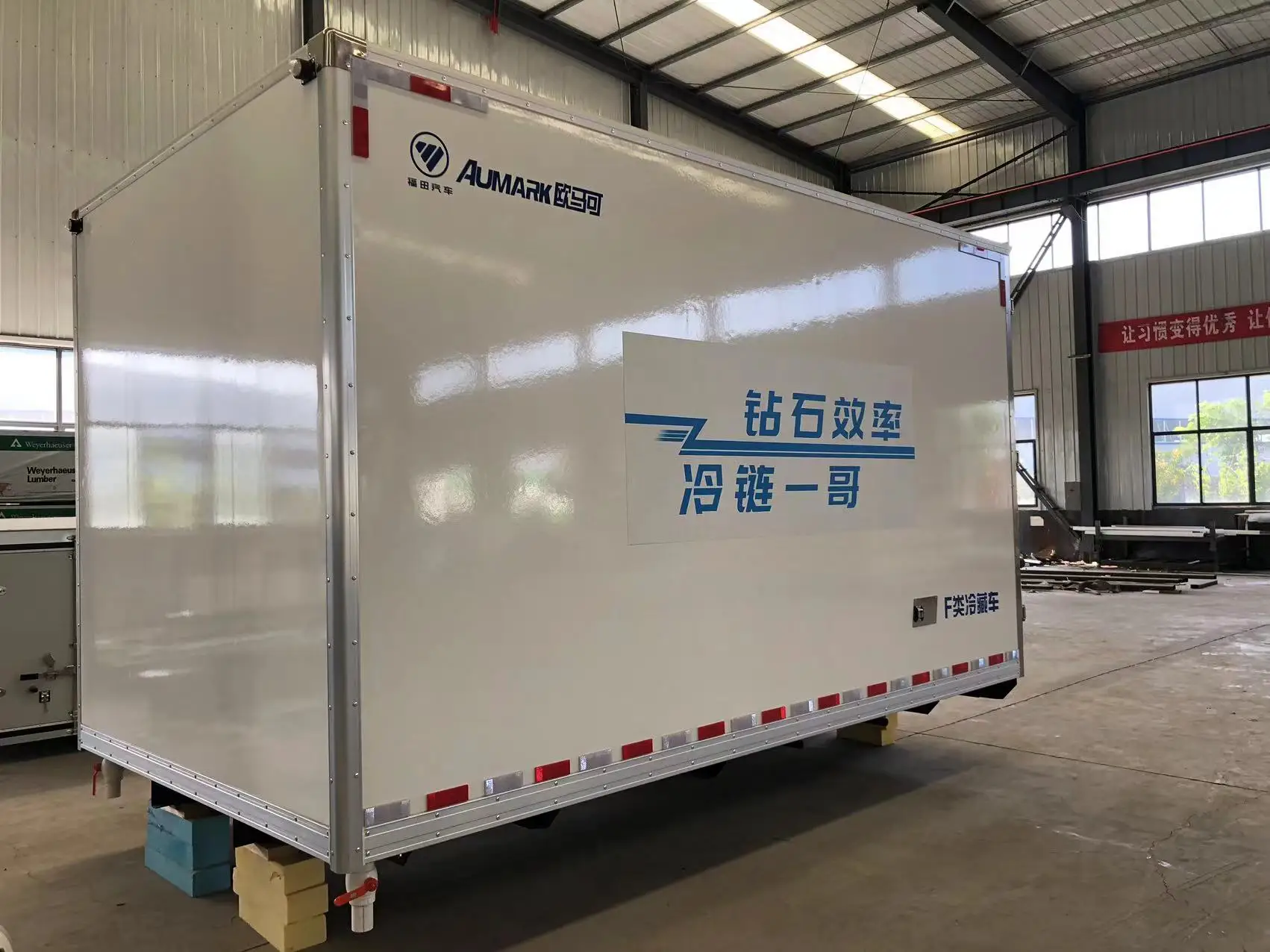

refrigerator container van truck box
Solid and No leaking. Adopted the most advanced panels assembly technology from water-proof KOMMERLING Glue to seal the whole body, and the joints of each panel are specially reinforced. With Joyfly Truck Body, you can say good-bye to water intrusion,
soaked goods and angry customers.
Doors: Two doors in sandwich panel, flat steel plate of 0.5 mm 2-sided insulation between them, with stainless steel lock set and rear door frame hinge latch fitting, with 3 hinged door.
Floor: Insulated floor panel, with Flat Steel diamond (2,5 mm), with frame structure in 60 x 40 x 2mm+beams in 70 x 50 mm

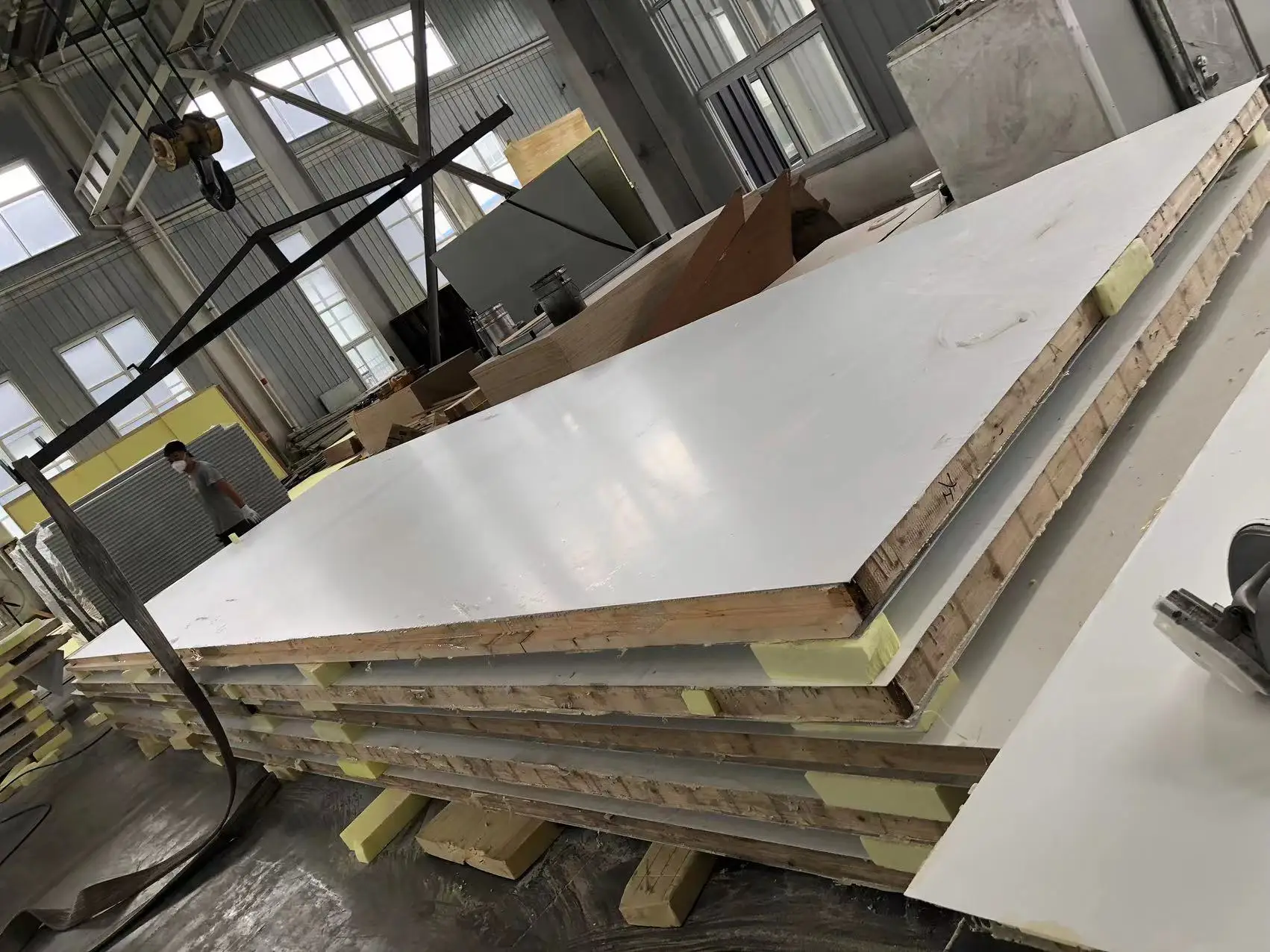

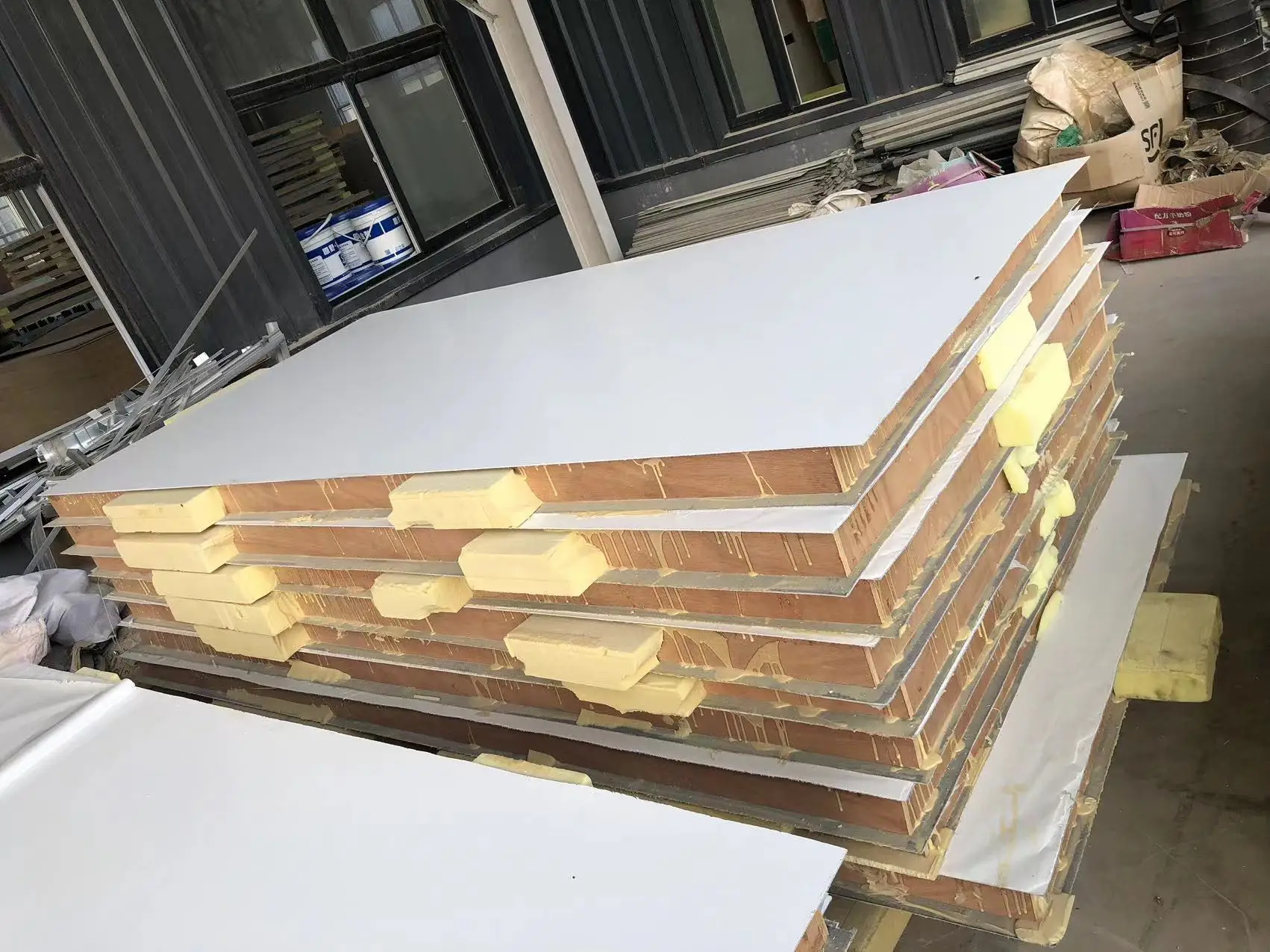

Body Panels: Front, Rear, Side and roof in sandwich panel,flat steel plate of 0.5 mm 2-sided insulation between them.
Finishing: Aluminium profile with stainless steel corners, sealed and riveted.
Frame Structure: Steel 30 x 30 x1,5 mm
Accesorios
Product Paramenters
Temperature | -20℃ Thermo King Direct Driven Unit |
Front wall | 105mm FRP Polyurethane sandwich panel |
Side walls | 105mm FRP Polyurethane sandwich panel |
Floor | FRP floor Aluminum T-Channel floor Aluminum checker plate floor Aluminum corrugated floor |
Roof | 105mm FRP Polyurethane sandwich panel Interior LED lights |
Rear door | 105mm double rear doors with polish stainless steel door hinges & Ext door locking gear c/w container type assy, rubber stopper & door holder |
Side door | Optional |
Inner body accessories | Cargo Track(E-track by default, other options are available) Rails with vertical and horizontal options as well as recessed or convex installation options. Aluminum Kick Plate PVC Curtain option Meat Hooks option Partition(soft, tight) option Aluminum Ventilation Slots option |
Outer body accessories | Rear foot steps mudapron crash barrier rear bar tail lift |
NO | PART NAME | MATERIAL AND SPEC | QTY | LOCATION |
1 | Front panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
2 | Rear door | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
3 | Side panel(left and right) | 2.2mmFRP+PU+2.2mmFRP,103mm | 2 | |
4 | Floor panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
5 | Roof panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
6 | Front angle | Stainless steel | 2 | |
7 | lamp | 12/23V LED | 1 | roof |
8 | switch | stainless | 1 | Side panel |
9 | cable | some | ||
10 | Side aluminum edge | aluminum | 7 | Side wall and floor |
11 | rivet | 5*18,5*25 galvanized | many | |
12 | Resin glue | some | ||
13 | sealant | PU | some | |
14 | U bar | steel | 6 | Floor frame and chassis |
15 | Floor frame | steel | 1 | |
16 | Angle iron | steel | many | Floor frame and Longitudinal beam |
17 | Sealing strip | rubber | 3 | |
18 | Back door hing | Stainless steel | 6 | Rear door and side door |
19 | Side light | Yellow/12/24v | 6 | |
20 | lock | Stainless steel | 3 | Rear door and side door |
21 | Water barrier | Stainless steel | 1 | Rear door and side door up |
22 | Door catch | Stainless steel | 3 | Rear door and side door |
23 | Clamping screw | M8*110,M12*50, STEEL | some | |
24 | Side/rear protective barrier | Steel | 2 | |
25 | mudguard | plastic | 2 | |
26 | Door frame | Stainless steel | 1 | |
27 | marker lamp(front/rear) | plastic | 4 | |
28 | flap | rubber | 2 | |
29 | Side door | Single 900*1500mm | 1 | Left panel |

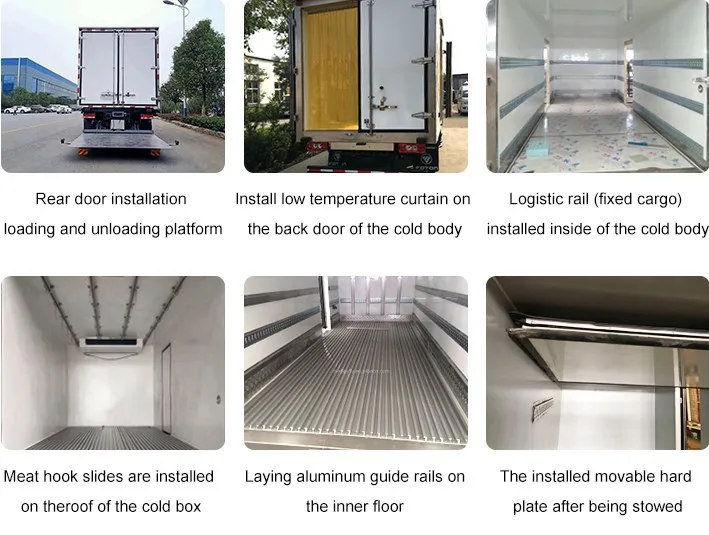

Features of auxiliary device

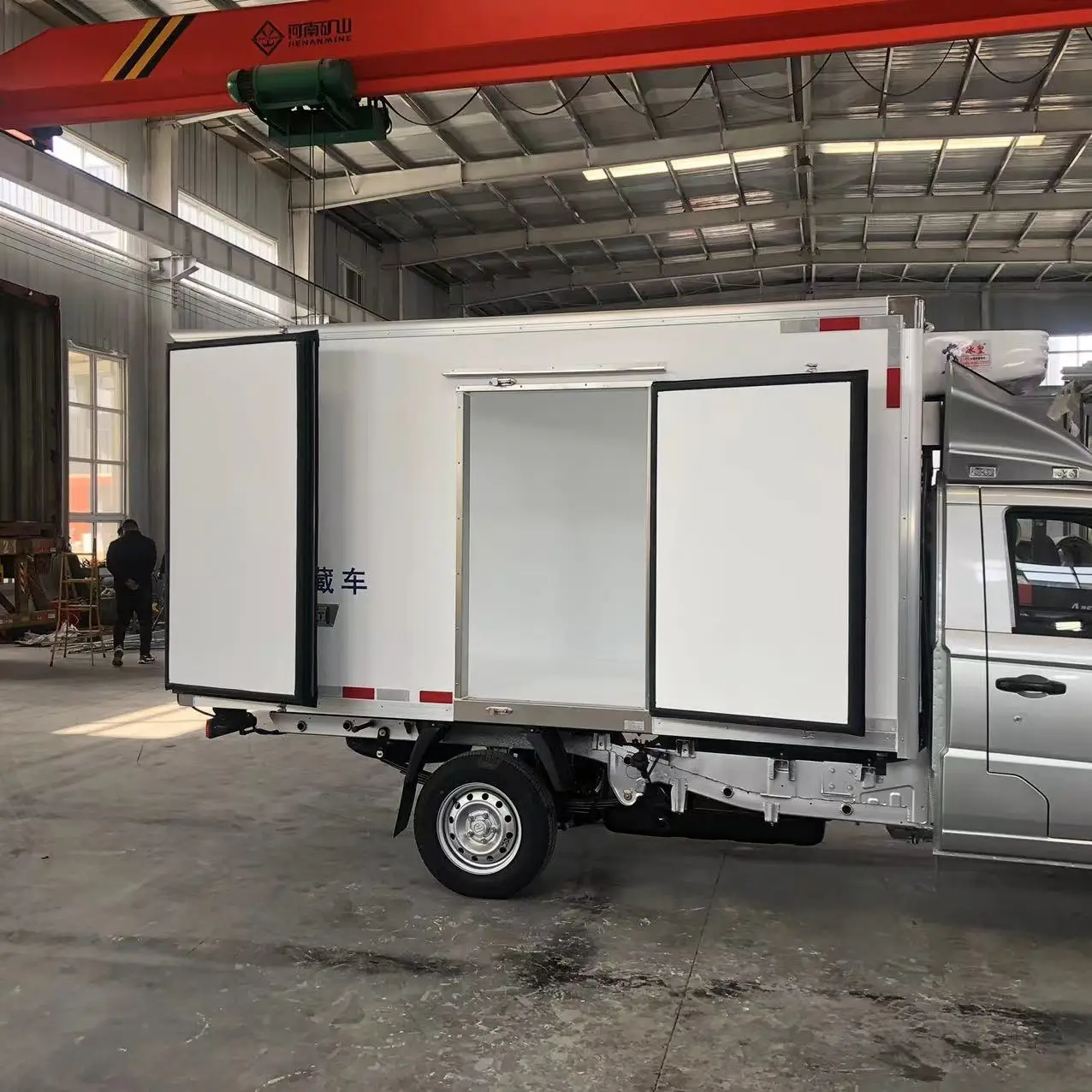

(1) The cold body can be equipped with side doors, or separate differenttemperature zones;
(2) Related accessories can be arbitrarily configured in the compartment, such ascargo fixtures,
cargo suspension devices, shelves in the compartment, insulation curtains, aluminum T rails,
ventilation slots, etc;

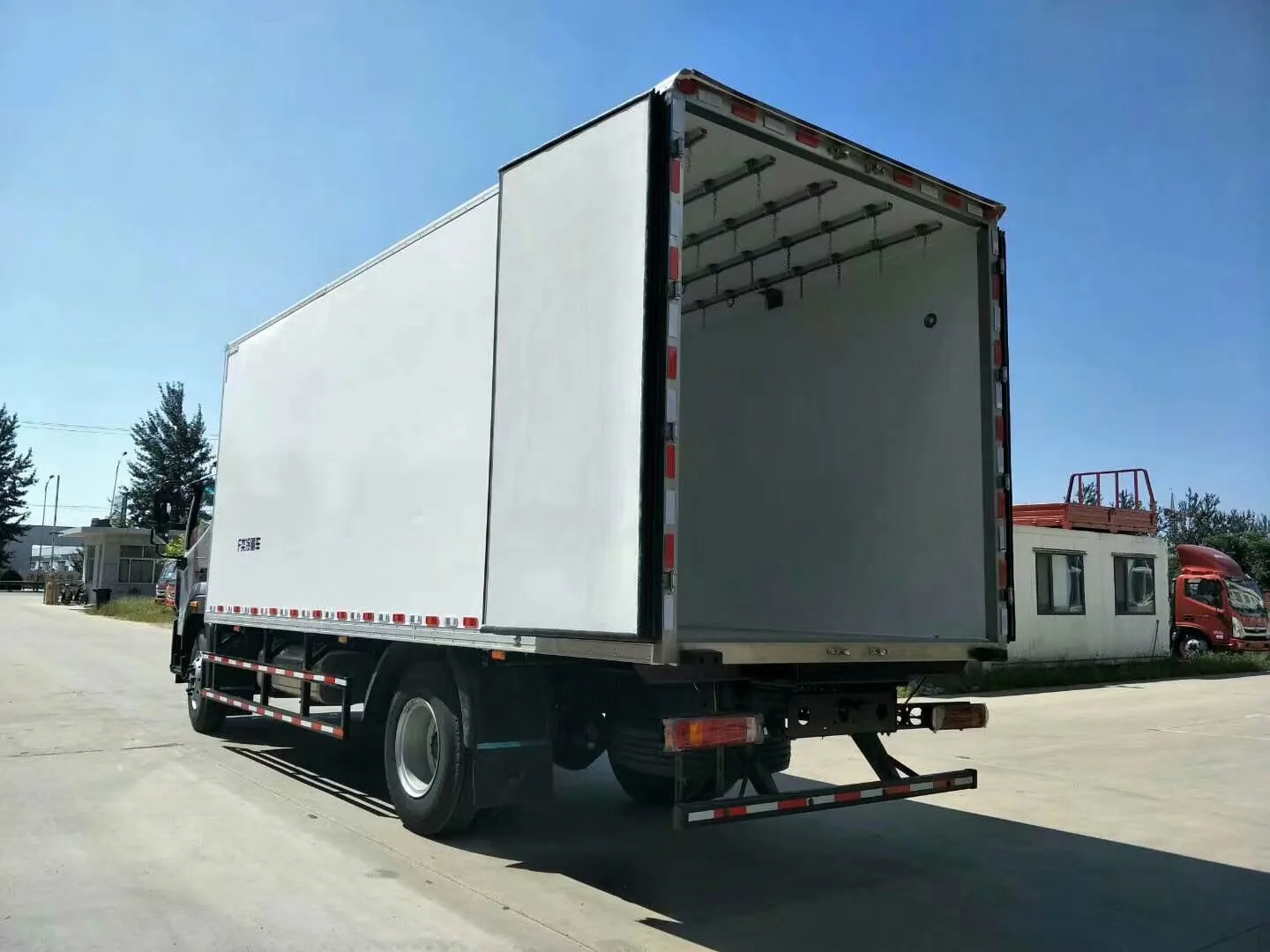

(3) The rear door of the cold body can be opened 270 degrees, and can be equippedwith a hydraulic
lifting tail plate according to customer requirements to facilitate cargoloading and unloading.
(2) Related accessories can be arbitrarily configured in the compartment, such ascargo fixtures,
cargo suspension devices, shelves in the compartment, insulation curtains, aluminum T rails,
ventilation slots, etc;
(3) The rear door of the cold body can be opened 270 degrees, and can be equippedwith a hydraulic
lifting tail plate according to customer requirements to facilitate cargoloading and unloading.

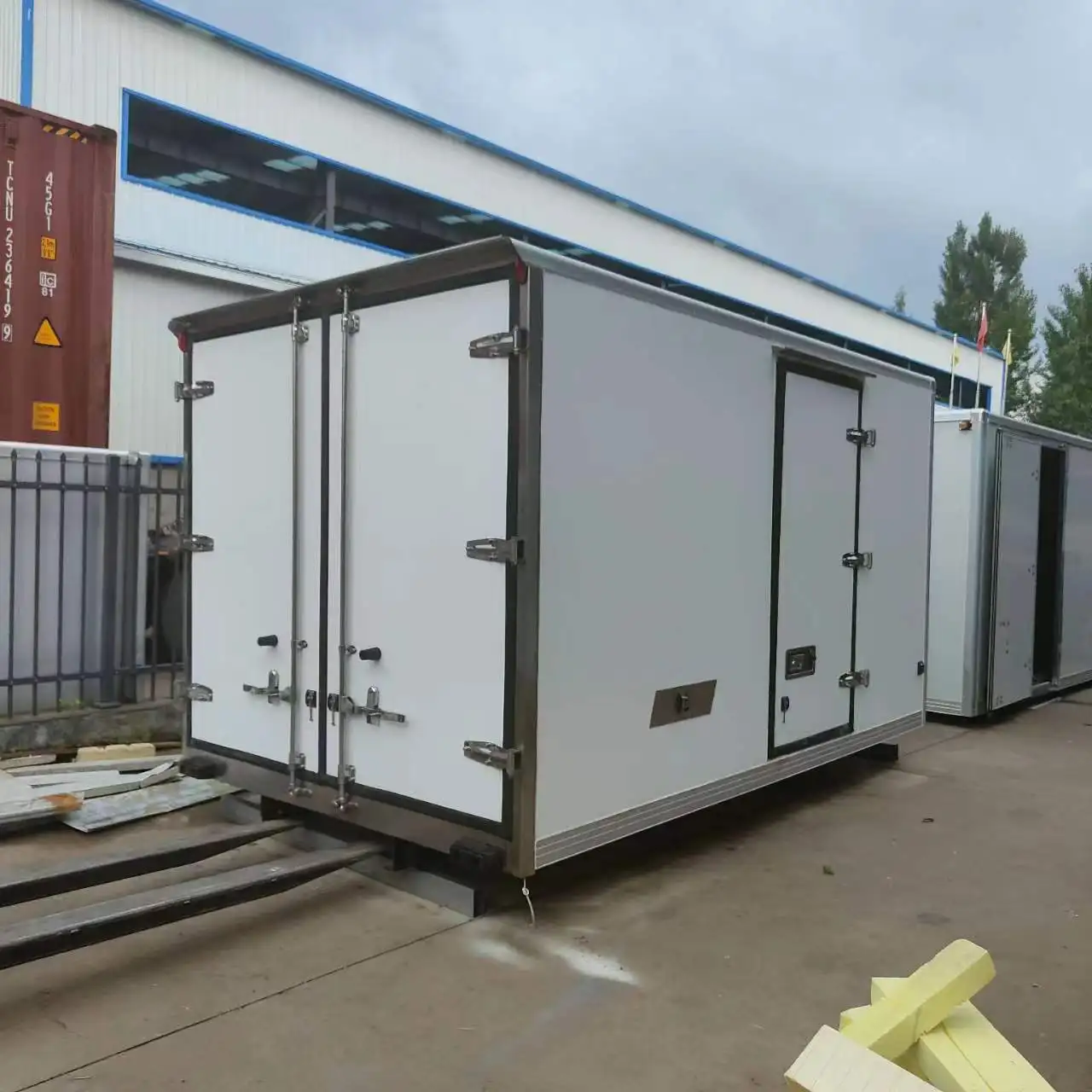

Structural Characteristics | Bodies can be supplied by MTC in CKD form and assembled quickly by customers on site. The CKD components include front wall assembly, side wall assembly, rear door assembly, roof assembly, floor assembly and connections. |
Assembly Components | 1. Fit aluminum profile in the composite panels beforehand and get front wall assembly, left and right side wall assembly. 2. Fit door panels into rear frame beforehand, fit door seals, hinges and bars , then get rear door assembly. 3. Fit roof lights and wirings in the roof beforehand and get roof assembly. 4. Fit sub frame in the floor beforehand and get floor assembly. |
On-site Installation | When reaching customers, put the floor assembly in the platform, first of all, fit the front wall assembly, fit the left and right side wall assembly, then fit rear door assembly and finally fit the roof assembly. That's how we install truck bodies. |
Shandong Carnyman Auto Tech Co, Ltd. approved by the Ministry of Industry and Information
Technology of China since 2012, is a backbone enterprise in North China to produce various truck
bodies. It is also a development and production base for refrigerated truck bodies, insulated truck
bodies, van type truck bodies, drop side cargo box bodies, trailer bodies and other special vehicle
bodies. The annual output is more than 50000 sets. At present, Carmyman Auto Tech has a
manufacturing area of 5000 square meters, with more than 50 people, including 3 senior
engineers, strong technical force, efficient R&D and production capacity, advanced production
equipment, high specialization and perfect detection means. We focus on export. We have
designed more professional packaging and transportation to reduce damage during transportation
and realize zero welding assembly of truck bodies.
Technology of China since 2012, is a backbone enterprise in North China to produce various truck
bodies. It is also a development and production base for refrigerated truck bodies, insulated truck
bodies, van type truck bodies, drop side cargo box bodies, trailer bodies and other special vehicle
bodies. The annual output is more than 50000 sets. At present, Carmyman Auto Tech has a
manufacturing area of 5000 square meters, with more than 50 people, including 3 senior
engineers, strong technical force, efficient R&D and production capacity, advanced production
equipment, high specialization and perfect detection means. We focus on export. We have

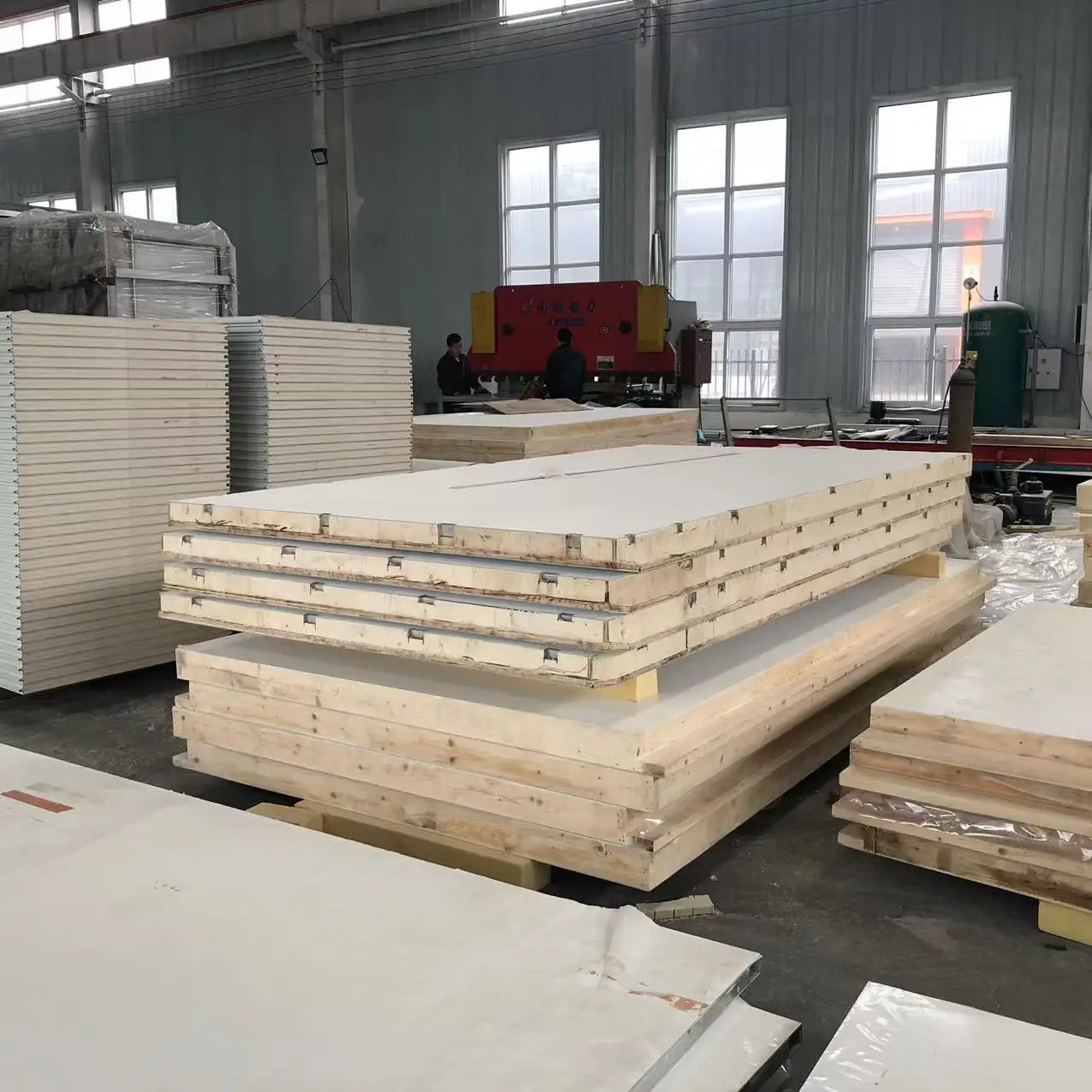

designed more professional packaging and transportation to reduce damage during transportation
and realize zero welding assembly of truck bodies.
FAQ
1. What is your terms of shipping method?

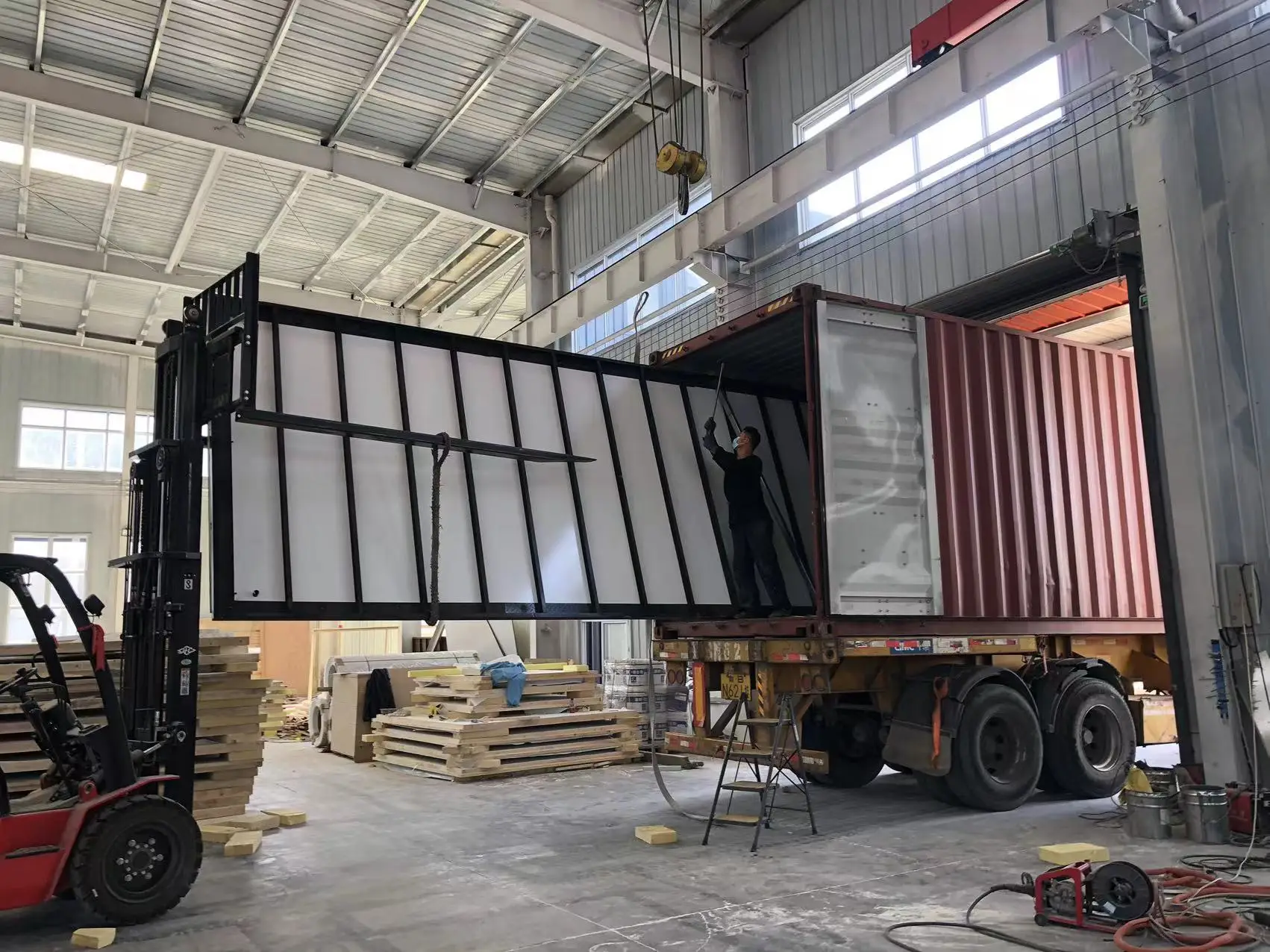

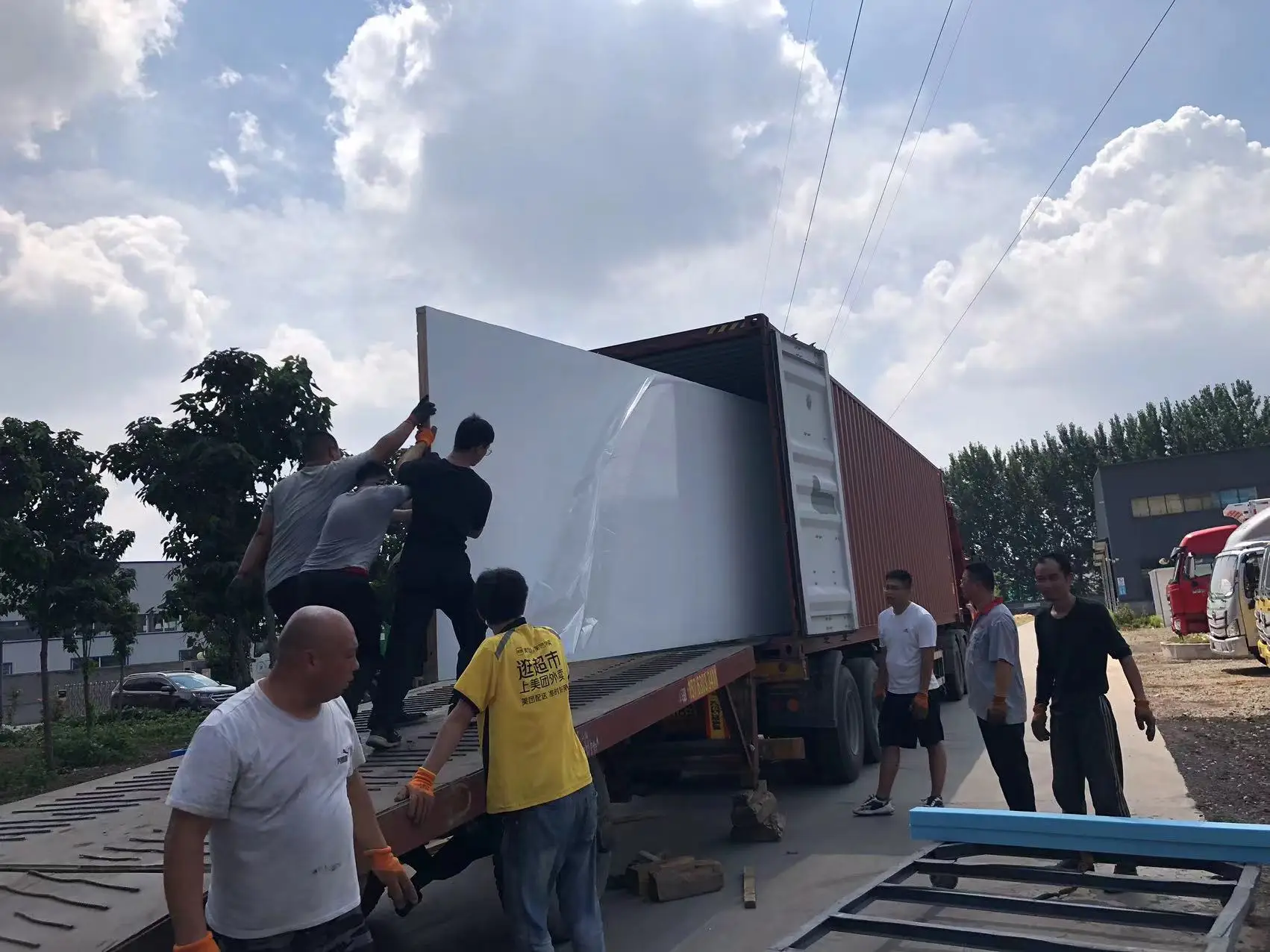

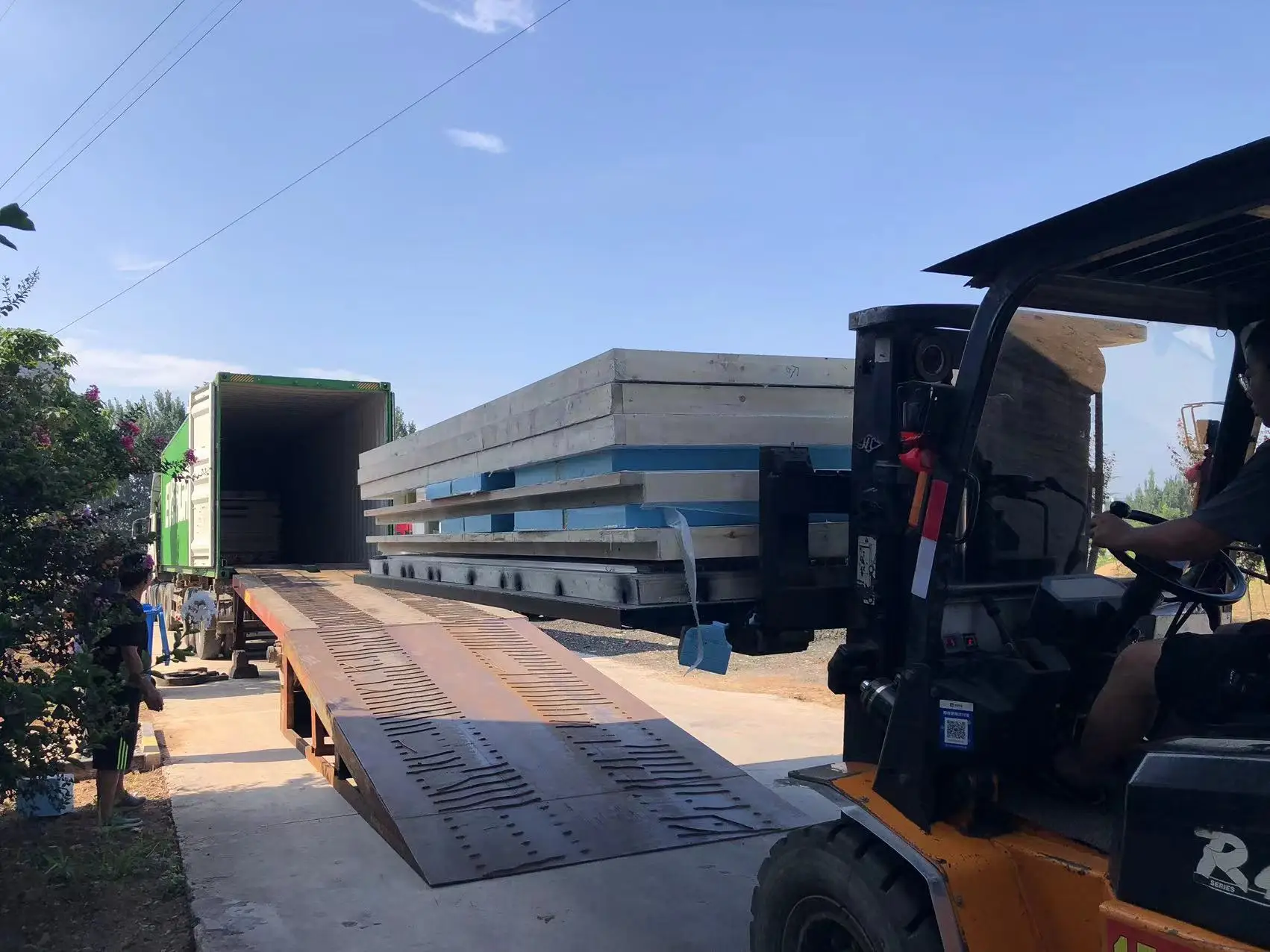

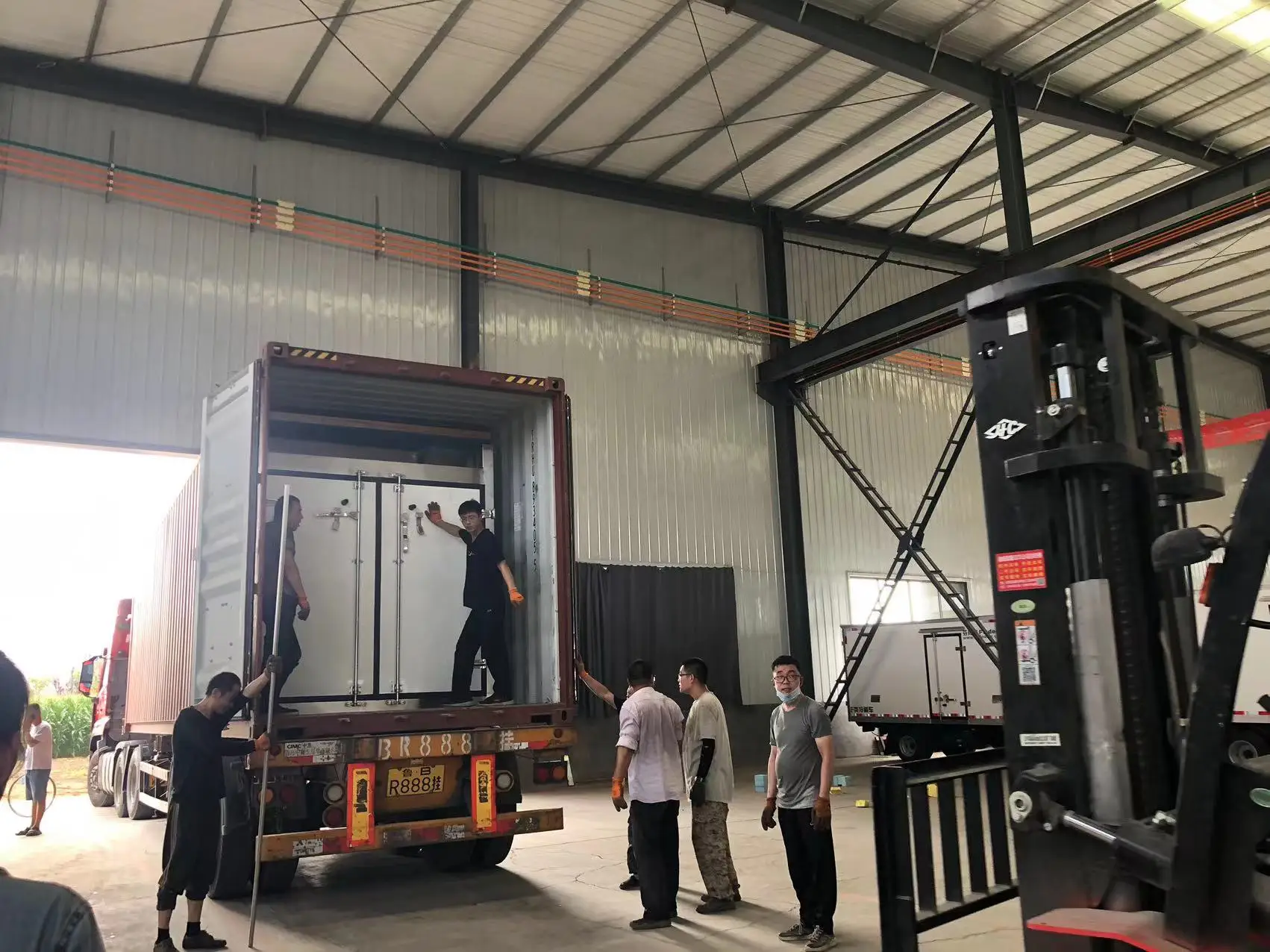

Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container too, but the it is small quantity.
2. Our truck is korea or japan brand,your truck body fit it?
Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box length, middle truck have 20-32ft length, The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ?
My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble.
4. Why should your buy from us not from other supplier?
In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment?
T/T 30% as deposit,and 70% against BL copy.
6. what is your terms of delivery?
EXW,FOB, CFR,CIF
7. How about your delivery time?
Generally, within 10 days
Generally, within 10 days
8. can you produce according to customer’s requirement?
Yes, we can produce according to the customer’s technical drawings and specifications.
