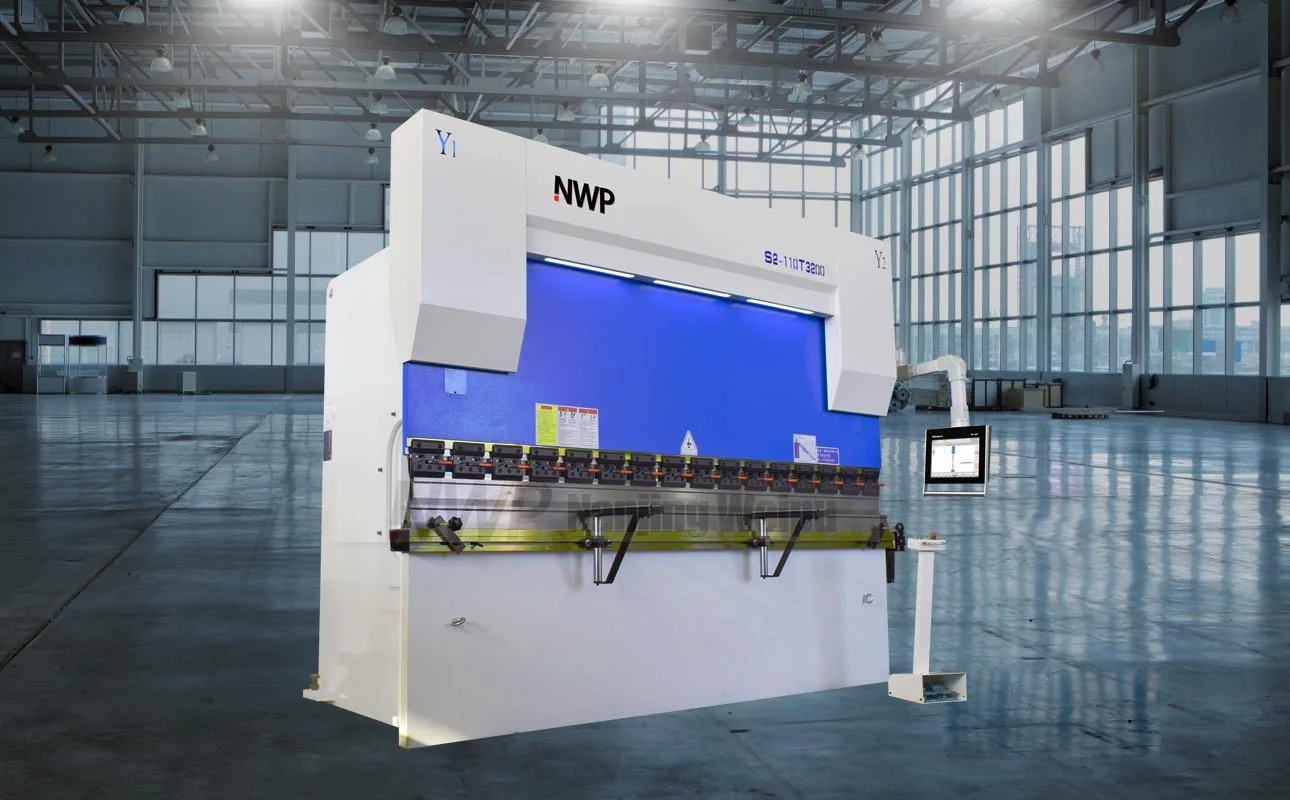

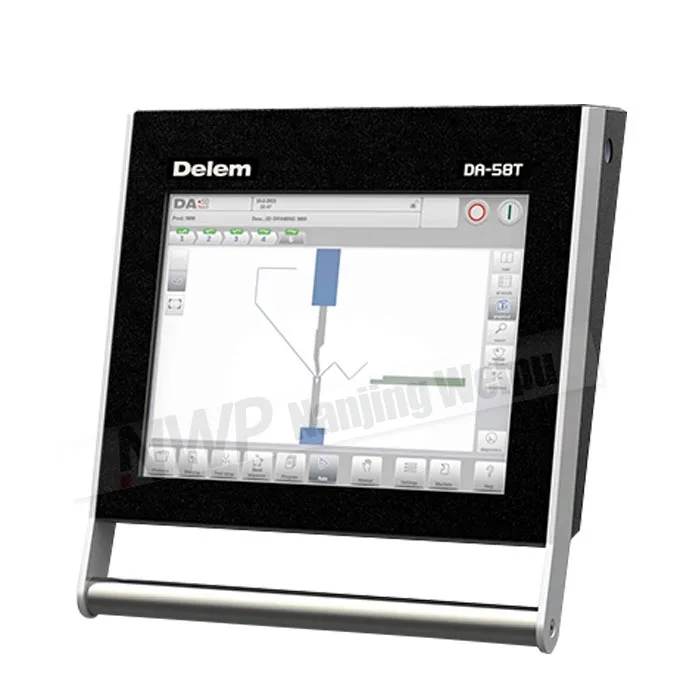

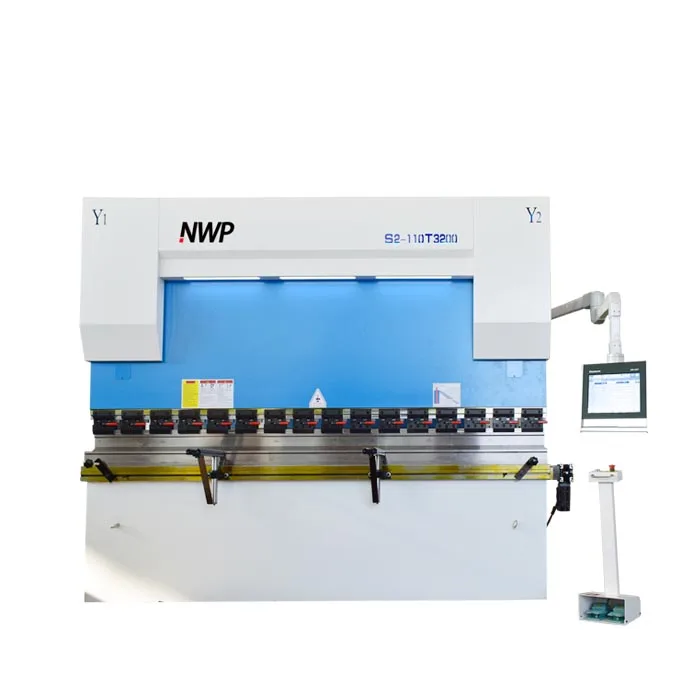

WEIPU Brand DA58T DA66T DA69T CNC Press Brake Machine 110T 3200mm Metal Hydraulic Bending Machine For Sale
- Category: >>>
- Supplier: Nanjing Weipu Machinery Equipment Co. Ltd.
Share on (1600950420158):
Product Overview
Description
The hydraulic CNC press brake uses molds (general or custom molds) to bend the metal into workpieces of various geometric shapes. It is a sheet metal forming machine widely designed for cold-rolled sheet metal machining. Applied in automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other metal plate bending industry. With different CNC systems can complete the processing of a variety of program workpieces, high precision back gear to ensure the accuracy of bending.
1. High bending accuracy, fast working speed, high efficiency, safe operation and stable performance.
2. Good explosion-proof frame (welded steel plate structure), the whole frame after tempering, reduce deformation, using a large CNC milling machine, once processed, to ensure high precision.
3. Use international branded parts and CNC systems.
4. The operating system is intuitive, convenient to operate, convenient, multi-functional and practical.
5. All the parts are produced by the CNC production center according to the standard drawings.
6. High execution, high standard, high professional mechanical assembly team.
7. Power protection design, with light curtain protection, open door power off function, safer operation.
8. Fashionable appearance, delicate and beautiful, compact machine design, small area, easy to operate.
9. Provide comprehensive bending procedures for all users of pressing and cutting machines.
10. Reconfigurable workbench and upper and lower mounds, without welding, forging, and precision grinding.
11. Tighten the slider and the vertical plate to ensure the stability of the machine tool and reduce the flexibility.
12. Reasonable layout of the oil pipeline design, to prevent the oil temperature from rising rapidly.
1. High bending accuracy, fast working speed, high efficiency, safe operation and stable performance.
2. Good explosion-proof frame (welded steel plate structure), the whole frame after tempering, reduce deformation, using a large CNC milling machine, once processed, to ensure high precision.
3. Use international branded parts and CNC systems.
4. The operating system is intuitive, convenient to operate, convenient, multi-functional and practical.
5. All the parts are produced by the CNC production center according to the standard drawings.
6. High execution, high standard, high professional mechanical assembly team.
7. Power protection design, with light curtain protection, open door power off function, safer operation.
8. Fashionable appearance, delicate and beautiful, compact machine design, small area, easy to operate.
9. Provide comprehensive bending procedures for all users of pressing and cutting machines.
10. Reconfigurable workbench and upper and lower mounds, without welding, forging, and precision grinding.
11. Tighten the slider and the vertical plate to ensure the stability of the machine tool and reduce the flexibility.
12. Reasonable layout of the oil pipeline design, to prevent the oil temperature from rising rapidly.
Recommend Products
Products Description
● The body has a streamlined design in the European Union, a heat treatment process processing frame, a high-rigidity worktable, and optional mechanical compensation devices to achieve precise bending.

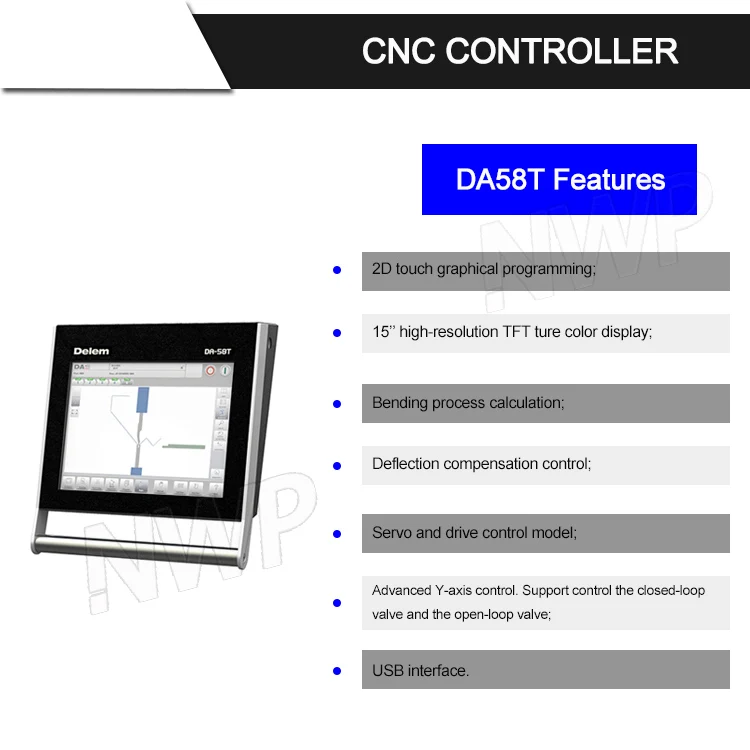

● The hydraulic proportional valve synchronous control and CNC control system programmable logic controller ensure precise repeatability and ease of use.

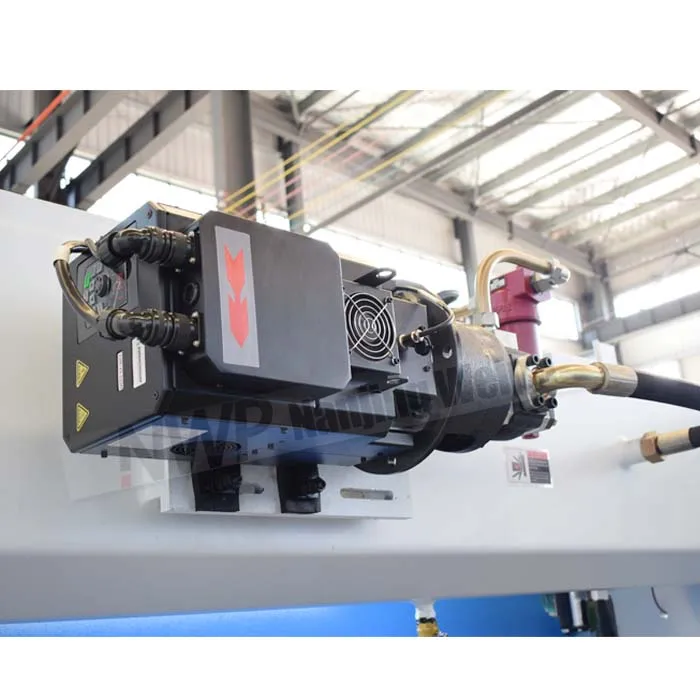

● The integrated hydraulic system (Bosch Rexroth, Germany) can switch between fast automatic and slow bending.
● The X axis and Y axis are programmed by the controller and controlled by the servo motor to achieve precise positioning.
● Advanced frequency conversion hydraulic control technology makes the operation more stable and reliable.

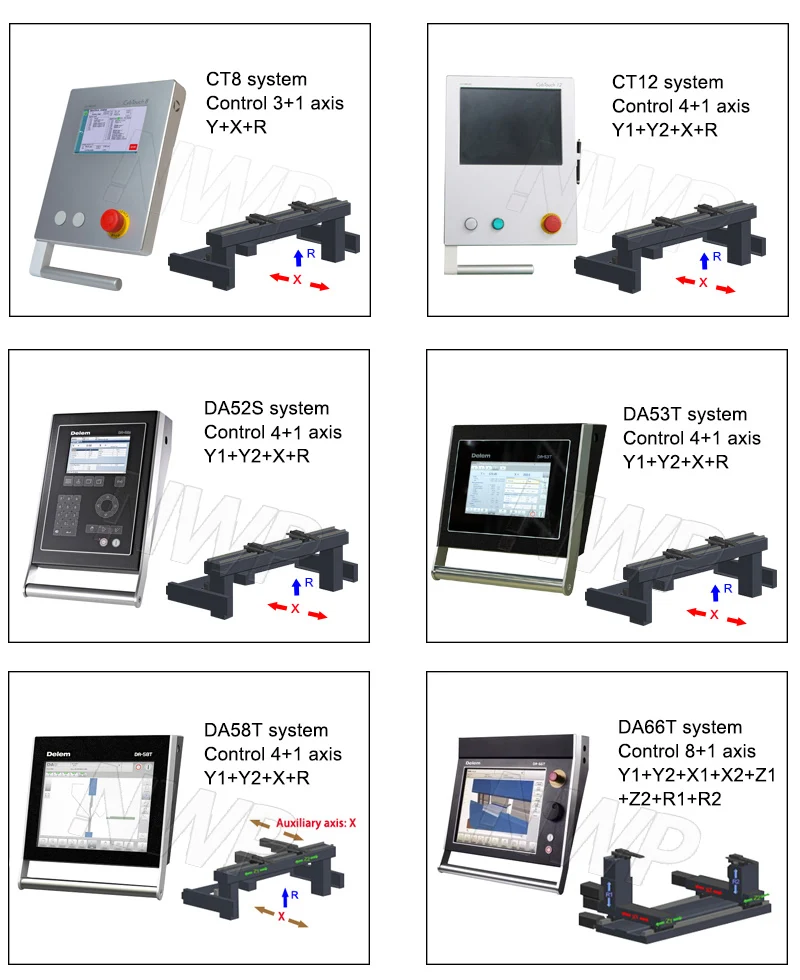

● WE67K series CNC press brake machine comes standard with single-axis back gauge system (X axis) and single-axis bending angle system (Y1+Y2 axis), the back gear (R axis) can control up and down movement, and the finger can move left and right (Z1, Z2 axis) can choose to add the V axis compensation function, and select the appropriate mold, easily bend the workpiece with complex shape.

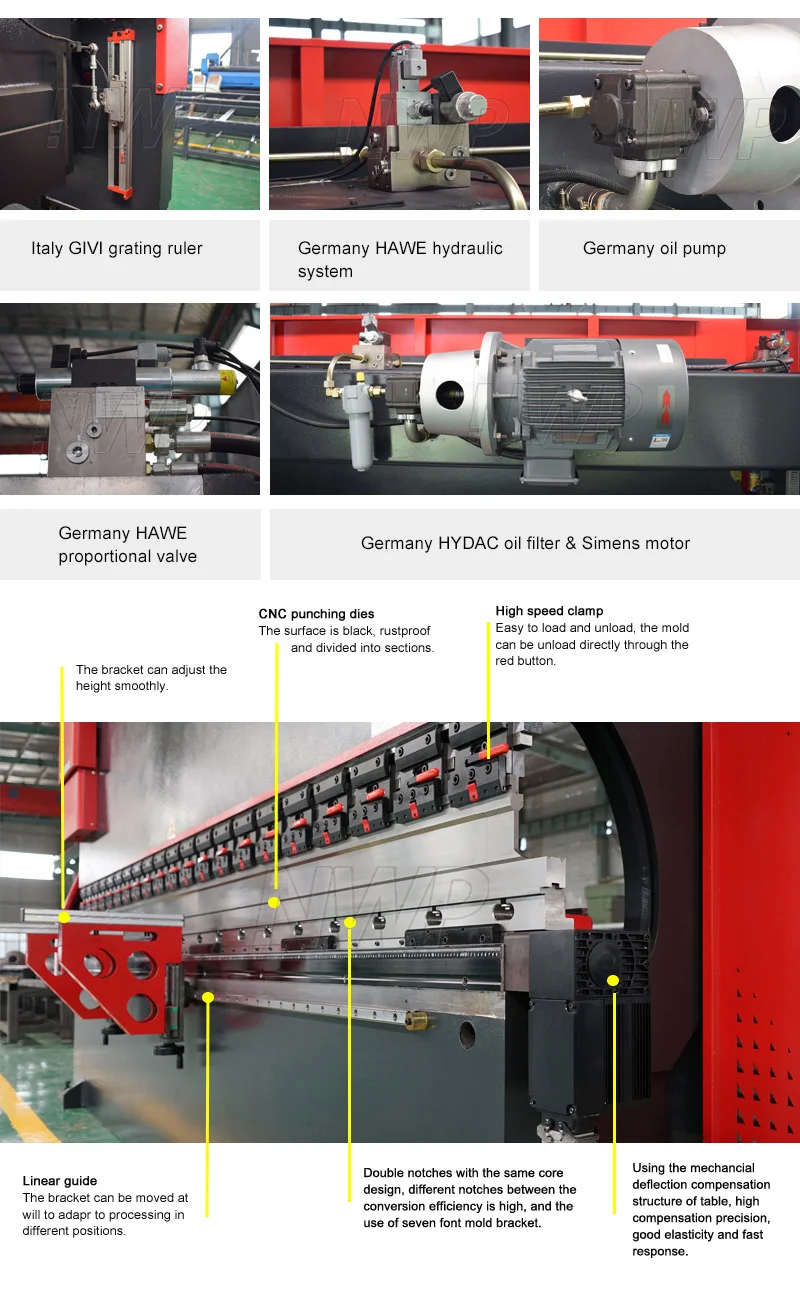

Main Configuration
● Using HIWIN ball screw and linear guide, the accuracy is 0.01mm;
● The front support bracket can be adjusted up and down;
● German Hawe proportional valve;
● Italian GIVI grating ruler;
● German Bosch Rexroth hydraulic valve block;
● German EMB oil pipe joint;
● German Siemens main motor / servo motor;
● USA SUNNY oil pump；
● Schneider Electric of France;
● Laser protection device;
● Schneider Electric of France;
● Laser protection device;
● Quick clamps;
● Hydraulic and electrical overload protection;
● Optional mechanical compensation device;
● Double V mold (material: 42CrMo/Cr12MoV).
● Hydraulic and electrical overload protection;
● Optional mechanical compensation device;
● Double V mold (material: 42CrMo/Cr12MoV).
Product Display

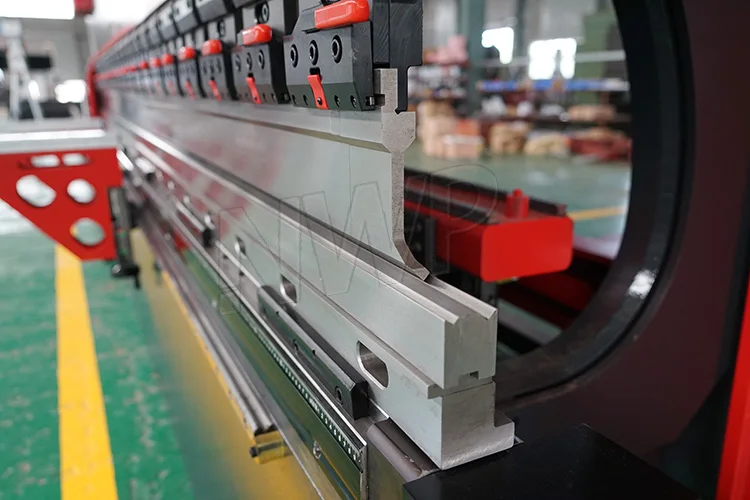

Punching dies

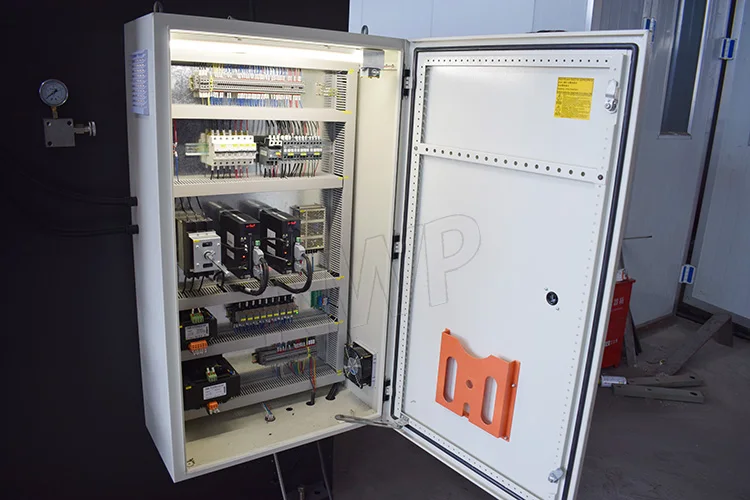

Schneider Electric

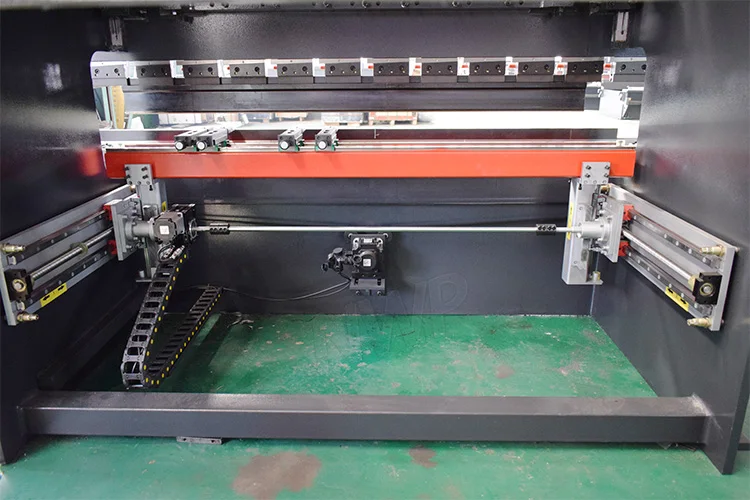

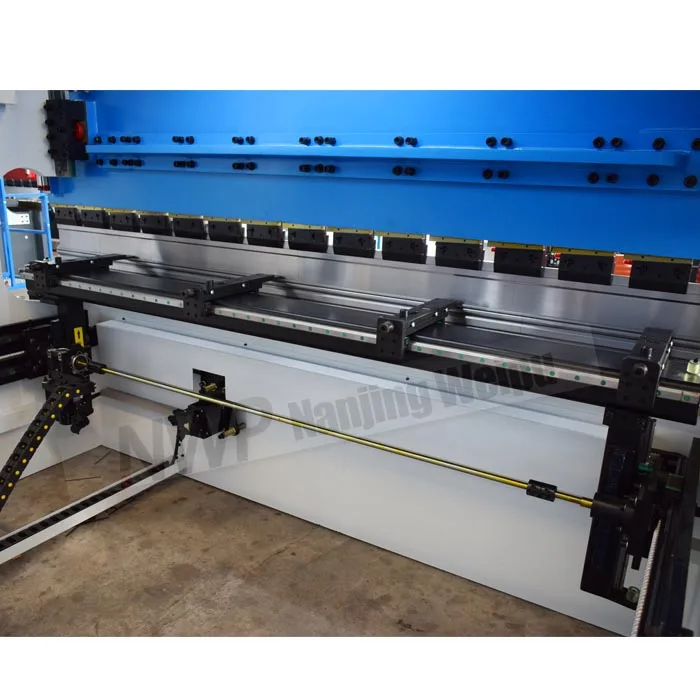

Back gear control
The back gear supports X-axis + R-axis control, and optional table compensation (V-axis).
Adopting high-precision ball screw and linear guide to reduce positioning error. The rear gear adopts a servo motor to ensure accurate positioning.

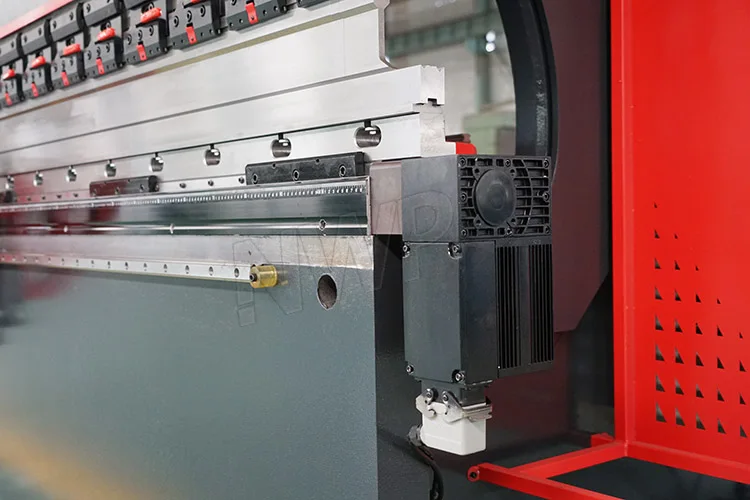

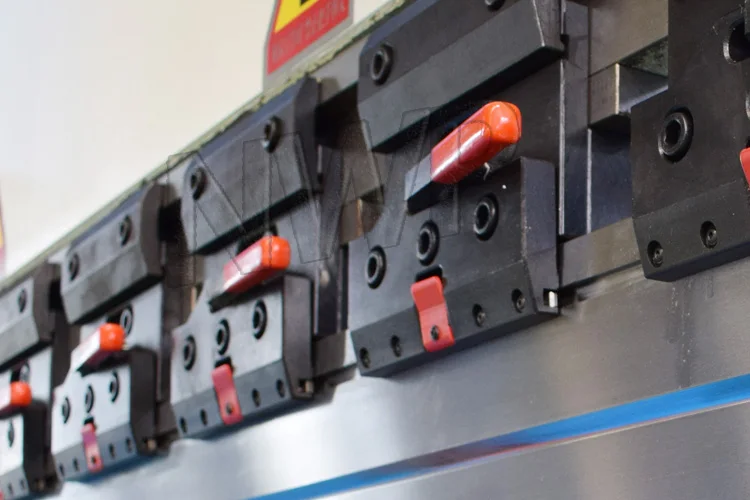

Quick Clamp

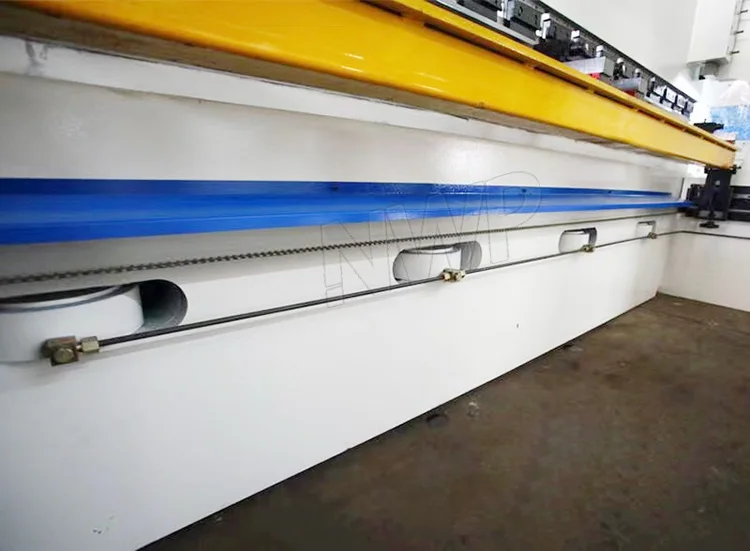

Mechanical workbench compensation (standard)
Mechanical deflection compensation has long-lasting stability, reduces the maintenance frequency of hydraulic compensation (such as oil leakage), and is maintenance-free during the life of the machine tool.

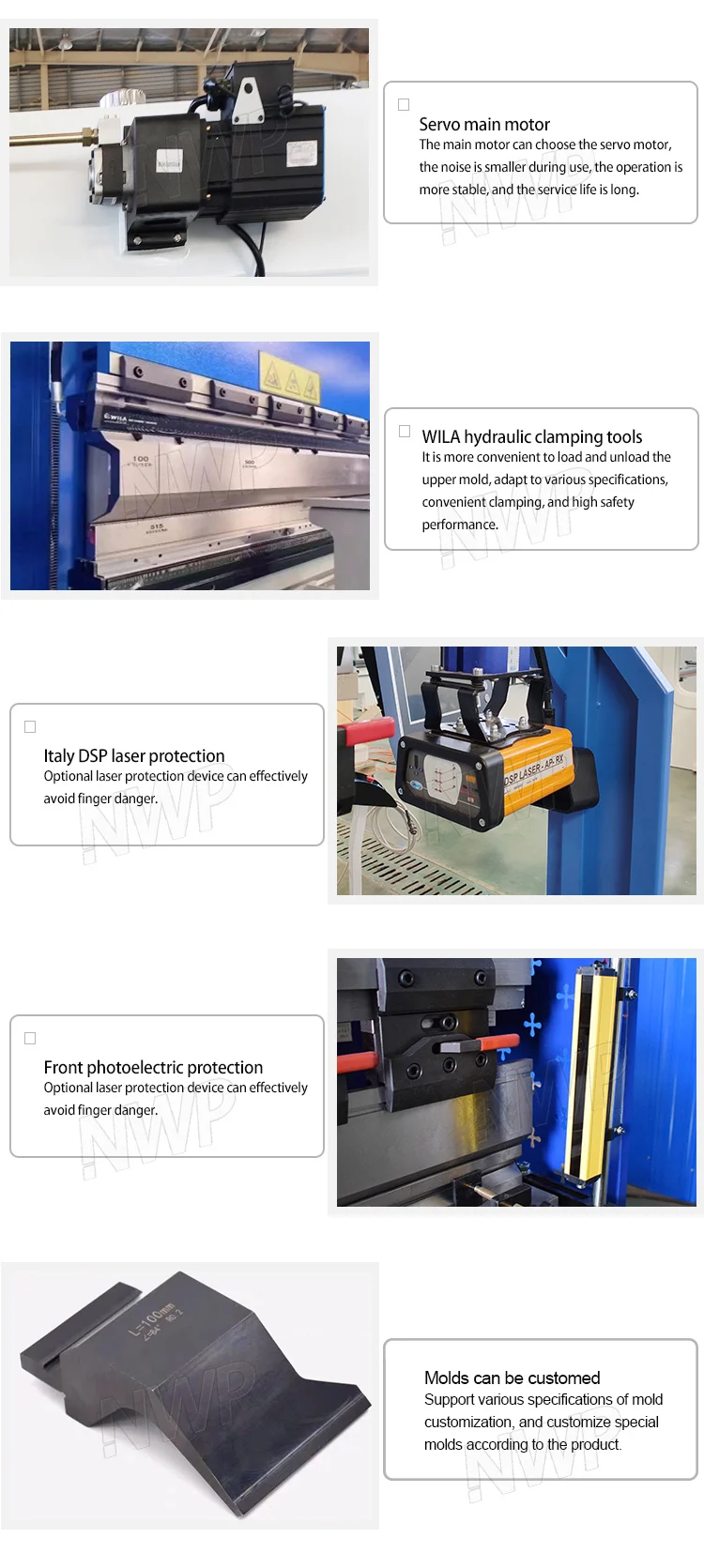

Optional device

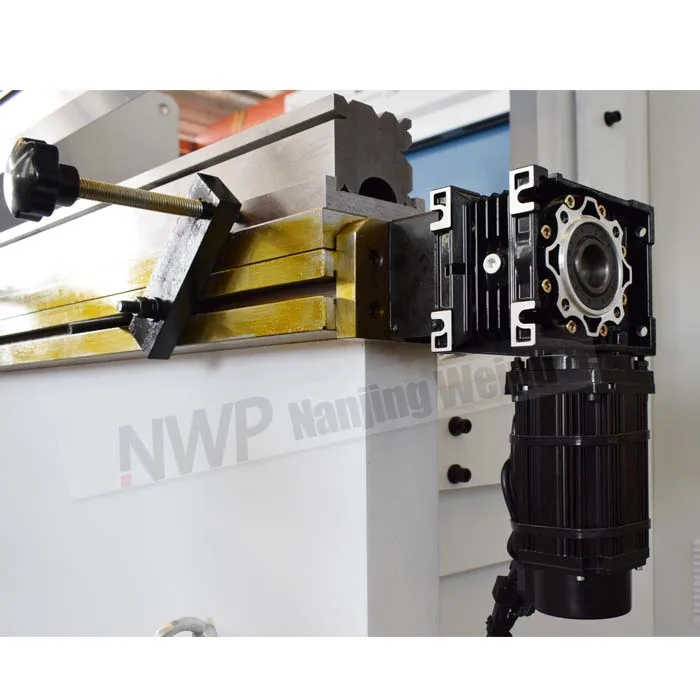

Hydraulic workbench compensation (optional)
Hydraulic compensation uses a small oil cylinder to compensate the worktable, while mechanical compensation uses a wedge block to compensate the worktable. The oblique wedge can be divided into a single oblique wedge and multiple sets of oblique wedges. The mechanical compensation composed of multiple sets of oblique wedges has more compensation points than the 3 compensation points of ordinary hydraulic compensation, there is no compensation blind zone, the precision of the folded workpiece is high, and the difference between each processing plate is small, which is suitable for mass production.
Company Profile
Nanjing Weipu Machinery Equipment Co., Ltd. is a professional R&D and sales machines company. The company is located in Lishui District, Nanjing City, Jiangsu Province, China, about 10 kilometers away from Lukou Airport. The transportation is convenient, and it is convenient for domestic and foreign customers to visit our company.
Our company manufacture hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds and duct making machines. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Our company manufacture hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds and duct making machines. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Exhibition

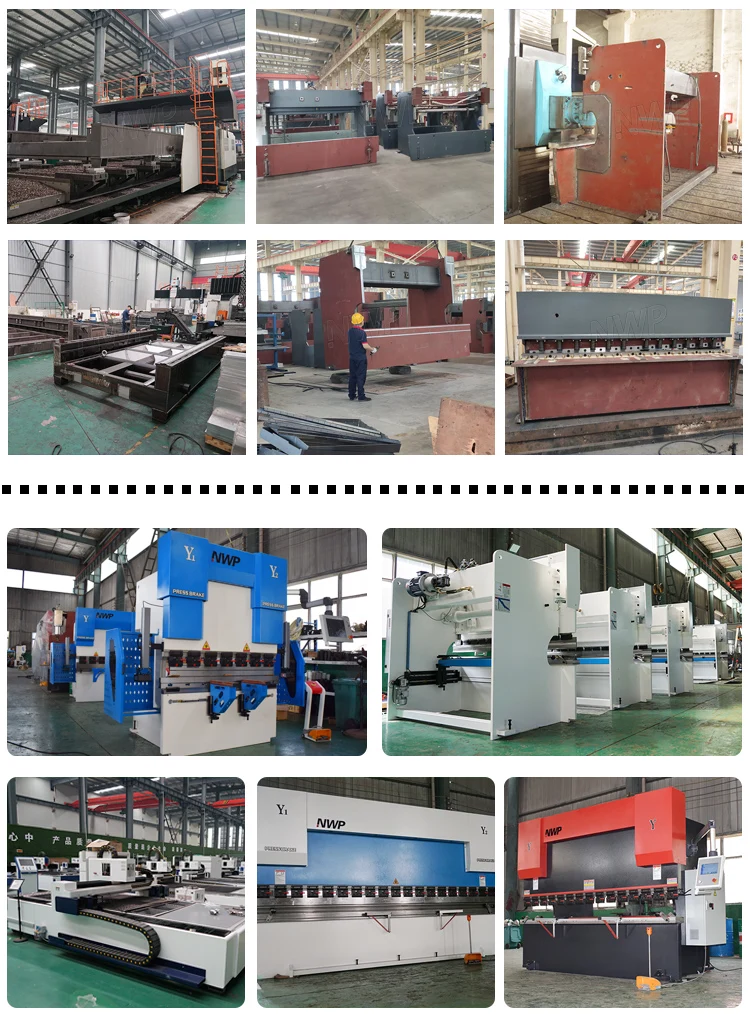

Workshop
Payment Delivery
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a experience after-sales team to do the service, include oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a experience after-sales team to do the service, include oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
