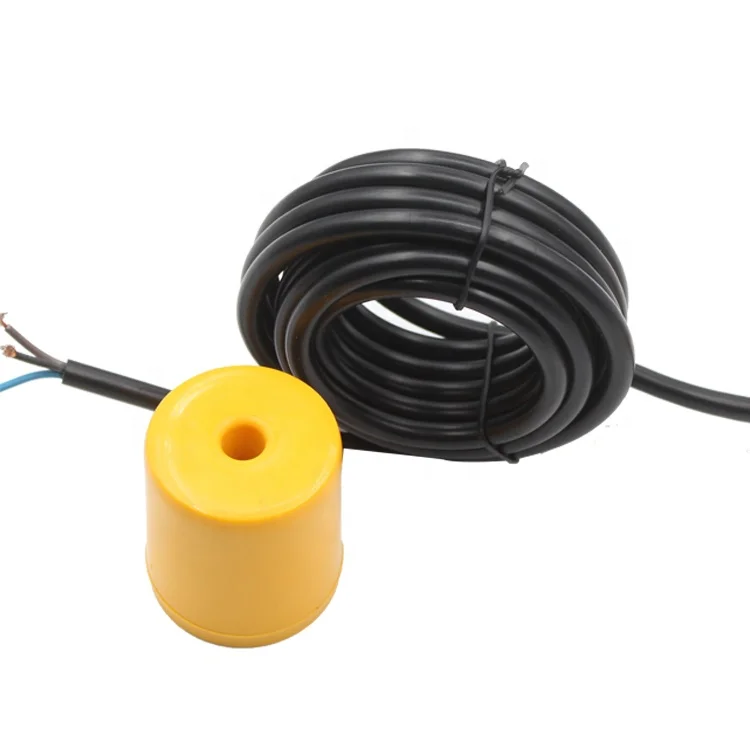

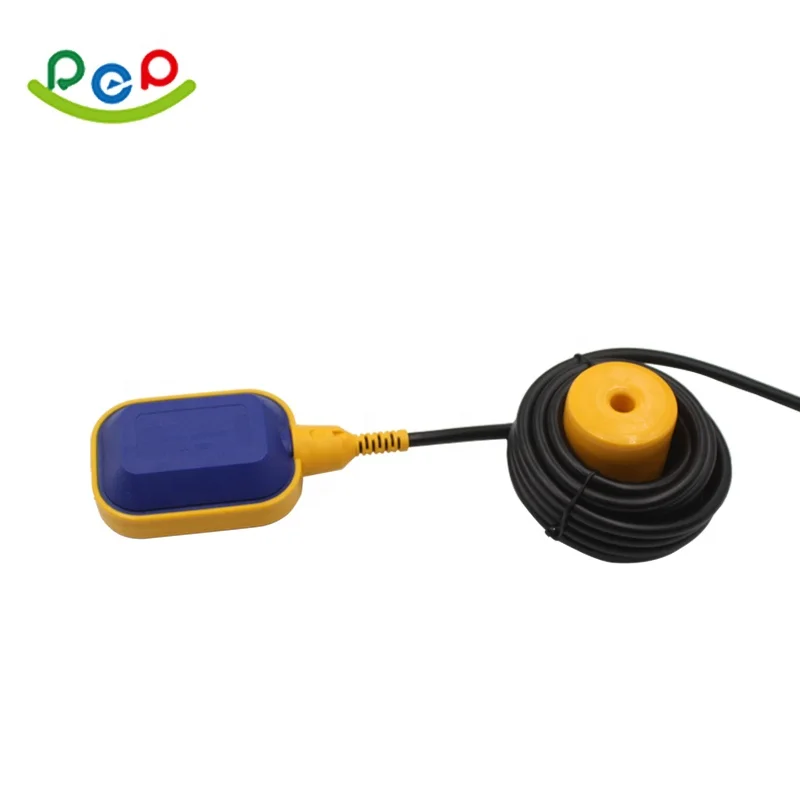

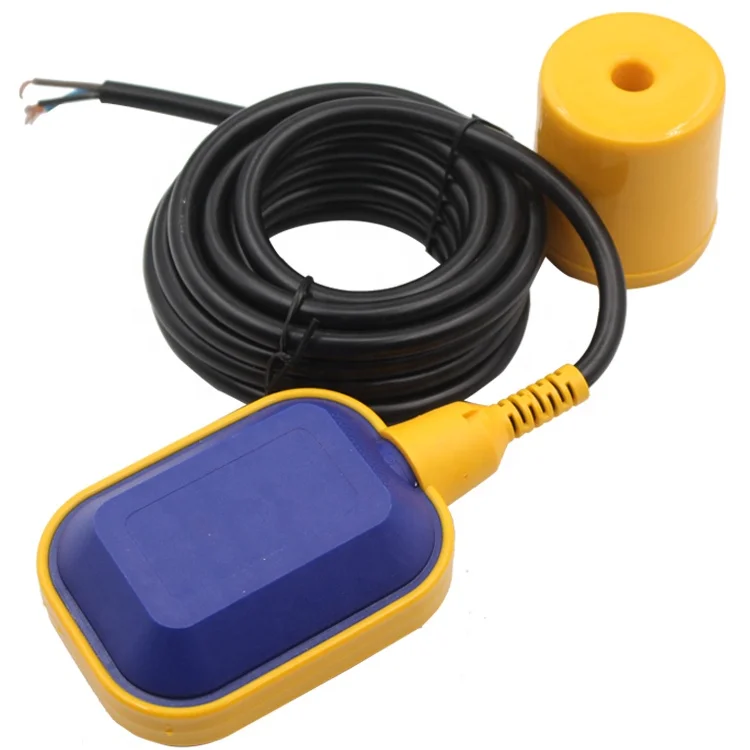

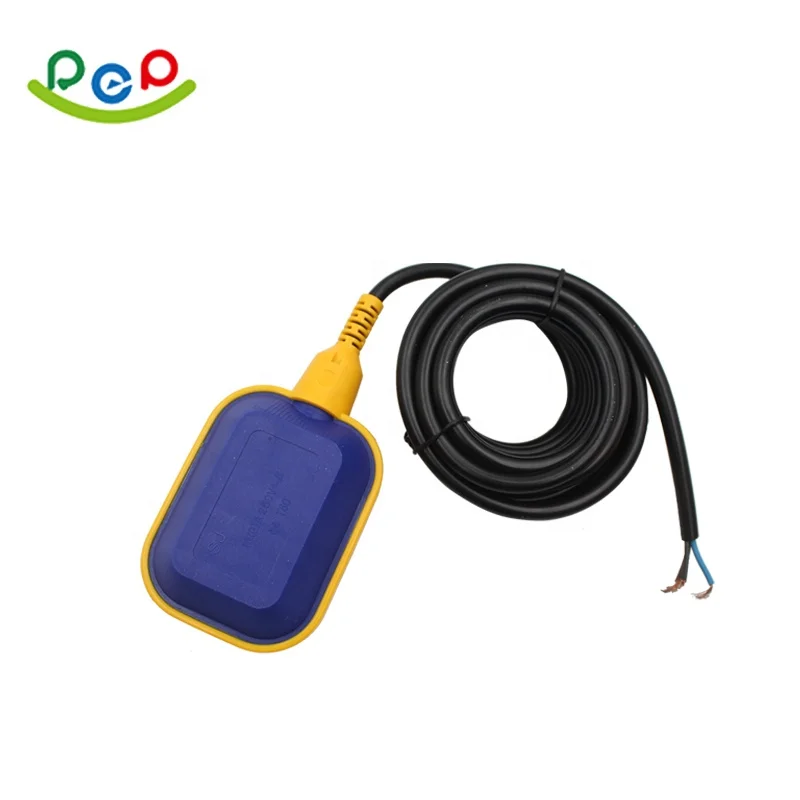

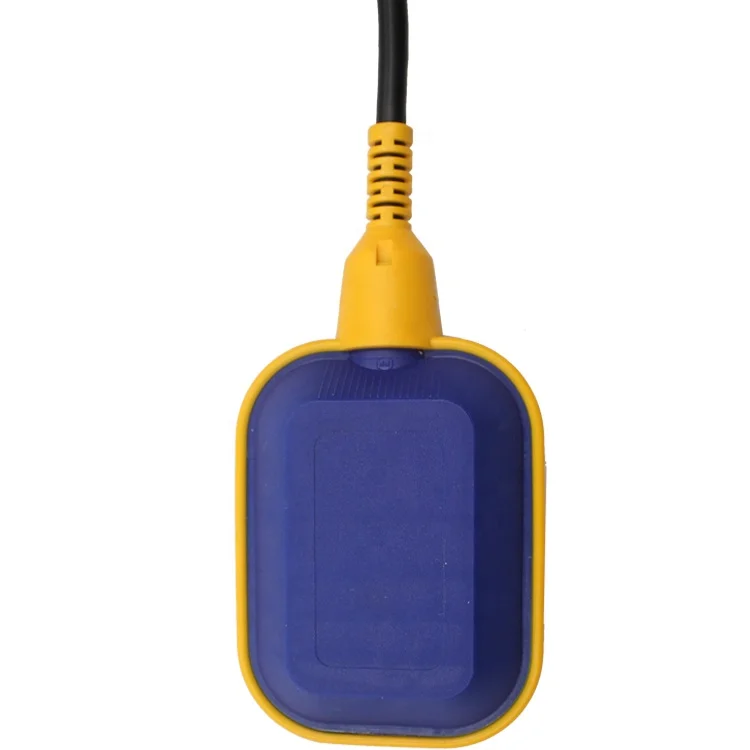

Cable Float Level Switch mechanical Float Switch Water Tank Fuel Level Sensors with long cable
- Category: >>>
- Supplier: Dongguan RGP Industrial Electrical Co. Ltd.
Share on (1600950438540):
Product Overview
Description
Product Name
Cable Float Level Switch mechanical Float Switch Water Tank Fuel Level Sensors with long cable
Product Description
Principle
Simple principle, stable and reliable performance, long working life.
Multi-point and remote control can be realized simply and conveniently according to the needs.
The reed switch and wire are completely isolated from the measured medium, and can be used reliably under high temperature and high pressure.
Multi-point and remote control can be realized simply and conveniently according to the needs.
The reed switch and wire are completely isolated from the measured medium, and can be used reliably under high temperature and high pressure.
Customization
A variety of materials: SUS, PP, PVC, PVDF, etc., a variety of installation methods: flange, thread, etc., can meet the different needs of various environments.
Wide range of applications: water treatment, food, medicine, chemical, electronics, shipbuilding, textile, hydraulic and other industries can be applied.
Wide range of applications: water treatment, food, medicine, chemical, electronics, shipbuilding, textile, hydraulic and other industries can be applied.
Installation Notes
1. The installation position should be far away from the water inlet, otherwise the switch will cause malfunction due to the fluctuation of the water inlet.
2. The load of the controlled line must match the contact capacity of the float switch.
3. The specific gravity of the liquid to be tested must be greater than that of the float.
4. The action point of the float has been adjusted at the factory according to the customer's order requirements, please do not adjust the position of the float at will.
2. The load of the controlled line must match the contact capacity of the float switch.
3. The specific gravity of the liquid to be tested must be greater than that of the float.
4. The action point of the float has been adjusted at the factory according to the customer's order requirements, please do not adjust the position of the float at will.
Instructions
1. When the float switch is used in circuits with inductive loads such as motors, relays, solenoid coils, etc.,it is recommended to connect protection circuits such as RC (buffer), varistor, diode, etc. in parallel at both ends of the load.
2. When the float switch is used in capacitive loads such as capacitors, incandescent light bulbs, and long cables, a surge current will be generated between the contacts of the switch; flow resistors or surge absorbers, etc.
Notice: Do not connect the float switch directly to the solenoid valve, motor or solenoid switch
Notice: Do not connect the float switch directly to the solenoid valve, motor or solenoid switch
Ordering information
1. From the outer hexagonal plane to the bottom of the float switch is the total length of the switch.
2. When measuring the distance between the two circlips and the size of the floating ball, if there are multiple floating balls, the distance between the floating ball and the floating ball should be measured.
3. According to the wiring method and the need to control the water level, the number of outgoing wires, the length of the wire, the material of the wire, the position of the floating ball on and off, the required voltage and current, whether the electric shock form is normally open or normally closed, the temperature range, etc. should be marked.
2. When measuring the distance between the two circlips and the size of the floating ball, if there are multiple floating balls, the distance between the floating ball and the floating ball should be measured.
3. According to the wiring method and the need to control the water level, the number of outgoing wires, the length of the wire, the material of the wire, the position of the floating ball on and off, the required voltage and current, whether the electric shock form is normally open or normally closed, the temperature range, etc. should be marked.

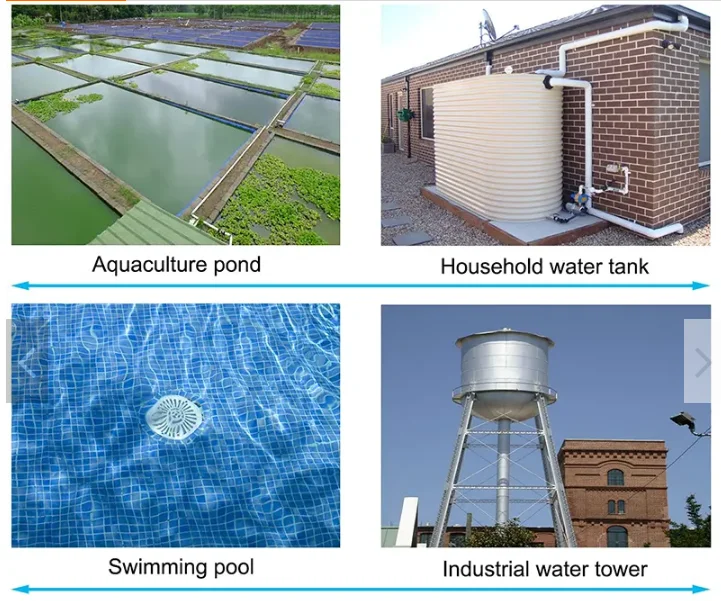

Product Application

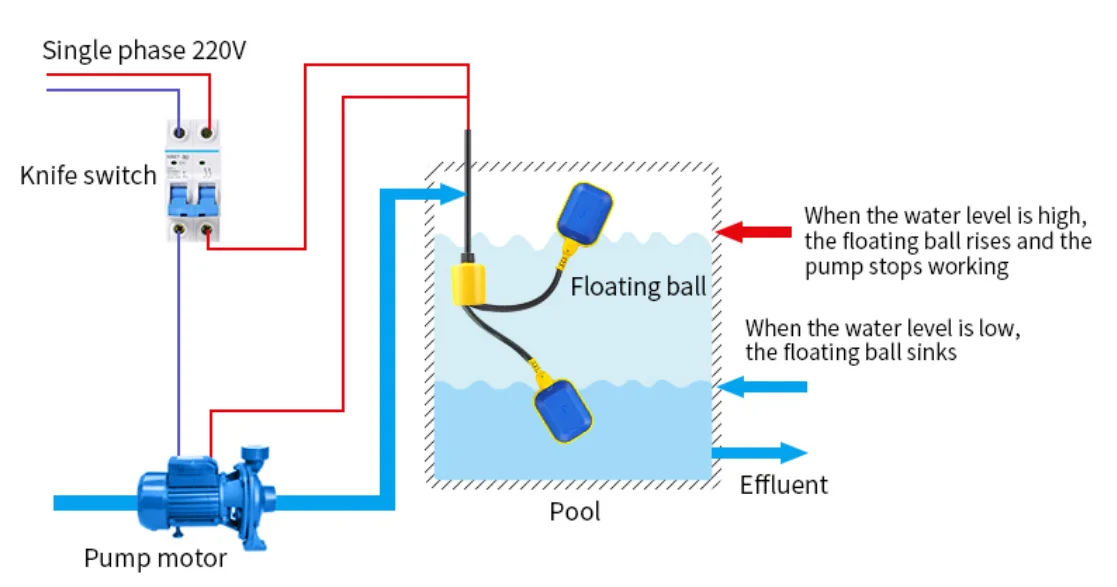

Working Principle
Specification
Item | Value |
Model Number | CLF-04 |
Type | Reed switch |
Place of Origin | China |
Guangdong | |
Brand Name | RGP |
Usage | Liquid Level Sensor |
Theory | mechanical switch |
Output | Switch output |
Description | water level float switch |
Material | PP Plastic |
Output signal | Switching Signal |
Theory | mechanical Switch |
Application | Equipment liquid level control system |
Packing & Delivery
pp bag and carton for Flow Switch
